6-84 — BACK TRIM (#68365) — 9 parça

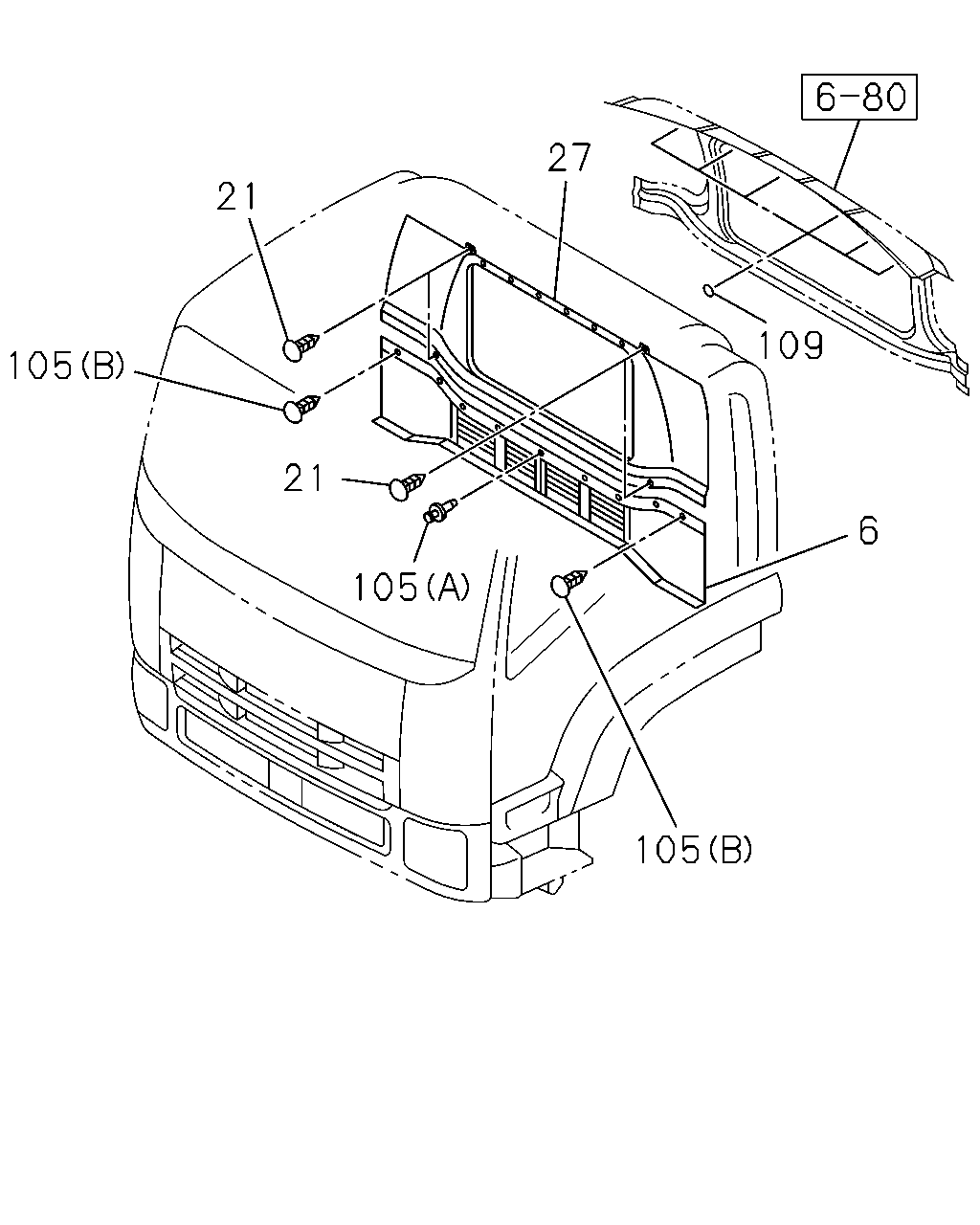

çizim 131863
27 21 109 105 21 6 105 105
BalonParca AdiParca NoAdetTipApplied Date A B
6 MAT; SILENCER,CAB BACK
THA 		8-97923-850-1 01 1 0806- ● ●
21 RETAINER; TRIM,BED ROOM
GRAY 		8-97407-467-0 04 1 0806-1003 ● ●
21 RETAINER; TRIM,BED ROOM
INTERIOR FULL TRIM<WM3> GRAY 		8-97407-467-0 04 1 1004-1101 ● ●
27 COVER; TRIM,BACK
DARK GRAY 		8-97407-464-2 01 1 0806-1003 ● ●
27 COVER; TRIM,BACK
INTERIOR FULL TRIM<WM3> DARK GRAY 		8-97407-464-2 01 1 1004-1101 ● ●
105 CLIP; BACK TRIM
(A) GRAY 		8-97408-022-0 07 1 0806- ● ●
105 CLIP; BACK TRIM
(B) GRAY 		8-97407-467-0 02 1 0806- ● ●
109 SEAL; HOLE
EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 1004-1101 ● ●
109 SEAL; HOLE
OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 1102- ● ●
