Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11136 - FXZ/GXZ(THAI)EURO3
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

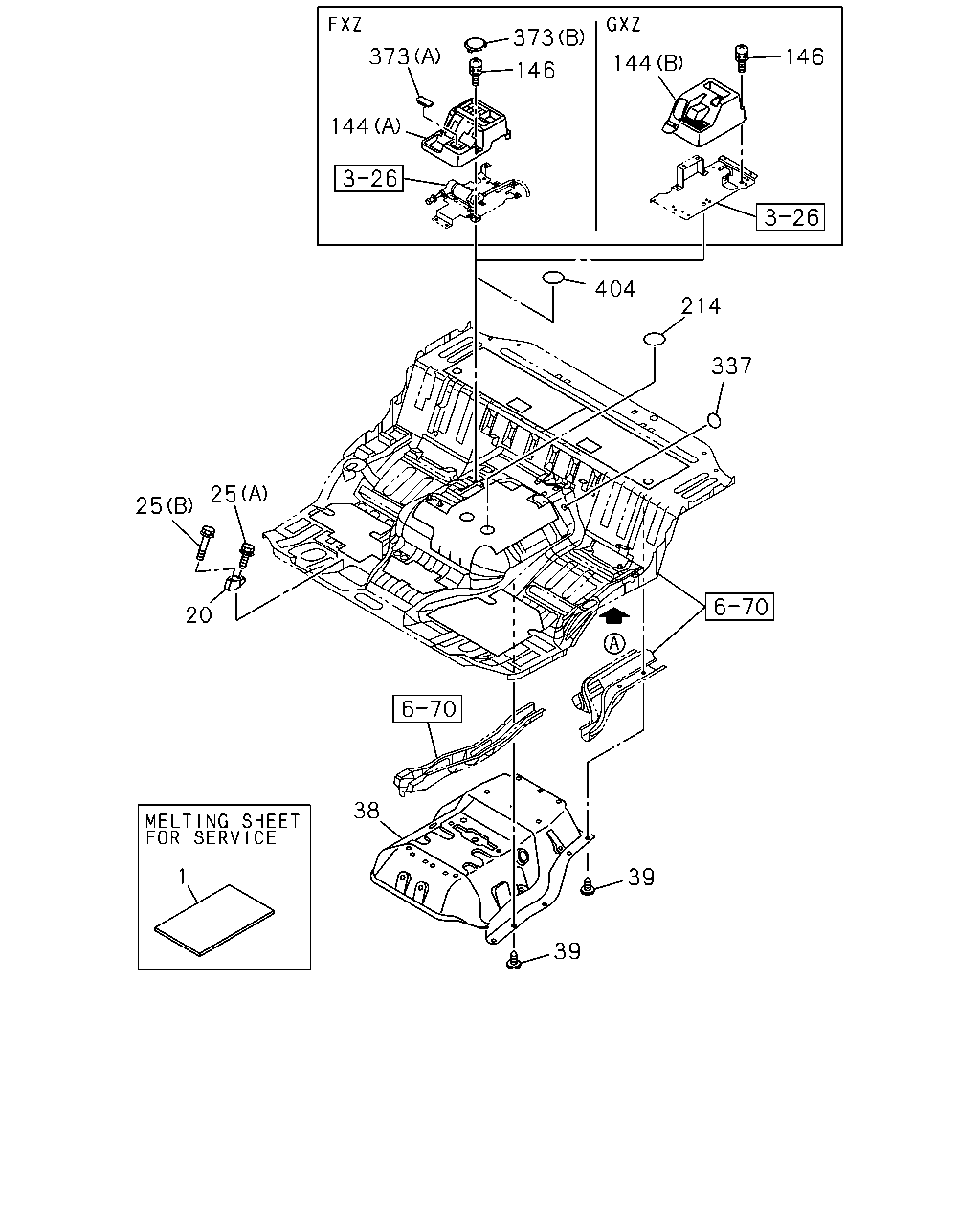

6-76 — FLOOR EQUIPMENT AND SEALING
(#68361) — 20 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀
[676A] NO.1 (18 parça)
[676A] NO.2 (2 parça)
▶
373
373
146
144
146
144
404
214
337
25
25
20
38
1
39
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY THA
8-94262-093-0
AR
1
0806-
●
●
20
REST; FOOT
8-98058-150-0
01
1
0806-
●
●
25
SCREW; FOOT REST
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
0806-
●
●
25
SCREW; FOOT REST
(B) M6X47
8-94407-876-1
01
1
0806-
●
●
38
INSULATOR; ENG COVER
THA
8-97924-381-1
01
1
0806-1405
●
●
38
INSULATOR; ENG COVER
THA
8-98285-270-0
01
1
1406-
●
●
39
CLIP; INSULATOR,COVER
ID=6.2 L=11.4 THA
8-97808-623-0
26
1
0806-
●
●
144
COVER; HAND BRK VLV
(A) GRAY
8-97407-974-0
01
1
1102-
●
144
COVER; HAND BRK VLV
(B) THA
8-97925-580-1
01
1
1202-
●
144
COVER; HAND BRK VLV
(A) GRAY
8-97414-752-0
01
1
0806-1101
●
144
COVER; HAND BRK VLV
(B) GRAY
8-97409-900-0
01
1
0806-1201
●
146
BOLT; COVER BRKT
M6X16
0-38050-616-0
04
1
0806-
●
146
BOLT; COVER BRKT
M6X16
0-38050-616-0
03
1
0806-
●
214
SEAL; HOLE COVER
OD=25 BLACK THA
1-76798-019-0
02
1
0806-
●
●
337
SEAL; CLIP HOLE
OD=25 BLACK THA
1-76798-019-0
06
1
0806-
●
●
373
COVER; HOLE
(B) GRAY
8-97407-951-0
04
1
0806-
●
373
COVER; HOLE
(A) GRAY
8-97409-339-0
01
1
0806-
●
404
SEAL; FLOOR,HOLE
EXC. CENTER SEAT DELETE<SP9> OD=25 BLACK THA
1-76798-019-0
02
1
0806-
●
●
370
370
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
370
SEAL; LOCATION HOLE
OD=30 T=1.0
8-98051-161-0
08
1
0806-1211
●
●
370
SEAL; LOCATION HOLE
OD=30 T=0.8
8-98230-420-0
08
1
1212-
●
●
