◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11136 - FXZ/GXZ(THAI)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#68360) — 12 parça

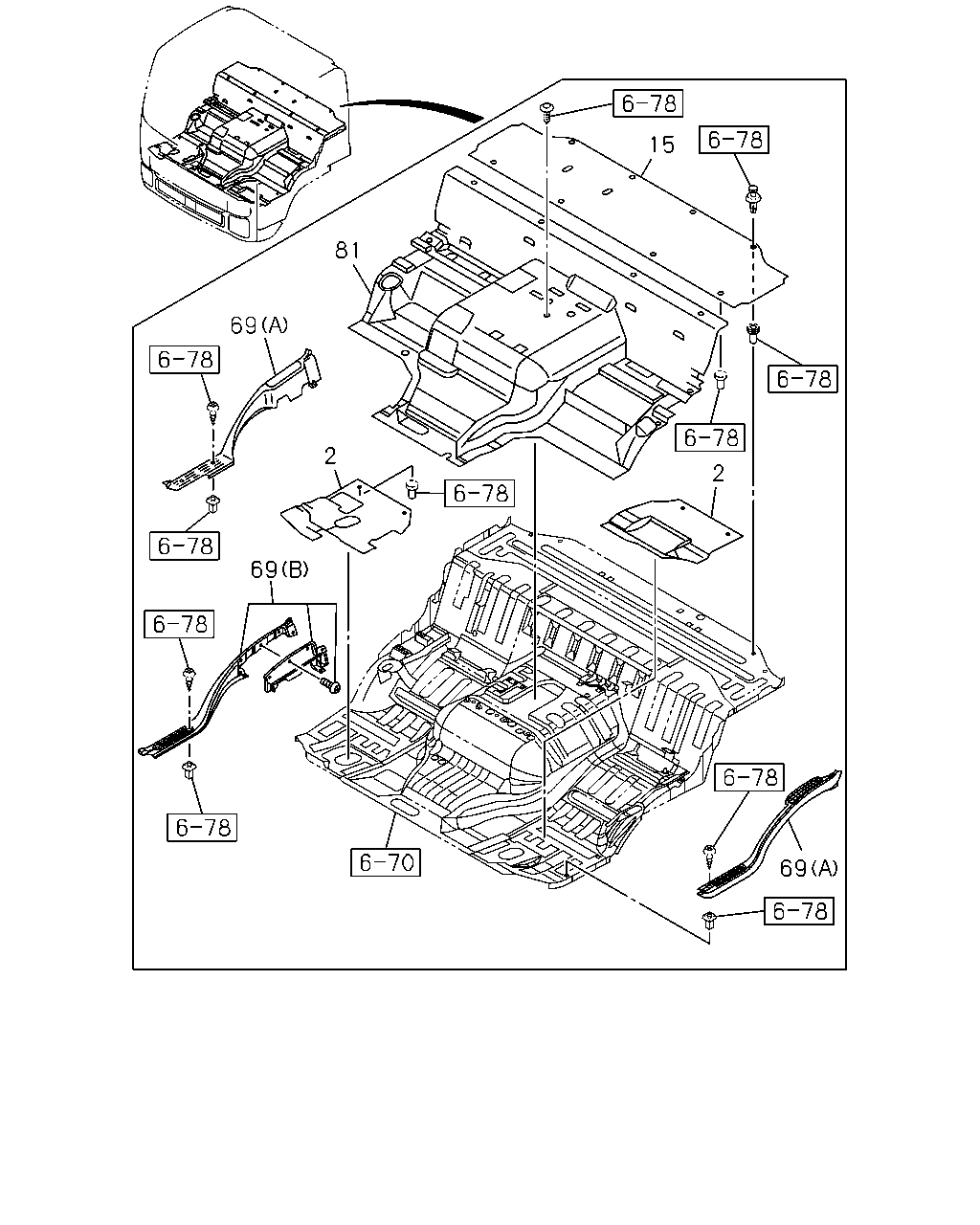

çizim 132506
15 81 69 2 2 69 69
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
THA 		8-97924-384-2 01 1 1210- ● ●
2 MAT; FLOOR
THA 		8-97924-386-0 01 1 1210- ● ●
2 MAT; FLOOR
THA 		8-97924-384-2 01 1 0806-1101 ● ●
2 MAT; FLOOR
THA 		8-97924-386-0 01 1 0806-1101 ● ●
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-404-1 01 1 0806- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (B) GRAY 		8-97407-414-3 01 1 0809- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(A) GRAY 		8-97407-412-1 01 1 0806-0808 ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (A) GRAY 		8-97407-412-1 01 1 0809- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(A) GRAY 		8-97407-412-1 01 1 0809- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(A) GRAY 		8-97407-413-1 01 1 0806- ● ●
81 MAT; FLOOR,CENTER
THA 		8-97924-391-1 01 1 0806- ●
81 MAT; FLOOR,CENTER
THA 		8-97924-392-1 01 1 0806- ●
