2-30 — GEAR SHIFTER AND QUADRANT BOX (#6836) — 768 parça

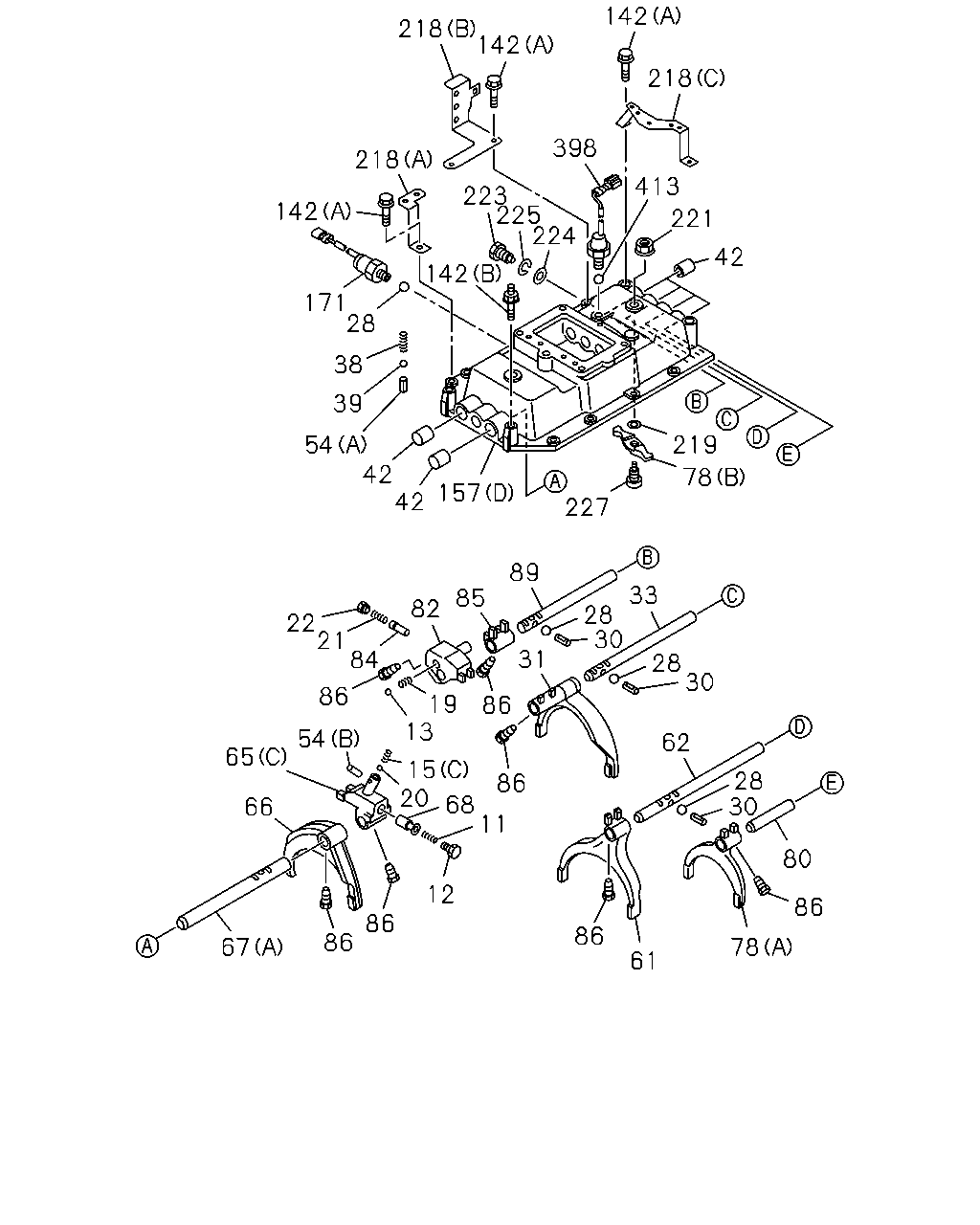

çizim 98858
142 218 142 218 398 218 413 223 225 224 142 221 42 142 171 28 38 39 219 54 42 42 78 227 157 89 33 85 82 28 30 22 21 84 31 28 30 86 19 13 86 54 62 65 15 20 28 30 86 68 11 66 80 12 86 86 86 86 78 67 61
BalonParca AdiParca NoAdetTipApplied Date A B C D E
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9806-9809 ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9806-9809 ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9810-9911 ● ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9810-9911 ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9912- ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9806-9809 ● ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9810-9911 ● ● ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9912- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9806-9809 ● ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9810-9911 ● ● ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9912- ●
15 SPRING; LK,SHIFT SLEEVE
(C) 		1-09580-442-0 01 1 9806-9809 ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(C) 		1-09580-442-0 01 1 9810-9911 ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(C) 		1-09580-442-0 01 1 9912- ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-440-0 01 1 9806-9911 ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-553-0 01 1 9806-9911 ●
19 SPRING; COIL COMP 1-09580-441-0 01 1 9806-9809 ● ● ●
19 SPRING; COIL COMP 1-09580-441-0 01 1 9810-9911 ● ● ● ●
19 SPRING; COIL COMP 1-09580-441-0 01 1 9912- ●
19 SPRING; COIL COMP 1-09580-403-1 01 1 9806-9911 ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9806-9809 ● ● ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9810-9911 ● ● ● ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9912- ●
21 SPRING; COIL COMP SLEEVE 9-09941-160-0 01 1 9806-9809 ● ● ●
21 SPRING; COIL COMP SLEEVE 9-09941-160-0 01 1 9810-9911 ● ● ● ●
21 SPRING; COIL COMP SLEEVE 9-09941-160-0 01 1 9912- ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9806-9809 ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9810-9911 ● ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9912- ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 9806-9911 ●
28 BALL; INTER LK 9-00097-501-0 04 1 9806-9809 ● ● ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 9810-9911 ● ● ● ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 9912- ●
30 PIN; INTER LK 9-33534-003-0 03 1 9806-9809 ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 9810-9911 ● ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 9912- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 9806-9809 ● ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 9810-9911 ● ● ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 9912- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-426-0 01 1 9806-9911 ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 9806-9809 ● ● ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 9810-9911 ● ● ● ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 9912- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-246-2 01 1 9806-9911 ●
38 SPRING; DETENT 1-09580-379-0 04 1 9806-9809 ● ● ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 9810-9911 ● ● ● ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 9912- ●
39 BALL; DETENT 1-09843-012-0 04 1 9806-9809 ● ● ● ●
39 BALL; DETENT 1-09843-012-0 04 1 9810-9911 ● ● ● ● ●
39 BALL; DETENT 1-09843-012-0 04 1 9912- ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 9806-9809 ● ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 9810-9911 ● ● ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 9912- ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 9806-9911 ●
54 PIN; SPR,SHIFT BLOCK
(B) 		1-09748-006-0 01 1 9806-9809 ● ● ●
54 PIN; SPR,SHIFT BLOCK
(B) 		1-09748-006-0 01 1 9810-9911 ● ● ● ●
54 PIN; SPR,SHIFT BLOCK
(B) 		1-09748-006-0 01 1 9912-0201 ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 9806-9809 ● ● ● ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 9810-9911 ● ● ● ● ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 9912- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 9806-9809 ● ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 9810-9911 ● ● ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 9912- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-491-1 01 1 9806-9911 ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 9806-9809 ● ● ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 9810-9911 ● ● ● ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 9912- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-247-0 01 1 9806-9911 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 9806-9809 ● ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 9810-9911 ● ● ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 9912- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-202-3 01 1 9806-9809 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-202-3 01 1 9810-9911 ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-202-3 01 1 9912- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 9806-9809 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 9810-9911 ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 9912- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(D) 		1-33511-331-3 01 1 9806-9911 ●
66 ARM; SHIFT,5TH & 6TH 1-33511-488-1 01 1 9806-9911 ● ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 9806-9809 ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 9810-9911 ● ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 9912- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-489-1 01 1 9806-9911 ●
67 ROD; SHIFT,5TH & 6TH
(A) L=278 		1-33531-255-1 01 1 9806-9809 ● ● ●
67 ROD; SHIFT,5TH & 6TH
(A) L=278 		1-33531-255-1 01 1 9810-9911 ● ● ● ●
67 ROD; SHIFT,5TH & 6TH
(A) L=278 		1-33531-255-1 01 1 9912- ●
67 ROD; SHIFT,5TH & 6TH
(B) L=122 		1-33531-235-1 01 1 9806-9809 ●
67 ROD; SHIFT,5TH & 6TH
(B) L=122 		1-33531-235-1 01 1 9810-9911 ● ●
67 ROD; SHIFT,5TH & 6TH
(B) L=122 		1-33531-235-1 01 1 9912- ●
67 ROD; SHIFT,5TH & 6TH
(C) L=407 		1-33531-248-0 01 1 9806-9911 ●
68 SLEEVE; 5TH & 6TH 1-33516-025-0 01 1 9806-9809 ● ● ●
68 SLEEVE; 5TH & 6TH 1-33516-025-0 01 1 9810-9911 ● ● ● ●
68 SLEEVE; 5TH & 6TH 1-33516-025-0 01 1 9912- ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 9806-9809 ● ● ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 9810-9911 ● ● ● ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 9912- ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 9806-9809 ● ● ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 9810-9911 ● ● ● ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 9912- ●
78 ARM; SHIFT,REV
(C) 		1-33511-232-5 01 1 9806-9911 ●
80 ROD; SHIFT,REV ARM 1-33531-234-1 01 1 9806-9809 ● ● ●
80 ROD; SHIFT,REV ARM 1-33531-234-1 01 1 9810-9911 ● ● ● ●
80 ROD; SHIFT,REV ARM 1-33531-234-1 01 1 9912- ●
82 BLOCK; SHIFT,REV 1-33511-310-1 01 1 9806-9809 ● ● ●
82 BLOCK; SHIFT,REV 1-33511-310-1 01 1 9810-9911 ● ● ● ●
82 BLOCK; SHIFT,REV 1-33511-310-1 01 1 9912- ●
84 SLEEVE; REV 1-33516-025-0 01 1 9806-9809 ● ● ●
84 SLEEVE; REV 1-33516-025-0 01 1 9810-9911 ● ● ● ●
84 SLEEVE; REV 1-33516-025-0 01 1 9912- ●
85 BLOCK; SHIFT,REV RR 1-33511-201-3 01 1 9806-9809 ● ● ●
85 BLOCK; SHIFT,REV RR 1-33511-201-3 01 1 9810-9911 ● ● ● ●
85 BLOCK; SHIFT,REV RR 1-33511-201-3 01 1 9912- ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 07 1 9806-9911 ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 9806-9809 ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 9810-9911 ● ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 9912- ●
89 ROD; SHIFT,REV 1-33531-252-1 01 1 9806-9809 ● ● ●
89 ROD; SHIFT,REV 1-33531-252-1 01 1 9810-9911 ● ● ● ●
89 ROD; SHIFT,REV 1-33531-252-1 01 1 9912- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9806-9809 ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9810-9911 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9912- ●
142 BOLT; QUAD BOX
(A) M10X60 FLANGE 		0-28181-060-0 03 1 9806-9809 ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X60 FLANGE 		0-28181-060-0 03 1 9810-9911 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X60 FLANGE 		0-28181-060-0 03 1 9912-0512 ●
142 BOLT; QUAD BOX
(A) M10X60 FLANGE 		0-28151-060-0 03 1 0601- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9806-9809 ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9810-9911 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9912- ●
142 BOLT; QUAD BOX
(B) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9806-9809 ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9810-9911 ● ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9912- ●
157 BOX; QUAD,TRANS
(D) LOWER 		1-33541-480-0 01 1 9806-9911 ● ●
157 BOX; QUAD,TRANS
(C) UPPER 		1-33541-478-0 01 1 9806-9809 ● ● ●
157 BOX; QUAD,TRANS
(C) UPPER 		1-33541-478-0 01 1 9810-9911 ● ● ● ●
157 BOX; QUAD,TRANS
(C) UPPER 		1-33541-478-0 01 1 9912- ●
157 BOX; QUAD,TRANS
(D) LOWER 		1-33541-481-0 01 1 9806-9809 ●
157 BOX; QUAD,TRANS
(D) LOWER 		1-33541-481-0 01 1 9810-9911 ● ●
157 BOX; QUAD,TRANS
(D) LOWER 		1-33541-481-0 01 1 9912- ●
157 BOX; QUAD,TRANS
(B) UPPER 		1-33541-393-1 01 1 9806-9911 ●
157 BOX; QUAD,TRANS
(A) LOWER 		1-33541-482-0 01 1 9806-9911 ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9806-9809 ● ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9810-9911 ● ● ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 9912- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9806-9809 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9810-9911 ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9912- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9806-9809 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9810-9911 ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9912- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9806-9809 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9810-9911 ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9912- ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 9806-9809 ● ● ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 9810-9911 ● ● ● ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 9912- ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 9806-9809 ● ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 9810-9911 ● ● ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 9912-0602 ●
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0603- ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 9806-9809 ● ● ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 9810-9911 ● ● ● ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 9912- ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 9806-9809 ● ● ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 9810-9911 ● ● ● ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 9912-0605 ●
224 WASHER; PL,QUAD BOX
ID=15 		0-91610-514-0 01 1 0606- ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 9806-9809 ● ● ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 9810-9911 ● ● ● ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 9912-0603 ●
225 WASHER; LK,QUAD BOX
ID=14.2 		0-91510-514-0 01 1 0604- ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 9806-9809 ● ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 9810-9911 ● ● ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 9912- ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9806-9809 ● ● ● ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9810-9911 ● ● ● ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 9912-0602 ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603- ●
413 BALL; BACK SW 9-00097-013-0 01 1 9806-9809 ● ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 9810-9911 ● ● ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 9912- ●

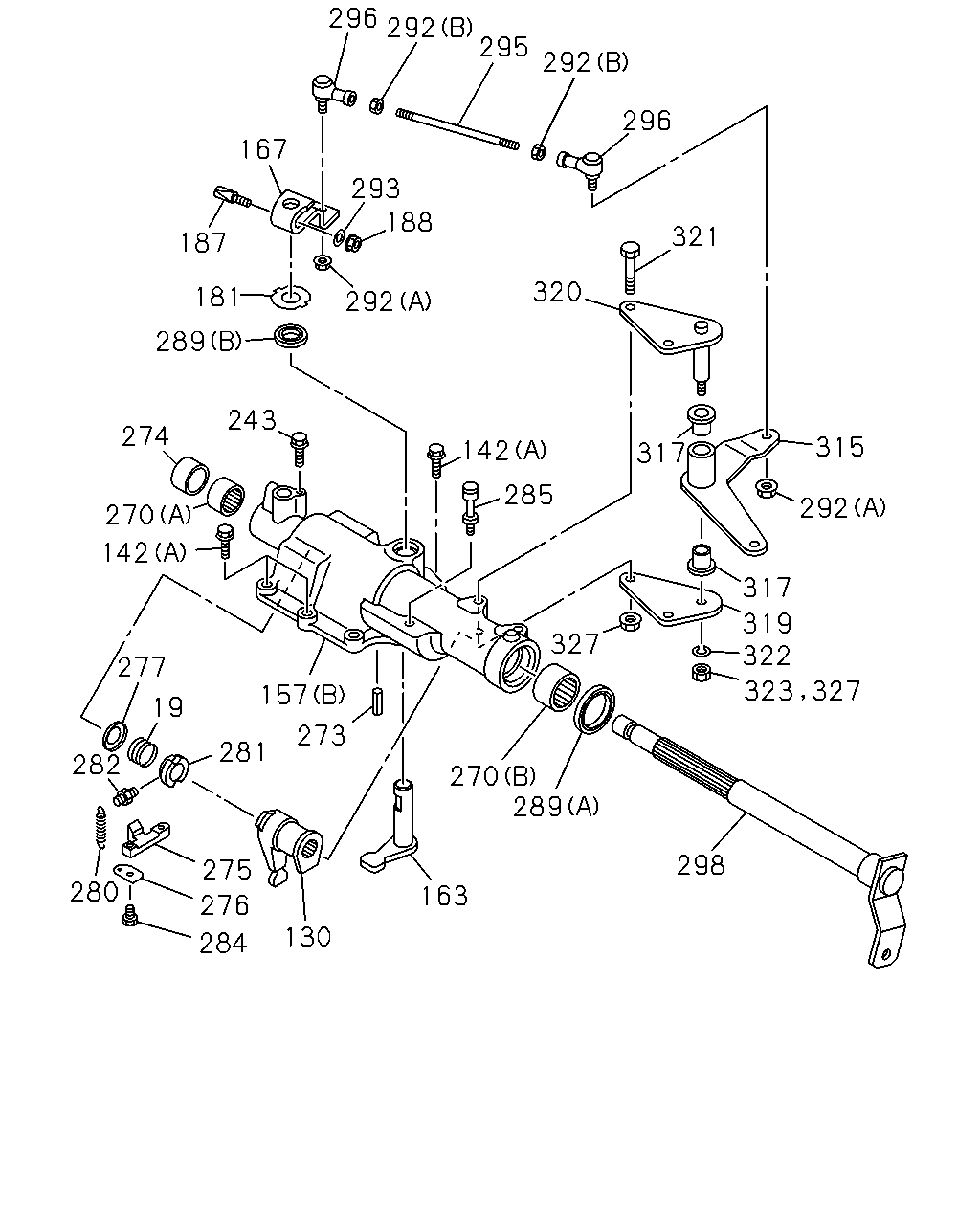

çizim 98859
296 292 295 292 296 167 293 188 321 187 320 181 292 289 243 274 315 142 317 285 292 270 142 317 319 322 327 277 157 19 273 281 282 270 289 298 275 280 163 276 130 284 323 327
BalonParca AdiParca NoAdetTipApplied Date A B C D E
19 SPRING; COIL COMP 1-09580-441-0 01 1 9806-9809 ● ● ●
19 SPRING; COIL COMP 1-09580-441-0 01 1 9810-9911 ● ● ● ●
19 SPRING; COIL COMP 1-09580-441-0 01 1 9912- ●
19 SPRING; COIL COMP 1-09580-403-1 01 1 9806-9911 ●
130 LEVER; SHIFT,INTERNAL 1-33521-111-1 01 1 9806-9809 ● ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-111-1 01 1 9810-9911 ● ● ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-111-1 01 1 9912- ●
130 LEVER; SHIFT,INTERNAL 1-33521-094-2 01 1 9806-9911 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9806-9809 ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9810-9911 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9912- ●
142 BOLT; QUAD BOX
(A) M10X60 FLANGE 		0-28181-060-0 03 1 9806-9809 ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X60 FLANGE 		0-28181-060-0 03 1 9810-9911 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X60 FLANGE 		0-28181-060-0 03 1 9912-0512 ●
142 BOLT; QUAD BOX
(A) M10X60 FLANGE 		0-28151-060-0 03 1 0601- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9806-9809 ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9810-9911 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9912- ●
142 BOLT; QUAD BOX
(B) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9806-9809 ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9810-9911 ● ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9912- ●
157 BOX; QUAD,TRANS
(D) LOWER 		1-33541-480-0 01 1 9806-9911 ● ●
157 BOX; QUAD,TRANS
(C) UPPER 		1-33541-478-0 01 1 9806-9809 ● ● ●
157 BOX; QUAD,TRANS
(C) UPPER 		1-33541-478-0 01 1 9810-9911 ● ● ● ●
157 BOX; QUAD,TRANS
(C) UPPER 		1-33541-478-0 01 1 9912- ●
157 BOX; QUAD,TRANS
(D) LOWER 		1-33541-481-0 01 1 9806-9809 ●
157 BOX; QUAD,TRANS
(D) LOWER 		1-33541-481-0 01 1 9810-9911 ● ●
157 BOX; QUAD,TRANS
(D) LOWER 		1-33541-481-0 01 1 9912- ●
157 BOX; QUAD,TRANS
(B) UPPER 		1-33541-393-1 01 1 9806-9911 ●
157 BOX; QUAD,TRANS
(A) LOWER 		1-33541-482-0 01 1 9806-9911 ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9806-9809 ● ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9810-9911 ● ● ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 9912- ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 9806-9809 ● ● ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 9810-9911 ● ● ● ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-1 01 1 9912- ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9806-9809 ● ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9810-9911 ● ● ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9912- ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9806-9809 ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9810-9911 ● ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9912- ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9806-9809 ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9810-9911 ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9912- ●
243 BOLT; COVER
M6X10 FLANGE 		0-28080-610-0 01 1 9806-9911 ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 9806-9911 ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 9806-9911 ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 9806-9911 ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 9806-9911 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9806-9809 ● ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9810-9911 ● ● ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9912- ●
275 BLOCK; OBSTRUCT,QUAD BOX 1-33529-027-0 01 1 9806-9911 ●
276 PLATE; SPRING RET 1-33529-010-0 01 1 9806-9911 ●
277 PLATE; SPRING SEAT 1-33529-009-0 01 1 9806-9911 ●
280 SPRING; COIL TENSION 1-09583-227-0 01 1 9806-9911 ●
281 PLATE; OBSTRUCT,QUAD BOX 1-33529-025-2 01 1 9806-9911 ●
282 BOLT; SPRING REAMER 1-33529-024-0 01 1 9806-9911 ●
284 BOLT; REAMER,QUAD BOX 1-09040-075-1 02 1 9806-9911 ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9806-9809 ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9810-9911 ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9912- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9806-9809 ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9810-9911 ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9912-0307 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9806-9809 ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9810-9911 ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9912- ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9806-9809 ● ● ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9810-9911 ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9912- ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9806-9809 ● ● ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9810-9911 ● ● ● ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9912-0512 ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0601- ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9806-9809 ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9810-9911 ● ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9912-0605 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0606- ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9806-9809 ● ● ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9810-9911 ● ● ● ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9912- ●
296 ROD END
L=48 		1-09760-038-1 02 1 9806-9809 ● ● ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9810-9911 ● ● ● ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9912-0309 ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310- ●
298 SHAFT; SHIFT LEVER 1-33522-140-0 01 1 9806-9809 ● ● ●
298 SHAFT; SHIFT LEVER 1-33522-140-0 01 1 9810-9911 ● ● ● ●
298 SHAFT; SHIFT LEVER 1-33522-140-0 01 1 9912-0307 ●
298 SHAFT; SHIFT LEVER 1-33522-186-0 01 1 0308- ●
298 SHAFT; SHIFT LEVER 1-33522-159-0 01 1 9806-9911 ●
315 LEVER; SELECT 1-33651-487-0 01 1 9806-9809 ● ● ●
315 LEVER; SELECT 1-33651-487-0 01 1 9810-9911 ● ● ● ●
315 LEVER; SELECT 1-33651-487-0 01 1 9912- ●
315 LEVER; SELECT 1-33651-496-0 01 1 9806-9911 ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 9806-9809 ● ● ● ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 9810-9911 ● ● ● ● ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 9912- ●
319 BRACKET; SELECT LEVER 1-33657-412-0 01 1 9806-9809 ● ● ●
319 BRACKET; SELECT LEVER 1-33657-412-0 01 1 9810-9911 ● ● ● ●
319 BRACKET; SELECT LEVER 1-33657-412-0 01 1 9912- ●
319 BRACKET; SELECT LEVER 1-33657-240-0 01 1 9806-9911 ●
320 SHAFT; LEVER 1-33657-413-0 01 1 9806-9809 ● ● ●
320 SHAFT; LEVER 1-33657-413-0 01 1 9810-9911 ● ● ● ●
320 SHAFT; LEVER 1-33657-413-0 01 1 9912- ●
320 SHAFT; LEVER 1-33657-241-0 01 1 9806-9911 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9806-9809 ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9810-9911 ● ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9912-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10856-080-0 02 1 0601- ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9806-9809 ● ● ● ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9810-9911 ● ● ● ● ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9912- ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9806-9809 ● ● ● ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9810-9911 ● ● ● ● ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9912- ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 01 1 9810-9911 ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 01 1 9912-0512 ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 9806-9809 ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 9810-9911 ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 9912-0602 ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91180-210-0 02 1 0603- ●

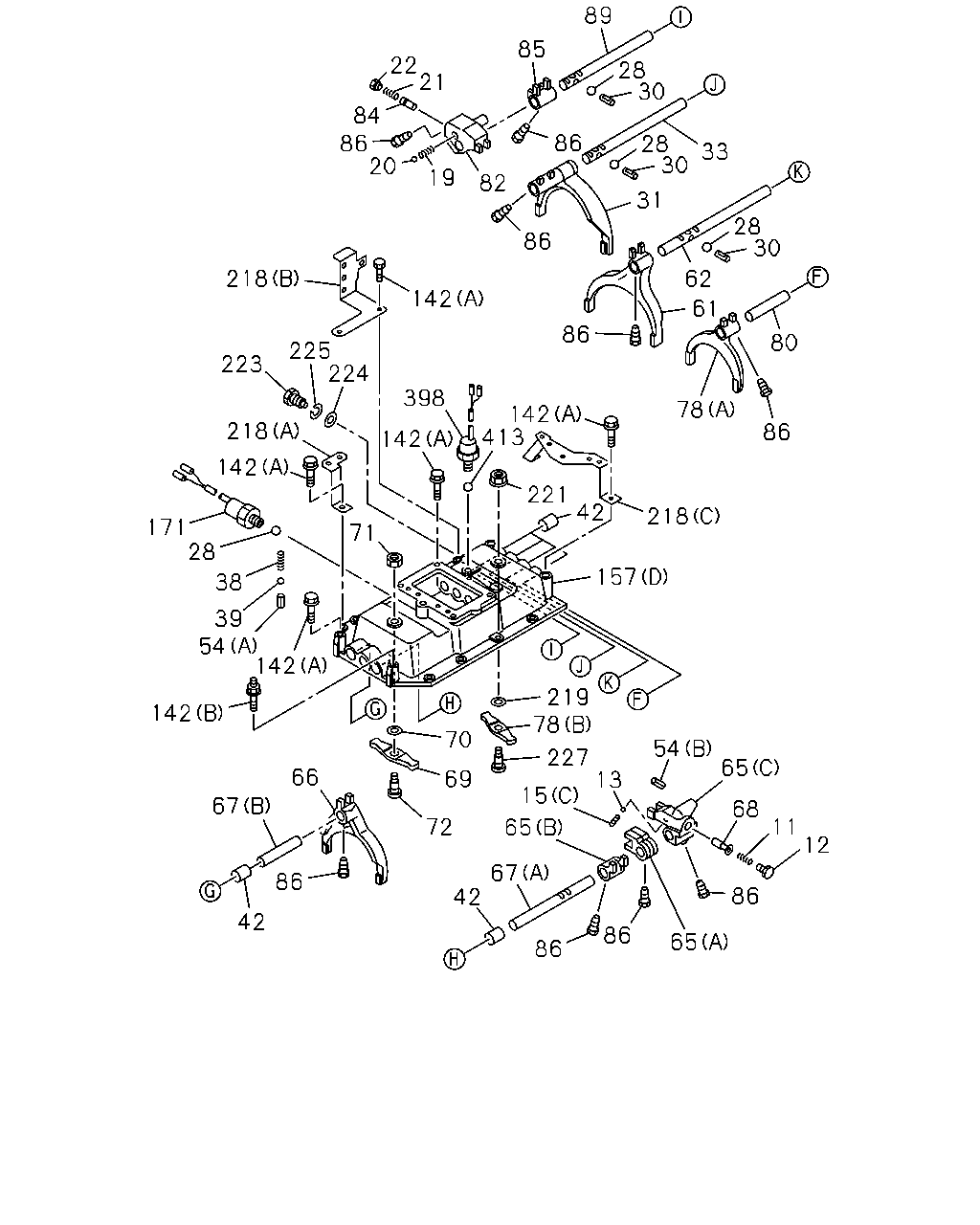

çizim 98860
89 85 22 21 28 30 84 86 20 86 28 30 33 19 82 31 28 30 86 218 62 142 61 86 225 224 80 223 398 78 142 413 218 86 142 142 221 42 218 171 28 71 157 38 39 54 142 219 78 142 70 54 65 227 13 66 69 15 67 68 72 65 11 12 67 86 86 42 42 86 65 86
BalonParca AdiParca NoAdetTipApplied Date A B C D E
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9806-9809 ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9806-9809 ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9810-9911 ● ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9810-9911 ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9912- ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9806-9809 ● ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9810-9911 ● ● ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9912- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9806-9809 ● ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9810-9911 ● ● ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9912- ●
15 SPRING; LK,SHIFT SLEEVE
(C) 		1-09580-442-0 01 1 9806-9809 ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(C) 		1-09580-442-0 01 1 9810-9911 ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(C) 		1-09580-442-0 01 1 9912- ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-440-0 01 1 9806-9911 ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-553-0 01 1 9806-9911 ●
19 SPRING; COIL COMP 1-09580-441-0 01 1 9806-9809 ● ● ●
19 SPRING; COIL COMP 1-09580-441-0 01 1 9810-9911 ● ● ● ●
19 SPRING; COIL COMP 1-09580-441-0 01 1 9912- ●
19 SPRING; COIL COMP 1-09580-403-1 01 1 9806-9911 ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9806-9809 ● ● ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9810-9911 ● ● ● ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9912- ●
21 SPRING; COIL COMP SLEEVE 9-09941-160-0 01 1 9806-9809 ● ● ●
21 SPRING; COIL COMP SLEEVE 9-09941-160-0 01 1 9810-9911 ● ● ● ●
21 SPRING; COIL COMP SLEEVE 9-09941-160-0 01 1 9912- ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9806-9809 ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9810-9911 ● ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9912- ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 9806-9911 ●
28 BALL; INTER LK 9-00097-501-0 04 1 9806-9809 ● ● ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 9810-9911 ● ● ● ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 9912- ●
30 PIN; INTER LK 9-33534-003-0 03 1 9806-9809 ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 9810-9911 ● ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 9912- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 9806-9809 ● ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 9810-9911 ● ● ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 9912- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-426-0 01 1 9806-9911 ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 9806-9809 ● ● ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 9810-9911 ● ● ● ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 9912- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-246-2 01 1 9806-9911 ●
38 SPRING; DETENT 1-09580-379-0 04 1 9806-9809 ● ● ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 9810-9911 ● ● ● ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 9912- ●
39 BALL; DETENT 1-09843-012-0 04 1 9806-9809 ● ● ● ●
39 BALL; DETENT 1-09843-012-0 04 1 9810-9911 ● ● ● ● ●
39 BALL; DETENT 1-09843-012-0 04 1 9912- ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 9806-9809 ● ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 9810-9911 ● ● ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 9912- ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 9806-9911 ●
54 PIN; SPR,SHIFT BLOCK
(B) 		1-09748-006-0 01 1 9806-9809 ● ● ●
54 PIN; SPR,SHIFT BLOCK
(B) 		1-09748-006-0 01 1 9810-9911 ● ● ● ●
54 PIN; SPR,SHIFT BLOCK
(B) 		1-09748-006-0 01 1 9912-0201 ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 9806-9809 ● ● ● ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 9810-9911 ● ● ● ● ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 9912- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 9806-9809 ● ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 9810-9911 ● ● ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 9912- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-491-1 01 1 9806-9911 ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 9806-9809 ● ● ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 9810-9911 ● ● ● ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 9912- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-247-0 01 1 9806-9911 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 9806-9809 ● ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 9810-9911 ● ● ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 9912- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-202-3 01 1 9806-9809 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-202-3 01 1 9810-9911 ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-202-3 01 1 9912- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 9806-9809 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 9810-9911 ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 9912- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(D) 		1-33511-331-3 01 1 9806-9911 ●
66 ARM; SHIFT,5TH & 6TH 1-33511-488-1 01 1 9806-9911 ● ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 9806-9809 ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 9810-9911 ● ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 9912- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-489-1 01 1 9806-9911 ●
67 ROD; SHIFT,5TH & 6TH
(A) L=278 		1-33531-255-1 01 1 9806-9809 ● ● ●
67 ROD; SHIFT,5TH & 6TH
(A) L=278 		1-33531-255-1 01 1 9810-9911 ● ● ● ●
67 ROD; SHIFT,5TH & 6TH
(A) L=278 		1-33531-255-1 01 1 9912- ●
67 ROD; SHIFT,5TH & 6TH
(B) L=122 		1-33531-235-1 01 1 9806-9809 ●
67 ROD; SHIFT,5TH & 6TH
(B) L=122 		1-33531-235-1 01 1 9810-9911 ● ●
67 ROD; SHIFT,5TH & 6TH
(B) L=122 		1-33531-235-1 01 1 9912- ●
67 ROD; SHIFT,5TH & 6TH
(C) L=407 		1-33531-248-0 01 1 9806-9911 ●
68 SLEEVE; 5TH & 6TH 1-33516-025-0 01 1 9806-9809 ● ● ●
68 SLEEVE; 5TH & 6TH 1-33516-025-0 01 1 9810-9911 ● ● ● ●
68 SLEEVE; 5TH & 6TH 1-33516-025-0 01 1 9912- ●
69 LEVER; SHIFT,5TH & 6TH 1-33511-082-0 01 1 9806-9809 ●
69 LEVER; SHIFT,5TH & 6TH 1-33511-082-0 01 1 9810-9911 ● ●
69 LEVER; SHIFT,5TH & 6TH 1-33511-082-0 01 1 9912- ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 9806-9809 ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 9810-9911 ● ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 9912- ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91150-212-0 01 1 9806-9809 ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91150-212-0 01 1 9810-9911 ● ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91150-212-0 01 1 9912-0602 ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91180-212-0 01 1 0603- ●
72 SPINDLE; 5TH & 6TH 1-33519-012-0 01 1 9806-9809 ●
72 SPINDLE; 5TH & 6TH 1-33519-012-0 01 1 9810-9911 ● ●
72 SPINDLE; 5TH & 6TH 1-33519-012-0 01 1 9912- ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 9806-9809 ● ● ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 9810-9911 ● ● ● ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 9912- ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 9806-9809 ● ● ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 9810-9911 ● ● ● ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 9912- ●
78 ARM; SHIFT,REV
(C) 		1-33511-232-5 01 1 9806-9911 ●
80 ROD; SHIFT,REV ARM 1-33531-234-1 01 1 9806-9809 ● ● ●
80 ROD; SHIFT,REV ARM 1-33531-234-1 01 1 9810-9911 ● ● ● ●
80 ROD; SHIFT,REV ARM 1-33531-234-1 01 1 9912- ●
82 BLOCK; SHIFT,REV 1-33511-310-1 01 1 9806-9809 ● ● ●
82 BLOCK; SHIFT,REV 1-33511-310-1 01 1 9810-9911 ● ● ● ●
82 BLOCK; SHIFT,REV 1-33511-310-1 01 1 9912- ●
84 SLEEVE; REV 1-33516-025-0 01 1 9806-9809 ● ● ●
84 SLEEVE; REV 1-33516-025-0 01 1 9810-9911 ● ● ● ●
84 SLEEVE; REV 1-33516-025-0 01 1 9912- ●
85 BLOCK; SHIFT,REV RR 1-33511-201-3 01 1 9806-9809 ● ● ●
85 BLOCK; SHIFT,REV RR 1-33511-201-3 01 1 9810-9911 ● ● ● ●
85 BLOCK; SHIFT,REV RR 1-33511-201-3 01 1 9912- ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 07 1 9806-9911 ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 9806-9809 ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 9810-9911 ● ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 9912- ●
89 ROD; SHIFT,REV 1-33531-252-1 01 1 9806-9809 ● ● ●
89 ROD; SHIFT,REV 1-33531-252-1 01 1 9810-9911 ● ● ● ●
89 ROD; SHIFT,REV 1-33531-252-1 01 1 9912- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9806-9809 ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9810-9911 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9912- ●
142 BOLT; QUAD BOX
(A) M10X60 FLANGE 		0-28181-060-0 03 1 9806-9809 ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X60 FLANGE 		0-28181-060-0 03 1 9810-9911 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X60 FLANGE 		0-28181-060-0 03 1 9912-0512 ●
142 BOLT; QUAD BOX
(A) M10X60 FLANGE 		0-28151-060-0 03 1 0601- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9806-9809 ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9810-9911 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9912- ●
142 BOLT; QUAD BOX
(B) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9806-9809 ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9810-9911 ● ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9912- ●
157 BOX; QUAD,TRANS
(D) LOWER 		1-33541-480-0 01 1 9806-9911 ● ●
157 BOX; QUAD,TRANS
(C) UPPER 		1-33541-478-0 01 1 9806-9809 ● ● ●
157 BOX; QUAD,TRANS
(C) UPPER 		1-33541-478-0 01 1 9810-9911 ● ● ● ●
157 BOX; QUAD,TRANS
(C) UPPER 		1-33541-478-0 01 1 9912- ●
157 BOX; QUAD,TRANS
(D) LOWER 		1-33541-481-0 01 1 9806-9809 ●
157 BOX; QUAD,TRANS
(D) LOWER 		1-33541-481-0 01 1 9810-9911 ● ●
157 BOX; QUAD,TRANS
(D) LOWER 		1-33541-481-0 01 1 9912- ●
157 BOX; QUAD,TRANS
(B) UPPER 		1-33541-393-1 01 1 9806-9911 ●
157 BOX; QUAD,TRANS
(A) LOWER 		1-33541-482-0 01 1 9806-9911 ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9806-9809 ● ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9810-9911 ● ● ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 9912- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9806-9809 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9810-9911 ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9912- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9806-9809 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9810-9911 ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9912- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9806-9809 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9810-9911 ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9912- ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 9806-9809 ● ● ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 9810-9911 ● ● ● ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 9912- ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 9806-9809 ● ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 9810-9911 ● ● ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 9912-0602 ●
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0603- ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 9806-9809 ● ● ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 9810-9911 ● ● ● ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 9912- ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 9806-9809 ● ● ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 9810-9911 ● ● ● ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 9912-0605 ●
224 WASHER; PL,QUAD BOX
ID=15 		0-91610-514-0 01 1 0606- ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 9806-9809 ● ● ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 9810-9911 ● ● ● ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 9912-0603 ●
225 WASHER; LK,QUAD BOX
ID=14.2 		0-91510-514-0 01 1 0604- ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 9806-9809 ● ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 9810-9911 ● ● ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 9912- ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9806-9809 ● ● ● ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9810-9911 ● ● ● ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 9912-0602 ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603- ●
413 BALL; BACK SW 9-00097-013-0 01 1 9806-9809 ● ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 9810-9911 ● ● ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 9912- ●

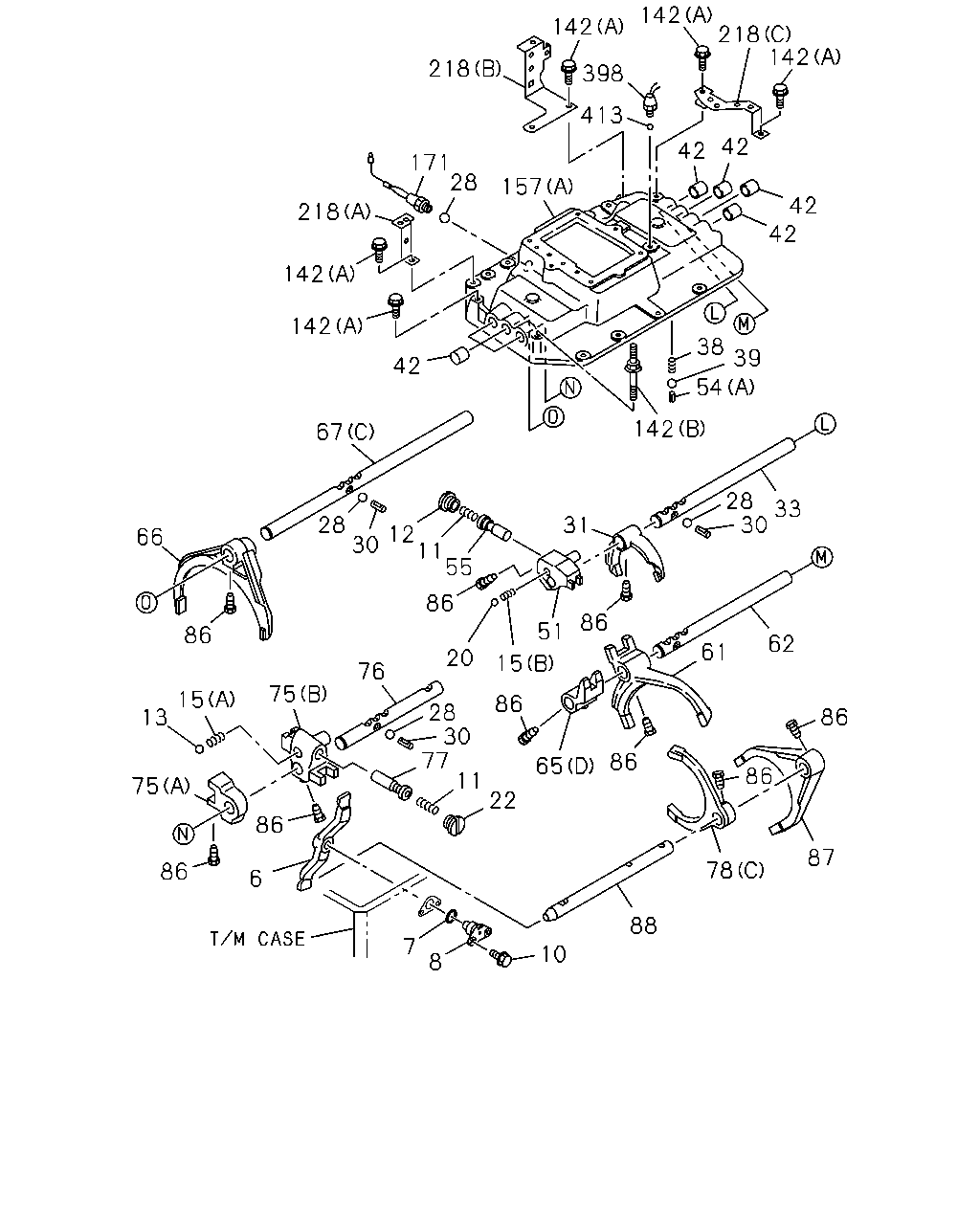

çizim 98915
142 218 142 142 218 398 413 42 42 171 28 157 42 42 218 142 142 38 39 42 54 142 67 28 33 30 28 30 31 12 11 55 66 86 86 51 86 62 61 20 15 76 75 15 86 28 30 77 86 13 86 65 86 11 75 22 86 87 78 86 6 88 7 10 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
6 LEVER; RELAY 1-33511-009-1 01 1 9806-9911 ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-183-0 01 1 9806-9911 ●
8 SPINDLE; REV & 7TH 9-33513-022-1 01 1 9806-9911 ●
10 BOLT; SPINDLE
M14X20 		1-09044-078-0 02 1 9806-9911 ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9806-9809 ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9806-9809 ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9810-9911 ● ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9810-9911 ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9912- ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9806-9809 ● ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9810-9911 ● ● ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9912- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9806-9809 ● ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9810-9911 ● ● ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9912- ●
15 SPRING; LK,SHIFT SLEEVE
(C) 		1-09580-442-0 01 1 9806-9809 ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(C) 		1-09580-442-0 01 1 9810-9911 ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(C) 		1-09580-442-0 01 1 9912- ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-440-0 01 1 9806-9911 ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-553-0 01 1 9806-9911 ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9806-9809 ● ● ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9810-9911 ● ● ● ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9912- ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9806-9809 ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9810-9911 ● ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9912- ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 9806-9911 ●
28 BALL; INTER LK 9-00097-501-0 04 1 9806-9809 ● ● ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 9810-9911 ● ● ● ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 9912- ●
30 PIN; INTER LK 9-33534-003-0 03 1 9806-9809 ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 9810-9911 ● ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 9912- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 9806-9809 ● ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 9810-9911 ● ● ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 9912- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-426-0 01 1 9806-9911 ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 9806-9809 ● ● ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 9810-9911 ● ● ● ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 9912- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-246-2 01 1 9806-9911 ●
38 SPRING; DETENT 1-09580-379-0 04 1 9806-9809 ● ● ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 9810-9911 ● ● ● ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 9912- ●
39 BALL; DETENT 1-09843-012-0 04 1 9806-9809 ● ● ● ●
39 BALL; DETENT 1-09843-012-0 04 1 9810-9911 ● ● ● ● ●
39 BALL; DETENT 1-09843-012-0 04 1 9912- ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 9806-9809 ● ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 9810-9911 ● ● ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 9912- ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 9806-9911 ●
51 BLOCK; SHIFT,1ST & 2ND 1-33511-311-2 01 1 9806-9911 ●
54 PIN; SPR,SHIFT BLOCK
(B) 		1-09748-006-0 01 1 9806-9809 ● ● ●
54 PIN; SPR,SHIFT BLOCK
(B) 		1-09748-006-0 01 1 9810-9911 ● ● ● ●
54 PIN; SPR,SHIFT BLOCK
(B) 		1-09748-006-0 01 1 9912-0201 ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 9806-9809 ● ● ● ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 9810-9911 ● ● ● ● ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 9912- ●
55 SLEEVE; 1ST & 2ND 1-33516-025-0 01 1 9806-9911 ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 9806-9809 ● ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 9810-9911 ● ● ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 9912- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-491-1 01 1 9806-9911 ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 9806-9809 ● ● ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 9810-9911 ● ● ● ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 9912- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-247-0 01 1 9806-9911 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 9806-9809 ● ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 9810-9911 ● ● ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 9912- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-202-3 01 1 9806-9809 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-202-3 01 1 9810-9911 ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-202-3 01 1 9912- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 9806-9809 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 9810-9911 ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 9912- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(D) 		1-33511-331-3 01 1 9806-9911 ●
66 ARM; SHIFT,5TH & 6TH 1-33511-488-1 01 1 9806-9911 ● ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 9806-9809 ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 9810-9911 ● ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 9912- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-489-1 01 1 9806-9911 ●
67 ROD; SHIFT,5TH & 6TH
(A) L=278 		1-33531-255-1 01 1 9806-9809 ● ● ●
67 ROD; SHIFT,5TH & 6TH
(A) L=278 		1-33531-255-1 01 1 9810-9911 ● ● ● ●
67 ROD; SHIFT,5TH & 6TH
(A) L=278 		1-33531-255-1 01 1 9912- ●
67 ROD; SHIFT,5TH & 6TH
(B) L=122 		1-33531-235-1 01 1 9806-9809 ●
67 ROD; SHIFT,5TH & 6TH
(B) L=122 		1-33531-235-1 01 1 9810-9911 ● ●
67 ROD; SHIFT,5TH & 6TH
(B) L=122 		1-33531-235-1 01 1 9912- ●
67 ROD; SHIFT,5TH & 6TH
(C) L=407 		1-33531-248-0 01 1 9806-9911 ●
75 BLOCK ASM; SHIFT,REV & 7TH
(A) 		1-33511-202-3 01 1 9806-9911 ●
75 BLOCK ASM; SHIFT,REV & 7TH
(B) 		1-33511-309-1 01 1 9806-9911 ●
76 ROD; SHIFT,REV & 7TH BLOCK 1-33531-249-0 01 1 9806-9911 ●
77 SLEEVE; REV & 7TH 1-33516-025-0 01 1 9806-9911 ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 9806-9809 ● ● ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 9810-9911 ● ● ● ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 9912- ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 9806-9809 ● ● ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 9810-9911 ● ● ● ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 9912- ●
78 ARM; SHIFT,REV
(C) 		1-33511-232-5 01 1 9806-9911 ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 07 1 9806-9911 ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 9806-9809 ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 9810-9911 ● ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 9912- ●
87 ARM; SHIFT,7TH 1-33511-229-4 01 1 9806-9911 ●
88 ROD; SHIFT,REV & 7TH ARM 1-33531-250-0 01 1 9806-9911 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9806-9809 ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9810-9911 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9912- ●
142 BOLT; QUAD BOX
(A) M10X60 FLANGE 		0-28181-060-0 03 1 9806-9809 ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X60 FLANGE 		0-28181-060-0 03 1 9810-9911 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X60 FLANGE 		0-28181-060-0 03 1 9912-0512 ●
142 BOLT; QUAD BOX
(A) M10X60 FLANGE 		0-28151-060-0 03 1 0601- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9806-9809 ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9810-9911 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9912- ●
142 BOLT; QUAD BOX
(B) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9806-9809 ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9810-9911 ● ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9912- ●
157 BOX; QUAD,TRANS
(D) LOWER 		1-33541-480-0 01 1 9806-9911 ● ●
157 BOX; QUAD,TRANS
(C) UPPER 		1-33541-478-0 01 1 9806-9809 ● ● ●
157 BOX; QUAD,TRANS
(C) UPPER 		1-33541-478-0 01 1 9810-9911 ● ● ● ●
157 BOX; QUAD,TRANS
(C) UPPER 		1-33541-478-0 01 1 9912- ●
157 BOX; QUAD,TRANS
(D) LOWER 		1-33541-481-0 01 1 9806-9809 ●
157 BOX; QUAD,TRANS
(D) LOWER 		1-33541-481-0 01 1 9810-9911 ● ●
157 BOX; QUAD,TRANS
(D) LOWER 		1-33541-481-0 01 1 9912- ●
157 BOX; QUAD,TRANS
(B) UPPER 		1-33541-393-1 01 1 9806-9911 ●
157 BOX; QUAD,TRANS
(A) LOWER 		1-33541-482-0 01 1 9806-9911 ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9806-9809 ● ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9810-9911 ● ● ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 9912- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9806-9809 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9810-9911 ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9912- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9806-9809 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9810-9911 ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9912- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9806-9809 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9810-9911 ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9912- ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9806-9809 ● ● ● ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9810-9911 ● ● ● ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 9912-0602 ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603- ●
413 BALL; BACK SW 9-00097-013-0 01 1 9806-9809 ● ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 9810-9911 ● ● ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 9912- ●
çizim 98987
382 383
BalonParca AdiParca NoAdetTipApplied Date A B C D E
382 BRACKET; PARKING BRK CONT CABLE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK SYSTEM RETARDER<RE2> 		1-46147-223-0 01 1 9806-9911 ● ● ●
383 BOLT; BRKT,PARK BRAKE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10X22 FLANGE 		0-28181-022-0 03 1 9806-9911 ● ● ●

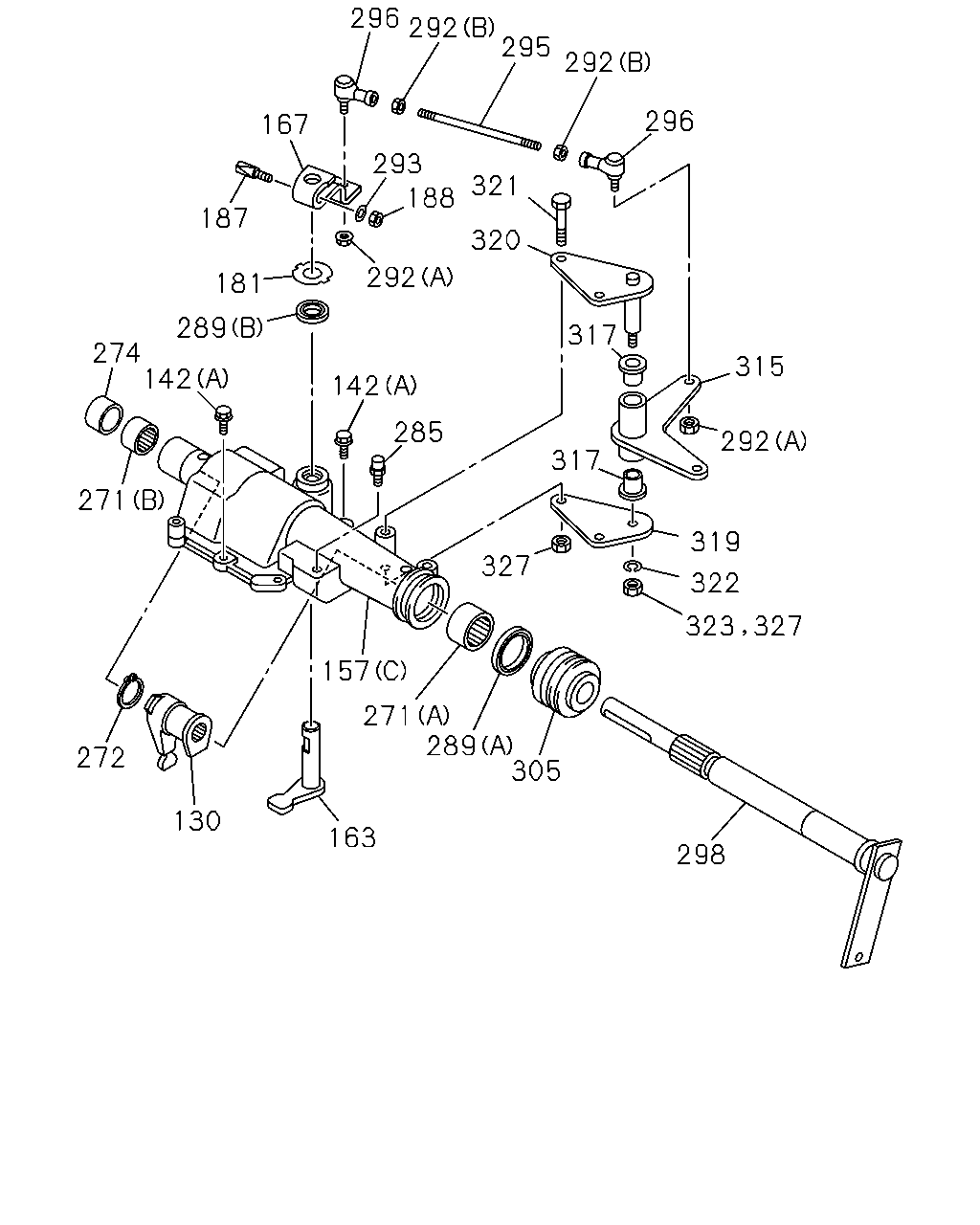

çizim 98992
296 292 295 292 296 167 293 188 321 187 320 292 181 289 317 274 142 315 142 285 292 317 271 319 327 322 157 271 289 305 272 130 163 298 323 327
BalonParca AdiParca NoAdetTipApplied Date A B C D E
130 LEVER; SHIFT,INTERNAL 1-33521-111-1 01 1 9806-9809 ● ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-111-1 01 1 9810-9911 ● ● ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-111-1 01 1 9912- ●
130 LEVER; SHIFT,INTERNAL 1-33521-094-2 01 1 9806-9911 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9806-9809 ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9810-9911 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9912- ●
142 BOLT; QUAD BOX
(A) M10X60 FLANGE 		0-28181-060-0 03 1 9806-9809 ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X60 FLANGE 		0-28181-060-0 03 1 9810-9911 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X60 FLANGE 		0-28181-060-0 03 1 9912-0512 ●
142 BOLT; QUAD BOX
(A) M10X60 FLANGE 		0-28151-060-0 03 1 0601- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9806-9809 ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9810-9911 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9912- ●
142 BOLT; QUAD BOX
(B) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9806-9809 ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9810-9911 ● ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9912- ●
157 BOX; QUAD,TRANS
(D) LOWER 		1-33541-480-0 01 1 9806-9911 ● ●
157 BOX; QUAD,TRANS
(C) UPPER 		1-33541-478-0 01 1 9806-9809 ● ● ●
157 BOX; QUAD,TRANS
(C) UPPER 		1-33541-478-0 01 1 9810-9911 ● ● ● ●
157 BOX; QUAD,TRANS
(C) UPPER 		1-33541-478-0 01 1 9912- ●
157 BOX; QUAD,TRANS
(D) LOWER 		1-33541-481-0 01 1 9806-9809 ●
157 BOX; QUAD,TRANS
(D) LOWER 		1-33541-481-0 01 1 9810-9911 ● ●
157 BOX; QUAD,TRANS
(D) LOWER 		1-33541-481-0 01 1 9912- ●
157 BOX; QUAD,TRANS
(B) UPPER 		1-33541-393-1 01 1 9806-9911 ●
157 BOX; QUAD,TRANS
(A) LOWER 		1-33541-482-0 01 1 9806-9911 ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9806-9809 ● ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9810-9911 ● ● ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 9912- ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 9806-9809 ● ● ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 9810-9911 ● ● ● ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-1 01 1 9912- ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9806-9809 ● ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9810-9911 ● ● ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9912- ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9806-9809 ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9810-9911 ● ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9912- ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9806-9809 ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9810-9911 ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9912- ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 9806-9809 ● ● ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 9810-9911 ● ● ● ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 9912- ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 9806-9809 ● ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 9810-9911 ● ● ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 9912- ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 9806-9809 ● ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 9810-9911 ● ● ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 9912- ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9806-9809 ● ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9810-9911 ● ● ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9912- ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9806-9809 ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9810-9911 ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9912- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9806-9809 ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9810-9911 ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9912-0307 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9806-9809 ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9810-9911 ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9912- ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9806-9809 ● ● ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9810-9911 ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9912- ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9806-9809 ● ● ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9810-9911 ● ● ● ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9912-0512 ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0601- ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9806-9809 ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9810-9911 ● ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9912-0605 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0606- ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9806-9809 ● ● ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9810-9911 ● ● ● ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9912- ●
296 ROD END
L=48 		1-09760-038-1 02 1 9806-9809 ● ● ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9810-9911 ● ● ● ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9912-0309 ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310- ●
298 SHAFT; SHIFT LEVER 1-33522-140-0 01 1 9806-9809 ● ● ●
298 SHAFT; SHIFT LEVER 1-33522-140-0 01 1 9810-9911 ● ● ● ●
298 SHAFT; SHIFT LEVER 1-33522-140-0 01 1 9912-0307 ●
298 SHAFT; SHIFT LEVER 1-33522-186-0 01 1 0308- ●
298 SHAFT; SHIFT LEVER 1-33522-159-0 01 1 9806-9911 ●
305 BOOT; LEVER SHAFT 1-33529-028-0 01 1 9806-9809 ● ● ●
305 BOOT; LEVER SHAFT 1-33529-028-0 01 1 9810-9911 ● ● ● ●
305 BOOT; LEVER SHAFT 1-33529-028-0 01 1 9912- ●
315 LEVER; SELECT 1-33651-487-0 01 1 9806-9809 ● ● ●
315 LEVER; SELECT 1-33651-487-0 01 1 9810-9911 ● ● ● ●
315 LEVER; SELECT 1-33651-487-0 01 1 9912- ●
315 LEVER; SELECT 1-33651-496-0 01 1 9806-9911 ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 9806-9809 ● ● ● ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 9810-9911 ● ● ● ● ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 9912- ●
319 BRACKET; SELECT LEVER 1-33657-412-0 01 1 9806-9809 ● ● ●
319 BRACKET; SELECT LEVER 1-33657-412-0 01 1 9810-9911 ● ● ● ●
319 BRACKET; SELECT LEVER 1-33657-412-0 01 1 9912- ●
319 BRACKET; SELECT LEVER 1-33657-240-0 01 1 9806-9911 ●
320 SHAFT; LEVER 1-33657-413-0 01 1 9806-9809 ● ● ●
320 SHAFT; LEVER 1-33657-413-0 01 1 9810-9911 ● ● ● ●
320 SHAFT; LEVER 1-33657-413-0 01 1 9912- ●
320 SHAFT; LEVER 1-33657-241-0 01 1 9806-9911 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9806-9809 ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9810-9911 ● ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9912-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10856-080-0 02 1 0601- ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9806-9809 ● ● ● ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9810-9911 ● ● ● ● ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9912- ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9806-9809 ● ● ● ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9810-9911 ● ● ● ● ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9912- ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 01 1 9810-9911 ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 01 1 9912-0512 ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 9806-9809 ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 9810-9911 ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 9912-0602 ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
