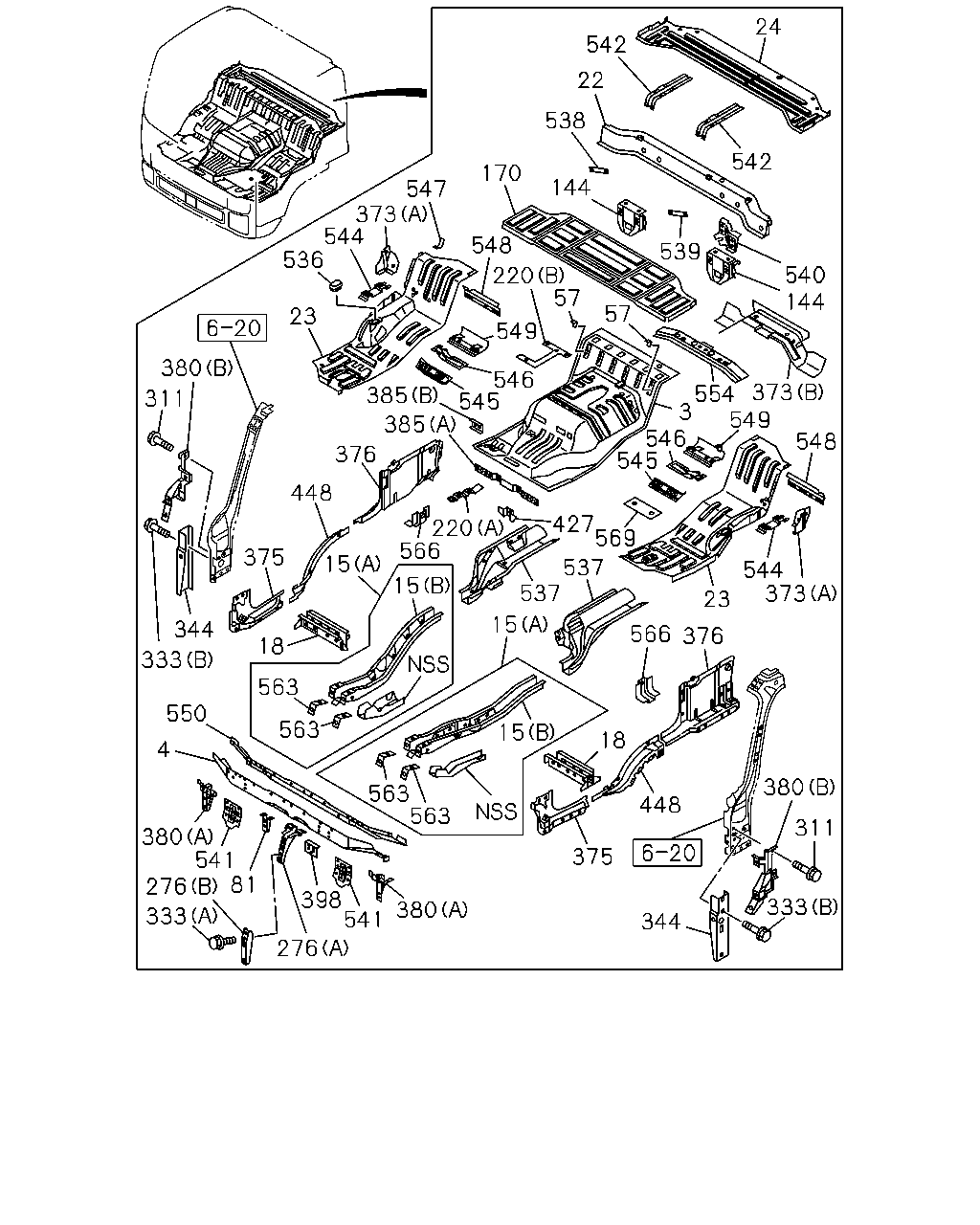

6-70 — FLOOR PANEL (#68359) — 221 parça
çizim 193976
546 545 3 554 373 549 144 540 542 24 542 22 538 170 144 547 373 544 536 23 380 311 376 385 385 545 546 549 220 548 57 539 548 373 544 23 566 376 537 427 537 15 566 15 448 375 344 333 550 4 18 563 563 563 563 375 448 18 380 311 333 344 380 541 398 81 541 380 276 333 57 15 276 220 569 15
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
THA 		8-98046-585-7 01 1 1403- ● ●
3 HOOD ASM; ENG
THA 		8-98046-585-7 01 1 1310-1402 ● ●
3 HOOD ASM; ENG
THA 		8-98046-585-7 01 1 1210-1309 ● ●
3 HOOD ASM; ENG
THA 		8-98046-585-7 01 1 0806-1209 ● ●
4 FRAME; FLOOR,FRT 8-98079-820-1 01 1 1403- ● ●
4 FRAME; FLOOR,FRT 8-98079-820-1 01 1 1310-1402 ● ●
4 FRAME; FLOOR,FRT 8-98079-820-1 01 1 1210-1309 ● ●
4 FRAME; FLOOR,FRT 8-98079-820-1 01 1 0806-1209 ● ●
15 FRAME; UNDER
(B) THA 		8-98055-440-2 01 1 1102-1208 ● ●
15 FRAME; UNDER
(B) THA 		8-98055-441-2 01 1 1102-1208 ● ●
15 FRAME; UNDER
(B) 		8-98055-440-3 01 1 1210-1309 ● ●
15 FRAME; UNDER
(B) 		8-98055-441-3 01 1 1210-1309 ● ●
15 FRAME; UNDER
(B) 		8-98055-440-3 01 1 1311-1402 ● ●
15 FRAME; UNDER
(B) 		8-98055-441-3 01 1 1311-1402 ● ●
15 FRAME; UNDER
(B) 		8-98055-440-3 01 1 1404- ● ●
15 FRAME; UNDER
(B) 		8-98055-441-3 01 1 1404- ● ●
15 FRAME; UNDER
(A) 		8-98055-645-2 01 1 1403- ● ●
15 FRAME; UNDER
(A) 		8-98055-646-2 01 1 1403- ● ●
15 FRAME; UNDER
(A) 		8-98055-645-2 01 1 1310-1402 ● ●
15 FRAME; UNDER
(A) 		8-98055-646-2 01 1 1310-1402 ● ●
15 FRAME; UNDER
(A) 		8-98055-645-2 01 1 1210-1309 ● ●
15 FRAME; UNDER
(A) 		8-98055-646-2 01 1 1210-1309 ● ●
15 FRAME; UNDER
(A) 		8-98055-645-2 01 1 0806-1209 ● ●
15 FRAME; UNDER
(A) 		8-98055-646-2 01 1 0806-1209 ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98067-904-1 01 1 1403- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98072-101-2 01 1 1403- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98067-904-1 01 1 1310-1402 ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98072-101-2 01 1 1310-1402 ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98067-904-1 01 1 1210-1309 ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98072-101-1 01 1 1210-1309 ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98067-904-1 01 1 0806-1209 ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98072-101-1 01 1 0806-1209 ● ●
22 FRAME; FLOOR REAR
THA 		8-97584-431-5 01 1 1403- ● ●
22 FRAME; FLOOR REAR
THA 		8-97584-431-5 01 1 1310-1402 ● ●
22 FRAME; FLOOR REAR
THA 		8-97584-431-5 01 1 1210-1309 ● ●
22 FRAME; FLOOR REAR
THA 		8-97584-431-5 01 1 0806-1209 ● ●
23 PANEL; FLOOR,SIDE
THA 		8-97584-371-7 01 1 1403- ● ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1403- ● ●
23 PANEL; FLOOR,SIDE
THA 		8-97584-371-7 01 1 1310-1402 ● ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1310-1402 ● ●
23 PANEL; FLOOR,SIDE
THA 		8-97584-371-7 01 1 1210-1309 ● ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1210-1309 ● ●
23 PANEL; FLOOR,SIDE
THA 		8-97584-371-7 01 1 0806-1209 ● ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 0806-1209 ● ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1403- ● ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1310-1402 ● ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1210-1309 ● ●
24 PANEL; BED PAN 8-97584-378-6 01 1 0806-1209 ● ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 0806-1008 ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1403- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1310-1402 ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1210-1309 ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0806-1209 ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1403- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1403- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1310-1402 ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1310-1402 ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1210-1309 ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1210-1309 ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0806-1209 ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0806-1209 ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1403- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1310-1402 ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1210-1309 ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 0806-1209 ● ●
220 PATCH
(A) THA 		8-98053-088-0 01 1 1403- ● ●
220 PATCH
(A) THA 		8-98053-088-0 01 1 1310-1402 ● ●
220 PATCH
(B) 		8-97589-627-2 01 1 1210-1306 ● ●
220 PATCH
(A) THA 		8-98053-088-0 01 1 1210-1309 ● ●
220 PATCH
(B) 		8-97589-627-2 01 1 0806-1209 ● ●
220 PATCH
(A) THA 		8-98053-088-0 01 1 0806-1209 ● ●
276 BRACKET; RAD GRILLE
(A) 		8-98076-126-0 01 1 1403- ● ●
276 BRACKET; RAD GRILLE
(A) 		8-98076-126-0 01 1 1310-1402 ● ●
276 BRACKET; RAD GRILLE
(B) 		8-98059-816-2 01 1 0806- ● ●
276 BRACKET; RAD GRILLE
(A) 		8-98076-126-0 01 1 0806- ● ●
311 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 04 1 0806- ● ●
333 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0806- ● ●
333 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 04 1 0806- ● ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-819-1 01 1 0806- ● ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-821-1 01 1 0806- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1403- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1403- ● ●
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-98046-586-2 01 1 1403- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1310-1402 ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1310-1402 ● ●
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-98046-586-2 01 1 1310-1402 ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1210-1309 ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1210-1309 ● ●
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-98046-586-2 01 1 1210-1309 ● ●
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-98046-586-2 01 1 0806-1209 ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0806-1101 ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0806-1101 ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1403- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1403- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1310-1402 ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1310-1402 ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1210-1309 ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1210-1309 ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 0806-1209 ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 0806-1209 ● ●
376 CLOSING; PILLAR,LWR
THA 		8-97589-556-5 01 1 1403- ● ●
376 CLOSING; PILLAR,LWR
THA 		8-98199-228-0 01 1 1403- ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1310-1402 ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-4 01 1 1310-1402 ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1210-1309 ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-4 01 1 1210-1309 ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 0806-1209 ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-4 01 1 0806-1209 ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-824-1 01 1 0806- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-825-1 01 1 0806- ● ●
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-053-0 01 1 0806- ● ●
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-054-0 01 1 0806- ● ●
385 BRACKET
(A) THA 		8-97588-840-4 01 1 1403- ● ●
385 BRACKET
(B) THA 		8-98053-825-1 01 1 1403- ● ●
385 BRACKET
(A) THA 		8-97588-840-4 01 1 1310-1402 ● ●
385 BRACKET
(B) THA 		8-98053-825-1 01 1 1310-1402 ● ●
385 BRACKET
(A) THA 		8-97588-840-4 01 1 1210-1309 ● ●
385 BRACKET
(B) THA 		8-98053-825-1 01 1 1210-1309 ● ●
385 BRACKET
(A) THA 		8-97588-840-4 01 1 0806-1209 ● ●
385 BRACKET
(B) THA 		8-98053-825-1 01 1 0806-1209 ● ●
398 BRACKET; PIPE SUPPORT
THA 		8-97948-272-0 01 1 1306- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0806-1306 ● ●
427 BRACKET; CABLE
THA 		8-98053-090-2 01 1 1403- ● ●
427 BRACKET; CABLE
THA 		8-98053-090-2 01 1 1310-1402 ● ●
427 BRACKET; CABLE
THA 		8-98053-090-2 01 1 1210-1309 ● ●
427 BRACKET; CABLE
THA 		8-98053-090-2 01 1 0806-1209 ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1403- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1403- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1310-1402 ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1310-1402 ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1210-1309 ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1210-1309 ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 0806-1209 ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 0806-1209 ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0806- ● ●
537 SUPPORT ASM; MTG RR 8-98046-599-2 01 1 1403- ● ●
537 SUPPORT ASM; MTG RR 8-98046-600-2 01 1 1403- ● ●
537 SUPPORT ASM; MTG RR 8-98046-599-2 01 1 1310-1402 ● ●
537 SUPPORT ASM; MTG RR 8-98046-600-2 01 1 1310-1402 ● ●
537 SUPPORT ASM; MTG RR 8-98046-599-2 01 1 1210-1309 ● ●
537 SUPPORT ASM; MTG RR 8-98046-600-2 01 1 1210-1309 ● ●
537 SUPPORT ASM; MTG RR 8-98046-599-2 01 1 0806-1209 ● ●
537 SUPPORT ASM; MTG RR 8-98046-600-2 01 1 0806-1209 ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-98098-707-1 01 1 1403- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-98098-707-1 01 1 1310-1402 ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-98098-707-1 01 1 1210-1309 ● ●
538 REINFORCEMENT ASM; AIR INT DUCT
THA 		8-97610-207-2 01 1 0806-1208 ● ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1403- ● ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1310-1402 ● ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1210-1309 ● ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 0806-1209 ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1403- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1310-1402 ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1210-1309 ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 0806-1209 ● ●
541 REINFORCEMENT; MTG,FRT 8-98076-127-0 02 1 1403- ● ●
541 REINFORCEMENT; MTG,FRT 8-98076-127-0 02 1 1310-1402 ● ●
541 REINFORCEMENT; MTG,FRT 8-98076-127-0 02 1 1210-1309 ● ●
541 REINFORCEMENT; MTG,FRT 8-98076-127-0 02 1 0806-1209 ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 0806-0902 ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1403- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1403- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1310-1402 ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1310-1402 ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1210-1309 ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1210-1309 ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0806-1209 ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0806-1209 ● ●
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1403- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1403- ● ●
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1310-1402 ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1310-1402 ● ●
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1210-1309 ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1210-1309 ● ●
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 0806-1209 ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0806-1209 ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1403- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1310-1402 ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1210-1309 ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 0806-1209 ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1403- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1310-1402 ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1210-1309 ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 0806-1209 ● ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1403- ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1403- ● ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1310-1402 ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1310-1402 ● ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1210-1309 ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1210-1309 ● ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 0806-1209 ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 0806-1209 ● ●
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1403- ● ●
549 BRACKET; SEAT RR 8-98094-836-2 01 1 1403- ● ●
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1310-1402 ● ●
549 BRACKET; SEAT RR 8-98094-836-2 01 1 1310-1402 ● ●
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1210-1309 ● ●
549 BRACKET; SEAT RR 8-98094-836-2 01 1 1210-1309 ● ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 0806-1008 ● ●
549 BRACKET; SEAT RR 8-98094-836-2 01 1 1009-1209 ● ●
549 BRACKET; SEAT RR 8-97589-557-4 01 1 0806-1209 ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1403- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1310-1402 ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1210-1309 ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 0806-1209 ● ●
554 REINFORCEMENT; FLOOR CENTER 8-98046-589-0 01 1 1403- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-98046-589-0 01 1 1310-1402 ● ●
554 REINFORCEMENT; FLOOR CENTER 8-98046-589-0 01 1 1210-1309 ● ●
554 REINFORCEMENT; FLOOR CENTER 8-98046-589-0 01 1 0806-1209 ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1403- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1310-1402 ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1210-1309 ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0806-1209 ● ●
566 REINFORCEMENT; FENDER,RR 8-98076-133-0 02 1 1403- ● ●
566 REINFORCEMENT; FENDER,RR 8-98076-133-0 02 1 1310-1402 ● ●
566 REINFORCEMENT; FENDER,RR 8-98076-133-0 02 1 1210-1309 ● ●
566 REINFORCEMENT; FENDER,RR 8-98076-133-0 02 1 0806-1209 ● ●
569 REINFORCEMENT; FRT,ENG HOOD
THA 		8-98108-382-0 01 1 1403- ● ●
569 REINFORCEMENT; FRT,ENG HOOD
THA 		8-98108-382-0 01 1 1310-1402 ● ●
569 REINFORCEMENT; FRT,ENG HOOD
THA 		8-98108-382-0 01 1 1210-1309 ● ●
569 REINFORCEMENT; FRT,ENG HOOD
THA 		8-98108-382-0 01 1 0806-1209 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
