◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11136 - FXZ/GXZ(THAI)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#68358) — 15 parça

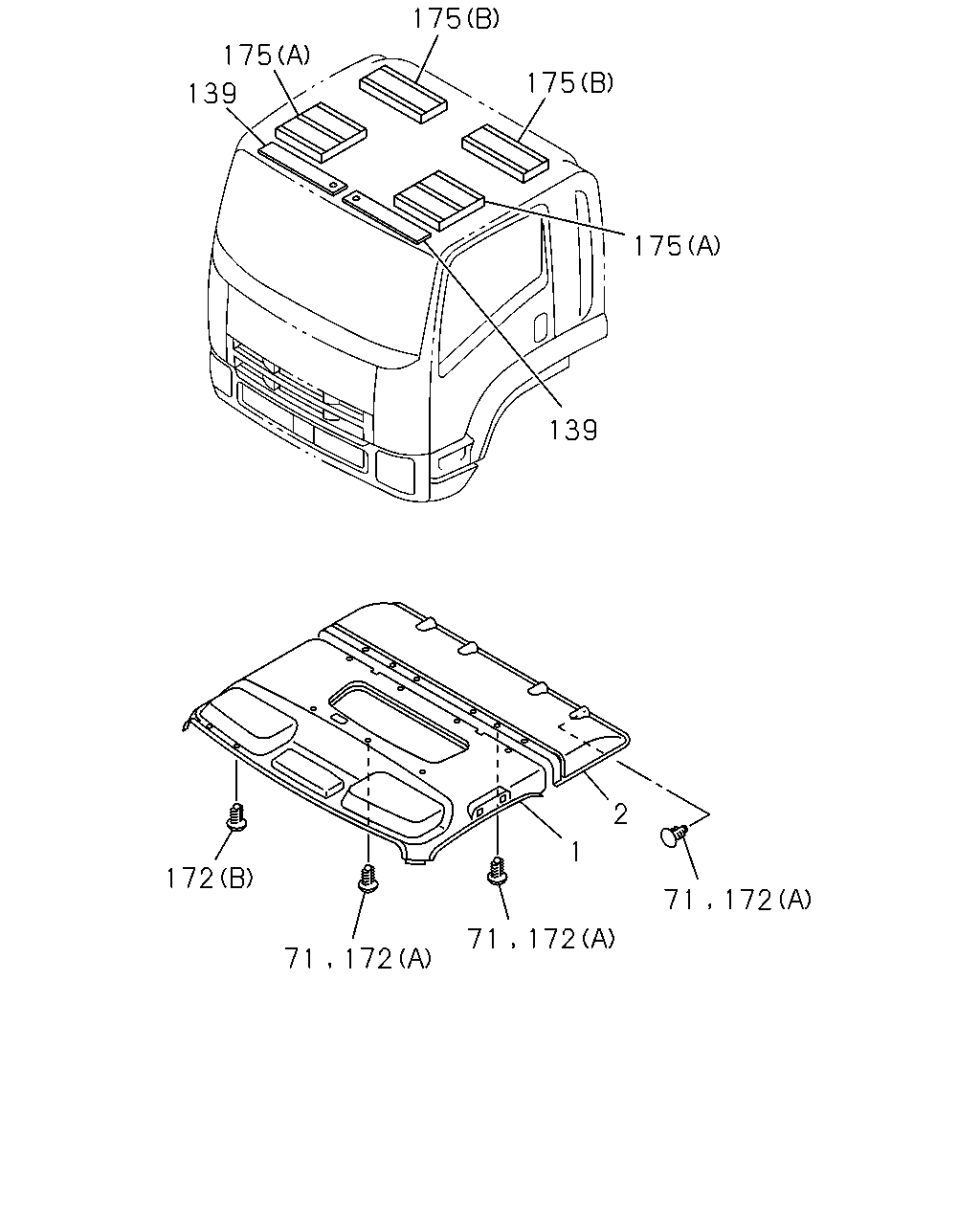

çizim 131273
175 175 175 139 175 139 2 1 172 71 172 71 172 71 172
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97409-899-3 01 1 0806-1306 ● ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97426-728-0 01 1 1307- ● ●
1 LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97409-898-3 01 1 0806-1306 ● ●
1 LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97426-727-0 01 1 1307- ● ●
2 LINING; HD,ROOF RR
DARK GRAY 		8-97407-455-5 01 1 0806- ● ●
71 FASTENER; HD LINING
DARK GRAY 		8-97405-282-0 07 1 1102- ● ●
139 SEAL; ROOF 8-98076-274-0 02 1 0806-1003 ● ●
139 SEAL; ROOF
EXC. VIN MODEL YEAR 2010<VZA> 		8-98076-274-0 02 1 1004-1012 ● ●
139 SEAL; ROOF
EXC. VIN MODEL YEAR 2010<VZA> 		8-98169-116-0 02 1 1101-1101 ● ●
172 RETAINER; HEAD LINING
(A) DARK GRAY 		8-97405-282-0 07 1 0806-1101 ● ●
172 RETAINER; HEAD LINING
(B) DARK GRAY 		8-97411-875-0 12 1 0806- ● ●
175 CUSHION; HEAD LINING
(A) 		8-98030-965-2 02 1 0806-1003 ● ●
175 CUSHION; HEAD LINING
EXC. VIN MODEL YEAR 2010<VZA> (A) 		8-98030-965-2 02 1 1004-1101 ● ●
175 CUSHION; HEAD LINING
(B) 		8-98082-685-1 02 1 0806-1003 ● ●
175 CUSHION; HEAD LINING
EXC. VIN MODEL YEAR 2010<VZA> (B) 		8-98082-685-1 02 1 1004-1101 ● ●
