◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11136 - FXZ/GXZ(THAI)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#68356) — 101 parça

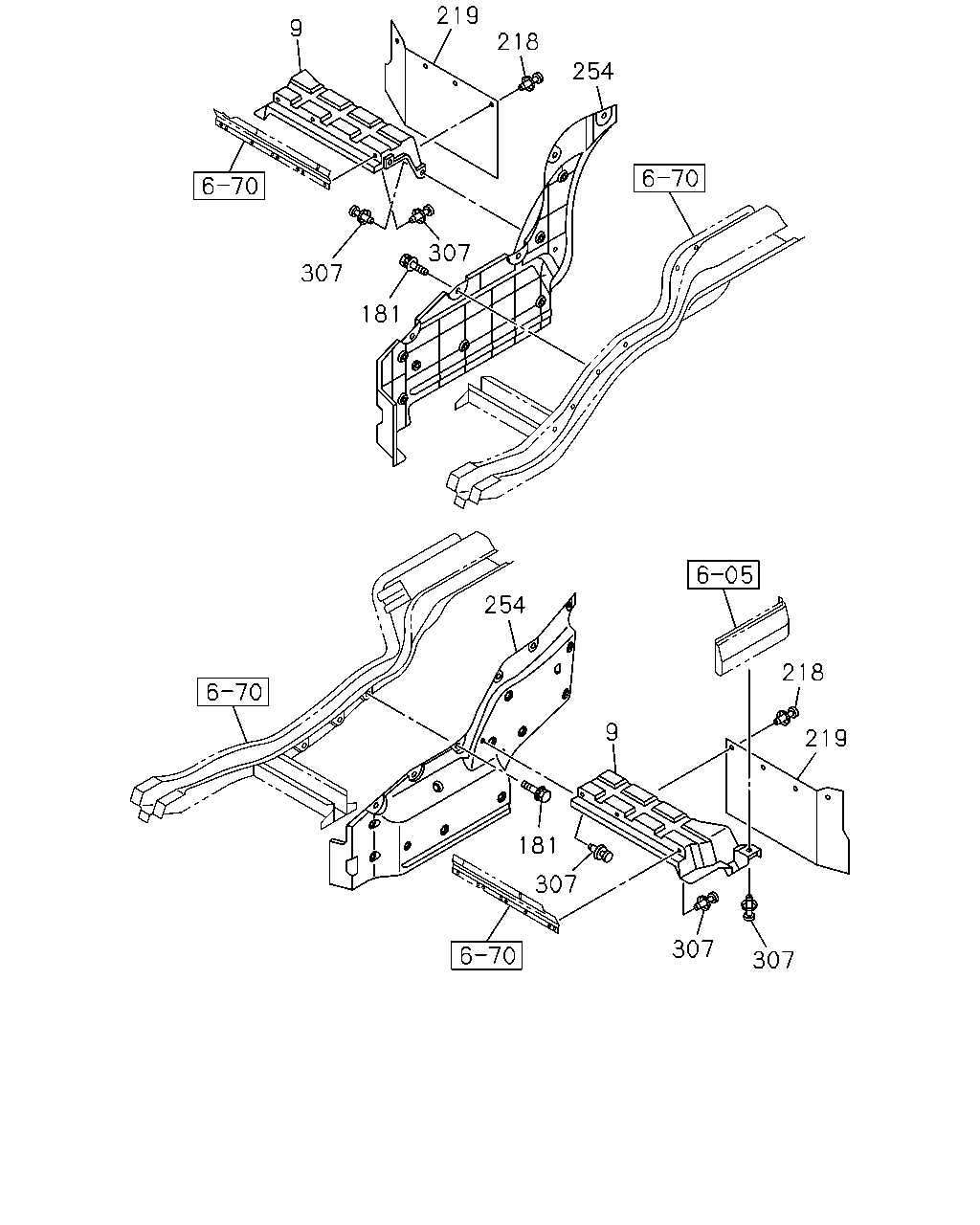

çizim 131211
219 9 218 254 307 307 181 254 218 9 219 181 307 307 307
BalonParca AdiParca NoAdetTipApplied Date A B
9 GUARD; SPLASH,WHEEL HOUSE 8-97617-132-1 01 1 0806- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 8-97617-133-1 01 1 0806- ● ●
181 BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 11 1 0806- ● ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0806- ● ●
219 FLAP; MUD GUARD 8-97617-139-0 02 1 0806- ● ●
254 COVER; MUD,VALANCE 8-97617-143-1 01 1 0806- ● ●
254 COVER; MUD,VALANCE 8-97617-144-0 01 1 0806- ● ●
307 RETAINER
D8X13.5 		1-09987-248-1 12 1 0806- ● ●

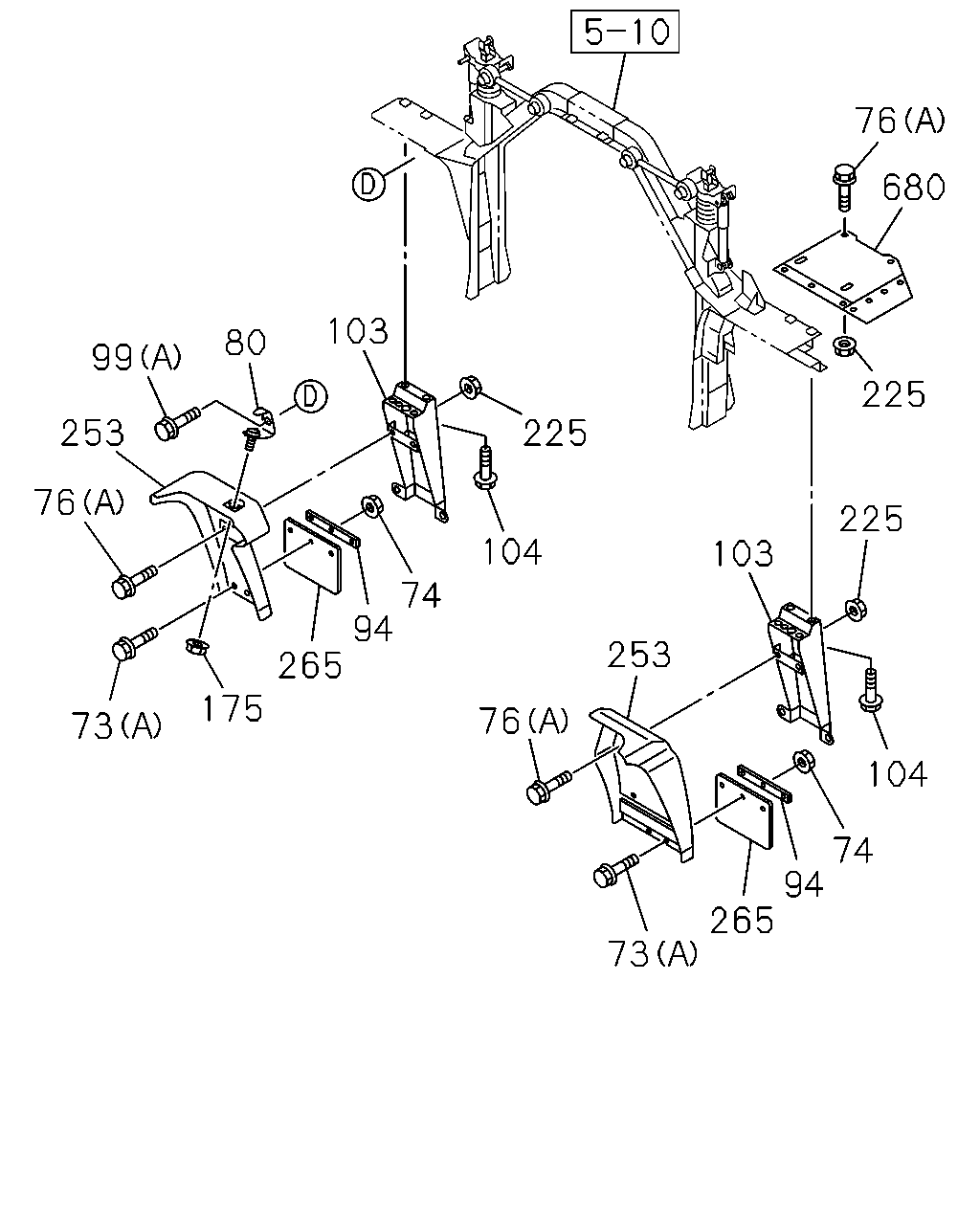

çizim 131322
76 680 103 80 99 225 253 225 76 225 104 103 74 94 265 175 253 76 73 104 74 94 265 73
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 04 1 0806-1101 ● ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1102- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1102- ● ●
74 NUT
M8 FLANGE THA 		0-91180-108-0 06 1 0806- ● ●
76 BOLT; MUD GUARD
(C) M8X25 W/LK&PL WASHER 		8-94331-747-1 02 1 0909-1005 ● ●
76 BOLT; MUD GUARD
(C) M8X25 W/LK&PL WASHER 		8-94331-747-1 06 1 1006- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 12 1 0806- ● ●
76 BOLT; MUD GUARD
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0806-0908 ● ●
76 BOLT; MUD GUARD
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0909-1005 ● ●
80 BRACKET; MUD GUARD STAY 8-98057-793-0 01 1 0806- ● ●
94 RETAINER; FLAP RUBBER 1-79931-091-2 01 1 0806- ● ●
94 RETAINER; FLAP RUBBER 8-98038-675-0 01 1 0806- ● ●
99 BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE THA 		0-28050-825-0 01 1 0806- ● ●
99 BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE THA 		0-28650-616-0 08 1 0806- ● ●
103 BRACKET ASM; RR MUD FLAP 8-98055-593-1 02 1 0806- ● ●
104 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 08 1 0806- ● ●
175 NUT; STAY FIX
M8 W/DISHED WASHER 		8-97329-625-0 01 1 0806- ● ●
225 NUT; MUD GUARD
M8 FLANGE THA 		0-91180-108-0 12 1 0806- ● ●
253 GUARD; MUD 8-98057-779-1 01 1 0806- ● ●
253 GUARD; MUD 8-98057-778-1 01 1 0806- ● ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 0806- ● ●
265 RUBBER; FLAP,REAR 8-98106-956-0 01 1 0806- ● ●
680 GUARD; MUD,UPPER 8-98060-251-0 01 1 0806- ● ●
çizim 131408
122 167 160 163 162 162 163 122
BalonParca AdiParca NoAdetTipApplied Date A B
122 BOLT
(A) M10X40 FLANGE THA 		0-28051-040-0 02 1 0806-0807 ● ●
122 BOLT
(A) M10X40 FLANGE THA 		0-28051-040-0 02 1 0808- ●
122 BOLT
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0806-0806 ● ●
122 BOLT
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0807- ●
160 COVER ASM; EXH 8-98090-111-1 01 1 0806-0807 ● ●
160 COVER ASM; EXH 8-98090-111-1 01 1 0808- ●
162 BRACKET
(A) 		8-98055-601-0 01 1 0806- ● ●
162 BRACKET
(B) 		8-98055-608-0 01 1 0806-0807 ● ●
162 BRACKET
(B) 		8-98055-608-0 01 1 0808- ●
162 BRACKET
(C) 		8-98055-609-2 01 1 0806-0807 ● ●
162 BRACKET
(C) 		8-98055-609-2 01 1 0808- ●
162 BRACKET
(E) THA 		8-98059-845-1 01 1 0806-0807 ● ●
162 BRACKET
(E) THA 		8-98059-845-1 01 1 0808- ●
162 BRACKET
(D) 		8-98092-305-0 01 1 0806- ● ●
163 BOLT; BRKT
M8X20 FLANGE THA 		0-28650-820-0 04 1 0806-0807 ● ●
163 BOLT; BRKT
M8X20 FLANGE THA 		0-28650-820-0 04 1 0808- ●
167 BOLT; EXH COVER
M8X20 FLANGE THA 		0-28650-820-0 01 1 0806-0806 ● ●
167 BOLT; EXH COVER
M8X20 FLANGE THA 		0-28650-820-0 01 1 0807- ●

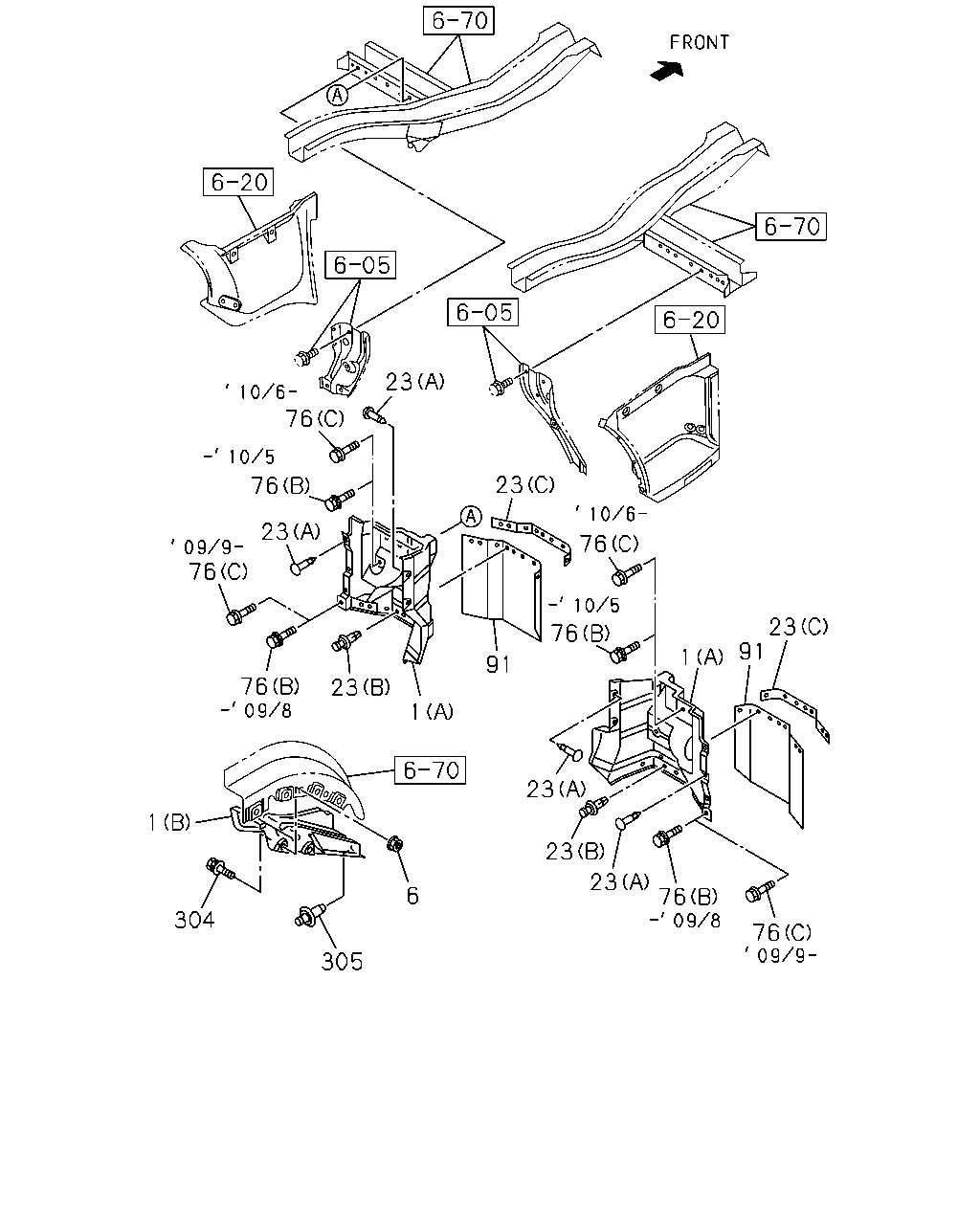

çizim 131433
23 76 23 76 23 76 76 23 91 76 1 91 76 23 1 23 1 23 23 76 6 304 76 305
BalonParca AdiParca NoAdetTipApplied Date A B
1 GUARD; MUD,FRT
DUMP CONTROL LEVER<RC4> (B) 		8-98076-271-0 01 1 0808- ●
1 GUARD; MUD,FRT
(A) 		8-97617-151-0 01 1 0806- ● ●
1 GUARD; MUD,FRT
(A) 		8-97617-152-0 01 1 0806- ● ●
6 NUT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6 FLANGE 		8-94197-199-0 02 1 0808- ●
23 FASTENER; MUD COVER
(B) 		1-09470-001-0 10 1 0806- ● ●
23 FASTENER; MUD COVER
(A) D8X13.5 		1-09987-248-1 08 1 0806- ● ●
23 FASTENER; MUD COVER
(C) 		8-98060-235-0 02 1 0806- ● ●
76 BOLT; MUD GUARD
(C) M8X25 W/LK&PL WASHER 		8-94331-747-1 02 1 0909-1005 ● ●
76 BOLT; MUD GUARD
(C) M8X25 W/LK&PL WASHER 		8-94331-747-1 06 1 1006- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 12 1 0806- ● ●
76 BOLT; MUD GUARD
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0806-0908 ● ●
76 BOLT; MUD GUARD
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0909-1005 ● ●
91 COVER; MUD,FRT 8-97617-155-0 02 1 0806-0811 ● ●
91 COVER; MUD,FRT 8-98136-553-0 02 1 0812- ● ●
304 BOLT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER 		1-09980-495-0 02 1 0808- ●
305 FASTENER; SPLASH GUARD
DUMP CONTROL LEVER<RC4> D8X13.5 		1-09987-248-1 02 1 0808- ●

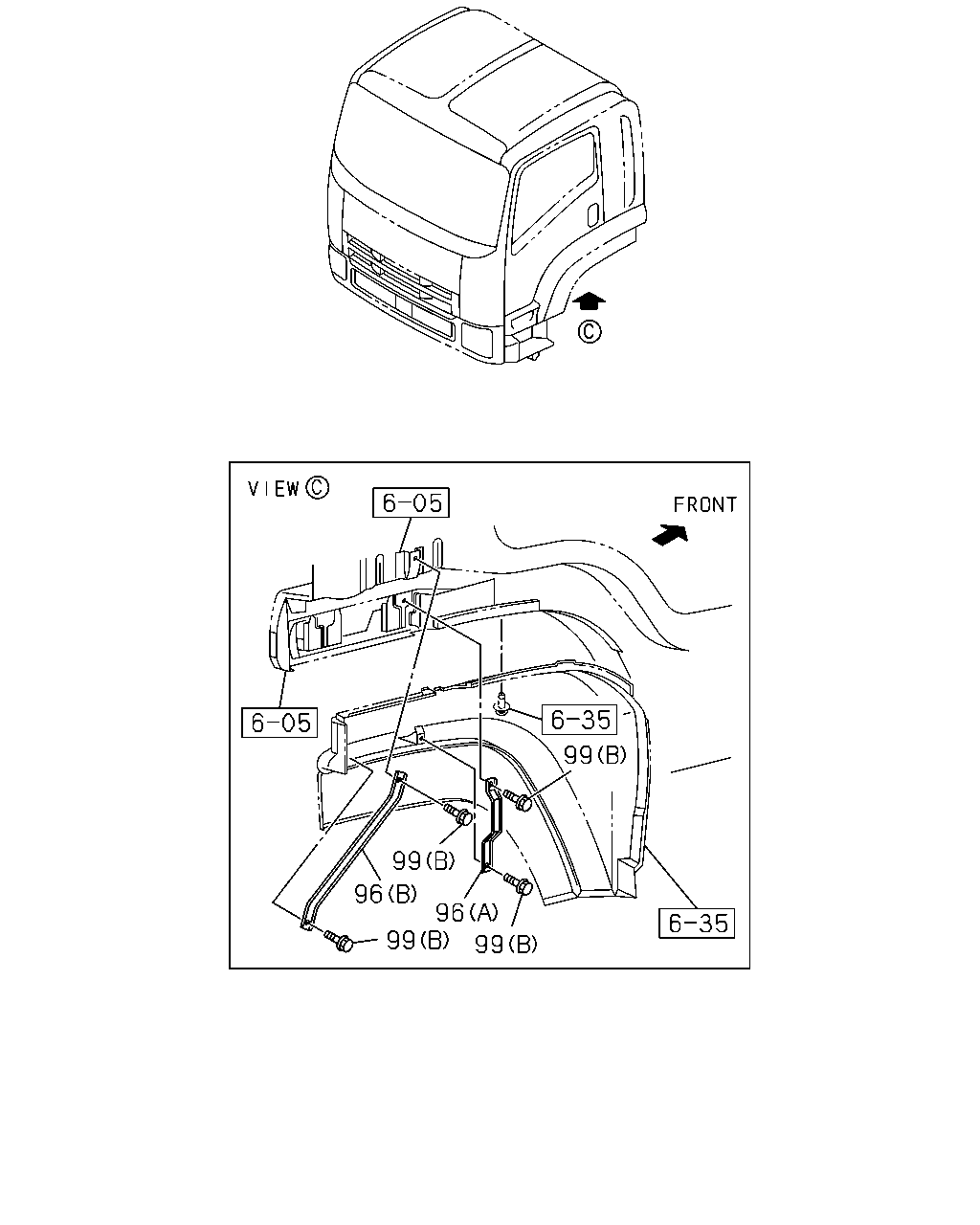

çizim 131486
99 99 96 96 99 99
BalonParca AdiParca NoAdetTipApplied Date A B
96 STAY; MUD GUARD
(B) THA 		8-98082-316-0 02 1 1201- ● ●
96 STAY; MUD GUARD
(A) 		8-98057-075-0 02 1 0806- ● ●
96 STAY; MUD GUARD
(B) THA 		8-98082-316-0 02 1 0806-1112 ● ●
99 BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE THA 		0-28050-825-0 01 1 0806- ● ●
99 BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE THA 		0-28650-616-0 08 1 0806- ● ●

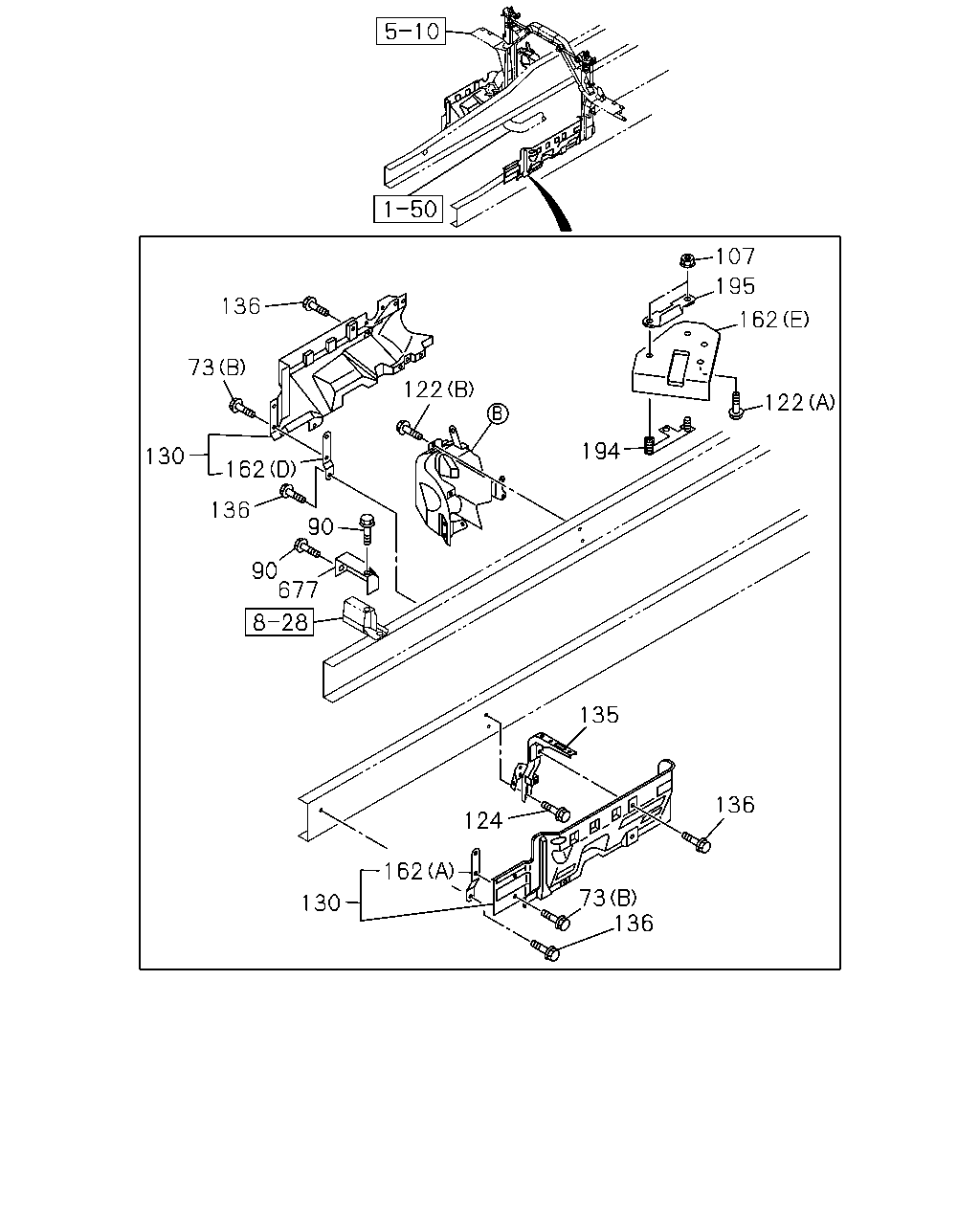

çizim 131759
107 195 136 162 122 73 122 194 130 162 136 90 90 677 135 136 124 162 73 136 130
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 04 1 0806-1101 ● ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1102- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1102- ● ●
90 BOLT; COVER
M8X20 FLANGE THA 		0-28650-820-0 02 1 0806- ● ●
107 NUT; HEAT PROTECTOR
M8 FLANGE THA 		0-91180-108-0 02 1 0806- ● ●
122 BOLT
(A) M10X40 FLANGE THA 		0-28051-040-0 02 1 0806-0807 ● ●
122 BOLT
(A) M10X40 FLANGE THA 		0-28051-040-0 02 1 0808- ●
122 BOLT
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0806-0806 ● ●
122 BOLT
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0807- ●
124 BOLT; BRKT
M12X25 FLANGE THA 		0-28051-225-0 02 1 0806- ● ●
124 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 0806- ● ●
130 PANEL; SHUTTER NOISE 8-98088-647-0 01 1 0806- ● ●
130 PANEL; SHUTTER NOISE 8-98088-648-3 01 1 0806- ● ●
135 BRACKET; SIDE PANEL
THA 		8-98055-600-1 01 1 0806- ● ●
136 BOLT
M8X30 W/LK&PL WASHER 		1-09030-095-0 08 1 0808- ●
136 BOLT
M8X30 W/LK&PL WASHER 		1-09030-095-0 06 1 0808- ●
136 BOLT
M8X30 W/LK&PL WASHER 		1-09030-095-0 12 1 0806-0807 ● ●
136 BOLT
M8X30 W/LK&PL WASHER 		1-09030-095-0 04 1 0808- ● ●
162 BRACKET
(A) 		8-98055-601-0 01 1 0806- ● ●
162 BRACKET
(B) 		8-98055-608-0 01 1 0806-0807 ● ●
162 BRACKET
(B) 		8-98055-608-0 01 1 0808- ●
162 BRACKET
(C) 		8-98055-609-2 01 1 0806-0807 ● ●
162 BRACKET
(C) 		8-98055-609-2 01 1 0808- ●
162 BRACKET
(E) THA 		8-98059-845-1 01 1 0806-0807 ● ●
162 BRACKET
(E) THA 		8-98059-845-1 01 1 0808- ●
162 BRACKET
(D) 		8-98092-305-0 01 1 0806- ● ●
194 BRACKET; HEAT PROTECTOR 8-97609-044-0 01 1 0806- ● ●
195 PROTECTOR; HEAT 8-97609-045-0 01 1 0806- ● ●
677 COVER; MAG VLV 8-98014-736-0 01 1 0806- ● ●
