◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11136 - FXZ/GXZ(THAI)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#68350) — 161 parça

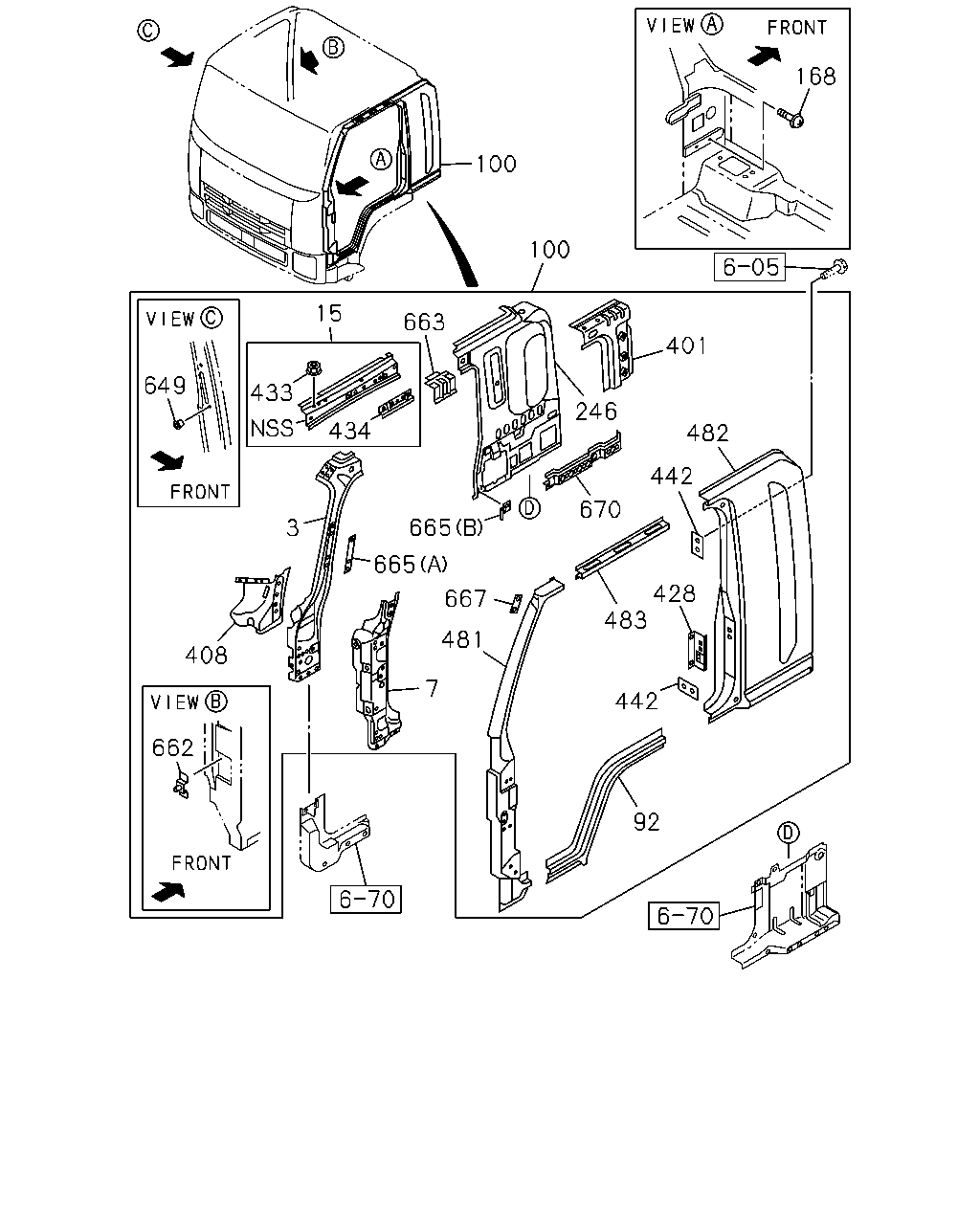

çizim 126588
168 100 100 15 663 401 649 433 246 434 482 442 670 665 3 665 428 483 667 481 408 7 442 662 92
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1310- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1310- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0806-1309 ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0806-1309 ● ●
7 REINFORCEMENT; HINGE
THA 		8-97585-240-3 01 1 0806-1309 ● ●
7 REINFORCEMENT; HINGE
THA 		8-97927-058-0 01 1 1310- ● ●
7 REINFORCEMENT; HINGE
THA 		8-97585-244-4 01 1 0806-1309 ● ●
7 REINFORCEMENT; HINGE
THA 		8-97927-059-0 01 1 1310- ● ●
15 PANEL; CANT RAIL SIDE
THA 		8-97585-293-2 01 1 1310- ● ●
15 PANEL; CANT RAIL SIDE
THA 		8-97585-292-2 01 1 1310- ● ●
15 PANEL; CANT RAIL SIDE
THA 		8-97585-292-2 01 1 0806-1309 ● ●
15 PANEL; CANT RAIL SIDE
THA 		8-97585-293-2 01 1 0806-1309 ● ●
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 0806- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 0806- ● ●
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98166-303-0 01 1 1004-1309 ●
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-570-2 01 1 1310- ●
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98167-118-0 01 1 1004-1309 ●
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-571-2 01 1 1310- ●
100 PANEL ASM; BODY SIDE 8-97586-073-9 01 1 0806-1101 ●
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-073-9 01 1 1102-1309 ●
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-575-2 01 1 1310- ●
100 PANEL ASM; BODY SIDE
THA 		8-98044-544-4 01 1 0806-0902 ●
100 PANEL ASM; BODY SIDE 8-98122-095-1 01 1 0903-1003 ●
100 PANEL ASM; BODY SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98122-095-1 01 1 1004-1309 ●
100 PANEL ASM; BODY SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-568-2 01 1 1310- ●
100 PANEL ASM; BODY SIDE
THA 		8-98096-023-2 01 1 0806-1309 ●
100 PANEL ASM; BODY SIDE
THA 		8-97948-576-2 01 1 1310- ●
100 PANEL ASM; BODY SIDE
THA 		8-98096-024-0 01 1 0806-0902 ●
100 PANEL ASM; BODY SIDE
THA 		8-98122-096-1 01 1 0903-1003 ●
100 PANEL ASM; BODY SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98122-096-1 01 1 1004-1309 ●
100 PANEL ASM; BODY SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-569-2 01 1 1310- ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 08 1 0806- ● ●
246 PANEL; RR PILLAR,INNER
THA 		8-97586-156-5 01 1 0806- ● ●
246 PANEL; RR PILLAR,INNER
THA 		8-97586-158-5 01 1 0806- ● ●
401 PATCH; CLOSING,FRT PILLAR
THA 		8-98316-104-0 01 1 1509- ● ●
401 PATCH; CLOSING,FRT PILLAR
THA 		8-98315-132-0 01 1 1509- ● ●
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-160-2 01 1 0806-1508 ● ●
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-161-2 01 1 0806-1508 ● ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 1310- ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 1310- ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 0806-1309 ● ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 0806-1309 ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1310- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1310- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 0806-1309 ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 0806-1309 ● ●
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 04 1 0806-1101 ● ●
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1102-1309 ● ●
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1102-1309 ● ●
433 NUT; HEADER SHELF
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M6 THA 		9-09114-086-0 02 1 1310-1312 ●
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1310-1312 ●
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1401- ● ●
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1401- ● ●
434 PATCH; ASSIST GRIP
THA 		8-98039-020-0 01 1 0806- ● ●
434 PATCH; ASSIST GRIP
THA 		8-98039-019-0 01 1 0806- ● ●
442 PATCH
THA 		8-98096-158-0 02 1 1310- ●
442 PATCH
THA 		8-98096-158-0 04 1 0806-1112 ●
442 PATCH
THA 		8-98096-158-0 02 1 1201-1309 ●
481 PANEL; SIDE FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-471-0 01 1 1004-1101 ● ●
481 PANEL; SIDE FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98055-471-0 01 1 1102- ● ●
481 PANEL; SIDE FRT PILLAR 8-98055-453-0 01 1 0806-1101 ● ●
481 PANEL; SIDE FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98055-453-0 01 1 1102- ● ●
481 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 0806-1003 ● ●
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-470-0 01 1 1004- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 0806- ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 0806- ●
482 PANEL; SIDE RR PILLAR 8-98103-377-0 01 1 0806- ●
482 PANEL; SIDE RR PILLAR 8-98103-378-0 01 1 0806- ●
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 0806- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 0806- ● ●
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 1310- ● ●
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 0806-1309 ● ●
662 BRACKET; DUCT 8-97584-611-1 01 1 0806-0902 ● ●
663 BRACKET; AIR
THA 		8-97948-278-0 01 1 1310- ● ●
663 BRACKET; AIR
THA 		8-97948-277-0 01 1 1310- ● ●
663 BRACKET; AIR 8-97585-208-2 01 1 0806-1309 ● ●
663 BRACKET; AIR 8-97585-207-2 01 1 0806-1309 ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1310- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1310- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1310- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1310- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 0806-1101 ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1102-1309 ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1102-1309 ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 0806-1101 ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1102-1309 ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1102-1309 ● ●
667 BRACKET; MIRROR 8-98109-948-0 01 1 1310- ● ●
667 BRACKET; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 02 1 1310- ● ●
667 BRACKET; MIRROR 8-98005-264-0 01 1 0806-0806 ● ●
667 BRACKET; MIRROR 8-98109-948-0 01 1 0807-1309 ● ●
667 BRACKET; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 02 1 1004-1309 ● ●
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 02 1 1002-1101 ● ●
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 01 1 1102- ● ●
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 01 1 1102- ● ●

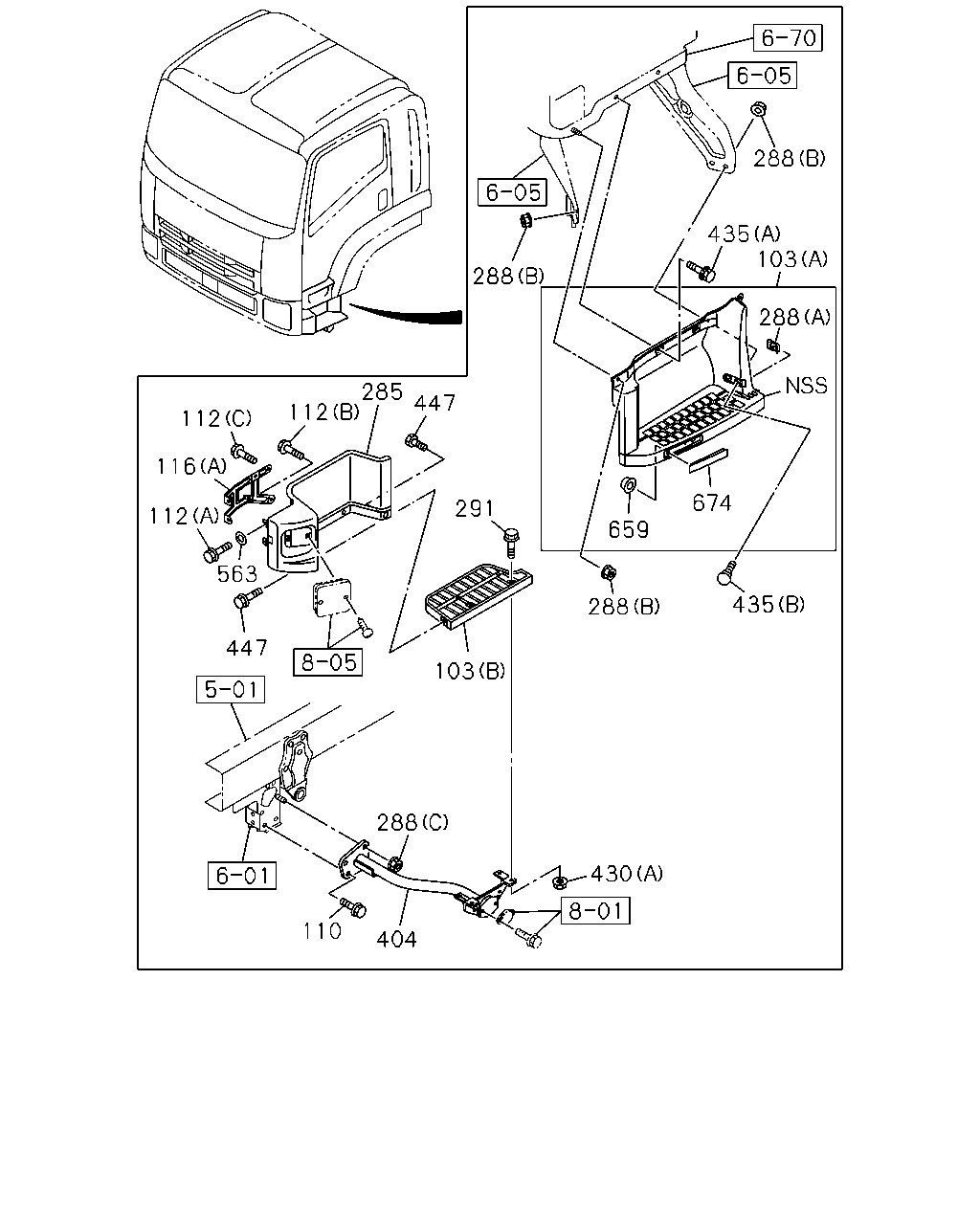

çizim 126844
288 435 103 288 288 285 112 447 112 116 674 291 112 659 563 435 288 447 103 288 430 110 404
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP
(A) 		8-98069-976-2 01 1 0806-1112 ● ●
103 PLATE; STEP
(A) 		8-98069-977-2 01 1 0806-1112 ● ●
103 PLATE; STEP
(B) THA 		8-97924-109-0 01 1 0806- ● ●
103 PLATE; STEP
(B) THA 		8-97924-110-0 01 1 0806- ● ●
110 BOLT; 1ST STEP PLATE
M12X40 FLANGE THA 		0-28651-240-0 06 1 0806-1109 ● ●
112 BOLT; 1ST STEP
(A) M6X16 FLANGE THA 		0-28050-616-0 04 1 0806-1112 ● ●
112 BOLT; 1ST STEP
(A) M6X16 FLANGE THA 		0-28050-616-0 02 1 1201- ● ●
112 BOLT; 1ST STEP
(B) M6X25 FLANGE THA 		0-28050-625-0 02 1 0806-1112 ● ●
112 BOLT; 1ST STEP
(D) M8X12 FLANGE THA 		0-28050-812-0 04 1 1201- ● ●
112 BOLT; 1ST STEP
(C) M8X16 FLANGE THA 		0-28050-816-0 04 1 0806-1101 ● ●
112 BOLT; 1ST STEP
(C) M8X16 FLANGE THA 		0-28050-816-0 04 1 1102-1112 ● ●
112 BOLT; 1ST STEP
(B) M6X20 FLANGE THA 		0-28050-620-0 02 1 1201- ● ●
116 STAY; 1ST STEP,FRT
(A) 		8-98062-133-1 01 1 0806-1112 ● ●
116 STAY; 1ST STEP,FRT
(B) THA 		8-98196-756-0 02 1 1201- ● ●
116 STAY; 1ST STEP,FRT
(A) 		8-98062-134-1 01 1 0806-1112 ● ●
285 PLATE; STEP,1ST STEP
THA 		8-97924-703-1 01 1 0806- ● ●
285 PLATE; STEP,1ST STEP
THA 		8-97924-704-1 01 1 0806- ● ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 0806- ● ●
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 10 1 0806- ● ●
288 NUT; STEP
(C) M12 FLANGE THA 		0-91180-212-0 02 1 0806-1106 ● ●
291 BOLT; STEP PLATE
M8X40 FLANGE THA 		0-28650-840-0 08 1 0806- ● ●
404 BRACKET 8-98055-270-0 01 1 0806-1109 ● ●
404 BRACKET 8-98055-271-0 01 1 0806-1109 ● ●
430 NUT; PANEL
(B) M6 FLANGE THA 		0-91180-106-0 02 1 1201- ● ●
430 NUT; PANEL
(A) M8 FLANGE THA 		0-91180-108-0 08 1 0806- ● ●
435 BOLT; RR STEP
(B) M8X16 		8-98049-538-1 08 1 0806-0907 ● ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 0908- ● ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0806- ● ●
447 BOLT; PANEL
M6X12 FLANGE THA 		0-28050-612-0 06 1 0806- ● ●
563 WASHER; PL
ID=6.4 OD=18 THA 		0-91610-706-0 10 1 0806- ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0806- ● ●
674 COVER; REFLECTOR 8-98092-733-0 01 1 0806- ● ●
674 COVER; REFLECTOR 8-98092-734-0 01 1 0806- ● ●

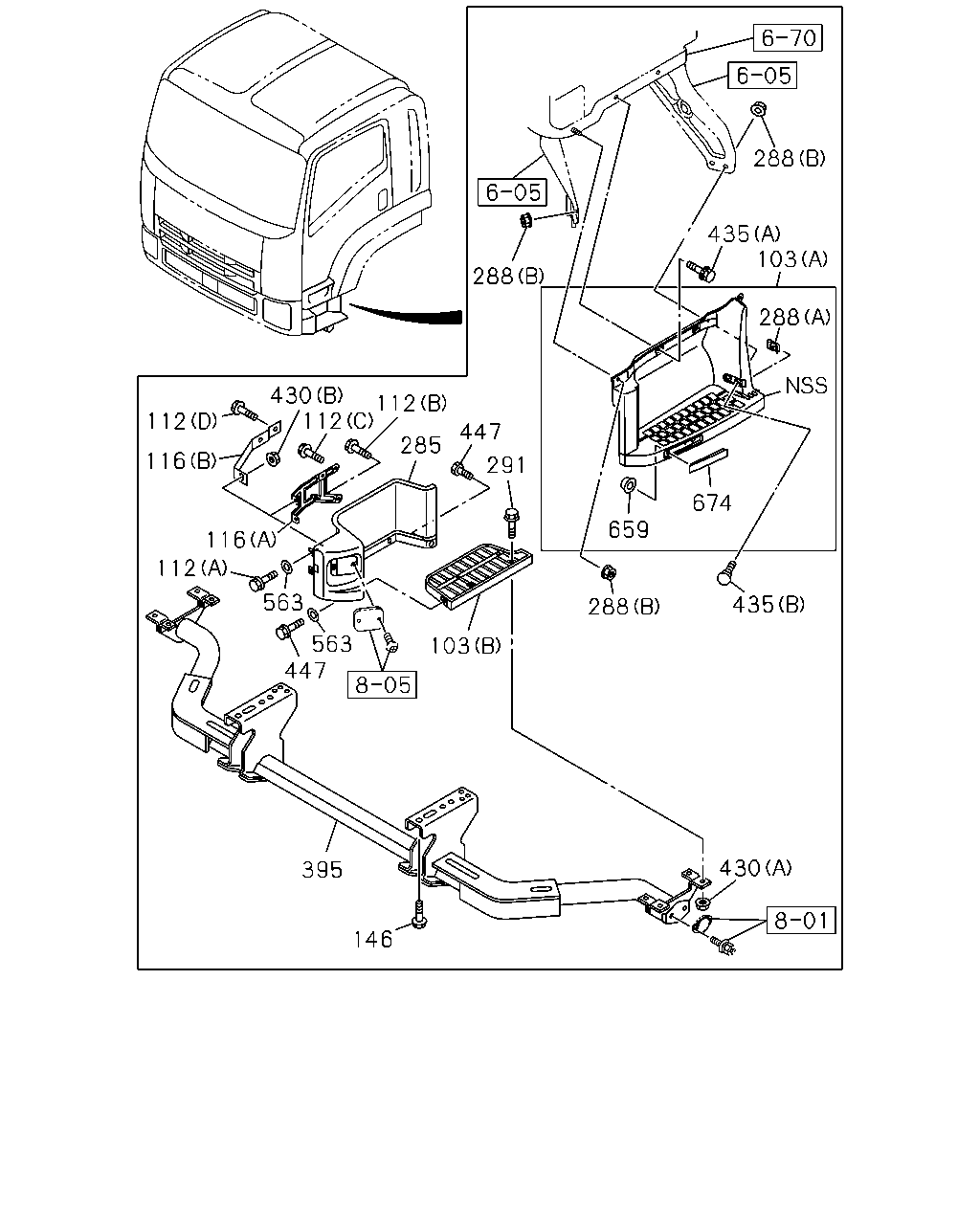

çizim 130562
288 435 103 288 288 430 112 112 112 447 285 116 291 674 659 116 112 563 435 288 563 447 103 430 395 146
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP
(A) 		8-98069-976-2 01 1 0806-1112 ● ●
103 PLATE; STEP
(A) 		8-98069-977-2 01 1 0806-1112 ● ●
103 PLATE; STEP
(B) THA 		8-97924-109-0 01 1 0806- ● ●
103 PLATE; STEP
(B) THA 		8-97924-110-0 01 1 0806- ● ●
112 BOLT; 1ST STEP
(A) M6X16 FLANGE THA 		0-28050-616-0 04 1 0806-1112 ● ●
112 BOLT; 1ST STEP
(A) M6X16 FLANGE THA 		0-28050-616-0 02 1 1201- ● ●
112 BOLT; 1ST STEP
(B) M6X25 FLANGE THA 		0-28050-625-0 02 1 0806-1112 ● ●
112 BOLT; 1ST STEP
(D) M8X12 FLANGE THA 		0-28050-812-0 04 1 1201- ● ●
112 BOLT; 1ST STEP
(C) M8X16 FLANGE THA 		0-28050-816-0 04 1 0806-1101 ● ●
112 BOLT; 1ST STEP
(C) M8X16 FLANGE THA 		0-28050-816-0 04 1 1102-1112 ● ●
112 BOLT; 1ST STEP
(B) M6X20 FLANGE THA 		0-28050-620-0 02 1 1201- ● ●
116 STAY; 1ST STEP,FRT
(A) 		8-98062-133-1 01 1 0806-1112 ● ●
116 STAY; 1ST STEP,FRT
(B) THA 		8-98196-756-0 02 1 1201- ● ●
116 STAY; 1ST STEP,FRT
(A) 		8-98062-134-1 01 1 0806-1112 ● ●
146 BOLT; STEP BRKT
M16X40 		0-20851-640-0 02 1 1110- ● ●
146 BOLT; STEP BRKT
M16X50 		0-20851-650-0 06 1 1110- ● ●
285 PLATE; STEP,1ST STEP
THA 		8-97924-703-1 01 1 0806- ● ●
285 PLATE; STEP,1ST STEP
THA 		8-97924-704-1 01 1 0806- ● ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 0806- ● ●
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 10 1 0806- ● ●
288 NUT; STEP
(C) M12 FLANGE THA 		0-91180-212-0 02 1 0806-1106 ● ●
291 BOLT; STEP PLATE
M8X40 FLANGE THA 		0-28650-840-0 08 1 0806- ● ●
395 BRACKET; SIDE STEP
THA 		8-98182-923-2 01 1 1110- ● ●
430 NUT; PANEL
(B) M6 FLANGE THA 		0-91180-106-0 02 1 1201- ● ●
430 NUT; PANEL
(A) M8 FLANGE THA 		0-91180-108-0 08 1 0806- ● ●
435 BOLT; RR STEP
(B) M8X16 		8-98049-538-1 08 1 0806-0907 ● ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 0908- ● ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0806- ● ●
447 BOLT; PANEL
M6X12 FLANGE THA 		0-28050-612-0 06 1 0806- ● ●
563 WASHER; PL
ID=6.4 OD=18 THA 		0-91610-706-0 10 1 0806- ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0806- ● ●
674 COVER; REFLECTOR 8-98092-733-0 01 1 0806- ● ●
674 COVER; REFLECTOR 8-98092-734-0 01 1 0806- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
