2-26 — MANUAL TRANSMISSION GEAR (#6835) — 509 parça

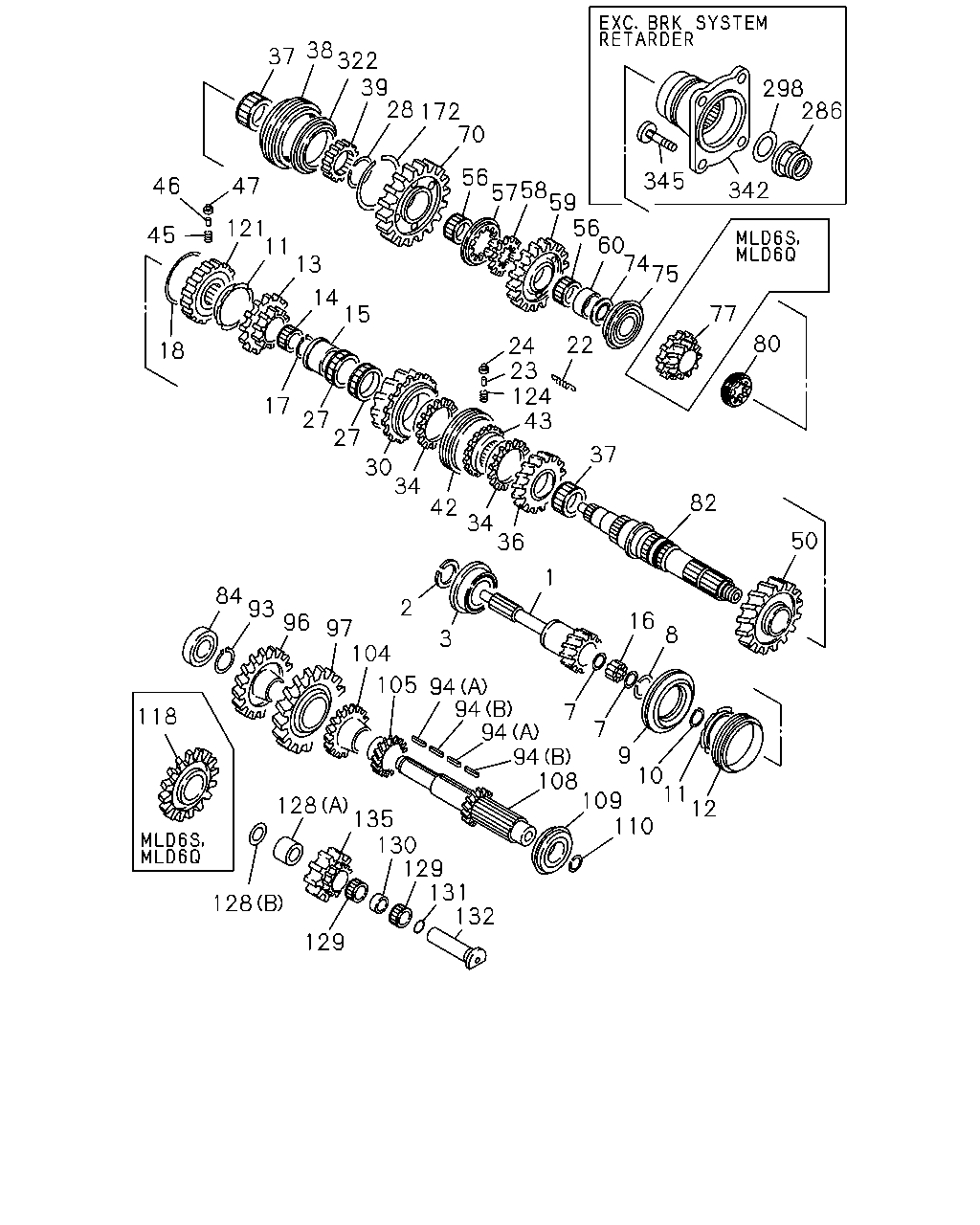

çizim 98861
38 322 39 28 172 70 37 298 286 56 57 58 59 56 60 74 75 345 46 47 342 121 11 45 13 14 15 77 80 22 24 23 124 43 18 17 27 27 37 30 34 42 34 36 82 50 1 84 93 96 2 16 97 104 8 3 105 94 94 94 94 108 109 110 7 118 7 9 10 11 12 128 135 130 129 131 132 128 129
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; TOP GEAR,TRANS
Z=19 		1-33211-502-1 01 1 9806-9911 ●
1 SHAFT; TOP GEAR,TRANS
Z=22 		1-33211-503-1 01 1 9806-9911 ●
1 SHAFT; TOP GEAR,TRANS
Z=26 		1-33211-555-0 01 1 9806-9911 ●
1 SHAFT; TOP GEAR,TRANS
Z=24 		1-33211-505-1 01 1 9806-9911 ●
1 SHAFT; TOP GEAR,TRANS
Z=25 		1-33211-507-1 01 1 9810-0006 ●
1 SHAFT; TOP GEAR,TRANS
Z=25 		1-33211-989-0 01 1 0007- ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.53 WHITE 		1-09588-160-1 AR 1 9806-9809 ● ● ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.53 WHITE 		1-09588-160-1 AR 1 9810-9911 ● ● ● ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.53 WHITE 		1-09588-160-1 AR 1 9912- ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.56 YELLOW 		1-09588-161-1 AR 1 9806-9809 ● ● ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.56 YELLOW 		1-09588-161-1 AR 1 9810-9911 ● ● ● ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.56 YELLOW 		1-09588-161-1 AR 1 9912- ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.60 BLUE 		1-09588-162-1 AR 1 9806-9809 ● ● ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.60 BLUE 		1-09588-162-1 AR 1 9810-9911 ● ● ● ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.60 BLUE 		1-09588-162-1 AR 1 9912- ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.64 GREEN 		1-09588-163-1 AR 1 9806-9809 ● ● ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.64 GREEN 		1-09588-163-1 AR 1 9810-9911 ● ● ● ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.64 GREEN 		1-09588-163-1 AR 1 9912- ●
3 BEARING; TOP GEAR SHAFT
NSK 		1-09810-050-2 01 1 9806-9809 ● ● ● ●
3 BEARING; TOP GEAR SHAFT
NSK 		1-09810-050-2 01 1 9810-9911 ● ● ● ● ●
3 BEARING; TOP GEAR SHAFT
NSK 		1-09810-050-2 01 1 9912- ●
7 WASHER; THRUST,MAINSHAFT 1-33239-080-1 02 1 9806-9809 ● ● ● ●
7 WASHER; THRUST,MAINSHAFT 1-33239-080-1 02 1 9810-9911 ● ● ● ● ●
7 WASHER; THRUST,MAINSHAFT 1-33239-080-1 02 1 9912- ●
8 CLIP; DOG CLU 1-33219-020-0 01 1 9806-9809 ● ● ● ●
8 CLIP; DOG CLU 1-33219-020-0 01 1 9810-9911 ● ● ● ● ●
8 CLIP; DOG CLU 1-33219-020-0 01 1 9912- ●
9 CLUTCH; DOG,TOP GEAR
Z=48 		1-33265-227-2 01 1 9806-9809 ● ● ● ●
9 CLUTCH; DOG,TOP GEAR
Z=48 		1-33265-227-2 01 1 9810-9911 ● ● ● ● ●
9 CLUTCH; DOG,TOP GEAR
Z=48 		1-33265-227-2 01 1 9912- ●
10 RING; SNAP,PILOT BRG 1-09587-072-0 01 1 9806-9809 ● ● ● ●
10 RING; SNAP,PILOT BRG 1-09587-072-0 01 1 9810-9911 ● ● ● ● ●
10 RING; SNAP,PILOT BRG 1-09587-072-0 01 1 9912- ●
11 RING; BLOCK,5TH & 6TH
Z=36 		1-33265-281-1 02 1 9806-9809 ● ● ● ●
11 RING; BLOCK,5TH & 6TH
Z=36 		1-33265-281-1 02 1 9810-9911 ● ● ● ● ●
11 RING; BLOCK,5TH & 6TH
Z=36 		1-33265-281-1 02 1 9912- ●
12 SLEEVE; 5TH & 6TH
Z=42 		1-33262-136-0 01 1 9806-9809 ● ● ● ●
12 SLEEVE; 5TH & 6TH
Z=42 		1-33262-136-0 01 1 9810-9911 ● ● ● ● ●
12 SLEEVE; 5TH & 6TH
Z=42 		1-33262-136-0 01 1 9912- ●
13 GEAR; 5TH,MAINSHAFT
Z=28 		1-33253-571-0 01 1 9806-9908 ● ●
13 GEAR; 5TH,MAINSHAFT
Z=28 		1-33253-711-0 01 1 9909-9911 ● ●
13 GEAR; 5TH,MAINSHAFT
Z=27 		1-33253-572-0 01 1 9806-9908 ●
13 GEAR; 5TH,MAINSHAFT
Z=27 		1-33253-712-0 01 1 9909-9911 ●
14 BEARING; NEEDLE,5TH
NSK 		1-09811-298-0 01 1 9806-9809 ● ● ● ●
14 BEARING; NEEDLE,5TH
NSK 		1-09811-298-0 01 1 9810-9911 ● ● ● ● ●
14 BEARING; NEEDLE,5TH
NSK 		1-09811-298-0 01 1 9912- ●
15 COLLAR; 4TH GEAR 1-33234-048-1 01 1 9806-9809 ● ● ● ●
15 COLLAR; 4TH GEAR 1-33234-048-1 01 1 9810-9911 ● ● ● ● ●
15 COLLAR; 4TH GEAR 1-33234-048-1 01 1 9912- ●
16 BEARING; PILOT,MAINSHAFT
KOYO 		1-09844-015-0 13 1 9806-9809 ● ● ● ●
16 BEARING; PILOT,MAINSHAFT
KOYO 		1-09844-015-0 13 1 9810-9911 ● ● ● ● ●
16 BEARING; PILOT,MAINSHAFT
KOYO 		1-09844-015-0 13 1 9912- ●
17 RING; SNAP,4TH GEAR 1-09588-151-1 01 1 9806-9809 ● ● ● ●
17 RING; SNAP,4TH GEAR 1-09588-151-1 01 1 9810-9911 ● ● ● ● ●
17 RING; SNAP,4TH GEAR 1-09588-151-1 01 1 9912- ●
18 RING; SNAP,CLU HUB
T=2.00 		1-09588-150-1 01 1 9806-9809 ● ● ● ●
18 RING; SNAP,CLU HUB
T=2.00 		1-09588-150-1 01 1 9810-9911 ● ● ● ● ●
18 RING; SNAP,CLU HUB
T=2.00 		1-09588-150-1 01 1 9912- ●
22 SPRING; BLOCK,INSERT 1-09583-228-1 03 1 9806-9809 ● ● ● ●
22 SPRING; BLOCK,INSERT 1-09583-228-1 03 1 9810-9911 ● ● ● ● ●
22 SPRING; BLOCK,INSERT 1-09583-228-1 03 1 9912- ●
23 PLUNGER; DETENT,SYN 1-33269-037-1 03 1 9806-9809 ● ● ● ●
23 PLUNGER; DETENT,SYN 1-33269-037-1 03 1 9810-9911 ● ● ● ● ●
23 PLUNGER; DETENT,SYN 1-33269-037-1 03 1 9912- ●
24 BLOCK; INDEX,SYN 1-33269-035-1 03 1 9806-9809 ● ● ● ●
24 BLOCK; INDEX,SYN 1-33269-035-1 03 1 9810-9911 ● ● ● ● ●
24 BLOCK; INDEX,SYN 1-33269-035-1 03 1 9912- ●
27 BEARING; 4TH GEAR
NSK 		1-09811-300-0 02 1 9806-9809 ● ● ● ●
27 BEARING; 4TH GEAR
NSK 		1-09811-300-0 02 1 9810-9911 ● ● ● ● ●
27 BEARING; 4TH GEAR
NSK 		1-09811-300-0 02 1 9912- ●
28 RING; SNAP,3RD GEAR 1-09588-124-1 01 1 9806-9809 ● ● ● ●
28 RING; SNAP,3RD GEAR 1-09588-124-1 01 1 9810-9911 ● ● ● ● ●
28 RING; SNAP,3RD GEAR 1-09588-124-1 01 1 9912- ●
30 GEAR; 4TH,MAINSHAFT
Z=36 		1-33253-502-0 01 1 9806-9911 ● ●
30 GEAR; 4TH,MAINSHAFT
Z=34 		1-33253-504-0 01 1 9806-9911 ●
30 GEAR; 4TH,MAINSHAFT
Z=33 		1-33253-501-0 01 1 9806-9809 ●
30 GEAR; 4TH,MAINSHAFT
Z=33 		1-33253-501-0 01 1 9810-9911 ● ●
30 GEAR; 4TH,MAINSHAFT
Z=33 		1-33253-501-0 01 1 9912- ●
34 SYNCHRONIZER; 4TH & 3RD 1-33265-372-1 02 1 9806-9809 ● ● ● ●
34 SYNCHRONIZER; 4TH & 3RD 1-33265-372-1 02 1 9810-9911 ● ● ● ● ●
34 SYNCHRONIZER; 4TH & 3RD 1-33265-372-1 02 1 9912-0312 ●
34 SYNCHRONIZER; 4TH & 3RD 1-33265-619-0 02 1 0401- ●
36 GEAR; 3RD,MAINSHAFT
Z=44 		1-33252-374-1 01 1 9806-9911 ● ●
36 GEAR; 3RD,MAINSHAFT
Z=43 		1-33252-373-1 01 1 9806-9809 ● ●
36 GEAR; 3RD,MAINSHAFT
Z=43 		1-33252-373-1 01 1 9810-9911 ● ● ●
36 GEAR; 3RD,MAINSHAFT
Z=43 		1-33252-373-1 01 1 9912- ●
37 BEARING; NEEDLE,2ND & 3RD
KOYO 		1-09811-277-0 02 1 9806-9809 ● ● ● ●
37 BEARING; NEEDLE,2ND & 3RD
KOYO 		1-09811-277-0 02 1 9810-9911 ● ● ● ● ●
37 BEARING; NEEDLE,2ND & 3RD
KOYO 		1-09811-277-0 02 1 9912- ●
37 BEARING; NEEDLE,2ND & 3RD
NSK 		1-09811-279-0 02 1 9806-9809 ● ● ● ●
37 BEARING; NEEDLE,2ND & 3RD
NSK 		1-09811-279-0 02 1 9810-9911 ● ● ● ● ●
37 BEARING; NEEDLE,2ND & 3RD
NSK 		1-09811-279-0 02 1 9912- ●
38 SYNCHRONIZER; LOW & 2ND 1-33265-372-1 01 1 9806-9809 ● ● ● ●
38 SYNCHRONIZER; LOW & 2ND 1-33265-372-1 01 1 9810-9911 ● ● ● ● ●
38 SYNCHRONIZER; LOW & 2ND 1-33265-372-1 01 1 9912-0312 ●
38 SYNCHRONIZER; LOW & 2ND 1-33265-619-0 01 1 0401- ●
39 HUB; CLU,LOW & 2ND
Z=54 		1-33261-217-0 01 1 9806-9809 ● ● ● ●
39 HUB; CLU,LOW & 2ND
Z=54 		1-33261-217-0 01 1 9810-9911 ● ● ● ● ●
39 HUB; CLU,LOW & 2ND
Z=54 		1-33261-217-0 01 1 9912- ●
42 SLEEVE
Z=54 		1-33262-154-0 01 1 9806-9809 ● ● ● ●
42 SLEEVE
Z=54 		1-33262-154-0 01 1 9810-9911 ● ● ● ● ●
42 SLEEVE
Z=54 		1-33262-154-0 01 1 9912- ●
43 HUB; CLU,3RD & 4TH,MAIN
Z=54 		1-33261-218-0 01 1 9806-9809 ● ● ● ●
43 HUB; CLU,3RD & 4TH,MAIN
Z=54 		1-33261-218-0 01 1 9810-9911 ● ● ● ● ●
43 HUB; CLU,3RD & 4TH,MAIN
Z=54 		1-33261-218-0 01 1 9912- ●
45 SPRING; BLOCK INSERT 1-09580-395-0 06 1 9806-9809 ● ● ● ●
45 SPRING; BLOCK INSERT 1-09580-395-0 06 1 9810-9911 ● ● ● ● ●
45 SPRING; BLOCK INSERT 1-09580-395-0 06 1 9912- ●
46 PLUNGER; DETENT,SYN 1-33269-037-1 06 1 9806-9809 ● ● ● ●
46 PLUNGER; DETENT,SYN 1-33269-037-1 06 1 9810-9911 ● ● ● ● ●
46 PLUNGER; DETENT,SYN 1-33269-037-1 06 1 9912- ●
47 BLOCK; INDEX,SYN 1-33269-035-1 06 1 9806-9809 ● ● ● ●
47 BLOCK; INDEX,SYN 1-33269-035-1 06 1 9810-9911 ● ● ● ● ●
47 BLOCK; INDEX,SYN 1-33269-035-1 06 1 9912- ●
50 GEAR; 2ND,MAINSHAFT
Z=48 		1-33251-294-0 01 1 9806-9809 ● ● ● ●
50 GEAR; 2ND,MAINSHAFT
Z=48 		1-33251-294-0 01 1 9810-9911 ● ● ● ● ●
50 GEAR; 2ND,MAINSHAFT
Z=48 		1-33251-294-1 01 1 9912- ●
56 BEARING; NEEDLE,1ST,REV
KOYO 		1-09811-320-0 02 1 9806-9809 ● ● ● ●
56 BEARING; NEEDLE,1ST,REV
KOYO 		1-09811-320-0 02 1 9810-9911 ● ● ● ● ●
56 BEARING; NEEDLE,1ST,REV
KOYO 		1-09811-320-0 02 1 9912- ●
57 SLEEVE; REV
Z=40 		1-33262-110-0 01 1 9806-9809 ● ● ● ●
57 SLEEVE; REV
Z=40 		1-33262-110-0 01 1 9810-9911 ● ● ● ● ●
57 SLEEVE; REV
Z=40 		1-33262-110-0 01 1 9912- ●
58 HUB; CLU,REV
Z=26 		1-33261-132-2 01 1 9806-9809 ● ● ● ●
58 HUB; CLU,REV
Z=26 		1-33261-132-2 01 1 9810-9911 ● ● ● ● ●
58 HUB; CLU,REV
Z=26 		1-33261-132-2 01 1 9912- ●
59 GEAR; REV MAINSHAFT
Z=44 		1-33257-060-0 01 1 9806-9809 ● ● ● ●
59 GEAR; REV MAINSHAFT
Z=44 		1-33257-060-0 01 1 9810-9911 ● ● ● ● ●
59 GEAR; REV MAINSHAFT
Z=44 		1-33257-060-1 01 1 9912- ●
60 COLLAR; REV MAIN 1-33234-059-0 01 1 9806-9809 ● ● ● ●
60 COLLAR; REV MAIN 1-33234-059-0 01 1 9810-9911 ● ● ● ● ●
60 COLLAR; REV MAIN 1-33234-059-0 01 1 9912-0009 ●
60 COLLAR; REV MAIN 1-33234-095-0 01 1 0010- ●
70 GEAR; 1ST,MAINSHAFT
Z=52 		1-33255-055-1 01 1 9806-9809 ● ● ● ●
70 GEAR; 1ST,MAINSHAFT
Z=52 		1-33255-055-1 01 1 9810-9911 ● ● ● ● ●
70 GEAR; 1ST,MAINSHAFT
Z=52 		1-33255-055-1 01 1 9912- ●
74 WASHER; THRUST,REV GEAR 1-33239-035-2 01 1 9806-9809 ● ● ● ●
74 WASHER; THRUST,REV GEAR 1-33239-035-2 01 1 9810-9911 ● ● ● ● ●
74 WASHER; THRUST,REV GEAR 1-33239-035-2 01 1 9912- ●
75 BEARING; MAINSHAFT
NSK 		1-09810-047-1 01 1 9806-9809 ● ● ● ●
75 BEARING; MAINSHAFT
NSK 		1-09810-047-1 01 1 9810-9911 ● ● ● ● ●
75 BEARING; MAINSHAFT
NSK 		1-09810-047-1 01 1 9912- ●
75 BEARING; MAINSHAFT
NTN 		1-09810-154-0 01 1 9806-9809 ● ● ● ●
75 BEARING; MAINSHAFT
NTN 		1-09810-154-0 01 1 9810-9911 ● ● ● ● ●
75 BEARING; MAINSHAFT
NTN 		1-09810-154-0 01 1 9912- ●
77 GEAR; 6TH,MAINSHAFT
Z=26 		1-33253-518-0 01 1 9806-9911 ●
77 GEAR; 6TH,MAINSHAFT
Z=25 		1-33253-517-0 01 1 9810- ●
80 GEAR; SPD DRIVE
Z=5 		1-33371-041-2 01 1 9806-9809 ● ● ● ●
80 GEAR; SPD DRIVE
Z=5 		1-33371-041-2 01 1 9810-9911 ● ● ● ● ●
80 GEAR; SPD DRIVE
Z=5 		1-33371-041-2 01 1 9912- ●
82 SHAFT; MAIN,TRANS
Z=19-34-37-26-20 		1-33231-249-0 01 1 9806-9809 ● ● ●
82 SHAFT; MAIN,TRANS
Z=19-34-37-26-20 		1-33231-249-0 01 1 9810-9911 ● ● ● ●
82 SHAFT; MAIN,TRANS
Z=19-34-37-26-20 		1-33231-249-0 01 1 9912- ●
82 SHAFT; MAIN,TRANS
Z=19-34-37-26-20 		1-33231-271-0 01 1 9806-9911 ●
84 BEARING; COUNTER SHAFT,FRT
NSK 		1-09810-140-0 01 1 9806-9809 ● ● ● ●
84 BEARING; COUNTER SHAFT,FRT
NSK 		1-09810-140-0 01 1 9810-9911 ● ● ● ● ●
84 BEARING; COUNTER SHAFT,FRT
NSK 		1-09810-140-0 01 1 9912- ●
93 RING; SNAP,COUNTER FRT BRG
ID=55.8 		1-09588-125-0 01 1 9806-9809 ● ● ● ●
93 RING; SNAP,COUNTER FRT BRG
ID=55.8 		1-09588-125-0 01 1 9810-9911 ● ● ● ● ●
93 RING; SNAP,COUNTER FRT BRG
ID=55.8 		1-09588-125-0 01 1 9912- ●
94 KEY; FEATHER,COUNTER SHAFT
(A) L=47 		1-09735-022-1 02 1 9806-9809 ● ● ● ●
94 KEY; FEATHER,COUNTER SHAFT
(A) L=47 		1-09735-022-1 02 1 9810-9911 ● ● ● ● ●
94 KEY; FEATHER,COUNTER SHAFT
(A) L=47 		1-09735-022-1 02 1 9912- ●
94 KEY; FEATHER,COUNTER SHAFT
(B) L=55 		1-09735-025-0 02 1 9806-9809 ● ● ● ●
94 KEY; FEATHER,COUNTER SHAFT
(B) L=55 		1-09735-025-0 02 1 9810-9911 ● ● ● ● ●
94 KEY; FEATHER,COUNTER SHAFT
(B) L=55 		1-09735-025-0 02 1 9912- ●
96 GEAR; COUNTER DRIVE
Z=46 		1-33331-213-1 01 1 9806-9911 ●
96 GEAR; COUNTER DRIVE
Z=45 		1-33331-214-1 01 1 9806-9911 ●
96 GEAR; COUNTER DRIVE
Z=41 		1-33331-216-1 01 1 9806-9911 ●
96 GEAR; COUNTER DRIVE
Z=43 		1-33331-215-1 01 1 9806-9911 ●
96 GEAR; COUNTER DRIVE
Z=42 		1-33331-212-1 01 1 9810- ●
97 GEAR; 5TH,COUNTER
Z=40 		1-33332-113-0 01 1 9806-9911 ● ●
97 GEAR; 5TH,COUNTER
Z=41 		1-33332-114-0 01 1 9806-9911 ●
104 GEAR; 4TH,COUNTER
Z=33 		1-33332-097-0 01 1 9806-9806 ● ●
104 GEAR; 4TH,COUNTER
Z=33 		1-33332-122-0 01 1 9807-9911 ● ●
104 GEAR; 4TH,COUNTER
Z=35 		1-33332-099-0 01 1 9806-9806 ●
104 GEAR; 4TH,COUNTER
Z=35 		1-33332-124-0 01 1 9807-9911 ●
104 GEAR; 4TH,COUNTER
Z=36 		1-33332-096-0 01 1 9806-9806 ●
104 GEAR; 4TH,COUNTER
Z=36 		1-33332-121-0 01 1 9807-9809 ●
104 GEAR; 4TH,COUNTER
Z=36 		1-33332-121-0 01 1 9810-9911 ● ●
104 GEAR; 4TH,COUNTER
Z=36 		1-33332-121-0 01 1 9912- ●
105 GEAR; 3RD,COUNTER
Z=27 		1-33333-124-0 01 1 9806-9806 ● ●
105 GEAR; 3RD,COUNTER
Z=27 		1-33333-160-0 01 1 9807-9911 ● ●
105 GEAR; 3RD,COUNTER
Z=28 		1-33333-125-0 01 1 9806-9806 ● ●
105 GEAR; 3RD,COUNTER
Z=28 		1-33333-161-0 01 1 9807-9809 ● ●
105 GEAR; 3RD,COUNTER
Z=28 		1-33333-161-0 01 1 9810-9911 ● ● ●
105 GEAR; 3RD,COUNTER
Z=28 		1-33333-161-0 01 1 9912- ●
108 SHAFT; COUNTER
Z=19-13 		1-33311-235-0 01 1 9806-9809 ● ● ●
108 SHAFT; COUNTER
Z=19-13 		1-33311-235-0 01 1 9810-9911 ● ● ● ●
108 SHAFT; COUNTER
Z=19-13 		1-33311-235-1 01 1 9912- ●
108 SHAFT; COUNTER
Z=19-13 		1-33311-274-0 01 1 9806-9911 ●
109 BEARING; COUNTER SHAFT,RR
KOYO 		1-09810-039-1 01 1 9806-9809 ● ● ● ●
109 BEARING; COUNTER SHAFT,RR
KOYO 		1-09810-039-1 01 1 9810-9911 ● ● ● ● ●
109 BEARING; COUNTER SHAFT,RR
KOYO 		1-09810-039-1 01 1 9912- ●
109 BEARING; COUNTER SHAFT,RR
NSK 		1-09810-041-1 01 1 9806-9809 ● ● ● ●
109 BEARING; COUNTER SHAFT,RR
NSK 		1-09810-041-1 01 1 9810-9911 ● ● ● ● ●
109 BEARING; COUNTER SHAFT,RR
NSK 		1-09810-041-1 01 1 9912- ●
110 RING; SNAP,COUNTER BRG
ID=46.3 		1-09588-047-0 01 1 9806-9809 ● ● ● ●
110 RING; SNAP,COUNTER BRG
ID=46.3 		1-09588-047-0 01 1 9810-9911 ● ● ● ● ●
110 RING; SNAP,COUNTER BRG
ID=46.3 		1-09588-047-0 01 1 9912- ●
118 GEAR; 6TH,COUNTER
Z=54 		1-33332-104-1 01 1 9806-9911 ●
118 GEAR; 6TH,COUNTER
Z=55 		1-33332-103-1 01 1 9810- ●
121 HUB; CLU,6TH 1-33261-156-2 01 1 9806-9809 ● ● ● ●
121 HUB; CLU,6TH 1-33261-156-2 01 1 9810-9911 ● ● ● ● ●
121 HUB; CLU,6TH 1-33261-156-2 01 1 9912-0212 ●
121 HUB; CLU,6TH 1-33261-270-0 01 1 0301- ●
124 SPRING; PLUNGER,CLU HUB 1-09580-395-0 03 1 9806-9809 ● ● ● ●
124 SPRING; PLUNGER,CLU HUB 1-09580-395-0 03 1 9810-9911 ● ● ● ● ●
124 SPRING; PLUNGER,CLU HUB 1-09580-395-0 03 1 9912- ●
128 WASHER; THRUST,REV SHAFT
(A) ID=38.5 T=42 		1-33239-079-1 01 1 9806-9809 ● ● ● ●
128 WASHER; THRUST,REV SHAFT
(A) ID=38.5 T=42 		1-33239-079-1 01 1 9810-9911 ● ● ● ● ●
128 WASHER; THRUST,REV SHAFT
(A) ID=38.5 T=42 		1-33239-079-1 01 1 9912- ●
128 WASHER; THRUST,REV SHAFT
(B) ID=38.5 T=2 		1-33363-024-1 01 1 9806-9809 ● ● ● ●
128 WASHER; THRUST,REV SHAFT
(B) ID=38.5 T=2 		1-33363-024-1 01 1 9810-9911 ● ● ● ● ●
128 WASHER; THRUST,REV SHAFT
(B) ID=38.5 T=2 		1-33363-024-1 01 1 9912- ●
129 BEARING; NEEDLE,IDLER
KOYO 		1-09811-102-0 02 1 9806-9809 ● ● ● ●
129 BEARING; NEEDLE,IDLER
KOYO 		1-09811-102-0 02 1 9810-9911 ● ● ● ● ●
129 BEARING; NEEDLE,IDLER
KOYO 		1-09811-102-0 02 1 9912- ●
129 BEARING; NEEDLE,IDLER
NTN 		1-09811-103-0 02 1 9806-9809 ● ● ● ●
129 BEARING; NEEDLE,IDLER
NTN 		1-09811-103-0 02 1 9810-9911 ● ● ● ● ●
129 BEARING; NEEDLE,IDLER
NTN 		1-09811-103-0 02 1 9912- ●
130 COLLAR; DIST,NEEDLE BRG 1-33363-023-0 01 1 9806-9809 ● ● ● ●
130 COLLAR; DIST,NEEDLE BRG 1-33363-023-0 01 1 9810-9911 ● ● ● ● ●
130 COLLAR; DIST,NEEDLE BRG 1-33363-023-0 01 1 9912- ●
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-384-0 01 1 9806-9809 ● ● ● ●
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-384-0 01 1 9810-9911 ● ● ● ● ●
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-384-0 01 1 9912- ●
132 SHAFT; REV 1-33351-017-0 01 1 9806-9809 ● ● ● ●
132 SHAFT; REV 1-33351-017-0 01 1 9810-9911 ● ● ● ● ●
132 SHAFT; REV 1-33351-017-0 01 1 9912- ●
135 GEAR; REV IDLER
Z=30-25 		1-33361-063-0 01 1 9806-9809 ● ● ● ●
135 GEAR; REV IDLER
Z=30-25 		1-33361-063-0 01 1 9810-9911 ● ● ● ● ●
135 GEAR; REV IDLER
Z=30-25 		1-33361-063-0 01 1 9912- ●
172 RING; SNAP,CLU HUB
ID=130 T=2.5 		1-09588-040-0 01 1 9806-9809 ● ● ● ●
172 RING; SNAP,CLU HUB
ID=130 T=2.5 		1-09588-040-0 01 1 9810-9911 ● ● ● ● ●
172 RING; SNAP,CLU HUB
ID=130 T=2.5 		1-09588-040-0 01 1 9912- ●
286 NUT; LK,MAINSHAFT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M36 FLANGE 		1-09449-063-0 01 1 9806-9809 ● ● ● ●
286 NUT; LK,MAINSHAFT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK SYSTEM RETARDER<RE2> M36 FLANGE 		1-09449-063-0 01 1 9810-9911 ● ● ● ● ●
286 NUT; LK,MAINSHAFT
M36 FLANGE 		1-09449-063-0 01 1 9912- ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=47 T=5 		1-09623-380-0 01 1 9806-9809 ● ● ● ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK SYSTEM RETARDER<RE2> ID=47 T=5 		1-09623-380-0 01 1 9810-9911 ● ● ● ● ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5 		1-09623-380-0 01 1 9912- ●
322 SLEEVE; SYN,LOW & 2ND 1-33262-153-1 01 1 9806-9809 ● ● ● ●
322 SLEEVE; SYN,LOW & 2ND 1-33262-153-1 01 1 9810-9911 ● ● ● ● ●
322 SLEEVE; SYN,LOW & 2ND 1-33262-153-1 01 1 9912- ●
342 FLANGE; OUTPUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK SYSTEM RETARDER<RE2> 		1-37243-307-0 01 1 9806-9809 ● ● ● ●
342 FLANGE; OUTPUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK SYSTEM RETARDER<RE2> 		1-37243-307-0 01 1 9810-9911 ● ● ● ● ●
342 FLANGE; OUTPUT 1-37243-307-1 01 1 9912- ●
345 BOLT; FLANGE TO YOKE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK SYSTEM RETARDER<RE2> M14X43 KNURL 		1-09046-003-0 04 1 9806-9809 ● ● ● ●
345 BOLT; FLANGE TO YOKE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK SYSTEM RETARDER<RE2> M14X43 KNURL 		1-09046-003-0 04 1 9810-9911 ● ● ● ● ●
345 BOLT; FLANGE TO YOKE
M14X43 KNURL 		1-09046-003-0 04 1 9912- ●

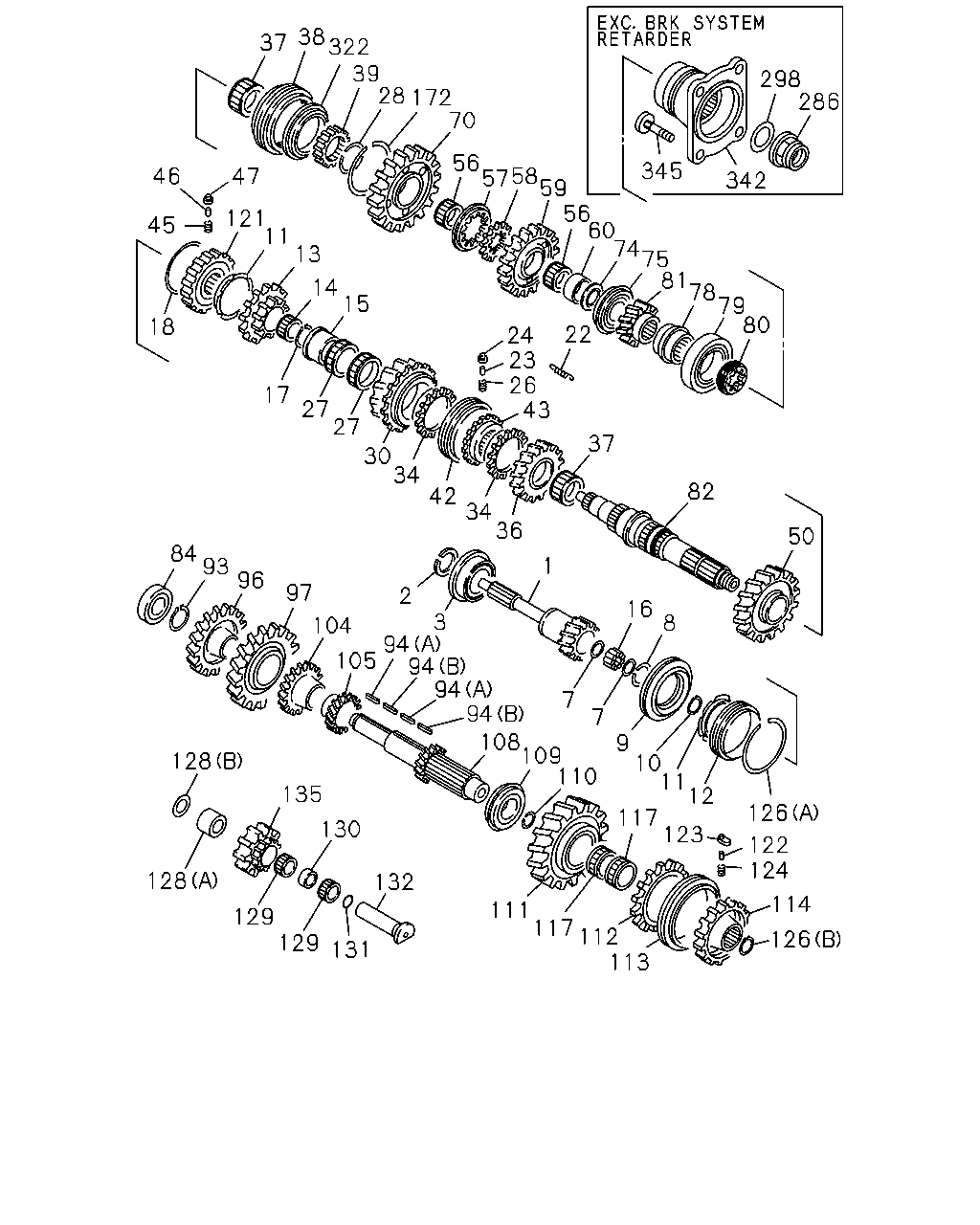

çizim 98989
38 322 39 28 172 70 37 298 286 56 57 58 59 56 60 74 75 81 78 79 80 345 46 47 342 121 11 45 13 14 15 18 22 24 23 26 43 17 27 27 37 30 34 42 34 36 82 50 84 93 96 1 97 2 16 3 94 105 94 94 94 108 109 110 8 104 7 7 9 10 11 12 128 13 126 117 123 130 122 124 128 132 114 111 117 112 113 129 129 126 131
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; TOP GEAR,TRANS
Z=19 		1-33211-502-1 01 1 9806-9911 ●
1 SHAFT; TOP GEAR,TRANS
Z=22 		1-33211-503-1 01 1 9806-9911 ●
1 SHAFT; TOP GEAR,TRANS
Z=26 		1-33211-555-0 01 1 9806-9911 ●
1 SHAFT; TOP GEAR,TRANS
Z=24 		1-33211-505-1 01 1 9806-9911 ●
1 SHAFT; TOP GEAR,TRANS
Z=25 		1-33211-507-1 01 1 9810-0006 ●
1 SHAFT; TOP GEAR,TRANS
Z=25 		1-33211-989-0 01 1 0007- ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.53 WHITE 		1-09588-160-1 AR 1 9806-9809 ● ● ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.53 WHITE 		1-09588-160-1 AR 1 9810-9911 ● ● ● ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.53 WHITE 		1-09588-160-1 AR 1 9912- ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.56 YELLOW 		1-09588-161-1 AR 1 9806-9809 ● ● ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.56 YELLOW 		1-09588-161-1 AR 1 9810-9911 ● ● ● ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.56 YELLOW 		1-09588-161-1 AR 1 9912- ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.60 BLUE 		1-09588-162-1 AR 1 9806-9809 ● ● ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.60 BLUE 		1-09588-162-1 AR 1 9810-9911 ● ● ● ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.60 BLUE 		1-09588-162-1 AR 1 9912- ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.64 GREEN 		1-09588-163-1 AR 1 9806-9809 ● ● ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.64 GREEN 		1-09588-163-1 AR 1 9810-9911 ● ● ● ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.64 GREEN 		1-09588-163-1 AR 1 9912- ●
3 BEARING; TOP GEAR SHAFT
NSK 		1-09810-050-2 01 1 9806-9809 ● ● ● ●
3 BEARING; TOP GEAR SHAFT
NSK 		1-09810-050-2 01 1 9810-9911 ● ● ● ● ●
3 BEARING; TOP GEAR SHAFT
NSK 		1-09810-050-2 01 1 9912- ●
7 WASHER; THRUST,MAINSHAFT 1-33239-080-1 02 1 9806-9809 ● ● ● ●
7 WASHER; THRUST,MAINSHAFT 1-33239-080-1 02 1 9810-9911 ● ● ● ● ●
7 WASHER; THRUST,MAINSHAFT 1-33239-080-1 02 1 9912- ●
8 CLIP; DOG CLU 1-33219-020-0 01 1 9806-9809 ● ● ● ●
8 CLIP; DOG CLU 1-33219-020-0 01 1 9810-9911 ● ● ● ● ●
8 CLIP; DOG CLU 1-33219-020-0 01 1 9912- ●
9 CLUTCH; DOG,TOP GEAR
Z=48 		1-33265-227-2 01 1 9806-9809 ● ● ● ●
9 CLUTCH; DOG,TOP GEAR
Z=48 		1-33265-227-2 01 1 9810-9911 ● ● ● ● ●
9 CLUTCH; DOG,TOP GEAR
Z=48 		1-33265-227-2 01 1 9912- ●
10 RING; SNAP,PILOT BRG 1-09587-072-0 01 1 9806-9809 ● ● ● ●
10 RING; SNAP,PILOT BRG 1-09587-072-0 01 1 9810-9911 ● ● ● ● ●
10 RING; SNAP,PILOT BRG 1-09587-072-0 01 1 9912- ●
11 RING; BLOCK,5TH & 6TH
Z=36 		1-33265-281-1 02 1 9806-9809 ● ● ● ●
11 RING; BLOCK,5TH & 6TH
Z=36 		1-33265-281-1 02 1 9810-9911 ● ● ● ● ●
11 RING; BLOCK,5TH & 6TH
Z=36 		1-33265-281-1 02 1 9912- ●
12 SLEEVE; 5TH & 6TH
Z=42 		1-33262-136-0 01 1 9806-9809 ● ● ● ●
12 SLEEVE; 5TH & 6TH
Z=42 		1-33262-136-0 01 1 9810-9911 ● ● ● ● ●
12 SLEEVE; 5TH & 6TH
Z=42 		1-33262-136-0 01 1 9912- ●
13 GEAR; 5TH,MAINSHAFT
Z=28 		1-33253-571-0 01 1 9806-9908 ● ●
13 GEAR; 5TH,MAINSHAFT
Z=28 		1-33253-711-0 01 1 9909-9911 ● ●
13 GEAR; 5TH,MAINSHAFT
Z=27 		1-33253-572-0 01 1 9806-9908 ●
13 GEAR; 5TH,MAINSHAFT
Z=27 		1-33253-712-0 01 1 9909-9911 ●
14 BEARING; NEEDLE,5TH
NSK 		1-09811-298-0 01 1 9806-9809 ● ● ● ●
14 BEARING; NEEDLE,5TH
NSK 		1-09811-298-0 01 1 9810-9911 ● ● ● ● ●
14 BEARING; NEEDLE,5TH
NSK 		1-09811-298-0 01 1 9912- ●
15 COLLAR; 4TH GEAR 1-33234-048-1 01 1 9806-9809 ● ● ● ●
15 COLLAR; 4TH GEAR 1-33234-048-1 01 1 9810-9911 ● ● ● ● ●
15 COLLAR; 4TH GEAR 1-33234-048-1 01 1 9912- ●
16 BEARING; PILOT,MAINSHAFT
KOYO 		1-09844-015-0 13 1 9806-9809 ● ● ● ●
16 BEARING; PILOT,MAINSHAFT
KOYO 		1-09844-015-0 13 1 9810-9911 ● ● ● ● ●
16 BEARING; PILOT,MAINSHAFT
KOYO 		1-09844-015-0 13 1 9912- ●
17 RING; SNAP,4TH GEAR 1-09588-151-1 01 1 9806-9809 ● ● ● ●
17 RING; SNAP,4TH GEAR 1-09588-151-1 01 1 9810-9911 ● ● ● ● ●
17 RING; SNAP,4TH GEAR 1-09588-151-1 01 1 9912- ●
18 RING; SNAP,CLU HUB
T=2.00 		1-09588-150-1 01 1 9806-9809 ● ● ● ●
18 RING; SNAP,CLU HUB
T=2.00 		1-09588-150-1 01 1 9810-9911 ● ● ● ● ●
18 RING; SNAP,CLU HUB
T=2.00 		1-09588-150-1 01 1 9912- ●
22 SPRING; BLOCK,INSERT 1-09583-228-1 03 1 9806-9809 ● ● ● ●
22 SPRING; BLOCK,INSERT 1-09583-228-1 03 1 9810-9911 ● ● ● ● ●
22 SPRING; BLOCK,INSERT 1-09583-228-1 03 1 9912- ●
23 PLUNGER; DETENT,SYN 1-33269-037-1 03 1 9806-9809 ● ● ● ●
23 PLUNGER; DETENT,SYN 1-33269-037-1 03 1 9810-9911 ● ● ● ● ●
23 PLUNGER; DETENT,SYN 1-33269-037-1 03 1 9912- ●
24 BLOCK; INDEX,SYN 1-33269-035-1 03 1 9806-9809 ● ● ● ●
24 BLOCK; INDEX,SYN 1-33269-035-1 03 1 9810-9911 ● ● ● ● ●
24 BLOCK; INDEX,SYN 1-33269-035-1 03 1 9912- ●
26 SPRING; BLOCK,INSERT 1-09580-395-0 03 1 9806-9911 ●
27 BEARING; 4TH GEAR
NSK 		1-09811-300-0 02 1 9806-9809 ● ● ● ●
27 BEARING; 4TH GEAR
NSK 		1-09811-300-0 02 1 9810-9911 ● ● ● ● ●
27 BEARING; 4TH GEAR
NSK 		1-09811-300-0 02 1 9912- ●
28 RING; SNAP,3RD GEAR 1-09588-124-1 01 1 9806-9809 ● ● ● ●
28 RING; SNAP,3RD GEAR 1-09588-124-1 01 1 9810-9911 ● ● ● ● ●
28 RING; SNAP,3RD GEAR 1-09588-124-1 01 1 9912- ●
30 GEAR; 4TH,MAINSHAFT
Z=36 		1-33253-502-0 01 1 9806-9911 ● ●
30 GEAR; 4TH,MAINSHAFT
Z=34 		1-33253-504-0 01 1 9806-9911 ●
30 GEAR; 4TH,MAINSHAFT
Z=33 		1-33253-501-0 01 1 9806-9809 ●
30 GEAR; 4TH,MAINSHAFT
Z=33 		1-33253-501-0 01 1 9810-9911 ● ●
30 GEAR; 4TH,MAINSHAFT
Z=33 		1-33253-501-0 01 1 9912- ●
34 SYNCHRONIZER; 4TH & 3RD 1-33265-372-1 02 1 9806-9809 ● ● ● ●
34 SYNCHRONIZER; 4TH & 3RD 1-33265-372-1 02 1 9810-9911 ● ● ● ● ●
34 SYNCHRONIZER; 4TH & 3RD 1-33265-372-1 02 1 9912-0312 ●
34 SYNCHRONIZER; 4TH & 3RD 1-33265-619-0 02 1 0401- ●
36 GEAR; 3RD,MAINSHAFT
Z=44 		1-33252-374-1 01 1 9806-9911 ● ●
36 GEAR; 3RD,MAINSHAFT
Z=43 		1-33252-373-1 01 1 9806-9809 ● ●
36 GEAR; 3RD,MAINSHAFT
Z=43 		1-33252-373-1 01 1 9810-9911 ● ● ●
36 GEAR; 3RD,MAINSHAFT
Z=43 		1-33252-373-1 01 1 9912- ●
37 BEARING; NEEDLE,2ND & 3RD
KOYO 		1-09811-277-0 02 1 9806-9809 ● ● ● ●
37 BEARING; NEEDLE,2ND & 3RD
KOYO 		1-09811-277-0 02 1 9810-9911 ● ● ● ● ●
37 BEARING; NEEDLE,2ND & 3RD
KOYO 		1-09811-277-0 02 1 9912- ●
37 BEARING; NEEDLE,2ND & 3RD
NSK 		1-09811-279-0 02 1 9806-9809 ● ● ● ●
37 BEARING; NEEDLE,2ND & 3RD
NSK 		1-09811-279-0 02 1 9810-9911 ● ● ● ● ●
37 BEARING; NEEDLE,2ND & 3RD
NSK 		1-09811-279-0 02 1 9912- ●
38 SYNCHRONIZER; LOW & 2ND 1-33265-372-1 01 1 9806-9809 ● ● ● ●
38 SYNCHRONIZER; LOW & 2ND 1-33265-372-1 01 1 9810-9911 ● ● ● ● ●
38 SYNCHRONIZER; LOW & 2ND 1-33265-372-1 01 1 9912-0312 ●
38 SYNCHRONIZER; LOW & 2ND 1-33265-619-0 01 1 0401- ●
39 HUB; CLU,LOW & 2ND
Z=54 		1-33261-217-0 01 1 9806-9809 ● ● ● ●
39 HUB; CLU,LOW & 2ND
Z=54 		1-33261-217-0 01 1 9810-9911 ● ● ● ● ●
39 HUB; CLU,LOW & 2ND
Z=54 		1-33261-217-0 01 1 9912- ●
42 SLEEVE
Z=54 		1-33262-154-0 01 1 9806-9809 ● ● ● ●
42 SLEEVE
Z=54 		1-33262-154-0 01 1 9810-9911 ● ● ● ● ●
42 SLEEVE
Z=54 		1-33262-154-0 01 1 9912- ●
43 HUB; CLU,3RD & 4TH,MAIN
Z=54 		1-33261-218-0 01 1 9806-9809 ● ● ● ●
43 HUB; CLU,3RD & 4TH,MAIN
Z=54 		1-33261-218-0 01 1 9810-9911 ● ● ● ● ●
43 HUB; CLU,3RD & 4TH,MAIN
Z=54 		1-33261-218-0 01 1 9912- ●
45 SPRING; BLOCK INSERT 1-09580-395-0 06 1 9806-9809 ● ● ● ●
45 SPRING; BLOCK INSERT 1-09580-395-0 06 1 9810-9911 ● ● ● ● ●
45 SPRING; BLOCK INSERT 1-09580-395-0 06 1 9912- ●
46 PLUNGER; DETENT,SYN 1-33269-037-1 06 1 9806-9809 ● ● ● ●
46 PLUNGER; DETENT,SYN 1-33269-037-1 06 1 9810-9911 ● ● ● ● ●
46 PLUNGER; DETENT,SYN 1-33269-037-1 06 1 9912- ●
47 BLOCK; INDEX,SYN 1-33269-035-1 06 1 9806-9809 ● ● ● ●
47 BLOCK; INDEX,SYN 1-33269-035-1 06 1 9810-9911 ● ● ● ● ●
47 BLOCK; INDEX,SYN 1-33269-035-1 06 1 9912- ●
50 GEAR; 2ND,MAINSHAFT
Z=48 		1-33251-294-0 01 1 9806-9809 ● ● ● ●
50 GEAR; 2ND,MAINSHAFT
Z=48 		1-33251-294-0 01 1 9810-9911 ● ● ● ● ●
50 GEAR; 2ND,MAINSHAFT
Z=48 		1-33251-294-1 01 1 9912- ●
56 BEARING; NEEDLE,1ST,REV
KOYO 		1-09811-320-0 02 1 9806-9809 ● ● ● ●
56 BEARING; NEEDLE,1ST,REV
KOYO 		1-09811-320-0 02 1 9810-9911 ● ● ● ● ●
56 BEARING; NEEDLE,1ST,REV
KOYO 		1-09811-320-0 02 1 9912- ●
57 SLEEVE; REV
Z=40 		1-33262-110-0 01 1 9806-9809 ● ● ● ●
57 SLEEVE; REV
Z=40 		1-33262-110-0 01 1 9810-9911 ● ● ● ● ●
57 SLEEVE; REV
Z=40 		1-33262-110-0 01 1 9912- ●
58 HUB; CLU,REV
Z=26 		1-33261-132-2 01 1 9806-9809 ● ● ● ●
58 HUB; CLU,REV
Z=26 		1-33261-132-2 01 1 9810-9911 ● ● ● ● ●
58 HUB; CLU,REV
Z=26 		1-33261-132-2 01 1 9912- ●
59 GEAR; REV MAINSHAFT
Z=44 		1-33257-060-0 01 1 9806-9809 ● ● ● ●
59 GEAR; REV MAINSHAFT
Z=44 		1-33257-060-0 01 1 9810-9911 ● ● ● ● ●
59 GEAR; REV MAINSHAFT
Z=44 		1-33257-060-1 01 1 9912- ●
60 COLLAR; REV MAIN 1-33234-059-0 01 1 9806-9809 ● ● ● ●
60 COLLAR; REV MAIN 1-33234-059-0 01 1 9810-9911 ● ● ● ● ●
60 COLLAR; REV MAIN 1-33234-059-0 01 1 9912-0009 ●
60 COLLAR; REV MAIN 1-33234-095-0 01 1 0010- ●
70 GEAR; 1ST,MAINSHAFT
Z=52 		1-33255-055-1 01 1 9806-9809 ● ● ● ●
70 GEAR; 1ST,MAINSHAFT
Z=52 		1-33255-055-1 01 1 9810-9911 ● ● ● ● ●
70 GEAR; 1ST,MAINSHAFT
Z=52 		1-33255-055-1 01 1 9912- ●
74 WASHER; THRUST,REV GEAR 1-33239-035-2 01 1 9806-9809 ● ● ● ●
74 WASHER; THRUST,REV GEAR 1-33239-035-2 01 1 9810-9911 ● ● ● ● ●
74 WASHER; THRUST,REV GEAR 1-33239-035-2 01 1 9912- ●
75 BEARING; MAINSHAFT
NSK 		1-09810-047-1 01 1 9806-9809 ● ● ● ●
75 BEARING; MAINSHAFT
NSK 		1-09810-047-1 01 1 9810-9911 ● ● ● ● ●
75 BEARING; MAINSHAFT
NSK 		1-09810-047-1 01 1 9912- ●
75 BEARING; MAINSHAFT
NTN 		1-09810-154-0 01 1 9806-9809 ● ● ● ●
75 BEARING; MAINSHAFT
NTN 		1-09810-154-0 01 1 9810-9911 ● ● ● ● ●
75 BEARING; MAINSHAFT
NTN 		1-09810-154-0 01 1 9912- ●
78 COLLAR; DIST,MAINSHAFT BRG 1-33235-085-0 01 1 9806-9911 ●
79 BEARING; BALL,MAINSHAFT
KOYO 		1-09800-150-0 01 1 9806-9911 ●
79 BEARING; BALL,MAINSHAFT
NTN 		1-09800-151-0 01 1 9806-9911 ●
80 GEAR; SPD DRIVE
Z=5 		1-33371-041-2 01 1 9806-9809 ● ● ● ●
80 GEAR; SPD DRIVE
Z=5 		1-33371-041-2 01 1 9810-9911 ● ● ● ● ●
80 GEAR; SPD DRIVE
Z=5 		1-33371-041-2 01 1 9912- ●
81 GEAR; 7TH,MAIN
Z=19 		1-33254-013-0 01 1 9806-9911 ●
82 SHAFT; MAIN,TRANS
Z=19-34-37-26-20 		1-33231-249-0 01 1 9806-9809 ● ● ●
82 SHAFT; MAIN,TRANS
Z=19-34-37-26-20 		1-33231-249-0 01 1 9810-9911 ● ● ● ●
82 SHAFT; MAIN,TRANS
Z=19-34-37-26-20 		1-33231-249-0 01 1 9912- ●
82 SHAFT; MAIN,TRANS
Z=19-34-37-26-20 		1-33231-271-0 01 1 9806-9911 ●
84 BEARING; COUNTER SHAFT,FRT
NSK 		1-09810-140-0 01 1 9806-9809 ● ● ● ●
84 BEARING; COUNTER SHAFT,FRT
NSK 		1-09810-140-0 01 1 9810-9911 ● ● ● ● ●
84 BEARING; COUNTER SHAFT,FRT
NSK 		1-09810-140-0 01 1 9912- ●
93 RING; SNAP,COUNTER FRT BRG
ID=55.8 		1-09588-125-0 01 1 9806-9809 ● ● ● ●
93 RING; SNAP,COUNTER FRT BRG
ID=55.8 		1-09588-125-0 01 1 9810-9911 ● ● ● ● ●
93 RING; SNAP,COUNTER FRT BRG
ID=55.8 		1-09588-125-0 01 1 9912- ●
94 KEY; FEATHER,COUNTER SHAFT
(A) L=47 		1-09735-022-1 02 1 9806-9809 ● ● ● ●
94 KEY; FEATHER,COUNTER SHAFT
(A) L=47 		1-09735-022-1 02 1 9810-9911 ● ● ● ● ●
94 KEY; FEATHER,COUNTER SHAFT
(A) L=47 		1-09735-022-1 02 1 9912- ●
94 KEY; FEATHER,COUNTER SHAFT
(B) L=55 		1-09735-025-0 02 1 9806-9809 ● ● ● ●
94 KEY; FEATHER,COUNTER SHAFT
(B) L=55 		1-09735-025-0 02 1 9810-9911 ● ● ● ● ●
94 KEY; FEATHER,COUNTER SHAFT
(B) L=55 		1-09735-025-0 02 1 9912- ●
96 GEAR; COUNTER DRIVE
Z=46 		1-33331-213-1 01 1 9806-9911 ●
96 GEAR; COUNTER DRIVE
Z=45 		1-33331-214-1 01 1 9806-9911 ●
96 GEAR; COUNTER DRIVE
Z=41 		1-33331-216-1 01 1 9806-9911 ●
96 GEAR; COUNTER DRIVE
Z=43 		1-33331-215-1 01 1 9806-9911 ●
96 GEAR; COUNTER DRIVE
Z=42 		1-33331-212-1 01 1 9810- ●
97 GEAR; 5TH,COUNTER
Z=40 		1-33332-113-0 01 1 9806-9911 ● ●
97 GEAR; 5TH,COUNTER
Z=41 		1-33332-114-0 01 1 9806-9911 ●
104 GEAR; 4TH,COUNTER
Z=33 		1-33332-097-0 01 1 9806-9806 ● ●
104 GEAR; 4TH,COUNTER
Z=33 		1-33332-122-0 01 1 9807-9911 ● ●
104 GEAR; 4TH,COUNTER
Z=35 		1-33332-099-0 01 1 9806-9806 ●
104 GEAR; 4TH,COUNTER
Z=35 		1-33332-124-0 01 1 9807-9911 ●
104 GEAR; 4TH,COUNTER
Z=36 		1-33332-096-0 01 1 9806-9806 ●
104 GEAR; 4TH,COUNTER
Z=36 		1-33332-121-0 01 1 9807-9809 ●
104 GEAR; 4TH,COUNTER
Z=36 		1-33332-121-0 01 1 9810-9911 ● ●
104 GEAR; 4TH,COUNTER
Z=36 		1-33332-121-0 01 1 9912- ●
105 GEAR; 3RD,COUNTER
Z=27 		1-33333-124-0 01 1 9806-9806 ● ●
105 GEAR; 3RD,COUNTER
Z=27 		1-33333-160-0 01 1 9807-9911 ● ●
105 GEAR; 3RD,COUNTER
Z=28 		1-33333-125-0 01 1 9806-9806 ● ●
105 GEAR; 3RD,COUNTER
Z=28 		1-33333-161-0 01 1 9807-9809 ● ●
105 GEAR; 3RD,COUNTER
Z=28 		1-33333-161-0 01 1 9810-9911 ● ● ●
105 GEAR; 3RD,COUNTER
Z=28 		1-33333-161-0 01 1 9912- ●
108 SHAFT; COUNTER
Z=19-13 		1-33311-235-0 01 1 9806-9809 ● ● ●
108 SHAFT; COUNTER
Z=19-13 		1-33311-235-0 01 1 9810-9911 ● ● ● ●
108 SHAFT; COUNTER
Z=19-13 		1-33311-235-1 01 1 9912- ●
108 SHAFT; COUNTER
Z=19-13 		1-33311-274-0 01 1 9806-9911 ●
109 BEARING; COUNTER SHAFT,RR
KOYO 		1-09810-039-1 01 1 9806-9809 ● ● ● ●
109 BEARING; COUNTER SHAFT,RR
KOYO 		1-09810-039-1 01 1 9810-9911 ● ● ● ● ●
109 BEARING; COUNTER SHAFT,RR
KOYO 		1-09810-039-1 01 1 9912- ●
109 BEARING; COUNTER SHAFT,RR
NSK 		1-09810-041-1 01 1 9806-9809 ● ● ● ●
109 BEARING; COUNTER SHAFT,RR
NSK 		1-09810-041-1 01 1 9810-9911 ● ● ● ● ●
109 BEARING; COUNTER SHAFT,RR
NSK 		1-09810-041-1 01 1 9912- ●
110 RING; SNAP,COUNTER BRG
ID=46.3 		1-09588-047-0 01 1 9806-9809 ● ● ● ●
110 RING; SNAP,COUNTER BRG
ID=46.3 		1-09588-047-0 01 1 9810-9911 ● ● ● ● ●
110 RING; SNAP,COUNTER BRG
ID=46.3 		1-09588-047-0 01 1 9912- ●
111 GEAR; 7TH COUNTER SHAFT
Z=45 		1-33338-311-1 01 1 9806-9911 ●
112 RING; BLOCK,7TH SYN
Z=36 		1-33265-281-1 01 1 9806-9911 ●
113 SLEEVE; 7TH COUNTER SHAFT 1-33262-111-3 01 1 9806-9911 ●
114 HUB; CLU,7TH 1-33261-159-1 01 1 9806-9911 ●
117 BEARING; NEEDLE,7TH,COUNTER SHAFT
NSK 		1-09811-105-0 02 1 9806-9911 ●
121 HUB; CLU,6TH 1-33261-156-2 01 1 9806-9809 ● ● ● ●
121 HUB; CLU,6TH 1-33261-156-2 01 1 9810-9911 ● ● ● ● ●
121 HUB; CLU,6TH 1-33261-156-2 01 1 9912-0212 ●
121 HUB; CLU,6TH 1-33261-270-0 01 1 0301- ●
122 PLUNGER; DETENT,SYN 1-33269-037-1 03 1 9806-9911 ●
123 BLOCK; INDEX,SYN 1-33269-035-1 03 1 9806-9911 ●
124 SPRING; PLUNGER,CLU HUB 1-09580-395-0 03 1 9806-9809 ● ● ● ●
124 SPRING; PLUNGER,CLU HUB 1-09580-395-0 03 1 9810-9911 ● ● ● ● ●
124 SPRING; PLUNGER,CLU HUB 1-09580-395-0 03 1 9912- ●
126 RING; SNAP,CLU HUB
(A) OD=121.2 		1-09587-031-0 01 1 9806-9911 ●
126 RING; SNAP,CLU HUB
(B) OD=55.8 		1-09588-043-0 01 1 9806-9911 ●
128 WASHER; THRUST,REV SHAFT
(A) ID=38.5 T=42 		1-33239-079-1 01 1 9806-9809 ● ● ● ●
128 WASHER; THRUST,REV SHAFT
(A) ID=38.5 T=42 		1-33239-079-1 01 1 9810-9911 ● ● ● ● ●
128 WASHER; THRUST,REV SHAFT
(A) ID=38.5 T=42 		1-33239-079-1 01 1 9912- ●
128 WASHER; THRUST,REV SHAFT
(B) ID=38.5 T=2 		1-33363-024-1 01 1 9806-9809 ● ● ● ●
128 WASHER; THRUST,REV SHAFT
(B) ID=38.5 T=2 		1-33363-024-1 01 1 9810-9911 ● ● ● ● ●
128 WASHER; THRUST,REV SHAFT
(B) ID=38.5 T=2 		1-33363-024-1 01 1 9912- ●
129 BEARING; NEEDLE,IDLER
KOYO 		1-09811-102-0 02 1 9806-9809 ● ● ● ●
129 BEARING; NEEDLE,IDLER
KOYO 		1-09811-102-0 02 1 9810-9911 ● ● ● ● ●
129 BEARING; NEEDLE,IDLER
KOYO 		1-09811-102-0 02 1 9912- ●
129 BEARING; NEEDLE,IDLER
NTN 		1-09811-103-0 02 1 9806-9809 ● ● ● ●
129 BEARING; NEEDLE,IDLER
NTN 		1-09811-103-0 02 1 9810-9911 ● ● ● ● ●
129 BEARING; NEEDLE,IDLER
NTN 		1-09811-103-0 02 1 9912- ●
130 COLLAR; DIST,NEEDLE BRG 1-33363-023-0 01 1 9806-9809 ● ● ● ●
130 COLLAR; DIST,NEEDLE BRG 1-33363-023-0 01 1 9810-9911 ● ● ● ● ●
130 COLLAR; DIST,NEEDLE BRG 1-33363-023-0 01 1 9912- ●
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-384-0 01 1 9806-9809 ● ● ● ●
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-384-0 01 1 9810-9911 ● ● ● ● ●
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-384-0 01 1 9912- ●
132 SHAFT; REV 1-33351-017-0 01 1 9806-9809 ● ● ● ●
132 SHAFT; REV 1-33351-017-0 01 1 9810-9911 ● ● ● ● ●
132 SHAFT; REV 1-33351-017-0 01 1 9912- ●
172 RING; SNAP,CLU HUB
ID=130 T=2.5 		1-09588-040-0 01 1 9806-9809 ● ● ● ●
172 RING; SNAP,CLU HUB
ID=130 T=2.5 		1-09588-040-0 01 1 9810-9911 ● ● ● ● ●
172 RING; SNAP,CLU HUB
ID=130 T=2.5 		1-09588-040-0 01 1 9912- ●
286 NUT; LK,MAINSHAFT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M36 FLANGE 		1-09449-063-0 01 1 9806-9809 ● ● ● ●
286 NUT; LK,MAINSHAFT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK SYSTEM RETARDER<RE2> M36 FLANGE 		1-09449-063-0 01 1 9810-9911 ● ● ● ● ●
286 NUT; LK,MAINSHAFT
M36 FLANGE 		1-09449-063-0 01 1 9912- ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=47 T=5 		1-09623-380-0 01 1 9806-9809 ● ● ● ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK SYSTEM RETARDER<RE2> ID=47 T=5 		1-09623-380-0 01 1 9810-9911 ● ● ● ● ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5 		1-09623-380-0 01 1 9912- ●
322 SLEEVE; SYN,LOW & 2ND 1-33262-153-1 01 1 9806-9809 ● ● ● ●
322 SLEEVE; SYN,LOW & 2ND 1-33262-153-1 01 1 9810-9911 ● ● ● ● ●
322 SLEEVE; SYN,LOW & 2ND 1-33262-153-1 01 1 9912- ●
342 FLANGE; OUTPUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK SYSTEM RETARDER<RE2> 		1-37243-307-0 01 1 9806-9809 ● ● ● ●
342 FLANGE; OUTPUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK SYSTEM RETARDER<RE2> 		1-37243-307-0 01 1 9810-9911 ● ● ● ● ●
342 FLANGE; OUTPUT 1-37243-307-1 01 1 9912- ●
345 BOLT; FLANGE TO YOKE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK SYSTEM RETARDER<RE2> M14X43 KNURL 		1-09046-003-0 04 1 9806-9809 ● ● ● ●
345 BOLT; FLANGE TO YOKE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK SYSTEM RETARDER<RE2> M14X43 KNURL 		1-09046-003-0 04 1 9810-9911 ● ● ● ● ●
345 BOLT; FLANGE TO YOKE
M14X43 KNURL 		1-09046-003-0 04 1 9912- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
