6-01 — FRONT BUMPER (#68346) — 53 parça

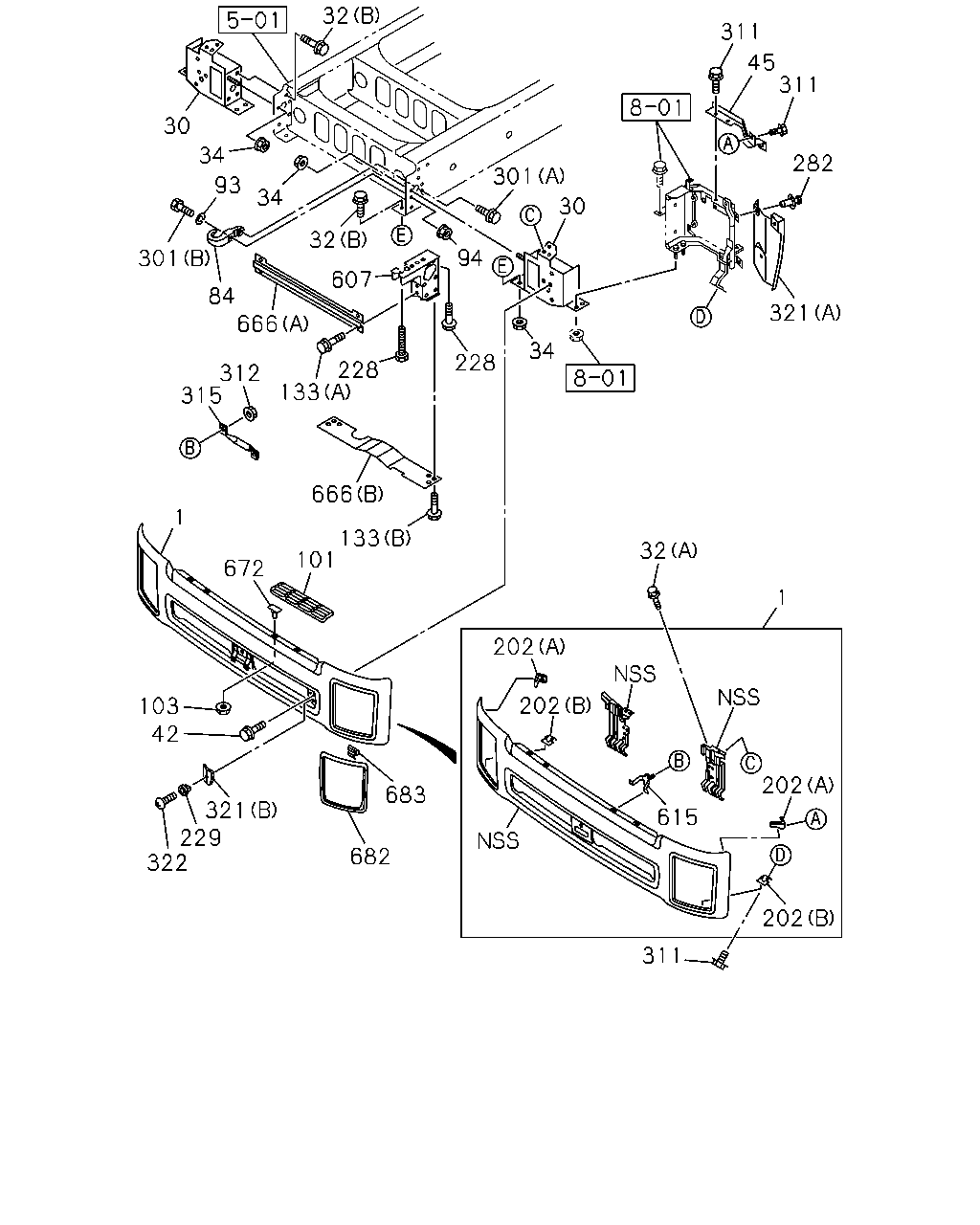

çizim 193945
32 311 45 311 30 34 282 301 93 34 30 32 94 301 607 84 321 666 34 228 228 133 312 315 666 1 133 32 101 672 1 202 202 103 42 202 683 321 229 322 615 682 202 311
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
WHITE THA 		8-97425-037-0 01 1 1211- ● ●
1 BUMPER ASM; FRT
WHITE 		8-97409-903-1 01 1 0806- ● ●
30 BRACKET; FRT BUMPER
THA 		8-98055-263-0 01 1 0806- ● ●
30 BRACKET; FRT BUMPER
THA 		8-98055-264-0 01 1 0806- ● ●
32 BOLT; BRKT,BUMPER
(A) M10X30 		8-94324-205-0 01 1 0806- ● ●
32 BOLT; BRKT,BUMPER
(B) M12X35 FLANGE THA 		0-28051-235-0 10 1 0806- ● ●
34 NUT; BRKT,BUMPER
M12 FLANGE THA 		0-91180-212-0 06 1 0806- ● ●
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 0806- ● ●
45 BRACKET; BRKT TO BUMPER 8-97613-647-2 01 1 0806- ● ●
45 BRACKET; BRKT TO BUMPER 8-97613-648-2 01 1 0806- ● ●
84 HOOK 8-98099-119-0 01 1 0806- ● ●
93 WASHER; LK,HOOK
ID=16.2 THA 		0-91510-516-0 02 1 0806- ● ●
94 NUT; HOOK
M16 THA 		0-91110-516-0 01 1 0806- ● ●
101 STEP; BUMPER 8-97611-542-0 01 1 0806- ● ●
101 STEP; BUMPER 8-97611-543-0 01 1 0806- ● ●
103 NUT; BUMPER STEP
M6 FLANGE THA 		0-91180-106-0 04 1 0806- ● ●
133 BOLT; PROTECTOR FIX
(A) M12X60 FLANGE THA 		0-28051-260-0 04 1 0806-1109 ● ●
133 BOLT; PROTECTOR FIX
(B) M12X25 FLANGE THA 		0-28661-225-0 06 1 0806- ● ●
202 BRACKET; BUMPER SIDE
(A) THA 		8-98184-663-0 01 1 1211- ● ●
202 BRACKET; BUMPER SIDE
(A) THA 		8-98184-664-0 01 1 1211- ● ●
202 BRACKET; BUMPER SIDE
(B) THA 		8-98184-668-0 01 1 1211- ● ●
202 BRACKET; BUMPER SIDE
(B) THA 		8-98184-669-0 01 1 1211- ● ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-636-0 01 1 0806- ● ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-637-0 01 1 0806- ● ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-640-1 01 1 0806- ● ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-641-1 01 1 0806- ● ●
228 BOLT; BRKT
M16X50 		0-20851-650-0 08 1 0806-1109 ● ●
229 GROMMET
D=7X7 L=7.5 THA 		5-09983-007-0 02 1 0806- ● ●
282 FASTENER; BUMPER FILLER
D8X13.5 		1-09987-248-1 08 1 0806-1003 ● ●
282 FASTENER; BUMPER FILLER
EXC. VIN MODEL YEAR 2010<VZA> D8X13.5 		1-09987-248-1 08 1 1004-1101 ● ●
301 BOLT; HOOK TO FRAME
(A) M16X60 		0-10861-660-0 01 1 0806- ● ●
301 BOLT; HOOK TO FRAME
(B) M16X70 		0-10861-670-0 01 1 0806- ● ●
311 BOLT; BRKT
M10X30 		8-94324-205-0 07 1 0806- ● ●
311 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 0806- ● ●
312 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 0806- ● ●
315 STAY; BUMPER 8-97617-115-0 01 1 0806- ● ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-296-1 01 1 0806- ● ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-297-1 01 1 0806- ● ●
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-119-0 01 1 0806-1003 ● ●
321 COVER; BUMPER FRT SIDE
EXC. VIN MODEL YEAR 2010<VZA> (A) 		8-97619-119-0 01 1 1004-1101 ● ●
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-120-0 01 1 0806-1003 ● ●
321 COVER; BUMPER FRT SIDE
EXC. VIN MODEL YEAR 2010<VZA> (A) 		8-97619-120-0 01 1 1004-1101 ● ●
322 SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0806- ● ●
607 BRACKET 8-98055-267-1 01 1 0806-1109 ● ●
607 BRACKET 8-98055-268-1 01 1 0806-1109 ● ●
615 BRACKET; BUMPER CENTER
THA 		8-98184-611-0 01 1 1211- ● ●
615 BRACKET; BUMPER CENTER 8-97613-643-1 01 1 0806- ● ●
666 PROTECTOR; UNDER
(B) 		8-97608-467-1 01 1 0806- ● ●
666 PROTECTOR; UNDER
(A) 		8-97610-033-0 01 1 0806-1109 ● ●
672 STUD; STEP
M6X20 		8-97611-666-0 04 1 0806- ● ●
682 BEZEL; BUMPER 8-97611-530-2 01 1 0806- ● ●
682 BEZEL; BUMPER 8-97611-531-2 01 1 0806- ● ●
683 CLIP; BEZEL,BUMPER 8-98084-293-0 08 1 0806- ● ●
