5-30 — SPARE TIRE CARRIER AND COVER (#68345) — 35 parça

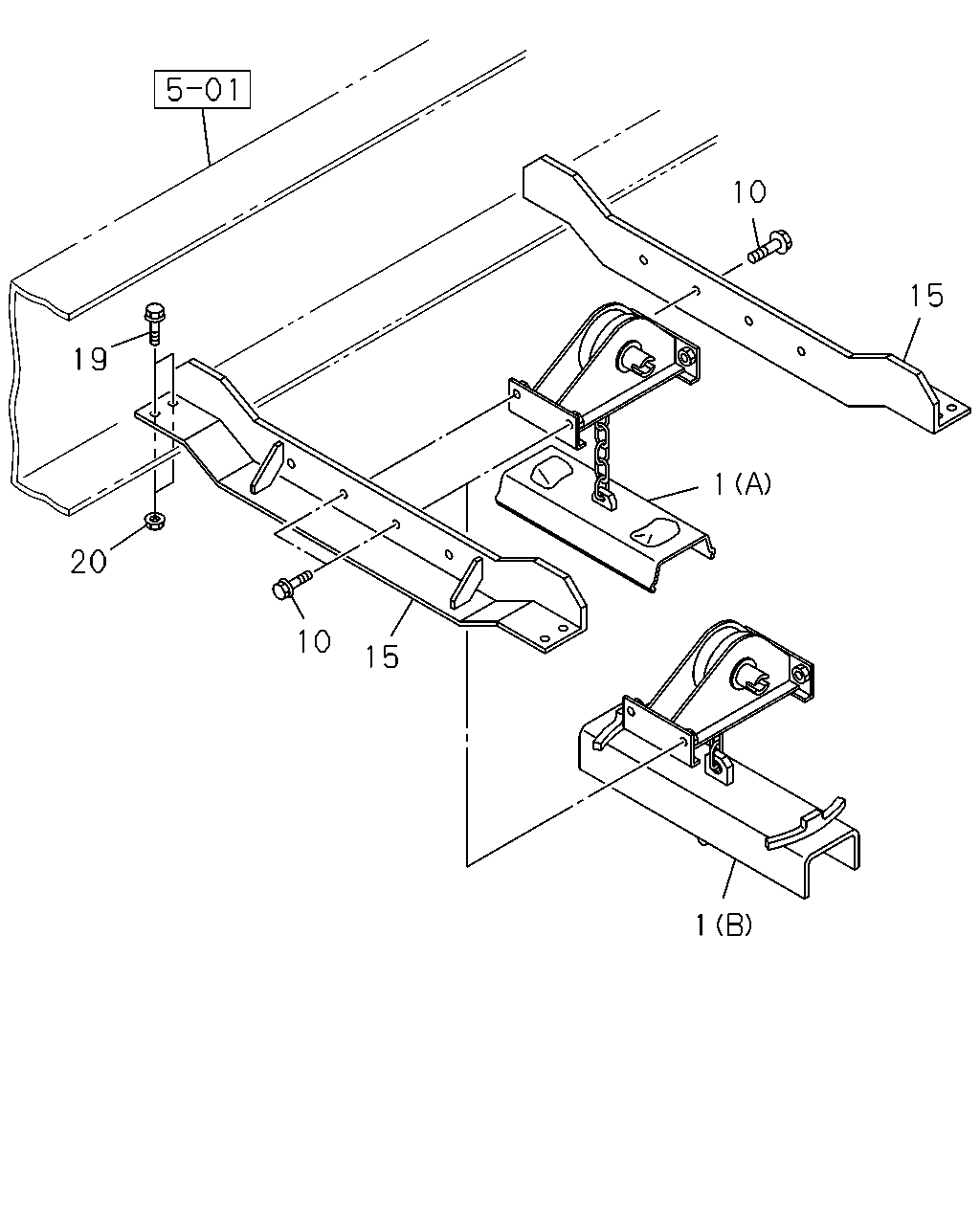

10 15 19 1 20 10 15 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B)	1-53630-210-4	01	1	1102-1112	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B)	1-53630-210-4	01	1	1102-1112		●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC, RR 22.5X7.50-8STUD<SKW> (B)	1-53630-210-4	01	1	1201-	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B)	1-53630-210-4	01	1	1201-		●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53630-208-2	01	1	0806-1101	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53630-208-2	01	1	0806-1101		●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A)	1-53630-208-3	01	1	1102-1112	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> (A)	1-53630-208-3	01	1	1102-1112		●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> (A)	1-53630-208-3	01	1	1201-	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> (A)	1-53630-208-3	01	1	1201-		●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE THA	0-28651-230-0	04	1	0806-	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE THA	0-28651-230-0	04	1	0806-		●
15	MEMBER; CROSS,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10> THA	8-97608-196-1	02	1	0806-	●
19	BOLT; C/MBR SPARE WHEEL CARRIER FRAME REAR<P10> M10X40 FLANGE THA	0-28051-040-0	08	1	0806-	●
20	NUT; C/MBR SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE THA	0-91180-210-0	08	1	0806-	●

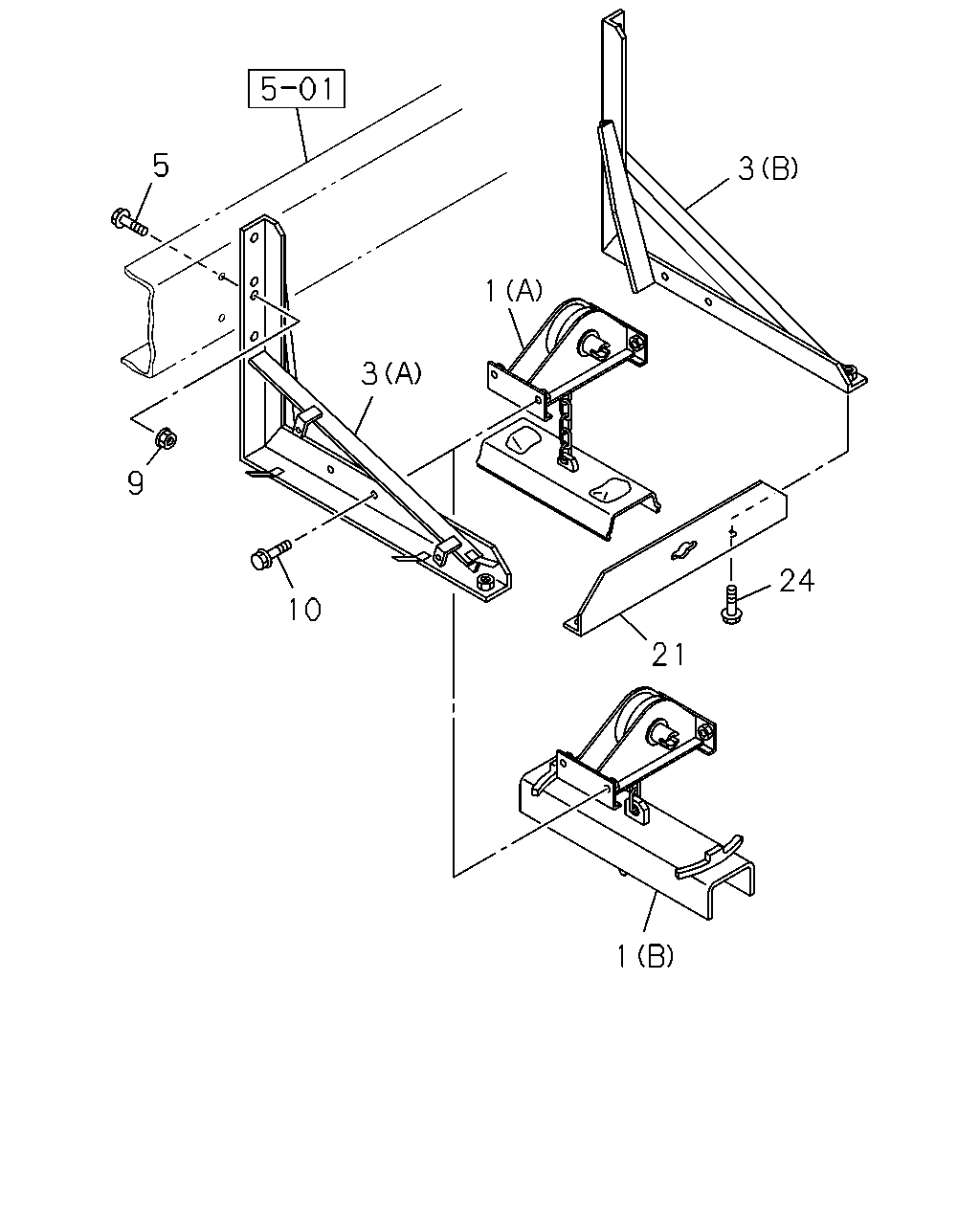

5 3 1 3 9 24 10 21 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B)	1-53630-210-4	01	1	1102-1112	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B)	1-53630-210-4	01	1	1102-1112		●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC, RR 22.5X7.50-8STUD<SKW> (B)	1-53630-210-4	01	1	1201-	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B)	1-53630-210-4	01	1	1201-		●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53630-208-2	01	1	0806-1101	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53630-208-2	01	1	0806-1101		●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A)	1-53630-208-3	01	1	1102-1112	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> (A)	1-53630-208-3	01	1	1102-1112		●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>,DISC WHEEL FRT22.5X8.25TC,RR 22.5X7.50-8STUD<SKW> (A)	1-53630-208-3	01	1	1201-	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> (A)	1-53630-208-3	01	1	1201-		●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53631-389-0	01	1	0806-	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53631-393-0	01	1	0806-	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	8-98115-404-0	01	1	0806-		●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	8-98115-407-0	01	1	0806-		●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE THA	0-28651-240-0	06	1	0806-	●	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12 THA	0-91110-512-0	06	1	0806-	●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE THA	0-28651-230-0	04	1	0806-	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE THA	0-28651-230-0	04	1	0806-		●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> THA	1-53631-128-1	01	1	0806-	●	●
24	BOLT; SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE THA	0-28651-230-0	02	1	0806-	●	●
