2-25B — SPEEDOMETER DRIVEN GEAR (#6834) — 58 parça

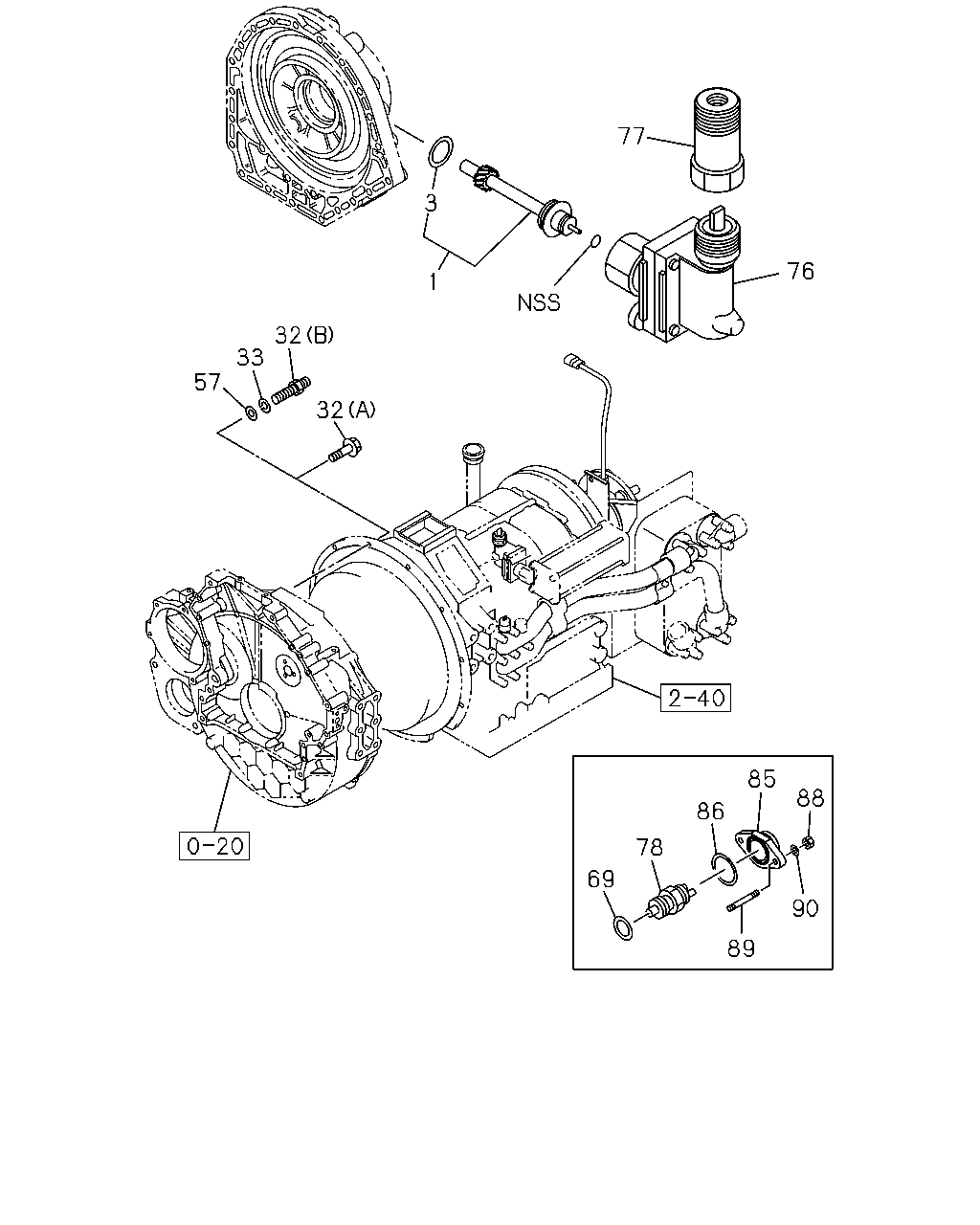

çizim 26678
77 3 76 1 32 33 57 32 85 88 86 78 69 90 89
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GEAR; DRIVEN,SPD 1-33372-180-0 01 1 9912-9912 ● ●
1 GEAR; DRIVEN,SPD 1-33372-180-0 01 1 0001- ● ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09635-399-0 01 1 9912-9912 ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09635-399-0 01 1 0001- ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X35 FLANGE 		0-28781-035-0 12 1 9912-0512 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X35 FLANGE 		0-28751-035-0 12 1 0601- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X35 FLANGE 		0-28781-235-0 10 1 9912-0512 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X35 FLANGE 		0-28751-235-0 10 1 0601- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X16,M12X35 L=59 		1-09029-031-1 01 1 9912- ●
33 WASHER; LK,CLU HSG
ID=12.2 		9-09150-612-0 01 1 9912-0603 ●
33 WASHER; LK,CLU HSG
ID=12.2 		0-91510-612-0 01 1 0604- ●
57 WASHER; PL,CLU HSG
ID=12.5 		9-09164-512-0 01 1 9912- ●
69 WASHER; PL
T=0.60 		1-34149-023-0 02 1 9912-9912 ● ●
69 WASHER; PL
T=0.60 		1-34149-023-0 02 1 0001- ● ● ●
69 WASHER; PL
T=0.80 		1-34149-024-0 02 1 9912-9912 ● ●
69 WASHER; PL
T=0.80 		1-34149-024-0 02 1 0001- ● ● ●
69 WASHER; PL
T=1.00 		1-34149-025-0 02 1 9912-9912 ● ●
69 WASHER; PL
T=1.00 		1-34149-025-0 02 1 0001- ● ● ●
69 WASHER; PL
T=1.20 		1-34149-026-0 02 1 9912-9912 ● ●
69 WASHER; PL
T=1.20 		1-34149-026-0 02 1 0001- ● ● ●
69 WASHER; PL
T=1.40 		1-34149-027-0 02 1 9912-9912 ● ●
69 WASHER; PL
T=1.40 		1-34149-027-0 02 1 0001- ● ● ●
69 WASHER; PL
T=1.60 		1-34149-028-0 02 1 9912-9912 ● ●
69 WASHER; PL
T=1.60 		1-34149-028-0 02 1 0001- ● ● ●
69 WASHER; PL
T=1.80 		1-34149-029-0 02 1 9912-9912 ● ●
69 WASHER; PL
T=1.80 		1-34149-029-0 02 1 0001- ● ● ●
69 WASHER; PL
T=2.00 		1-34149-030-0 02 1 9912-9912 ● ●
69 WASHER; PL
T=2.00 		1-34149-030-0 02 1 0001- ● ● ●
69 WASHER; PL
T=2.10 		1-34149-031-0 02 1 9912-9912 ● ●
69 WASHER; PL
T=2.10 		1-34149-031-0 02 1 0001- ● ● ●
69 WASHER; PL
T=2.20 		1-34149-032-0 02 1 9912-9912 ● ●
69 WASHER; PL
T=2.20 		1-34149-032-0 02 1 0001- ● ● ●
69 WASHER; PL
T=2.30 		1-34149-033-0 02 1 9912-9912 ● ●
69 WASHER; PL
T=2.30 		1-34149-033-0 02 1 0001- ● ● ●
69 WASHER; PL
T=2.40 		1-34149-034-0 02 1 9912-9912 ● ●
69 WASHER; PL
T=2.40 		1-34149-034-0 02 1 0001- ● ● ●
69 WASHER; PL
T=2.60 		1-34149-035-0 02 1 9912-9912 ● ●
69 WASHER; PL
T=2.60 		1-34149-035-0 02 1 0001- ● ● ●
69 WASHER; PL
T=2.80 		1-34149-036-0 02 1 9912-9912 ● ●
69 WASHER; PL
T=2.80 		1-34149-036-0 02 1 0001- ● ● ●
69 WASHER; PL
T=3.00 		1-34149-037-0 02 1 9912-9912 ● ●
69 WASHER; PL
T=3.00 		1-34149-037-0 02 1 0001- ● ● ●
76 BOX; GEAR 1-33379-005-0 01 1 9912-9912 ● ●
76 BOX; GEAR 1-33379-005-0 01 1 0001- ● ● ●
77 NUT; GEAR BOX 1-33379-006-0 01 1 9912-9912 ● ●
77 NUT; GEAR BOX 1-33379-006-0 01 1 0001- ● ● ●
78 SENSOR; SPD 1-34149-022-0 01 1 9912-9912 ● ●
78 SENSOR; SPD 1-34149-022-0 01 1 0001- ● ● ●
85 COVER; SENSOR 1-34141-021-0 01 1 9912-9912 ● ●
85 COVER; SENSOR 1-34141-021-0 01 1 0001- ● ● ●
86 GASKET; SENSOR COVER 1-34142-030-0 01 1 9912-9912 ● ●
86 GASKET; SENSOR COVER 1-34142-030-0 01 1 0001- ● ● ●
88 NUT; SENSOR COVER 1-34149-039-0 02 1 9912-9912 ● ●
88 NUT; SENSOR COVER 1-34149-039-0 02 1 0001- ● ● ●
89 STUD; SENSOR COVER 1-34149-040-0 02 1 9912-9912 ● ●
89 STUD; SENSOR COVER 1-34149-040-0 02 1 0001- ● ● ●
90 WASHER; SENSOR COVER 1-34539-080-0 02 1 9912-9912 ● ●
90 WASHER; SENSOR COVER 1-34539-080-0 02 1 0001- ● ● ●
