Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#68339) — 253 parça

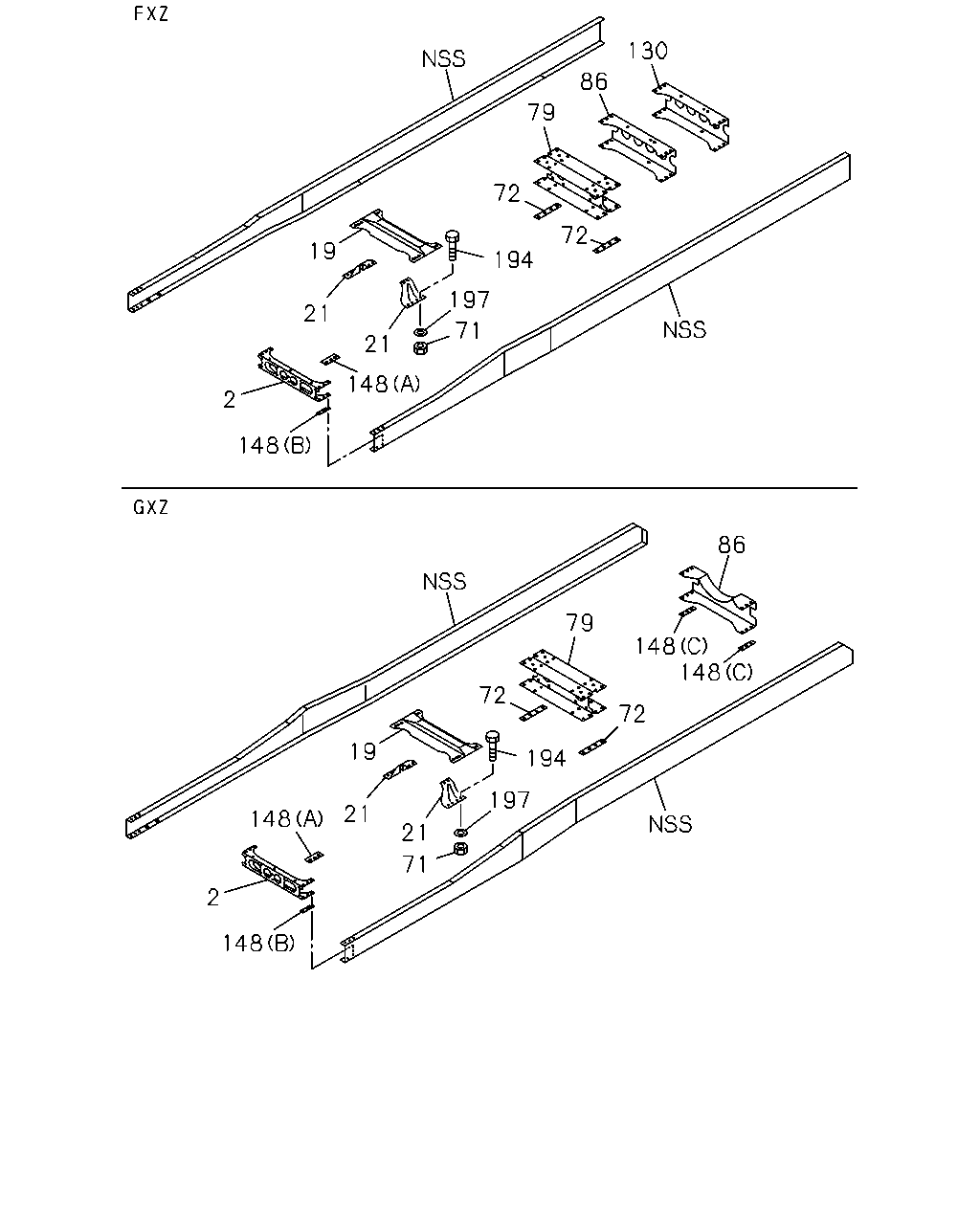

130 86 79 72 72 19 194 197 21 71 21 148 2 148 86 79 148 148 72 72 19 194 197 21 148 21 71 2 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST THA	8-97623-017-3	01	1	0806-1112	●	●
2	MEMBER; CROSS,1ST FXZ<FG****> THA	8-97623-017-3	01	1	1207-1209	●
2	MEMBER; CROSS,1ST THA	8-97623-017-3	01	1	1201-	●	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1210-		●	●
19	MEMBER; CROSS,2ND GXZ<GG****>	8-98187-273-0	01	1	1210-	●
19	MEMBER; CROSS,2ND GXZ<GG****>	8-98187-273-0	01	1	1101-1101	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	0908-1012	●
19	MEMBER; CROSS,2ND FXZ<FG****>	1-53174-231-1	01	1	1101-	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0908-1101		●
21	GUSSET; 2ND CROSS FXZ<FG****>	1-53164-226-1	01	1	1208-	●
21	GUSSET; 2ND CROSS FXZ<FG****>	1-53164-227-1	01	1	1208-	●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1210-		●	●
21	GUSSET; 2ND CROSS GXZ<GG****>	8-98098-306-0	02	1	1210-	●
21	GUSSET; 2ND CROSS GXZ<GG****>	1-53164-185-0	02	1	0806-1012	●
21	GUSSET; 2ND CROSS GXZ<GG****>	8-98098-306-0	02	1	1101-1101	●
21	GUSSET; 2ND CROSS FXZ<FG****>	1-53164-226-0	01	1	0806-1207	●
21	GUSSET; 2ND CROSS FXZ<FG****>	1-53164-227-0	01	1	0806-1207	●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	0806-1101		●
71	NUT; 2ND C/MBR GXZ<GG****>	8-98187-193-0	10	1	1210-	●
71	NUT; 2ND C/MBR GXZ<GG****>	8-98187-193-0	10	1	1101-1101	●
71	NUT; 2ND C/MBR FXZ<FG****> M14 THA	0-91110-514-0	08	1	0806-	●
72	SPACER; TRUNNION THA	8-97922-399-0	02	1	0806-	●	●	●
79	MEMBER; CROSS,TRUNNION ASM THA	8-97623-020-3	01	1	1210-		●	●
79	MEMBER; CROSS,TRUNNION ASM GXZ<GG****>	1-53181-729-6	01	1	1210-	●
79	MEMBER; CROSS,TRUNNION ASM GXZ<GG****>	1-53181-729-6	01	1	0806-1101	●
79	MEMBER; CROSS,TRUNNION ASM FXZ<FG****> THA	1-53181-923-0	01	1	0806-	●
79	MEMBER; CROSS,TRUNNION ASM THA	8-97623-020-3	01	1	0806-1101		●
86	MEMBER; CROSS,RR SUSP RR IMA	1-53181-757-3	01	1	1210-		●	●
86	MEMBER; CROSS,RR SUSP RR GXZ<GG****>	8-97623-323-0	01	1	1210-	●
86	MEMBER; CROSS,RR SUSP RR GXZ<GG****>	8-97623-323-0	01	1	0908-1101	●
86	MEMBER; CROSS,RR SUSP RR FXZ<FG****>	8-98105-054-0	01	1	0908-	●
86	MEMBER; CROSS,RR SUSP RR IMA	1-53181-757-3	01	1	0908-1101		●
130	MEMBER; CROSS,END THA	8-98103-326-1	01	1	1210-		●
130	MEMBER; CROSS,END FXZ<FG****>	8-98105-054-0	01	1	0806-	●
130	MEMBER; CROSS,END THA	8-98103-326-1	01	1	0806-1206		●
148	SPACER; C/MBR GXZ<GG****> (C) THA	1-53168-100-0	02	1	1210-	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	0806-1101	●	●
148	SPACER; C/MBR FXZ<FG****> (A)	1-53168-400-1	02	1	1102-1209	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	1210-	●	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	0806-1101	●	●
148	SPACER; C/MBR FXZ<FG****> (B)	1-53168-403-1	02	1	1102-1209	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	1210-	●	●	●
148	SPACER; C/MBR GXZ<GG****> (C) THA	1-53168-100-0	02	1	0806-1104	●
194	BOLT; 2ND C/MBR GXZ<GG****> M14X50 THA	8-98097-158-0	10	1	1210-	●
194	BOLT; 2ND C/MBR GXZ<GG****> M14X50 THA	8-98097-158-0	10	1	1101-1101	●
194	BOLT; 2ND C/MBR FXZ<FG****> M14X60	0-20951-460-0	08	1	0806-	●
197	WASHER; PL,2ND C/MBR GXZ<GG****> ID=15 THA	8-98010-627-1	10	1	1210-	●
197	WASHER; PL,2ND C/MBR GXZ<GG****> ID=15 THA	8-98010-627-1	10	1	1101-1101	●
197	WASHER; PL,2ND C/MBR FXZ<FG****> ID=15 THA	8-98010-627-1	16	1	0806-	●

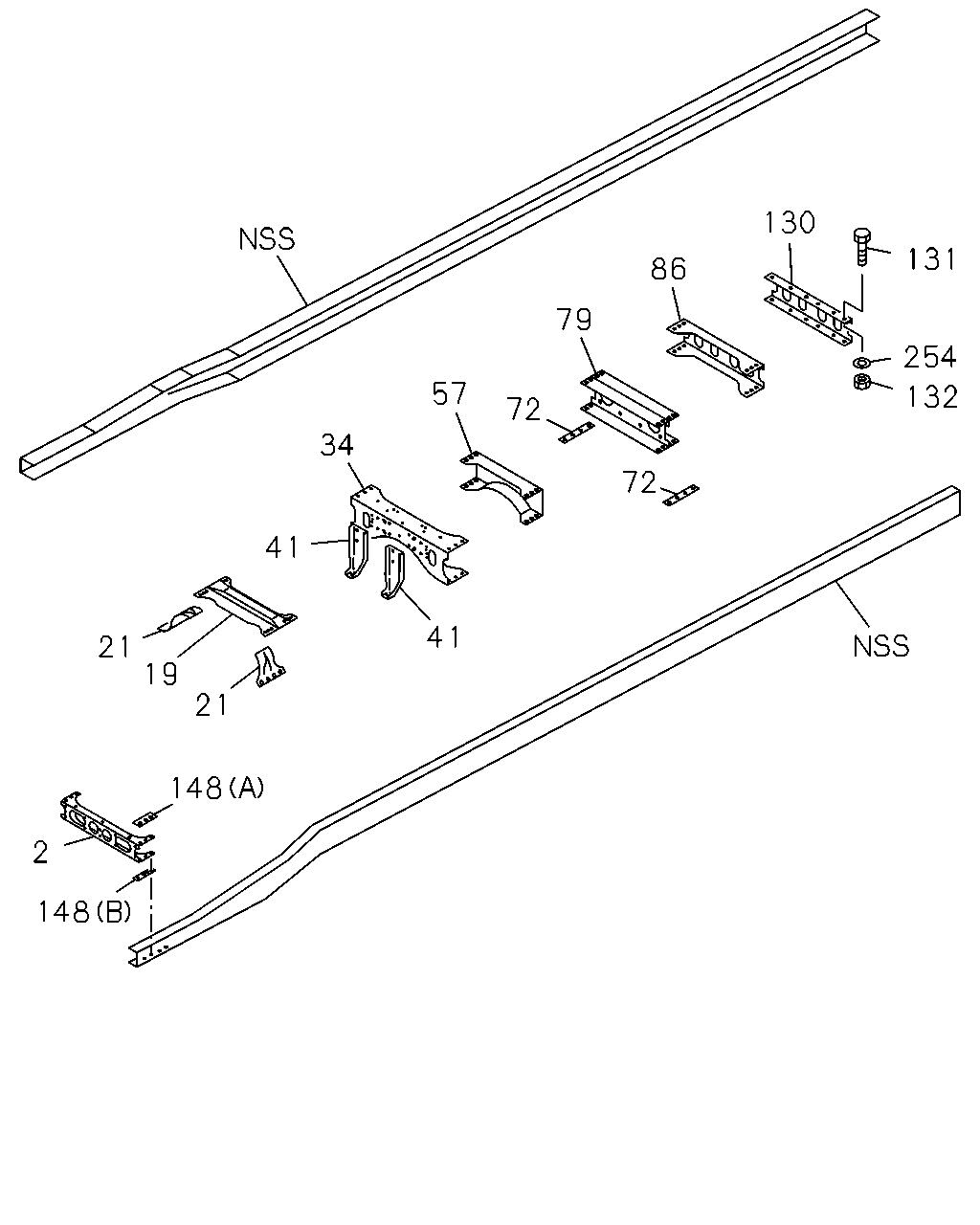

130 131 86 79 254 57 132 72 34 72 41 41 21 19 21 148 148 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST THA	8-97623-017-3	01	1	0806-1112	●	●
2	MEMBER; CROSS,1ST FXZ<FG****> THA	8-97623-017-3	01	1	1207-1209	●
2	MEMBER; CROSS,1ST THA	8-97623-017-3	01	1	1201-	●	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1210-		●	●
19	MEMBER; CROSS,2ND GXZ<GG****>	8-98187-273-0	01	1	1210-	●
19	MEMBER; CROSS,2ND GXZ<GG****>	8-98187-273-0	01	1	1101-1101	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	0908-1012	●
19	MEMBER; CROSS,2ND FXZ<FG****>	1-53174-231-1	01	1	1101-	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0908-1101		●
21	GUSSET; 2ND CROSS FXZ<FG****>	1-53164-226-1	01	1	1208-	●
21	GUSSET; 2ND CROSS FXZ<FG****>	1-53164-227-1	01	1	1208-	●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1210-		●	●
21	GUSSET; 2ND CROSS GXZ<GG****>	8-98098-306-0	02	1	1210-	●
21	GUSSET; 2ND CROSS GXZ<GG****>	1-53164-185-0	02	1	0806-1012	●
21	GUSSET; 2ND CROSS GXZ<GG****>	8-98098-306-0	02	1	1101-1101	●
21	GUSSET; 2ND CROSS FXZ<FG****>	1-53164-226-0	01	1	0806-1207	●
21	GUSSET; 2ND CROSS FXZ<FG****>	1-53164-227-0	01	1	0806-1207	●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	0806-1101		●
34	MEMBER; CROSS,3RD	1-53181-638-3	01	1	1210-		●
34	MEMBER; CROSS,3RD	1-53181-638-3	01	1	0806-1101		●
41	BRACKET; CENTER BRG,FRAME SIDE	8-97614-136-0	02	1	1210-		●
41	BRACKET; CENTER BRG,FRAME SIDE	8-97614-136-0	02	1	0806-1101		●
57	MEMBER; CROSS,RR SUSP FRT THA	1-53181-994-1	01	1	1210-		●	●
57	MEMBER; CROSS,RR SUSP FRT THA	1-53181-994-1	01	1	0908-1112		●
57	MEMBER; CROSS,RR SUSP FRT THA	1-53181-994-1	01	1	1201-1206		●	●
72	SPACER; TRUNNION THA	8-97922-399-0	02	1	0806-	●	●	●
79	MEMBER; CROSS,TRUNNION ASM THA	8-97623-020-3	01	1	1210-		●	●
79	MEMBER; CROSS,TRUNNION ASM GXZ<GG****>	1-53181-729-6	01	1	1210-	●
79	MEMBER; CROSS,TRUNNION ASM GXZ<GG****>	1-53181-729-6	01	1	0806-1101	●
79	MEMBER; CROSS,TRUNNION ASM FXZ<FG****> THA	1-53181-923-0	01	1	0806-	●
79	MEMBER; CROSS,TRUNNION ASM THA	8-97623-020-3	01	1	0806-1101		●
86	MEMBER; CROSS,RR SUSP RR IMA	1-53181-757-3	01	1	1210-		●	●
86	MEMBER; CROSS,RR SUSP RR GXZ<GG****>	8-97623-323-0	01	1	1210-	●
86	MEMBER; CROSS,RR SUSP RR GXZ<GG****>	8-97623-323-0	01	1	0908-1101	●
86	MEMBER; CROSS,RR SUSP RR FXZ<FG****>	8-98105-054-0	01	1	0908-	●
86	MEMBER; CROSS,RR SUSP RR IMA	1-53181-757-3	01	1	0908-1101		●
130	MEMBER; CROSS,END THA	8-98103-326-1	01	1	1210-		●
130	MEMBER; CROSS,END FXZ<FG****>	8-98105-054-0	01	1	0806-	●
130	MEMBER; CROSS,END THA	8-98103-326-1	01	1	0806-1206		●
131	BOLT; END C/MBR M14X40 THA	0-20951-440-0	04	1	1210-		●
131	BOLT; END C/MBR M14X40 THA	0-20951-440-0	04	1	0806-1101		●
132	NUT; END C/MBR M14 THA	0-91110-514-0	04	1	1210-		●
132	NUT; END C/MBR M14 THA	0-91110-514-0	04	1	0806-1101		●
148	SPACER; C/MBR GXZ<GG****> (C) THA	1-53168-100-0	02	1	1210-	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	0806-1101	●	●
148	SPACER; C/MBR FXZ<FG****> (A)	1-53168-400-1	02	1	1102-1209	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	1210-	●	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	0806-1101	●	●
148	SPACER; C/MBR FXZ<FG****> (B)	1-53168-403-1	02	1	1102-1209	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	1210-	●	●	●
148	SPACER; C/MBR GXZ<GG****> (C) THA	1-53168-100-0	02	1	0806-1104	●
254	WASHER; PL,C/MBR ID=15 THA	8-98010-627-1	04	1	1210-		●

86 79 72 72 57 21 19 21 2 148 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST THA	8-97623-017-3	01	1	0806-1112	●	●
2	MEMBER; CROSS,1ST FXZ<FG****> THA	8-97623-017-3	01	1	1207-1209	●
2	MEMBER; CROSS,1ST THA	8-97623-017-3	01	1	1201-	●	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1210-		●	●
19	MEMBER; CROSS,2ND GXZ<GG****>	8-98187-273-0	01	1	1210-	●
19	MEMBER; CROSS,2ND GXZ<GG****>	8-98187-273-0	01	1	1101-1101	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	0908-1012	●
19	MEMBER; CROSS,2ND FXZ<FG****>	1-53174-231-1	01	1	1101-	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0908-1101		●
21	GUSSET; 2ND CROSS FXZ<FG****>	1-53164-226-1	01	1	1208-	●
21	GUSSET; 2ND CROSS FXZ<FG****>	1-53164-227-1	01	1	1208-	●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1210-		●	●
21	GUSSET; 2ND CROSS GXZ<GG****>	8-98098-306-0	02	1	1210-	●
21	GUSSET; 2ND CROSS GXZ<GG****>	1-53164-185-0	02	1	0806-1012	●
21	GUSSET; 2ND CROSS GXZ<GG****>	8-98098-306-0	02	1	1101-1101	●
21	GUSSET; 2ND CROSS FXZ<FG****>	1-53164-226-0	01	1	0806-1207	●
21	GUSSET; 2ND CROSS FXZ<FG****>	1-53164-227-0	01	1	0806-1207	●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	0806-1101		●
57	MEMBER; CROSS,RR SUSP FRT THA	1-53181-994-1	01	1	1210-		●	●
57	MEMBER; CROSS,RR SUSP FRT THA	1-53181-994-1	01	1	0908-1112		●
57	MEMBER; CROSS,RR SUSP FRT THA	1-53181-994-1	01	1	1201-1206		●	●
72	SPACER; TRUNNION THA	8-97922-399-0	02	1	0806-	●	●	●
79	MEMBER; CROSS,TRUNNION ASM THA	8-97623-020-3	01	1	1210-		●	●
79	MEMBER; CROSS,TRUNNION ASM GXZ<GG****>	1-53181-729-6	01	1	1210-	●
79	MEMBER; CROSS,TRUNNION ASM GXZ<GG****>	1-53181-729-6	01	1	0806-1101	●
79	MEMBER; CROSS,TRUNNION ASM FXZ<FG****> THA	1-53181-923-0	01	1	0806-	●
79	MEMBER; CROSS,TRUNNION ASM THA	8-97623-020-3	01	1	0806-1101		●
86	MEMBER; CROSS,RR SUSP RR IMA	1-53181-757-3	01	1	1210-		●	●
86	MEMBER; CROSS,RR SUSP RR GXZ<GG****>	8-97623-323-0	01	1	1210-	●
86	MEMBER; CROSS,RR SUSP RR GXZ<GG****>	8-97623-323-0	01	1	0908-1101	●
86	MEMBER; CROSS,RR SUSP RR FXZ<FG****>	8-98105-054-0	01	1	0908-	●
86	MEMBER; CROSS,RR SUSP RR IMA	1-53181-757-3	01	1	0908-1101		●
148	SPACER; C/MBR GXZ<GG****> (C) THA	1-53168-100-0	02	1	1210-	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	0806-1101	●	●
148	SPACER; C/MBR FXZ<FG****> (A)	1-53168-400-1	02	1	1102-1209	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	1210-	●	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	0806-1101	●	●
148	SPACER; C/MBR FXZ<FG****> (B)	1-53168-403-1	02	1	1102-1209	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	1210-	●	●	●
148	SPACER; C/MBR GXZ<GG****> (C) THA	1-53168-100-0	02	1	0806-1104	●

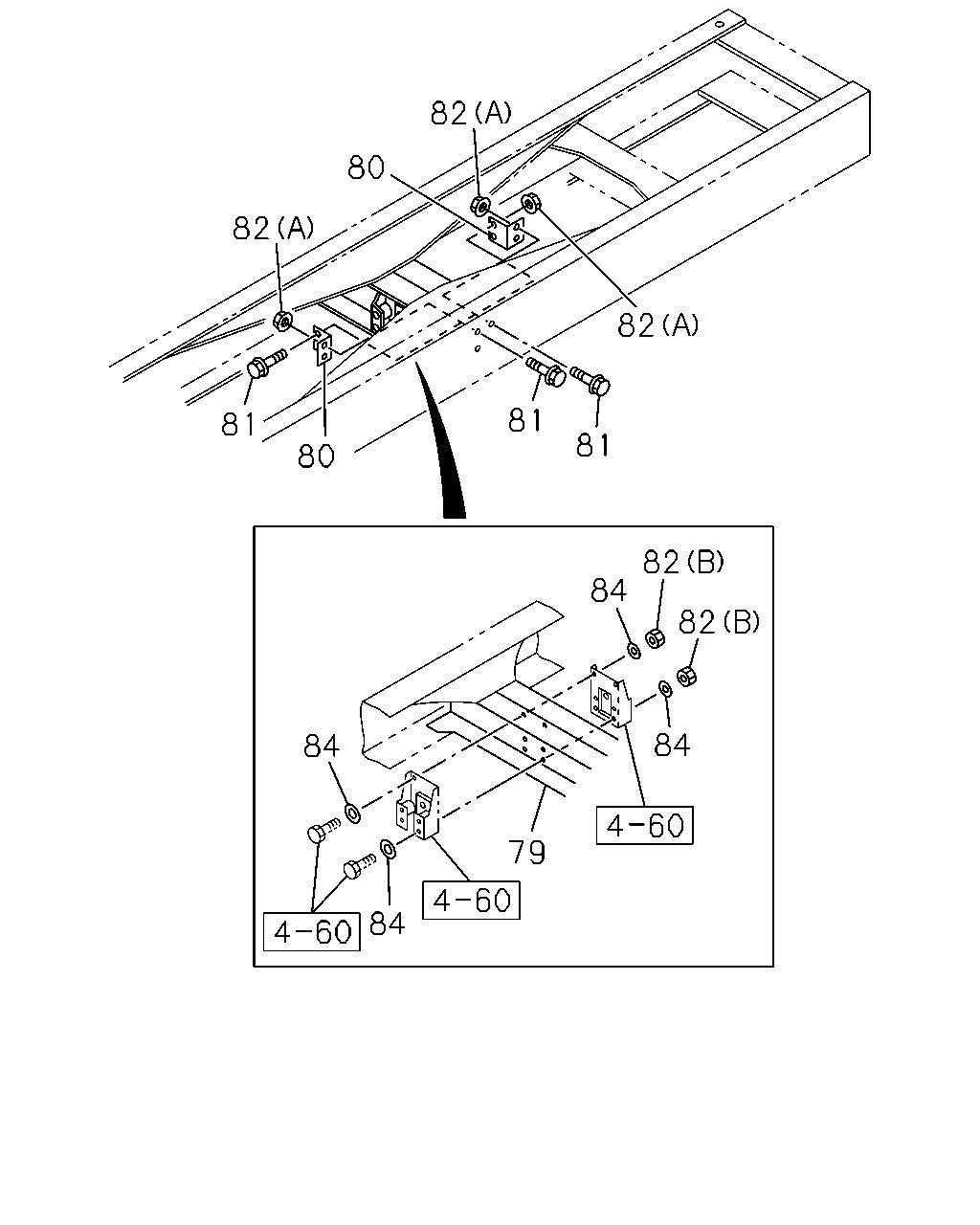

82 80 82 82 81 81 81 80 82 84 82 84 84 79 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
79	MEMBER; CROSS,TRUNNION ASM THA	8-97623-020-3	01	1	1210-		●	●
79	MEMBER; CROSS,TRUNNION ASM GXZ<GG****>	1-53181-729-6	01	1	1210-	●
79	MEMBER; CROSS,TRUNNION ASM GXZ<GG****>	1-53181-729-6	01	1	0806-1101	●
79	MEMBER; CROSS,TRUNNION ASM FXZ<FG****> THA	1-53181-923-0	01	1	0806-	●
79	MEMBER; CROSS,TRUNNION ASM THA	8-97623-020-3	01	1	0806-1101		●
80	BRACKET; C/MBR THA	1-53167-610-0	04	1	0806-	●
81	BOLT; BRKT M14X35 FLANGE	0-28861-435-0	08	1	0806-	●
81	BOLT; BRKT M14X50 FLANGE	0-28861-450-0	04	1	0806-	●
82	NUT; BRKT (A) M14 FLANGE THA	0-91180-214-0	12	1	0806-	●
82	NUT; BRKT (B) M14 THA	0-91110-514-0	04	1	0806-1101	●	●
82	NUT; BRKT FXZ<FG****> (B) M14 THA	0-91110-514-0	04	1	1102-1209	●
84	WASHER; PL,BRKT ID=15 THA	8-98010-627-1	08	1	0806-1101	●	●
84	WASHER; PL,BRKT FXZ<FG****> ID=15 THA	8-98010-627-1	08	1	1102-1209	●
84	WASHER; PL,BRKT ID=15 THA	8-98010-627-1	08	1	1210-	●	●	●

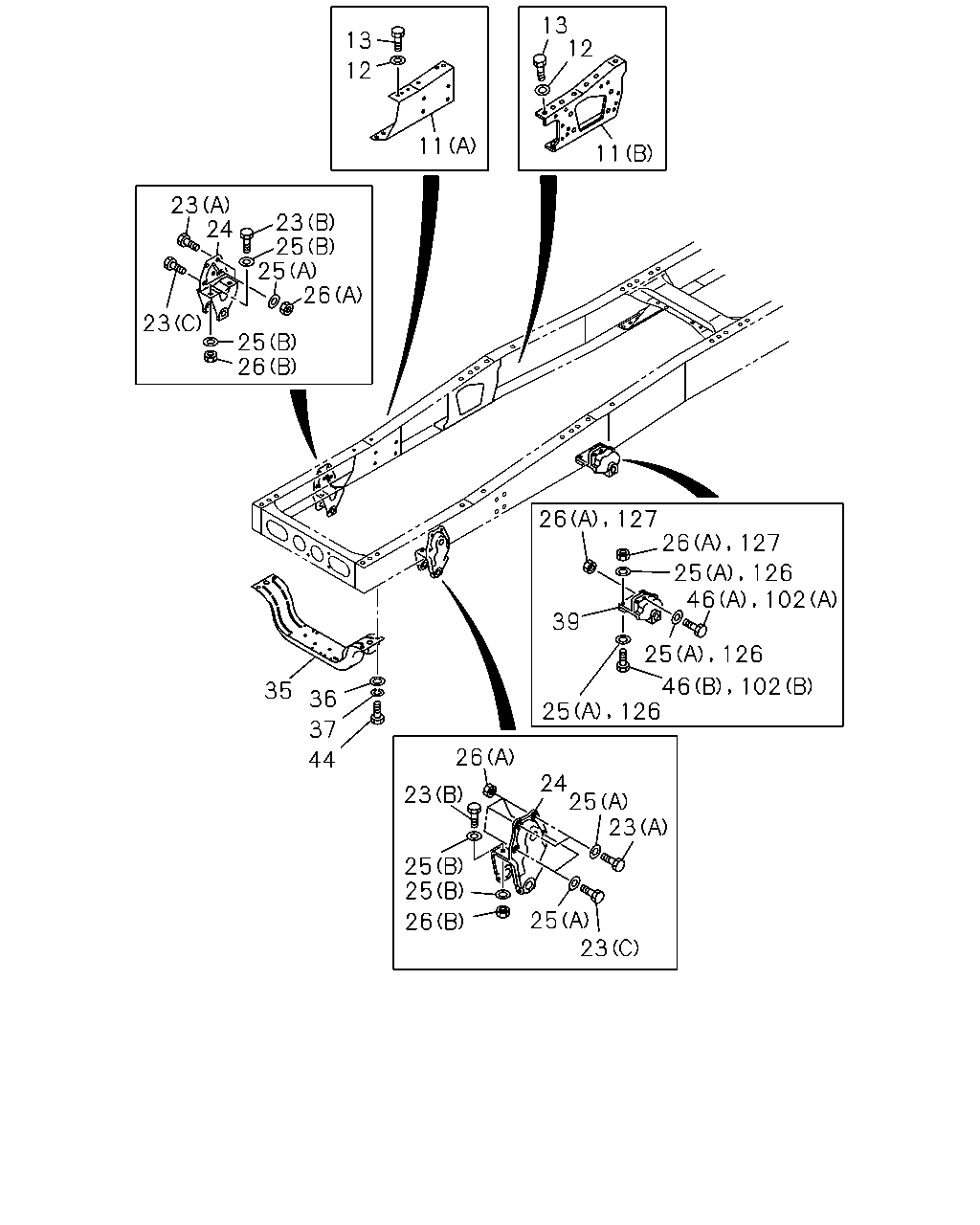

13 12 13 12 11 11 23 24 23 25 25 26 23 25 26 26 127 26 127 25 126 46 102 39 25 126 46 126 102 35 36 25 37 26 44 24 25 23 23 25 25 25 23 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BRACKET; ENG MTG (B) THA	8-98055-430-1	01	1	1201-		●	●
11	BRACKET; ENG MTG (B) THA	8-98055-431-0	01	1	1201-		●	●
11	BRACKET; ENG MTG (A)	8-98059-880-1	01	1	1210-		●	●
11	BRACKET; ENG MTG (A)	8-98059-881-1	01	1	1210-		●	●
11	BRACKET; ENG MTG FXZ<FG****> (B) THA	8-98055-432-1	01	1	1207-1209	●
11	BRACKET; ENG MTG (B) THA	8-98055-432-1	01	1	0806-	●
11	BRACKET; ENG MTG FXZ<FG****> (B) THA	8-98055-433-0	01	1	1207-1209	●
11	BRACKET; ENG MTG (B) THA	8-98055-433-0	01	1	0806-	●
11	BRACKET; ENG MTG (A)	8-98059-445-1	01	1	0806-1101	●
11	BRACKET; ENG MTG FXZ<FG****> (A)	8-98059-445-1	01	1	1102-1209	●
11	BRACKET; ENG MTG (A)	8-98059-445-1	01	1	1210-	●
11	BRACKET; ENG MTG (A)	8-98059-446-1	01	1	0806-1101	●
11	BRACKET; ENG MTG FXZ<FG****> (A)	8-98059-446-1	01	1	1102-1209	●
11	BRACKET; ENG MTG (A)	8-98059-446-1	01	1	1210-	●
11	BRACKET; ENG MTG (B) THA	8-98055-430-1	01	1	0806-1112		●
11	BRACKET; ENG MTG (B) THA	8-98055-431-0	01	1	0806-1112		●
11	BRACKET; ENG MTG (A)	8-98059-880-1	01	1	0806-1101		●
11	BRACKET; ENG MTG (A)	8-98059-881-1	01	1	0806-1101		●
12	WASHER; PL,BRKT,ENG MTG ID=15 THA	8-98010-627-1	16	1	0806-1101	●	●
12	WASHER; PL,BRKT,ENG MTG FXZ<FG****> ID=15 THA	8-98010-627-1	16	1	1102-1209	●
12	WASHER; PL,BRKT,ENG MTG ID=15 THA	8-98010-627-1	16	1	1210-	●	●	●
13	BOLT; BRKT,ENG MTG M14X50 THA	0-20951-450-0	12	1	1210-		●	●
13	BOLT; BRKT,ENG MTG M14X35 THA	0-20951-435-0	04	1	0806-1101	●	●
13	BOLT; BRKT,ENG MTG FXZ<FG****> M14X35 THA	0-20951-435-0	04	1	1102-1209	●
13	BOLT; BRKT,ENG MTG M14X35 THA	0-20951-435-0	04	1	1210-	●	●	●
13	BOLT; BRKT,ENG MTG M14X40 THA	0-20951-440-0	12	1	0806-1101	●
13	BOLT; BRKT,ENG MTG FXZ<FG****> M14X40 THA	0-20951-440-0	12	1	1102-1209	●
13	BOLT; BRKT,ENG MTG M14X40 THA	0-20951-440-0	12	1	1210-	●
13	BOLT; BRKT,ENG MTG M14X50 THA	0-20951-450-0	12	1	0806-1101		●
23	BOLT; BRKT,SPR (C) M14X50 THA	8-98097-158-0	04	1	1210-		●	●
23	BOLT; BRKT,SPR (A) M14X40 THA	0-20951-440-0	04	1	0806-1101	●	●
23	BOLT; BRKT,SPR FXZ<FG****> (A) M14X40 THA	0-20951-440-0	04	1	1102-1209	●
23	BOLT; BRKT,SPR (A) M14X40 THA	0-20951-440-0	04	1	1210-	●	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	0806-1101	●	●
23	BOLT; BRKT,SPR FXZ<FG****> (B) M16X50	0-20951-650-0	04	1	1102-1209	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	1210-	●	●	●
23	BOLT; BRKT,SPR (C) M14X43	8-98097-159-0	04	1	0806-1101	●
23	BOLT; BRKT,SPR FXZ<FG****> (C) M14X43	8-98097-159-0	04	1	1102-1209	●
23	BOLT; BRKT,SPR (C) M14X43	8-98097-159-0	04	1	1210-	●
23	BOLT; BRKT,SPR (C) M14X50 THA	8-98097-158-0	04	1	0806-1101		●
24	BRACKET; FRT SPR,FRT	8-98052-580-0	02	1	0806-1101	●	●
24	BRACKET; FRT SPR,FRT FXZ<FG****>	8-98052-580-0	02	1	1102-1209	●
24	BRACKET; FRT SPR,FRT	8-98052-580-0	02	1	1210-	●	●	●
25	WASHER; PL,BRKT GXZ<GG****> (A) ID=15 THA	8-98010-627-1	20	1	1210-	●
25	WASHER; PL,BRKT FXZ<FG****> (A) ID=15 THA	8-98010-627-1	08	1	0806-1101	●
25	WASHER; PL,BRKT (A) ID=15 THA	8-98010-627-1	08	1	0806-1101		●
25	WASHER; PL,BRKT FXZ<FG****> (A) ID=15 THA	8-98010-627-1	08	1	1102-1209	●
25	WASHER; PL,BRKT FXZ<FG****> (A) ID=15 THA	8-98010-627-1	08	1	1210-	●
25	WASHER; PL,BRKT (A) ID=15 THA	8-98010-627-1	08	1	1210-		●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	0806-1101	●	●
25	WASHER; PL,BRKT FXZ<FG****> (B) ID=16.2	1-09503-316-0	08	1	1102-1209	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1210-	●	●	●
25	WASHER; PL,BRKT GXZ<GG****> (A) ID=15 THA	8-98010-627-1	20	1	0806-1101	●
26	NUT; BRKT,SPR GXZ<GG****> (A) M14 THA	0-91110-514-0	16	1	1210-	●
26	NUT; BRKT,SPR (B) M16 THA	0-91110-516-0	04	1	1210-	●	●	●
26	NUT; BRKT,SPR FXZ<FG****> (A) M14 THA	0-91110-514-0	08	1	0806-1101	●
26	NUT; BRKT,SPR (A) M14 THA	0-91110-514-0	08	1	0806-1101		●
26	NUT; BRKT,SPR FXZ<FG****> (A) M14 THA	0-91110-514-0	08	1	1102-1209	●
26	NUT; BRKT,SPR FXZ<FG****> (A) M14 THA	0-91110-514-0	08	1	1210-	●
26	NUT; BRKT,SPR (A) M14 THA	0-91110-514-0	08	1	1210-		●	●
26	NUT; BRKT,SPR (B) M16 THA	0-91110-516-0	04	1	0806-1101	●	●
26	NUT; BRKT,SPR GXZ<GG****> (B) M16 THA	0-91110-516-0	04	1	1102-1104	●
26	NUT; BRKT,SPR GXZ<GG****> (A) M14 THA	0-91110-514-0	16	1	0806-1101	●
35	MEMBER; UNDER	1-53174-263-2	01	1	0806-1112	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	1201-	●	●	●
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	0806-1101	●	●
36	WASHER; PL,UNDER MBR ID=17	0-91614-516-0	04	1	1102-1112	●	●
36	WASHER; PL,UNDER MBR ID=17	0-91614-516-0	04	1	1201-	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	0806-1112	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1201-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	0806-1101	●	●
39	BRACKET; FRT SPR,RR FXZ<FG****>	1-53352-152-0	01	1	1102-1209	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	1210-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	0806-1101	●	●
39	BRACKET; FRT SPR,RR FXZ<FG****>	1-53352-153-0	01	1	1102-1209	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	1210-	●	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	0806-1112	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1201-	●	●	●
46	BOLT; BRKT FIX GXZ<GG****> (A) M14X40 THA	0-20951-440-0	04	1	1210-	●
46	BOLT; BRKT FIX GXZ<GG****> (B) M14X40 THA	8-98097-157-0	04	1	1210-	●
46	BOLT; BRKT FIX GXZ<GG****> (A) M14X40 THA	0-20951-440-0	04	1	0806-1101	●
46	BOLT; BRKT FIX GXZ<GG****> (B) M14X40 THA	8-98097-157-0	04	1	0806-1101	●
102	BOLT; BRKT,RR SPR (A) M14X50 THA	0-20951-450-0	04	1	1210-		●	●
102	BOLT; BRKT,RR SPR (B) M14X50 THA	8-98097-158-0	04	1	1210-		●	●
102	BOLT; BRKT,RR SPR FXZ<FG****> (A) M14X40 THA	0-20951-440-0	04	1	0806-	●
102	BOLT; BRKT,RR SPR FXZ<FG****> (B) M14X40 THA	8-98097-157-0	04	1	0806-	●
102	BOLT; BRKT,RR SPR (A) M14X50 THA	0-20951-450-0	04	1	0806-1101		●
102	BOLT; BRKT,RR SPR (B) M14X50 THA	8-98097-158-0	04	1	0806-1101		●
126	WASHER; PL,BRKT FXZ<FG****> ID=15 THA	8-98010-627-1	12	1	0806-1101	●
126	WASHER; PL,BRKT ID=15 THA	8-98010-627-1	12	1	0806-1101		●
126	WASHER; PL,BRKT FXZ<FG****> ID=15 THA	8-98010-627-1	12	1	1102-1209	●
126	WASHER; PL,BRKT FXZ<FG****> ID=15 THA	8-98010-627-1	12	1	1210-	●
126	WASHER; PL,BRKT ID=15 THA	8-98010-627-1	12	1	1210-		●	●
127	NUT; BRKT FXZ<FG****> M14 THA	0-91110-514-0	08	1	0806-1101	●
127	NUT; BRKT M14 THA	0-91110-514-0	08	1	0806-1101		●
127	NUT; BRKT FXZ<FG****> M14 THA	0-91110-514-0	08	1	1102-1209	●
127	NUT; BRKT FXZ<FG****> M14 THA	0-91110-514-0	08	1	1210-	●
127	NUT; BRKT M14 THA	0-91110-514-0	08	1	1210-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
