◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11136 - FXZ/GXZ(THAI)EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶

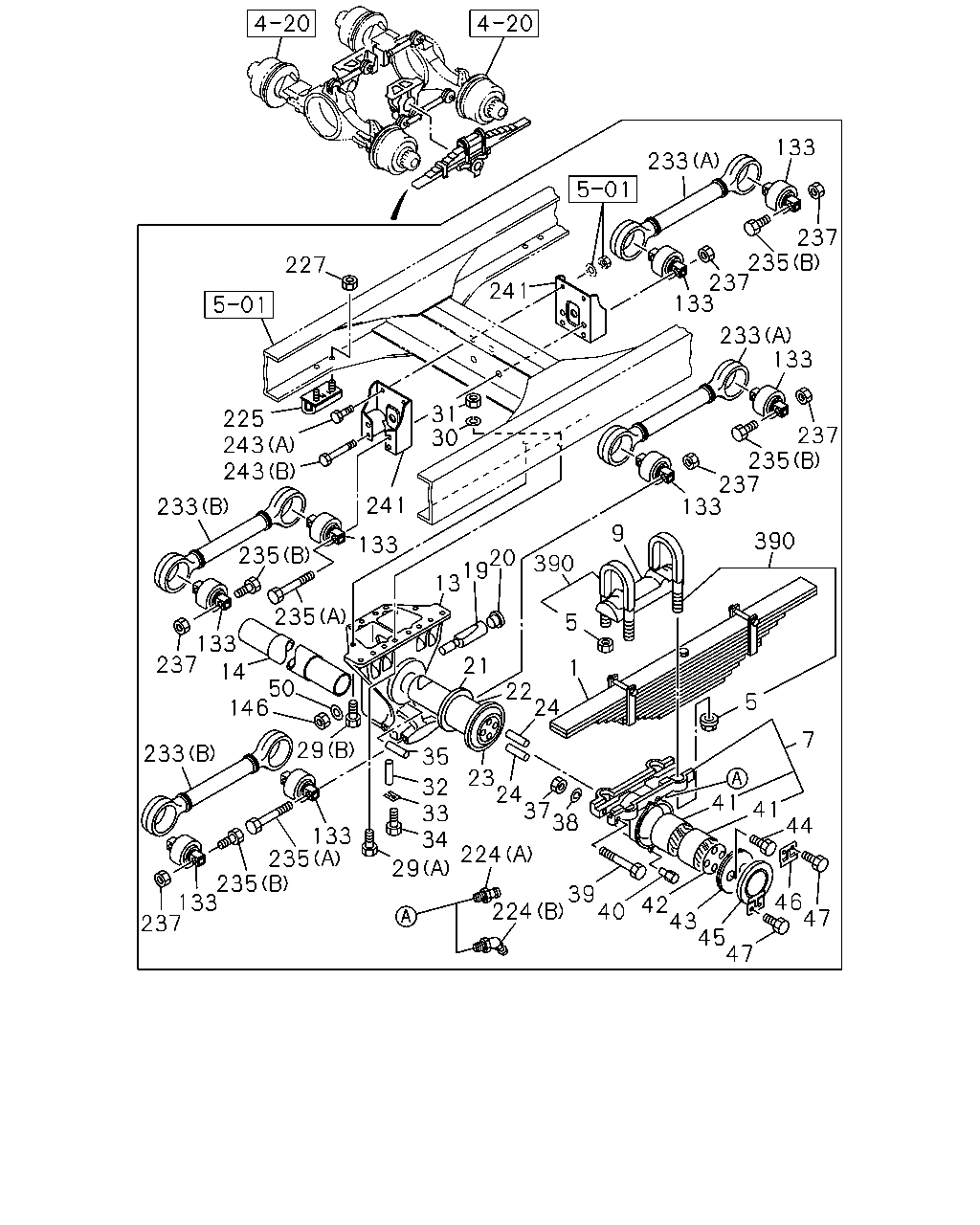

4-60 — REAR SUSPENSION (#68336) — 137 parça
çizim 193946
133 233 237 235 237 133 227 241 233 133 31 30 225 243 243 237 235 237 133 241 233 9 390 133 235 20 19 13 390 235 5 133 237 21 1 14 50 146 22 24 5 7 29 233 35 23 24 37 38 41 32 33 34 41 44 133 235 235 133 237 224 29 39 224 40 46 47 42 43 45 47
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 5200MM<52W> 9-LEAF THA 		8-98140-159-0 02 1 1201- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 11-LEAF THA 		8-97922-084-0 02 1 0806-1112 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> 11-LEAF THA 		8-97922-084-0 02 1 1201-1205 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 11-LEAF THA 		8-97922-084-0 02 1 1201-1205 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> 11-LEAF THA 		1-51410-269-1 02 1 1206- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 11-LEAF THA 		1-51410-269-1 02 1 1206- ●
5 NUT; U-BOLT,RR SPR
M27 FLANGE THA 		1-09440-058-0 08 1 0806- ● ●
7 SEAT; SPR,LWR
THA 		8-97916-703-2 02 1 0806- ● ●
9 PAD; U BOLT,RR SPR 1-51372-019-1 02 1 0806-1010 ● ●
9 PAD; U BOLT,RR SPR 8-98177-265-0 02 1 1011-1412 ● ●
9 PAD; U BOLT,RR SPR
THA 		8-98296-723-0 02 1 1501- ● ●
13 BRACKET; TRUNNION SHAFT
THA 		8-97915-942-3 02 1 0806- ● ●
14 PIPE; TRUNNION BRKT 1-51389-060-0 01 1 0806- ● ●
19 BOLT; KEY,SHAFT 1-51389-066-0 02 1 0806- ● ●
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 0806- ● ●
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 0806- ● ●
22 SHAFT; TRUNNION,RR SUSP
THA 		8-97916-554-0 02 1 0806- ● ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 0806- ● ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 0806- ● ●
29 BOLT; BRKT TO FRAME
(A) M18X75 		8-98012-872-0 24 1 0806- ● ●
29 BOLT; BRKT TO FRAME
(B) M18X55 		9-92061-855-0 04 1 0806- ● ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 0806- ● ●
31 NUT; TRUNNION BRKT
M18 THA 		0-91110-518-0 28 1 1201- ● ●
31 NUT; TRUNNION BRKT
M18 THA 		0-91110-518-0 28 1 0806-1112 ● ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 0806- ● ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 0806- ● ●
34 BOLT; LOCK PLATE
M10X16 FLANGE THA 		0-28051-016-0 02 1 0806- ● ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 0806- ● ●
37 NUT; SPR SETTING
M22 		0-91110-522-0 04 1 0806- ● ●
38 WASHER; LK,SPR SETTING
ID=22.5 		0-91510-622-0 04 1 0806- ● ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 0806- ● ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 0806- ● ●
41 BUSHING; TRUNNION SHAFT 8-98081-832-0 04 1 1210- ● ●
41 BUSHING; TRUNNION SHAFT 8-98081-832-0 04 1 0806-1101 ● ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 0806- ● ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 1211- ● ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 0806- ● ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 0806- ● ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 0806- ● ●
46 BRACKET; COVER 1-51387-015-2 02 1 0806- ● ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE THA 		0-28050-812-0 08 1 0806- ● ●
50 WASHER; PL,TRUNNION SHAFT
ID=25 		8-98012-871-0 02 1 0806- ● ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 5300MM<53W> BEST VALUE PARTS 		1-87610-082-0 04 1 1201-1201 ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> BEST VALUE PARTS 		1-87610-082-0 04 1 1201-1201 ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> BEST VALUE PARTS 		1-87610-082-0 12 1 1201-1206 ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> BEST VALUE PARTS 		1-87610-082-0 12 1 1203-1204 ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 06 1 0806-1112 ● ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 06 1 0806-1112 ● ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 04 1 1201-1201 ● ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 04 1 1201-1201 ● ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 02 1 1201-1201 ● ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 02 1 1201-1201 ● ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 4700MM<47W> BEST VALUE PARTS 		1-87411-074-2 02 1 1201-1201 ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 4700MM<47W> BEST VALUE PARTS 		1-87411-074-2 02 1 1201-1201 ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 02 1 1201-1201 ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 02 1 1201-1201 ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 4700MM<47W> BEST VALUE PARTS 		1-87411-074-2 06 1 1201-1206 ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 4700MM<47W> BEST VALUE PARTS 		1-87411-074-2 06 1 1201-1206 ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 06 1 1201-1206 ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 06 1 1201-1206 ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 5200MM<52W> BEST VALUE PARTS 		1-87411-074-2 08 1 1201-1201 ●
133 BUSHING; RUBBER,TORQUE ROD
THA 		8-98218-958-0 06 1 1207- ● ●
133 BUSHING; RUBBER,TORQUE ROD
THA 		8-98218-958-0 06 1 1207- ● ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 5200MM<52W> THA 		8-98218-958-0 12 1 1207- ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> 		1-51519-143-1 12 1 1203-1204 ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 4700MM<47W> UPPER OD=105 THA 		1-51519-113-1 02 1 1201-1201 ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 4700MM<47W> UPPER OD=105 THA 		1-51519-113-1 02 1 1201-1201 ●
133 BUSHING; RUBBER,TORQUE ROD
UPPER OD=105 THA 		1-51519-113-1 02 1 1201-1201 ●
133 BUSHING; RUBBER,TORQUE ROD
UPPER OD=105 THA 		1-51519-113-1 02 1 1201-1201 ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 4700MM<47W> OD=105 THA 		1-51519-113-1 06 1 1201-1206 ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 4700MM<47W> OD=105 THA 		1-51519-113-1 06 1 1201-1206 ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 THA 		1-51519-113-1 06 1 1201-1206 ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 THA 		1-51519-113-1 06 1 1201-1206 ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 5200MM<52W> LOWER OD=105 THA 		1-51519-113-1 08 1 1201-1201 ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 THA 		1-51519-113-1 06 1 0806-1112 ● ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 THA 		1-51519-113-1 06 1 0806-1112 ● ●
133 BUSHING; RUBBER,TORQUE ROD
LOWER OD=105 THA 		1-51519-113-1 04 1 1201-1201 ● ●
133 BUSHING; RUBBER,TORQUE ROD
LOWER OD=105 THA 		1-51519-113-1 04 1 1201-1201 ● ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> LOWER OD=105 THA 		1-51519-113-1 04 1 1201-1201 ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> LOWER OD=105 THA 		1-51519-113-1 04 1 1201-1201 ●
133 BUSHING; RUBBER,TORQUE ROD
LOWER OD=105 THA 		1-51519-113-1 04 1 1201-1201 ●
133 BUSHING; RUBBER,TORQUE ROD
LOWER OD=105 THA 		1-51519-113-1 04 1 1201-1201 ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> UPPER 		1-51519-143-1 04 1 1201-1201 ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> 		1-51519-143-1 12 1 1201-1206 ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> BEST VALUE PARTS 		1-87411-074-1 04 1 1201-1201 ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> BEST VALUE PARTS 		1-87411-074-1 04 1 1201-1201 ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-1 04 1 1201-1201 ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-1 04 1 1201-1201 ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> BEST VALUE PARTS 		1-87610-082-0 12 1 1203-1204 ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> UPPER BEST VALUE PARTS 		1-87610-082-0 04 1 1201-1201 ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> BEST VALUE PARTS 		1-87610-082-0 12 1 1201-1206 ●
146 NUT; KEY BOLT
M24 		0-91110-524-0 02 1 0806- ● ●
224 NIPPLE; GREASE,SPR SEAT
(A) PT1/8 STRAIGHT THA 		0-90301-410-0 02 1 0806- ●
224 NIPPLE; GREASE,SPR SEAT
(B) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0806- ●
225 RUBBER; CUSHION,RR SPR
WHEEL BASE 5200MM<52W> FORWARD RH,REARWARD LH THA 		8-97925-895-0 02 1 1201- ●
225 RUBBER; CUSHION,RR SPR
FORWARD RH,REARWARD LH THA 		8-97916-009-0 02 1 0806-1112 ● ●
225 RUBBER; CUSHION,RR SPR
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> FORWARD RH,REARWARD LH THA 		8-97916-009-0 02 1 1201- ●
225 RUBBER; CUSHION,RR SPR
FORWARD RH,REARWARD LH THA 		8-97916-009-0 02 1 1201- ●
225 RUBBER; CUSHION,RR SPR
FORWARD LH,REARWARD RH THA 		8-97916-011-0 02 1 0806- ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE THA 		0-91180-212-0 08 1 0806- ● ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (B) L=525 THA 		8-98218-994-0 03 1 1207- ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=525 THA 		8-98218-994-0 03 1 1207- ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) L=550 THA 		8-98218-998-0 03 1 1207- ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=550 THA 		8-98218-998-0 03 1 1207- ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 5200MM<52W> (B) L=555 THA 		8-98218-999-0 03 1 1207- ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 5200MM<52W> (A) L=580 THA 		8-98219-000-0 03 1 1207- ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=525 THA 		1-51511-656-0 02 1 1201-1201 ● ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=525 THA 		1-51511-656-0 03 1 1201-1206 ● ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=550 THA 		1-51511-659-0 02 1 1201-1201 ● ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) L=550 THA 		1-51511-659-0 02 1 1201-1201 ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=550 THA 		1-51511-659-0 02 1 1201-1201 ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) L=550 THA 		1-51511-659-0 03 1 1201-1206 ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=550 THA 		1-51511-659-0 03 1 1201-1206 ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 5200MM<52W> (B) L=555 THA 		1-51511-660-0 03 1 1201-1206 ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 5200MM<52W> (A) L=580 		1-51511-661-0 03 1 1201-1206 ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=525 THA 		1-51511-656-0 03 1 0806-1112 ● ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=525 THA 		1-51511-656-0 01 1 1201-1201 ● ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=550 THA 		1-51511-659-0 03 1 0806-1112 ● ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=550 THA 		1-51511-659-0 01 1 1201-1201 ● ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) L=550 THA 		1-51511-659-0 01 1 1201-1201 ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=550 THA 		1-51511-659-0 01 1 1201-1201 ●
235 BOLT; TORQUE ROD
(A) M18X265 		8-98012-875-0 06 1 0806- ● ●
235 BOLT; TORQUE ROD
(B) M18X102 		8-98012-877-0 12 1 0806- ● ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 0806- ● ●
241 BRACKET; TORQUE ROD 1-53363-031-2 02 1 0806-1101 ● ●
241 BRACKET; TORQUE ROD
WHEEL BASE 4700MM<47W> 		1-53363-031-2 02 1 1102-1209 ●
241 BRACKET; TORQUE ROD 1-53363-031-2 02 1 1210- ● ●
243 BOLT; BRKT,TORQUE ROD
(A) M14X50 THA 		0-20951-450-0 02 1 0806-1101 ● ●
243 BOLT; BRKT,TORQUE ROD
WHEEL BASE 4700MM<47W> (A) M14X50 THA 		0-20951-450-0 02 1 1102-1209 ●
243 BOLT; BRKT,TORQUE ROD
(A) M14X50 THA 		0-20951-450-0 02 1 1210- ● ●
243 BOLT; BRKT,TORQUE ROD
(B) M14X205 		1-09000-147-0 02 1 0806-1101 ● ●
243 BOLT; BRKT,TORQUE ROD
WHEEL BASE 4700MM<47W> (B) M14X205 		1-09000-147-0 02 1 1102-1209 ●
243 BOLT; BRKT,TORQUE ROD
(B) M14X205 		1-09000-147-0 02 1 1210- ● ●
390 U-BOLT SET; RR SPRING
WHEEL BASE 5200MM<52W> L=350 		1-87870-392-1 04 1 1201- ●
390 U-BOLT SET; RR SPRING
L=370 		1-87870-217-3 04 1 0806-1112 ● ●
390 U-BOLT SET; RR SPRING
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> L=370 		1-87870-217-3 04 1 1201- ●
390 U-BOLT SET; RR SPRING
L=370 		1-87870-217-3 04 1 1201- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
