4-55 — FRONT LEAF SPRING (#68335) — 99 parça

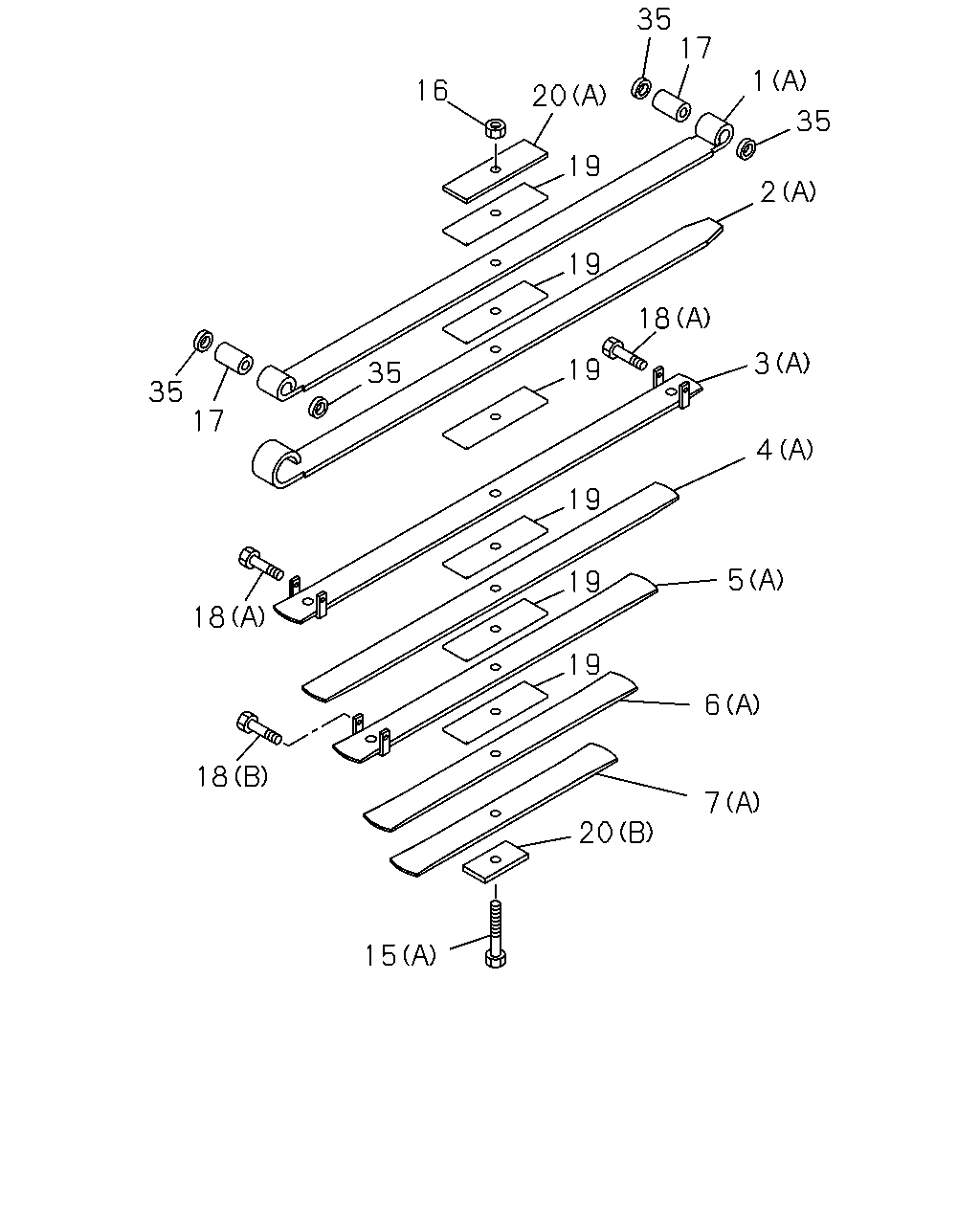

35 17 1 16 20 35 19 2 19 18 3 19 35 35 17 4 19 5 19 18 19 6 18 7 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51131-961-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: B = 8-98053-737-0	8-98091-163-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: D = 8-98137-215-0	8-98140-007-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A), THA ASM PART: C = 8-98137-207-0	8-98140-014-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A), THA ASM PART: E = 8-98201-306-0	8-98165-020-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51132-961-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: B = 8-98053-737-0	8-98091-164-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: D = 8-98137-215-0	8-98140-008-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A), THA ASM PART: C = 8-98137-207-0	8-98140-015-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A), THA ASM PART: E = 8-98201-306-0	8-98165-021-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51133-961-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: B = 8-98053-737-0	8-98091-165-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: D = 8-98137-215-0	8-98140-009-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A), THA ASM PART: C = 8-98137-207-0	8-98140-016-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A), THA ASM PART: E = 8-98201-306-0	8-98207-134-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51134-961-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: B = 8-98053-737-0	8-98091-166-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: D = 8-98137-215-0	8-98140-010-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A), THA ASM PART: C = 8-98137-207-0	8-98140-017-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A), THA ASM PART: E = 8-98201-306-0	8-98165-023-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51135-961-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: B = 8-98053-737-0	8-98091-167-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: D = 8-98137-215-0	8-98140-011-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A), THA ASM PART: C = 8-98137-207-0	8-98140-018-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A), THA ASM PART: E = 8-98201-306-0	8-98207-135-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51136-961-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: B = 8-98053-737-0	8-98091-168-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: D = 8-98137-215-0	8-98140-012-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A), THA ASM PART: C = 8-98137-207-0	8-98140-019-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A), THA ASM PART: E = 8-98201-306-0	8-98165-025-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51137-961-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B) ASM PART: B = 8-98053-737-0	8-98091-169-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B) ASM PART: D = 8-98137-215-0	8-98140-013-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A), THA ASM PART: C = 8-98137-207-0	8-98140-020-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A), THA ASM PART: E = 8-98201-306-0	8-98165-026-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=150 ASM PART: E = 8-98201-306-0	1-51156-328-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=165 ASM PART: A = 1-51130-961-0, C = 8-98137-207-0	1-51156-366-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=130 ASM PART: B = 8-98053-737-0, D = 8-98137-215-0	8-98048-521-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16, THA ASM PART: A = 1-51130-961-0, B = 8-98053-737-0, C = 8-98137-207-0, D = 8-98137-215-0, E = 8-98201-306-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38, THA ASM PART: B = 8-98053-737-0, D = 8-98137-215-0, E = 8-98201-306-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT OD=42, THA ASM PART: A = 1-51130-961-0, C = 8-98137-207-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: A = 1-51130-961-0, C = 8-98137-207-0, E = 8-98201-306-0	1-09000-328-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X103 ASM PART: A = 1-51130-961-0, C = 8-98137-207-0, E = 8-98201-306-0	1-09000-536-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X103 ASM PART: B = 8-98053-737-0, D = 8-98137-215-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (D), M10X99 ASM PART: B = 8-98053-737-0, D = 8-98137-215-0	8-97615-895-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1, THA ASM PART: A = 1-51130-961-0, B = 8-98053-737-0, C = 8-98137-207-0, D = 8-98137-215-0, E = 8-98201-306-0	1-51177-071-0	06	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: A = 1-51130-961-0, C = 8-98137-207-0, E = 8-98201-306-0	1-51177-097-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=9 ASM PART: B = 8-98053-737-0, D = 8-98137-215-0	1-51177-114-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=15 ASM PART: A = 1-51130-961-0, C = 8-98137-207-0	1-51177-352-0	01	1	-
35	SEAL; DUST THA ASM PART: A = 1-51130-961-0, C = 8-98137-207-0	1-51177-321-0	04	1	-

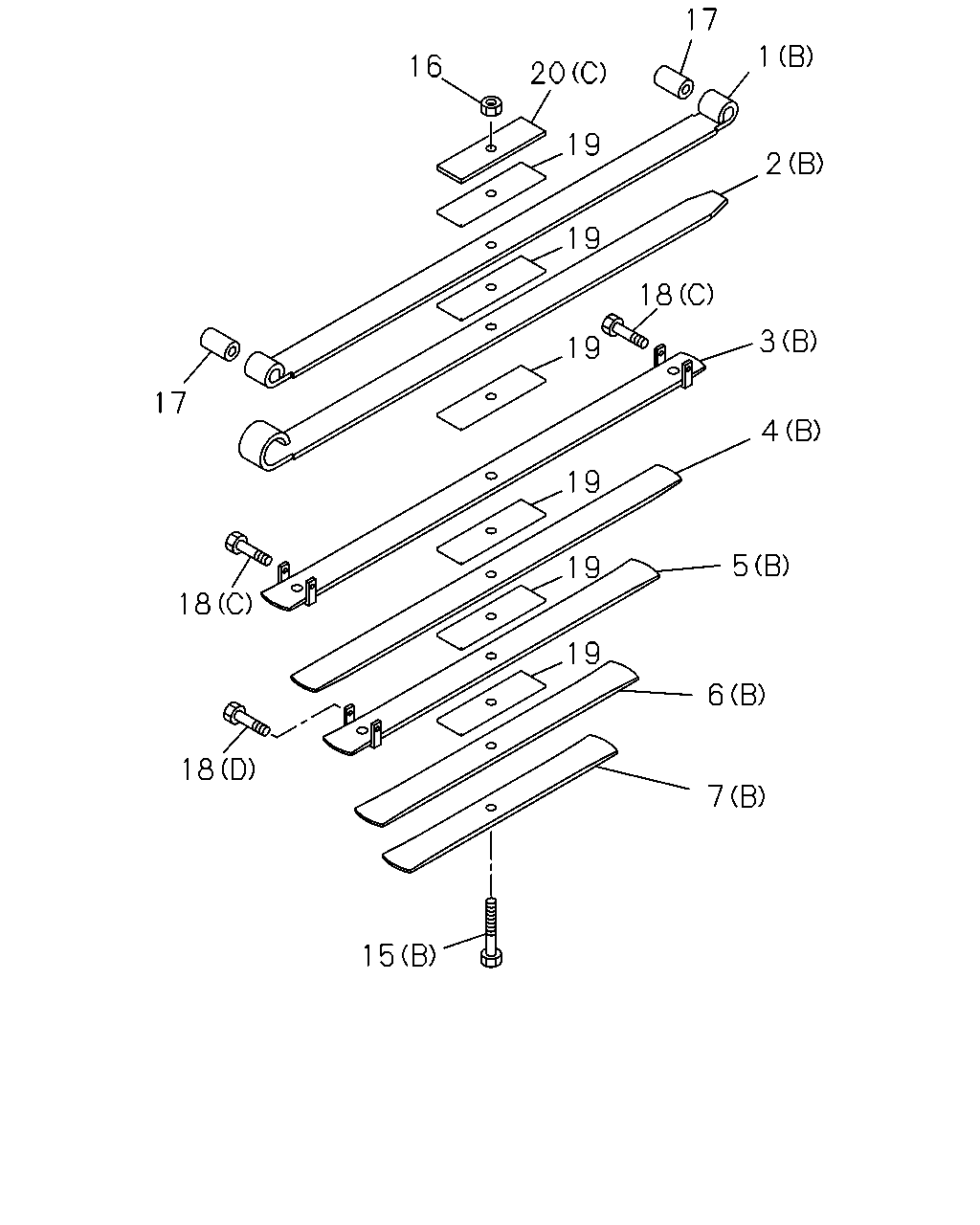

17 1 16 20 19 2 19 18 3 19 17 4 19 5 19 18 19 6 18 7 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51131-961-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: B = 8-98053-737-0	8-98091-163-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: D = 8-98137-215-0	8-98140-007-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A), THA ASM PART: C = 8-98137-207-0	8-98140-014-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A), THA ASM PART: E = 8-98201-306-0	8-98165-020-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51132-961-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: B = 8-98053-737-0	8-98091-164-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: D = 8-98137-215-0	8-98140-008-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A), THA ASM PART: C = 8-98137-207-0	8-98140-015-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A), THA ASM PART: E = 8-98201-306-0	8-98165-021-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51133-961-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: B = 8-98053-737-0	8-98091-165-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: D = 8-98137-215-0	8-98140-009-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A), THA ASM PART: C = 8-98137-207-0	8-98140-016-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A), THA ASM PART: E = 8-98201-306-0	8-98207-134-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51134-961-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: B = 8-98053-737-0	8-98091-166-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: D = 8-98137-215-0	8-98140-010-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A), THA ASM PART: C = 8-98137-207-0	8-98140-017-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A), THA ASM PART: E = 8-98201-306-0	8-98165-023-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51135-961-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: B = 8-98053-737-0	8-98091-167-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: D = 8-98137-215-0	8-98140-011-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A), THA ASM PART: C = 8-98137-207-0	8-98140-018-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A), THA ASM PART: E = 8-98201-306-0	8-98207-135-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51136-961-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: B = 8-98053-737-0	8-98091-168-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: D = 8-98137-215-0	8-98140-012-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A), THA ASM PART: C = 8-98137-207-0	8-98140-019-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A), THA ASM PART: E = 8-98201-306-0	8-98165-025-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51137-961-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B) ASM PART: B = 8-98053-737-0	8-98091-169-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B) ASM PART: D = 8-98137-215-0	8-98140-013-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A), THA ASM PART: C = 8-98137-207-0	8-98140-020-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A), THA ASM PART: E = 8-98201-306-0	8-98165-026-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=150 ASM PART: E = 8-98201-306-0	1-51156-328-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=165 ASM PART: A = 1-51130-961-0, C = 8-98137-207-0	1-51156-366-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=130 ASM PART: B = 8-98053-737-0, D = 8-98137-215-0	8-98048-521-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16, THA ASM PART: A = 1-51130-961-0, B = 8-98053-737-0, C = 8-98137-207-0, D = 8-98137-215-0, E = 8-98201-306-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38, THA ASM PART: B = 8-98053-737-0, D = 8-98137-215-0, E = 8-98201-306-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT OD=42, THA ASM PART: A = 1-51130-961-0, C = 8-98137-207-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: A = 1-51130-961-0, C = 8-98137-207-0, E = 8-98201-306-0	1-09000-328-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X103 ASM PART: A = 1-51130-961-0, C = 8-98137-207-0, E = 8-98201-306-0	1-09000-536-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X103 ASM PART: B = 8-98053-737-0, D = 8-98137-215-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (D), M10X99 ASM PART: B = 8-98053-737-0, D = 8-98137-215-0	8-97615-895-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1, THA ASM PART: A = 1-51130-961-0, B = 8-98053-737-0, C = 8-98137-207-0, D = 8-98137-215-0, E = 8-98201-306-0	1-51177-071-0	06	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: A = 1-51130-961-0, C = 8-98137-207-0, E = 8-98201-306-0	1-51177-097-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=9 ASM PART: B = 8-98053-737-0, D = 8-98137-215-0	1-51177-114-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=15 ASM PART: A = 1-51130-961-0, C = 8-98137-207-0	1-51177-352-0	01	1	-
