4-42 — POWER STEERING OIL PUMP (#68333) — 24 parça

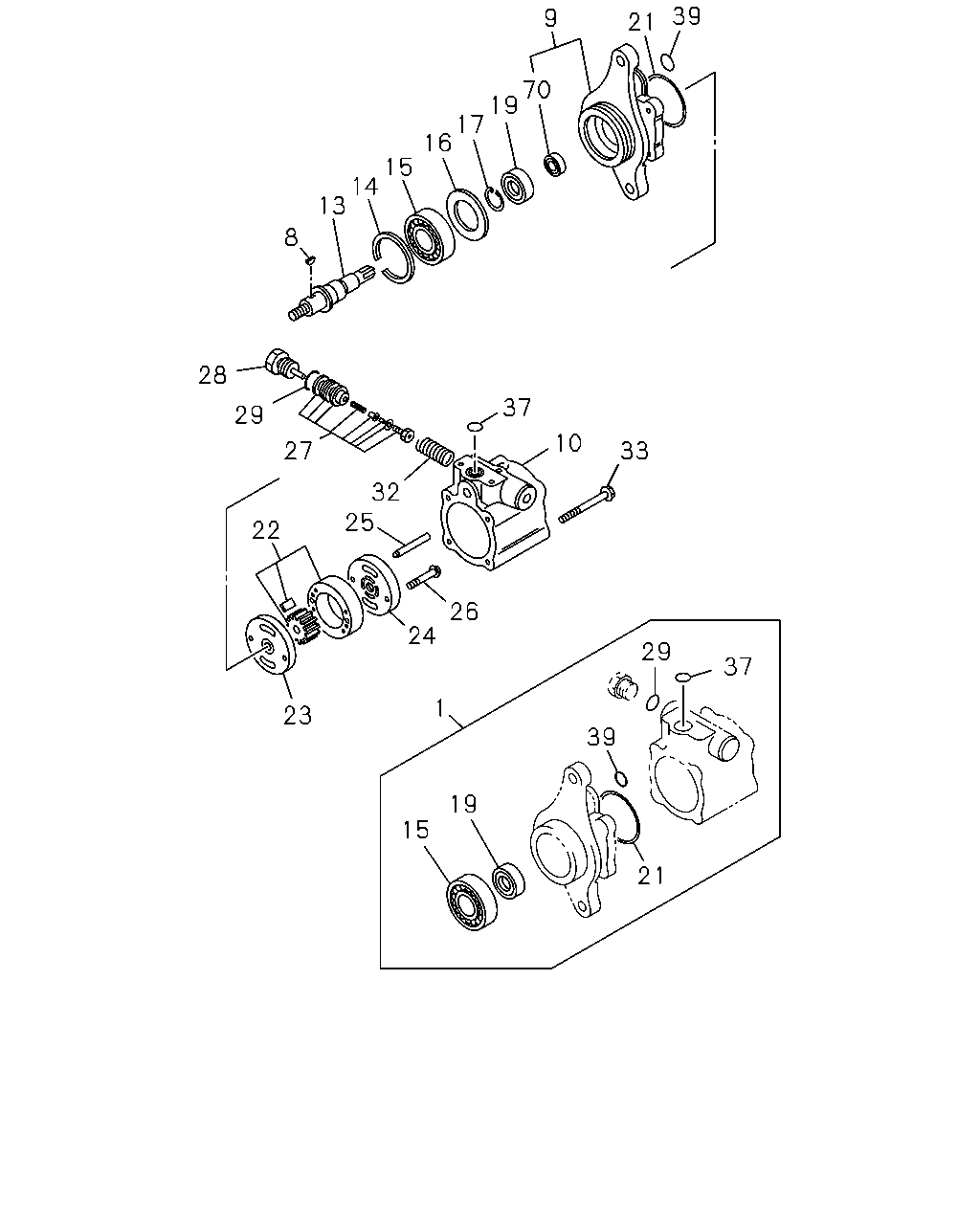

çizim 124241
39 9 21 70 19 17 16 15 14 13 8 28 37 29 10 33 27 32 25 22 26 24 29 37 1 23 39 19 15 21
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 1-19500-623-2 		1-85574-008-0 01 1 -
8 KEY; SHAFT,OIL PUMP
ASM PART: A = 1-19500-623-2 		9-19519-036-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 1-19500-623-2 		1-19511-202-1 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 1-19500-623-2 		1-19511-195-0 01 1 -
13 SHAFT KIT; RET
ASM PART: A = 1-19500-623-2 		1-19521-033-0 01 1 -
14 RING; RET,OIL PUMP
ASM PART: A = 1-19500-623-2 		1-19519-318-0 01 1 -
15 BEARING; BALL,OIL PUMP
ASM PART: A = 1-19500-623-2 		1-19515-013-0 01 1 -
16 RING; RET,OIL PUMP
ASM PART: A = 1-19500-623-2 		1-19519-319-0 01 1 -
17 RING; RET
ASM PART: A = 1-19500-623-2 		1-19519-317-0 01 1 -
19 SEAL; OIL,OIL PUMP
ASM PART: A = 1-19500-623-2 		1-19519-252-0 01 1 -
21 GASKET; FRT COVER TO BODY
ASM PART: A = 1-19500-623-2 		1-19519-321-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 1-19500-623-2 		1-19519-315-0 01 1 -
23 PLATE; SIDE,OIL PUMP
ASM PART: A = 1-19500-623-2 		1-19519-133-0 01 1 -
24 PLATE ASM; THRUST
ASM PART: A = 1-19500-623-2 		1-19519-316-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 1-19500-623-2 		9-88510-421-0 02 1 -
26 SCREW; PLATE
ASM PART: A = 1-19500-623-2 		1-19519-142-0 02 1 -
27 VALVE ASM; OIL PUMP
ASM PART: A = 1-19500-623-2 		1-19519-347-0 01 1 -
28 PLUG; DRAIN,OIL PUMP
ASM PART: A = 1-19500-623-2 		1-19519-230-0 01 1 -
29 GASKET; PLUG TO VLV
ASM PART: A = 1-19500-623-2 		9-88510-248-0 01 1 -
32 SPRING; OIL PUMP
ASM PART: A = 1-19500-623-2 		9-19529-013-0 01 1 -
33 BOLT; COVER
ASM PART: A = 1-19500-623-2 		1-19519-245-0 04 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 1-19500-623-2 		1-19519-292-0 01 1 -
39 GASKET; OIL PUMP
ASM PART: A = 1-19500-623-2 		1-19519-320-0 01 1 -
70 BEARING; NEEDLE
ASM PART: A = 1-19500-623-2 		1-09811-316-0 01 1 -
