2-25A — SPEEDOMETER DRIVEN GEAR (#6833) — 37 parça

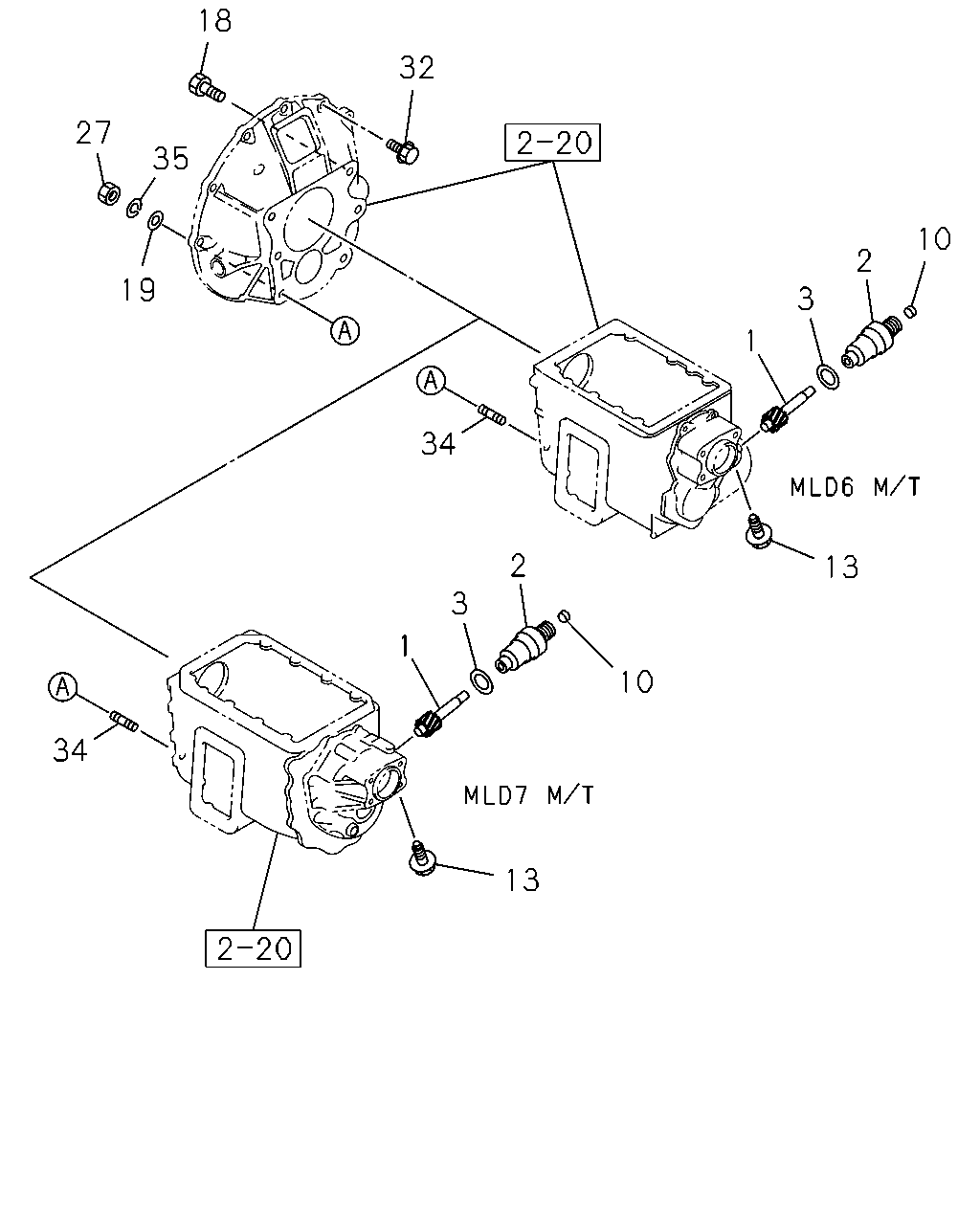

çizim 26306
18 32 27 35 10 2 19 3 1 34 2 13 3 1 10 34 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-5 01 1 9806-9809 ● ● ● ●
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-5 01 1 9810-9911 ● ● ● ● ●
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-5 01 1 9912- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-058-3 01 1 9806-9809 ● ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-058-3 01 1 9810-9911 ● ● ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-058-3 01 1 9912- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 9806-9809 ● ● ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 9810-9911 ● ● ● ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 9912- ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 9806-9809 ● ● ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 9810-9911 ● ● ● ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 9912- ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9806-9809 ● ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9810-9911 ● ● ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9912- ●
18 BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER 		0-50151-640-0 06 1 9806-9809 ● ● ● ●
18 BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER 		0-50151-640-0 06 1 9810-9911 ● ● ● ● ●
18 BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER 		0-50151-640-0 06 1 9912-0512 ●
18 BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER 		0-50651-640-0 06 1 0601- ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 		9-09160-516-0 02 1 9806-9809 ● ● ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 		9-09160-516-0 02 1 9810-9911 ● ● ● ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 		9-09160-516-0 02 1 9912-0605 ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 OD=30 		0-91610-516-0 02 1 0606- ●
27 NUT; CLU HSG TO TRANS
M16 		9-99110-516-0 02 1 9806-9809 ● ● ● ●
27 NUT; CLU HSG TO TRANS
M16 		9-99110-516-0 02 1 9810-9911 ● ● ● ● ●
27 NUT; CLU HSG TO TRANS
M16 		9-99110-516-0 02 1 9912-0512 ●
27 NUT; CLU HSG TO TRANS
M16 		0-91110-516-0 02 1 0601- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X30 FLANGE 		0-28781-030-0 12 1 9806-9911 ● ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X30 FLANGE 		0-28781-030-0 12 1 9912-0512 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X30 FLANGE 		0-28751-030-0 12 1 0601- ●
34 STUD; CLU HSG
M16X45 L=69 		9-04411-645-0 02 1 9806-9809 ● ● ● ●
34 STUD; CLU HSG
M16X45 L=69 		9-04411-645-0 02 1 9810-9911 ● ● ● ● ●
34 STUD; CLU HSG
M16X45 L=69 		9-04411-645-0 02 1 9912- ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		9-09150-516-0 02 1 9806-9809 ● ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		9-09150-516-0 02 1 9810-9911 ● ● ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		9-09150-516-0 02 1 9912-0603 ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		0-91510-516-0 02 1 0604- ●
