1 |
DRUM; BRK,RR
THA
|
1-42315-358-0 |
04 |
1 |
1210-1301 |
● |
● |
| |
1 |
DRUM; BRK,RR
THA
|
1-42315-358-0 |
04 |
1 |
1210-1301 |
● |
● |
| |
1 |
DRUM; BRK,RR
THA
|
1-42315-358-0 |
02 |
1 |
1302- |
● |
● |
| |
1 |
DRUM; BRK,RR
THA
|
1-42315-358-0 |
02 |
1 |
1302- |
● |
● |
| |
1 |
DRUM; BRK,RR
THA
|
1-42315-358-0 |
02 |
1 |
1201-1301 |
● |
● |
| |
1 |
DRUM; BRK,RR
THA
|
1-42315-358-0 |
02 |
1 |
1201-1301 |
● |
● |
| |
1 |
DRUM; BRK,RR
THA
|
1-42315-358-0 |
02 |
1 |
0806- |
● |
● |
| |
1 |
DRUM; BRK,RR
THA
|
1-42315-358-0 |
02 |
1 |
0806- |
● |
● |
| |
8 |
HUB; RR AXLE
ANTILOCK BRAKE SYSTEM<BFA>
|
1-42311-105-0 |
04 |
1 |
1210-1301 |
|
● |
| |
8 |
HUB; RR AXLE
|
1-42311-104-0 |
04 |
1 |
1210-1301 |
● |
● |
| |
8 |
HUB; RR AXLE
|
1-42311-104-0 |
04 |
1 |
1210-1301 |
● |
|
| |
8 |
HUB; RR AXLE
EXC. ANTILOCK BRAKE SYSTEM<BFA>
|
1-42311-104-0 |
04 |
1 |
1210-1301 |
|
● |
| |
8 |
HUB; RR AXLE
ANTILOCK BRAKE SYSTEM<BFA>
REARWARD
|
1-42311-105-0 |
02 |
1 |
0902- |
|
● |
| |
8 |
HUB; RR AXLE
ANTILOCK BRAKE SYSTEM<BFA>
|
1-42311-105-0 |
02 |
1 |
1201-1301 |
|
● |
| |
8 |
HUB; RR AXLE
|
1-42311-104-0 |
02 |
1 |
0809-0901 |
● |
● |
| |
8 |
HUB; RR AXLE
|
1-42311-104-0 |
02 |
1 |
0809-0901 |
● |
● |
| |
8 |
HUB; RR AXLE
|
1-42311-104-0 |
02 |
1 |
1201-1301 |
● |
● |
| |
8 |
HUB; RR AXLE
|
1-42311-104-0 |
02 |
1 |
1201-1301 |
● |
|
| |
8 |
HUB; RR AXLE
EXC. ANTILOCK BRAKE SYSTEM<BFA>
|
1-42311-104-0 |
02 |
1 |
1201-1301 |
|
● |
| |
8 |
HUB; RR AXLE
FORWARD
|
1-42311-104-0 |
02 |
1 |
0902- |
● |
● |
| |
8 |
HUB; RR AXLE
REARWARD
|
1-42311-104-0 |
02 |
1 |
0902- |
● |
|
| |
8 |
HUB; RR AXLE
EXC. ANTILOCK BRAKE SYSTEM<BFA>
REARWARD
|
1-42311-104-0 |
02 |
1 |
0902- |
|
● |
| |
9 |
PIN; WHEEL,RR AXLE
M20X34.5,M22X51.5 RH THREAD
|
1-42331-110-2 |
08 |
1 |
1102- |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
M20X34.5,M22X51.5 RH THREAD
|
1-42331-110-2 |
08 |
1 |
1102- |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
M20X34.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-110-2 |
08 |
1 |
1102- |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
M20X34.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-110-2 |
08 |
1 |
1102- |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
M20X34.5,M22X51.5 RH THREAD
|
1-42331-110-2 |
08 |
1 |
0806-0903 |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
M20X34.5,M22X51.5 RH THREAD
|
1-42331-110-2 |
08 |
1 |
0806-0903 |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
M20X34.0,M22X51.5 RH THREAD
THA
|
8-97916-071-0 |
08 |
1 |
0904- |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
M20X34.0,M22X51.5 RH THREAD
THA
|
8-97916-071-0 |
08 |
1 |
0904- |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
M20X34.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-110-2 |
08 |
1 |
0806-0903 |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
M20X34.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-110-2 |
08 |
1 |
0806-0903 |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
M20X34.0 LH THREAD,M22X51.5 RH THREAD
THA
|
8-97916-073-0 |
08 |
1 |
0904- |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
M20X34.0 LH THREAD,M22X51.5 RH THREAD
THA
|
8-97916-073-0 |
08 |
1 |
0904- |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
1102- |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
1102- |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
0806-0903 |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
0806-0903 |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22 FLANGE
THA
|
8-97914-195-0 |
16 |
1 |
0904- |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22 FLANGE
THA
|
8-97914-195-0 |
16 |
1 |
0904- |
● |
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
SKF
|
1-09812-256-0 |
02 |
1 |
1209- |
● |
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
SKF
|
1-09812-256-0 |
02 |
1 |
1209- |
● |
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS
|
1-87610-136-0 |
02 |
1 |
1209- |
● |
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS
|
1-87610-136-0 |
02 |
1 |
1209- |
● |
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
JTEKT
|
1-09812-232-0 |
04 |
1 |
0806-0807 |
● |
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
JTEKT
|
1-09812-232-0 |
02 |
1 |
0808- |
● |
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
JTEKT
|
1-09812-232-0 |
02 |
1 |
0808- |
● |
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
TKK
|
1-09625-444-0 |
04 |
1 |
0806-0807 |
● |
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
TKK
|
1-09625-444-0 |
02 |
1 |
0808- |
● |
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
TKK
|
1-09625-444-0 |
02 |
1 |
0808- |
● |
● |
| |
20 |
NUT; BRG,RR HUB
M88
|
9-09843-062-2 |
04 |
1 |
0806-0807 |
● |
● |
| |
20 |
NUT; BRG,RR HUB
M88
|
9-09843-062-2 |
02 |
1 |
1011- |
● |
● |
| |
20 |
NUT; BRG,RR HUB
M88
|
9-09843-062-2 |
02 |
1 |
1011- |
● |
● |
| |
21 |
WASHER; LK,BRG NUT
ID=88
|
9-09854-112-0 |
04 |
1 |
0806-0807 |
● |
● |
| |
21 |
WASHER; LK,BRG NUT
ID=88
|
9-09854-112-0 |
02 |
1 |
0808- |
● |
● |
| |
21 |
WASHER; LK,BRG NUT
ID=88
|
9-09854-112-0 |
02 |
1 |
0808- |
● |
● |
| |
24 |
BOLT; LK WASHER
M6X16 FLANGE
THA
|
0-28650-616-0 |
06 |
1 |
0806- |
● |
● |
| |
24 |
BOLT; LK WASHER
M6X16 FLANGE
THA
|
0-28650-616-0 |
06 |
1 |
0806- |
● |
● |
| |
25 |
SHAFT; AXLE,RR
FORWARD RH,REARWARD LH
L=976
|
1-42171-356-0 |
02 |
1 |
0806-0807 |
● |
● |
| |
25 |
SHAFT; AXLE,RR
FORWARD RH,REARWARD LH
L=976
|
1-42171-356-0 |
01 |
1 |
0808-0910 |
● |
● |
| |
25 |
SHAFT; AXLE,RR
FORWARD RH,REARWARD LH
L=976
|
1-42171-356-0 |
01 |
1 |
0808-0910 |
● |
● |
| |
25 |
SHAFT; AXLE,RR
L=990
|
8-98146-166-0 |
01 |
1 |
1201-1301 |
● |
● |
| |
25 |
SHAFT; AXLE,RR
L=990
|
8-98146-166-0 |
01 |
1 |
1201-1301 |
● |
● |
| |
25 |
SHAFT; AXLE,RR
FORWARD RH,REARWARD LH
L=990
|
8-98146-166-0 |
01 |
1 |
0911- |
● |
● |
| |
25 |
SHAFT; AXLE,RR
FORWARD RH,REARWARD LH
L=990
|
8-98146-166-0 |
01 |
1 |
0911- |
● |
● |
| |
25 |
SHAFT; AXLE,RR
FORWARD LH,REARWARD RH
L=1106
|
1-42171-357-0 |
02 |
1 |
0806-0807 |
● |
● |
| |
25 |
SHAFT; AXLE,RR
FORWARD LH,REARWARD RH
L=1106
|
1-42171-357-0 |
01 |
1 |
0808-0910 |
● |
● |
| |
25 |
SHAFT; AXLE,RR
FORWARD LH,REARWARD RH
L=1106
|
1-42171-357-0 |
01 |
1 |
0808-0910 |
● |
● |
| |
25 |
SHAFT; AXLE,RR
L=1110
|
8-98146-167-0 |
01 |
1 |
1201-1301 |
● |
● |
| |
25 |
SHAFT; AXLE,RR
L=1110
|
8-98146-167-0 |
01 |
1 |
1201-1301 |
● |
● |
| |
25 |
SHAFT; AXLE,RR
FORWARD LH,REARWARD RH
L=1110
|
8-98146-167-0 |
01 |
1 |
0911- |
● |
● |
| |
25 |
SHAFT; AXLE,RR
FORWARD LH,REARWARD RH
L=1110
|
8-98146-167-0 |
01 |
1 |
0911- |
● |
● |
| |
30 |
BOLT; HUB TO AXLE SHAFT
M14X58
|
1-09000-582-0 |
40 |
1 |
0806-0807 |
● |
● |
| |
30 |
BOLT; HUB TO AXLE SHAFT
M14X58
|
1-09000-582-0 |
20 |
1 |
0808- |
● |
● |
| |
30 |
BOLT; HUB TO AXLE SHAFT
M14X58
|
1-09000-582-0 |
20 |
1 |
0808- |
● |
● |
| |
33 |
WASHER; AXLE SHAFT
ID=14.2
|
0-91510-814-0 |
40 |
1 |
0806-0807 |
● |
● |
| |
33 |
WASHER; AXLE SHAFT
ID=14.2
|
0-91510-814-0 |
20 |
1 |
0808- |
● |
● |
| |
33 |
WASHER; AXLE SHAFT
ID=14.2
|
0-91510-814-0 |
20 |
1 |
0808- |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS
|
1-87610-138-0 |
02 |
1 |
1209- |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS
|
1-87610-138-0 |
02 |
1 |
1209- |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS
|
1-87610-138-0 |
02 |
1 |
1209- |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS
|
1-87610-138-0 |
02 |
1 |
1209- |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
SKF
|
1-09812-257-0 |
02 |
1 |
1209- |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
SKF
|
1-09812-257-0 |
02 |
1 |
1209- |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
JTEKT
|
1-09812-233-0 |
04 |
1 |
0806-0807 |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
JTEKT
|
1-09812-233-0 |
02 |
1 |
0808- |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
JTEKT
|
1-09812-233-0 |
02 |
1 |
0808- |
● |
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
NOK
|
1-09625-265-0 |
04 |
1 |
0806-0807 |
● |
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
NOK
|
1-09625-265-0 |
02 |
1 |
0808- |
● |
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
NOK
|
1-09625-265-0 |
02 |
1 |
0808- |
● |
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
TKK
|
1-09625-350-0 |
04 |
1 |
0806-0807 |
● |
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
TKK
|
1-09625-350-0 |
02 |
1 |
0808- |
● |
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
TKK
|
1-09625-350-0 |
02 |
1 |
0808- |
● |
● |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
OD=179
|
1-09587-057-0 |
04 |
1 |
0806-0807 |
● |
● |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
OD=179
|
1-09587-057-0 |
02 |
1 |
0808- |
● |
● |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
OD=179
|
1-09587-057-0 |
02 |
1 |
0808- |
● |
● |
| |
49 |
CASE; RR AXLE
WHEEL BASE 4700MM<47W>
REAR AXLE RT260<C2B>
(B)
|
8-98106-812-2 |
01 |
1 |
1302- |
● |
|
| |
49 |
CASE; RR AXLE
WHEEL BASE 4700MM<47W>
REAR AXLE RT260<C2B>
EXC. ANTILOCK BRAKE SYSTEM<BFA>
(B)
|
8-98106-812-2 |
01 |
1 |
1302- |
|
● |
| |
49 |
CASE; RR AXLE
REAR AXLE RT210<C2A>
(B)
|
8-98077-914-2 |
01 |
1 |
1302- |
● |
|
| |
49 |
CASE; RR AXLE
REAR AXLE RT210<C2A>
EXC. ANTILOCK BRAKE SYSTEM<BFA>
(B)
|
8-98077-914-2 |
01 |
1 |
1302- |
|
● |
| |
49 |
CASE; RR AXLE
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W>
REAR AXLE RT260<C2B>
(A)
|
8-98207-304-1 |
01 |
1 |
1204-1502 |
● |
● |
| |
49 |
CASE; RR AXLE
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W>
REAR AXLE RT260<C2B>
(B)
|
8-98207-306-0 |
01 |
1 |
1204-1301 |
● |
● |
| |
49 |
CASE; RR AXLE
WHEEL BASE 5200MM<52W>
(B)
|
8-98207-306-1 |
01 |
1 |
1302-1303 |
● |
|
| |
49 |
CASE; RR AXLE
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W>
REAR AXLE RT260<C2B>
(B)
|
8-98207-306-1 |
01 |
1 |
1304-1502 |
● |
● |
| |
49 |
CASE; RR AXLE
ANTILOCK BRAKE SYSTEM<BFA>
REAR AXLE RT210<C2A>
(B)
|
8-98077-913-2 |
01 |
1 |
0902- |
|
● |
| |
49 |
CASE; RR AXLE
ANTILOCK BRAKE SYSTEM<BFA>
REAR AXLE RT260<C2B>
(B)
|
8-98127-990-2 |
01 |
1 |
0902- |
|
● |
| |
49 |
CASE; RR AXLE
REAR AXLE RT210<C2A>
(B)
|
8-98077-914-0 |
01 |
1 |
0806-0901 |
● |
● |
| |
49 |
CASE; RR AXLE
REAR AXLE RT260<C2B>
(B)
|
8-98106-812-0 |
01 |
1 |
0806-0901 |
● |
● |
| |
49 |
CASE; RR AXLE
REAR AXLE RT210<C2A>
(A)
|
8-98077-912-2 |
01 |
1 |
0806- |
● |
● |
| |
49 |
CASE; RR AXLE
REAR AXLE RT210<C2A>
(B)
|
8-98077-914-0 |
01 |
1 |
0902-1301 |
● |
|
| |
49 |
CASE; RR AXLE
REAR AXLE RT210<C2A>
EXC. ANTILOCK BRAKE SYSTEM<BFA>
(B)
|
8-98077-914-0 |
01 |
1 |
0902-1301 |
|
● |
| |
49 |
CASE; RR AXLE
REAR AXLE RT260<C2B>
(A)
|
8-98106-811-0 |
01 |
1 |
0806-1203 |
● |
● |
| |
49 |
CASE; RR AXLE
WHEEL BASE 4700MM<47W>
REAR AXLE RT260<C2B>
(A)
|
8-98106-811-2 |
01 |
1 |
1204- |
● |
● |
| |
49 |
CASE; RR AXLE
REAR AXLE RT260<C2B>
(B)
|
8-98106-812-0 |
01 |
1 |
0902-1203 |
● |
|
| |
49 |

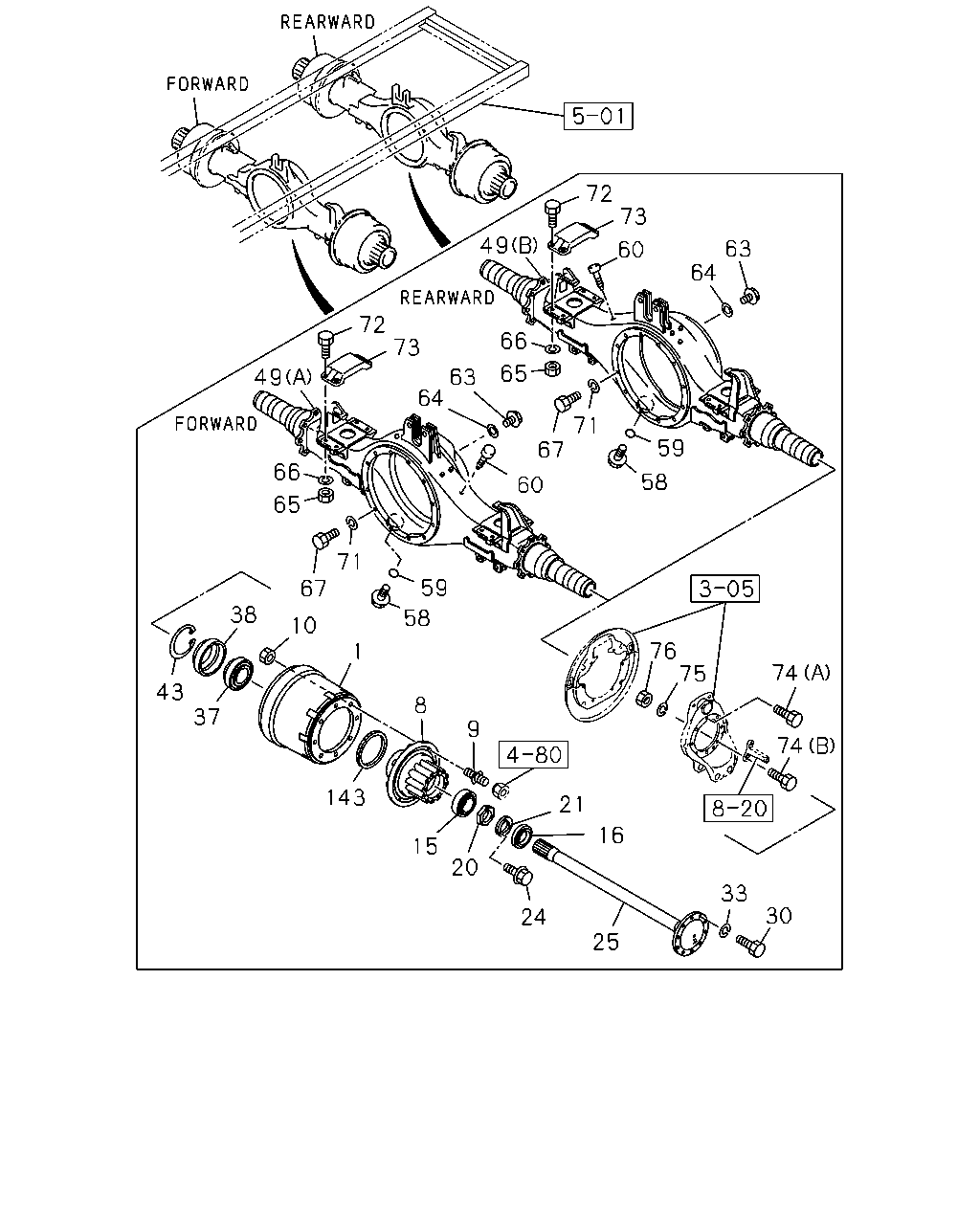

CASE; RR AXLE
REAR AXLE RT260<C2B>
EXC. ANTILOCK BRAKE SYSTEM<BFA>
(B)
|
8-98106-812-0 |
01 |
1 |
0902-1203 |
|
● |
| |
49 |
CASE; RR AXLE
WHEEL BASE 4700MM<47W>
REAR AXLE RT260<C2B>
(B)
|
8-98106-812-0 |
01 |
1 |
1204-1301 |
● |
|
| |
49 |
CASE; RR AXLE
WHEEL BASE 4700MM<47W>
REAR AXLE RT260<C2B>
EXC. ANTILOCK BRAKE SYSTEM<BFA>
(B)
|
8-98106-812-0 |
01 |
1 |
1204-1301 |
|
● |
| |
58 |
PLUG; DRAIN,AXLE CASE
M24X17 FLANGE
|
1-09604-023-0 |
02 |
1 |
0806-0807 |
● |
● |
| |
58 |
PLUG; DRAIN,AXLE CASE
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
0808- |
● |
● |
| |
58 |
PLUG; DRAIN,AXLE CASE
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
0808- |
● |
● |
| |
59 |
GASKET; DRAIN PLUG
ID=26.8
|
9-09920-605-0 |
02 |
1 |
0806-0807 |
● |
● |
| |
59 |
GASKET; DRAIN PLUG
ID=26.8
|
9-09920-605-0 |
01 |
1 |
0808- |
● |
● |
| |
59 |
GASKET; DRAIN PLUG
ID=26.8
|
9-09920-605-0 |
01 |
1 |
0808- |
● |
● |
| |
60 |
BREATHER; RR AXLE CASE
|
9-36122-015-1 |
02 |
1 |
0806- |
● |
● |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE
|
1-09604-022-0 |
02 |
1 |
0806-0807 |
● |
● |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
0808- |
● |
● |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
0808- |
● |
● |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
ID=26.8
|
9-09920-605-0 |
02 |
1 |
0806-0807 |
● |
● |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
ID=26.8
|
9-09920-605-0 |
01 |
1 |
0808- |
● |
● |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
ID=26.8
|
9-09920-605-0 |
01 |
1 |
0808- |
● |
● |
| |
65 |
NUT
M14
THA
|
0-91110-514-0 |
16 |
1 |
0806-0807 |
● |
● |
| |
65 |
NUT
M14
THA
|
0-91110-514-0 |
08 |
1 |
0808- |
● |
● |
| |
65 |
NUT
M14
THA
|
0-91110-514-0 |
08 |
1 |
0808- |
● |
● |
| |
66 |
WASHER; LK
ID=14.2
|
0-91510-814-0 |
16 |
1 |
0806-0807 |
● |
● |
| |
66 |
WASHER; LK
ID=14.2
|
0-91510-814-0 |
08 |
1 |
0808- |
● |
● |
| |
66 |
WASHER; LK
ID=14.2
|
0-91510-814-0 |
08 |
1 |
0808- |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
M16X70
|
0-10956-670-0 |
04 |
1 |
0808- |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
M16X70
|
0-10956-670-0 |
04 |
1 |
0808- |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
M16X70
|
0-10956-670-0 |
08 |
1 |
0806-0807 |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
M16X40
|
0-20951-640-0 |
08 |
1 |
0808-1301 |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
WHEEL BASE 5200MM<52W>
M16X40
|
0-20951-640-0 |
08 |
1 |
1302-1303 |
● |
|
| |
67 |
BOLT; FINAL DRIVE SETTING
M16X40
|
0-20951-640-0 |
08 |
1 |
1304- |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
M16X40
|
0-20951-640-0 |
15 |
1 |
0806-0807 |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
M16X40
|
0-20951-640-0 |
07 |
1 |
0808- |
● |
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=16.2
|
0-91510-816-0 |
24 |
1 |
0806-0807 |
● |
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=16.2
|
0-91510-816-0 |
12 |
1 |
0808- |
● |
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=16.2
|
0-91510-816-0 |
12 |
1 |
0808- |
● |
● |
| |
72 |
BOLT; PAD FIX
M14X40
THA
|
0-20951-440-0 |
16 |
1 |
0806-0807 |
● |
● |
| |
72 |
BOLT; PAD FIX
M14X40
THA
|
0-20951-440-0 |
08 |
1 |
0808- |
● |
● |
| |
72 |
BOLT; PAD FIX
M14X40
THA
|
0-20951-440-0 |
08 |
1 |
0808- |
● |
● |
| |
73 |
PAD; RR SPR CONTACT
|
1-42124-101-0 |
04 |
1 |
0806-0807 |
● |
● |
| |
73 |
PAD; RR SPR CONTACT
|
1-42124-101-0 |
02 |
1 |
0808- |
● |
● |
| |
73 |
PAD; RR SPR CONTACT
|
1-42124-101-0 |
02 |
1 |
0808- |
● |
● |
| |
74 |
BOLT; RR BRK ASM SETTING
ANTILOCK BRAKE SYSTEM<BFA>
(A)
M14X50
THA
|
1-09040-066-0 |
12 |
1 |
1302- |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
ANTILOCK BRAKE SYSTEM<BFA>
(B)
M14X80
|
9-92621-480-0 |
04 |
1 |
1302-1504 |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
ANTILOCK BRAKE SYSTEM<BFA>
(B)
M14X60
|
1-09040-084-0 |
04 |
1 |
1505- |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
ANTILOCK BRAKE SYSTEM<BFA>
(A)
M14X50
THA
|
1-09040-066-0 |
12 |
1 |
0902-1301 |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
ANTILOCK BRAKE SYSTEM<BFA>
(B)
M14X80
|
9-92621-480-0 |
04 |
1 |
0902-1301 |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
(A)
M14X50
THA
|
1-09040-066-0 |
32 |
1 |
0806-0807 |
● |
● |
| |
74 |
BOLT; RR BRK ASM SETTING
(A)
M14X50
THA
|
1-09040-066-0 |
16 |
1 |
0808-0901 |
● |
● |
| |
74 |
BOLT; RR BRK ASM SETTING
(A)
M14X50
THA
|
1-09040-066-0 |
16 |
1 |
0808-0901 |
● |
● |
| |
74 |
BOLT; RR BRK ASM SETTING
(A)
M14X50
THA
|
1-09040-066-0 |
16 |
1 |
0902-1112 |
● |
● |
| |
74 |
BOLT; RR BRK ASM SETTING
(A)
M14X50
THA
|
1-09040-066-0 |
16 |
1 |
0902-1112 |
● |
|
| |
74 |
BOLT; RR BRK ASM SETTING
EXC. ANTILOCK BRAKE SYSTEM<BFA>
(A)
M14X50
THA
|
1-09040-066-0 |
16 |
1 |
0902-1112 |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
(A)
M14X50
THA
|
1-09040-066-0 |
16 |
1 |
1201- |
● |
● |
| |
74 |
BOLT; RR BRK ASM SETTING
(A)
M14X50
THA
|
1-09040-066-0 |
16 |
1 |
1201- |
● |
|
| |
74 |
BOLT; RR BRK ASM SETTING
EXC. ANTILOCK BRAKE SYSTEM<BFA>
(A)
M14X50
THA
|
1-09040-066-0 |
16 |
1 |
1201- |
|
● |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
|
0-91510-814-0 |
32 |
1 |
0806-0807 |
● |
● |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
|
0-91510-814-0 |
16 |
1 |
0808- |
● |
● |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
|
0-91510-814-0 |
16 |
1 |
0808- |
● |
● |
| |
76 |
NUT; RR BRK ASM SETTING
M14
THA
|
0-91110-514-0 |
32 |
1 |
0806-0807 |
● |
● |
| |
76 |
NUT; RR BRK ASM SETTING
M14
THA
|
0-91110-514-0 |
16 |
1 |
0808- |
● |
● |
| |
76 |
NUT; RR BRK ASM SETTING
M14
THA
|
0-91110-514-0 |
16 |
1 |
0808- |
● |
● |
| |
143 |
RING; EXCITER
ANTILOCK BRAKE SYSTEM<BFA>
|
1-42319-173-0 |
04 |
1 |
1210-1301 |
|
● |
| |
143 |
RING; EXCITER
ANTILOCK BRAKE SYSTEM<BFA>
|
1-42319-173-0 |
02 |
1 |
0902- |
|
● |
