4-11 — FRONT HUB AND DRUM OR ROTOR (#68324) — 35 parça

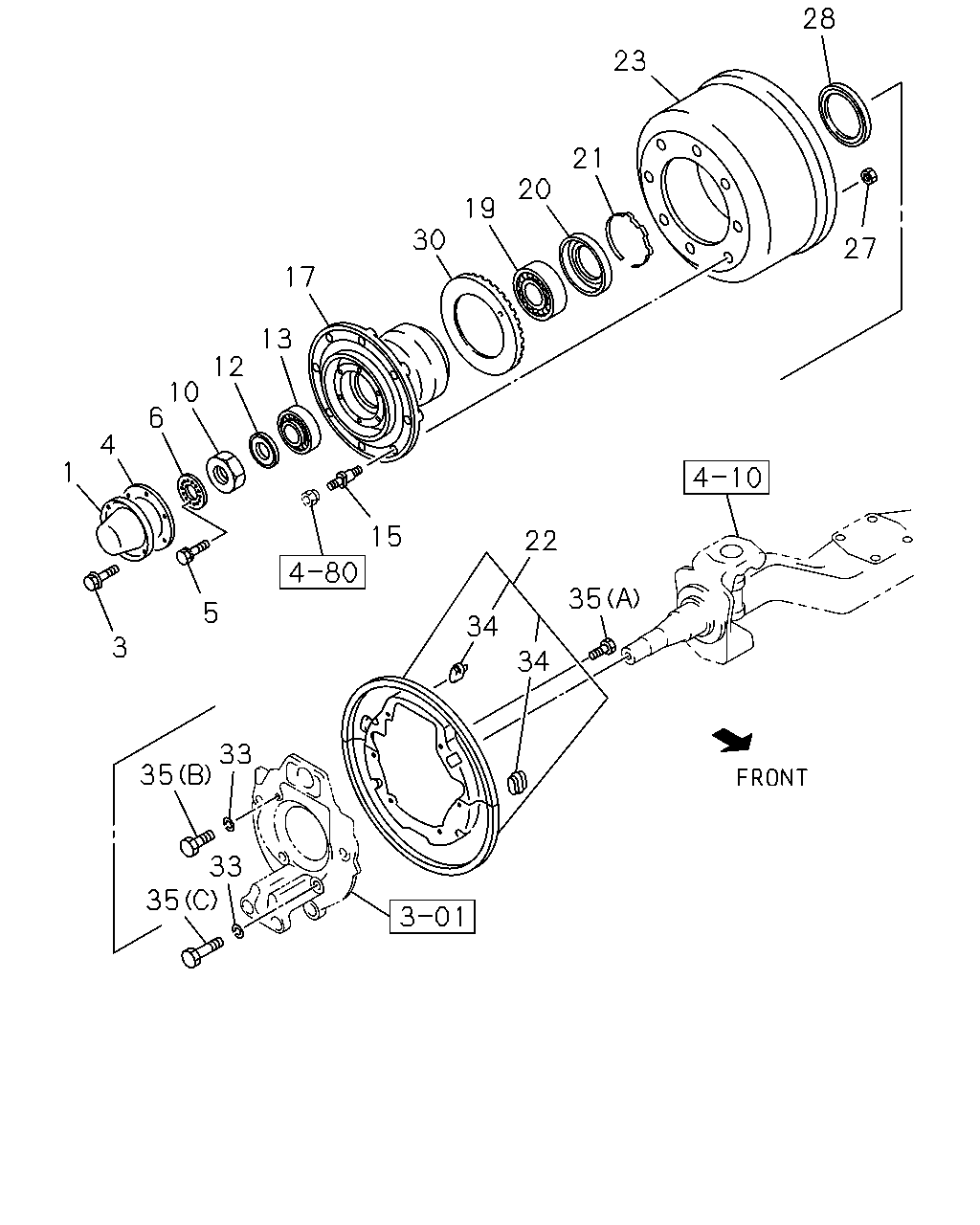

çizim 122777
28 23 21 20 19 30 27 17 13 12 10 6 4 1 15 22 35 5 34 3 34 33 35 33 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 0806- ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE THA 		0-28050-812-0 12 1 0806- ● ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-2 02 1 0806- ● ●
5 BOLT; LK WASHER
M6X16 HEX SOCKET 		8-98084-271-0 04 1 0806-1201 ● ●
5 BOLT; LK WASHER
M6X16 HEX SOCKET 		8-98200-943-0 04 1 1202- ● ●
6 WASHER; LK,FRT HUB
ID=48 		8-98084-561-0 02 1 0806- ● ●
10 NUT; FRT HUB BRG
M48 		1-09840-012-5 02 1 0806- ● ●
12 WASHER; LK,FRT HUB BRG
ID=48 THA 		1-09533-016-0 02 1 0806-0911 ● ●
12 WASHER; LK,FRT HUB BRG
ID=48 		8-98156-755-0 02 1 0912- ● ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-234-0 02 1 0806- ● ●
15 PIN; WHEEL,FRT AXLE
ANTILOCK BRAKE SYSTEM<BFA> M24X37.5,M22X57.5 RH THREAD 		1-42331-109-1 08 1 0902-0903 ●
15 PIN; WHEEL,FRT AXLE
ANTILOCK BRAKE SYSTEM<BFA> M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-1 08 1 0902-0903 ●
15 PIN; WHEEL,FRT AXLE
M24X37.5,M22X57.5 RH THREAD 		1-42331-109-1 08 1 0806-0901 ● ●
15 PIN; WHEEL,FRT AXLE
M24X37.5,M22X57.5 RH THREAD 		1-42331-109-1 08 1 0902-0903 ●
15 PIN; WHEEL,FRT AXLE
EXC. ANTILOCK BRAKE SYSTEM<BFA> M24X37.5,M22X57.5 RH THREAD 		1-42331-109-1 08 1 0902-0903 ●
15 PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-1 08 1 0806-0901 ● ●
15 PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-1 08 1 0902-0903 ●
15 PIN; WHEEL,FRT AXLE
EXC. ANTILOCK BRAKE SYSTEM<BFA> M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-1 08 1 0902-0903 ●
15 PIN; WHEEL,FRT AXLE
M24X37.0,M22X57.5 RH THREAD THA 		8-97916-068-0 08 1 0904- ● ●
15 PIN; WHEEL,FRT AXLE
M24X37.0 LH THREAD,M22X57.5 RH THREAD THA 		8-97916-070-0 08 1 0904- ● ●
17 HUB; FRT AXLE 1-42312-151-3 02 1 0806- ● ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-231-0 02 1 0806- ● ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 0806- ● ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 0806- ● ●
22 COVER SET; FRT BRK DRUM 1-87831-225-0 02 1 0806- ● ●
23 DRUM; BRK,FRT
THA 		1-42315-397-0 02 1 0806- ● ●
27 NUT; WHEEL PIN,FRT AXLE
M22 FLANGE 		1-09440-065-0 16 1 0806-0903 ● ●
27 NUT; WHEEL PIN,FRT AXLE
M22 FLANGE THA 		8-97914-195-0 16 1 0904- ● ●
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 0806- ● ●
30 RING; EXCITER,FRT HUB
ANTILOCK BRAKE SYSTEM<BFA> 		1-42319-203-0 02 1 1102- ●
33 WASHER; LK,DRUM COVER
ID=18.2 		0-91510-818-0 12 1 0806- ● ●
34 COVER; CHECK HOLE,DRUM COVER
THA 		1-09333-151-0 04 1 0806- ● ●
35 BOLT; DRUM COVER
(C) M18X65 		1-09000-789-0 04 1 0806- ● ●
35 BOLT; DRUM COVER
(B) M18X45 		1-09000-790-0 08 1 0806- ● ●
35 BOLT; DRUM COVER
(A) M10X12 THA 		1-47159-187-0 12 1 0806- ● ●
