◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11136 - FXZ/GXZ(THAI)EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#68321) — 264 parça

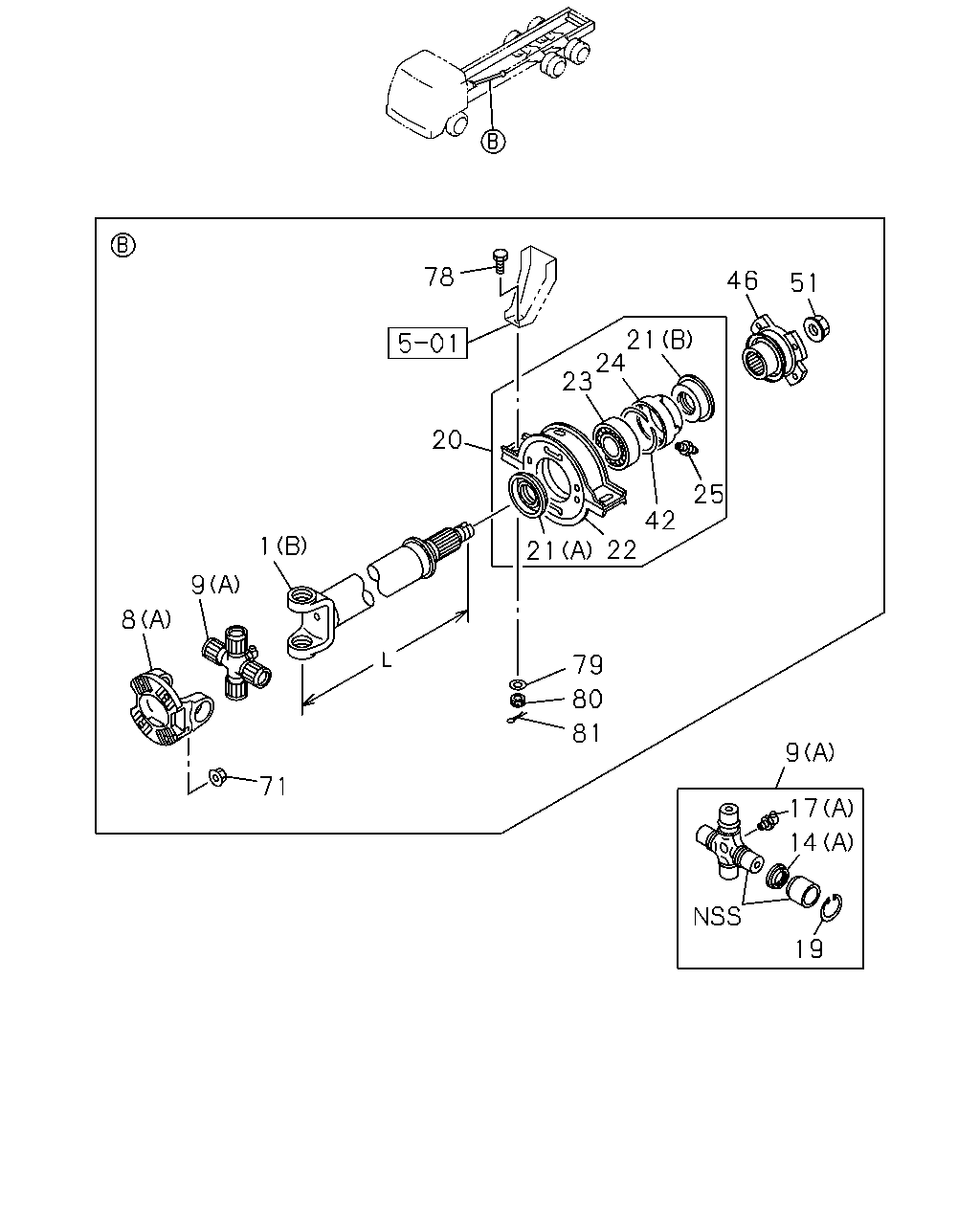

çizim 122730
78 46 51 21 24 23 20 25 42 22 1 21 9 8 79 80 81 9 71 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(A) L=1640 THA 		1-37125-293-0 01 1 1201- ●
1 SHAFT; PROP
FXZ<FG****> ENGINE REAR PTO<SV1> (A) L=1195 THA 		8-98094-189-0 01 1 0806-1101 ●
1 SHAFT; PROP
FXZ<FG****> (A) L=1195 THA 		8-98094-189-0 01 1 1102- ●
1 SHAFT; PROP
FXZ<FG****> EXC. ENGINE REAR PTO<SV1> (A) L=1310 		1-37125-384-0 01 1 0806-1101 ●
1 SHAFT; PROP
(B) L=1287 THA 		8-98098-105-0 01 1 0806- ●
1 SHAFT; PROP
(C) L=820 		1-37124-385-1 01 1 0806-1301 ●
1 SHAFT; PROP
(D) L=500 THA 		8-98229-827-0 01 1 1302- ●
1 SHAFT; PROP
GXZ<GG****> (A) L=1250 THA 		8-98040-194-0 01 1 0806- ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-084-0 02 1 0806-1112 ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-084-0 02 1 1201-1301 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-084-0 02 1 1302- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-084-0 01 1 0806- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-083-0 02 1 0806-1301 ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-112-0 02 1 0806-1112 ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-112-0 02 1 1201-1301 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-112-0 02 1 1302- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-112-0 01 1 0806- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-118-0 02 1 0806-1301 ●
9 JOURNAL ASM; PROP SHAFT
(B) THA 		1-37300-100-1 01 1 0806-1112 ● ●
9 JOURNAL ASM; PROP SHAFT
(B) THA 		1-37300-100-1 01 1 1201- ● ● ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 08 1 0806-1112 ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 08 1 1201-1301 ● ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 08 1 1302- ● ● ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 04 1 0806- ●
14 COVER; DUST,SPIDER
(B) THA 		1-37319-004-0 08 1 0806-1112 ● ●
14 COVER; DUST,SPIDER
(B) THA 		1-37319-004-0 08 1 1201- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0806-1112 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0806-1112 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1201-1301 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1201-1301 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1302- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1302- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 0806- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) 		1-37319-013-0 02 1 0806-1301 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-103-1 08 1 1212- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 THA 		1-09587-107-0 08 1 1212- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-103-1 08 1 0806-1112 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-103-1 08 1 1201-1301 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-103-1 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 THA 		1-09587-107-0 08 1 0806-1112 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 THA 		1-09587-107-0 08 1 1201-1301 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 THA 		1-09587-107-0 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-103-1 04 1 0806- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 THA 		1-09587-107-0 04 1 0806- ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 THA 		1-37510-116-1 01 1 0806- ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 THA 		1-09625-222-1 01 1 0806- ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 THA 		1-09625-622-0 01 1 0806- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-056-0 01 1 0806- ●
23 BEARING; CENTER,PROP SHAFT
THA 		1-09800-210-0 01 1 0806- ●
24 RETAINER; CENTER BRG,1ST
THA 		1-37529-110-0 01 1 0806- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 0806- ●
42 RING; SNAP,CTR BRG
THA 		1-09587-085-1 01 1 0806- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		1-37245-349-0 01 1 0806- ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE THA 		1-09449-040-0 01 1 0806- ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806-1112 ● ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1201- ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0806- ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0806- ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0806-1204 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0806- ●

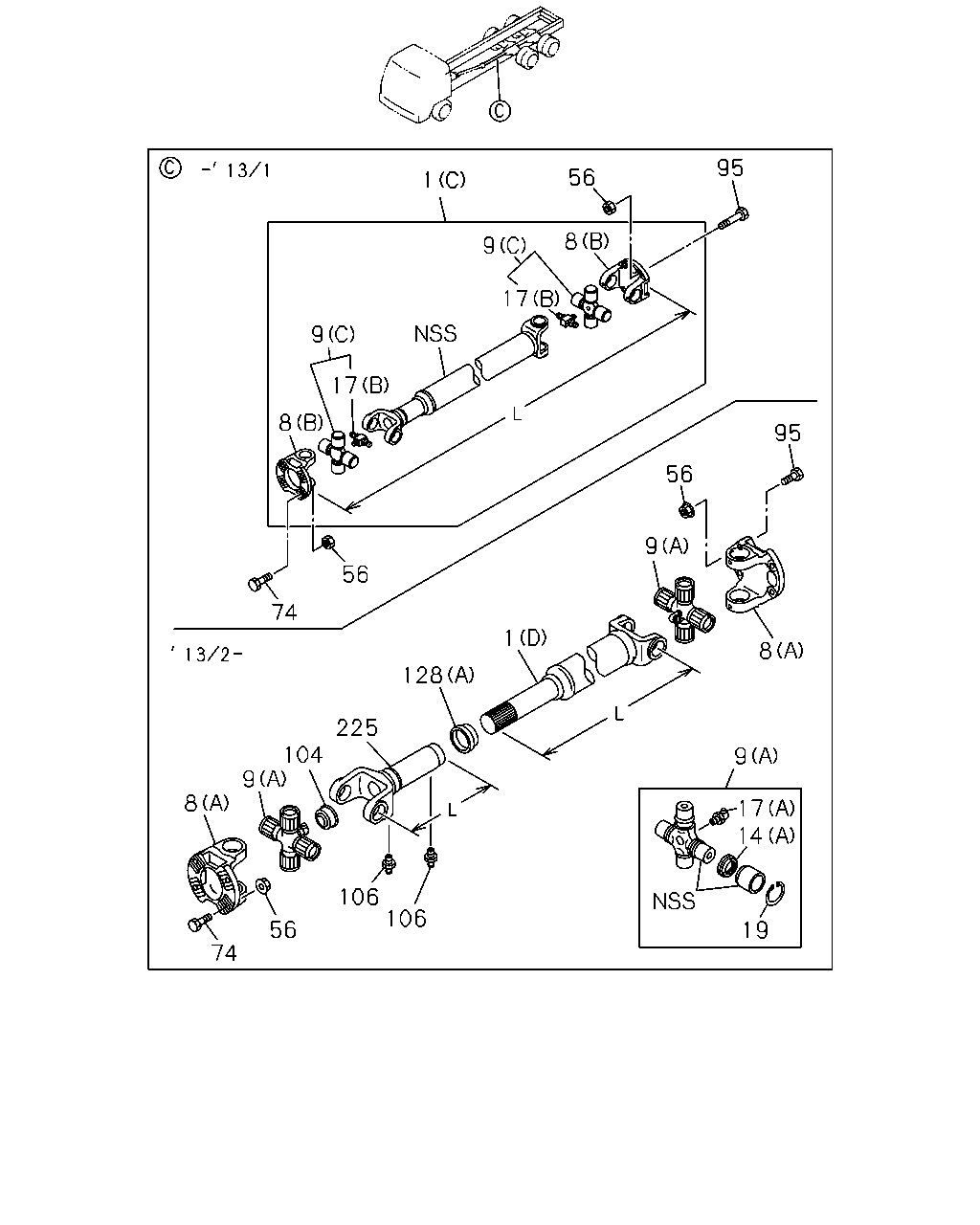

çizim 122732
95 56 1 8 9 17 17 9 8 56 74 95 56 8 9 1 128 225 104 9 8 74 56 106 106 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(A) L=1640 THA 		1-37125-293-0 01 1 1201- ●
1 SHAFT; PROP
FXZ<FG****> ENGINE REAR PTO<SV1> (A) L=1195 THA 		8-98094-189-0 01 1 0806-1101 ●
1 SHAFT; PROP
FXZ<FG****> (A) L=1195 THA 		8-98094-189-0 01 1 1102- ●
1 SHAFT; PROP
FXZ<FG****> EXC. ENGINE REAR PTO<SV1> (A) L=1310 		1-37125-384-0 01 1 0806-1101 ●
1 SHAFT; PROP
(B) L=1287 THA 		8-98098-105-0 01 1 0806- ●
1 SHAFT; PROP
(C) L=820 		1-37124-385-1 01 1 0806-1301 ●
1 SHAFT; PROP
(D) L=500 THA 		8-98229-827-0 01 1 1302- ●
1 SHAFT; PROP
GXZ<GG****> (A) L=1250 THA 		8-98040-194-0 01 1 0806- ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-084-0 02 1 0806-1112 ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-084-0 02 1 1201-1301 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-084-0 02 1 1302- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-084-0 01 1 0806- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-083-0 02 1 0806-1301 ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-112-0 02 1 0806-1112 ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-112-0 02 1 1201-1301 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-112-0 02 1 1302- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-112-0 01 1 0806- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-118-0 02 1 0806-1301 ●
9 JOURNAL ASM; PROP SHAFT
(B) THA 		1-37300-100-1 01 1 0806-1112 ● ●
9 JOURNAL ASM; PROP SHAFT
(B) THA 		1-37300-100-1 01 1 1201- ● ● ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 08 1 0806-1112 ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 08 1 1201-1301 ● ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 08 1 1302- ● ● ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 04 1 0806- ●
14 COVER; DUST,SPIDER
(B) THA 		1-37319-004-0 08 1 0806-1112 ● ●
14 COVER; DUST,SPIDER
(B) THA 		1-37319-004-0 08 1 1201- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0806-1112 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0806-1112 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1201-1301 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1201-1301 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1302- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1302- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 0806- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) 		1-37319-013-0 02 1 0806-1301 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-103-1 08 1 1212- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 THA 		1-09587-107-0 08 1 1212- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-103-1 08 1 0806-1112 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-103-1 08 1 1201-1301 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-103-1 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 THA 		1-09587-107-0 08 1 0806-1112 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 THA 		1-09587-107-0 08 1 1201-1301 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 THA 		1-09587-107-0 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-103-1 04 1 0806- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 THA 		1-09587-107-0 04 1 0806- ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 0806- ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 0806-1112 ● ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 1201- ● ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1212- ● ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1212- ● ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 0806-1112 ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 0806-1112 ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1201-1301 ● ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1201-1301 ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1302- ● ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1302- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT THA 		0-90301-410-0 02 1 1212- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT THA 		0-90301-410-0 02 1 0806-1112 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT THA 		0-90301-410-0 02 1 1201-1301 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT THA 		0-90301-410-0 02 1 1302- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT THA 		0-90301-410-0 01 1 0806-1112 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT THA 		0-90301-410-0 01 1 1201- ● ● ●
128 SEAL; SLEEVE
(A) THA 		1-37247-020-0 01 1 0806-1112 ●
128 SEAL; SLEEVE
(A) THA 		1-37247-020-0 01 1 1201-1301 ● ●
128 SEAL; SLEEVE
(A) THA 		1-37247-020-0 01 1 1302- ● ● ●
128 SEAL; SLEEVE
(B) THA 		8-97603-618-0 01 1 0806-1112 ● ●
128 SEAL; SLEEVE
(B) THA 		8-97603-618-0 01 1 1201- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=315 THA 		1-37241-149-0 01 1 1302- ●
225 YOKE; SLEEVE,PROP SHAFT
L=315 THA 		1-37241-149-0 01 1 1212- ●
225 YOKE; SLEEVE,PROP SHAFT
L=339 THA 		1-37241-140-0 01 1 0806-1112 ●
225 YOKE; SLEEVE,PROP SHAFT
L=339 THA 		1-37241-140-0 01 1 1201- ● ●

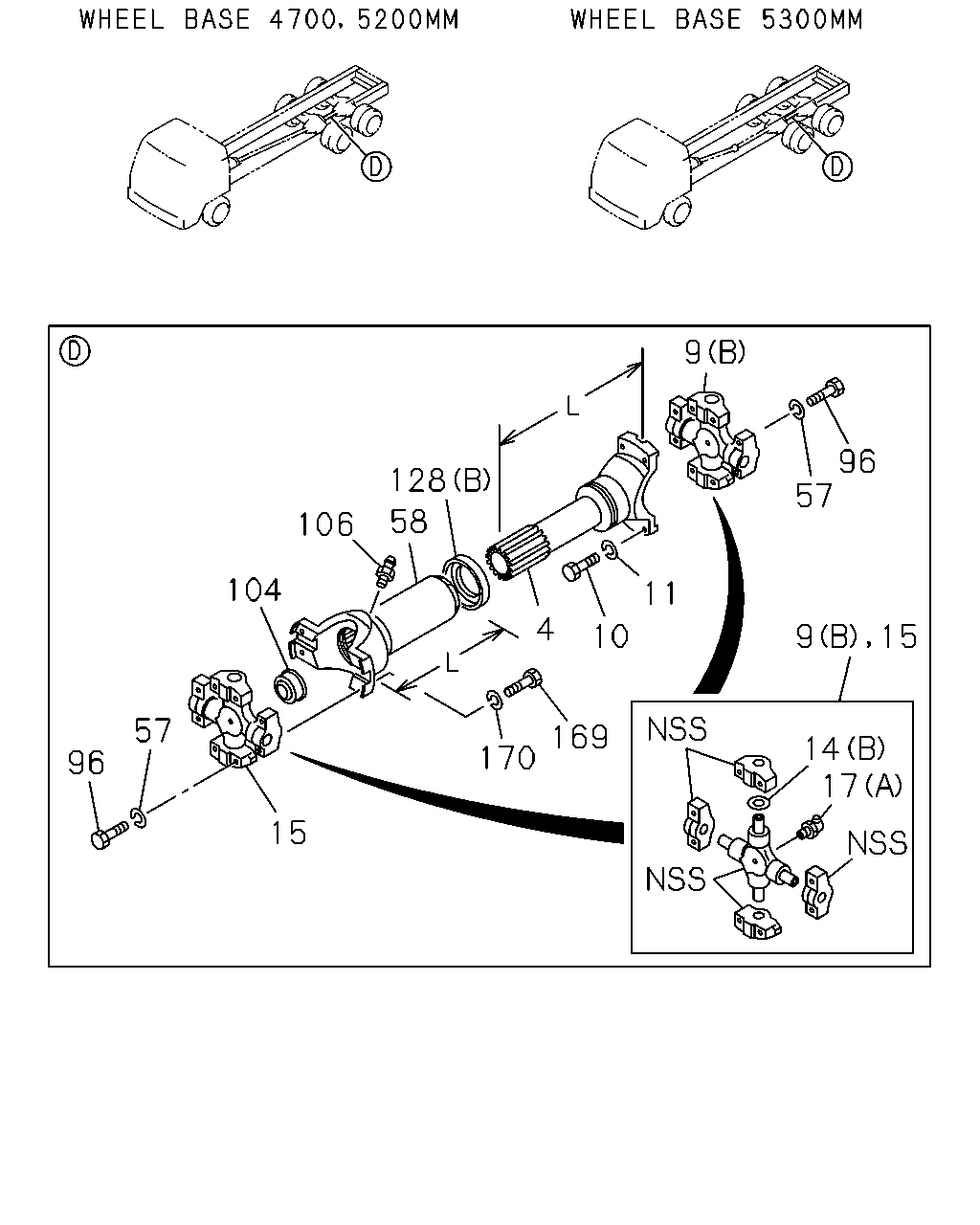

çizim 122735
9 96 57 128 58 106 104 11 4 10 9 15 57 169 14 17 170 96 15
BalonParca AdiParca NoAdetTipApplied Date A B C
4 SHAFT; PROP
L=418 THA 		1-37171-129-3 01 1 1201- ●
4 SHAFT; PROP
L=348 THA 		1-37171-127-2 01 1 0806- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-112-0 02 1 0806-1112 ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-112-0 02 1 1201-1301 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-112-0 02 1 1302- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-112-0 01 1 0806- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-118-0 02 1 0806-1301 ●
9 JOURNAL ASM; PROP SHAFT
(B) THA 		1-37300-100-1 01 1 0806-1112 ● ●
9 JOURNAL ASM; PROP SHAFT
(B) THA 		1-37300-100-1 01 1 1201- ● ● ●
10 BOLT; UJT
M12X45 THA 		8-98036-382-0 04 1 0806-1112 ● ●
10 BOLT; UJT
M12X45 THA 		8-98036-382-0 04 1 1201- ● ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 THA 		0-91510-612-0 04 1 0806-1112 ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 THA 		0-91510-612-0 04 1 1201- ● ● ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 08 1 0806-1112 ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 08 1 1201-1301 ● ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 08 1 1302- ● ● ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 04 1 0806- ●
14 COVER; DUST,SPIDER
(B) THA 		1-37319-004-0 08 1 0806-1112 ● ●
14 COVER; DUST,SPIDER
(B) THA 		1-37319-004-0 08 1 1201- ● ● ●
15 UNIVERSAL CENTER
THA 		1-37300-100-1 01 1 0806-1112 ● ●
15 UNIVERSAL CENTER
THA 		1-37300-100-1 01 1 1201- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0806-1112 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0806-1112 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1201-1301 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1201-1301 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1302- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1302- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 0806- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) 		1-37319-013-0 02 1 0806-1301 ●
57 WASHER; LK,YOKE
ID=12.2 THA 		0-91510-612-0 08 1 0806-1112 ● ●
57 WASHER; LK,YOKE
ID=12.2 THA 		0-91510-612-0 08 1 1201- ● ● ●
58 FLANGE; SPLINED
L=265 THA 		1-37245-317-0 01 1 0806-1112 ● ●
58 FLANGE; SPLINED
L=265 THA 		1-37245-317-0 01 1 1201- ● ● ●
96 BOLT; PROP SHAFT
M12X45 THA 		8-98036-382-0 08 1 0806-1112 ● ●
96 BOLT; PROP SHAFT
M12X45 THA 		8-98036-382-0 08 1 1201- ● ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1212- ● ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1212- ● ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 0806-1112 ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 0806-1112 ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1201-1301 ● ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1201-1301 ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1302- ● ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1302- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT THA 		0-90301-410-0 02 1 1212- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT THA 		0-90301-410-0 02 1 0806-1112 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT THA 		0-90301-410-0 02 1 1201-1301 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT THA 		0-90301-410-0 02 1 1302- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT THA 		0-90301-410-0 01 1 0806-1112 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT THA 		0-90301-410-0 01 1 1201- ● ● ●
128 SEAL; SLEEVE
(A) THA 		1-37247-020-0 01 1 0806-1112 ●
128 SEAL; SLEEVE
(A) THA 		1-37247-020-0 01 1 1201-1301 ● ●
128 SEAL; SLEEVE
(A) THA 		1-37247-020-0 01 1 1302- ● ● ●
128 SEAL; SLEEVE
(B) THA 		8-97603-618-0 01 1 0806-1112 ● ●
128 SEAL; SLEEVE
(B) THA 		8-97603-618-0 01 1 1201- ● ● ●
169 BOLT; YOKE,SLEEVE
M12X45 THA 		8-98036-382-0 04 1 0806-1112 ● ●
169 BOLT; YOKE,SLEEVE
M12X45 THA 		8-98036-382-0 04 1 1201- ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 THA 		0-91510-612-0 04 1 0806-1112 ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 THA 		0-91510-612-0 04 1 1201- ● ● ●
çizim 193928
95 56 9 8 1 128 225 104 9 8 106 106 71 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(A) L=1640 THA 		1-37125-293-0 01 1 1201- ●
1 SHAFT; PROP
FXZ<FG****> ENGINE REAR PTO<SV1> (A) L=1195 THA 		8-98094-189-0 01 1 0806-1101 ●
1 SHAFT; PROP
FXZ<FG****> (A) L=1195 THA 		8-98094-189-0 01 1 1102- ●
1 SHAFT; PROP
FXZ<FG****> EXC. ENGINE REAR PTO<SV1> (A) L=1310 		1-37125-384-0 01 1 0806-1101 ●
1 SHAFT; PROP
(B) L=1287 THA 		8-98098-105-0 01 1 0806- ●
1 SHAFT; PROP
(C) L=820 		1-37124-385-1 01 1 0806-1301 ●
1 SHAFT; PROP
(D) L=500 THA 		8-98229-827-0 01 1 1302- ●
1 SHAFT; PROP
GXZ<GG****> (A) L=1250 THA 		8-98040-194-0 01 1 0806- ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-084-0 02 1 0806-1112 ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-084-0 02 1 1201-1301 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-084-0 02 1 1302- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-084-0 01 1 0806- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-083-0 02 1 0806-1301 ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-112-0 02 1 0806-1112 ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-112-0 02 1 1201-1301 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-112-0 02 1 1302- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-112-0 01 1 0806- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-118-0 02 1 0806-1301 ●
9 JOURNAL ASM; PROP SHAFT
(B) THA 		1-37300-100-1 01 1 0806-1112 ● ●
9 JOURNAL ASM; PROP SHAFT
(B) THA 		1-37300-100-1 01 1 1201- ● ● ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 08 1 0806-1112 ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 08 1 1201-1301 ● ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 08 1 1302- ● ● ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 04 1 0806- ●
14 COVER; DUST,SPIDER
(B) THA 		1-37319-004-0 08 1 0806-1112 ● ●
14 COVER; DUST,SPIDER
(B) THA 		1-37319-004-0 08 1 1201- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0806-1112 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0806-1112 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1201-1301 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1201-1301 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1302- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1302- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 0806- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) 		1-37319-013-0 02 1 0806-1301 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-103-1 08 1 1212- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 THA 		1-09587-107-0 08 1 1212- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-103-1 08 1 0806-1112 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-103-1 08 1 1201-1301 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-103-1 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 THA 		1-09587-107-0 08 1 0806-1112 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 THA 		1-09587-107-0 08 1 1201-1301 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 THA 		1-09587-107-0 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-103-1 04 1 0806- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 THA 		1-09587-107-0 04 1 0806- ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806-1112 ● ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1201- ● ● ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 0806-1112 ● ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 1201- ● ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1212- ● ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1212- ● ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 0806-1112 ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 0806-1112 ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1201-1301 ● ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1201-1301 ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1302- ● ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1302- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT THA 		0-90301-410-0 02 1 1212- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT THA 		0-90301-410-0 02 1 0806-1112 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT THA 		0-90301-410-0 02 1 1201-1301 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT THA 		0-90301-410-0 02 1 1302- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT THA 		0-90301-410-0 01 1 0806-1112 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT THA 		0-90301-410-0 01 1 1201- ● ● ●
128 SEAL; SLEEVE
(A) THA 		1-37247-020-0 01 1 0806-1112 ●
128 SEAL; SLEEVE
(A) THA 		1-37247-020-0 01 1 1201-1301 ● ●
128 SEAL; SLEEVE
(A) THA 		1-37247-020-0 01 1 1302- ● ● ●
128 SEAL; SLEEVE
(B) THA 		8-97603-618-0 01 1 0806-1112 ● ●
128 SEAL; SLEEVE
(B) THA 		8-97603-618-0 01 1 1201- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=315 THA 		1-37241-149-0 01 1 1302- ●
225 YOKE; SLEEVE,PROP SHAFT
L=315 THA 		1-37241-149-0 01 1 1212- ●
225 YOKE; SLEEVE,PROP SHAFT
L=339 THA 		1-37241-140-0 01 1 0806-1112 ●
225 YOKE; SLEEVE,PROP SHAFT
L=339 THA 		1-37241-140-0 01 1 1201- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
