Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#6832) — 276 parça

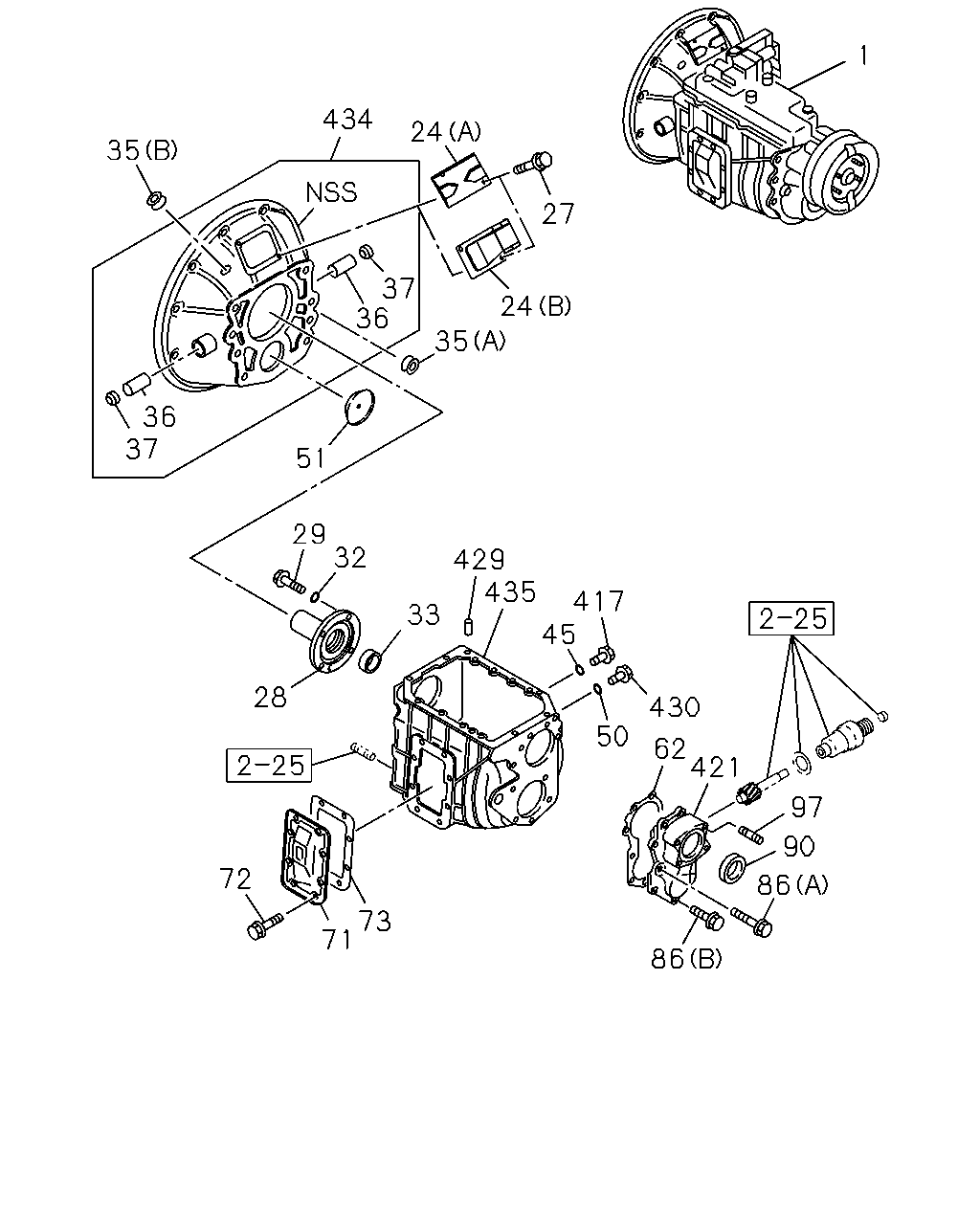

1 434 24 35 27 37 36 24 35 36 37 51 29 32 429 435 417 45 33 28 430 50 62 421 97 90 72 86 73 71 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK SYSTEM RETARDER<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-492-0	01	1	9806-9911	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) CLU SYSTEM MINIPACK(B1Z) BRK SYSTEM RETARDER<RE2>	1-33040-490-0	01	1	9806-9911	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) CLU SYSTEM MINIPACK(B1Z) EXC. BRK SYSTEM RETARDER<RE2>	1-33040-491-0	01	1	9806-9911	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. CLU SYSTEM MINIPACK(B1Z),BRK SYSTEM RETARDER<RE2>	1-33040-493-0	01	1	9806-9911	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-496-0	01	1	9806-9911	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) CLU SYSTEM MINIPACK(B1Z) BRK SYSTEM RETARDER<RE2>	1-33040-494-0	01	1	9806-9911	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. BRK SYSTEM RETARDER<RE2>	1-33040-495-0	01	1	9806-9911	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CLU SYSTEM MINIPACK(B1Z),BRK SYSTEM RETARDER<RE2>	1-33040-497-0	01	1	9806-9911	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK SYSTEM RETARDER<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-500-0	01	1	9806-9911		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) CLU SYSTEM MINIPACK(B1Z) BRK SYSTEM RETARDER<RE2>	1-33040-498-0	01	1	9806-9911		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) CLU SYSTEM MINIPACK(B1Z) EXC. BRK SYSTEM RETARDER<RE2>	1-33040-499-0	01	1	9806-9911		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. CLU SYSTEM MINIPACK(B1Z),BRK SYSTEM RETARDER<RE2>	1-33040-501-0	01	1	9806-9911		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-504-0	01	1	9806-9911		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) CLU SYSTEM MINIPACK(B1Z) BRK SYSTEM RETARDER<RE2>	1-33040-502-0	01	1	9806-9911		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. BRK SYSTEM RETARDER<RE2>	1-33040-503-0	01	1	9806-9911		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CLU SYSTEM MINIPACK(B1Z),BRK SYSTEM RETARDER<RE2>	1-33040-505-0	01	1	9806-9911		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK SYSTEM RETARDER<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-508-0	01	1	9806-9911			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) CLU SYSTEM MINIPACK(B1Z) BRK SYSTEM RETARDER<RE2>	1-33040-506-0	01	1	9806-9911			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) CLU SYSTEM MINIPACK(B1Z) EXC. BRK SYSTEM RETARDER<RE2>	1-33040-507-0	01	1	9806-9911			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. CLU SYSTEM MINIPACK(B1Z),BRK SYSTEM RETARDER<RE2>	1-33040-509-0	01	1	9806-9911			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-512-0	01	1	9806-9911			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) CLU SYSTEM MINIPACK(B1Z) BRK SYSTEM RETARDER<RE2>	1-33040-510-0	01	1	9806-9911			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. BRK SYSTEM RETARDER<RE2>	1-33040-511-0	01	1	9806-9911			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CLU SYSTEM MINIPACK(B1Z),BRK SYSTEM RETARDER<RE2>	1-33040-513-0	01	1	9806-9911			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM RETARDER<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33041-473-0	01	1	9806-9911				●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) BRK SYSTEM RETARDER<RE2>	1-33041-472-0	01	1	9806-9911				●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) EXC. BRK SYSTEM RETARDER<RE2>	1-33041-474-0	01	1	9806-9911				●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z),BRK SYSTEM RETARDER<RE2>	1-33041-475-0	01	1	9806-9911				●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33042-463-0	01	1	9810-9911					●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) CLU SYSTEM MINIPACK(B1Z) BRK SYSTEM RETARDER<RE2>	1-33042-462-0	01	1	9810-9911					●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. BRK SYSTEM RETARDER<RE2>	1-33042-422-0	01	1	9810-9911					●
1	TRANSMISSION ASM; MANUAL	1-33042-422-0	01	1	9912-					●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CLU SYSTEM MINIPACK(B1Z),BRK SYSTEM RETARDER<RE2>	1-33042-464-0	01	1	9810-9911					●
24	COVER; CHECK HOLE,DUST (A)	1-31131-027-0	01	1	9806-9807	●	●	●	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	9808-9809	●	●	●	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	9810-9911	●	●	●	●	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	9912-					●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9806-9809	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9810-9911	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9912-0104					●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0512					●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-					●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9806-9809	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9810-9911	●	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9912-					●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9806-9809	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9810-9911	●	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	9912-					●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9806-9809	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9810-9911	●	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9912-					●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9806-9809	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9810-9911	●	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9912-					●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	9806-9809	●	●	●	●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	9810-9911	●	●	●	●	●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	9912-					●
35	GROMMET; CLU HSG (A) OD=15 T=6.6	8-97037-246-0	01	1	9806-9911	●	●	●	●	●
35	GROMMET; CLU HSG (A) OD=15 T=6.6	8-97037-246-0	01	1	9912-					●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9806-9809	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9810-9911	●	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9912-					●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9806-9809	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9810-9911	●	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9912-					●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9806-9809	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9810-9911	●	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9912-					●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9806-9809	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9810-9911	●	●	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9912-					●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	9806-9911				●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9806-9809	●	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9810-9911	●	●	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	9912-					●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9806-9809	●	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9810-9911	●	●	●		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9912-					●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	9806-9809	●	●	●	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	9810-9911	●	●	●	●	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	9912-					●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9806-9809	●	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9810-9911	●	●	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9912-0512					●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28151-016-0	08	1	0601-					●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9806-9809	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9810-9911	●	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9912-					●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9806-9809	●	●	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9810-9911	●	●	●		●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9912-					●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9806-9809	●	●	●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9810-9911	●	●	●		●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9912-					●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	09	1	9806-9911				●
86	BOLT; RR COVER (A) M12X50	1-09044-085-0	02	1	9806-9911				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9806-9809	●	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9810-9911	●	●	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9912-					●
97	STUD; PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK SYSTEM RETARDER<RE2> M14X32 L=54	1-09302-155-0	04	1	9806-9911	●	●	●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2> M14X27 L=49	1-09302-099-1	01	1	9806-9809	●	●	●
97	STUD; PARKING BRK EXC. BRK SYSTEM RETARDER<RE2> M14X27 L=49	1-09302-099-1	01	1	9806-9809	●	●	●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) M14X27 L=49	1-09302-099-1	01	1	9806-9809				●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) M14X27 L=49	1-09302-099-1	01	1	9810-9911	●	●	●	●
97	STUD; PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK SYSTEM RETARDER<RE2> M14X27 L=49	1-09302-099-1	01	1	9810-9911	●	●	●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. BRK SYSTEM RETARDER<RE2> M14X27 L=49	1-09302-099-1	01	1	9810-9911					●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	9912-					●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2> M14X27 L=49	1-09302-099-1	03	1	9806-9911	●	●	●	●
97	STUD; PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK SYSTEM RETARDER<RE2> M14X27 L=49	1-09302-099-1	03	1	9806-9911	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9806-9809	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9810-9911	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9912-0201					●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-					●
421	COVER; RR,TRANS BRK SYSTEM RETARDER<RE2>	1-33131-178-1	01	1	9806-9911	●	●	●
421	COVER; RR,TRANS EXC. BRK SYSTEM RETARDER<RE2>	1-33131-177-1	01	1	9806-9809	●	●	●
421	COVER; RR,TRANS EXC. BRK SYSTEM RETARDER<RE2>	1-33131-177-1	01	1	9810-9911	●	●	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	9810-9911					●
421	COVER; RR,TRANS	1-33131-177-1	01	1	9912-					●
421	COVER; RR,TRANS BRK SYSTEM RETARDER<RE2>	1-33131-215-0	01	1	9806-9911				●
421	COVER; RR,TRANS EXC. BRK SYSTEM RETARDER<RE2>	1-33131-087-4	01	1	9806-9911				●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9806-9809	●	●	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9810-9911	●	●	●	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9912-					●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9806-9809	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9810-9911	●	●	●		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9912-					●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	02	1	9806-9911				●
434	HOUSING; CLU	1-31110-169-0	01	1	9806-9809	●	●	●	●
434	HOUSING; CLU	1-31110-169-0	01	1	9810-9911	●	●	●	●	●
434	HOUSING; CLU	1-31110-169-0	01	1	9912-					●
435	CASE; TRANS	1-33111-235-0	01	1	9806-9809	●	●	●
435	CASE; TRANS	1-33111-235-0	01	1	9810-9911	●	●	●		●
435	CASE; TRANS	1-33111-235-0	01	1	9912-0201					●
435	CASE; TRANS	1-33111-323-0	01	1	0202-0303					●
435	CASE; TRANS	1-33111-342-0	01	1	0304-0406					●
435	CASE; TRANS	8-97381-568-0	01	1	0407-0408					●
435	CASE; TRANS	1-33111-355-0	01	1	0409-					●
435	CASE; TRANS	1-33111-236-0	01	1	9806-9911				●

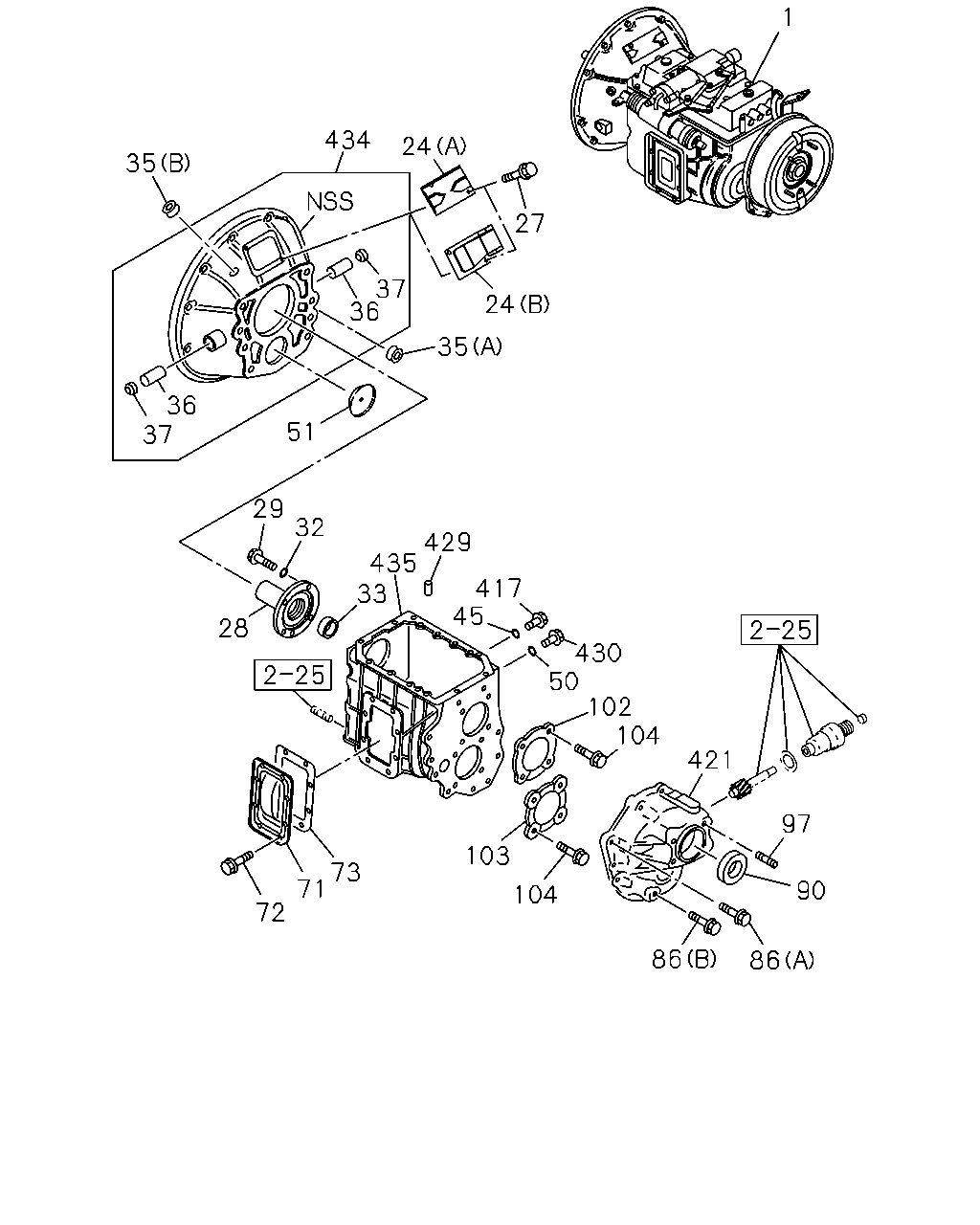

1 434 24 35 27 37 36 24 35 36 37 51 29 32 429 435 33 417 45 28 430 50 102 104 421 97 103 73 71 90 104 72 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK SYSTEM RETARDER<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-492-0	01	1	9806-9911	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) CLU SYSTEM MINIPACK(B1Z) BRK SYSTEM RETARDER<RE2>	1-33040-490-0	01	1	9806-9911	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) CLU SYSTEM MINIPACK(B1Z) EXC. BRK SYSTEM RETARDER<RE2>	1-33040-491-0	01	1	9806-9911	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. CLU SYSTEM MINIPACK(B1Z),BRK SYSTEM RETARDER<RE2>	1-33040-493-0	01	1	9806-9911	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-496-0	01	1	9806-9911	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) CLU SYSTEM MINIPACK(B1Z) BRK SYSTEM RETARDER<RE2>	1-33040-494-0	01	1	9806-9911	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. BRK SYSTEM RETARDER<RE2>	1-33040-495-0	01	1	9806-9911	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CLU SYSTEM MINIPACK(B1Z),BRK SYSTEM RETARDER<RE2>	1-33040-497-0	01	1	9806-9911	●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK SYSTEM RETARDER<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-500-0	01	1	9806-9911		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) CLU SYSTEM MINIPACK(B1Z) BRK SYSTEM RETARDER<RE2>	1-33040-498-0	01	1	9806-9911		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) CLU SYSTEM MINIPACK(B1Z) EXC. BRK SYSTEM RETARDER<RE2>	1-33040-499-0	01	1	9806-9911		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. CLU SYSTEM MINIPACK(B1Z),BRK SYSTEM RETARDER<RE2>	1-33040-501-0	01	1	9806-9911		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-504-0	01	1	9806-9911		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) CLU SYSTEM MINIPACK(B1Z) BRK SYSTEM RETARDER<RE2>	1-33040-502-0	01	1	9806-9911		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. BRK SYSTEM RETARDER<RE2>	1-33040-503-0	01	1	9806-9911		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CLU SYSTEM MINIPACK(B1Z),BRK SYSTEM RETARDER<RE2>	1-33040-505-0	01	1	9806-9911		●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK SYSTEM RETARDER<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-508-0	01	1	9806-9911			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) CLU SYSTEM MINIPACK(B1Z) BRK SYSTEM RETARDER<RE2>	1-33040-506-0	01	1	9806-9911			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) CLU SYSTEM MINIPACK(B1Z) EXC. BRK SYSTEM RETARDER<RE2>	1-33040-507-0	01	1	9806-9911			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. CLU SYSTEM MINIPACK(B1Z),BRK SYSTEM RETARDER<RE2>	1-33040-509-0	01	1	9806-9911			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33040-512-0	01	1	9806-9911			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) CLU SYSTEM MINIPACK(B1Z) BRK SYSTEM RETARDER<RE2>	1-33040-510-0	01	1	9806-9911			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. BRK SYSTEM RETARDER<RE2>	1-33040-511-0	01	1	9806-9911			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CLU SYSTEM MINIPACK(B1Z),BRK SYSTEM RETARDER<RE2>	1-33040-513-0	01	1	9806-9911			●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM RETARDER<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33041-473-0	01	1	9806-9911				●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) BRK SYSTEM RETARDER<RE2>	1-33041-472-0	01	1	9806-9911				●
1	TRANSMISSION ASM; MANUAL CLU SYSTEM MINIPACK(B1Z) EXC. BRK SYSTEM RETARDER<RE2>	1-33041-474-0	01	1	9806-9911				●
1	TRANSMISSION ASM; MANUAL EXC. CLU SYSTEM MINIPACK(B1Z),BRK SYSTEM RETARDER<RE2>	1-33041-475-0	01	1	9806-9911				●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2> EXC. CLU SYSTEM MINIPACK(B1Z)	1-33042-463-0	01	1	9810-9911					●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) CLU SYSTEM MINIPACK(B1Z) BRK SYSTEM RETARDER<RE2>	1-33042-462-0	01	1	9810-9911					●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. BRK SYSTEM RETARDER<RE2>	1-33042-422-0	01	1	9810-9911					●
1	TRANSMISSION ASM; MANUAL	1-33042-422-0	01	1	9912-					●
1	TRANSMISSION ASM; MANUAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CLU SYSTEM MINIPACK(B1Z),BRK SYSTEM RETARDER<RE2>	1-33042-464-0	01	1	9810-9911					●
24	COVER; CHECK HOLE,DUST (A)	1-31131-027-0	01	1	9806-9807	●	●	●	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	9808-9809	●	●	●	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	9810-9911	●	●	●	●	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	9912-					●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9806-9809	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9810-9911	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9912-0104					●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0512					●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-					●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9806-9809	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9810-9911	●	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9912-					●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9806-9809	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9810-9911	●	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	9912-					●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9806-9809	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9810-9911	●	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9912-					●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9806-9809	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9810-9911	●	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9912-					●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	9806-9809	●	●	●	●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	9810-9911	●	●	●	●	●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	9912-					●
35	GROMMET; CLU HSG (A) OD=15 T=6.6	8-97037-246-0	01	1	9806-9911	●	●	●	●	●
35	GROMMET; CLU HSG (A) OD=15 T=6.6	8-97037-246-0	01	1	9912-					●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9806-9809	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9810-9911	●	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9912-					●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9806-9809	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9810-9911	●	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9912-					●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9806-9809	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9810-9911	●	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9912-					●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9806-9809	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9810-9911	●	●	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9912-					●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	9806-9911				●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9806-9809	●	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9810-9911	●	●	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	9912-					●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	9806-9809	●	●	●	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	9810-9911	●	●	●	●	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	9912-					●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9806-9809	●	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9810-9911	●	●	●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9912-0512					●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28151-016-0	08	1	0601-					●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9806-9809	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9810-9911	●	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9912-					●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9806-9809	●	●	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9810-9911	●	●	●		●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9912-					●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9806-9809	●	●	●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9810-9911	●	●	●		●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9912-					●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	09	1	9806-9911				●
86	BOLT; RR COVER (A) M12X50	1-09044-085-0	02	1	9806-9911				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9806-9809	●	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9810-9911	●	●	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9912-					●
97	STUD; PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK SYSTEM RETARDER<RE2> M14X32 L=54	1-09302-155-0	04	1	9806-9911	●	●	●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2> M14X27 L=49	1-09302-099-1	01	1	9806-9809	●	●	●
97	STUD; PARKING BRK EXC. BRK SYSTEM RETARDER<RE2> M14X27 L=49	1-09302-099-1	01	1	9806-9809	●	●	●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) M14X27 L=49	1-09302-099-1	01	1	9806-9809				●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) M14X27 L=49	1-09302-099-1	01	1	9810-9911	●	●	●	●
97	STUD; PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK SYSTEM RETARDER<RE2> M14X27 L=49	1-09302-099-1	01	1	9810-9911	●	●	●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. BRK SYSTEM RETARDER<RE2> M14X27 L=49	1-09302-099-1	01	1	9810-9911					●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	9912-					●
97	STUD; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2> M14X27 L=49	1-09302-099-1	03	1	9806-9911	●	●	●	●
97	STUD; PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK SYSTEM RETARDER<RE2> M14X27 L=49	1-09302-099-1	03	1	9806-9911	●	●	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-036-0	01	1	9806-9911				●
103	RETAINER; BRG	1-33151-037-0	01	1	9806-9911				●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9806-9911				●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9806-9809	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9810-9911	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9912-0201					●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-					●
421	COVER; RR,TRANS BRK SYSTEM RETARDER<RE2>	1-33131-178-1	01	1	9806-9911	●	●	●
421	COVER; RR,TRANS EXC. BRK SYSTEM RETARDER<RE2>	1-33131-177-1	01	1	9806-9809	●	●	●
421	COVER; RR,TRANS EXC. BRK SYSTEM RETARDER<RE2>	1-33131-177-1	01	1	9810-9911	●	●	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	9810-9911					●
421	COVER; RR,TRANS	1-33131-177-1	01	1	9912-					●
421	COVER; RR,TRANS BRK SYSTEM RETARDER<RE2>	1-33131-215-0	01	1	9806-9911				●
421	COVER; RR,TRANS EXC. BRK SYSTEM RETARDER<RE2>	1-33131-087-4	01	1	9806-9911				●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9806-9809	●	●	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9810-9911	●	●	●	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9912-					●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9806-9809	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9810-9911	●	●	●		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9912-					●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	02	1	9806-9911				●
434	HOUSING; CLU	1-31110-169-0	01	1	9806-9809	●	●	●	●
434	HOUSING; CLU	1-31110-169-0	01	1	9810-9911	●	●	●	●	●
434	HOUSING; CLU	1-31110-169-0	01	1	9912-					●
435	CASE; TRANS	1-33111-235-0	01	1	9806-9809	●	●	●
435	CASE; TRANS	1-33111-235-0	01	1	9810-9911	●	●	●		●
435	CASE; TRANS	1-33111-235-0	01	1	9912-0201					●
435	CASE; TRANS	1-33111-323-0	01	1	0202-0303					●
435	CASE; TRANS	1-33111-342-0	01	1	0304-0406					●
435	CASE; TRANS	8-97381-568-0	01	1	0407-0408					●
435	CASE; TRANS	1-33111-355-0	01	1	0409-					●
435	CASE; TRANS	1-33111-236-0	01	1	9806-9911				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
