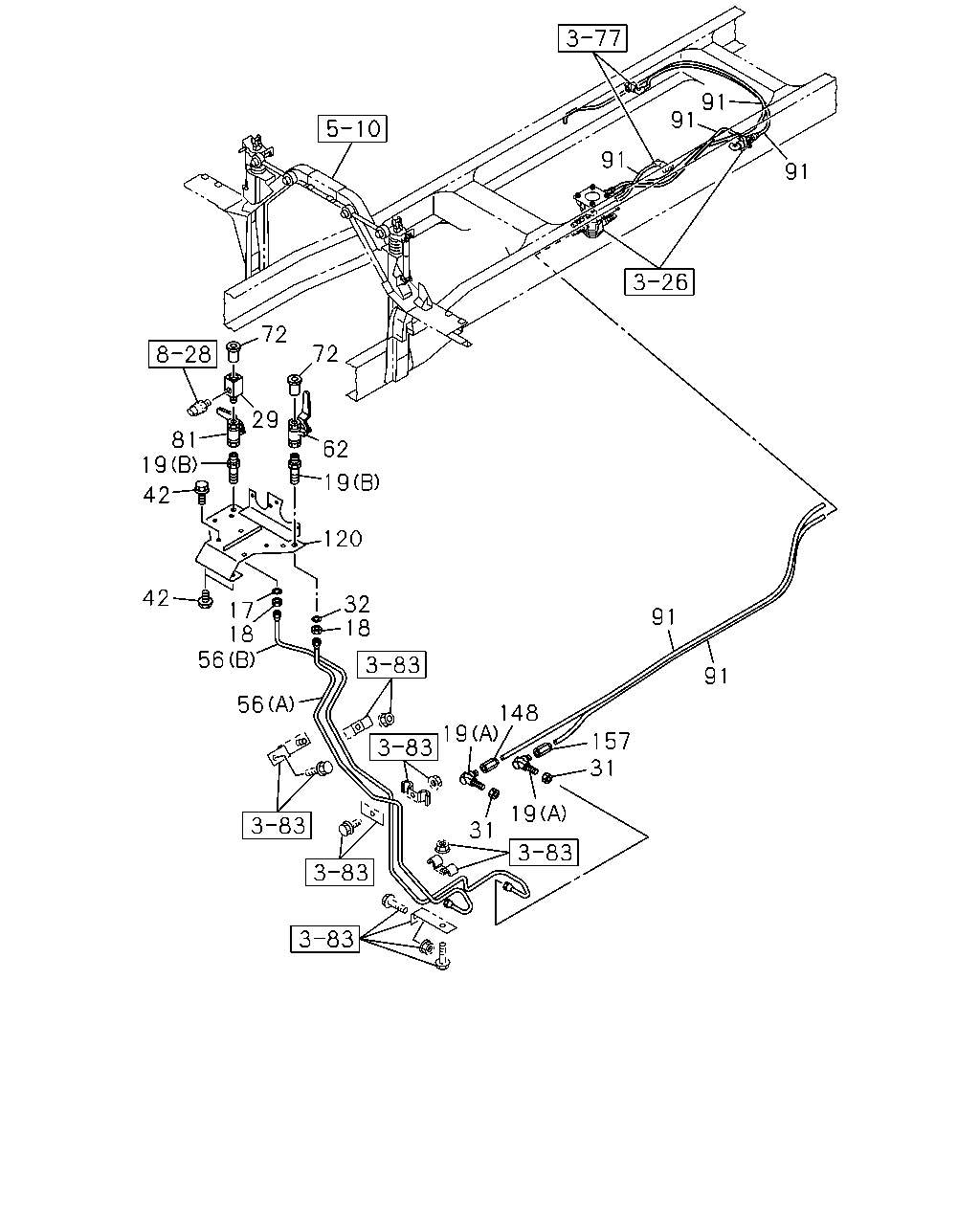

3-80 — BRAKE PIPING; TRAILER
(#68319) — 22 parça
◀
[380A] NO.1 (20 parça)
[380A] NO.2 (2 parça)
▶
91
91
91
91
72
72
29
81
19
62
19
42
120
42
32
18
17
18
56
91
91
56
148
19
157
31
19
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
WASHER; LK,UNION
ID=16.2 THA
0-91510-516-0
01
1
0806-
18
NUT; UNION
M16 THA
0-91111-516-0
02
1
0806-
19
UNION; AIR PIPE
(A) M16 ELBOW
0-92135-210-0
02
1
0806-
19
UNION; AIR PIPE
(B)
1-09650-121-1
02
1
0806-
29
CONNECTOR; COCK
PT1/2
1-09664-041-1
01
1
0806-
31
NUT; UNION
M16 THA
0-91111-516-0
02
1
0806-
32
WASHER; LK,UNION
ID=16.2 THA
0-91510-516-0
01
1
0806-
42
BOLT; BRKT
M10X25 FLANGE THA
0-28651-025-0
04
1
0806-
56
PIPE; AIR,UNION TO COCK
(A) L=1338 THA
8-98086-230-0
01
1
0806-
56
PIPE; AIR,UNION TO COCK
(B) L=1912 THA
8-98086-231-0
01
1
0806-
62
COCK; AIR PIPE
BLUE
1-09680-092-0
01
1
0806-
72
PLUG
OD=12
1-09661-617-0
02
1
0809-
81
COCK; AIR COUPLING
RED
1-09680-091-0
01
1
0806-
91
TUBE; NYLON
SERVICED BY L=2000 OD=8 THA
1-87411-006-0
AR
1
0806-
91
TUBE; NYLON
SERVICED BY L=4000 OD=8 THA
1-87411-007-0
AR
1
0806-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12 THA
1-87411-011-0
AR
1
0806-
120
BRACKET; COCK
8-98085-132-0
01
1
0806-
148
ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT THA
1-09660-876-0
01
1
0806-
157
ADAPTER
DIN12 & M16 STRAIGHT THA
1-09660-876-0
02
1
0809-
157
ADAPTER
DIN12 & M16 STRAIGHT THA
1-09660-876-0
01
1
0806-
75
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HOSE; FLEX,TRAILER SERVICE
1-49216-038-1
01
1
0806-
75
HOSE; FLEX,TRAILER EMERGENCY
1-49216-038-1
01
1
0806-
