3-77 — BRAKE PIPING; AIR,REAR (#68317) — 139 parça

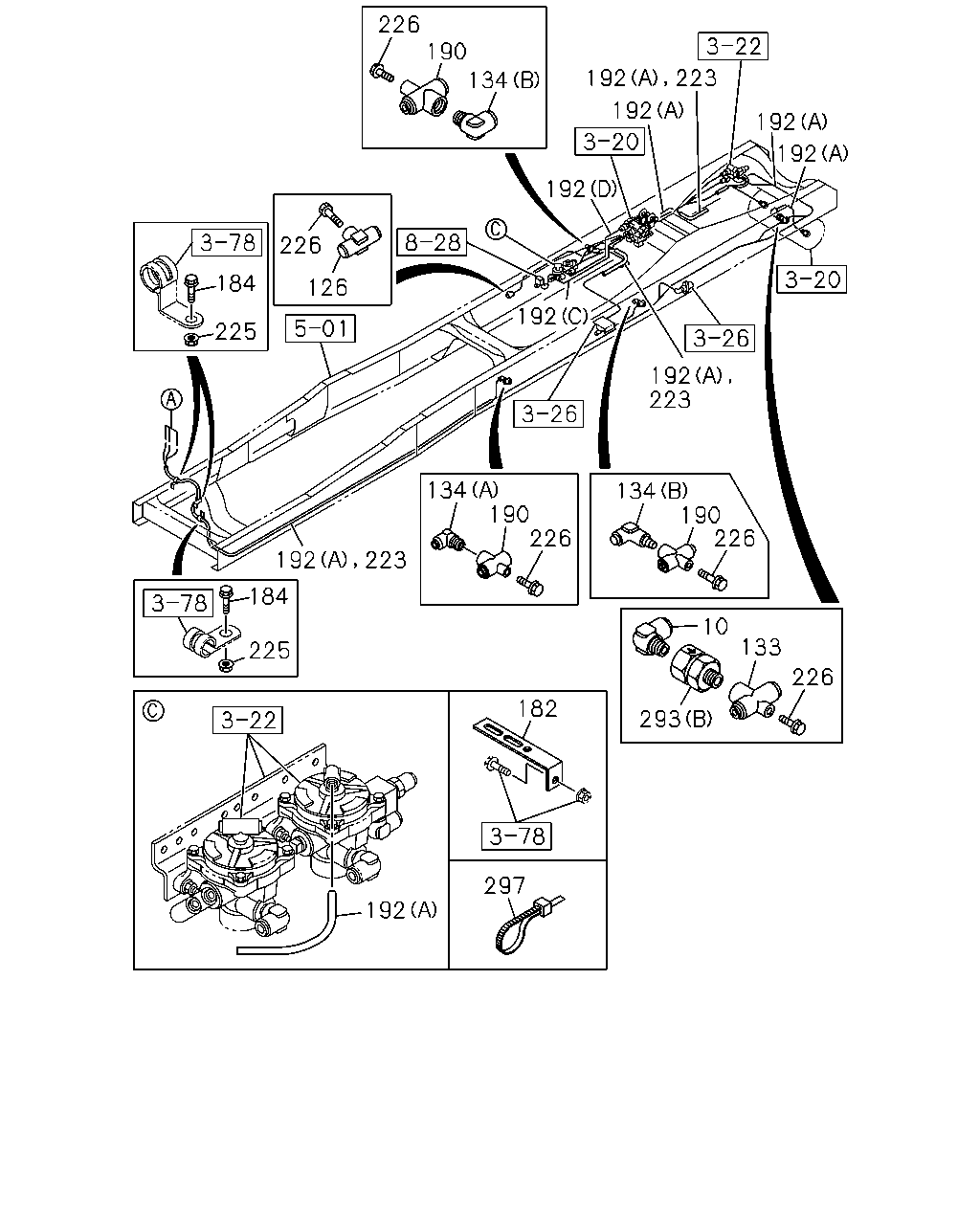

226 190 192 223 134 192 192 192 192 226 184 126 225 192 192 223 134 190 226 134 190 226 192 223 184 10 133 225 226 182 293 297 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	CONNECTOR; FLEX HOSE DIN12 & R3/8 ELBOW THA	1-09660-959-0	01	1	0806-	●
126	UNION; NYLON TUBE WHEEL BASE 4700MM<47W> DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	0806-		●
126	UNION; NYLON TUBE DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	0806-	●
133	UNION; NIPPLE DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0806-	●
134	CONNECTOR AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0806-	●
134	CONNECTOR (B) DIN8 & R3/8 ELBOW THA	1-09660-957-0	02	1	0806-	●
182	BRACKET; TUBE CLIP L=100 H=30	1-47477-645-2	01	1	0806-	●
184	BOLT; TUBE CLIP M8X25 FLANGE THA	0-28650-825-0	03	1	0806-1101	●
184	BOLT; TUBE CLIP M8X25 FLANGE THA	0-28650-825-0	03	1	1102-	●	●
190	UNION; 3 WAY AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY THA	1-09661-129-0	01	1	0806-	●
190	UNION; 3 WAY DIN8 & RC3/8 3WAY THA	1-09661-129-0	02	1	0806-	●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM<BFA> (C) THA	8-98109-852-0	01	1	0902-	●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM<BFA> (D) THA	8-98122-535-0	01	1	0902-	●
192	TUBE; NYLON (B) THA	8-98017-537-0	01	1	0806-	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8 THA	1-87411-006-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8 THA	1-87411-007-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8 THA	1-87411-008-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=8000 OD=8 THA	1-87411-009-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=12000 OD=8 THA	1-87411-010-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12 THA	1-87411-011-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12 THA	1-87411-012-0	AR	1	0806-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10 THA	1-87411-019-0	AR	1	0806-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13 THA	1-87411-022-0	AR	1	0806-	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=15 THA	1-87411-026-0	AR	1	0806-	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=19 THA	1-87411-028-0	AR	1	0806-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25 THA	1-87411-031-0	AR	1	0806-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28 THA	1-87411-033-0	AR	1	0806-	●	●
225	NUT; TUBE CLIP M8 FLANGE THA	0-91180-108-0	03	1	0806-1101	●
225	NUT; TUBE CLIP M8 FLANGE THA	0-91180-108-0	03	1	1102-	●	●
226	BOLT; UNION WHEEL BASE 4700MM<47W> M8X20 FLANGE THA	0-28650-820-0	01	1	0806-	●	●
226	BOLT; UNION EXC. AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE THA	0-28650-820-0	01	1	0806-	●
226	BOLT; UNION M8X20 FLANGE THA	0-28650-820-0	02	1	0806-	●
226	BOLT; UNION AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE THA	0-28650-820-0	02	1	0806-	●
293	VALVE; CHECK (B)	1-48320-013-2	01	1	0806-	●
293	VALVE; CHECK (A)	1-48410-479-1	01	1	0806-	●
297	CLIP; BAND L=350	1-09707-183-0	01	1	0806-	●

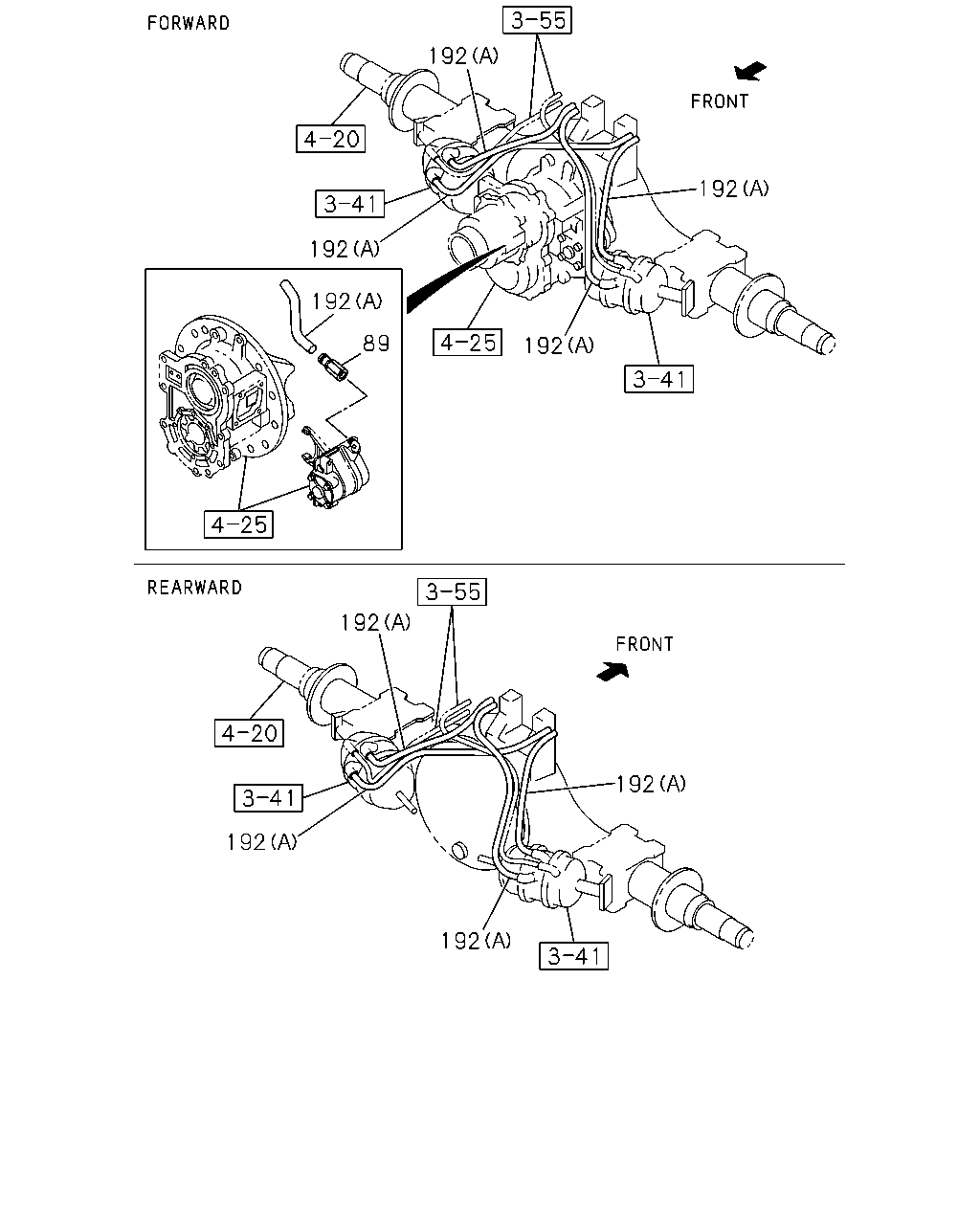

192 192 192 192 89 192 192 192 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	CONNECTOR; NYLON TUBE DIN8 & M12 STRAIGHT THA	1-09660-873-0	01	1	0806-	●	●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM<BFA> (C) THA	8-98109-852-0	01	1	0902-	●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM<BFA> (D) THA	8-98122-535-0	01	1	0902-	●
192	TUBE; NYLON (B) THA	8-98017-537-0	01	1	0806-	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8 THA	1-87411-006-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8 THA	1-87411-007-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8 THA	1-87411-008-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=8000 OD=8 THA	1-87411-009-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=12000 OD=8 THA	1-87411-010-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12 THA	1-87411-011-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12 THA	1-87411-012-0	AR	1	0806-	●	●

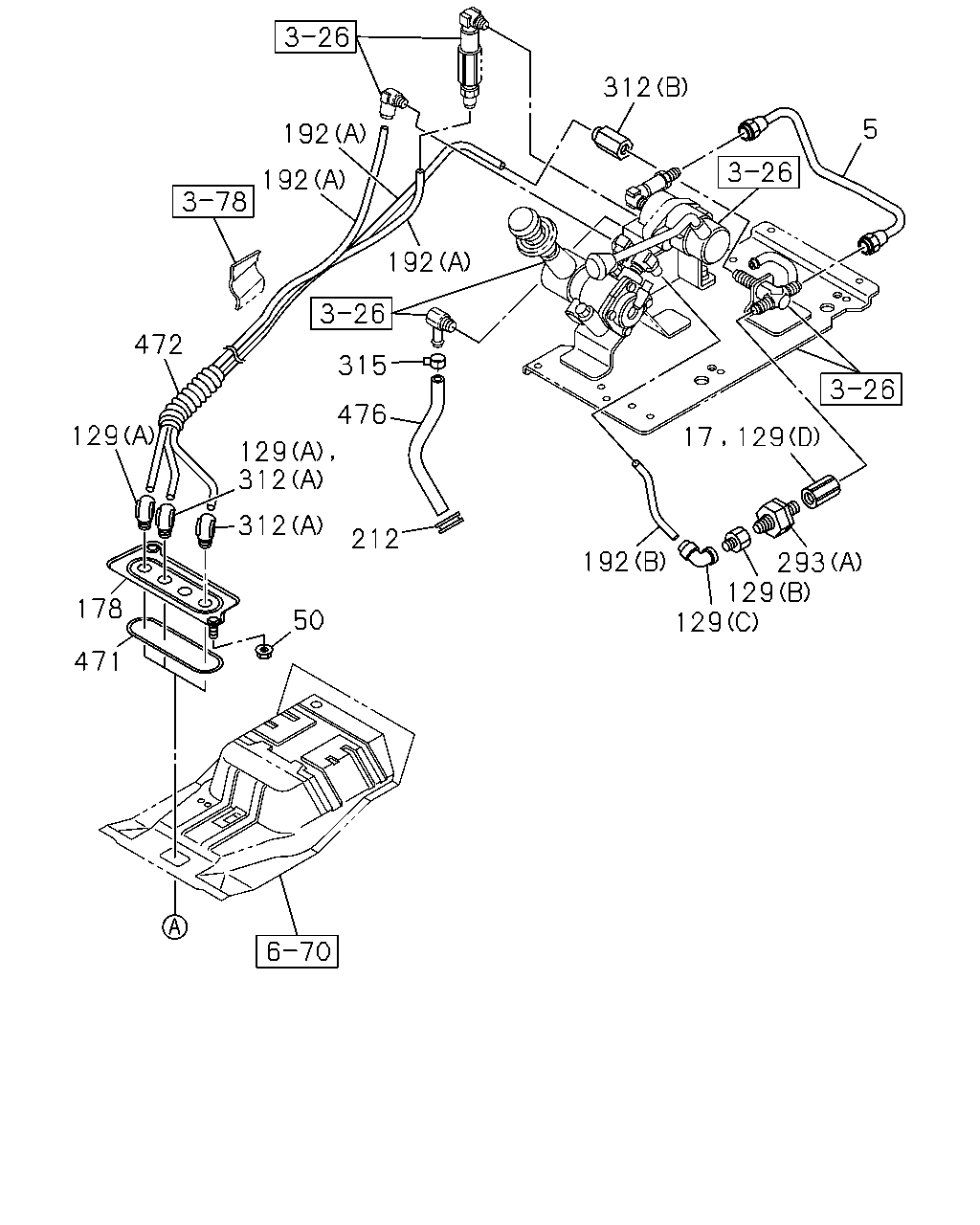

312 5 192 192 192 472 315 476 129 17 129 129 312 312 212 192 293 129 129 178 50 471

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PIPE; AIR,UNION TO PARKING VLV THA	8-97610-775-1	01	1	0806-	●
17	UNION; AIR PIPE M16 & RC3/8 STRAIGHT THA	1-09660-882-0	01	1	0806-1101	●
50	NUT; UNION BRKT M8 FLANGE THA	0-91180-108-0	02	1	0806-	●	●
129	CONNECTOR; NYLON TUBE (D) M16 & RC3/8 STRAIGHT THA	1-09660-882-0	01	1	1102-	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	0806-1101	●	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	1102-	●	●
129	CONNECTOR; NYLON TUBE (C) DIN8 ELBOW	1-09660-924-1	01	1	0806-1006	●
129	CONNECTOR; NYLON TUBE (C)	8-97633-756-0	01	1	1007-	●
129	CONNECTOR; NYLON TUBE (B)	1-09660-930-1	01	1	0806-1006	●
129	CONNECTOR; NYLON TUBE (B)	8-97633-768-0	01	1	1007-	●
178	BRACKET; UNION	8-98017-054-1	01	1	0806-		●
178	BRACKET; UNION	8-98017-056-1	01	1	0806-	●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM<BFA> (C) THA	8-98109-852-0	01	1	0902-	●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM<BFA> (D) THA	8-98122-535-0	01	1	0902-	●
192	TUBE; NYLON (B) THA	8-98017-537-0	01	1	0806-	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8 THA	1-87411-006-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8 THA	1-87411-007-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8 THA	1-87411-008-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=8000 OD=8 THA	1-87411-009-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=12000 OD=8 THA	1-87411-010-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12 THA	1-87411-011-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12 THA	1-87411-012-0	AR	1	0806-	●	●
212	GROMMET; AIR PIPE OD=24	9-61166-007-0	01	1	0806-1101	●
212	GROMMET; AIR PIPE OD=24	9-61166-007-0	01	1	1102-1105	●	●
212	GROMMET; AIR PIPE OD=24	9-61166-007-0	01	1	1106-	●
293	VALVE; CHECK (B)	1-48320-013-2	01	1	0806-	●
293	VALVE; CHECK (A)	1-48410-479-1	01	1	0806-	●
312	CONNECTOR; SUPPLY (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	0806-1101		●
312	CONNECTOR; SUPPLY (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0806-	●
312	CONNECTOR; SUPPLY (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0806-1101	●
312	CONNECTOR; SUPPLY (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1102-	●
315	CLIP ID=14	8-94238-572-0	01	1	1004-		●
315	CLIP ID=14	8-94238-572-0	01	1	0806-1003	●
315	CLIP ID=14	8-94238-572-0	03	1	1004-1101	●
315	CLIP ID=14	8-94238-572-0	02	1	1102-	●
471	SEAL; BRKT	1-79738-832-0	01	1	0806-	●	●
472	TUBE; SPUTTER THA	8-98108-051-0	01	1	0806-		●
472	TUBE; SPUTTER THA	8-98108-051-0	02	1	0806-	●
476	PIPE; VINYL,EXH L=180 SERVICED BY L=10000	9-09914-701-0	01	1	0806-1101	●

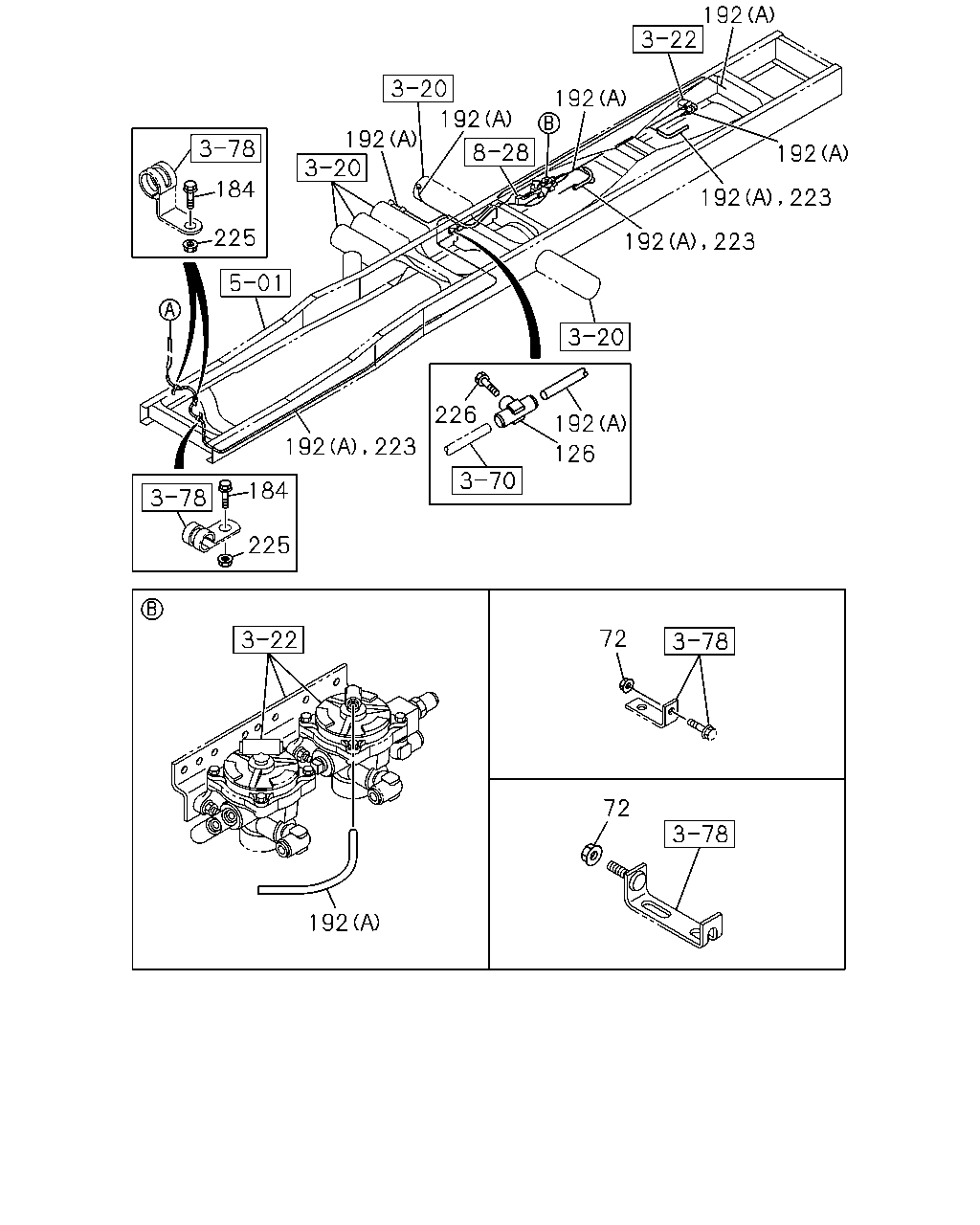

192 192 192 192 192 184 223 192 225 192 223 226 192 192 223 126 184 225 72 72 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
72	NUT; BRKT WHEEL BASE 5200MM<52W> M8 FLANGE THA	0-91180-108-0	01	1	1201-		●
72	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	0806-0806	●	●
72	NUT; BRKT WHEEL BASE 5300MM<53W> M8 FLANGE THA	0-91180-108-0	02	1	0806-0806		●
72	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	0807-1101	●	●
72	NUT; BRKT WHEEL BASE 5300MM<53W> M8 FLANGE THA	0-91180-108-0	02	1	0807-1101		●
72	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	0807-1101	●
72	NUT; BRKT WHEEL BASE 5300MM<53W> M8 FLANGE THA	0-91180-108-0	02	1	1102-1110		●
72	NUT; BRKT WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> M8 FLANGE THA	0-91180-108-0	02	1	1102-1110		●
72	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	1102-1110	●
72	NUT; BRKT WHEEL BASE 4700MM<47W> M8 FLANGE THA	0-91180-108-0	02	1	1102-1110	●
72	NUT; BRKT WHEEL BASE 5300MM<53W> M8 FLANGE THA	0-91180-108-0	02	1	1111-		●
72	NUT; BRKT WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> M8 FLANGE THA	0-91180-108-0	02	1	1111-		●
72	NUT; BRKT WHEEL BASE 4700MM<47W> M8 FLANGE THA	0-91180-108-0	02	1	1111-	●
72	NUT; BRKT M8 FLANGE THA	0-91180-108-0	03	1	0806-1110	●
72	NUT; BRKT M8 FLANGE THA	0-91180-108-0	05	1	1111-	●
126	UNION; NYLON TUBE WHEEL BASE 4700MM<47W> DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	0806-		●
126	UNION; NYLON TUBE DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	0806-	●
184	BOLT; TUBE CLIP M8X25 FLANGE THA	0-28650-825-0	03	1	0806-1101	●
184	BOLT; TUBE CLIP M8X25 FLANGE THA	0-28650-825-0	03	1	1102-	●	●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM<BFA> (C) THA	8-98109-852-0	01	1	0902-	●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM<BFA> (D) THA	8-98122-535-0	01	1	0902-	●
192	TUBE; NYLON (B) THA	8-98017-537-0	01	1	0806-	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8 THA	1-87411-006-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8 THA	1-87411-007-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8 THA	1-87411-008-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=8000 OD=8 THA	1-87411-009-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=12000 OD=8 THA	1-87411-010-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12 THA	1-87411-011-0	AR	1	0806-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12 THA	1-87411-012-0	AR	1	0806-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10 THA	1-87411-019-0	AR	1	0806-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13 THA	1-87411-022-0	AR	1	0806-	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=15 THA	1-87411-026-0	AR	1	0806-	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=19 THA	1-87411-028-0	AR	1	0806-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25 THA	1-87411-031-0	AR	1	0806-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28 THA	1-87411-033-0	AR	1	0806-	●	●
225	NUT; TUBE CLIP M8 FLANGE THA	0-91180-108-0	03	1	0806-1101	●
225	NUT; TUBE CLIP M8 FLANGE THA	0-91180-108-0	03	1	1102-	●	●
226	BOLT; UNION WHEEL BASE 4700MM<47W> M8X20 FLANGE THA	0-28650-820-0	01	1	0806-	●	●
226	BOLT; UNION EXC. AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE THA	0-28650-820-0	01	1	0806-	●
226	BOLT; UNION M8X20 FLANGE THA	0-28650-820-0	02	1	0806-	●
226	BOLT; UNION AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE THA	0-28650-820-0	02	1	0806-	●

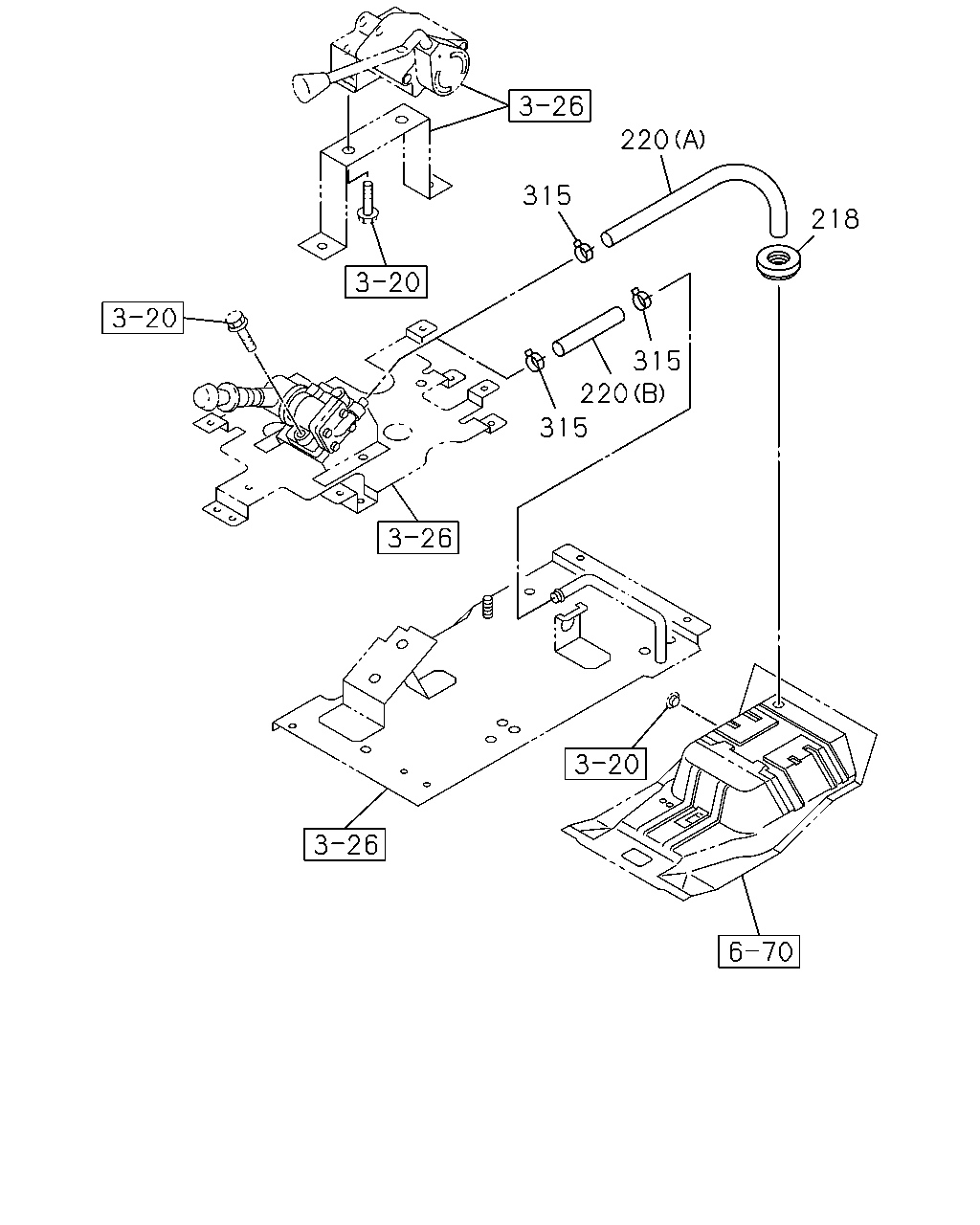

220 315 218 315 220 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	1106-		●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	1004-1101		●
220	HOSE; VINYL,EXH,PARKING BRK VLV (A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1004-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV (B) L=220 SERVICED BY L=10000	9-09914-701-0	01	1	1004-	●
315	CLIP ID=14	8-94238-572-0	01	1	1004-		●
315	CLIP ID=14	8-94238-572-0	01	1	0806-1003	●
315	CLIP ID=14	8-94238-572-0	03	1	1004-1101	●
315	CLIP ID=14	8-94238-572-0	02	1	1102-	●
