3-75 — BRAKE PIPING; AIR,FRONT (#68316) — 104 parça

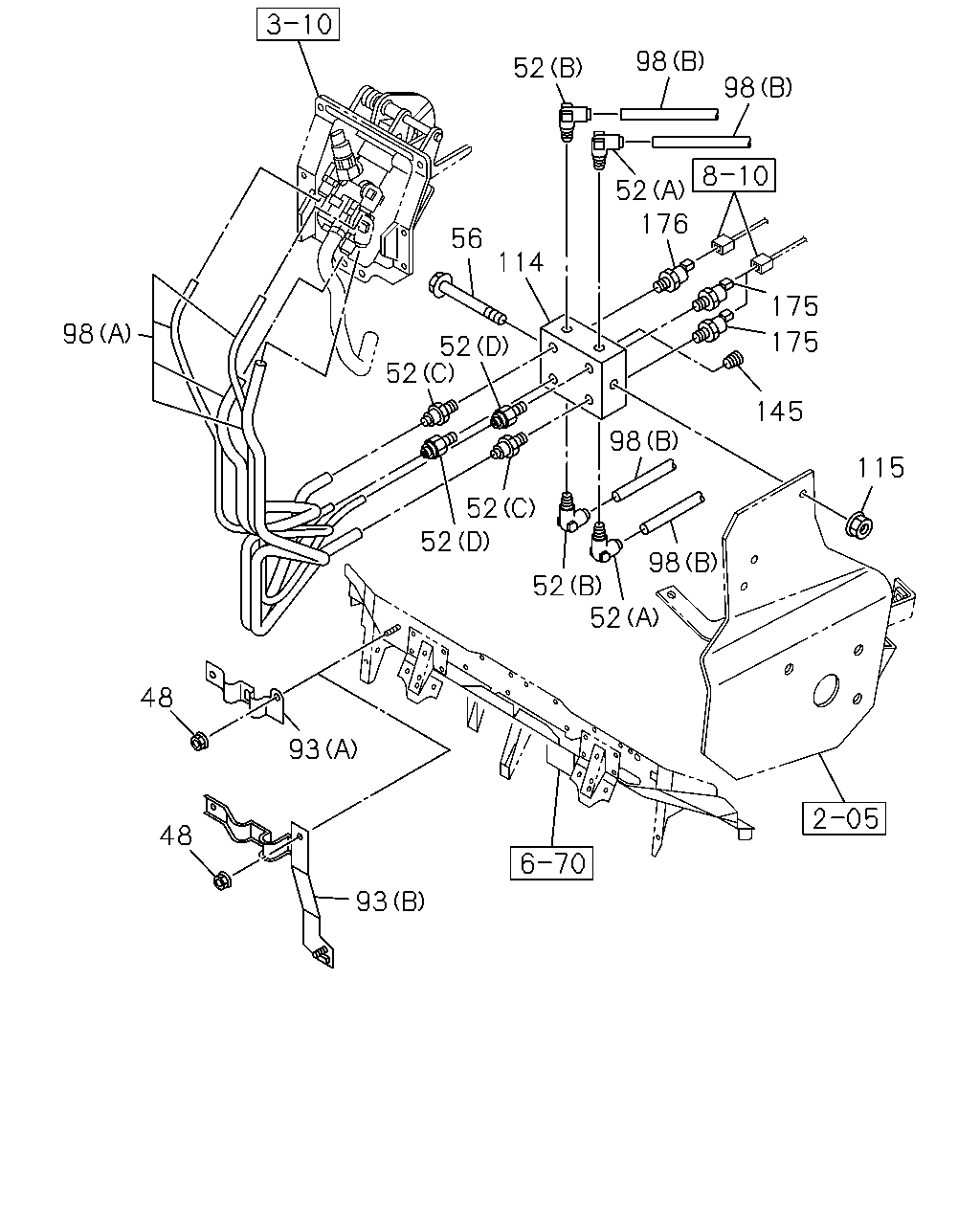

çizim 121751
98 52 98 52 176 56 114 175 98 175 52 52 145 98 115 52 52 98 52 52 48 93 48 93
BalonParca AdiParca NoAdetTipApplied Date A B
48 NUT; UNION BRKT
M6 FLANGE THA 		0-91180-106-0 02 1 0806- ● ●
52 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 02 1 0806- ● ●
52 CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 ELBOW 		1-09660-958-0 02 1 0806- ● ●
52 CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 02 1 0806- ● ●
52 CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 0806- ● ●
56 BOLT; UNION BRKT
M8X100 FLANGE THA 		0-28050-800-0 01 1 0806- ● ●
93 BRACKET; UNION,TUBE
(A) 		8-98044-013-0 01 1 0806-1201 ● ●
93 BRACKET; UNION,TUBE
(B) THA 		8-98186-924-0 01 1 1202- ● ●
98 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) L=170 OD=12 THA 		1-49222-063-0 02 1 0902- ●
98 TUBE; NYLON
(C) THA 		8-98106-552-0 01 1 0806-0901 ● ●
98 TUBE; NYLON
(C) THA 		8-98106-552-0 01 1 0902- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98106-552-0 01 1 0902- ●
98 TUBE; NYLON
(C) THA 		8-98086-217-0 01 1 0806-0901 ● ●
98 TUBE; NYLON
(C) THA 		8-98086-217-0 01 1 0902- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98086-217-0 01 1 0902- ●
98 TUBE; NYLON
(A) THA 		8-98091-307-0 01 1 0806- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 0806- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 0806- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 0806- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 0806- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 0806- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 AR 1 0806- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 0806- ● ●
114 UNION; NYLON TUBE
THA 		8-98057-394-1 01 1 0806- ● ●
115 NUT; TUBE UNION
MJT7U M/T<Y4X> M8 FLANGE THA 		0-91180-108-0 02 1 1201- ●
115 NUT; TUBE UNION
M8 FLANGE THA 		0-91180-108-0 01 1 0806- ● ●
145 PLUG
PT1/4 THA 		9-99204-513-0 01 1 0806- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0806- ● ●
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 0806- ● ●

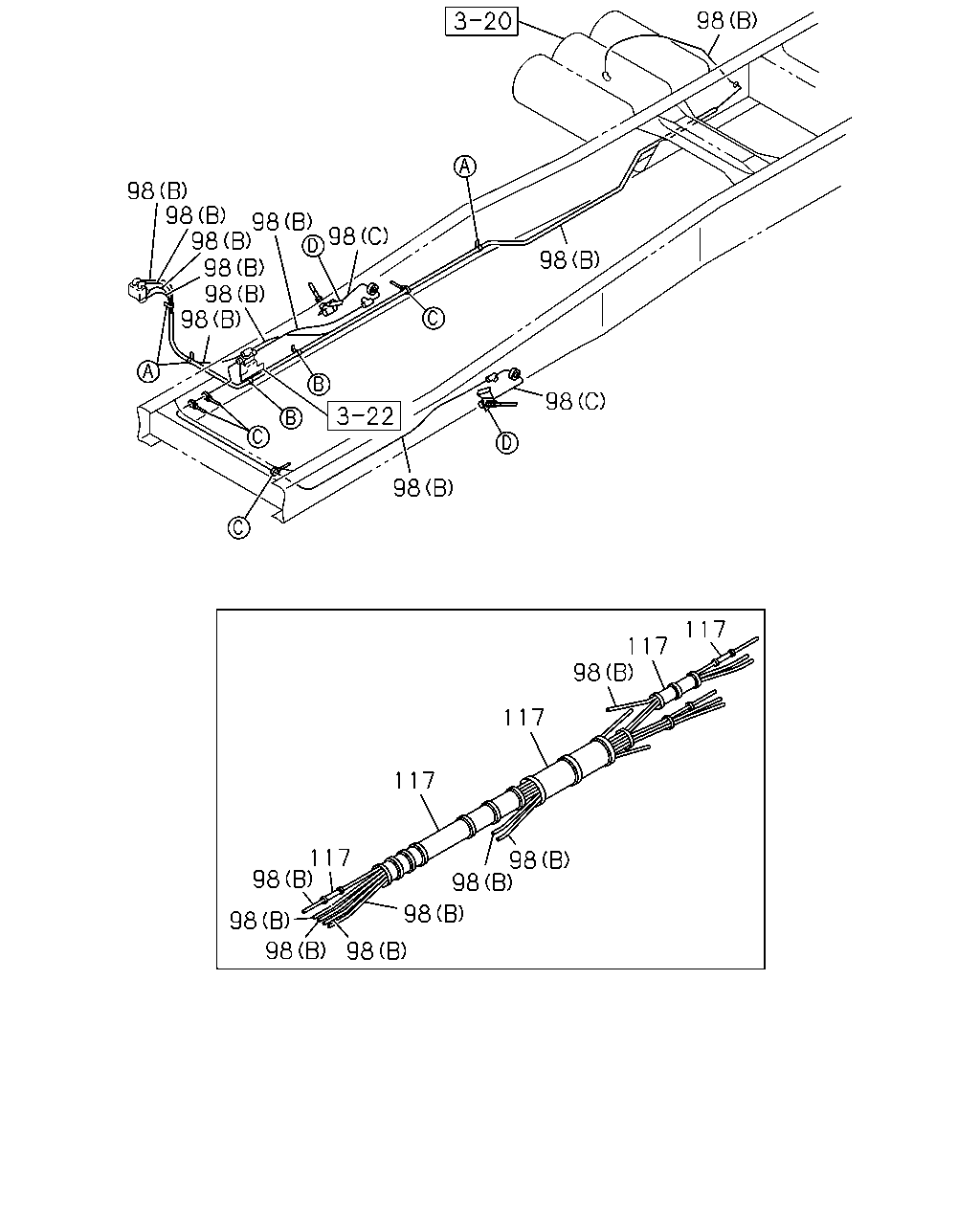

çizim 122158
98 98 98 98 98 98 98 98 98 98 98 98 117 117 98 117 117 117 98 98 98 98 98 98 98
BalonParca AdiParca NoAdetTipApplied Date A B
98 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) L=170 OD=12 THA 		1-49222-063-0 02 1 0902- ●
98 TUBE; NYLON
(C) THA 		8-98106-552-0 01 1 0806-0901 ● ●
98 TUBE; NYLON
(C) THA 		8-98106-552-0 01 1 0902- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98106-552-0 01 1 0902- ●
98 TUBE; NYLON
(C) THA 		8-98086-217-0 01 1 0806-0901 ● ●
98 TUBE; NYLON
(C) THA 		8-98086-217-0 01 1 0902- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98086-217-0 01 1 0902- ●
98 TUBE; NYLON
(A) THA 		8-98091-307-0 01 1 0806- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 0806- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 0806- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 0806- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 0806- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 0806- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 AR 1 0806- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 0806- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 AR 1 0806- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA 		1-87411-022-0 AR 1 0806- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=13 THA 		1-87411-023-0 AR 1 0806- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 THA 		1-87411-027-0 AR 1 0806- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 THA 		1-87411-029-0 AR 1 0806- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA 		1-87411-031-0 AR 1 0806- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 THA 		1-87411-025-0 AR 1 0806- ● ●
çizim 122385
159 159 159 98 178 98 51 149 35 29 32 30 35 31 28 122 15 150
BalonParca AdiParca NoAdetTipApplied Date A B
15 CONNECTOR; AIR PIPE
DIN12 & M20 STRAIGHT IMA 		1-09660-877-0 01 1 0806- ● ●
28 NIPPLE; AIR PIPE
M20 & M20 ELBOW 		1-09654-128-1 02 1 0806- ● ●
29 NUT; NIPPLE
M20 		0-91111-520-0 02 1 0806- ● ●
30 WASHER; LK,NIPPLE
ID=20.2 		0-91510-520-0 02 1 0806- ● ●
31 BRACKET; NIPPLE 8-98094-074-0 01 1 0806- ● ●
31 BRACKET; NIPPLE 8-98094-075-0 01 1 0806- ● ●
32 HOSE; FLEX,FRT
L=430 		0-57847-430-1 02 1 0806- ● ●
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 0806- ● ●
51 GROMMET; NYLON TUBE
ID=28 OD=35 T=25 		1-09332-011-1 01 1 0806-0901 ● ●
51 GROMMET; NYLON TUBE
ID=28 OD=35 T=25 		1-09332-011-1 01 1 0902- ●
51 GROMMET; NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> ID=28 OD=35 T=25 		1-09332-011-1 01 1 0902- ●
51 GROMMET; NYLON TUBE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0806-0901 ● ●
51 GROMMET; NYLON TUBE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0902- ●
51 GROMMET; NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> ID=28 OD=35 T=17 		9-09956-256-2 01 1 0902- ●
98 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) L=170 OD=12 THA 		1-49222-063-0 02 1 0902- ●
98 TUBE; NYLON
(C) THA 		8-98106-552-0 01 1 0806-0901 ● ●
98 TUBE; NYLON
(C) THA 		8-98106-552-0 01 1 0902- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98106-552-0 01 1 0902- ●
98 TUBE; NYLON
(C) THA 		8-98086-217-0 01 1 0806-0901 ● ●
98 TUBE; NYLON
(C) THA 		8-98086-217-0 01 1 0902- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98086-217-0 01 1 0902- ●
98 TUBE; NYLON
(A) THA 		8-98091-307-0 01 1 0806- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 0806- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 0806- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 0806- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 0806- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 0806- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 AR 1 0806- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 0806- ● ●
122 CONNECTOR; FLEX HOSE
M20 & PT3/8 		1-09660-731-1 02 1 0806- ● ●
149 BOLT; UNION
M8X20 FLANGE THA 		0-28650-820-0 01 1 0806-0901 ● ●
149 BOLT; UNION
M8X20 FLANGE THA 		0-28650-820-0 01 1 0902- ●
149 BOLT; UNION
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8X20 FLANGE THA 		0-28650-820-0 01 1 0902- ●
149 BOLT; UNION
M8X25 FLANGE THA 		0-28650-825-0 01 1 0806-0901 ● ●
149 BOLT; UNION
M8X25 FLANGE THA 		0-28650-825-0 01 1 0902- ●
149 BOLT; UNION
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE THA 		0-28650-825-0 01 1 0902- ●
150 ADAPTER; CONT,NEUTRAL BUS STOP
DIN12 & M20 STRAIGHT IMA 		1-09660-877-0 01 1 0806- ● ●
159 CLIP; NYLON TUBE
WHEEL BASE 4700MM<47W> (C) L=350 		1-09707-183-0 23 1 0806-0901 ●
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 23 1 0806-0901 ●
159 CLIP; NYLON TUBE
WHEEL BASE 4700MM<47W> (C) L=350 		1-09707-183-0 23 1 0902- ●
159 CLIP; NYLON TUBE
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) L=350 		1-09707-183-0 23 1 0902- ●
159 CLIP; NYLON TUBE
WHEEL BASE 5300MM<53W> (C) L=350 		1-09707-183-0 25 1 0806-0901 ●
159 CLIP; NYLON TUBE
WHEEL BASE 5300MM<53W> (C) L=350 		1-09707-183-0 25 1 0902-1112 ●
159 CLIP; NYLON TUBE
ANTILOCK BRAKE SYSTEM<BFA> (C) L=350 		1-09707-183-0 25 1 0902-1112 ●
159 CLIP; NYLON TUBE
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (C) L=350 		1-09707-183-0 25 1 1201- ●
159 CLIP; NYLON TUBE
ANTILOCK BRAKE SYSTEM<BFA> (C) L=350 		1-09707-183-0 25 1 1201- ●
159 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 02 1 0806- ● ●
159 CLIP; NYLON TUBE
(B) ID=26 L=26 		1-09701-236-0 01 1 0806- ● ●
159 CLIP; NYLON TUBE
(B) ID=29 L=35 		5-09700-293-1 01 1 0806- ● ●
159 CLIP; NYLON TUBE
(B) ID=39 L=33 		8-98009-359-0 01 1 0806- ● ●
178 UNION
DIN7.5X2 & M8 2WAY 		1-09661-128-0 02 1 0806-0901 ● ●
178 UNION
DIN7.5X2 & M8 2WAY 		1-09661-128-0 02 1 0902- ●
178 UNION
EXC. ANTILOCK BRAKE SYSTEM<BFA> DIN7.5X2 & M8 2WAY 		1-09661-128-0 02 1 0902- ●
