◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11136 - FXZ/GXZ(THAI)EURO3 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#68315) — 127 parça
çizim 121283
435 90 436 296 444 444 444 229 374 80 296 374 296 31 80 258 374 374 297 444 80 434 258 273 258 297 367 296 296 367 296 367
BalonParca AdiParca NoAdetTipApplied Date A B
31 UNION; 3 WAY
MJT7U M/T<Y4X> DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1201- ●
80 UNION; 3 WAY
MAL6R M/T<Y2J> (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 02 1 0806- ●
80 UNION; 3 WAY
ZF9S1310 M/T<Y5K> (B) DIN8 & RC3/8 3WAY THA 		1-09661-129-0 01 1 0806- ●
80 UNION; 3 WAY
(B) DIN8 & RC3/8 3WAY THA 		1-09661-129-0 01 1 0806- ●
80 UNION; 3 WAY
ZF9S1310 M/T<Y5K> (A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0806- ●
80 UNION; 3 WAY
(A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0806- ●
90 NUT; TUBE CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 0806- ● ●
229 ADAPTER; NYLON TUBE
MAL6R M/T<Y2J> (A) DIN12 & M20 STRAIGHT IMA 		1-09660-877-0 01 1 0806- ●
229 ADAPTER; NYLON TUBE
ZF9S1310 M/T<Y5K> (A) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 0806-1112 ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 0806-1112 ●
229 ADAPTER; NYLON TUBE
MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> (A) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1201- ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1201- ●
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0806- ● ●
258 CONNECTOR; NYLON TUBE
MJT7U M/T<Y4X> (D) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 01 1 1201- ●
258 CONNECTOR; NYLON TUBE
MJT7U M/T<Y4X> (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1201- ●
258 CONNECTOR; NYLON TUBE
MAL6R M/T<Y2J> (A) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 01 1 0806- ●
258 CONNECTOR; NYLON TUBE
MAL6R M/T<Y2J> (B) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 0806- ●
258 CONNECTOR; NYLON TUBE
ZF9S1310 M/T<Y5K> (C) 		1-09660-969-0 01 1 0806- ●
258 CONNECTOR; NYLON TUBE
(C) 		1-09660-969-0 01 1 0806- ●
258 CONNECTOR; NYLON TUBE
ZF9S1310 M/T<Y5K> (A) DIN8X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-025-0 01 1 0806- ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-025-0 01 1 0806- ●
273 GROMMET
ID=32 OD=40 T=18 		1-09891-003-0 01 1 0806- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 THA 		1-87411-001-0 AR 1 0806- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 0806- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 0806- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 0806- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 0806- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 0806- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 0806- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 0806- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 0806- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 THA 		1-87411-016-0 AR 1 0806- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 AR 1 0806- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA 		1-87411-022-0 AR 1 0806- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA 		1-87411-031-0 AR 1 0806- ● ●
374 CONNECTOR
MJT7U M/T<Y4X> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 01 1 1201- ●
374 CONNECTOR
MJT7U M/T<Y4X> (B) DIN8X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-025-0 01 1 1201- ●
374 CONNECTOR
MJT7U M/T<Y4X> (C) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1201- ●
374 CONNECTOR
MJT7U M/T<Y4X> (D) PT3/8 4WAY 		1-09661-489-0 01 1 1201- ●
434 CLIP
MJT7U M/T<Y4X> (A) ID=8 H=20 L=20 		1-09700-604-0 02 1 1201- ●
434 CLIP
MJT7U M/T<Y4X> (B) L=350 		1-09707-183-0 02 1 1201- ●
434 CLIP
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 0806-1101 ● ●
434 CLIP
MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> (A) ID=8 H=20 L=20 		1-09700-604-0 01 1 1102-1112 ●
434 CLIP
ZF9S1310 M/T<Y5K> (A) ID=8 H=20 L=20 		1-09700-604-0 01 1 1102-1112 ●
434 CLIP
MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> (A) ID=8 H=20 L=20 		1-09700-604-0 01 1 1201- ●
434 CLIP
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 1201- ●
435 BOLT; CLIP
M8X25 FLANGE THA 		0-28650-825-0 01 1 0806- ● ●
436 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 0806- ● ●
444 BOLT; UNION
WHEEL BASE 4700MM<47W> (B) M8X25 FLANGE THA 		0-28650-825-0 01 1 0806- ●
444 BOLT; UNION
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 0806- ●
444 BOLT; UNION
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 0806-1101 ● ●
444 BOLT; UNION
WHEEL BASE 5300MM<53W> (A) M8X20 FLANGE THA 		0-28650-820-0 01 1 0806-1101 ●
444 BOLT; UNION
WHEEL BASE 5300MM<53W> (A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1102-1112 ●
444 BOLT; UNION
MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> (A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1102-1112 ●
444 BOLT; UNION
ZF9S1310 M/T<Y5K> (A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1102-1112 ●
444 BOLT; UNION
WHEEL BASE 5300MM<53W> (A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1201- ●
444 BOLT; UNION
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1201- ●
444 BOLT; UNION
ZF9S1310 M/T<Y5K> (A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1201- ●

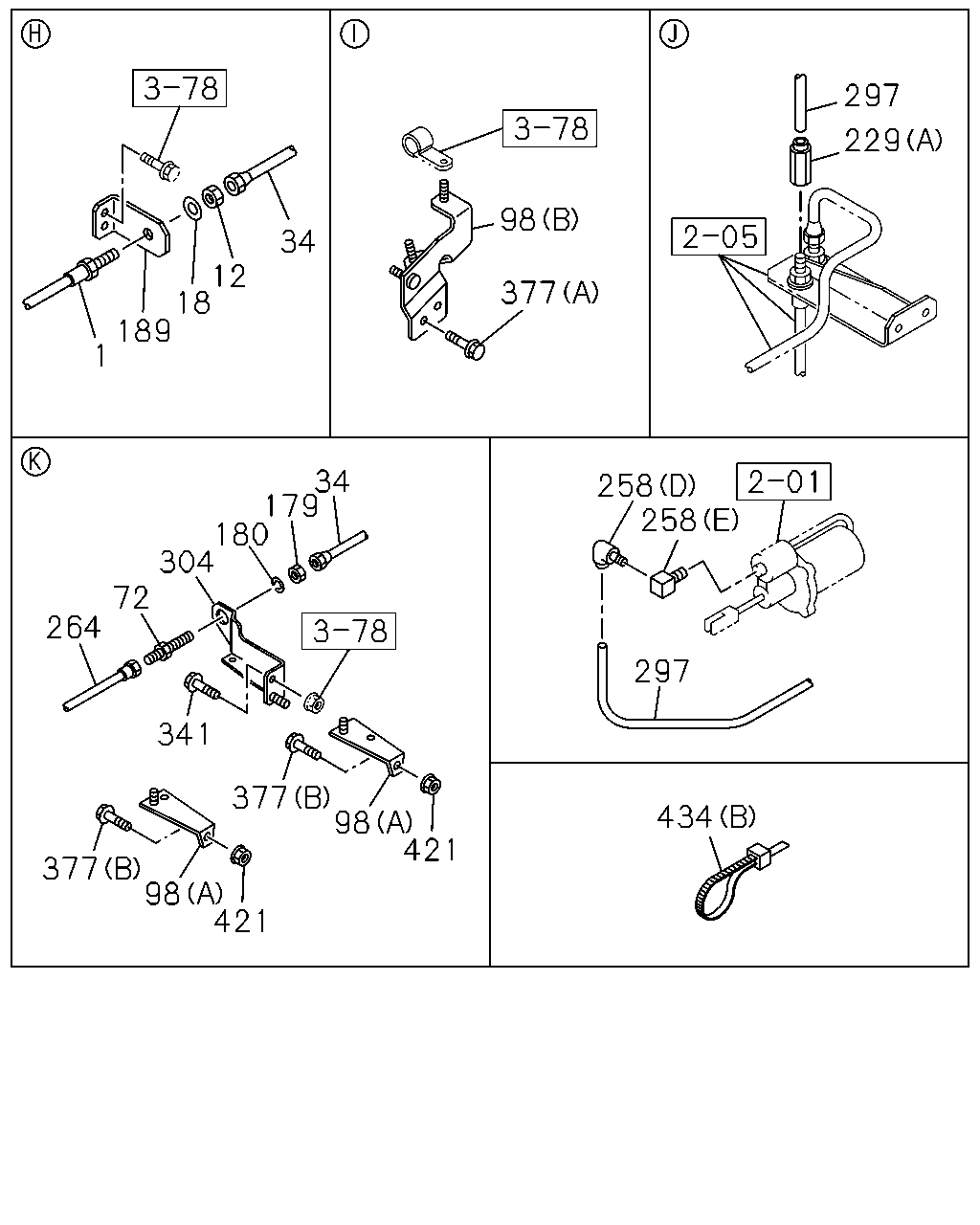

çizim 121391
297 229 98 34 12 18 189 377 1 34 179 180 304 72 264 258 258 297 341 377 98 434 421 377 98 421
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-98100-332-0 01 1 0806-1101 ● ●
1 HOSE; FLEX,AIR TANK 1-09363-940-0 01 1 1102- ● ●
12 NUT; UNION
M22 		0-91111-522-0 01 1 0806- ● ●
18 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 0806- ● ●
34 PIPE; AIR
FRAME EQUIPMENT HEAVY DUTY<F01> L=1287 THA 		8-97620-985-0 01 1 0806- ●
34 PIPE; AIR
EXC. FRAME EQUIPMENT HEAVY DUTY<F01> L=1258 THA 		8-97618-580-0 01 1 0806- ●
34 PIPE; AIR
L=1258 THA 		8-97618-580-0 01 1 0806- ●
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 0806- ● ●
98 BRACKET; AIR PIPE
(A) 		8-97609-096-0 02 1 0806- ● ●
98 BRACKET; AIR PIPE
(B) 		8-97610-999-0 01 1 0806- ● ●
179 NUT; UNION
M22 		0-91111-522-0 01 1 0806- ● ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 0806- ● ●
189 BRACKET; FLEX HOSE 1-47479-473-0 01 1 0806- ● ●
229 ADAPTER; NYLON TUBE
MAL6R M/T<Y2J> (A) DIN12 & M20 STRAIGHT IMA 		1-09660-877-0 01 1 0806- ●
229 ADAPTER; NYLON TUBE
ZF9S1310 M/T<Y5K> (A) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 0806-1112 ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 0806-1112 ●
229 ADAPTER; NYLON TUBE
MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> (A) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1201- ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1201- ●
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0806- ● ●
258 CONNECTOR; NYLON TUBE
MJT7U M/T<Y4X> (D) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 01 1 1201- ●
258 CONNECTOR; NYLON TUBE
MJT7U M/T<Y4X> (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1201- ●
258 CONNECTOR; NYLON TUBE
MAL6R M/T<Y2J> (A) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 01 1 0806- ●
258 CONNECTOR; NYLON TUBE
MAL6R M/T<Y2J> (B) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 0806- ●
258 CONNECTOR; NYLON TUBE
ZF9S1310 M/T<Y5K> (C) 		1-09660-969-0 01 1 0806- ●
258 CONNECTOR; NYLON TUBE
(C) 		1-09660-969-0 01 1 0806- ●
258 CONNECTOR; NYLON TUBE
ZF9S1310 M/T<Y5K> (A) DIN8X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-025-0 01 1 0806- ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-025-0 01 1 0806- ●
264 HOSE; FLEX
ENGINE REAR PTO<SV1> L=1000 		1-09363-794-0 01 1 0806- ●
264 HOSE; FLEX
EXC. ENGINE REAR PTO<SV1> L=1150 		1-09363-791-0 01 1 0806- ●
264 HOSE; FLEX
L=1150 		1-09363-791-0 01 1 0806- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 0806- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 0806- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 0806- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 0806- ● ●
304 BRACKET; UNION 8-97610-362-1 01 1 0806- ● ●
341 BOLT; BRKT
M8X35 FLANGE THA 		0-28650-835-0 01 1 0806- ● ●
377 BOLT; BRKT FIX
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 0806- ● ●
377 BOLT; BRKT FIX
(B) M8X35 FLANGE THA 		0-28650-835-0 02 1 0806- ● ●
421 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 0806- ● ●
434 CLIP
MJT7U M/T<Y4X> (A) ID=8 H=20 L=20 		1-09700-604-0 02 1 1201- ●
434 CLIP
MJT7U M/T<Y4X> (B) L=350 		1-09707-183-0 02 1 1201- ●
434 CLIP
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 0806-1101 ● ●
434 CLIP
MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> (A) ID=8 H=20 L=20 		1-09700-604-0 01 1 1102-1112 ●
434 CLIP
ZF9S1310 M/T<Y5K> (A) ID=8 H=20 L=20 		1-09700-604-0 01 1 1102-1112 ●
434 CLIP
MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> (A) ID=8 H=20 L=20 		1-09700-604-0 01 1 1201- ●
434 CLIP
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 1201- ●

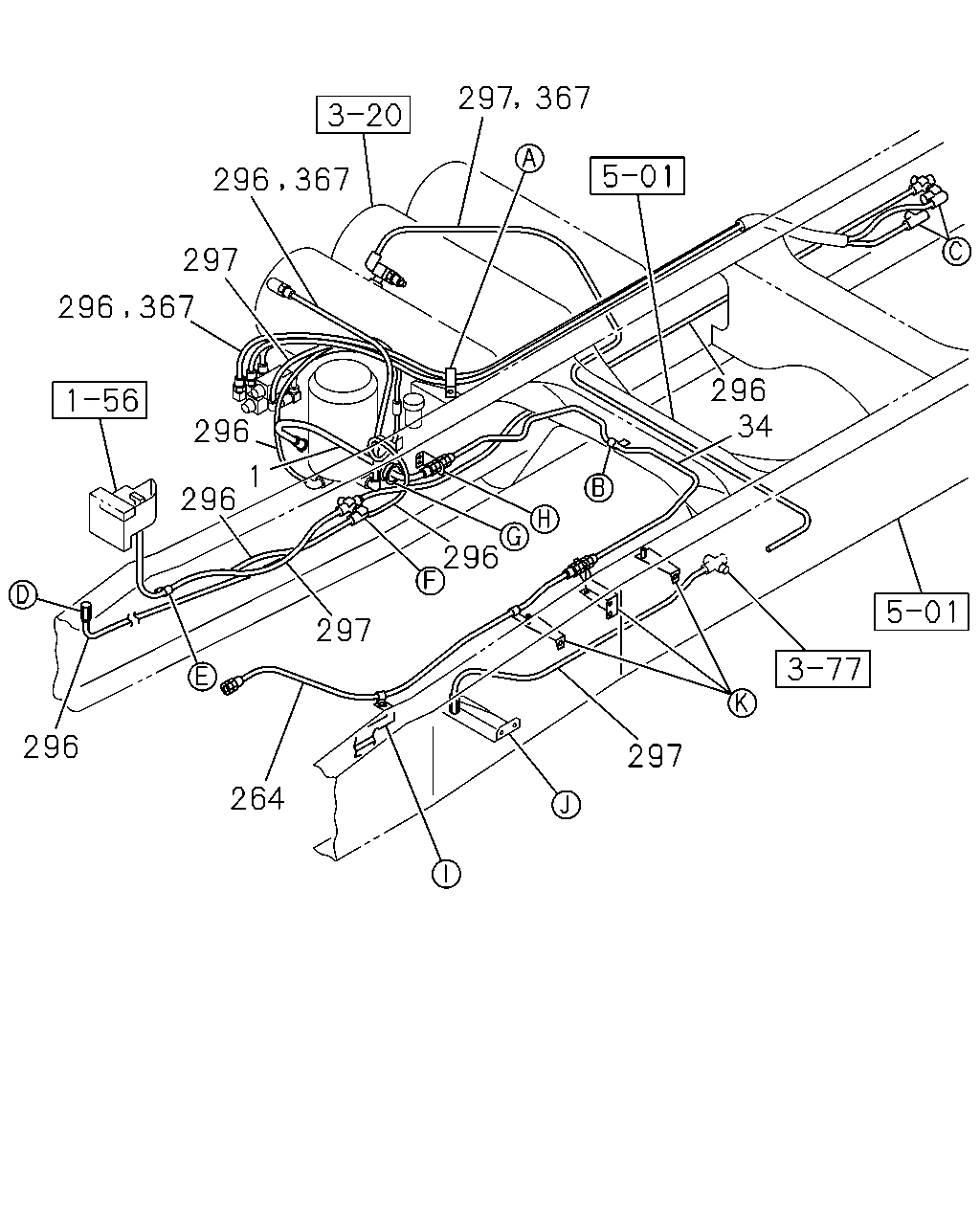

çizim 121559
297 367 297 296 34 296 1 296 296 297 296 297 264 296 367 296 367
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-98100-332-0 01 1 0806-1101 ● ●
1 HOSE; FLEX,AIR TANK 1-09363-940-0 01 1 1102- ● ●
34 PIPE; AIR
FRAME EQUIPMENT HEAVY DUTY<F01> L=1287 THA 		8-97620-985-0 01 1 0806- ●
34 PIPE; AIR
EXC. FRAME EQUIPMENT HEAVY DUTY<F01> L=1258 THA 		8-97618-580-0 01 1 0806- ●
34 PIPE; AIR
L=1258 THA 		8-97618-580-0 01 1 0806- ●
264 HOSE; FLEX
ENGINE REAR PTO<SV1> L=1000 		1-09363-794-0 01 1 0806- ●
264 HOSE; FLEX
EXC. ENGINE REAR PTO<SV1> L=1150 		1-09363-791-0 01 1 0806- ●
264 HOSE; FLEX
L=1150 		1-09363-791-0 01 1 0806- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 THA 		1-87411-001-0 AR 1 0806- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 0806- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 0806- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 0806- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 0806- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 0806- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 0806- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 0806- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 0806- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 THA 		1-87411-016-0 AR 1 0806- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 AR 1 0806- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA 		1-87411-022-0 AR 1 0806- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA 		1-87411-031-0 AR 1 0806- ● ●
çizim 193925
107 107
BalonParca AdiParca NoAdetTipApplied Date A B
107 COUPLING; SERVICE
BLUE 		1-47465-151-0 01 1 0806- ●
107 COUPLING; SERVICE
RED 		1-47465-152-0 01 1 0806-0810 ●
