◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11136 - FXZ/GXZ(THAI)EURO3 ▶ 3 - Brakes, Brake System ▶ 3-46 - AIR DRYER ▶
3-46 — AIR DRYER (#68312) — 29 parça

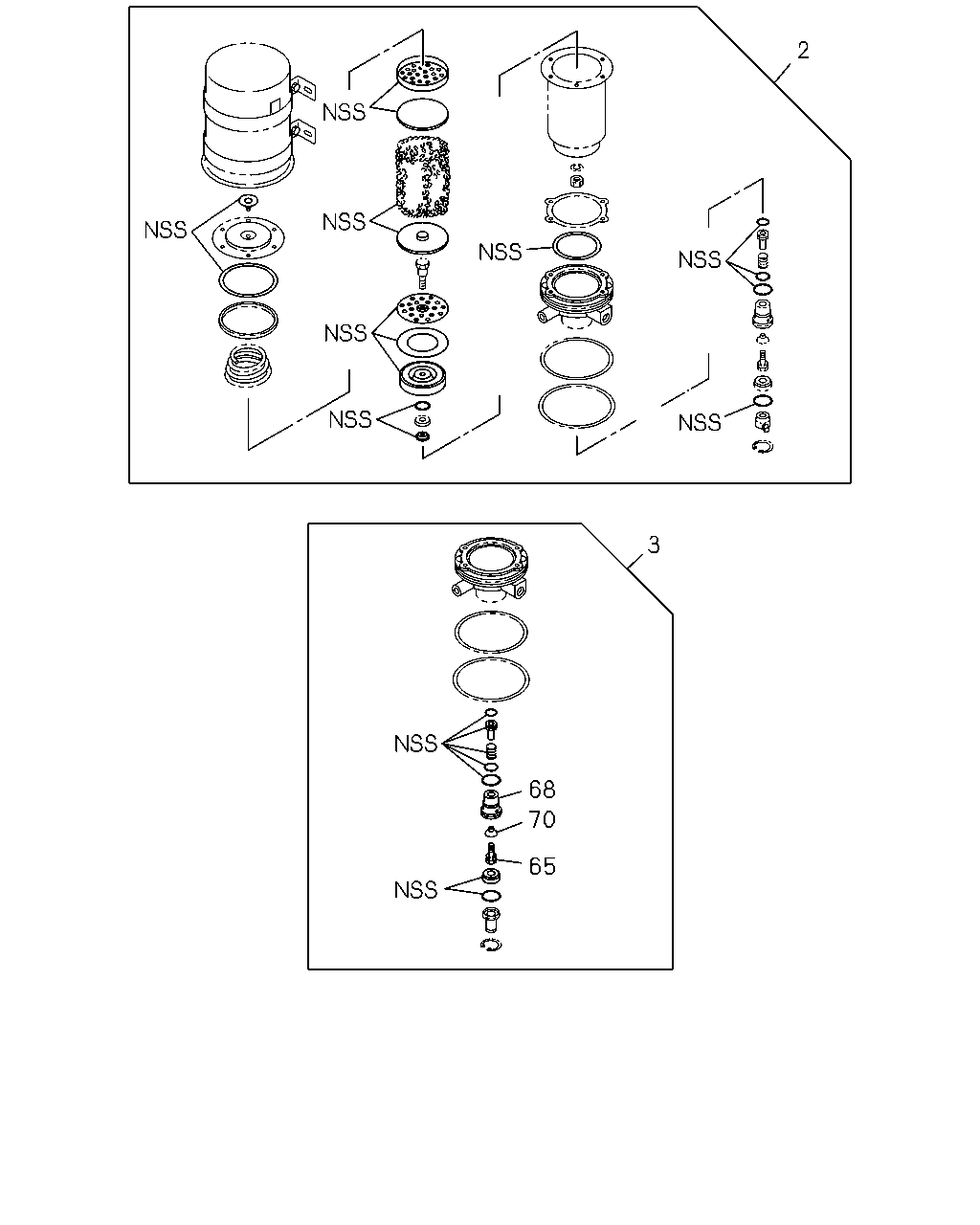

çizim 118418
2 3 68 70 65
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; AIR DRYER
THA 		1-85576-463-0 01 1 0806- ● ●
3 PISTON KIT; AIR DRYER
THA 		1-85576-057-1 01 1 0806- ● ●
65 BOLT; PURGE VLV
THA 		1-48199-393-0 01 1 0806- ● ●
68 BODY; VALVE
THA 		1-48199-216-0 01 1 0806- ● ●
70 VALVE; AIR DRYER
THA 		1-48199-105-0 01 1 0806- ● ●

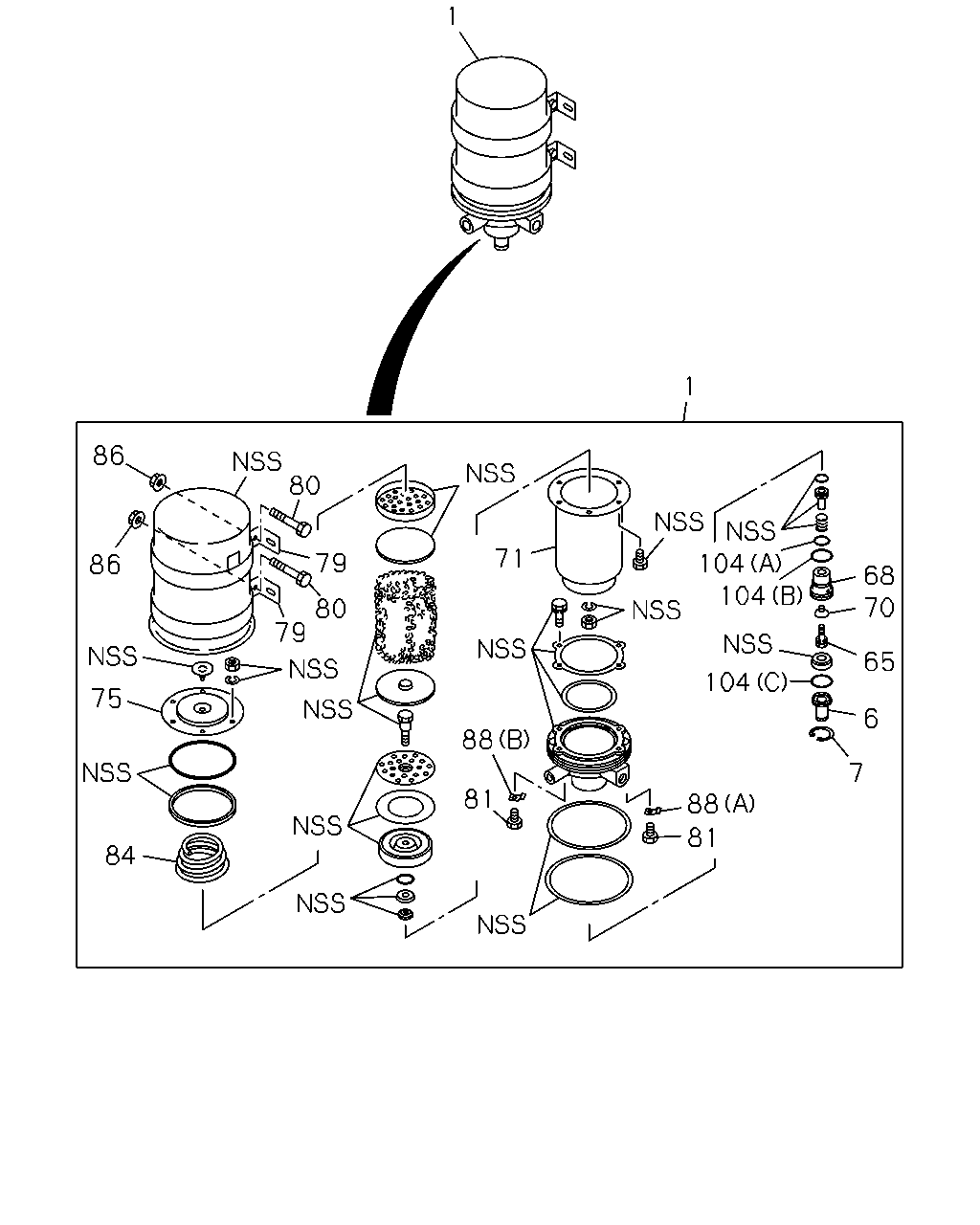

çizim 118452
1 1 86 80 80 79 104 104 71 79 86 68 70 65 104 75 6 88 7 81 88 81 84
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR
THA 		1-48190-374-1 01 1 0806- ● ●
6 COVER; EXH,AIR DRYER
THA 		1-48199-101-0 01 1 0806- ● ●
7 RING; SNAP,AIR DRYER
THA 		1-48199-154-0 01 1 0806- ● ●
65 BOLT; PURGE VLV
THA 		1-48199-393-0 01 1 0806- ● ●
68 BODY; VALVE
THA 		1-48199-216-0 01 1 0806- ● ●
70 VALVE; AIR DRYER
THA 		1-48199-105-0 01 1 0806- ● ●
71 CASE; INNER,AIR DRYER
THA 		1-48199-156-1 01 1 0806- ● ●
75 COVER; CASE,AIR DRYER
THA 		1-48199-167-0 01 1 0806- ● ●
79 BRACKET; AIR DRYER
THA 		1-48199-189-0 02 1 0806- ● ●
80 BOLT; BRKT
THA 		1-48199-190-0 02 1 0806- ● ●
81 BOLT; CASE,AIR DRYER
THA 		1-48199-177-0 02 1 0806- ● ●
84 SPRING; AIR DRYER
THA 		1-48199-166-0 01 1 0806- ● ●
86 NUT; BRKT
THA 		1-48199-320-0 02 1 0806- ● ●
88 PLATE; STOPPER
(A) THA 		1-48199-178-0 01 1 0806- ● ●
88 PLATE; STOPPER
(B) THA 		1-48199-179-0 01 1 0806- ● ●
104 GASKET
(A) THA 		1-48199-108-0 01 1 0806- ● ●
104 GASKET
(B) THA 		1-48199-109-0 01 1 0806- ● ●
104 GASKET
(C) THA 		1-48199-153-0 01 1 0806- ● ●

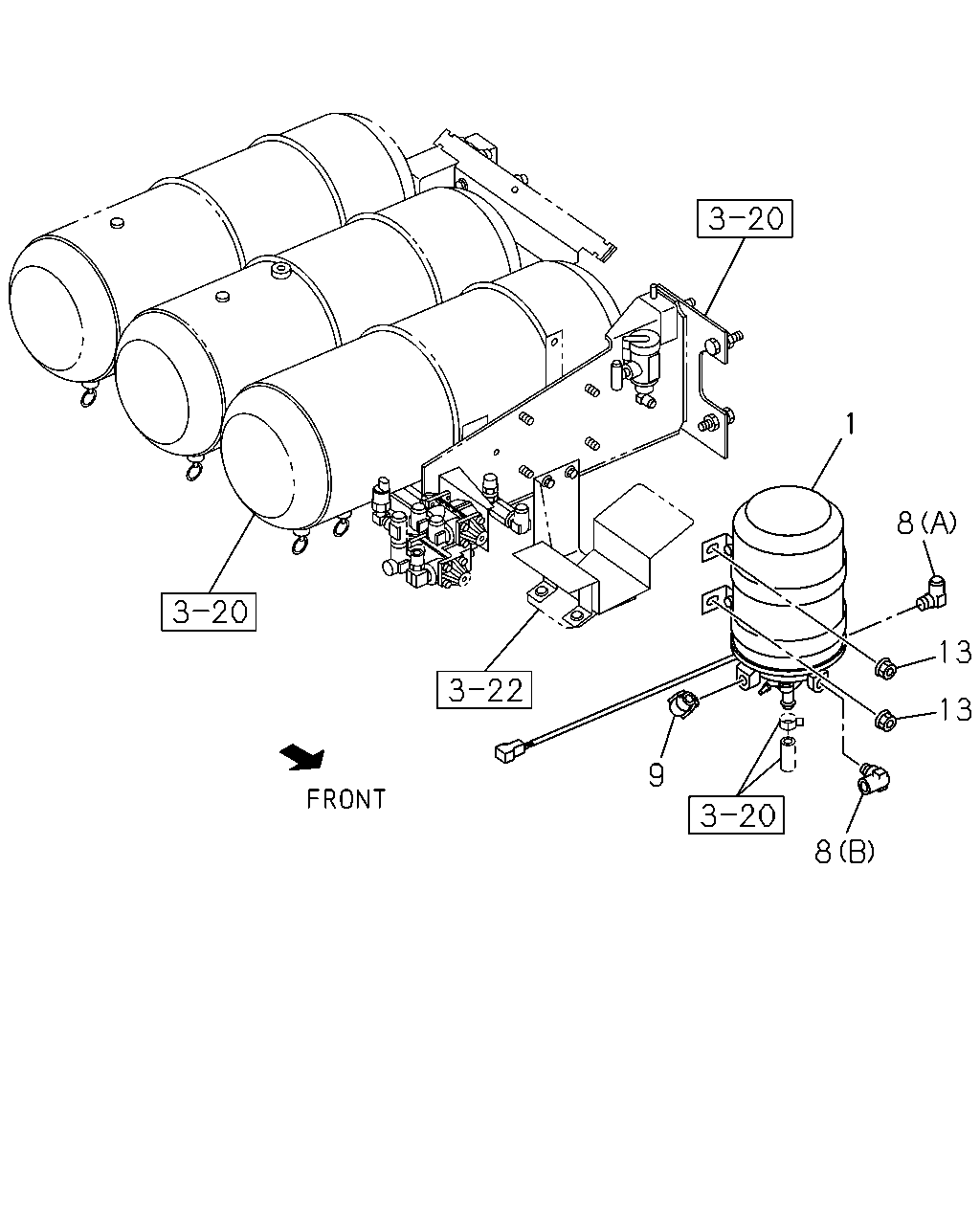

çizim 193923
8 13 13 9 8 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR
THA 		1-48190-374-1 01 1 0806- ● ●
8 CONNECTOR; OUT,AIR DRYER
(A) DIN12 & R1/2 ELBOW THA 		1-09660-960-0 01 1 0806- ● ●
8 CONNECTOR; OUT,AIR DRYER
(B) DIN6 & R1/4 ELBOW THA 		1-09661-067-0 01 1 0806- ● ●
9 CONNECTOR; PIPE,AIR DRYER
M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 0806-1101 ● ●
9 CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 ELBOW IMA 		0-92134-315-0 01 1 1102- ● ●
13 NUT; AIR DRYER
M10 FLANGE THA 		0-91180-210-0 04 1 0806- ● ●
