Sayfa 3-41 - Isuzu EPC

3-41 — REAR BRAKE POWER CHAMBER (#68311) — 267 parça

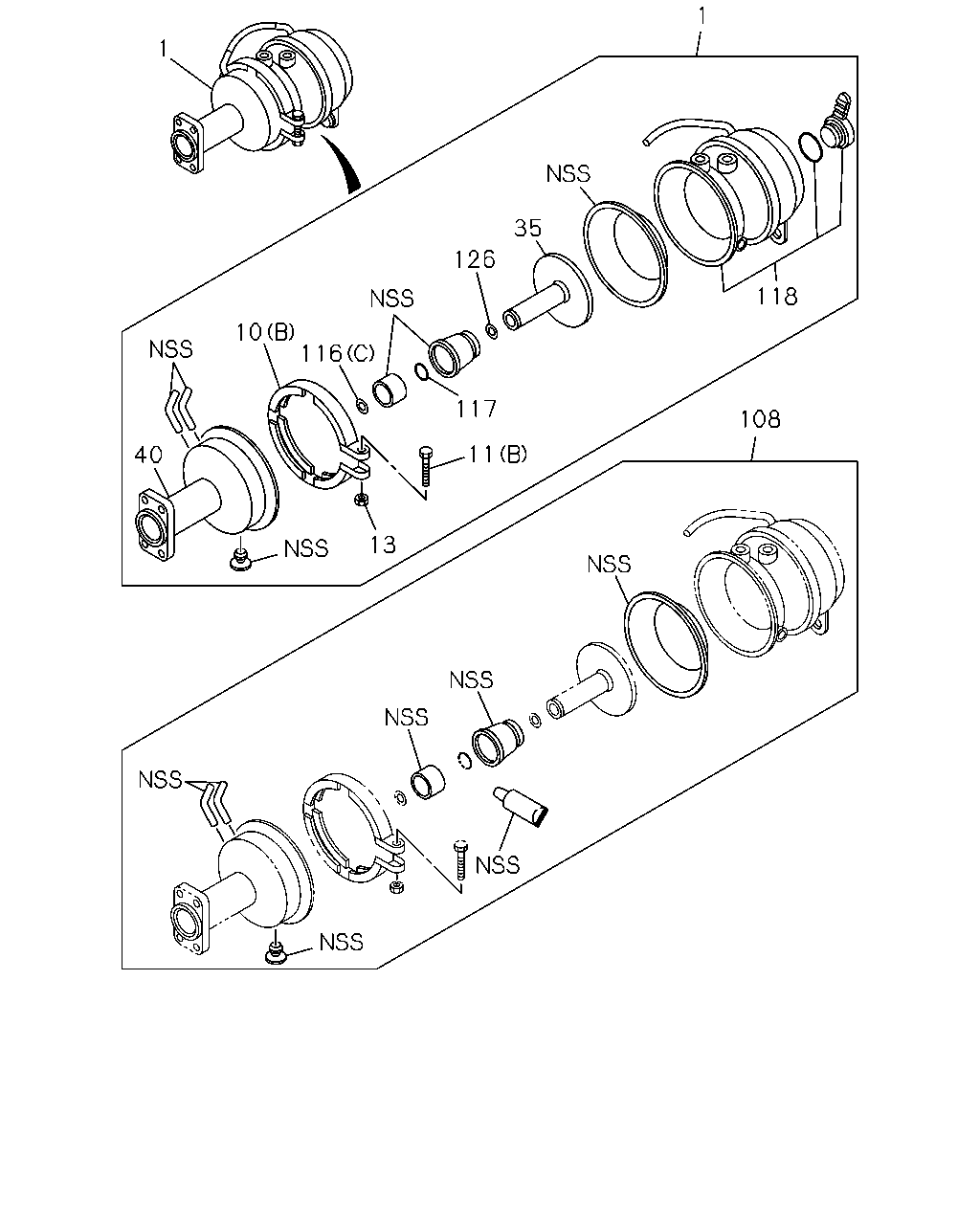

1 1 35 126 118 10 116 117 108 11 40 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING REARWARD	1-48250-902-0	01	1	0806-0910	●	●
1	CHAMBER ASM; SPRING REARWARD	8-98145-686-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING REARWARD	1-87412-083-0	01	1	1006-1301	●	●
1	CHAMBER ASM; SPRING REARWARD	1-48250-903-0	01	1	0806-0910	●	●
1	CHAMBER ASM; SPRING REARWARD	8-98145-687-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING REARWARD	1-87412-084-0	01	1	1006-1301	●	●
1	CHAMBER ASM; SPRING FORWARD	1-48250-906-2	01	1	0806-0910	●	●
1	CHAMBER ASM; SPRING FORWARD	8-98145-690-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD	1-87412-089-0	01	1	1006-1303	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-089-0	01	1	1304-	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-089-0	01	1	1304-	●	●
1	CHAMBER ASM; SPRING FORWARD	1-48250-907-2	01	1	0806-0910	●	●
1	CHAMBER ASM; SPRING FORWARD	8-98145-691-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD	1-87412-090-0	01	1	1006-1303	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-090-0	01	1	1304-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-090-0	01	1	1304-	●	●
10	RING; CLAMP,SPR CHAMBER (A) REARWARD	1-48269-148-0	02	1	0806-1005	●	●
10	RING; CLAMP,SPR CHAMBER (B) REARWARD THA	8-98167-056-0	02	1	1006-1301	●	●
10	RING; CLAMP,SPR CHAMBER (A) FORWARD	1-48269-149-0	02	1	0806-0901	●	●
10	RING; CLAMP,SPR CHAMBER (B) FORWARD THA	1-48269-256-0	02	1	0902-1303	●	●
10	RING; CLAMP,SPR CHAMBER (B) THA	1-48269-256-0	02	1	1304-	●	●
10	RING; CLAMP,SPR CHAMBER (B) THA	1-48269-256-0	02	1	1304-	●	●
11	BOLT; CLAMP RING (B) FORWARD THA	1-48269-257-0	02	1	0902-1005	●	●
11	BOLT; CLAMP RING (B) THA	1-48269-257-0	02	1	1006-	●	●
11	BOLT; CLAMP RING (B) THA	1-48269-257-0	02	1	1006-	●	●
11	BOLT; CLAMP RING (A)	1-48269-146-0	08	1	0806-0807	●	●
11	BOLT; CLAMP RING (A)	1-48269-146-0	04	1	0808-0901	●	●
11	BOLT; CLAMP RING (A)	1-48269-146-0	04	1	0808-0901	●	●
11	BOLT; CLAMP RING (A) REARWARD	1-48269-146-0	04	1	0902-1005	●	●
13	NUT; CLAMP RING THA	1-48269-147-0	04	1	0902-1005	●	●
13	NUT; CLAMP RING THA	1-48269-147-0	02	1	1006-	●	●
13	NUT; CLAMP RING THA	1-48269-147-0	02	1	1006-	●	●
13	NUT; CLAMP RING THA	1-48269-147-0	08	1	0806-0807	●	●
13	NUT; CLAMP RING THA	1-48269-147-0	04	1	0808-0901	●	●
13	NUT; CLAMP RING THA	1-48269-147-0	04	1	0808-0901	●	●
13	NUT; CLAMP RING THA	1-48269-147-0	02	1	0902-1005	●	●
35	PLATE; ROD END,SPR CHAMBER REARWARD	1-48263-019-0	02	1	0806-0910	●	●
35	PLATE; ROD END,SPR CHAMBER REARWARD THA	8-98146-971-0	02	1	0911-1301	●	●
35	PLATE; ROD END,SPR CHAMBER FORWARD	1-48263-021-0	02	1	0806-0910	●	●
35	PLATE; ROD END,SPR CHAMBER FORWARD THA	8-98146-972-0	02	1	0911-1303	●	●
35	PLATE; ROD END,SPR CHAMBER THA	8-98146-972-0	02	1	1304-	●	●
35	PLATE; ROD END,SPR CHAMBER THA	8-98146-972-0	02	1	1304-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD THA	1-48251-134-1	01	1	0806-1303	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH THA	1-48251-134-1	01	1	1304-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH THA	1-48251-134-1	01	1	1304-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD THA	1-48251-135-1	01	1	0806-1303	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH THA	1-48251-135-1	01	1	1304-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH THA	1-48251-135-1	01	1	1304-	●	●
40	COVER ASM; LWR,SPR CHAMBER REARWARD THA	1-48251-138-1	01	1	0806-1301	●	●
40	COVER ASM; LWR,SPR CHAMBER REARWARD THA	1-48251-139-1	01	1	0806-1301	●	●
108	REPAIR KIT; SPR CHAMBER FORWARD	1-85576-320-0	02	1	0806-0910	●	●
108	REPAIR KIT; SPR CHAMBER FORWARD THA	8-98146-982-0	02	1	0911-1303	●	●
108	REPAIR KIT; SPR CHAMBER THA	8-98146-982-0	02	1	1304-	●	●
108	REPAIR KIT; SPR CHAMBER THA	8-98146-982-0	02	1	1304-	●	●
108	REPAIR KIT; SPR CHAMBER REARWARD	1-85576-321-0	02	1	0806-0910	●	●
108	REPAIR KIT; SPR CHAMBER REARWARD THA	8-98146-981-0	02	1	0911-1301	●	●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	04	1	0806-0807	●	●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0808-0910	●	●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0808-0910	●	●
116	GUIDE; SPR CHAMBER (C) THA	8-98146-963-0	02	1	0911-	●	●
116	GUIDE; SPR CHAMBER (C) THA	8-98146-963-0	02	1	0911-	●	●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	04	1	0806-0807	●	●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0808-0910	●	●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0808-0910	●	●
117	RING; SPR CHAMBER	1-48269-155-0	04	1	0806-0807	●	●
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0808-0910	●	●
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0808-0910	●	●
117	RING; SPR CHAMBER THA	8-98146-966-0	02	1	0911-	●	●
117	RING; SPR CHAMBER THA	8-98146-966-0	02	1	0911-	●	●
118	CHAMBER; PIGGY BACK FORWARD	1-48251-183-1	01	1	0806-1005	●	●
118	CHAMBER; PIGGY BACK FORWARD THA	1-87412-111-0	01	1	1006-1303	●	●
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH THA	1-87412-111-0	01	1	1304-	●	●
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH THA	1-87412-111-0	01	1	1304-	●	●
118	CHAMBER; PIGGY BACK FORWARD	1-48251-184-1	01	1	0806-1005	●	●
118	CHAMBER; PIGGY BACK FORWARD THA	1-87412-112-0	01	1	1006-1303	●	●
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH THA	1-87412-112-0	01	1	1304-	●	●
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH THA	1-87412-112-0	01	1	1304-	●	●
118	CHAMBER; PIGGY BACK REARWARD	1-48251-187-1	01	1	0806-1005	●	●
118	CHAMBER; PIGGY BACK REARWARD THA	1-87412-107-0	01	1	1006-1301	●	●
118	CHAMBER; PIGGY BACK REARWARD	1-48251-188-1	01	1	0806-1005	●	●
118	CHAMBER; PIGGY BACK REARWARD THA	1-87412-108-0	01	1	1006-1301	●	●
126	SHIM THA	8-98146-965-0	AR	1	0911-	●	●
126	SHIM THA	8-98146-965-0	AR	1	0911-	●	●

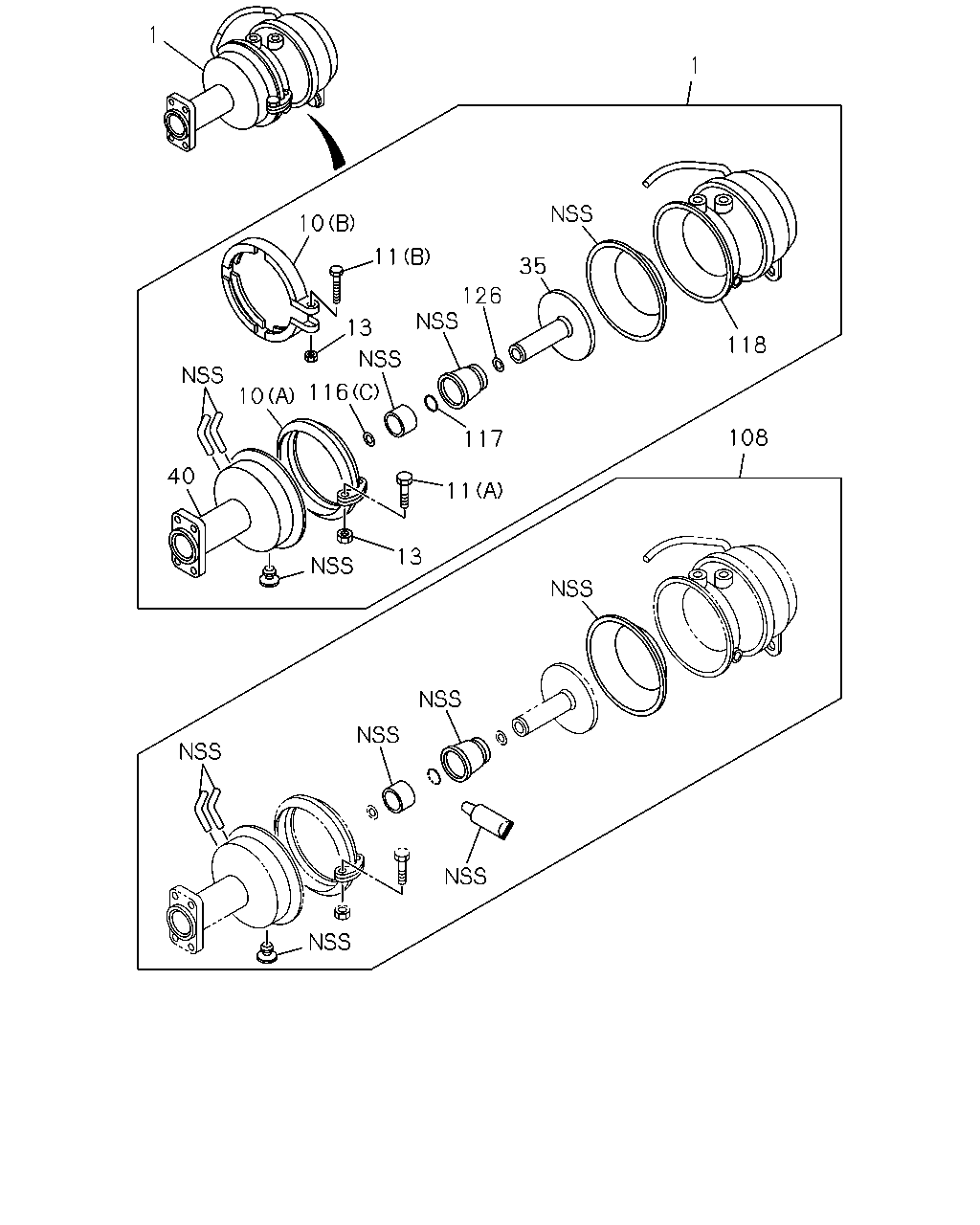

1 1 10 11 35 126 13 118 116 10 108 117 40 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING REARWARD	1-48250-902-0	01	1	0806-0910	●	●
1	CHAMBER ASM; SPRING REARWARD	8-98145-686-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING REARWARD	1-87412-083-0	01	1	1006-1301	●	●
1	CHAMBER ASM; SPRING REARWARD	1-48250-903-0	01	1	0806-0910	●	●
1	CHAMBER ASM; SPRING REARWARD	8-98145-687-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING REARWARD	1-87412-084-0	01	1	1006-1301	●	●
1	CHAMBER ASM; SPRING FORWARD	1-48250-906-2	01	1	0806-0910	●	●
1	CHAMBER ASM; SPRING FORWARD	8-98145-690-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD	1-87412-089-0	01	1	1006-1303	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-089-0	01	1	1304-	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-089-0	01	1	1304-	●	●
1	CHAMBER ASM; SPRING FORWARD	1-48250-907-2	01	1	0806-0910	●	●
1	CHAMBER ASM; SPRING FORWARD	8-98145-691-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD	1-87412-090-0	01	1	1006-1303	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-090-0	01	1	1304-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-090-0	01	1	1304-	●	●
10	RING; CLAMP,SPR CHAMBER (A) REARWARD	1-48269-148-0	02	1	0806-1005	●	●
10	RING; CLAMP,SPR CHAMBER (B) REARWARD THA	8-98167-056-0	02	1	1006-1301	●	●
10	RING; CLAMP,SPR CHAMBER (A) FORWARD	1-48269-149-0	02	1	0806-0901	●	●
10	RING; CLAMP,SPR CHAMBER (B) FORWARD THA	1-48269-256-0	02	1	0902-1303	●	●
10	RING; CLAMP,SPR CHAMBER (B) THA	1-48269-256-0	02	1	1304-	●	●
10	RING; CLAMP,SPR CHAMBER (B) THA	1-48269-256-0	02	1	1304-	●	●
11	BOLT; CLAMP RING (B) FORWARD THA	1-48269-257-0	02	1	0902-1005	●	●
11	BOLT; CLAMP RING (B) THA	1-48269-257-0	02	1	1006-	●	●
11	BOLT; CLAMP RING (B) THA	1-48269-257-0	02	1	1006-	●	●
11	BOLT; CLAMP RING (A)	1-48269-146-0	08	1	0806-0807	●	●
11	BOLT; CLAMP RING (A)	1-48269-146-0	04	1	0808-0901	●	●
11	BOLT; CLAMP RING (A)	1-48269-146-0	04	1	0808-0901	●	●
11	BOLT; CLAMP RING (A) REARWARD	1-48269-146-0	04	1	0902-1005	●	●
13	NUT; CLAMP RING THA	1-48269-147-0	04	1	0902-1005	●	●
13	NUT; CLAMP RING THA	1-48269-147-0	02	1	1006-	●	●
13	NUT; CLAMP RING THA	1-48269-147-0	02	1	1006-	●	●
13	NUT; CLAMP RING THA	1-48269-147-0	08	1	0806-0807	●	●
13	NUT; CLAMP RING THA	1-48269-147-0	04	1	0808-0901	●	●
13	NUT; CLAMP RING THA	1-48269-147-0	04	1	0808-0901	●	●
13	NUT; CLAMP RING THA	1-48269-147-0	02	1	0902-1005	●	●
35	PLATE; ROD END,SPR CHAMBER REARWARD	1-48263-019-0	02	1	0806-0910	●	●
35	PLATE; ROD END,SPR CHAMBER REARWARD THA	8-98146-971-0	02	1	0911-1301	●	●
35	PLATE; ROD END,SPR CHAMBER FORWARD	1-48263-021-0	02	1	0806-0910	●	●
35	PLATE; ROD END,SPR CHAMBER FORWARD THA	8-98146-972-0	02	1	0911-1303	●	●
35	PLATE; ROD END,SPR CHAMBER THA	8-98146-972-0	02	1	1304-	●	●
35	PLATE; ROD END,SPR CHAMBER THA	8-98146-972-0	02	1	1304-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD THA	1-48251-134-1	01	1	0806-1303	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH THA	1-48251-134-1	01	1	1304-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH THA	1-48251-134-1	01	1	1304-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD THA	1-48251-135-1	01	1	0806-1303	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH THA	1-48251-135-1	01	1	1304-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH THA	1-48251-135-1	01	1	1304-	●	●
40	COVER ASM; LWR,SPR CHAMBER REARWARD THA	1-48251-138-1	01	1	0806-1301	●	●
40	COVER ASM; LWR,SPR CHAMBER REARWARD THA	1-48251-139-1	01	1	0806-1301	●	●
108	REPAIR KIT; SPR CHAMBER FORWARD	1-85576-320-0	02	1	0806-0910	●	●
108	REPAIR KIT; SPR CHAMBER FORWARD THA	8-98146-982-0	02	1	0911-1303	●	●
108	REPAIR KIT; SPR CHAMBER THA	8-98146-982-0	02	1	1304-	●	●
108	REPAIR KIT; SPR CHAMBER THA	8-98146-982-0	02	1	1304-	●	●
108	REPAIR KIT; SPR CHAMBER REARWARD	1-85576-321-0	02	1	0806-0910	●	●
108	REPAIR KIT; SPR CHAMBER REARWARD THA	8-98146-981-0	02	1	0911-1301	●	●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	04	1	0806-0807	●	●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0808-0910	●	●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0808-0910	●	●
116	GUIDE; SPR CHAMBER (C) THA	8-98146-963-0	02	1	0911-	●	●
116	GUIDE; SPR CHAMBER (C) THA	8-98146-963-0	02	1	0911-	●	●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	04	1	0806-0807	●	●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0808-0910	●	●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0808-0910	●	●
117	RING; SPR CHAMBER	1-48269-155-0	04	1	0806-0807	●	●
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0808-0910	●	●
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0808-0910	●	●
117	RING; SPR CHAMBER THA	8-98146-966-0	02	1	0911-	●	●
117	RING; SPR CHAMBER THA	8-98146-966-0	02	1	0911-	●	●
118	CHAMBER; PIGGY BACK FORWARD	1-48251-183-1	01	1	0806-1005	●	●
118	CHAMBER; PIGGY BACK FORWARD THA	1-87412-111-0	01	1	1006-1303	●	●
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH THA	1-87412-111-0	01	1	1304-	●	●
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH THA	1-87412-111-0	01	1	1304-	●	●
118	CHAMBER; PIGGY BACK FORWARD	1-48251-184-1	01	1	0806-1005	●	●
118	CHAMBER; PIGGY BACK FORWARD THA	1-87412-112-0	01	1	1006-1303	●	●
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH THA	1-87412-112-0	01	1	1304-	●	●
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH THA	1-87412-112-0	01	1	1304-	●	●
118	CHAMBER; PIGGY BACK REARWARD	1-48251-187-1	01	1	0806-1005	●	●
118	CHAMBER; PIGGY BACK REARWARD THA	1-87412-107-0	01	1	1006-1301	●	●
118	CHAMBER; PIGGY BACK REARWARD	1-48251-188-1	01	1	0806-1005	●	●
118	CHAMBER; PIGGY BACK REARWARD THA	1-87412-108-0	01	1	1006-1301	●	●
126	SHIM THA	8-98146-965-0	AR	1	0911-	●	●
126	SHIM THA	8-98146-965-0	AR	1	0911-	●	●

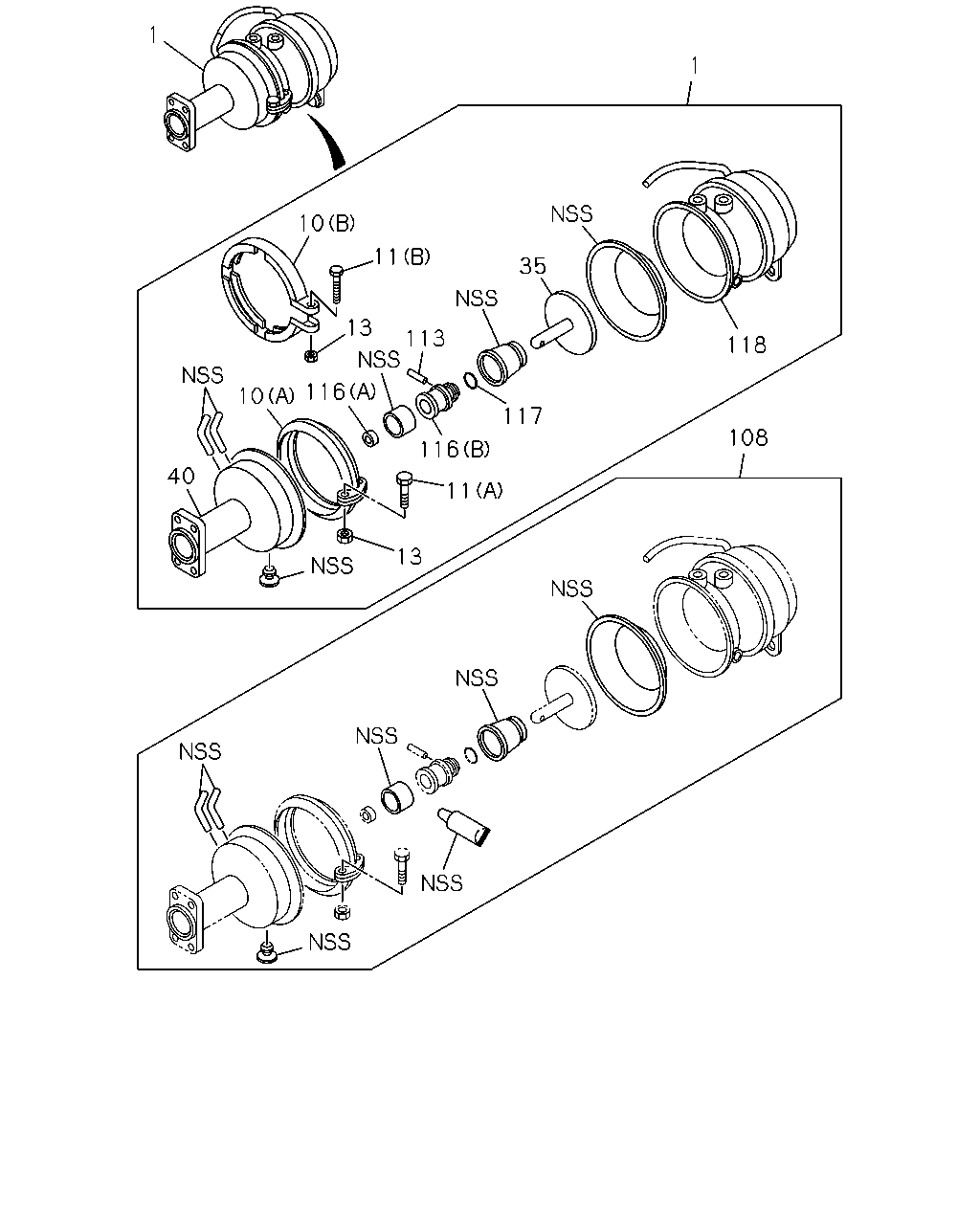

1 1 10 11 35 13 113 118 116 10 117 108 116 40 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING REARWARD	1-48250-902-0	01	1	0806-0910	●	●
1	CHAMBER ASM; SPRING REARWARD	8-98145-686-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING REARWARD	1-87412-083-0	01	1	1006-1301	●	●
1	CHAMBER ASM; SPRING REARWARD	1-48250-903-0	01	1	0806-0910	●	●
1	CHAMBER ASM; SPRING REARWARD	8-98145-687-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING REARWARD	1-87412-084-0	01	1	1006-1301	●	●
1	CHAMBER ASM; SPRING FORWARD	1-48250-906-2	01	1	0806-0910	●	●
1	CHAMBER ASM; SPRING FORWARD	8-98145-690-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD	1-87412-089-0	01	1	1006-1303	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-089-0	01	1	1304-	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-089-0	01	1	1304-	●	●
1	CHAMBER ASM; SPRING FORWARD	1-48250-907-2	01	1	0806-0910	●	●
1	CHAMBER ASM; SPRING FORWARD	8-98145-691-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD	1-87412-090-0	01	1	1006-1303	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-090-0	01	1	1304-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-090-0	01	1	1304-	●	●
10	RING; CLAMP,SPR CHAMBER (A) REARWARD	1-48269-148-0	02	1	0806-1005	●	●
10	RING; CLAMP,SPR CHAMBER (B) REARWARD THA	8-98167-056-0	02	1	1006-1301	●	●
10	RING; CLAMP,SPR CHAMBER (A) FORWARD	1-48269-149-0	02	1	0806-0901	●	●
10	RING; CLAMP,SPR CHAMBER (B) FORWARD THA	1-48269-256-0	02	1	0902-1303	●	●
10	RING; CLAMP,SPR CHAMBER (B) THA	1-48269-256-0	02	1	1304-	●	●
10	RING; CLAMP,SPR CHAMBER (B) THA	1-48269-256-0	02	1	1304-	●	●
11	BOLT; CLAMP RING (B) FORWARD THA	1-48269-257-0	02	1	0902-1005	●	●
11	BOLT; CLAMP RING (B) THA	1-48269-257-0	02	1	1006-	●	●
11	BOLT; CLAMP RING (B) THA	1-48269-257-0	02	1	1006-	●	●
11	BOLT; CLAMP RING (A)	1-48269-146-0	08	1	0806-0807	●	●
11	BOLT; CLAMP RING (A)	1-48269-146-0	04	1	0808-0901	●	●
11	BOLT; CLAMP RING (A)	1-48269-146-0	04	1	0808-0901	●	●
11	BOLT; CLAMP RING (A) REARWARD	1-48269-146-0	04	1	0902-1005	●	●
13	NUT; CLAMP RING THA	1-48269-147-0	04	1	0902-1005	●	●
13	NUT; CLAMP RING THA	1-48269-147-0	02	1	1006-	●	●
13	NUT; CLAMP RING THA	1-48269-147-0	02	1	1006-	●	●
13	NUT; CLAMP RING THA	1-48269-147-0	08	1	0806-0807	●	●
13	NUT; CLAMP RING THA	1-48269-147-0	04	1	0808-0901	●	●
13	NUT; CLAMP RING THA	1-48269-147-0	04	1	0808-0901	●	●
13	NUT; CLAMP RING THA	1-48269-147-0	02	1	0902-1005	●	●
35	PLATE; ROD END,SPR CHAMBER REARWARD	1-48263-019-0	02	1	0806-0910	●	●
35	PLATE; ROD END,SPR CHAMBER REARWARD THA	8-98146-971-0	02	1	0911-1301	●	●
35	PLATE; ROD END,SPR CHAMBER FORWARD	1-48263-021-0	02	1	0806-0910	●	●
35	PLATE; ROD END,SPR CHAMBER FORWARD THA	8-98146-972-0	02	1	0911-1303	●	●
35	PLATE; ROD END,SPR CHAMBER THA	8-98146-972-0	02	1	1304-	●	●
35	PLATE; ROD END,SPR CHAMBER THA	8-98146-972-0	02	1	1304-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD THA	1-48251-134-1	01	1	0806-1303	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH THA	1-48251-134-1	01	1	1304-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH THA	1-48251-134-1	01	1	1304-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD THA	1-48251-135-1	01	1	0806-1303	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH THA	1-48251-135-1	01	1	1304-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH THA	1-48251-135-1	01	1	1304-	●	●
40	COVER ASM; LWR,SPR CHAMBER REARWARD THA	1-48251-138-1	01	1	0806-1301	●	●
40	COVER ASM; LWR,SPR CHAMBER REARWARD THA	1-48251-139-1	01	1	0806-1301	●	●
108	REPAIR KIT; SPR CHAMBER FORWARD	1-85576-320-0	02	1	0806-0910	●	●
108	REPAIR KIT; SPR CHAMBER FORWARD THA	8-98146-982-0	02	1	0911-1303	●	●
108	REPAIR KIT; SPR CHAMBER THA	8-98146-982-0	02	1	1304-	●	●
108	REPAIR KIT; SPR CHAMBER THA	8-98146-982-0	02	1	1304-	●	●
108	REPAIR KIT; SPR CHAMBER REARWARD	1-85576-321-0	02	1	0806-0910	●	●
108	REPAIR KIT; SPR CHAMBER REARWARD THA	8-98146-981-0	02	1	0911-1301	●	●
113	PIN; SPR CHAMBER	1-48269-153-0	04	1	0806-0807	●	●
113	PIN; SPR CHAMBER	1-48269-153-0	02	1	0808-0910	●	●
113	PIN; SPR CHAMBER	1-48269-153-0	02	1	0808-0910	●	●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	04	1	0806-0807	●	●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0808-0910	●	●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0808-0910	●	●
116	GUIDE; SPR CHAMBER (C) THA	8-98146-963-0	02	1	0911-	●	●
116	GUIDE; SPR CHAMBER (C) THA	8-98146-963-0	02	1	0911-	●	●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	04	1	0806-0807	●	●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0808-0910	●	●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0808-0910	●	●
117	RING; SPR CHAMBER	1-48269-155-0	04	1	0806-0807	●	●
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0808-0910	●	●
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0808-0910	●	●
117	RING; SPR CHAMBER THA	8-98146-966-0	02	1	0911-	●	●
117	RING; SPR CHAMBER THA	8-98146-966-0	02	1	0911-	●	●
118	CHAMBER; PIGGY BACK FORWARD	1-48251-183-1	01	1	0806-1005	●	●
118	CHAMBER; PIGGY BACK FORWARD THA	1-87412-111-0	01	1	1006-1303	●	●
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH THA	1-87412-111-0	01	1	1304-	●	●
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH THA	1-87412-111-0	01	1	1304-	●	●
118	CHAMBER; PIGGY BACK FORWARD	1-48251-184-1	01	1	0806-1005	●	●
118	CHAMBER; PIGGY BACK FORWARD THA	1-87412-112-0	01	1	1006-1303	●	●
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH THA	1-87412-112-0	01	1	1304-	●	●
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH THA	1-87412-112-0	01	1	1304-	●	●
118	CHAMBER; PIGGY BACK REARWARD	1-48251-187-1	01	1	0806-1005	●	●
118	CHAMBER; PIGGY BACK REARWARD THA	1-87412-107-0	01	1	1006-1301	●	●
118	CHAMBER; PIGGY BACK REARWARD	1-48251-188-1	01	1	0806-1005	●	●
118	CHAMBER; PIGGY BACK REARWARD THA	1-87412-108-0	01	1	1006-1301	●	●

1 32 1 1 32 1

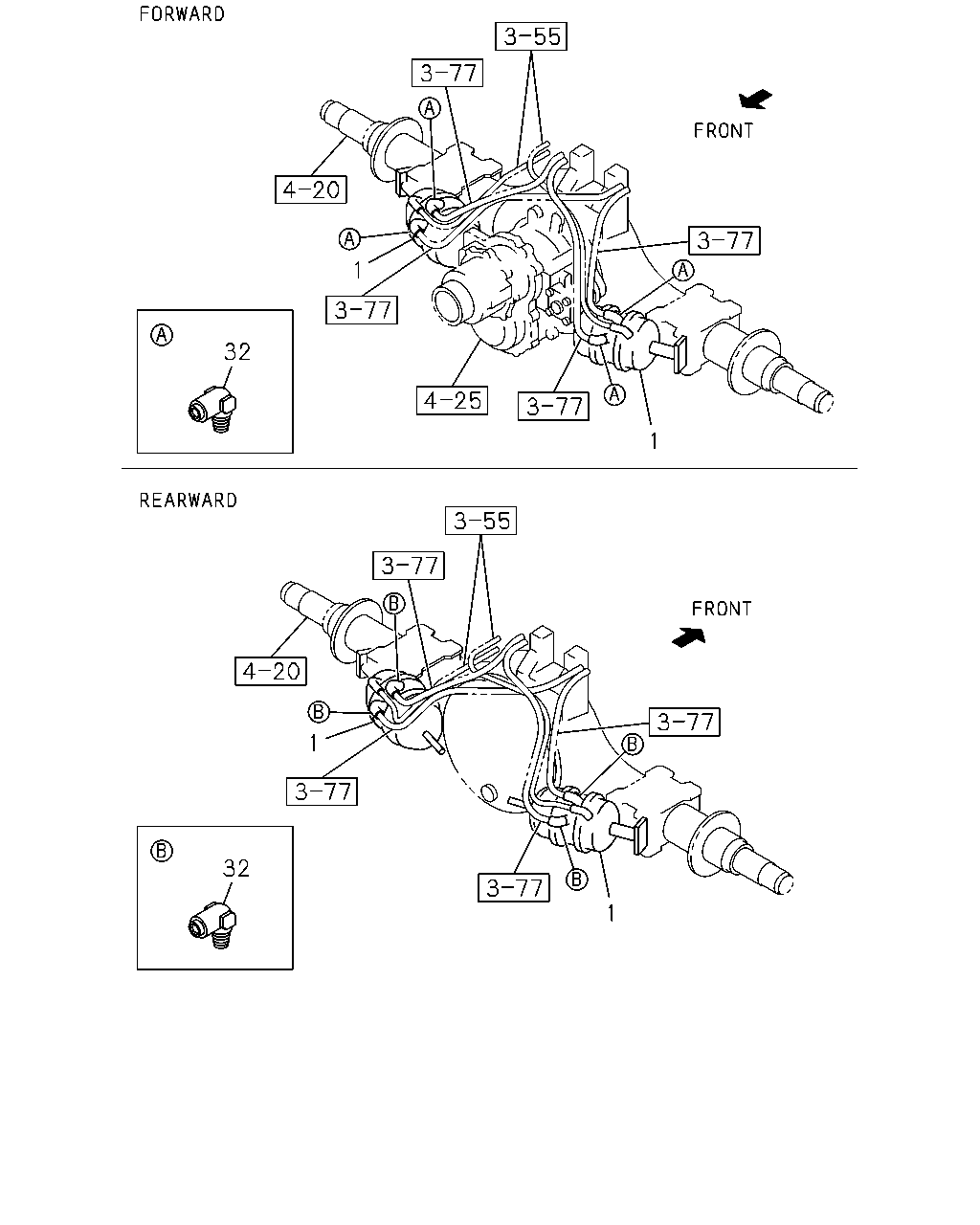

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING REARWARD	1-48250-902-0	01	1	0806-0910	●	●
1	CHAMBER ASM; SPRING REARWARD	8-98145-686-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING REARWARD	1-87412-083-0	01	1	1006-1301	●	●
1	CHAMBER ASM; SPRING REARWARD	1-48250-903-0	01	1	0806-0910	●	●
1	CHAMBER ASM; SPRING REARWARD	8-98145-687-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING REARWARD	1-87412-084-0	01	1	1006-1301	●	●
1	CHAMBER ASM; SPRING FORWARD	1-48250-906-2	01	1	0806-0910	●	●
1	CHAMBER ASM; SPRING FORWARD	8-98145-690-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD	1-87412-089-0	01	1	1006-1303	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-089-0	01	1	1304-	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-089-0	01	1	1304-	●	●
1	CHAMBER ASM; SPRING FORWARD	1-48250-907-2	01	1	0806-0910	●	●
1	CHAMBER ASM; SPRING FORWARD	8-98145-691-0	01	1	0911-1005	●	●
1	CHAMBER ASM; SPRING FORWARD	1-87412-090-0	01	1	1006-1303	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-090-0	01	1	1304-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-090-0	01	1	1304-	●	●
32	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW THA	1-09660-959-0	08	1	0806-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
