3-40 — FRONT BRAKE POWER CHAMBER (#68310) — 92 parça

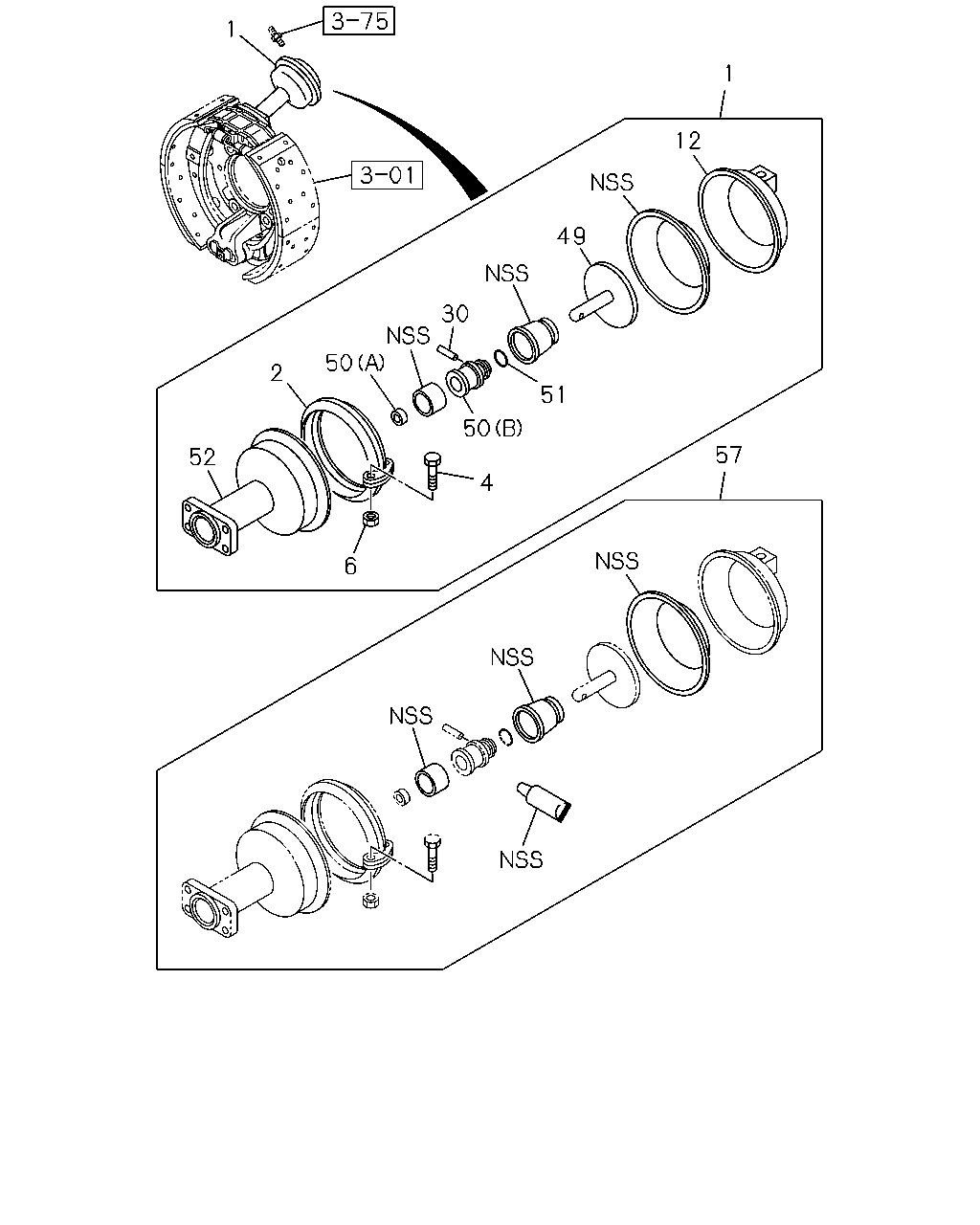

1 1 12 49 30 50 2 51 50 57 52 4 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; POWER,FRT BRK WHEEL BASE 5200MM<52W>	8-98145-677-1	02	1	1201-1303	●
1	CHAMBER ASM; POWER,FRT BRK	8-98145-677-2	02	1	1304-	●	●
1	CHAMBER ASM; POWER,FRT BRK	1-48250-837-0	02	1	0806-0910	●	●
1	CHAMBER ASM; POWER,FRT BRK	8-98145-680-0	02	1	0911-1112	●	●
1	CHAMBER ASM; POWER,FRT BRK WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W>	8-98145-680-0	02	1	1201-1301	●
1	CHAMBER ASM; POWER,FRT BRK	8-98145-680-0	02	1	1201-1301		●
2	RING; CLAMP,SPR CHAMBER WHEEL BASE 5200MM<52W> THA	8-98167-056-0	02	1	1201-1303	●
2	RING; CLAMP,SPR CHAMBER THA	8-98167-056-0	02	1	1304-	●	●
2	RING; CLAMP,SPR CHAMBER	1-48269-149-0	02	1	0806-0910	●	●
2	RING; CLAMP,SPR CHAMBER THA	1-48269-256-0	02	1	0911-1112	●	●
2	RING; CLAMP,SPR CHAMBER WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> THA	1-48269-256-0	02	1	1201-1301	●
2	RING; CLAMP,SPR CHAMBER THA	1-48269-256-0	02	1	1201-1301		●
4	BOLT; CLAMP RING	1-48269-146-0	04	1	0806-0910	●	●
4	BOLT; CLAMP RING THA	1-48269-257-0	02	1	0911-	●	●
6	NUT; CLAMP RING THA	1-48269-147-0	04	1	0806-0910	●	●
6	NUT; CLAMP RING THA	1-48269-147-0	02	1	0911-	●	●
12	COVER ASM; LWR,SPR CHAMBER WHEEL BASE 5200MM<52W> THA	1-48251-102-0	02	1	1201-1303	●
12	COVER ASM; LWR,SPR CHAMBER THA	1-48251-102-0	02	1	1304-	●	●
12	COVER ASM; LWR,SPR CHAMBER THA	1-48251-103-0	02	1	0806-1112	●	●
12	COVER ASM; LWR,SPR CHAMBER WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> THA	1-48251-103-0	02	1	1201-1301	●
12	COVER ASM; LWR,SPR CHAMBER THA	1-48251-103-0	02	1	1201-1301		●
30	PIN; STRAIGHT,SPR CHAMBER	1-48269-153-0	02	1	0806-0910	●	●
49	ROD; PUSH,SPR CHAMBER WHEEL BASE 5200MM<52W> THA	8-98146-968-0	02	1	1201-1303	●
49	ROD; PUSH,SPR CHAMBER	8-98146-968-1	02	1	1304-	●	●
49	ROD; PUSH,SPR CHAMBER	1-48263-020-0	02	1	0806-0910	●	●
49	ROD; PUSH,SPR CHAMBER THA	8-98146-969-0	02	1	0911-1112	●	●
49	ROD; PUSH,SPR CHAMBER WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> THA	8-98146-969-0	02	1	1201-1301	●
49	ROD; PUSH,SPR CHAMBER THA	8-98146-969-0	02	1	1201-1301		●
50	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0806-0910	●	●
50	GUIDE; SPR CHAMBER (C)	8-98146-963-1	02	1	0911-	●	●
50	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0806-0910	●	●
51	RING; SPR CHAMBER	1-48269-155-0	02	1	0806-0910	●	●
51	RING; SPR CHAMBER THA	8-98146-966-0	02	1	0911-	●	●
52	HOUSING; SPR CHAMBER WHEEL BASE 5200MM<52W>	1-48251-152-2	02	1	1201-1303	●
52	HOUSING; SPR CHAMBER	1-48251-152-2	02	1	1304-1403	●	●
52	HOUSING; SPR CHAMBER THA	8-98248-792-0	02	1	1404-	●	●
52	HOUSING; SPR CHAMBER	1-48251-153-0	02	1	0806-0910	●	●
52	HOUSING; SPR CHAMBER	1-48251-195-1	02	1	0911-1112	●	●
52	HOUSING; SPR CHAMBER WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W>	1-48251-195-1	02	1	1201-1301	●
52	HOUSING; SPR CHAMBER	1-48251-195-1	02	1	1201-1301		●
57	REPAIR KIT; SPR CHAMBER WHEEL BASE 5200MM<52W> THA	8-98146-977-0	02	1	1201-1303	●
57	REPAIR KIT; SPR CHAMBER THA	8-98146-977-0	02	1	1304-	●	●
57	REPAIR KIT; SPR CHAMBER	1-85576-326-0	02	1	0806-0910	●	●
57	REPAIR KIT; SPR CHAMBER	8-98146-978-0	02	1	0911-1112	●	●
57	REPAIR KIT; SPR CHAMBER WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W>	8-98146-978-0	02	1	1201-1301	●
57	REPAIR KIT; SPR CHAMBER	8-98146-978-0	02	1	1201-1301		●

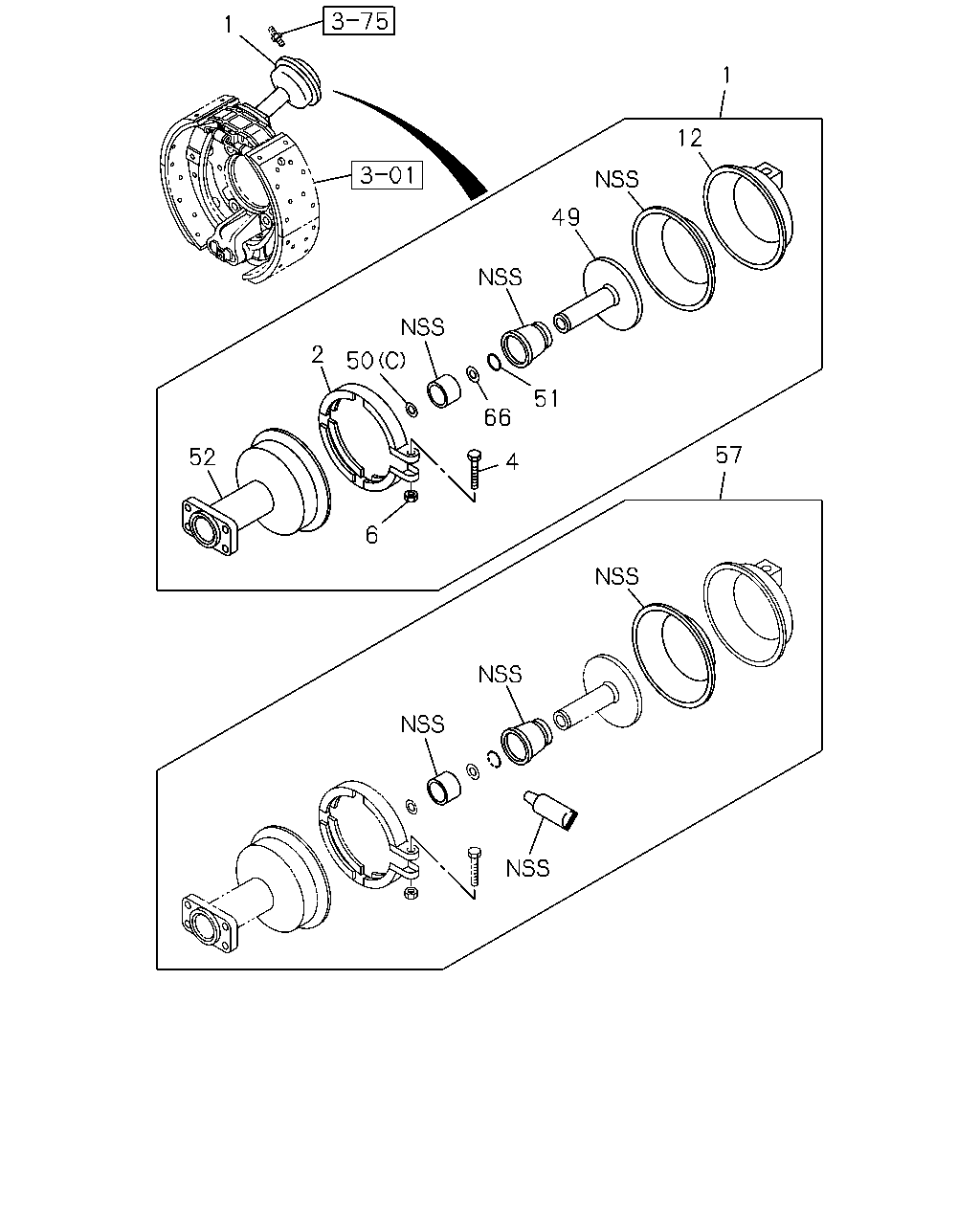

1 1 12 49 2 50 51 66 57 52 4 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; POWER,FRT BRK WHEEL BASE 5200MM<52W>	8-98145-677-1	02	1	1201-1303	●
1	CHAMBER ASM; POWER,FRT BRK	8-98145-677-2	02	1	1304-	●	●
1	CHAMBER ASM; POWER,FRT BRK	1-48250-837-0	02	1	0806-0910	●	●
1	CHAMBER ASM; POWER,FRT BRK	8-98145-680-0	02	1	0911-1112	●	●
1	CHAMBER ASM; POWER,FRT BRK WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W>	8-98145-680-0	02	1	1201-1301	●
1	CHAMBER ASM; POWER,FRT BRK	8-98145-680-0	02	1	1201-1301		●
2	RING; CLAMP,SPR CHAMBER WHEEL BASE 5200MM<52W> THA	8-98167-056-0	02	1	1201-1303	●
2	RING; CLAMP,SPR CHAMBER THA	8-98167-056-0	02	1	1304-	●	●
2	RING; CLAMP,SPR CHAMBER	1-48269-149-0	02	1	0806-0910	●	●
2	RING; CLAMP,SPR CHAMBER THA	1-48269-256-0	02	1	0911-1112	●	●
2	RING; CLAMP,SPR CHAMBER WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> THA	1-48269-256-0	02	1	1201-1301	●
2	RING; CLAMP,SPR CHAMBER THA	1-48269-256-0	02	1	1201-1301		●
4	BOLT; CLAMP RING	1-48269-146-0	04	1	0806-0910	●	●
4	BOLT; CLAMP RING THA	1-48269-257-0	02	1	0911-	●	●
6	NUT; CLAMP RING THA	1-48269-147-0	04	1	0806-0910	●	●
6	NUT; CLAMP RING THA	1-48269-147-0	02	1	0911-	●	●
12	COVER ASM; LWR,SPR CHAMBER WHEEL BASE 5200MM<52W> THA	1-48251-102-0	02	1	1201-1303	●
12	COVER ASM; LWR,SPR CHAMBER THA	1-48251-102-0	02	1	1304-	●	●
12	COVER ASM; LWR,SPR CHAMBER THA	1-48251-103-0	02	1	0806-1112	●	●
12	COVER ASM; LWR,SPR CHAMBER WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> THA	1-48251-103-0	02	1	1201-1301	●
12	COVER ASM; LWR,SPR CHAMBER THA	1-48251-103-0	02	1	1201-1301		●
49	ROD; PUSH,SPR CHAMBER WHEEL BASE 5200MM<52W> THA	8-98146-968-0	02	1	1201-1303	●
49	ROD; PUSH,SPR CHAMBER	8-98146-968-1	02	1	1304-	●	●
49	ROD; PUSH,SPR CHAMBER	1-48263-020-0	02	1	0806-0910	●	●
49	ROD; PUSH,SPR CHAMBER THA	8-98146-969-0	02	1	0911-1112	●	●
49	ROD; PUSH,SPR CHAMBER WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> THA	8-98146-969-0	02	1	1201-1301	●
49	ROD; PUSH,SPR CHAMBER THA	8-98146-969-0	02	1	1201-1301		●
50	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0806-0910	●	●
50	GUIDE; SPR CHAMBER (C)	8-98146-963-1	02	1	0911-	●	●
50	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0806-0910	●	●
51	RING; SPR CHAMBER	1-48269-155-0	02	1	0806-0910	●	●
51	RING; SPR CHAMBER THA	8-98146-966-0	02	1	0911-	●	●
52	HOUSING; SPR CHAMBER WHEEL BASE 5200MM<52W>	1-48251-152-2	02	1	1201-1303	●
52	HOUSING; SPR CHAMBER	1-48251-152-2	02	1	1304-1403	●	●
52	HOUSING; SPR CHAMBER THA	8-98248-792-0	02	1	1404-	●	●
52	HOUSING; SPR CHAMBER	1-48251-153-0	02	1	0806-0910	●	●
52	HOUSING; SPR CHAMBER	1-48251-195-1	02	1	0911-1112	●	●
52	HOUSING; SPR CHAMBER WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W>	1-48251-195-1	02	1	1201-1301	●
52	HOUSING; SPR CHAMBER	1-48251-195-1	02	1	1201-1301		●
57	REPAIR KIT; SPR CHAMBER WHEEL BASE 5200MM<52W> THA	8-98146-977-0	02	1	1201-1303	●
57	REPAIR KIT; SPR CHAMBER THA	8-98146-977-0	02	1	1304-	●	●
57	REPAIR KIT; SPR CHAMBER	1-85576-326-0	02	1	0806-0910	●	●
57	REPAIR KIT; SPR CHAMBER	8-98146-978-0	02	1	0911-1112	●	●
57	REPAIR KIT; SPR CHAMBER WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W>	8-98146-978-0	02	1	1201-1301	●
57	REPAIR KIT; SPR CHAMBER	8-98146-978-0	02	1	1201-1301		●
66	SHIM THA	8-98146-965-0	AR	1	0911-	●	●
