◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11136 - FXZ/GXZ(THAI)EURO3 ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#68304) — 275 parça
çizim 115150
346 301 328 327 319 334 297 297 335 311 348 329 319 327 328 301 347 301 301
BalonParca AdiParca NoAdetTipApplied Date A B
297 RING; SNAP
(A) THA 		1-47649-031-0 04 1 0806-0807 ● ●
297 RING; SNAP
(A) THA 		1-47649-031-0 02 1 0808- ● ●
297 RING; SNAP
(A) THA 		1-47649-031-0 02 1 0808- ● ●
297 RING; SNAP
(B) THA 		1-47649-034-1 04 1 0806-0807 ● ●
297 RING; SNAP
(B) THA 		1-47649-034-1 02 1 0808- ● ●
297 RING; SNAP
(B) THA 		1-47649-034-1 02 1 0808- ● ●
301 CLIP; ANTI LOTATION
THA 		1-47621-017-0 08 1 0806-0807 ● ●
301 CLIP; ANTI LOTATION
THA 		1-47621-017-0 04 1 0808- ● ●
301 CLIP; ANTI LOTATION
THA 		1-47621-017-0 04 1 0808- ● ●
311 BOOT; WEDGE
THA 		1-47649-042-0 04 1 0806-0807 ● ●
311 BOOT; WEDGE
THA 		1-47649-042-0 02 1 0808- ● ●
311 BOOT; WEDGE
THA 		1-47649-042-0 02 1 0808- ● ●
319 RING; DRIVE
THA 		1-47629-200-0 08 1 0806-0807 ● ●
319 RING; DRIVE
THA 		1-47629-200-0 04 1 0808- ● ●
319 RING; DRIVE
THA 		1-47629-200-0 04 1 0808- ● ●
327 SPRING; ADJ
THA 		1-47629-196-0 08 1 0806-0807 ● ●
327 SPRING; ADJ
THA 		1-47629-196-0 04 1 0808- ● ●
327 SPRING; ADJ
THA 		1-47629-196-0 04 1 0808- ● ●
328 CAGE; SPRING
THA 		1-47629-192-0 08 1 0806-0807 ● ●
328 CAGE; SPRING
THA 		1-47629-192-0 04 1 0808- ● ●
328 CAGE; SPRING
THA 		1-47629-192-0 04 1 0808- ● ●
329 SCREW; LOCATING
THA 		1-47619-149-1 08 1 0806-0807 ● ●
329 SCREW; LOCATING
THA 		1-47619-149-1 04 1 0808- ● ●
329 SCREW; LOCATING
THA 		1-47619-149-1 04 1 0808- ● ●
334 SPRING; ROD
THA 		1-47649-041-0 04 1 0806-0807 ● ●
334 SPRING; ROD
THA 		1-47649-041-0 02 1 0808- ● ●
334 SPRING; ROD
THA 		1-47649-041-0 02 1 0808- ● ●
335 RETAINER; SPRING
THA 		1-47649-020-0 04 1 0806-0807 ● ●
335 RETAINER; SPRING
THA 		1-47649-020-0 02 1 0808- ● ●
335 RETAINER; SPRING
THA 		1-47649-020-0 02 1 0808- ● ●
346 REPAIR KIT; EXPANDER
THA 		1-85576-403-0 04 1 0806-0807 ● ●
346 REPAIR KIT; EXPANDER
THA 		1-85576-403-0 02 1 0808- ● ●
346 REPAIR KIT; EXPANDER
THA 		1-85576-403-0 02 1 0808- ● ●
347 REPAIR KIT; BOOT,EXPANDER
THA 		1-85576-404-0 04 1 0806-0807 ● ●
347 REPAIR KIT; BOOT,EXPANDER
THA 		1-85576-404-0 02 1 0808- ● ●
347 REPAIR KIT; BOOT,EXPANDER
THA 		1-85576-404-0 02 1 0808- ● ●
348 CAP; EXPANDER
THA 		1-47649-044-0 04 1 0806-0807 ● ●
348 CAP; EXPANDER
THA 		1-47649-044-0 02 1 0808- ● ●
348 CAP; EXPANDER
THA 		1-47649-044-0 02 1 0808- ● ●

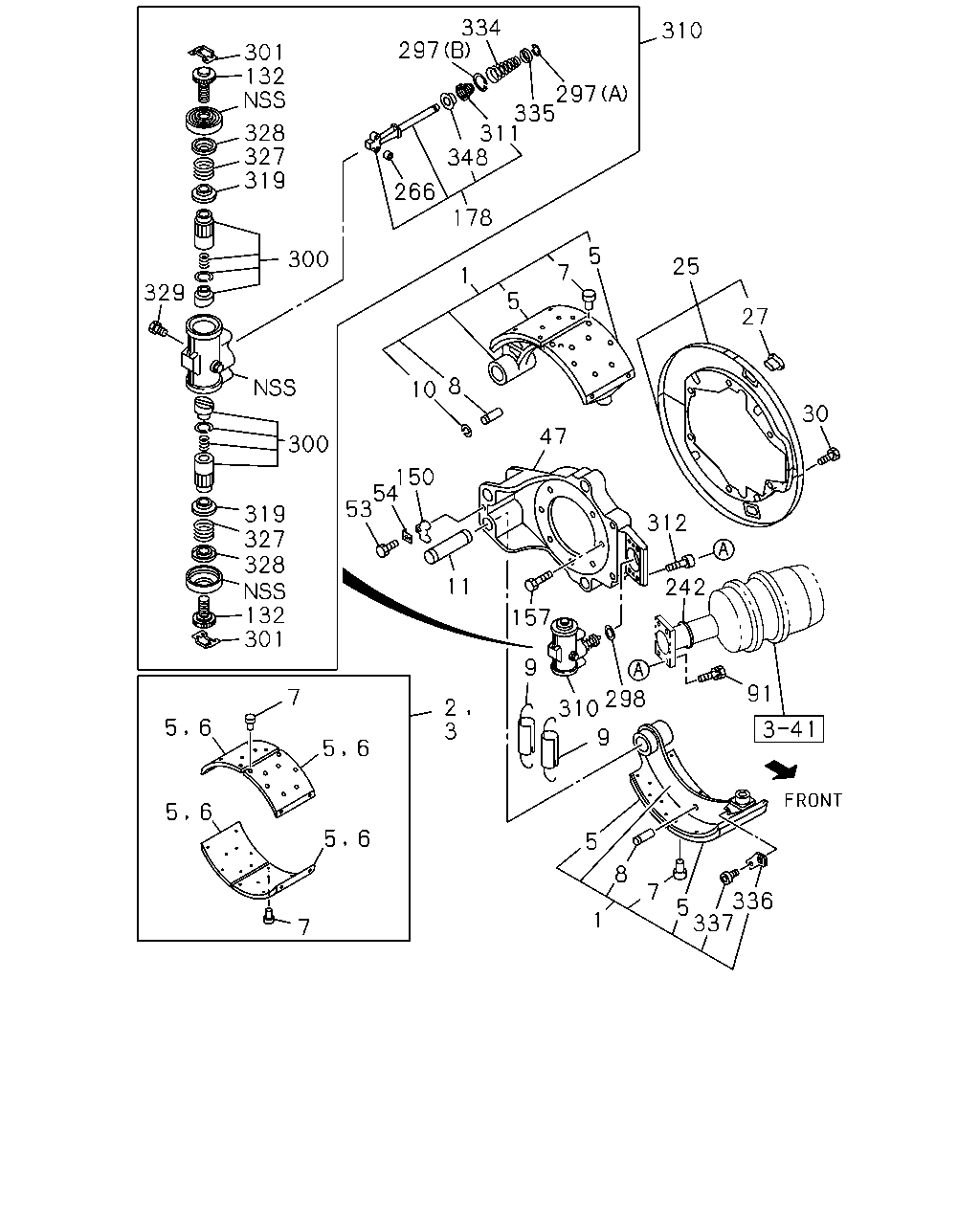

çizim 193917
334 297 310 301 132 297 335 311 348 328 327 319 266 178 5 300 25 7 1 329 5 27 8 10 30 47 300 150 54 53 319 327 328 132 301 312 11 242 157 9 91 7 298 310 2 3 5 6 9 5 6 5 6 5 6 5 8 336 5 337 7 1 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR
WHEEL BASE 5200MM<52W> LEADING THA 		1-47170-324-0 01 1 1201- ●
1 SHOE; BRK,RR
WHEEL BASE 5200MM<52W> LEADING THA 		1-47170-324-0 01 1 1201- ●
1 SHOE; BRK,RR
WHEEL BASE 5200MM<52W> TRAILING THA 		1-47170-325-0 01 1 1201- ●
1 SHOE; BRK,RR
WHEEL BASE 5200MM<52W> TRAILING THA 		1-47170-325-0 01 1 1201- ●
1 SHOE; BRK,RR
WHEEL BASE 5200MM<52W> LEADING THA 		1-47170-326-0 01 1 1201- ●
1 SHOE; BRK,RR
WHEEL BASE 5200MM<52W> LEADING THA 		1-47170-326-0 01 1 1201- ●
1 SHOE; BRK,RR
WHEEL BASE 5200MM<52W> TRAILING THA 		1-47170-327-0 01 1 1201- ●
1 SHOE; BRK,RR
WHEEL BASE 5200MM<52W> TRAILING THA 		1-47170-327-0 01 1 1201- ●
1 SHOE; BRK,RR
LEADING THA 		1-47170-254-0 02 1 0806-0807 ● ●
1 SHOE; BRK,RR
LEADING THA 		1-47170-254-0 01 1 0808-1112 ● ●
1 SHOE; BRK,RR
LEADING THA 		1-47170-254-0 01 1 0808-1112 ● ●
1 SHOE; BRK,RR
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> LEADING THA 		1-47170-254-0 01 1 1201- ●
1 SHOE; BRK,RR
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> LEADING THA 		1-47170-254-0 01 1 1201- ●
1 SHOE; BRK,RR
LEADING THA 		1-47170-254-0 01 1 1201- ●
1 SHOE; BRK,RR
LEADING THA 		1-47170-254-0 01 1 1201- ●
1 SHOE; BRK,RR
TRAILING 		1-47170-255-0 02 1 0806-0807 ● ●
1 SHOE; BRK,RR
TRAILING 		1-47170-255-0 01 1 0808-1112 ● ●
1 SHOE; BRK,RR
TRAILING 		1-47170-255-0 01 1 0808-1112 ● ●
1 SHOE; BRK,RR
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> TRAILING 		1-47170-255-0 01 1 1201-1207 ●
1 SHOE; BRK,RR
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> TRAILING 		1-47170-255-0 01 1 1201-1207 ●
1 SHOE; BRK,RR
TRAILING 		1-47170-255-0 01 1 1201-1207 ●
1 SHOE; BRK,RR
TRAILING 		1-47170-255-0 01 1 1201-1207 ●
1 SHOE; BRK,RR
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> TRAILING THA 		8-98221-155-0 01 1 1208- ●
1 SHOE; BRK,RR
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> TRAILING THA 		8-98221-155-0 01 1 1208- ●
1 SHOE; BRK,RR
TRAILING THA 		8-98221-155-0 01 1 1208- ●
1 SHOE; BRK,RR
TRAILING THA 		8-98221-155-0 01 1 1208- ●
1 SHOE; BRK,RR
LEADING THA 		1-47170-256-0 02 1 0806-0807 ● ●
1 SHOE; BRK,RR
LEADING THA 		1-47170-256-0 01 1 0808-1112 ● ●
1 SHOE; BRK,RR
LEADING THA 		1-47170-256-0 01 1 0808-1112 ● ●
1 SHOE; BRK,RR
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> LEADING THA 		1-47170-256-0 01 1 1201- ●
1 SHOE; BRK,RR
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> LEADING THA 		1-47170-256-0 01 1 1201- ●
1 SHOE; BRK,RR
LEADING THA 		1-47170-256-0 01 1 1201- ●
1 SHOE; BRK,RR
LEADING THA 		1-47170-256-0 01 1 1201- ●
1 SHOE; BRK,RR
TRAILING 		1-47170-257-0 02 1 0806-0807 ● ●
1 SHOE; BRK,RR
TRAILING 		1-47170-257-0 01 1 0808-1112 ● ●
1 SHOE; BRK,RR
TRAILING 		1-47170-257-0 01 1 0808-1112 ● ●
1 SHOE; BRK,RR
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> TRAILING 		1-47170-257-0 01 1 1201-1207 ●
1 SHOE; BRK,RR
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> TRAILING 		1-47170-257-0 01 1 1201-1207 ●
1 SHOE; BRK,RR
TRAILING 		1-47170-257-0 01 1 1201-1207 ●
1 SHOE; BRK,RR
TRAILING 		1-47170-257-0 01 1 1201-1207 ●
1 SHOE; BRK,RR
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> TRAILING THA 		8-98221-156-0 01 1 1208- ●
1 SHOE; BRK,RR
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> TRAILING THA 		8-98221-156-0 01 1 1208- ●
1 SHOE; BRK,RR
TRAILING THA 		8-98221-156-0 01 1 1208- ●
1 SHOE; BRK,RR
TRAILING THA 		8-98221-156-0 01 1 1208- ●
2 LINING SET; RR BRK,STANDARD
WHEEL BASE 5200MM<52W> BEST VALUE PARTS 		1-87610-132-0 01 1 1201- ●
2 LINING SET; RR BRK,STANDARD
WHEEL BASE 5200MM<52W> BEST VALUE PARTS 		1-87610-132-0 01 1 1201- ●
2 LINING SET; RR BRK,STANDARD
WHEEL BASE 5200MM<52W> 		1-88310-775-1 02 1 1201- ●
2 LINING SET; RR BRK,STANDARD
WHEEL BASE 5200MM<52W> 		1-88310-775-1 02 1 1201- ●
2 LINING SET; RR BRK,STANDARD 1-88311-256-0 04 1 0806-0807 ● ●
2 LINING SET; RR BRK,STANDARD 1-88311-256-0 02 1 0808-1112 ● ●
2 LINING SET; RR BRK,STANDARD 1-88311-256-0 02 1 0808-1112 ● ●
2 LINING SET; RR BRK,STANDARD
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> 		1-88311-256-0 02 1 1201-1201 ●
2 LINING SET; RR BRK,STANDARD
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> 		1-88311-256-0 02 1 1201-1201 ●
2 LINING SET; RR BRK,STANDARD 1-88311-256-0 02 1 1201-1201 ●
2 LINING SET; RR BRK,STANDARD 1-88311-256-0 02 1 1201-1201 ●
2 LINING SET; RR BRK,STANDARD
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> 		1-88311-256-0 02 1 1302- ●
2 LINING SET; RR BRK,STANDARD
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> 		1-88311-256-0 02 1 1302- ●
2 LINING SET; RR BRK,STANDARD 1-88311-256-0 02 1 1302- ●
2 LINING SET; RR BRK,STANDARD 1-88311-256-0 02 1 1302- ●
3 LINING SET; RR BRK,OVER SIZE
WHEEL BASE 5200MM<52W> 		1-88310-776-1 02 1 1201- ●
3 LINING SET; RR BRK,OVER SIZE
WHEEL BASE 5200MM<52W> 		1-88310-776-1 02 1 1201- ●
3 LINING SET; RR BRK,OVER SIZE 1-88311-259-0 04 1 0806-0807 ● ●
3 LINING SET; RR BRK,OVER SIZE 1-88311-259-0 02 1 0808-1112 ● ●
3 LINING SET; RR BRK,OVER SIZE 1-88311-259-0 02 1 0808-1112 ● ●
3 LINING SET; RR BRK,OVER SIZE
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> 		1-88311-259-0 02 1 1201- ●
3 LINING SET; RR BRK,OVER SIZE
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> 		1-88311-259-0 02 1 1201- ●
3 LINING SET; RR BRK,OVER SIZE 1-88311-259-0 02 1 1201- ●
3 LINING SET; RR BRK,OVER SIZE 1-88311-259-0 02 1 1201- ●
5 LINING; RR BRK SHOE,STANDARD
WHEEL BASE 5200MM<52W> THA 		1-47126-093-0 08 1 1201- ●
5 LINING; RR BRK SHOE,STANDARD
WHEEL BASE 5200MM<52W> THA 		1-47126-093-0 08 1 1201- ●
5 LINING; RR BRK SHOE,STANDARD
THA 		1-47126-669-0 16 1 0806-0807 ● ●
5 LINING; RR BRK SHOE,STANDARD
THA 		1-47126-669-0 08 1 0808-1112 ● ●
5 LINING; RR BRK SHOE,STANDARD
THA 		1-47126-669-0 08 1 0808-1112 ● ●
5 LINING; RR BRK SHOE,STANDARD
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> THA 		1-47126-669-0 08 1 1201- ●
5 LINING; RR BRK SHOE,STANDARD
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> THA 		1-47126-669-0 08 1 1201- ●
5 LINING; RR BRK SHOE,STANDARD
THA 		1-47126-669-0 08 1 1201- ●
5 LINING; RR BRK SHOE,STANDARD
THA 		1-47126-669-0 08 1 1201- ●
6 LINING; RR BRK SHOE,OVER SIZE
WHEEL BASE 5200MM<52W> THA 		1-47126-094-0 08 1 1201- ●
6 LINING; RR BRK SHOE,OVER SIZE
WHEEL BASE 5200MM<52W> THA 		1-47126-094-0 08 1 1201- ●
6 LINING; RR BRK SHOE,OVER SIZE
THA 		1-47126-671-0 16 1 0806-0807 ● ●
6 LINING; RR BRK SHOE,OVER SIZE
THA 		1-47126-671-0 08 1 0808-1112 ● ●
6 LINING; RR BRK SHOE,OVER SIZE
THA 		1-47126-671-0 08 1 0808-1112 ● ●
6 LINING; RR BRK SHOE,OVER SIZE
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> THA 		1-47126-671-0 08 1 1201- ●
6 LINING; RR BRK SHOE,OVER SIZE
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> THA 		1-47126-671-0 08 1 1201- ●
6 LINING; RR BRK SHOE,OVER SIZE
THA 		1-47126-671-0 08 1 1201- ●
6 LINING; RR BRK SHOE,OVER SIZE
THA 		1-47126-671-0 08 1 1201- ●
7 RIVET; LINING,RR BRK
L=15.5 THA 		1-09732-053-0 AR 1 0806-0807 ● ●
7 RIVET; LINING,RR BRK
L=15.5 THA 		1-09732-053-0 AR 1 0808- ● ●
7 RIVET; LINING,RR BRK
L=15.5 THA 		1-09732-053-0 AR 1 0808- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
TRAILING THA 		1-47119-136-0 04 1 0806-0807 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
TRAILING THA 		1-47119-136-0 02 1 0808-1207 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
TRAILING THA 		1-47119-136-0 02 1 0808-1207 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
WHEEL BASE 5200MM<52W> THA 		1-47119-136-0 02 1 1208- ●
8 PIN; RETURN SPRING,RR BRK SHOE
WHEEL BASE 5200MM<52W> THA 		1-47119-136-0 02 1 1208- ●
8 PIN; RETURN SPRING,RR BRK SHOE
LEADING THA 		1-47119-172-0 04 1 0806-0807 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
LEADING THA 		1-47119-172-0 02 1 0808-1207 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
LEADING THA 		1-47119-172-0 02 1 0808-1207 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> THA 		1-47119-172-0 04 1 1208- ●
8 PIN; RETURN SPRING,RR BRK SHOE
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> THA 		1-47119-172-0 04 1 1208- ●
8 PIN; RETURN SPRING,RR BRK SHOE
THA 		1-47119-172-0 04 1 1208- ●
8 PIN; RETURN SPRING,RR BRK SHOE
THA 		1-47119-172-0 04 1 1208- ●
9 SPRING; RETURN,BRK SHOE
THA 		1-09583-365-1 04 1 0806-0807 ● ●
9 SPRING; RETURN,BRK SHOE
THA 		1-09583-365-1 02 1 0808- ● ●
9 SPRING; RETURN,BRK SHOE
THA 		1-09583-365-1 02 1 0808- ● ●
10 RING; SNAP,SPR PIN
WHEEL BASE 5200MM<52W> ID=10 		0-91805-510-0 02 1 1208- ●
10 RING; SNAP,SPR PIN
WHEEL BASE 5200MM<52W> ID=10 		0-91805-510-0 02 1 1208- ●
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 02 1 1204-1207 ● ●
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 02 1 1204-1207 ● ●
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 04 1 0806-0807 ● ●
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 02 1 0808-1207 ● ●
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 02 1 0808-1207 ● ●
10 RING; SNAP,SPR PIN
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> ID=10 		0-91805-510-0 04 1 1208- ●
10 RING; SNAP,SPR PIN
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> ID=10 		0-91805-510-0 04 1 1208- ●
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 04 1 1208- ●
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 04 1 1208- ●
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 THA 		1-47131-045-0 08 1 0806-0807 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 THA 		1-47131-045-0 04 1 0808- ● ●
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 THA 		1-47131-045-0 04 1 0808- ● ●
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-808-0 02 1 0806-0807 ● ●
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 0808-1309 ● ●
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 0808-1309 ● ●
25 COVER SET; RR BRK DRUM 1-47151-878-0 02 1 1310- ● ●
25 COVER SET; RR BRK DRUM 1-47151-878-0 02 1 1310- ● ●
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-809-0 02 1 0806-0807 ● ●
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 0808-1309 ● ●
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 0808-1309 ● ●
27 COVER; CHECK HOLE,DRUM COVER
THA 		1-09333-151-0 08 1 0806-0807 ● ●
27 COVER; CHECK HOLE,DRUM COVER
THA 		1-09333-151-0 04 1 0808- ● ●
27 COVER; CHECK HOLE,DRUM COVER
THA 		1-09333-151-0 04 1 0808- ● ●
30 BOLT; DRUM COVER
M10X12 THA 		1-47159-187-0 24 1 0806-0807 ● ●
30 BOLT; DRUM COVER
M10X12 THA 		1-47159-187-0 12 1 0808- ● ●
30 BOLT; DRUM COVER
M10X12 THA 		1-47159-187-0 12 1 0808- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
ANTILOCK BRAKE SYSTEM<BFA> REARWARD THA 		8-98091-254-1 01 1 1302- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
ANTILOCK BRAKE SYSTEM<BFA> REARWARD THA 		8-98091-255-1 01 1 1302- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
ANTILOCK BRAKE SYSTEM<BFA> REARWARD 		1-47137-549-0 01 1 0902-1207 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
ANTILOCK BRAKE SYSTEM<BFA> REARWARD THA 		8-98091-254-1 01 1 1208-1301 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
ANTILOCK BRAKE SYSTEM<BFA> REARWARD 		1-47137-550-0 01 1 0902-1207 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
ANTILOCK BRAKE SYSTEM<BFA> REARWARD THA 		8-98091-255-1 01 1 1208-1301 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-472-0 04 1 0806-0807 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-472-0 02 1 0808-0901 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-472-0 02 1 0808-0901 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FORWARD 		1-47137-472-0 02 1 0902-1207 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		1-47137-472-0 02 1 0902-1207 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
EXC. ANTILOCK BRAKE SYSTEM<BFA> REARWARD 		1-47137-472-0 02 1 0902-1207 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FORWARD THA 		8-98091-253-1 02 1 1208- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD THA 		8-98091-253-1 02 1 1208- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
EXC. ANTILOCK BRAKE SYSTEM<BFA> REARWARD THA 		8-98091-253-1 02 1 1208- ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 04 1 0806-0807 ● ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0808-0910 ● ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0808-0910 ● ●
53 BOLT; LOCK PLATE
M10X16 THA 		1-47139-173-0 02 1 0911- ● ●
53 BOLT; LOCK PLATE
M10X16 THA 		1-47139-173-0 02 1 0911- ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK
THA 		1-47133-011-0 04 1 0806-0807 ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK
THA 		1-47133-011-0 02 1 0808- ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK
THA 		1-47133-011-0 02 1 0808- ● ●
91 BOLT; CHAMBER
FORWARD M10X45 W/LK WASHER 		0-50051-045-0 08 1 0806-0906 ● ●
91 BOLT; CHAMBER
FORWARD M10X45 W/LK WASHER 		0-50551-045-0 08 1 0907-0910 ● ●
91 BOLT; CHAMBER
FORWARD M10X45 THA 		1-47139-174-0 08 1 0911-1303 ● ●
91 BOLT; CHAMBER
M10X45 THA 		1-47139-174-0 08 1 1304- ● ●
91 BOLT; CHAMBER
M10X45 THA 		1-47139-174-0 08 1 1304- ● ●
91 BOLT; CHAMBER
REARWARD M10X53 THA 		1-47139-148-0 08 1 0806-1301 ● ●
132 SCREW; ADJ,RR BRK 1-47623-035-1 08 1 0806-0807 ● ●
132 SCREW; ADJ,RR BRK
THA 		1-47623-035-2 04 1 0808- ● ●
132 SCREW; ADJ,RR BRK
THA 		1-47623-035-2 04 1 0808- ● ●
150 PLATE; LK,ANCHOR PIN
THA 		1-47133-010-0 04 1 0806-0807 ● ●
150 PLATE; LK,ANCHOR PIN
THA 		1-47133-010-0 02 1 0808- ● ●
150 PLATE; LK,ANCHOR PIN
THA 		1-47133-010-0 02 1 0808- ● ●
157 BOLT; RR BRK SET
M14X50 THA 		1-09040-066-0 04 1 0806-0807 ● ●
157 BOLT; RR BRK SET
M14X50 THA 		1-09040-066-0 02 1 0808- ● ●
157 BOLT; RR BRK SET
M14X50 THA 		1-09040-066-0 02 1 0808- ● ●
178 WEDGE; RR WHEEL CYL
THA 		1-47640-012-0 04 1 0806-0807 ● ●
178 WEDGE; RR WHEEL CYL
THA 		1-47640-012-0 02 1 0808- ● ●
178 WEDGE; RR WHEEL CYL
THA 		1-47640-012-0 02 1 0808- ● ●
242 SEAL
THA 		1-47159-186-0 08 1 0806-0807 ● ●
242 SEAL
THA 		1-47159-186-0 04 1 0808- ● ●
242 SEAL
THA 		1-47159-186-0 04 1 0808- ● ●
266 ROLLER; WEDGE
THA 		1-47643-007-0 08 1 0806-0807 ● ●
266 ROLLER; WEDGE
THA 		1-47643-007-0 04 1 0808- ● ●
266 ROLLER; WEDGE
THA 		1-47643-007-0 04 1 0808- ● ●
297 RING; SNAP
(A) THA 		1-47649-031-0 04 1 0806-0807 ● ●
297 RING; SNAP
(A) THA 		1-47649-031-0 02 1 0808- ● ●
297 RING; SNAP
(A) THA 		1-47649-031-0 02 1 0808- ● ●
297 RING; SNAP
(B) THA 		1-47649-034-1 04 1 0806-0807 ● ●
297 RING; SNAP
(B) THA 		1-47649-034-1 02 1 0808- ● ●
297 RING; SNAP
(B) THA 		1-47649-034-1 02 1 0808- ● ●
298 GASKET
THA 		1-48259-231-0 04 1 0806-0807 ● ●
298 GASKET
THA 		1-48259-231-0 02 1 0808- ● ●
298 GASKET
THA 		1-48259-231-0 02 1 0808- ● ●
300 SLEEVE 1-47629-247-0 08 1 0806-0807 ● ●
300 SLEEVE
THA 		1-47629-247-1 04 1 0808- ● ●
300 SLEEVE
THA 		1-47629-247-1 04 1 0808- ● ●
301 CLIP; ANTI LOTATION
THA 		1-47621-017-0 08 1 0806-0807 ● ●
301 CLIP; ANTI LOTATION
THA 		1-47621-017-0 04 1 0808- ● ●
301 CLIP; ANTI LOTATION
THA 		1-47621-017-0 04 1 0808- ● ●
310 EXPANDER
THA 		1-47601-087-0 04 1 0806-0807 ● ●
310 EXPANDER
THA 		1-47601-087-0 02 1 0808- ● ●
310 EXPANDER
THA 		1-47601-087-0 02 1 0808- ● ●
311 BOOT; WEDGE
THA 		1-47649-042-0 04 1 0806-0807 ● ●
311 BOOT; WEDGE
THA 		1-47649-042-0 02 1 0808- ● ●
311 BOOT; WEDGE
THA 		1-47649-042-0 02 1 0808- ● ●
312 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET THA 		1-47634-008-0 08 1 0806-0807 ● ●
312 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET THA 		1-47634-008-0 04 1 0808- ● ●
312 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET THA 		1-47634-008-0 04 1 0808- ● ●
319 RING; DRIVE
THA 		1-47629-200-0 08 1 0806-0807 ● ●
319 RING; DRIVE
THA 		1-47629-200-0 04 1 0808- ● ●
319 RING; DRIVE
THA 		1-47629-200-0 04 1 0808- ● ●
327 SPRING; ADJ
THA 		1-47629-196-0 08 1 0806-0807 ● ●
327 SPRING; ADJ
THA 		1-47629-196-0 04 1 0808- ● ●
327 SPRING; ADJ
THA 		1-47629-196-0 04 1 0808- ● ●
328 CAGE; SPRING
THA 		1-47629-192-0 08 1 0806-0807 ● ●
328 CAGE; SPRING
THA 		1-47629-192-0 04 1 0808- ● ●
328 CAGE; SPRING
THA 		1-47629-192-0 04 1 0808- ● ●
329 SCREW; LOCATING
THA 		1-47619-149-1 08 1 0806-0807 ● ●
329 SCREW; LOCATING
THA 		1-47619-149-1 04 1 0808- ● ●
329 SCREW; LOCATING
THA 		1-47619-149-1 04 1 0808- ● ●
334 SPRING; ROD
THA 		1-47649-041-0 04 1 0806-0807 ● ●
334 SPRING; ROD
THA 		1-47649-041-0 02 1 0808- ● ●
334 SPRING; ROD
THA 		1-47649-041-0 02 1 0808- ● ●
335 RETAINER; SPRING
THA 		1-47649-020-0 04 1 0806-0807 ● ●
335 RETAINER; SPRING
THA 		1-47649-020-0 02 1 0808- ● ●
335 RETAINER; SPRING
THA 		1-47649-020-0 02 1 0808- ● ●
336 PLATE; PIVOT
THA 		1-47119-152-0 08 1 0806-0807 ● ●
336 PLATE; PIVOT
THA 		1-47119-152-0 04 1 0808-1207 ● ●
336 PLATE; PIVOT
THA 		1-47119-152-0 04 1 0808-1207 ● ●
336 PLATE; PIVOT
WHEEL BASE 5200MM<52W> THA 		1-47119-152-0 04 1 1208- ●
336 PLATE; PIVOT
WHEEL BASE 5200MM<52W> THA 		1-47119-152-0 04 1 1208- ●
337 BOLT; PLATE
THA 		1-47119-153-0 04 1 1204-1207 ● ●
337 BOLT; PLATE
THA 		1-47119-153-0 04 1 1204-1207 ● ●
337 BOLT; PLATE
THA 		1-47119-153-0 08 1 0806-0807 ● ●
337 BOLT; PLATE
THA 		1-47119-153-0 04 1 0808-1207 ● ●
337 BOLT; PLATE
THA 		1-47119-153-0 04 1 0808-1207 ● ●
337 BOLT; PLATE
WHEEL BASE 5200MM<52W> THA 		1-47119-153-0 04 1 1208- ●
337 BOLT; PLATE
WHEEL BASE 5200MM<52W> THA 		1-47119-153-0 04 1 1208- ●
348 CAP; EXPANDER
THA 		1-47649-044-0 04 1 0806-0807 ● ●
348 CAP; EXPANDER
THA 		1-47649-044-0 02 1 0808- ● ●
348 CAP; EXPANDER
THA 		1-47649-044-0 02 1 0808- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
