◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11136 - FXZ/GXZ(THAI)EURO3 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#68302) — 66 parça

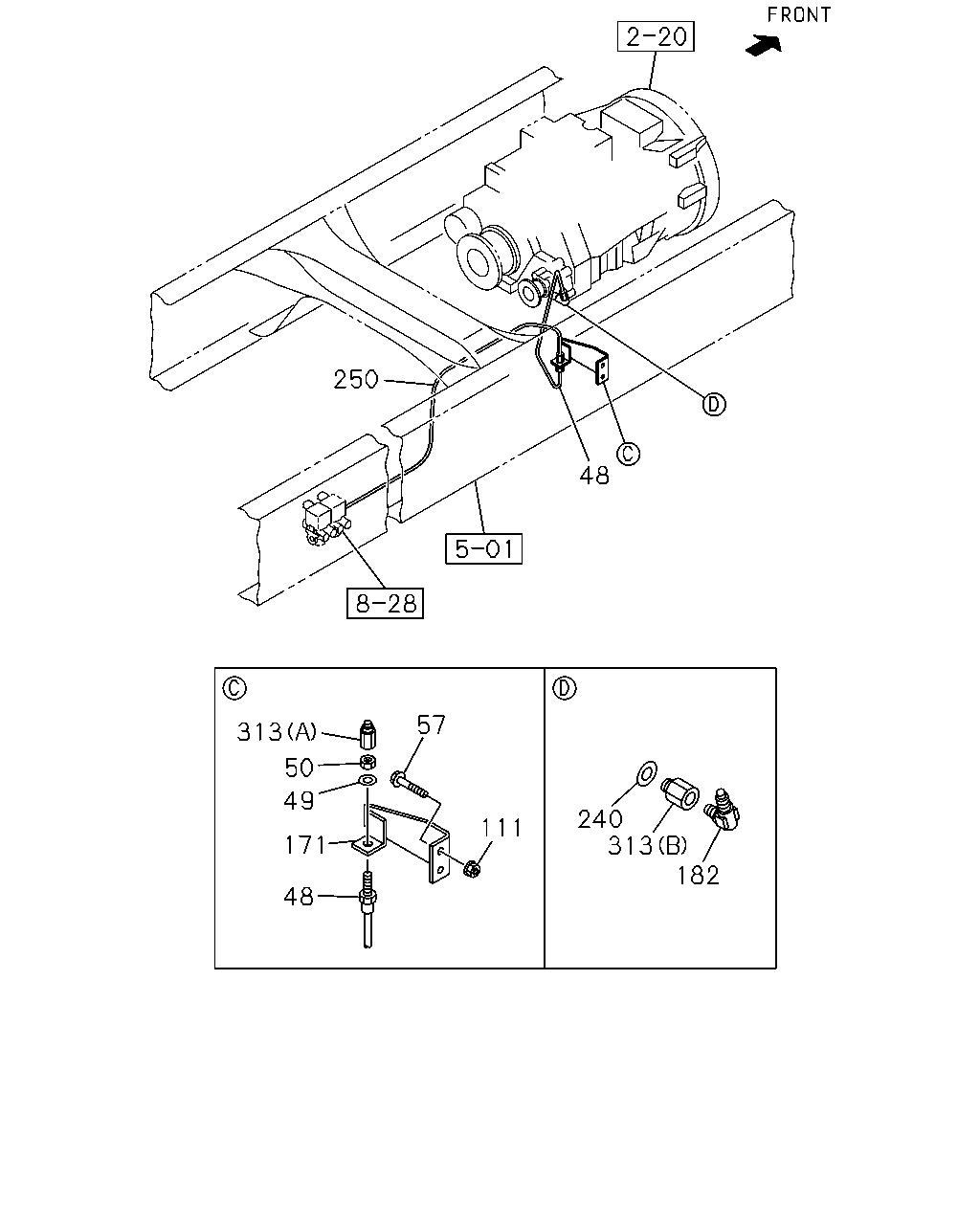

çizim 114417
250 48 57 313 50 49 240 313 182 111 171 48
BalonParca AdiParca NoAdetTipApplied Date A B
48 HOSE; FLEX,PTO
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> L=720 		1-09363-801-0 01 1 1201- ●
48 HOSE; FLEX,PTO
PTO ZF TRANS RR<BDM> L=400 		1-09363-606-0 01 1 0806-0905 ●
48 HOSE; FLEX,PTO
PTO ZF TRANS RR<BDM> L=400 		1-09363-606-0 01 1 0906- ● ●
49 WASHER; LK,FLEX HOSE
PTO ZF TRANS RR<BDM> ID=12.2 		0-91510-512-0 01 1 0806-0905 ●
49 WASHER; LK,FLEX HOSE
PTO ZF TRANS RR<BDM> ID=12.2 		0-91510-512-0 01 1 0906-1112 ● ●
49 WASHER; LK,FLEX HOSE
PTO ZF TRANS RR<BDM> ID=12.2 		0-91510-512-0 01 1 1201- ● ●
49 WASHER; LK,FLEX HOSE
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=12.2 		0-91510-512-0 01 1 1201- ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR<BDM> M12 		9-09840-280-0 01 1 0806-0905 ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR<BDM> M12 		9-09840-280-0 01 1 0906-1112 ● ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR<BDM> M12 		9-09840-280-0 01 1 1201- ● ●
50 NUT; FLEX HOSE
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> M12 		9-09840-280-0 01 1 1201- ●
57 BOLT; BRKT
PTO ZF TRANS RR<BDM> M8X35 FLANGE THA 		0-28650-835-0 02 1 1201- ● ●
57 BOLT; BRKT
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X35 FLANGE THA 		0-28650-835-0 02 1 1201- ●
57 BOLT; BRKT
PTO ZF TRANS RR<BDM> M8X35 FLANGE THA 		0-28650-835-0 02 1 0806-0905 ●
57 BOLT; BRKT
PTO ZF TRANS RR<BDM> M8X35 FLANGE THA 		0-28650-835-0 02 1 0906-1112 ● ●
111 NUT; BRKT
PTO ZF TRANS RR<BDM> M8 FLANGE THA 		0-91180-108-0 02 1 0806-0905 ●
111 NUT; BRKT
PTO ZF TRANS RR<BDM> M8 FLANGE THA 		0-91180-108-0 02 1 0906-1112 ● ●
111 NUT; BRKT
PTO ZF TRANS RR<BDM> M8 FLANGE THA 		0-91180-108-0 02 1 1201- ● ●
111 NUT; BRKT
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> M8 FLANGE THA 		0-91180-108-0 02 1 1201- ●
171 BRACKET; FLEX HOSE
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> 		1-47471-088-0 01 1 1201- ●
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR<BDM> THA 		8-98086-261-0 01 1 0806-0905 ●
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR<BDM> THA 		8-98086-261-0 01 1 0906- ● ●
182 CONNECTOR; FLARE
PTO ZF TRANS RR<BDM> M12 & PT1/4 ELBOW THA 		1-09650-430-0 01 1 0806-0905 ●
182 CONNECTOR; FLARE
PTO ZF TRANS RR<BDM> M12 & PT1/4 ELBOW THA 		1-09650-430-0 01 1 0906- ● ●
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR<BDM> ID=12.2 		1-09630-084-0 01 1 0806-0905 ●
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR<BDM> ID=12.2 		1-09630-084-0 01 1 0906-1312 ● ●
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR<BDM> ID=12.2 		8-98251-344-0 01 1 1401- ● ●
250 TUBE; NYLON
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 01 1 1201- ●
250 TUBE; NYLON
PTO ZF TRANS RR<BDM> SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 01 1 1201- ●
250 TUBE; NYLON
PTO ZF TRANS RR<BDM> SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 01 1 0806-0905 ●
250 TUBE; NYLON
PTO ZF TRANS RR<BDM> SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 01 1 0906-1112 ● ●
313 ADAPTER
PTO ZF TRANS RR<BDM> (A) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 0806-0905 ●
313 ADAPTER
PTO ZF TRANS RR<BDM> (A) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 0906- ● ●
313 ADAPTER
PTO ZF TRANS RR<BDM> (B) PT1/4 		1-09654-396-0 01 1 0806-0905 ●
313 ADAPTER
PTO ZF TRANS RR<BDM> (B) PT1/4 		1-09654-396-0 01 1 0906- ● ●
çizim 114451
48 250 57 171 111 62 50 204 48 60 49
BalonParca AdiParca NoAdetTipApplied Date A B
48 HOSE; FLEX,PTO
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> L=720 		1-09363-801-0 01 1 1201- ●
48 HOSE; FLEX,PTO
PTO ZF TRANS RR<BDM> L=400 		1-09363-606-0 01 1 0806-0905 ●
48 HOSE; FLEX,PTO
PTO ZF TRANS RR<BDM> L=400 		1-09363-606-0 01 1 0906- ● ●
49 WASHER; LK,FLEX HOSE
PTO ZF TRANS RR<BDM> ID=12.2 		0-91510-512-0 01 1 0806-0905 ●
49 WASHER; LK,FLEX HOSE
PTO ZF TRANS RR<BDM> ID=12.2 		0-91510-512-0 01 1 0906-1112 ● ●
49 WASHER; LK,FLEX HOSE
PTO ZF TRANS RR<BDM> ID=12.2 		0-91510-512-0 01 1 1201- ● ●
49 WASHER; LK,FLEX HOSE
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=12.2 		0-91510-512-0 01 1 1201- ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR<BDM> M12 		9-09840-280-0 01 1 0806-0905 ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR<BDM> M12 		9-09840-280-0 01 1 0906-1112 ● ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR<BDM> M12 		9-09840-280-0 01 1 1201- ● ●
50 NUT; FLEX HOSE
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> M12 		9-09840-280-0 01 1 1201- ●
57 BOLT; BRKT
PTO ZF TRANS RR<BDM> M8X35 FLANGE THA 		0-28650-835-0 02 1 1201- ● ●
57 BOLT; BRKT
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X35 FLANGE THA 		0-28650-835-0 02 1 1201- ●
57 BOLT; BRKT
PTO ZF TRANS RR<BDM> M8X35 FLANGE THA 		0-28650-835-0 02 1 0806-0905 ●
57 BOLT; BRKT
PTO ZF TRANS RR<BDM> M8X35 FLANGE THA 		0-28650-835-0 02 1 0906-1112 ● ●
60 BOLT; CLIP FIX
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X20 FLANGE THA 		0-28650-820-0 01 1 1201- ●
62 CLIP; PIPE,AIR
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=15 L=22 H=30 		1-09701-215-1 01 1 1201- ●
111 NUT; BRKT
PTO ZF TRANS RR<BDM> M8 FLANGE THA 		0-91180-108-0 02 1 0806-0905 ●
111 NUT; BRKT
PTO ZF TRANS RR<BDM> M8 FLANGE THA 		0-91180-108-0 02 1 0906-1112 ● ●
111 NUT; BRKT
PTO ZF TRANS RR<BDM> M8 FLANGE THA 		0-91180-108-0 02 1 1201- ● ●
111 NUT; BRKT
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> M8 FLANGE THA 		0-91180-108-0 02 1 1201- ●
171 BRACKET; FLEX HOSE
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> 		1-47471-088-0 01 1 1201- ●
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR<BDM> THA 		8-98086-261-0 01 1 0806-0905 ●
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR<BDM> THA 		8-98086-261-0 01 1 0906- ● ●
204 CONNECTOR; NYLON TUBE
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1201- ●
250 TUBE; NYLON
MJT7U M/T<Y4X> TRANSMISSION SIDE PTO WO/LEVER<SH5> SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 01 1 1201- ●
250 TUBE; NYLON
PTO ZF TRANS RR<BDM> SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 01 1 1201- ●
250 TUBE; NYLON
PTO ZF TRANS RR<BDM> SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 01 1 0806-0905 ●
250 TUBE; NYLON
PTO ZF TRANS RR<BDM> SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 01 1 0906-1112 ● ●

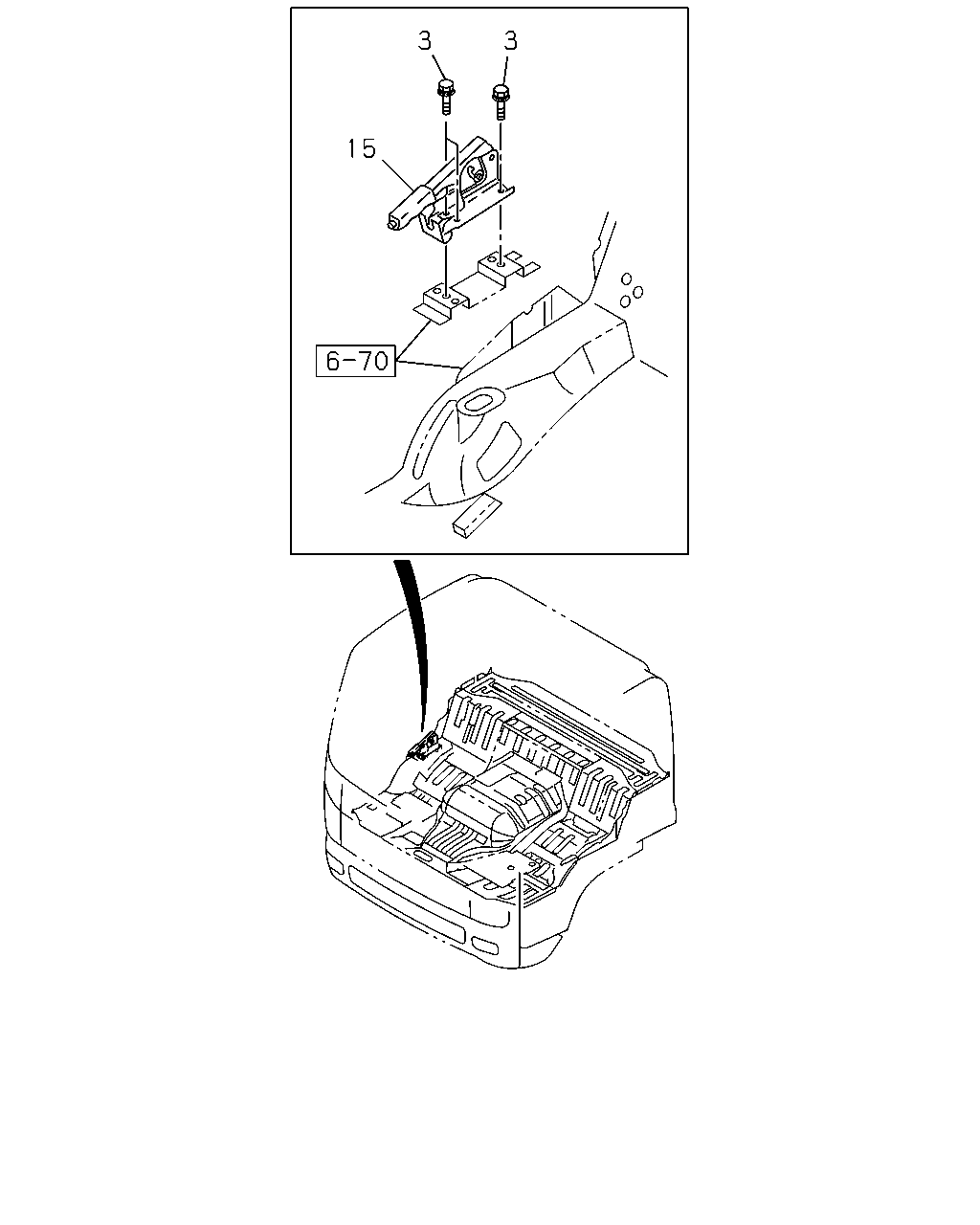

çizim 114719
3 3 15
BalonParca AdiParca NoAdetTipApplied Date A B
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0806-0808 ●
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 0806-0808 ●
