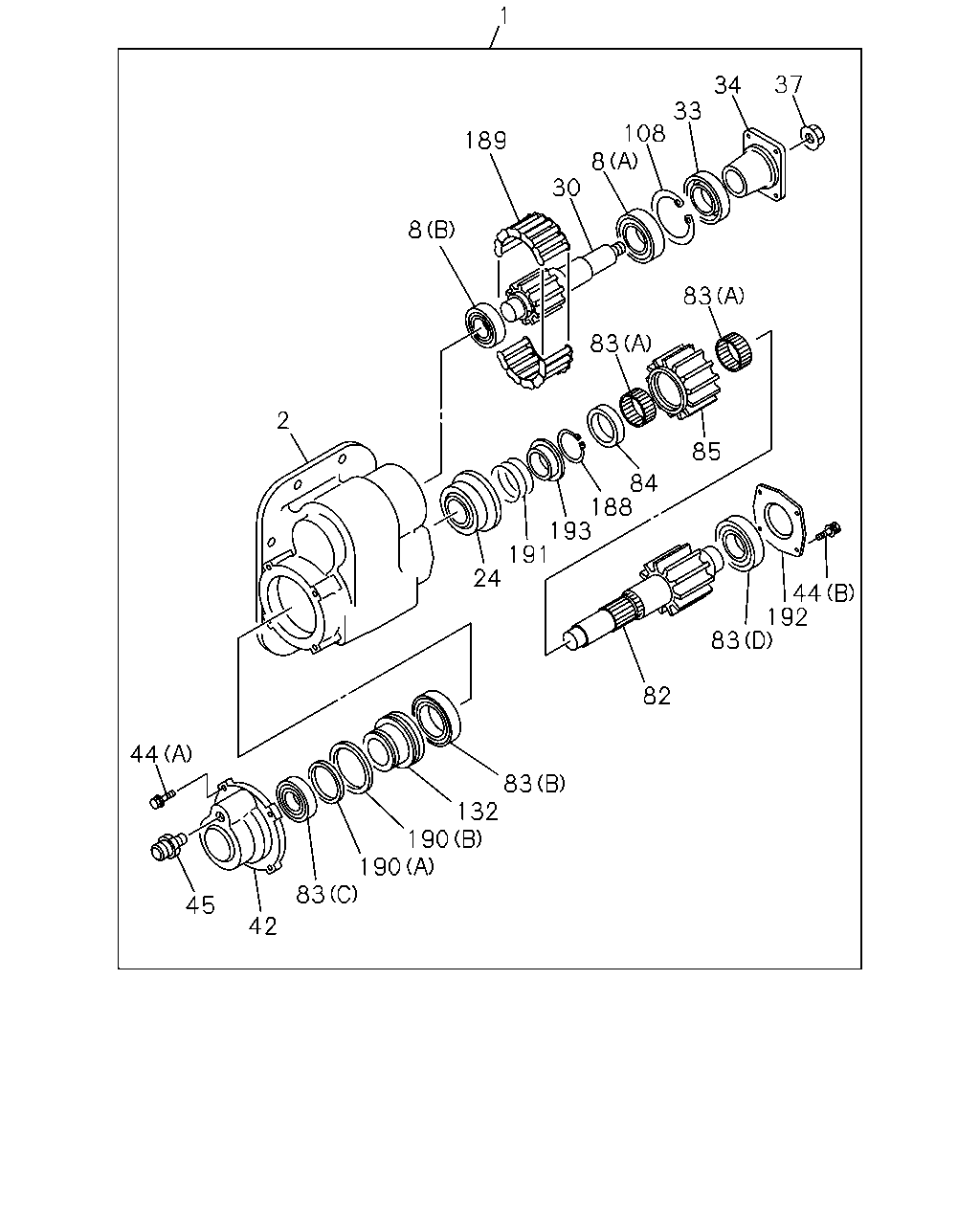

2-81A — POWER TAKE OFF; TRANSMISSION SIDE (#68300) — 34 parça

1 37 34 33 108 8 189 30 8 83 83 2 85 84 188 193 191 24 44 192 83 82 44 83 132 190 190 83 45 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38000-315-1	01	1	1201-
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38111-081-0	01	1	1201-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) JTEKT	1-09810-231-0	01	1	1201-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) NSK	1-09810-232-0	01	1	1201-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) JTEKT	1-09810-233-0	01	1	1201-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) NSK	1-09810-234-0	01	1	1201-
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38225-009-0	01	1	1201-
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38111-083-0	01	1	1201-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38119-035-0	01	1	1201-
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38512-019-0	01	1	1201-
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> M16	1-38119-036-0	01	1	1201-
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38151-021-0	01	1	1201-
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M8X16 FLANGE	0-28080-816-0	04	1	1201-
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) M8X25 FLANGE	0-28080-825-0	04	1	1201-
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) M8X30 FLANGE	0-28680-830-0	04	1	1201-
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> M12 & PT1/4 STRAIGHT THA	1-09650-074-1	01	1	1201-
82	SHAFT; INPUT TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38211-027-0	01	1	1201-
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) JTEKT	1-09800-259-0	01	1	1201-
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) NSK	1-09800-260-0	01	1	1201-
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5> (D) JTEKT	1-09810-233-0	01	1	1201-
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5> (D) NSK	1-09810-234-0	01	1	1201-
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	1-09811-397-0	02	1	1201-
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5> (C)	8-97012-835-0	01	1	1201-
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38226-057-0	01	1	1201-
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38241-104-0	01	1	1201-
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=57.9	9-09180-562-0	01	1	1201-
132	PISTON; CYL,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38377-010-0	01	1	1201-
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-09588-199-0	01	1	1201-
189	CHAIN; DRIVE,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38111-082-1	01	1	1201-
190	CUP; PISTON,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	1-38152-020-0	01	1	1201-
190	CUP; PISTON,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	1-38152-021-0	01	1	1201-
191	SPRING; SLEEVE,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38121-005-0	01	1	1201-
192	COVER; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5>	9-38151-604-0	01	1	1201-
193	RETAINER; SPRING TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38226-056-0	01	1	1201-
