◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11136 - FXZ/GXZ(THAI)EURO3 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-53 - TRANSMISSION OIL COOLER SYSTEM ▶
2-53 — TRANSMISSION OIL COOLER SYSTEM (#68299) — 51 parça

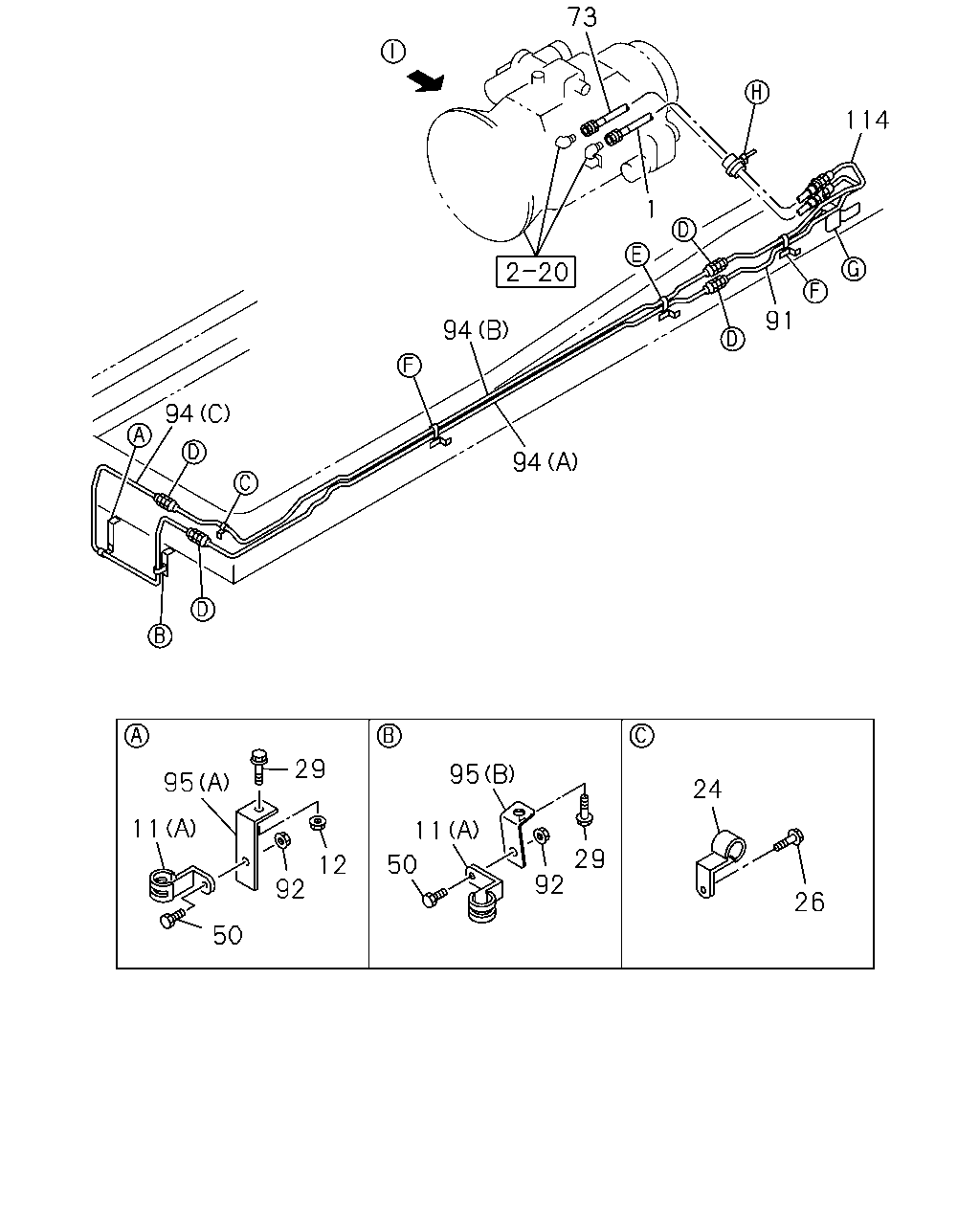

çizim 114518
73 114 1 91 94 94 94 29 95 95 24 11 11 29 92 50 12 92 26 50
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; ATF
MJT7U M/T<Y4X> L=440 		1-09365-318-0 01 1 1201-
11 CLIP; PIPE
MJT7U M/T<Y4X> (A) ID=19 L=28 		0-95235-856-0 02 1 1201-
11 CLIP; PIPE
MJT7U M/T<Y4X> (B) ID=16X2 L=20 		0-95325-535-0 04 1 1201-
12 NUT; BRKT
MJT7U M/T<Y4X> M8 FLANGE THA 		0-91180-108-0 02 1 1201-
24 CLIP; OIL PIPE
MJT7U M/T<Y4X> ID=15 H=24 L=20 		1-09700-606-0 01 1 1201-
26 BOLT; PIPE CLIP
MJT7U M/T<Y4X> M8X16 FLANGE THA 		0-28050-816-0 01 1 1201-
29 BOLT; FILTER TO BRKT
MJT7U M/T<Y4X> M10X20 FLANGE THA 		0-28051-020-0 01 1 1201-
29 BOLT; FILTER TO BRKT
MJT7U M/T<Y4X> M8X20 FLANGE THA 		0-28050-820-0 02 1 1201-
50 BOLT; CLIP
MJT7U M/T<Y4X> M8X20 FLANGE THA 		0-28650-820-0 02 1 1201-
50 BOLT; CLIP
MJT7U M/T<Y4X> M8X20 FLANGE THA 		0-28650-820-0 04 1 1201-
73 HOSE; FLEX,TRANS
MJT7U M/T<Y4X> L=440 		1-09365-318-0 01 1 1201-
91 PIPE; OIL,FLEX HOSE TO UNION
MJT7U M/T<Y4X> L=1302 THA 		8-98182-834-0 01 1 1201-
92 NUT; CLIP
MJT7U M/T<Y4X> M8 FLANGE THA 		0-91180-108-0 02 1 1201-
94 PIPE; OIL,UNION TO UNION
MJT7U M/T<Y4X> (C) L=1010 THA 		8-97619-241-0 01 1 1201-
94 PIPE; OIL,UNION TO UNION
MJT7U M/T<Y4X> (A) L=1335 THA 		8-98182-835-0 01 1 1201-
94 PIPE; OIL,UNION TO UNION
MJT7U M/T<Y4X> (B) L=1682 THA 		8-98182-836-0 01 1 1201-
95 BRACKET; CLIP
MJT7U M/T<Y4X> (C) 		1-47479-482-0 02 1 1201-
95 BRACKET; CLIP
MJT7U M/T<Y4X> (B) 		8-97610-663-0 01 1 1201-
95 BRACKET; CLIP
MJT7U M/T<Y4X> (A) 		8-97610-664-0 01 1 1201-
95 BRACKET; CLIP
MJT7U M/T<Y4X> (D) 		8-98169-606-0 01 1 1201-
114 PIPE; OIL,UNION TO FLEX HOSE
MJT7U M/T<Y4X> L=1368 THA 		8-98182-837-0 01 1 1201-

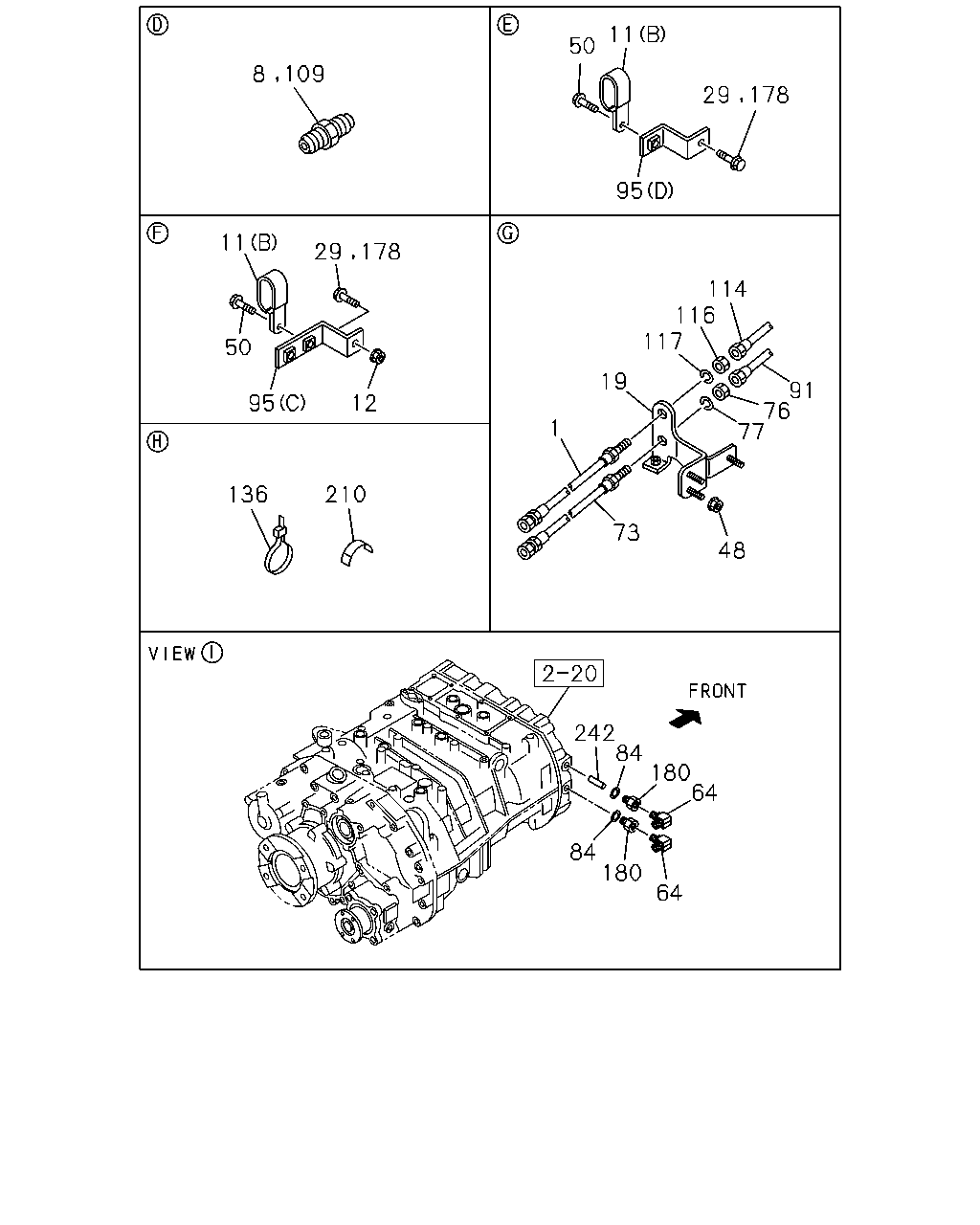

çizim 114770
11 50 8 109 29 178 95 11 29 178 114 116 117 50 19 91 76 77 95 12 1 136 210 73 48 242 84 180 64 84 180 64
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; ATF
MJT7U M/T<Y4X> L=440 		1-09365-318-0 01 1 1201-
8 UNION
MJT7U M/T<Y4X> M22 L=51 		0-92123-015-0 02 1 1201-
11 CLIP; PIPE
MJT7U M/T<Y4X> (A) ID=19 L=28 		0-95235-856-0 02 1 1201-
11 CLIP; PIPE
MJT7U M/T<Y4X> (B) ID=16X2 L=20 		0-95325-535-0 04 1 1201-
12 NUT; BRKT
MJT7U M/T<Y4X> M8 FLANGE THA 		0-91180-108-0 02 1 1201-
19 BRACKET; FLEX HOSE
MJT7U M/T<Y4X> 		8-98175-432-0 01 1 1201-
29 BOLT; FILTER TO BRKT
MJT7U M/T<Y4X> M10X20 FLANGE THA 		0-28051-020-0 01 1 1201-
29 BOLT; FILTER TO BRKT
MJT7U M/T<Y4X> M8X20 FLANGE THA 		0-28050-820-0 02 1 1201-
48 NUT; BRKT
MJT7U M/T<Y4X> M8 FLANGE THA 		0-91180-108-0 03 1 1201-
50 BOLT; CLIP
MJT7U M/T<Y4X> M8X20 FLANGE THA 		0-28650-820-0 02 1 1201-
50 BOLT; CLIP
MJT7U M/T<Y4X> M8X20 FLANGE THA 		0-28650-820-0 04 1 1201-
64 CONNECTOR; OIL COOLER
ZF9S1310 M/T<Y5K> TRANSMISSION OIL COOLER<C2C> R3/8 & M22 ELBOW 		1-09660-612-1 02 1 1201-
73 HOSE; FLEX,TRANS
MJT7U M/T<Y4X> L=440 		1-09365-318-0 01 1 1201-
76 NUT; FLEX HOSE
MJT7U M/T<Y4X> M22 		0-91111-522-0 01 1 1201-
77 WASHER; LK
MJT7U M/T<Y4X> ID=22.5 		0-91510-522-0 01 1 1201-
84 GASKET; OIL PIPE
ZF9S1310 M/T<Y5K> TRANSMISSION OIL COOLER<C2C> ID=16.2 		1-09630-086-0 02 1 1201-
91 PIPE; OIL,FLEX HOSE TO UNION
MJT7U M/T<Y4X> L=1302 THA 		8-98182-834-0 01 1 1201-
95 BRACKET; CLIP
MJT7U M/T<Y4X> (C) 		1-47479-482-0 02 1 1201-
95 BRACKET; CLIP
MJT7U M/T<Y4X> (B) 		8-97610-663-0 01 1 1201-
95 BRACKET; CLIP
MJT7U M/T<Y4X> (A) 		8-97610-664-0 01 1 1201-
95 BRACKET; CLIP
MJT7U M/T<Y4X> (D) 		8-98169-606-0 01 1 1201-
109 UNION
MJT7U M/T<Y4X> M22 L=51 		0-92123-015-0 02 1 1201-
114 PIPE; OIL,UNION TO FLEX HOSE
MJT7U M/T<Y4X> L=1368 THA 		8-98182-837-0 01 1 1201-
116 NUT; BRKT,FLEX HOSE
MJT7U M/T<Y4X> M22 		0-91111-522-0 01 1 1201-
117 WASHER; LK,FLEX HOSE
MJT7U M/T<Y4X> ID=22.5 		0-91510-522-0 01 1 1201-
136 CLIP; FLEX HOSE
MJT7U M/T<Y4X> L=350 		1-09707-183-0 01 1 1201-
178 BOLT; BRKT,CLIP
MJT7U M/T<Y4X> M8X35 FLANGE THA 		0-28650-835-0 02 1 1201-
180 ADAPTER; OIL COOLER
ZF9S1310 M/T<Y5K> TRANSMISSION OIL COOLER<C2C> M16 & PT3/8 STRAIGHT THA 		1-09661-044-0 02 1 1201-
210 BAND; FLEX HOSE
MJT7U M/T<Y4X> L=175 		1-09707-178-0 01 1 1201-
242 PIPE; COOLER
ZF9S1310 M/T<Y5K> TRANSMISSION OIL COOLER<C2C> 		1-32567-018-0 01 1 1201-
