2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#68296) — 21 parça

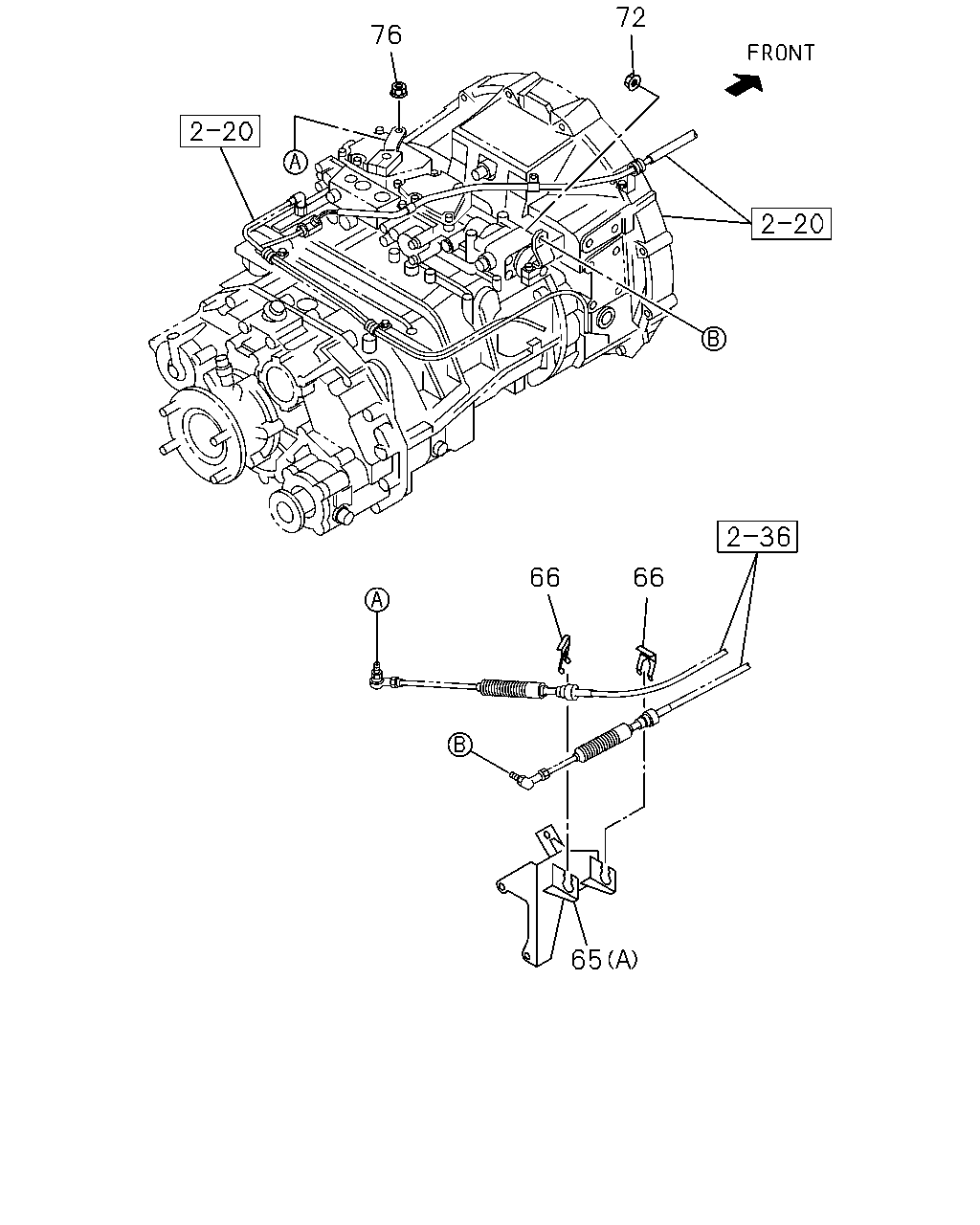

66 72 76 66 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	BRACKET; SHIFT TO SELECT,TRANS CONT MJT7U M/T<Y4X> (C)	8-98122-075-0	01	1	1201-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MAL6R M/T<Y2J> (B)	8-98055-459-0	01	1	0806-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1310 M/T<Y5K> (A)	8-98055-454-1	01	1	0806-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT (A)	8-98055-454-1	01	1	0806-		●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0806-	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	0806-	●	●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	0806-	●	●

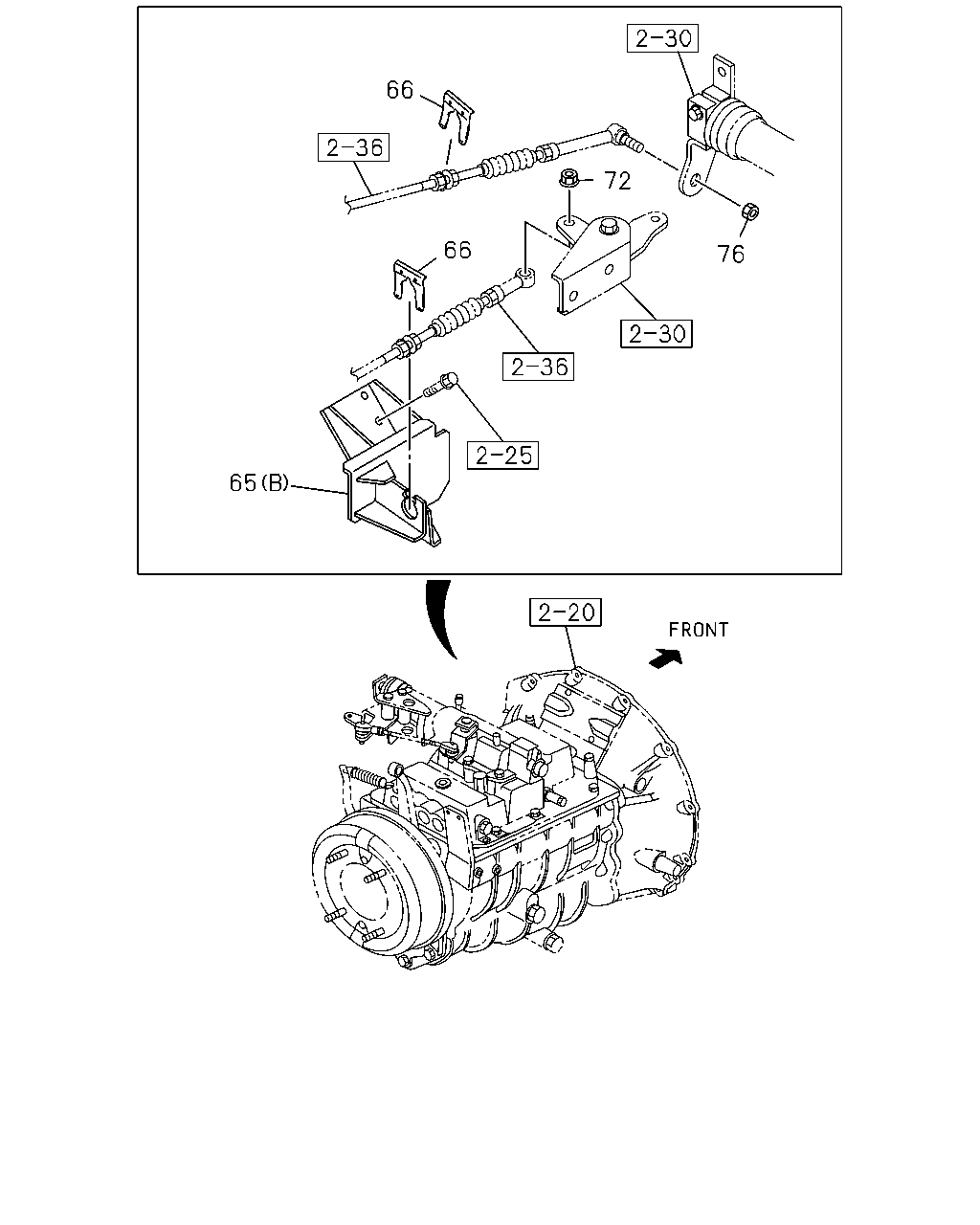

66 72 66 76 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	BRACKET; SHIFT TO SELECT,TRANS CONT MJT7U M/T<Y4X> (C)	8-98122-075-0	01	1	1201-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MAL6R M/T<Y2J> (B)	8-98055-459-0	01	1	0806-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1310 M/T<Y5K> (A)	8-98055-454-1	01	1	0806-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT (A)	8-98055-454-1	01	1	0806-		●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0806-	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	0806-	●	●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	0806-	●	●

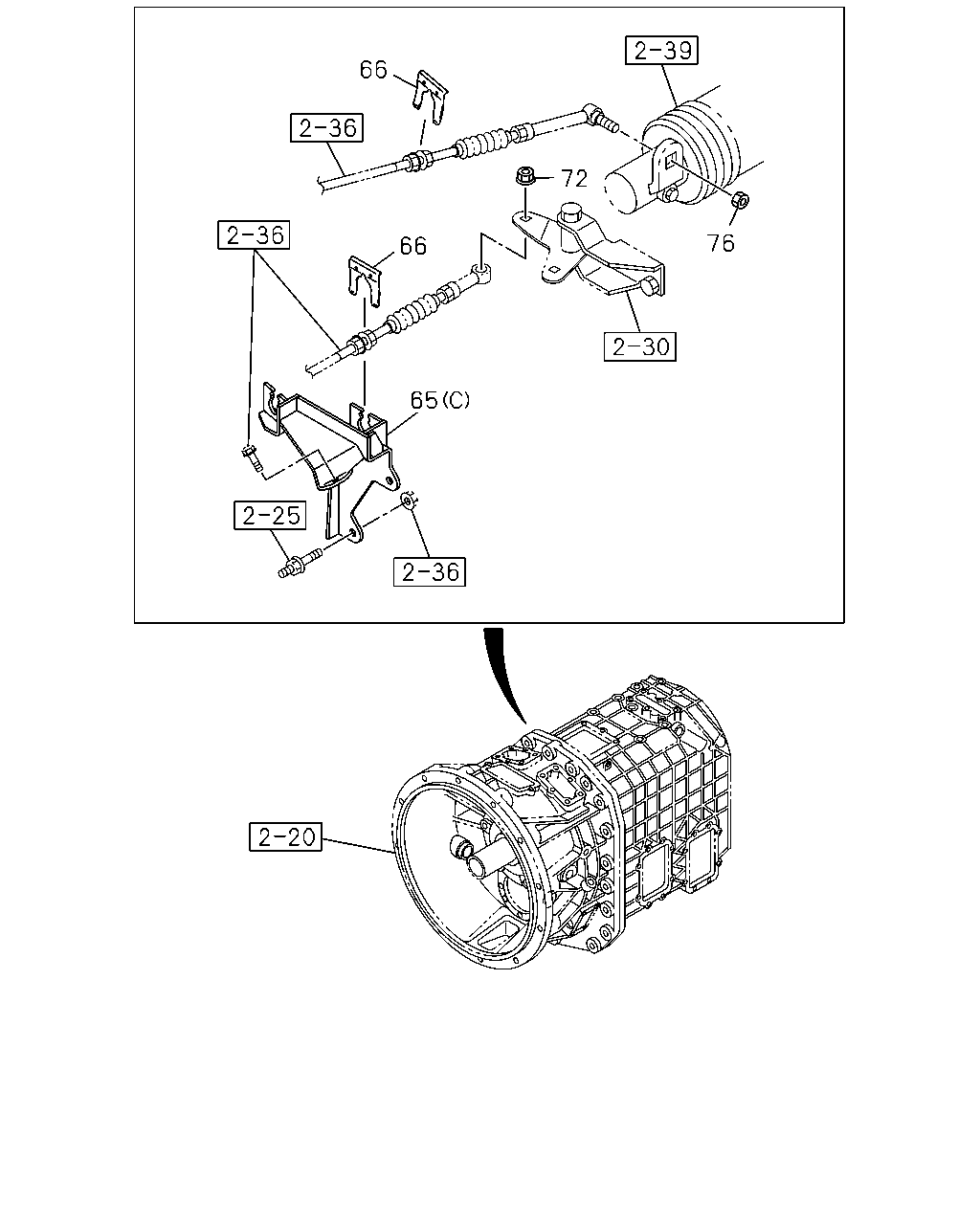

72 76 66 66 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	BRACKET; SHIFT TO SELECT,TRANS CONT MJT7U M/T<Y4X> (C)	8-98122-075-0	01	1	1201-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MAL6R M/T<Y2J> (B)	8-98055-459-0	01	1	0806-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1310 M/T<Y5K> (A)	8-98055-454-1	01	1	0806-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT (A)	8-98055-454-1	01	1	0806-		●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0806-	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	0806-	●	●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	0806-	●	●
