2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#68295) — 59 parça

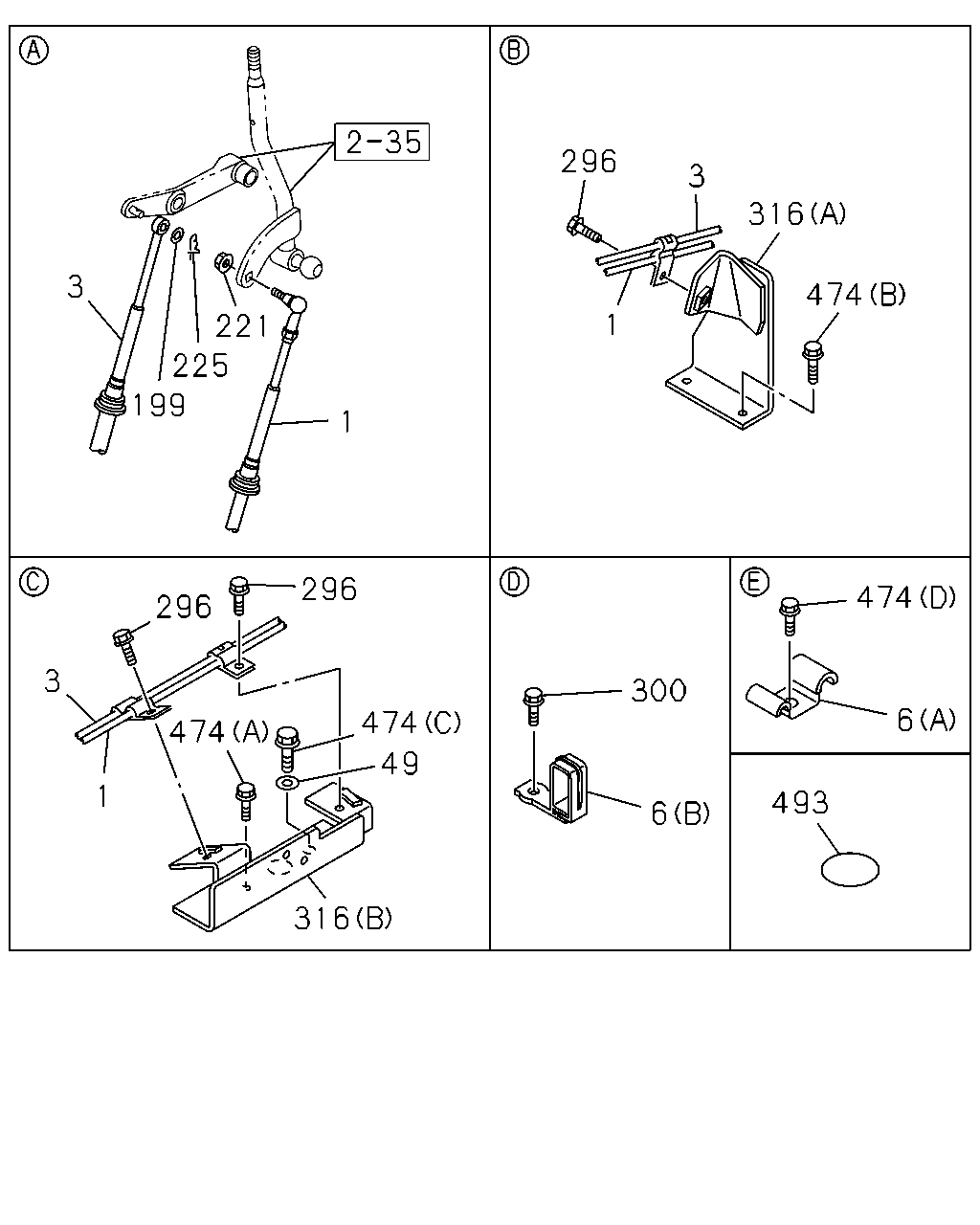

çizim 113928
296 3 316 3 474 1 221 225 199 1 296 474 296 3 300 6 474 474 49 1 493 6 316
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
MJT7U M/T<Y4X> L=3201 THA 		8-98123-232-0 01 1 1201-1311 ●
1 CABLE; SHIFT,TRANS CONT
MJT7U M/T<Y4X> L=3201 THA 		8-98246-044-0 01 1 1312-1505 ●
1 CABLE; SHIFT,TRANS CONT
MJT7U M/T<Y4X> L=3201 THA 		8-98123-232-0 01 1 1506- ●
1 CABLE; SHIFT,TRANS CONT
MAL6R M/T<Y2J> L=3130 THA 		8-98054-892-2 01 1 0806-1311 ●
1 CABLE; SHIFT,TRANS CONT
MAL6R M/T<Y2J> L=3130 THA 		8-98246-042-0 01 1 1312-1505 ●
1 CABLE; SHIFT,TRANS CONT
MAL6R M/T<Y2J> L=3130 THA 		8-98054-892-2 01 1 1506- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T<Y5K> L=3205 		8-98054-888-2 01 1 0806-1311 ●
1 CABLE; SHIFT,TRANS CONT
L=3205 		8-98054-888-2 01 1 0806-1311 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T<Y5K> L=3205 THA 		8-98246-040-0 01 1 1312-1505 ●
1 CABLE; SHIFT,TRANS CONT
L=3205 THA 		8-98246-040-0 01 1 1312-1505 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T<Y5K> L=3205 		8-98054-888-2 01 1 1506- ●
1 CABLE; SHIFT,TRANS CONT
L=3205 		8-98054-888-2 01 1 1506- ●
3 CABLE; SELECT,TRANS CONT
MJT7U M/T<Y4X> L=3223 THA 		8-98123-234-0 01 1 1201- ●
3 CABLE; SELECT,TRANS CONT
MAL6R M/T<Y2J> L=3150 THA 		8-98054-898-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1310 M/T<Y5K> L=3105 THA 		8-98054-894-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
L=3105 THA 		8-98054-894-3 01 1 0806- ●
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0806- ● ●
6 CLIP; CABLE
(B) ID=10 & 10 M8 		1-09701-220-0 01 1 0806- ● ●
49 WASHER; LK
ID=14.2 		0-91510-614-0 01 1 0806- ● ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0806- ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0806-1011 ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0806- ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE THA 		0-28050-820-0 03 1 0806- ● ●
300 BOLT; CLIP
M8X20 FLANGE THA 		0-28050-820-0 01 1 0806- ● ●
316 BRACKET; CLIP
(A) 		8-98055-446-1 01 1 0806- ● ●
316 BRACKET; CLIP
(B) 		8-98056-946-0 01 1 0806-1412 ● ●
316 BRACKET; CLIP
(B) 		8-98294-156-0 01 1 1501- ● ●
474 BOLT; BRKT
(C) M8X30 FLANGE THA 		0-28050-830-0 01 1 1102- ● ●
474 BOLT; BRKT
(A) M14X45 		0-20801-445-0 01 1 0806- ● ●
474 BOLT; BRKT
(C) M8X30 FLANGE THA 		0-28050-830-0 01 1 0806-1101 ● ●
474 BOLT; BRKT
(D) M8X25 W/WASHER 		0-51640-825-0 01 1 0806- ● ●
474 BOLT; BRKT
(B) M8X20 FLANGE THA 		0-28050-820-0 02 1 0806- ● ●
493 SEAL; CABLE
OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0806- ● ●

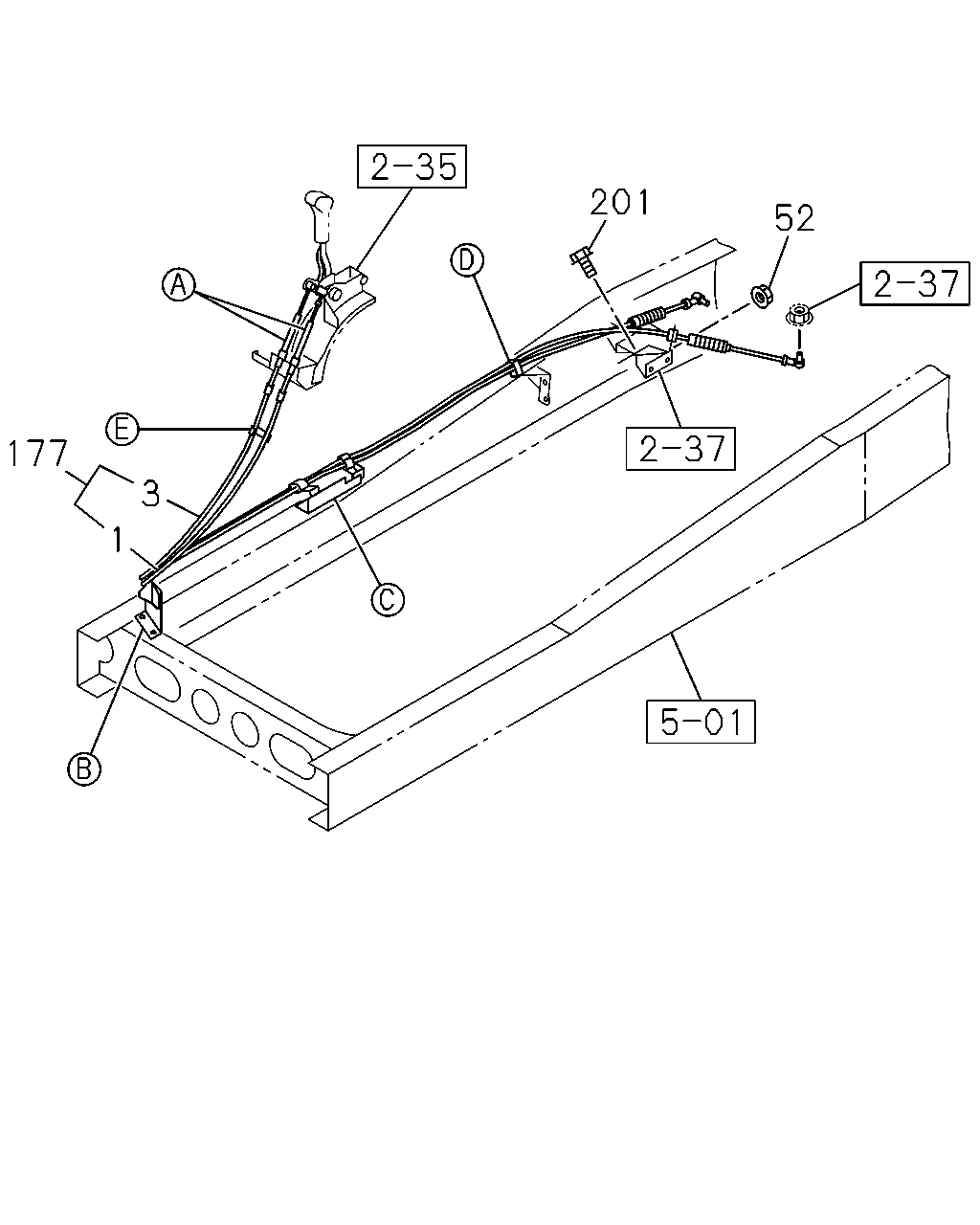

çizim 194042
201 52 177 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
MJT7U M/T<Y4X> L=3201 THA 		8-98123-232-0 01 1 1201-1311 ●
1 CABLE; SHIFT,TRANS CONT
MJT7U M/T<Y4X> L=3201 THA 		8-98246-044-0 01 1 1312-1505 ●
1 CABLE; SHIFT,TRANS CONT
MJT7U M/T<Y4X> L=3201 THA 		8-98123-232-0 01 1 1506- ●
1 CABLE; SHIFT,TRANS CONT
MAL6R M/T<Y2J> L=3130 THA 		8-98054-892-2 01 1 0806-1311 ●
1 CABLE; SHIFT,TRANS CONT
MAL6R M/T<Y2J> L=3130 THA 		8-98246-042-0 01 1 1312-1505 ●
1 CABLE; SHIFT,TRANS CONT
MAL6R M/T<Y2J> L=3130 THA 		8-98054-892-2 01 1 1506- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T<Y5K> L=3205 		8-98054-888-2 01 1 0806-1311 ●
1 CABLE; SHIFT,TRANS CONT
L=3205 		8-98054-888-2 01 1 0806-1311 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T<Y5K> L=3205 THA 		8-98246-040-0 01 1 1312-1505 ●
1 CABLE; SHIFT,TRANS CONT
L=3205 THA 		8-98246-040-0 01 1 1312-1505 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T<Y5K> L=3205 		8-98054-888-2 01 1 1506- ●
1 CABLE; SHIFT,TRANS CONT
L=3205 		8-98054-888-2 01 1 1506- ●
3 CABLE; SELECT,TRANS CONT
MJT7U M/T<Y4X> L=3223 THA 		8-98123-234-0 01 1 1201- ●
3 CABLE; SELECT,TRANS CONT
MAL6R M/T<Y2J> L=3150 THA 		8-98054-898-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1310 M/T<Y5K> L=3105 THA 		8-98054-894-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
L=3105 THA 		8-98054-894-3 01 1 0806- ●
52 NUT; BRKT
MJT7U M/T<Y4X> M10 FLANGE THA 		0-91180-210-0 02 1 1201- ●
177 CABLE ASM; SHIFT & SELECT
MAL6R M/T<Y2J> 		8-98060-279-3 01 1 0806-1101 ●
177 CABLE ASM; SHIFT & SELECT
ZF9S1310 M/T<Y5K> 		8-98060-276-3 01 1 0806-1101 ●
177 CABLE ASM; SHIFT & SELECT 8-98060-276-3 01 1 0806-1101 ●
201 BOLT; BRKT
MAL6R M/T<Y2J> M8X16 FLANGE THA 		0-28050-816-0 04 1 0806- ●
201 BOLT; BRKT
ZF9S1310 M/T<Y5K> M8X16 FLANGE THA 		0-28050-816-0 01 1 0806-1112 ●
201 BOLT; BRKT
M8X16 FLANGE THA 		0-28050-816-0 01 1 0806-1112 ●
201 BOLT; BRKT
MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> M8X16 FLANGE THA 		0-28050-816-0 01 1 1201- ●
201 BOLT; BRKT
M8X16 FLANGE THA 		0-28050-816-0 01 1 1201- ●
