2-30A — GEAR SHIFTER AND QUADRANT BOX (#68292) — 314 parça

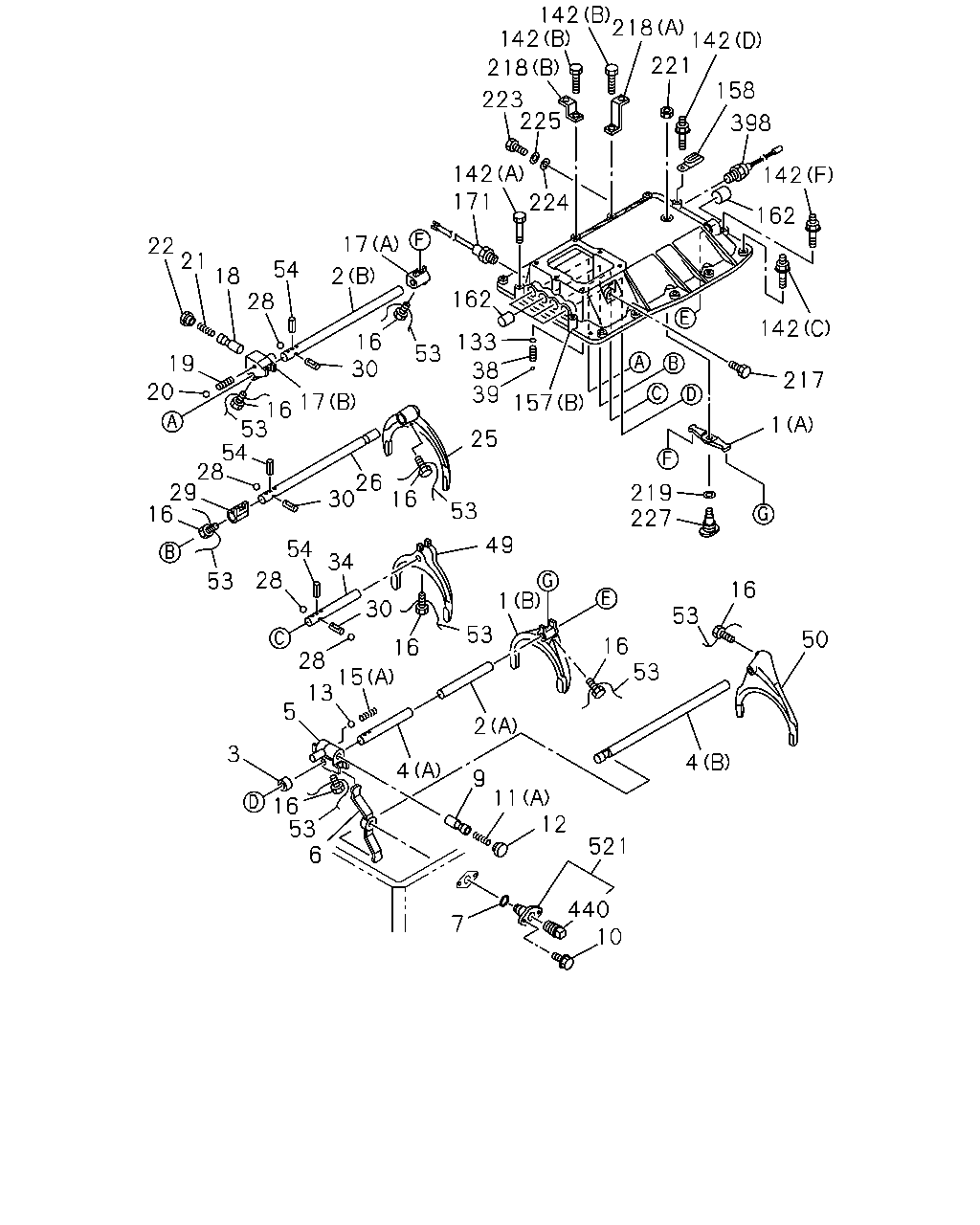

çizim 194033
142 218 142 142 221 218 158 223 225 398 142 171 142 224 162 17 22 21 162 54 18 28 2 142 16 30 133 53 19 20 38 39 217 17 157 16 53 54 28 29 16 1 25 26 30 219 227 16 53 49 54 34 28 53 1 16 30 53 53 50 16 53 16 28 15 13 5 2 3 4 9 11 4 16 53 6 12 521 440 10 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV
(C) 		1-33511-579-0 01 1 1201- ●
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-458-0 01 1 0806- ●
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-541-0 01 1 0806- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-438-0 01 1 1201- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-456-0 01 1 1201- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-400-1 01 1 0806- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-415-1 01 1 0806- ●
3 STOPPER; 6TH SHIFT ROD 9-33537-018-0 01 1 0806- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-443-1 01 1 1201- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-445-0 01 1 1201- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-405-1 01 1 0806- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-407-1 01 1 0806- ●
5 BLOCK; SHIFT,6TH 1-33511-372-2 01 1 0806- ●
6 LEVER; RELAY 9-33511-402-1 01 1 0806- ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 0806- ●
9 SLEEVE; 6TH,SHIFT BLOCK 1-33516-022-1 01 1 0806- ●
10 BOLT; SPINDLE
M14X20 		1-09044-078-0 02 1 0806- ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 1201- ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0806-1112 ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 1201- ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 1201- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0806- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0806-1112 ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 1201- ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-439-0 01 1 1201- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0806-1112 ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 1201- ● ●
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 W/HOLE 		1-09052-038-0 08 1 0806- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-202-3 01 1 1201- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-552-1 01 1 1201- ●
17 BLOCK; SHIFT,1ST & REV
(C) 		1-33511-557-0 02 1 1201- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-298-4 01 1 0806- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-540-0 01 1 0806- ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 0806-1112 ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 1201- ● ●
19 SPRING; COIL COMP 1-09580-438-0 01 1 0806- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0806-1112 ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 1201- ● ●
21 SPRING; COIL COMP SLEEVE 1-09580-444-0 01 1 0806- ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 1201- ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0806- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-435-0 01 1 1201- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-440-0 01 1 0806- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-440-1 01 1 1201- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-401-1 01 1 0806- ●
28 BALL; INTER LK 9-00097-501-0 04 1 0806-1112 ●
28 BALL; INTER LK 9-00097-501-0 04 1 1201- ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 0806-1112 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 1201- ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 0806-1112 ●
30 PIN; INTER LK 9-33534-003-0 03 1 1201- ● ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-402-1 01 1 0806- ●
38 SPRING; DETENT 1-09580-379-0 04 1 0806-1112 ●
38 SPRING; DETENT 1-09580-379-0 04 1 1201- ● ●
39 BALL; DETENT 1-09843-012-0 04 1 0806-1112 ●
39 BALL; DETENT 1-09843-012-0 04 1 1201- ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-466-1 01 1 1201- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-461-0 01 1 0806- ●
50 ARM; SHIFT,6TH 1-33511-550-0 01 1 1201- ●
50 ARM; SHIFT,6TH 1-33511-185-3 01 1 0806- ●
53 WIRE; BOLT
L=180 		1-09780-024-0 06 1 0806- ●
53 WIRE; BOLT
L=200 		9-08351-020-0 02 1 0806- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0806-1112 ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 1201- ● ●
133 SEAT; SPR 1-33549-072-0 04 1 0806- ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-97365-449-0 02 1 0806- ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 03 1 0806- ●
142 BOLT; QUAD BOX
(D) M10X20,M10X45 L=75 		8-98010-335-0 01 1 0806- ●
142 BOLT; QUAD BOX
(F) M10X20,M10X55 L=85 		8-98032-017-0 01 1 0806- ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE 		8-98044-944-0 11 1 0806- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-345-2 01 1 0806- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-507-3 01 1 0806-1112 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-507-3 01 1 1201-1311 ● ●
157 BOX; QUAD,TRANS
(A) 		8-98231-390-0 01 1 1312- ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0806- ●
162 COVER; SHIFT ROD,QUAD BOX
OD=24 L=31 		9-33545-011-1 05 1 0806- ●
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0806-1109 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110-1112 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1201- ● ●
217 SCREW; SET,6TH SHIFT BLOCK
M8X12.5 		9-09814-533-0 01 1 0806- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-639-1 02 1 1201- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0806- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0806- ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0806- ●
221 NUT; SPINDLE
M12 FLANGE THA 		0-91180-212-0 01 1 0806- ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0806- ●
224 WASHER; PL,QUAD BOX
ID=15 		0-91610-514-0 01 1 0806- ●
225 WASHER; LK,QUAD BOX
ID=14.2 		0-91510-514-0 01 1 0806- ●
227 SPINDLE; 1ST & REV 1-33519-104-0 01 1 1201- ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0806- ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 1201-1209 ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210- ●
398 SWITCH; REV LAMP 1-82440-082-0 01 1 0806- ●
440 PLUG; OIL
PT1/4 THA 		9-99204-513-0 01 1 0806- ●
521 SPINDLE; 6TH 1-33119-255-0 01 1 0806- ●

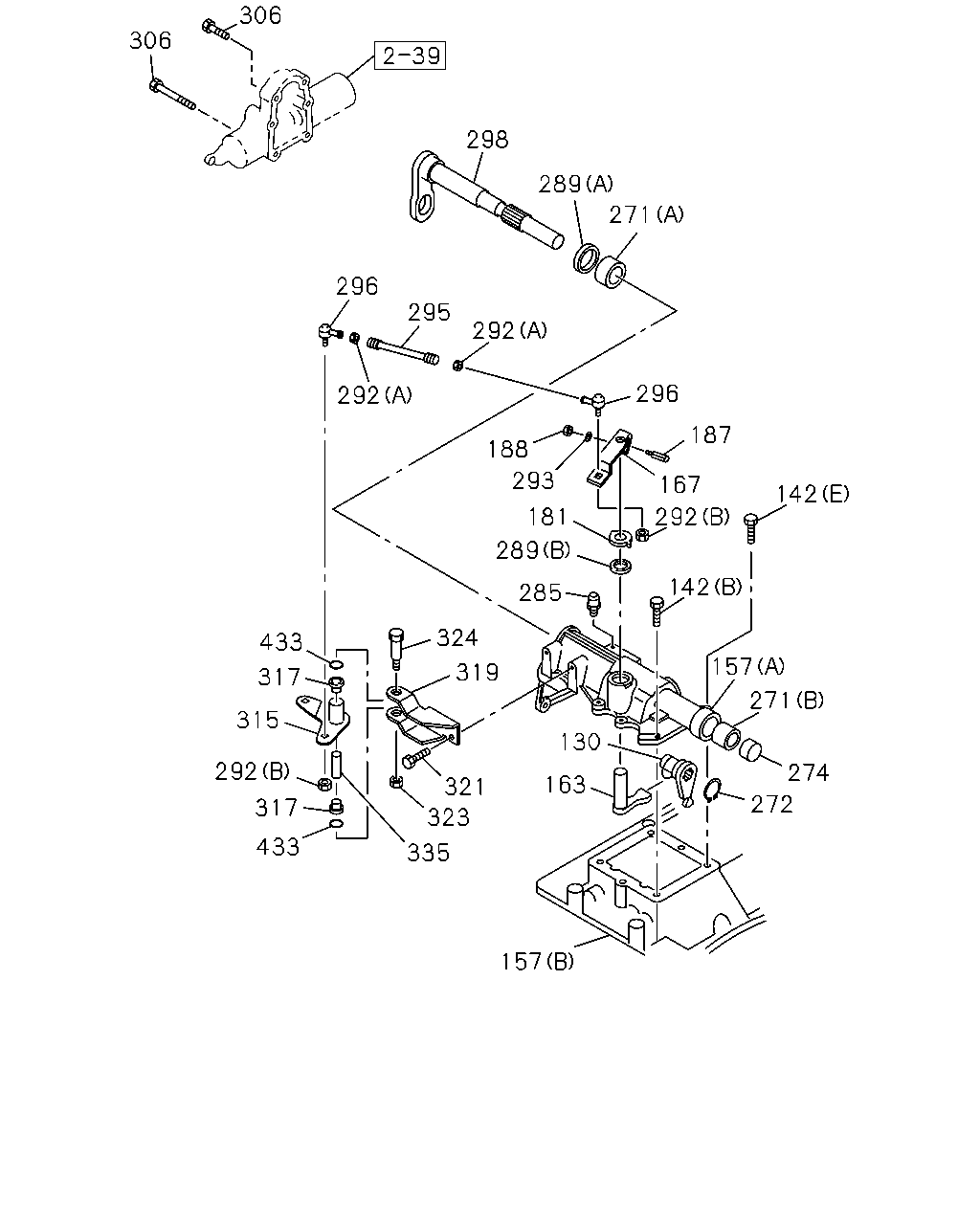

çizim 194035
306 306 298 289 271 296 295 292 296 292 187 188 293 167 142 181 292 289 142 285 324 433 157 319 317 271 315 130 292 274 163 321 272 317 323 433 335 157
BalonParca AdiParca NoAdetTipApplied Date A B
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 0806-1112 ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 1201- ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-97365-449-0 02 1 0806- ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 03 1 0806- ●
142 BOLT; QUAD BOX
(D) M10X20,M10X45 L=75 		8-98010-335-0 01 1 0806- ●
142 BOLT; QUAD BOX
(F) M10X20,M10X55 L=85 		8-98032-017-0 01 1 0806- ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE 		8-98044-944-0 11 1 0806- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-345-2 01 1 0806- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-507-3 01 1 0806-1112 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-507-3 01 1 1201-1311 ● ●
157 BOX; QUAD,TRANS
(A) 		8-98231-390-0 01 1 1312- ● ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 0806-1112 ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 1201- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 0806-1112 ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 1201- ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0806-1112 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1201- ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0806-1112 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1201- ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0806-1112 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1201- ● ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 0806-1112 ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 1201- ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 0806-1112 ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 1201- ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 0806-1112 ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 1201- ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0806-1112 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1201- ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0806-1112 ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 1201- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
(B) OD=30 		1-09625-386-0 01 1 0806-1112 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
(B) OD=30 ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-386-0 01 1 1201- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
(A) OD=41 		1-09625-647-0 01 1 0806-1112 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
(A) OD=41 ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-647-0 01 1 1201- ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0806- ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0806- ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0806-1112 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1201- ● ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 0806-1112 ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 1201- ● ●
296 ROD END 1-09760-108-0 02 1 0806-1112 ●
296 ROD END 1-09760-108-0 02 1 1201- ● ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 0806-1112 ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 1201- ● ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE THA 		0-28151-045-0 02 1 0806-1112 ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE THA 		0-28151-045-0 02 1 1201- ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE THA 		0-28151-080-0 04 1 0806-1112 ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE THA 		0-28151-080-0 04 1 1201- ● ●
315 LEVER; SELECT 8-98097-127-0 01 1 0806-1112 ●
315 LEVER; SELECT 8-98097-127-0 01 1 1201- ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0806-1112 ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 0806-1112 ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 1201- ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0806-1112 ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 1201- ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0806-1112 ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 1201- ● ●
324 BOLT; SHAFT
M10X60 FLANGE THA 		0-28051-060-0 01 1 0806-1112 ●
324 BOLT; SHAFT
M10X60 FLANGE THA 		0-28051-060-0 01 1 1201- ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 0806-1112 ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 1201- ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0806-1112 ●
433 GASKET; BUSHING 1-09623-636-0 02 1 1201- ● ●

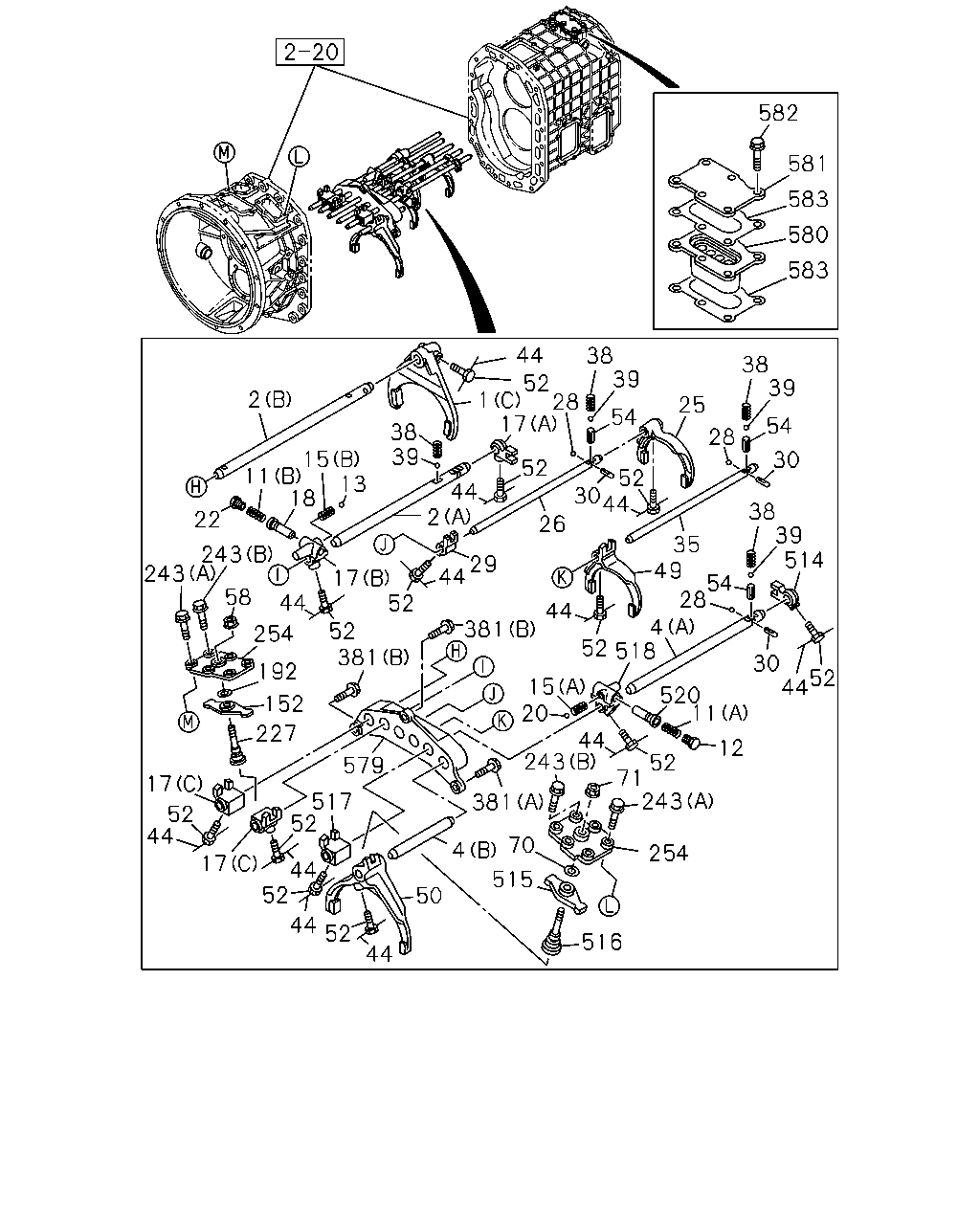

çizim 194054
582 581 583 580 583 44 38 39 38 39 52 1 28 17 2 25 28 54 54 38 39 15 11 13 18 30 52 52 30 44 44 2 38 39 514 22 26 35 49 243 243 58 29 44 17 52 54 28 4 52 518 44 44 381 52 381 254 192 30 52 44 15 20 520 11 152 227 44 243 12 579 52 71 243 17 517 52 381 52 44 70 4 254 44 52 17 515 50 44 52 516 44
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV
(C) 		1-33511-579-0 01 1 1201- ●
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-458-0 01 1 0806- ●
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-541-0 01 1 0806- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-438-0 01 1 1201- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-456-0 01 1 1201- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-400-1 01 1 0806- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-415-1 01 1 0806- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-443-1 01 1 1201- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-445-0 01 1 1201- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-405-1 01 1 0806- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-407-1 01 1 0806- ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 1201- ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0806-1112 ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 1201- ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 1201- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0806- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0806-1112 ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 1201- ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-439-0 01 1 1201- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0806-1112 ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 1201- ● ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-202-3 01 1 1201- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-552-1 01 1 1201- ●
17 BLOCK; SHIFT,1ST & REV
(C) 		1-33511-557-0 02 1 1201- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-298-4 01 1 0806- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-540-0 01 1 0806- ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 0806-1112 ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 1201- ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0806-1112 ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 1201- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 1201- ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0806- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-435-0 01 1 1201- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-440-0 01 1 0806- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-440-1 01 1 1201- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-401-1 01 1 0806- ●
28 BALL; INTER LK 9-00097-501-0 04 1 0806-1112 ●
28 BALL; INTER LK 9-00097-501-0 04 1 1201- ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 0806-1112 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 1201- ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 0806-1112 ●
30 PIN; INTER LK 9-33534-003-0 03 1 1201- ● ●
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-442-1 01 1 1201- ●
38 SPRING; DETENT 1-09580-379-0 04 1 0806-1112 ●
38 SPRING; DETENT 1-09580-379-0 04 1 1201- ● ●
39 BALL; DETENT 1-09843-012-0 04 1 0806-1112 ●
39 BALL; DETENT 1-09843-012-0 04 1 1201- ● ●
44 WIRE; LK
L=180 		1-09780-024-0 10 1 1201- ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 1201- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-466-1 01 1 1201- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-461-0 01 1 0806- ●
50 ARM; SHIFT,6TH 1-33511-550-0 01 1 1201- ●
50 ARM; SHIFT,6TH 1-33511-185-3 01 1 0806- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 12 1 1201- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0806-1112 ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 1201- ● ●
58 NUT
M12 FLANGE THA 		0-91180-212-0 01 1 1201- ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 1201- ●
71 NUT; SHIFT LEVER
M12 FLANGE THA 		0-91180-212-0 01 1 1201- ●
152 LEVER; RELAY,SELECT 1-33511-560-1 01 1 1201- ●
192 WASHER; PL
ID=16.5 		9-09857-042-0 01 1 1201- ●
227 SPINDLE; 1ST & REV 1-33519-104-0 01 1 1201- ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0806- ●
243 BOLT; COVER
(A) M10X30 FLANGE 		0-28151-030-0 08 1 1201- ●
243 BOLT; COVER
(B) M10X28 FLANGE REAMER 		8-97365-375-0 04 1 1201- ●
254 COVER; LEVER 1-33141-054-0 02 1 1201- ●
381 BOLT
(A) M10X35 FLANGE THA 		0-28751-035-0 01 1 1201- ●
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 1201- ●
514 BLOCK; 6-7 SETTING 1-33511-605-0 01 1 1201- ●
515 LEVER; SHIFT,6TH & 7TH 1-33511-560-1 01 1 1201- ●
516 SPINDLE; 6TH & 7TH 1-33519-104-0 01 1 1201- ●
517 BLOCK; SHIFT,6TH & 7TH 1-33511-557-0 01 1 1201- ●
518 BLOCK ASM; SHIFT,6TH & 7TH 1-33511-558-1 01 1 1201- ●
520 SLEEVE; 6TH & 7TH 1-33516-022-1 01 1 1201- ●
579 BLOCK; SHIFT,ROD GUIDE 1-33539-065-1 01 1 1201- ●
580 BLOCK; INTERLOCK 1-33539-064-1 01 1 1201- ●
581 COVER; BLOCK 1-33141-056-0 01 1 1201- ●
582 BOLT; SPRING GUIDE
M10X35 FLANGE 		0-28151-035-0 06 1 1201- ●
583 GASKET; SPRING GUIDE 1-33142-047-0 02 1 1201- ●

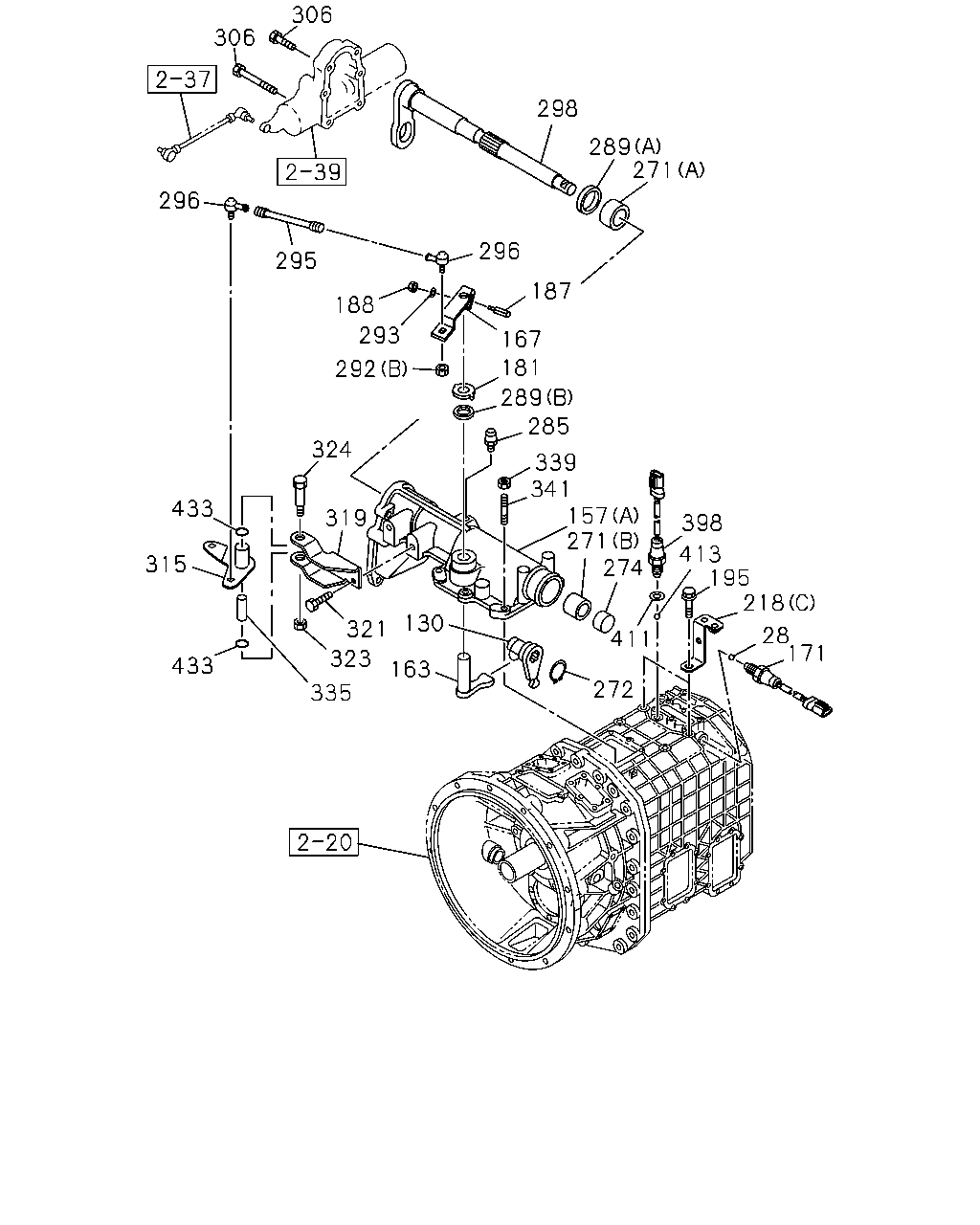

çizim 194058
306 306 298 289 271 296 296 295 187 188 293 167 181 292 289 285 324 339 341 157 271 274 433 319 398 413 195 218 315 130 411 321 28 171 323 433 163 272 335
BalonParca AdiParca NoAdetTipApplied Date A B
28 BALL; INTER LK 9-00097-501-0 04 1 0806-1112 ●
28 BALL; INTER LK 9-00097-501-0 04 1 1201- ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 0806-1112 ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 1201- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-345-2 01 1 0806- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-507-3 01 1 0806-1112 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-507-3 01 1 1201-1311 ● ●
157 BOX; QUAD,TRANS
(A) 		8-98231-390-0 01 1 1312- ● ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 0806-1112 ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 1201- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 0806-1112 ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 1201- ● ●
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0806-1109 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110-1112 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1201- ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0806-1112 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1201- ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0806-1112 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1201- ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0806-1112 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1201- ● ●
195 BOLT
M10X25 FLANGE THA 		0-28751-025-0 02 1 1201- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-639-1 02 1 1201- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0806- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0806- ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 0806-1112 ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 1201- ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 0806-1112 ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 1201- ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 0806-1112 ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 1201- ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0806-1112 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1201- ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0806-1112 ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 1201- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
(B) OD=30 		1-09625-386-0 01 1 0806-1112 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
(B) OD=30 ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-386-0 01 1 1201- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
(A) OD=41 		1-09625-647-0 01 1 0806-1112 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
(A) OD=41 ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-647-0 01 1 1201- ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0806- ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0806- ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0806-1112 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1201- ● ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 0806-1112 ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 1201- ● ●
296 ROD END 1-09760-108-0 02 1 0806-1112 ●
296 ROD END 1-09760-108-0 02 1 1201- ● ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 0806-1112 ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 1201- ● ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE THA 		0-28151-045-0 02 1 0806-1112 ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE THA 		0-28151-045-0 02 1 1201- ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE THA 		0-28151-080-0 04 1 0806-1112 ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE THA 		0-28151-080-0 04 1 1201- ● ●
315 LEVER; SELECT 8-98097-127-0 01 1 0806-1112 ●
315 LEVER; SELECT 8-98097-127-0 01 1 1201- ● ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 0806-1112 ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 1201- ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0806-1112 ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 1201- ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0806-1112 ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 1201- ● ●
324 BOLT; SHAFT
M10X60 FLANGE THA 		0-28051-060-0 01 1 0806-1112 ●
324 BOLT; SHAFT
M10X60 FLANGE THA 		0-28051-060-0 01 1 1201- ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 0806-1112 ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 1201- ● ●
339 NUT; QUAD BOX
M10 FLANGE THA 		0-91180-210-0 06 1 1201- ●
341 STUD; QUAD BOX
M10X25 L=40 THA 		0-44011-025-0 06 1 1201- ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 1201-1209 ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210- ●
398 SWITCH; REV LAMP 1-82440-082-0 01 1 0806- ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 THA 		8-94462-114-0 01 1 1201- ●
413 BALL; BACK SW 9-00097-013-0 01 1 1201- ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0806-1112 ●
433 GASKET; BUSHING 1-09623-636-0 02 1 1201- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
