2-26B — MANUAL TRANSMISSION GEAR (#68291) — 306 parça
çizim 109754
325 3 301 1
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33215-038-0 01 1 0806-
3 BEARING; TOP GEAR SHAFT 1-33219-320-0 01 1 0806-
301 SHIM; TOP GEAR SHAFT
T=1.20 THA 		1-33139-047-0 01 1 1302-
301 SHIM; TOP GEAR SHAFT
T=1.10 THA 		1-33139-050-0 01 1 1302-
301 SHIM; TOP GEAR SHAFT
T=1.15 THA 		1-33139-204-0 01 1 1302-
301 SHIM; TOP GEAR SHAFT
T=1.25 THA 		1-33139-205-0 01 1 1302-
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR<BDM> T=1.80 		1-33139-039-0 01 1 0904-0906
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33139-039-0 01 1 0907-
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR<BDM> T=1.70 		1-33139-041-0 01 1 0904-0906
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33139-041-0 01 1 0907-
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR<BDM> T=2.30 		1-33139-223-0 01 1 0904-0906
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33139-223-0 01 1 0907-
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR<BDM> T=2.25 		1-33139-224-0 01 1 0904-0906
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33139-224-0 01 1 0907-
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR<BDM> T=2.20 		1-33139-225-0 01 1 0904-0906
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33139-225-0 01 1 0907-
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR<BDM> T=2.15 		1-33139-226-0 01 1 0904-0906
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33139-226-0 01 1 0907-
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR<BDM> T=2.10 		1-33139-227-0 01 1 0904-0906
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33139-227-0 01 1 0907-
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR<BDM> T=2.05 		1-33139-228-0 01 1 0904-0906
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33139-228-0 01 1 0907-
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR<BDM> T=2.00 		1-33139-229-0 01 1 0904-0906
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33139-229-0 01 1 0907-
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR<BDM> T=1.95 		1-33139-230-0 01 1 0904-0906
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33139-230-0 01 1 0907-
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR<BDM> T=1.90 		1-33139-231-0 01 1 0904-0906
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33139-231-0 01 1 0907-
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR<BDM> T=1.85 		1-33139-232-0 01 1 0904-0906
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33139-232-0 01 1 0907-
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR<BDM> T=1.75 		1-33139-233-0 01 1 0904-0906
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33139-233-0 01 1 0907-
301 SHIM; TOP GEAR SHAFT
PTO ZF TRANS RR<BDM> T=1.65 		1-33139-234-0 01 1 0904-0906
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33139-234-0 01 1 0907-
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33139-042-0 01 1 0806-
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33139-043-0 01 1 0806-
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33139-045-0 01 1 0806-
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33139-046-0 01 1 0806-
301 SHIM; TOP GEAR SHAFT
T=1.20 THA 		1-33139-047-0 01 1 0806-0903
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=1.20 THA 		1-33139-047-0 01 1 0904-0906
301 SHIM; TOP GEAR SHAFT
T=1.10 THA 		1-33139-050-0 01 1 0806-0903
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=1.10 THA 		1-33139-050-0 01 1 0904-0906
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33139-201-0 01 1 0806-
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33139-202-0 01 1 0806-
301 SHIM; TOP GEAR SHAFT
T=1.05 		1-33139-203-0 01 1 0806-0903
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=1.05 		1-33139-203-0 01 1 0904-0906
301 SHIM; TOP GEAR SHAFT
T=1.15 THA 		1-33139-204-0 01 1 0806-0903
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=1.15 THA 		1-33139-204-0 01 1 0904-0906
301 SHIM; TOP GEAR SHAFT
T=1.25 THA 		1-33139-205-0 01 1 0806-0903
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=1.25 THA 		1-33139-205-0 01 1 0904-0906
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33139-206-0 01 1 0806-
301 SHIM; TOP GEAR SHAFT
T=0.90 		1-33139-207-0 01 1 0806-0903
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=0.90 		1-33139-207-0 01 1 0904-0906
301 SHIM; TOP GEAR SHAFT
T=0.95 		1-33139-208-0 01 1 0806-0903
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=0.95 		1-33139-208-0 01 1 0904-0906
301 SHIM; TOP GEAR SHAFT
T=1.00 		1-33139-209-0 01 1 0806-0903
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=1.00 		1-33139-209-0 01 1 0904-0906
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR<BDM> T=1.50 THA 		8-98080-571-0 01 1 1010-1010
325 SHIM; COUNTER SHAFT BRG
T=1.50 THA 		8-98080-571-0 01 1 1011-
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR<BDM> T=2.40 		1-33389-086-0 01 1 0904-0906
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 0907-
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR<BDM> T=2.35 		1-33389-087-0 01 1 0904-0906
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 0907-
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR<BDM> T=2.30 		1-33389-088-0 01 1 0904-0906
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 0907-
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR<BDM> T=2.25 		1-33389-089-0 01 1 0904-0906
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 0907-
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 0806-1009
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM> T=1.50 		1-33389-049-0 01 1 1010-1010
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 0806-0903
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM> T=1.45 		1-33389-050-0 01 1 0904-0906
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 0806-0903
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM> T=1.40 		1-33389-051-0 01 1 0904-0906
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 0806-

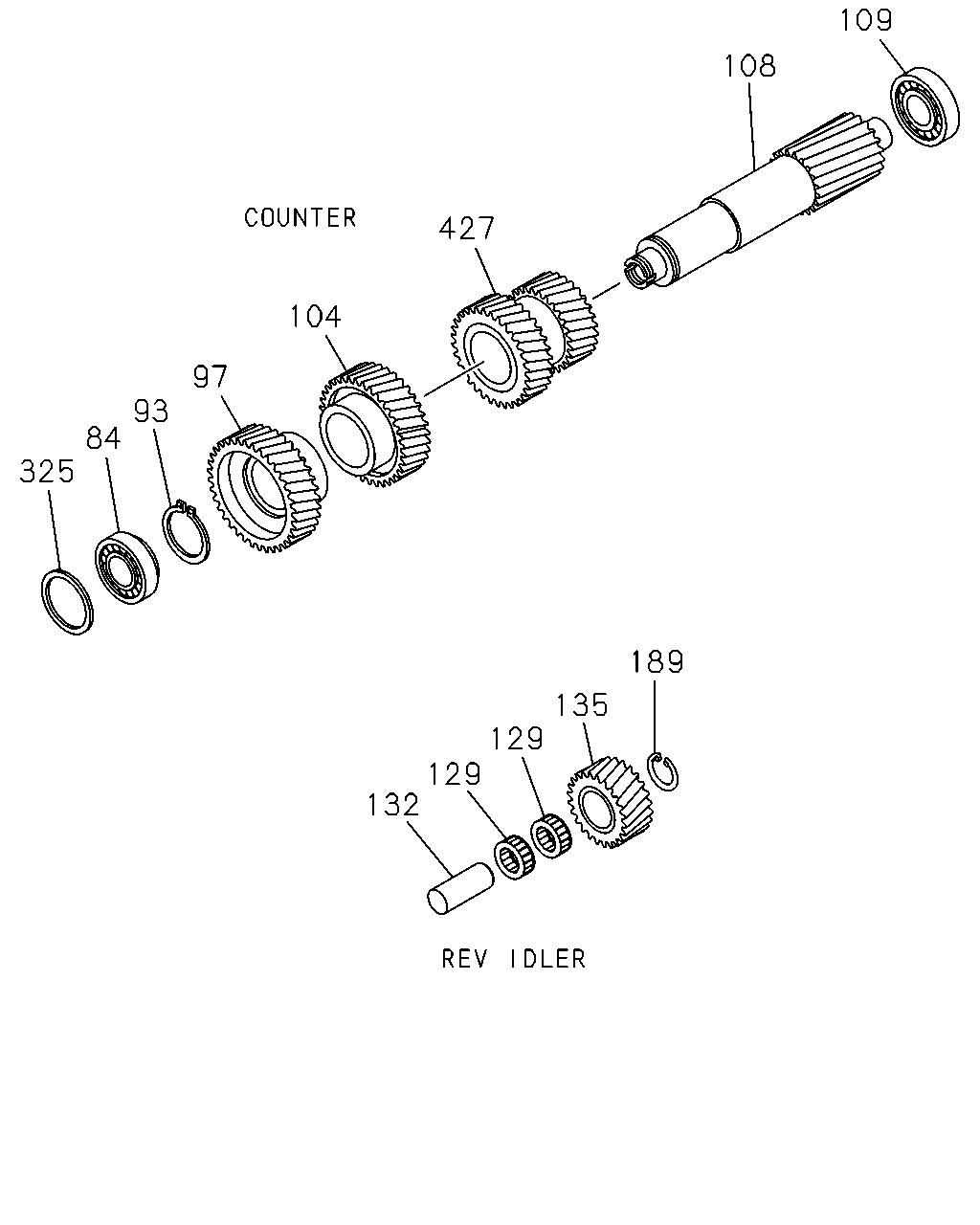

çizim 109810
109 108 427 104 97 93 84 325 189 135 129 129 132
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT 1-33312-016-0 01 1 0806-
93 RING; SNAP,COUNTER FRT BRG
T=2.6 THA 		1-33319-264-0 01 1 1302-
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-251-0 01 1 0806-
93 RING; SNAP,COUNTER FRT BRG
T=2.5 		1-33319-252-0 01 1 0806-
93 RING; SNAP,COUNTER FRT BRG
T=2.4 		1-33319-253-0 01 1 0806-
93 RING; SNAP,COUNTER FRT BRG
T=2.3 		1-33319-254-0 01 1 0806-
93 RING; SNAP,COUNTER FRT BRG
T=2.2 		1-33319-255-0 01 1 0806-
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-256-0 01 1 0806-
97 GEAR; 5TH,COUNTER 1-33338-398-0 01 1 0806-
104 GEAR; 4TH,COUNTER 1-33338-397-0 01 1 0806-
108 SHAFT; COUNTER 1-33311-347-0 01 1 0806-
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 0806-
129 BEARING; NEEDLE,IDLER 1-33369-026-0 02 1 0806-
132 SHAFT; REV 1-33351-024-0 01 1 0806-
135 GEAR; REV IDLER
PTO ZF TRANS RR<BDM> IMA 		1-33361-096-0 01 1 1010-1010
135 GEAR; REV IDLER
IMA 		1-33361-096-0 01 1 1011-
135 GEAR; REV IDLER 1-33361-092-0 01 1 0806-1009
135 GEAR; REV IDLER
EXC. PTO ZF TRANS RR<BDM> 		1-33361-092-0 01 1 1010-1010
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR<BDM> T=1.50 THA 		8-98080-571-0 01 1 1010-1010
325 SHIM; COUNTER SHAFT BRG
T=1.50 THA 		8-98080-571-0 01 1 1011-
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR<BDM> T=2.40 		1-33389-086-0 01 1 0904-0906
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 0907-
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR<BDM> T=2.35 		1-33389-087-0 01 1 0904-0906
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 0907-
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR<BDM> T=2.30 		1-33389-088-0 01 1 0904-0906
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 0907-
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR<BDM> T=2.25 		1-33389-089-0 01 1 0904-0906
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 0907-
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 0806-1009
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM> T=1.50 		1-33389-049-0 01 1 1010-1010
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 0806-0903
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM> T=1.45 		1-33389-050-0 01 1 0904-0906
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 0806-0903
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM> T=1.40 		1-33389-051-0 01 1 0904-0906
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 0806-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 0806-
427 GEAR; 2ND & 3RD,COUNTER
THA 		1-33332-132-0 01 1 1302-
427 GEAR; 2ND & 3RD,COUNTER
THA 		1-33332-132-0 01 1 1306-
427 GEAR; 2ND & 3RD,COUNTER 1-33332-131-0 01 1 0806-1305

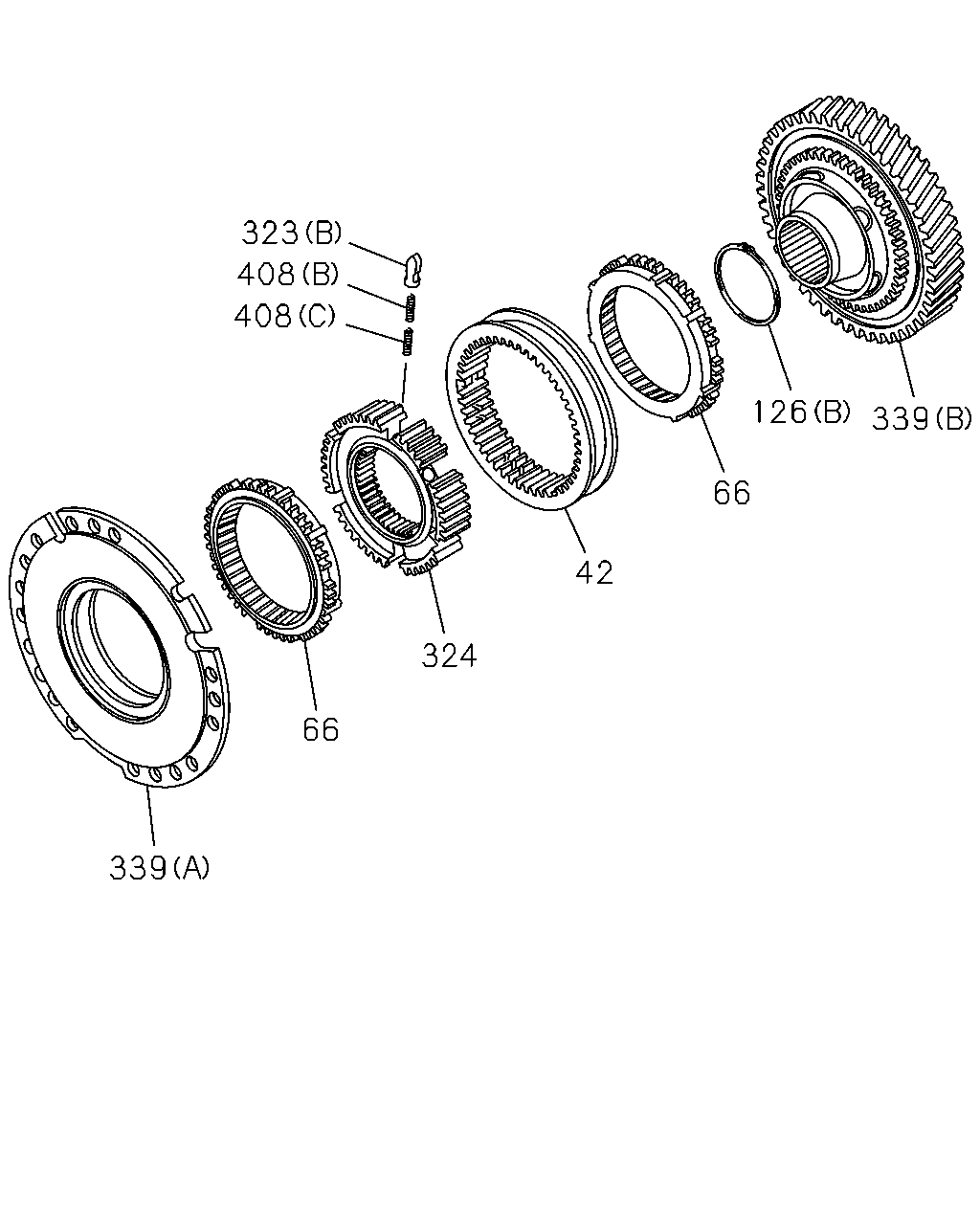

çizim 109841
323 408 408 126 339 66 42 324 66 339
BalonParca AdiParca NoAdetTipApplied Date
42 SLEEVE 1-33262-195-0 01 1 0806-
66 RING; BLOCK,SYN 1-33339-069-0 02 1 0806-
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 0806-
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 0806-
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 0806-
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 0806-
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 0806-
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 0806-
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 0806-
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 0806-
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 0806-
323 INSERT
(B) 		1-33263-027-0 09 1 0806-
323 INSERT
(A) 		1-33263-030-0 06 1 0806-
324 HUB; CLU 1-33261-230-0 01 1 0806-
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-453-0 01 1 0806-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-632-0 01 1 0806-
408 SPRING
(B) 		1-33269-038-0 09 1 0806-
408 SPRING
(C) 		1-33269-039-0 09 1 0806-
408 SPRING
(A) 		1-33269-042-0 06 1 0806-

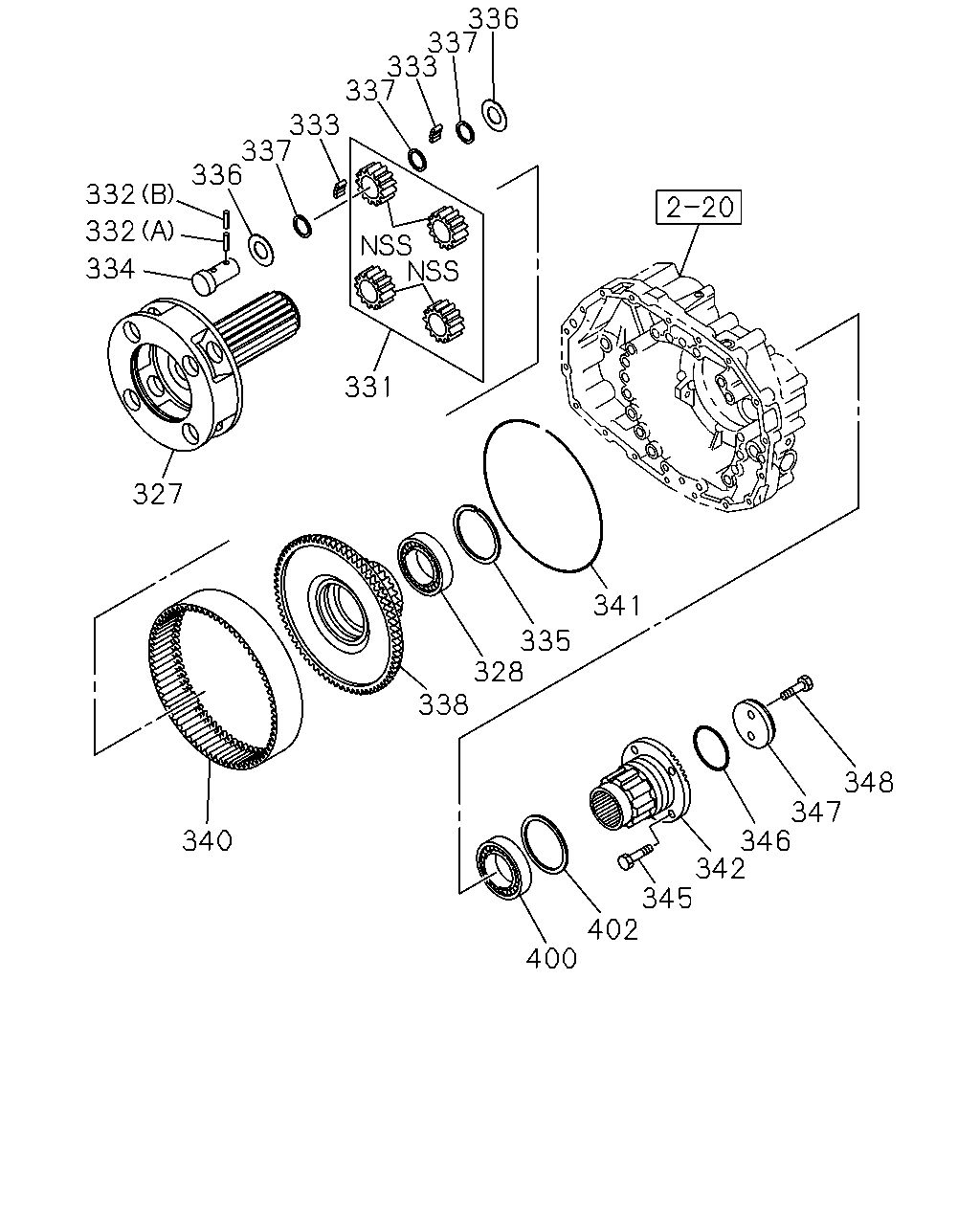

çizim 109920
336 337 333 337 333 337 336 332 332 334 331 327 341 335 328 338 348 347 346 342 345 402 400 340
BalonParca AdiParca NoAdetTipApplied Date
327 CARRIER; PLANETARY GEAR 1-33231-338-0 01 1 0806-
328 BEARING; CARRIER 1-33339-094-0 01 1 0806-
331 GEAR SET; PLANETARY 1-33239-350-0 01 1 0806-
332 PIN; LOCK,SHAFT
(A) 		1-33239-178-0 04 1 0806-
332 PIN; LOCK,SHAFT
(B) 		1-33239-179-0 04 1 0806-
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 0806-
334 SHAFT; PLANETARY GEAR 1-33239-359-0 04 1 0806-
335 RING; SNAP,BEARING
T=2.50 		1-33339-075-0 01 1 0806-
335 RING; SNAP,BEARING
T=2.40 		1-33339-076-0 01 1 0806-
335 RING; SNAP,BEARING
T=2.30 		1-33339-077-0 01 1 0806-
335 RING; SNAP,BEARING
T=2.20 		1-33339-078-0 01 1 0806-
335 RING; SNAP,BEARING
T=2.10 		1-33339-079-0 01 1 0806-
335 RING; SNAP,BEARING
T=2.00 		1-33339-080-0 01 1 0806-
336 WASHER; THRUST,PLANETARY GEAR 1-33239-174-0 08 1 0806-
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 0806-
338 CARRIER; RING GEAR 1-33331-275-0 01 1 0806-
340 GEAR; RING
PTO ZF TRANS RR<BDM> 		1-33339-099-0 01 1 0904-0906
340 GEAR; RING 1-33339-099-0 01 1 0907-
340 GEAR; RING 1-33339-095-0 01 1 0806-0903
340 GEAR; RING
EXC. PTO ZF TRANS RR<BDM> 		1-33339-095-0 01 1 0904-0906
341 WIRE; LOCK,CARRIER 1-33339-096-0 01 1 0806-
342 FLANGE; OUTPUT 1-37243-429-0 01 1 0806-
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 0806-
346 GASKET; FLANGE 1-37249-156-0 01 1 0806-
347 WASHER; FLANGE 1-09509-060-0 01 1 0806-
348 BOLT; SHAFT
PTO ZF TRANS RR<BDM> THA 		1-37249-215-0 02 1 1010-1010
348 BOLT; SHAFT
THA 		1-37249-215-0 02 1 1011-
348 BOLT; SHAFT 1-37249-207-0 02 1 0806-1009
348 BOLT; SHAFT
EXC. PTO ZF TRANS RR<BDM> 		1-37249-207-0 02 1 1010-1010
400 BEARING; OUTPUT SHAFT RR 1-33139-212-0 01 1 0806-
402 SHIM
T=2.20 		1-33139-064-0 01 1 0806-0903
402 SHIM
EXC. PTO ZF TRANS RR<BDM> T=2.20 		1-33139-064-0 01 1 0904-0906
402 SHIM
T=2.10 		1-33139-065-0 01 1 0806-0903
402 SHIM
EXC. PTO ZF TRANS RR<BDM> T=2.10 		1-33139-065-0 01 1 0904-0906
402 SHIM
T=2.00 		1-33139-066-0 01 1 0806-0903
402 SHIM
EXC. PTO ZF TRANS RR<BDM> T=2.00 		1-33139-066-0 01 1 0904-0906
402 SHIM
T=1.90 		1-33139-067-0 01 1 0806-0903
402 SHIM
EXC. PTO ZF TRANS RR<BDM> T=1.90 		1-33139-067-0 01 1 0904-0906
402 SHIM
T=1.80 		1-33139-068-0 01 1 0806-0903
402 SHIM
EXC. PTO ZF TRANS RR<BDM> T=1.80 		1-33139-068-0 01 1 0904-0906
402 SHIM
T=1.70 		1-33139-069-0 01 1 0806-0903
402 SHIM
EXC. PTO ZF TRANS RR<BDM> T=1.70 		1-33139-069-0 01 1 0904-0906
402 SHIM
T=1.60 		1-33139-070-0 01 1 0806-0903
402 SHIM
EXC. PTO ZF TRANS RR<BDM> T=1.60 		1-33139-070-0 01 1 0904-0906
402 SHIM
T=1.50 		1-33139-071-0 01 1 0806-0903
402 SHIM
EXC. PTO ZF TRANS RR<BDM> T=1.50 		1-33139-071-0 01 1 0904-0906
402 SHIM
T=1.40 		1-33139-072-0 01 1 0806-0903
402 SHIM
EXC. PTO ZF TRANS RR<BDM> T=1.40 		1-33139-072-0 01 1 0904-0906
402 SHIM
T=1.30 		1-33139-073-0 01 1 0806-0903
402 SHIM
EXC. PTO ZF TRANS RR<BDM> T=1.30 		1-33139-073-0 01 1 0904-0906

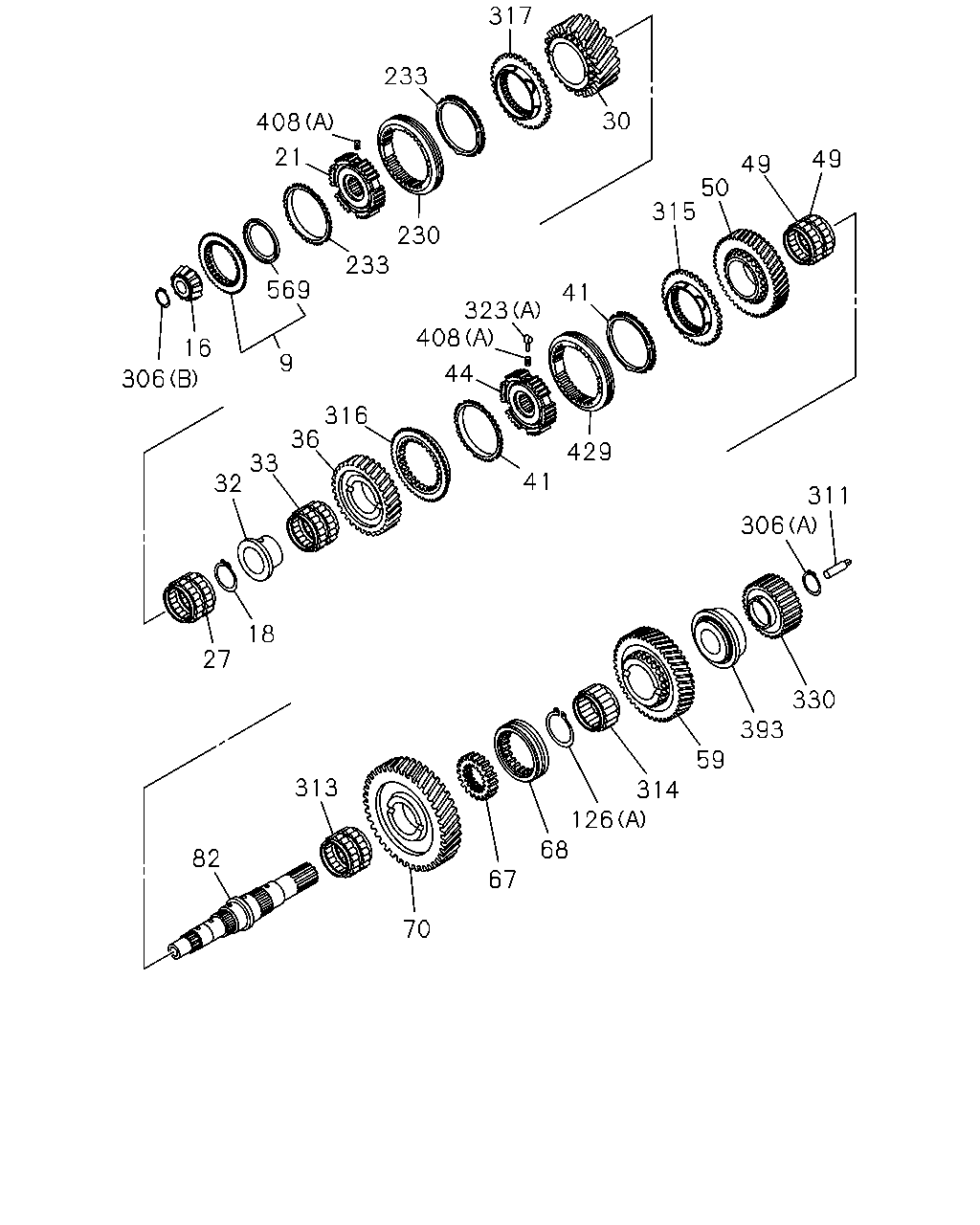

çizim 194032
317 233 30 408 21 49 49 50 315 230 233 569 41 323 408 16 9 44 306 316 36 429 33 32 41 311 306 18 27 330 393 59 313 314 126 68 82 67 70
BalonParca AdiParca NoAdetTipApplied Date
9 CLUTCH; DOG,TOP GEAR 1-33265-631-0 01 1 0806-
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 0806-
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 0806-
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 0806-
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 0806-
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 0806-
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 0806-
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 0806-
21 HUB; CLU,4TH & 5TH 1-33261-295-0 01 1 0806-
27 BEARING; 4TH GEAR 1-33259-128-0 02 1 0806-
30 GEAR; 4TH,MAINSHAFT 1-33251-436-0 01 1 0806-
32 COLLAR; 3RD GEAR
THA 		1-33259-140-0 01 1 1302-
32 COLLAR; 3RD GEAR
THA 		1-33259-140-0 01 1 1306-
32 COLLAR; 3RD GEAR 1-33259-059-0 01 1 0806-1305
33 BEARING; NEEDLE,3RD GEAR 1-33259-127-0 01 1 0806-
36 GEAR; 3RD,MAINSHAFT 1-33252-478-0 01 1 0806-
41 RING; BLOCK,2ND & 3RD 1-33265-498-0 02 1 0806-
44 HUB; CLU,2ND & 3RD,MAIN
PTO ZF TRANS RR<BDM> IMA 		1-33261-303-0 01 1 1010-1010
44 HUB; CLU,2ND & 3RD,MAIN
IMA 		1-33261-303-0 01 1 1011-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-231-0 01 1 0806-1009
44 HUB; CLU,2ND & 3RD,MAIN
EXC. PTO ZF TRANS RR<BDM> 		1-33261-231-0 01 1 1010-1010
49 BEARING; NEEDLE,2ND GEAR 1-33259-126-0 02 1 0806-
50 GEAR; 2ND,MAINSHAFT
PTO ZF TRANS RR<BDM> IMA 		1-33251-448-0 01 1 1010-1010
50 GEAR; 2ND,MAINSHAFT
IMA 		1-33251-448-0 01 1 1011-
50 GEAR; 2ND,MAINSHAFT 1-33251-435-0 01 1 0806-1009
50 GEAR; 2ND,MAINSHAFT
EXC. PTO ZF TRANS RR<BDM> 		1-33251-435-0 01 1 1010-1010
59 GEAR; REV MAINSHAFT
PTO ZF TRANS RR<BDM> IMA 		1-33257-101-0 01 1 1010-1010
59 GEAR; REV MAINSHAFT
IMA 		1-33257-101-0 01 1 1011-
59 GEAR; REV MAINSHAFT 1-33257-100-0 01 1 0806-1009
59 GEAR; REV MAINSHAFT
EXC. PTO ZF TRANS RR<BDM> 		1-33257-100-0 01 1 1010-1010
67 HUB; CLU,1ST TO REV
PTO ZF TRANS RR<BDM> 		1-33259-135-0 01 1 0904-0906
67 HUB; CLU,1ST TO REV 1-33259-135-0 01 1 0907-
67 HUB; CLU,1ST TO REV 1-33259-048-0 01 1 0806-0903
67 HUB; CLU,1ST TO REV
EXC. PTO ZF TRANS RR<BDM> 		1-33259-048-0 01 1 0904-0906
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 0806-
70 GEAR; 1ST,MAINSHAFT 1-33251-434-0 01 1 0806-
82 SHAFT; MAIN,TRANS 1-33231-337-0 01 1 0806-
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 0806-
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 0806-
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 0806-
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 0806-
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 0806-
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 0806-
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 0806-
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 0806-
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 0806-
230 SLEEVE; 4TH TO 5TH 1-33262-239-0 01 1 0806-
233 RING; BLOCK 4TH TO 5TH 1-33269-096-0 02 1 0806-
306 RING; SNAP,MAINSHAFT
(A) T=3.20 		1-33319-061-0 01 1 0806-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.15 		1-33319-062-0 01 1 0806-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.10 		1-33319-063-0 01 1 0806-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.05 		1-33319-064-0 01 1 0806-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.00 		1-33319-065-0 01 1 0806-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.95 		1-33319-066-0 01 1 0806-
306 RING; SNAP,MAINSHAFT
(A) T=2.90 		1-33319-067-0 01 1 0806-
306 RING; SNAP,MAINSHAFT
(A) T=2.85 		1-33319-068-0 01 1 0806-
306 RING; SNAP,MAINSHAFT
(A) T=2.80 		1-33319-069-0 01 1 0806-
306 RING; SNAP,MAINSHAFT
(A) T=2.75 		1-33319-070-0 01 1 0806-
306 RING; SNAP,MAINSHAFT
(A) T=2.70 		1-33319-071-0 01 1 0806-
306 RING; SNAP,MAINSHAFT
(A) T=2.65 		1-33319-072-0 01 1 0806-
306 RING; SNAP,MAINSHAFT
(A) T=2.60 		1-33319-073-0 01 1 0806-
306 RING; SNAP,MAINSHAFT
(A) T=2.55 		1-33319-074-0 01 1 0806-
306 RING; SNAP,MAINSHAFT
(A) T=2.50 		1-33319-075-0 01 1 0806-
306 RING; SNAP,MAINSHAFT
(A) T=2.45 		1-33319-076-0 01 1 0806-
306 RING; SNAP,MAINSHAFT
(A) T=2.40 		1-33319-077-0 01 1 0806-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.35 		1-33319-078-0 01 1 0806-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.30 		1-33319-079-0 01 1 0806-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.25 		1-33319-080-0 01 1 0806-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.20 		1-33319-081-0 01 1 0806-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.15 		1-33319-082-0 01 1 0806-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.10 		1-33319-083-0 01 1 0806-1305
306 RING; SNAP,MAINSHAFT
(B) T=2.5 		1-43319-021-0 01 1 0806-
306 RING; SNAP,MAINSHAFT
(B) T=2.4 		1-43319-101-0 01 1 0806-
306 RING; SNAP,MAINSHAFT
(B) T=2.3 		1-43319-102-0 01 1 0806-
306 RING; SNAP,MAINSHAFT
(B) T=2.0 		1-43319-103-0 01 1 0806-
306 RING; SNAP,MAINSHAFT
(B) T=2.1 		1-43319-104-0 01 1 0806-
306 RING; SNAP,MAINSHAFT
(B) T=2.2 		1-43319-105-0 01 1 0806-
311 PIPE; MAINSHAFT 1-33239-349-0 01 1 0806-
313 BEARING; NEEDLE,LOW GEAR 1-33259-124-0 01 1 0806-
314 BEARING; NEEDLE,REV GEAR 1-33259-125-0 01 1 0806-
315 CLUTCH; DOG,2ND GEAR 1-33265-629-0 01 1 0806-
316 CLUTCH; DOG,3RD GEAR 1-33265-629-0 01 1 0806-
317 CLUTCH; DOG,4TH GEAR 1-33265-630-0 01 1 0806-
323 INSERT
(B) 		1-33263-027-0 09 1 0806-
323 INSERT
(A) 		1-33263-030-0 06 1 0806-
330 GEAR; SUN
PTO ZF TRANS RR<BDM> IMA 		1-33259-134-0 01 1 0904-0906
330 GEAR; SUN
IMA 		1-33259-134-0 01 1 0907-
330 GEAR; SUN 1-33259-105-0 01 1 0806-0903
330 GEAR; SUN
EXC. PTO ZF TRANS RR<BDM> 		1-33259-105-0 01 1 0904-0906
393 BEARING; MAINSHAFT END 1-33259-104-0 01 1 0806-
408 SPRING
(B) 		1-33269-038-0 09 1 0806-
408 SPRING
(C) 		1-33269-039-0 09 1 0806-
408 SPRING
(A) 		1-33269-042-0 06 1 0806-
429 SLEEVE; 2ND & 3RD
PTO ZF TRANS RR<BDM> IMA 		1-33262-244-0 01 1 1010-1010
429 SLEEVE; 2ND & 3RD
IMA 		1-33262-244-0 01 1 1011-
429 SLEEVE; 2ND & 3RD 1-33262-192-0 01 1 0806-1009
429 SLEEVE; 2ND & 3RD
EXC. PTO ZF TRANS RR<BDM> 		1-33262-192-0 01 1 1010-1010
569 DAM; OIL 1-33269-097-0 01 1 0806-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
