Sayfa 2-26A - Isuzu EPC

2-26A — MANUAL TRANSMISSION GEAR (#68290) — 329 parça

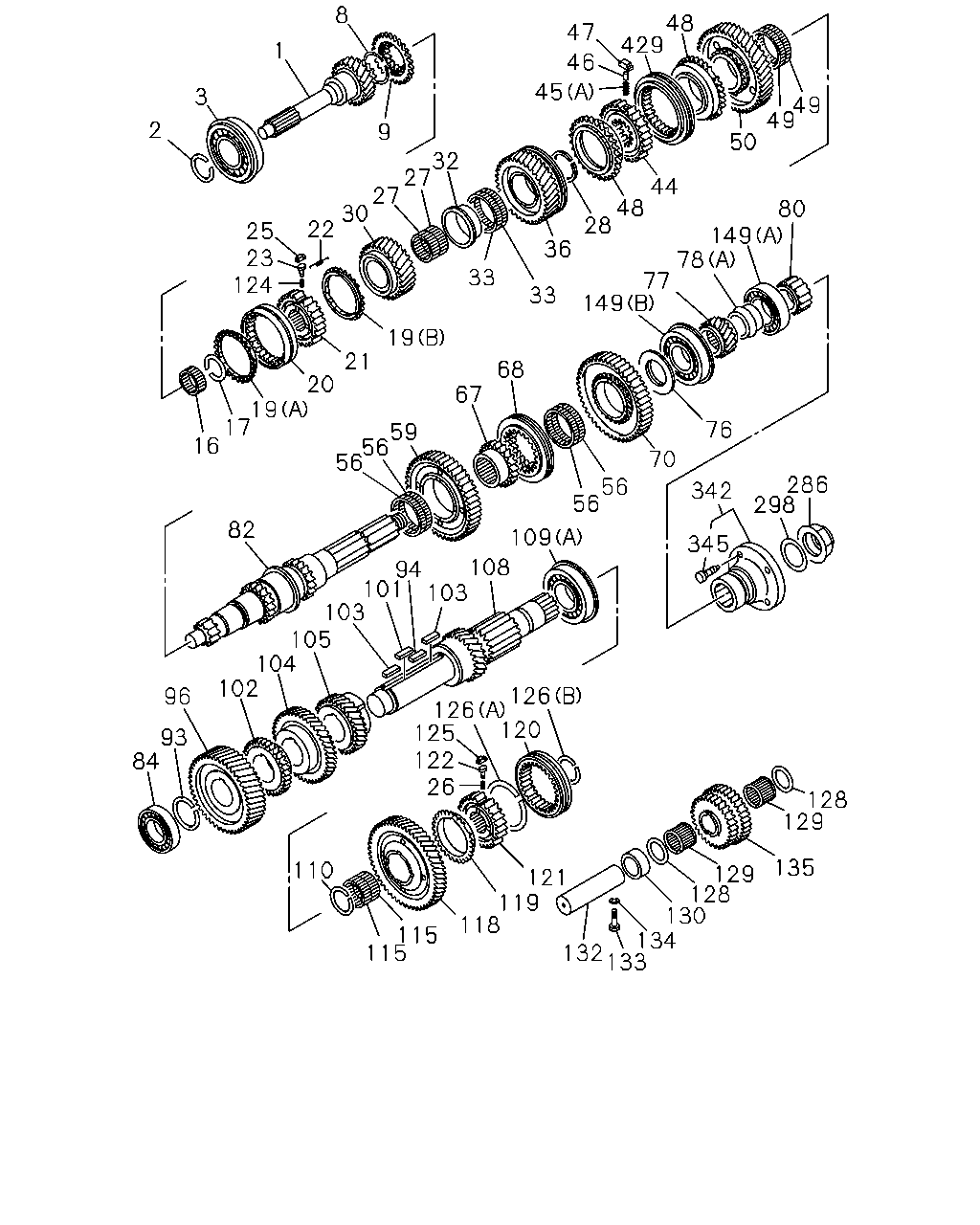

8 48 429 47 1 46 45 3 49 49 50 2 9 32 27 27 30 22 44 48 28 80 25 23 124 149 78 77 149 36 33 33 19 21 68 20 67 19 17 16 76 59 56 56 70 286 298 56 56 342 82 109 345 94 108 101 103 103 105 104 102 126 120 96 126 125 122 26 93 84 128 129 135 110 129 128 130 134 132 133 121 119 118 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-991-0	01	1	1201-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-699-1	01	1	0806-		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	1201-	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	1201-	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	1201-	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	1201-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0806-		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0806-		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0806-		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0806-		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	1201-	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	1201-	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0806-		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0806-		●
8	CLIP; DOG CLU	1-33219-024-0	01	1	1201-	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0806-		●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	1201-	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0806-		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	1201-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	1201-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0806-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0806-		●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0806-		●
19	RING; BLOCK,4TH & 5TH (C) Z=66	1-33265-545-1	02	1	1201-	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-8	01	1	0806-		●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-1	01	1	0806-		●
20	SLEEVE	1-33262-222-0	01	1	1201-	●
20	SLEEVE	1-33262-097-1	01	1	0806-		●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	1201-	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	0806-		●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	0806-		●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0806-		●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	0806-		●
26	SPRING; BLOCK,INSERT D=6.2	1-09580-091-1	03	1	0806-		●
27	BEARING; 4TH GEAR NSK	1-09811-376-0	02	1	1201-1311	●
27	BEARING; 4TH GEAR NTN	1-09811-401-0	02	1	1201-	●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	0806-1311		●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	0806-		●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	0806-		●
30	GEAR; 4TH,MAINSHAFT Z=41	1-33253-690-0	01	1	1201-	●
30	GEAR; 4TH,MAINSHAFT Z=29	1-33253-657-0	01	1	0806-		●
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	0806-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	1201-1311	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	1201-	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	0806-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	0806-		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	1201-	●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	0806-		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	1201-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	0806-		●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	1201-	●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	0806-1112		●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	1201-	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0806-1112		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	1201-	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0806-1112		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	1201-	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-612-1	02	1	1201-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	0806-		●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-378-0	02	1	1201-1308	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	1201-	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	0806-		●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	0806-		●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-392-1	01	1	1201-	●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	0806-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-376-0	04	1	1201-1311	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	1201-	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	0806-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	0806-		●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	1201-	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0806-		●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	1201-	●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	0806-		●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0806-1112		●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	1201-	●	●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	1201-	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0806-		●
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	0806-		●
77	GEAR; 6TH,MAINSHAFT Z=18	1-33253-333-2	01	1	0806-		●
78	COLLAR; DIST,MAINSHAFT BRG (C)	1-33235-098-0	01	1	1201-	●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	1201-	●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-074-0	01	1	0806-		●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	1201-	●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0806-		●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	1201-1506	●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	8-98304-660-0	01	1	1507-	●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	0806-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	1201-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	1201-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0806-1405		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-287-1	01	1	1406-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0806-1405		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	1201-	●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	0806-		●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	1201-	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0806-		●
96	GEAR; COUNTER DRIVE Z=43	1-33331-271-0	01	1	1201-	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-195-0	01	1	0806-		●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	0806-		●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	0806-		●
103	KEY; COUNTER GEAR L=63	1-09735-027-0	01	1	1201-	●
103	KEY; COUNTER GEAR L=67	1-09735-049-0	01	1	1201-	●
103	KEY; COUNTER GEAR L=50.0	1-09735-010-0	01	1	0806-		●
103	KEY; COUNTER GEAR L=46	1-09735-038-1	01	1	0806-		●
104	GEAR; 4TH,COUNTER Z=36	1-33338-379-0	01	1	1201-	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-366-0	01	1	0806-		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-147-1	01	1	0806-		●
108	SHAFT; COUNTER Z=24-16-12	1-33311-332-0	01	1	1201-	●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	0806-		●
109	BEARING; COUNTER SHAFT,RR (C) NSK	1-09810-186-0	01	1	1201-	●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	1201-	●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	1201-	●
109	BEARING; COUNTER SHAFT,RR (C) NTN	1-09810-207-0	01	1	1201-	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-021-1	01	1	0806-		●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-163-0	01	1	0806-		●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	1201-	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0806-		●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	0806-1311		●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	0806-		●
118	GEAR; 6TH,COUNTER Z=45	1-33338-304-0	01	1	0806-		●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	0806-		●
120	SLEEVE	1-33262-098-2	01	1	0806-		●
121	HUB; CLU,6TH	1-33261-189-2	01	1	0806-		●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0806-		●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	0806-		●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	0806-		●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	0806-		●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0806-		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0806-1112		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	1201-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	1201-	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	1201-	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0806-		●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0806-		●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	0806-		●
132	SHAFT; REV	1-33351-025-4	01	1	1201-	●
132	SHAFT; REV	1-33351-012-2	01	1	0806-		●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	0806-		●
134	WASHER; LK,REV SHAFT ID=8.2 THA	0-91510-508-0	01	1	0806-		●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	1201-	●
135	GEAR; REV IDLER Z=27	1-33361-070-1	01	1	0806-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-203-0	01	1	1201-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-204-0	01	1	1201-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-021-1	01	1	0806-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-163-0	01	1	0806-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-172-0	01	1	0806-1112		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-172-0	01	1	1201-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-173-0	01	1	0806-1112		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-173-0	01	1	1201-	●	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	1201-	●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	0806-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	1201-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	0806-		●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	1201-1211	●
342	FLANGE; OUTPUT	8-98210-980-0	01	1	1212-	●
342	FLANGE; OUTPUT	1-37243-361-0	01	1	0806-1204		●
342	FLANGE; OUTPUT	8-98210-979-0	01	1	1205-		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0806-1112		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	1201-	●	●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	1201-	●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	0806-		●

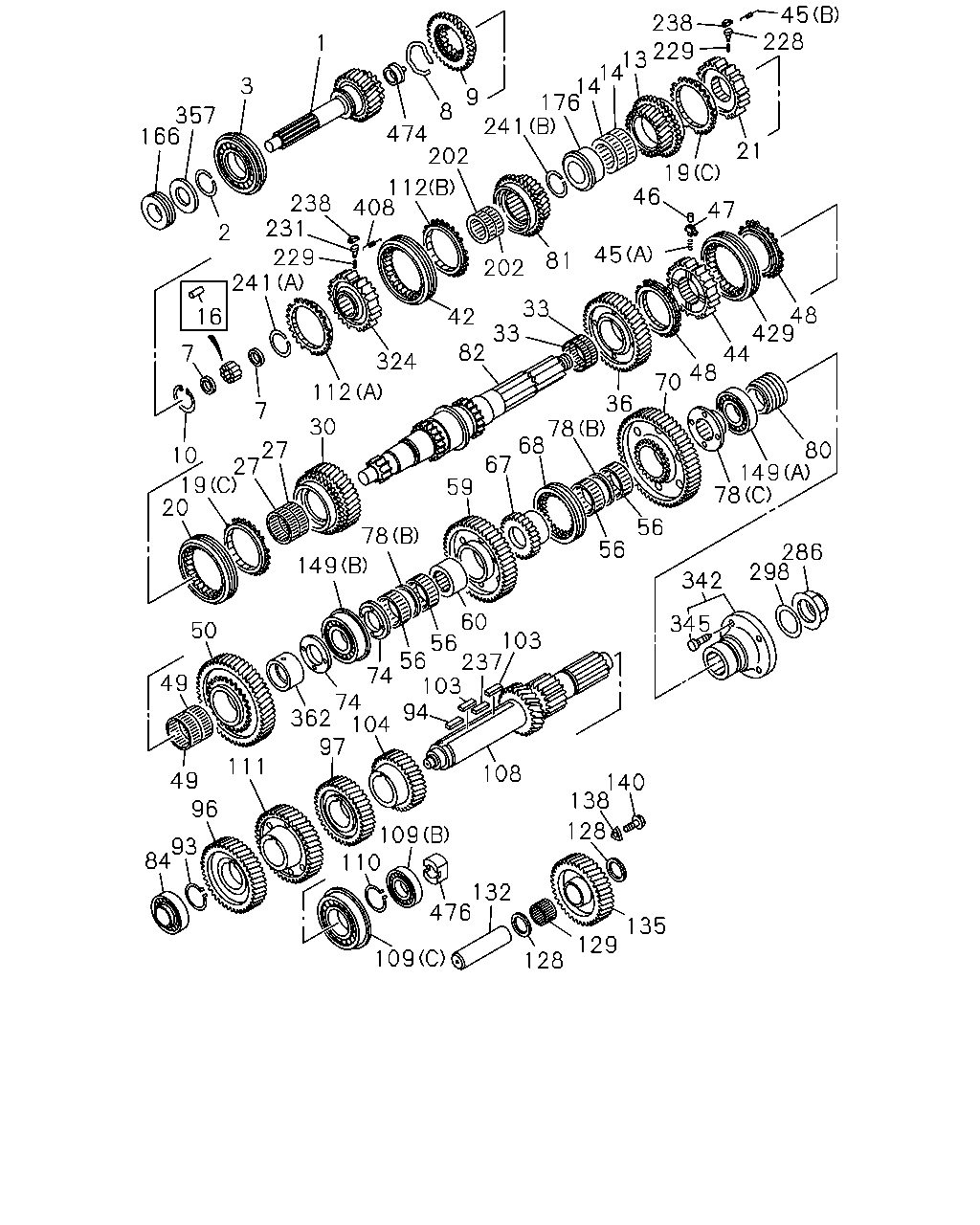

45 228 238 229 13 14 14 176 241 1 3 9 8 357 166 474 202 21 19 46 112 408 238 231 47 2 45 229 241 81 202 33 33 82 48 429 44 48 70 42 16 7 324 112 36 78 68 67 7 30 27 27 19 20 80 10 149 78 59 56 78 56 286 298 149 342 60 56 103 74 103 74 94 362 104 97 345 50 49 111 108 49 140 138 96 128 109 110 93 84 132 476 135 129 109 128 56 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-991-0	01	1	1201-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-699-1	01	1	0806-		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	1201-	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	1201-	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	1201-	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	1201-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0806-		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0806-		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0806-		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0806-		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	1201-	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	1201-	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0806-		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0806-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	1201-	●
8	CLIP; DOG CLU	1-33219-024-0	01	1	1201-	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0806-		●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	1201-	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0806-		●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	1201-	●
13	GEAR; 5TH,MAINSHAFT Z=30	1-33253-667-0	01	1	1201-	●
14	BEARING; NEEDLE,5TH NSK	1-09811-376-0	02	1	1201-1311	●
14	BEARING; NEEDLE,5TH NTN	1-09811-401-0	02	1	1201-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	1201-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	1201-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0806-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0806-		●
19	RING; BLOCK,4TH & 5TH (C) Z=66	1-33265-545-1	02	1	1201-	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-8	01	1	0806-		●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-1	01	1	0806-		●
20	SLEEVE	1-33262-222-0	01	1	1201-	●
20	SLEEVE	1-33262-097-1	01	1	0806-		●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	1201-	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	0806-		●
27	BEARING; 4TH GEAR NSK	1-09811-376-0	02	1	1201-1311	●
27	BEARING; 4TH GEAR NTN	1-09811-401-0	02	1	1201-	●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	0806-1311		●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	0806-		●
30	GEAR; 4TH,MAINSHAFT Z=41	1-33253-690-0	01	1	1201-	●
30	GEAR; 4TH,MAINSHAFT Z=29	1-33253-657-0	01	1	0806-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	1201-1311	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	1201-	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	0806-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	0806-		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	1201-	●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	0806-		●
42	SLEEVE	1-33262-222-0	01	1	1201-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	1201-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	0806-		●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	1201-	●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	0806-1112		●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	1201-	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0806-1112		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	1201-	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0806-1112		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	1201-	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-612-1	02	1	1201-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	0806-		●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-378-0	02	1	1201-1308	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	1201-	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	0806-		●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	0806-		●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-392-1	01	1	1201-	●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	0806-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-376-0	04	1	1201-1311	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	1201-	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	0806-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	0806-		●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	1201-	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0806-		●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	1201-	●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	1201-	●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	0806-		●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0806-1112		●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	1201-	●	●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	1201-	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0806-		●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	1201-1506	●
74	WASHER; THRUST,REV GEAR	8-98304-662-0	02	1	1507-	●
78	COLLAR; DIST,MAINSHAFT BRG (C)	1-33235-098-0	01	1	1201-	●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	1201-	●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-074-0	01	1	0806-		●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	1201-	●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0806-		●
81	GEAR; 7TH,MAIN Z=23	1-33253-653-0	01	1	1201-	●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	1201-1506	●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	8-98304-660-0	01	1	1507-	●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	0806-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	1201-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	1201-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0806-1405		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-287-1	01	1	1406-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0806-1405		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	1201-	●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	0806-		●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	1201-	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0806-		●
96	GEAR; COUNTER DRIVE Z=43	1-33331-271-0	01	1	1201-	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-195-0	01	1	0806-		●
97	GEAR; 5TH,COUNTER Z=37	1-33338-385-0	01	1	1201-	●
103	KEY; COUNTER GEAR L=63	1-09735-027-0	01	1	1201-	●
103	KEY; COUNTER GEAR L=67	1-09735-049-0	01	1	1201-	●
103	KEY; COUNTER GEAR L=50.0	1-09735-010-0	01	1	0806-		●
103	KEY; COUNTER GEAR L=46	1-09735-038-1	01	1	0806-		●
104	GEAR; 4TH,COUNTER Z=36	1-33338-379-0	01	1	1201-	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-366-0	01	1	0806-		●
108	SHAFT; COUNTER Z=24-16-12	1-33311-332-0	01	1	1201-	●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	0806-		●
109	BEARING; COUNTER SHAFT,RR (C) NSK	1-09810-186-0	01	1	1201-	●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	1201-	●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	1201-	●
109	BEARING; COUNTER SHAFT,RR (C) NTN	1-09810-207-0	01	1	1201-	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-021-1	01	1	0806-		●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-163-0	01	1	0806-		●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	1201-	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0806-		●
111	GEAR; 7TH COUNTER SHAFT Z=51	1-33338-387-0	01	1	1201-	●
112	RING; BLOCK,7TH SYN (A) Z=66	1-33265-376-7	01	1	1201-	●
112	RING; BLOCK,7TH SYN (B) Z=66	1-33265-545-1	01	1	1201-	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0806-1112		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	1201-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	1201-	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	1201-	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0806-		●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0806-		●
132	SHAFT; REV	1-33351-025-4	01	1	1201-	●
132	SHAFT; REV	1-33351-012-2	01	1	0806-		●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	1201-	●
135	GEAR; REV IDLER Z=27	1-33361-070-1	01	1	0806-		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	1201-	●
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	1201-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-203-0	01	1	1201-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-204-0	01	1	1201-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-021-1	01	1	0806-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-163-0	01	1	0806-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-172-0	01	1	0806-1112		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-172-0	01	1	1201-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-173-0	01	1	0806-1112		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-173-0	01	1	1201-	●	●
166	PIECE; DIST	1-33363-032-1	01	1	1201-	●
176	COLLAR; 5TH GEAR	1-33234-069-1	01	1	1201-	●
202	BEARING; COUNTER GEAR NSK	1-09811-382-0	02	1	1201-1311	●
202	BEARING; COUNTER GEAR NTN	1-09811-383-0	02	1	1201-	●
228	PLUNGER; SYN	1-33263-020-0	03	1	1201-	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	06	1	1201-	●
231	PLUNGER	1-33263-020-0	03	1	1201-	●
237	KEY; 5TH GEAR L=67	1-09735-049-0	01	1	1201-	●
238	INSERT	1-33263-025-2	06	1	1201-	●
241	RING; SNAP (A)	1-09588-185-0	01	1	1201-	●
241	RING; SNAP (B)	1-09588-189-0	01	1	1201-	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	1201-	●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	0806-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	1201-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	0806-		●
324	HUB; CLU	1-33261-238-0	01	1	1201-	●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	1201-1211	●
342	FLANGE; OUTPUT	8-98210-980-0	01	1	1212-	●
342	FLANGE; OUTPUT	1-37243-361-0	01	1	0806-1204		●
342	FLANGE; OUTPUT	8-98210-979-0	01	1	1205-		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0806-1112		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	1201-	●	●
357	RING	1-31349-015-0	01	1	1201-	●
362	COLLAR; 2ND GEAR	1-33234-072-0	01	1	1201-	●
408	SPRING	1-09583-171-0	03	1	1201-	●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	1201-	●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	0806-		●
474	NOZZLE; OIL	1-33219-257-0	01	1	1201-	●
476	ADAPTER; PUMP DRIVE	1-33339-066-0	01	1	1201-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
