2-20A — MANUAL TRANSMISSION ASM AND CASE (#68286) — 165 parça

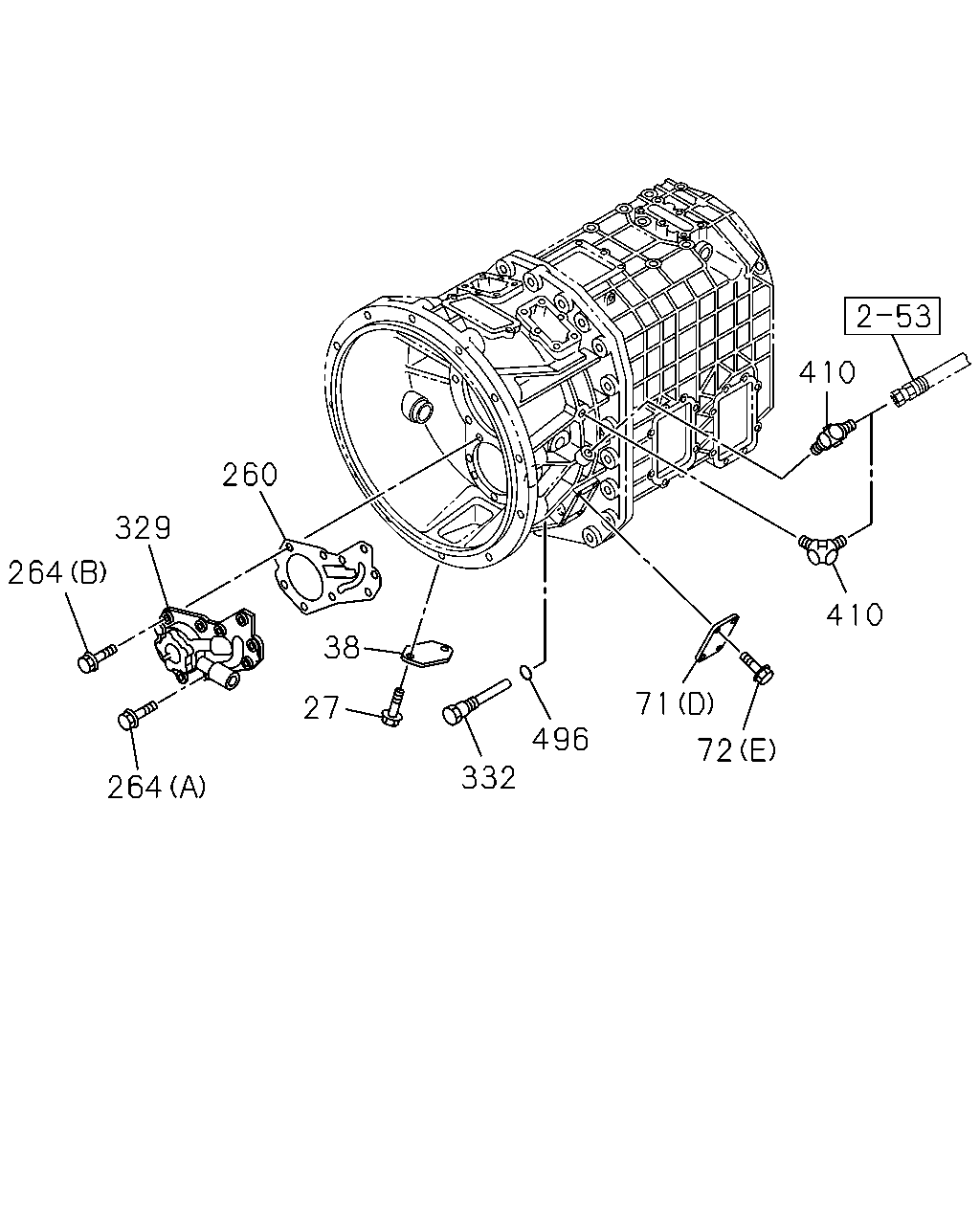

410 260 329 264 410 38 71 27 496 72 332 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	04	1	1201-	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	04	1	0806-		●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0806-1112		●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	1201-	●	●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	1201-	●
71	COVER; SIDE,TRANS CASE (D)	1-33141-058-0	01	1	1201-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	1-33141-044-1	01	1	1201-	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-030-1	01	1	0806-		●
72	BOLT; SIDE COVER (E) M10X30 FLANGE	0-28151-030-0	04	1	1201-	●
72	BOLT; SIDE COVER (C) M12X40 FLANGE THA	0-28151-240-0	07	1	1201-	●
72	BOLT; SIDE COVER (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1201-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M12X30 FLANGE	0-28751-230-0	08	1	1201-	●
72	BOLT; SIDE COVER (A) M10X16 FLANGE THA	0-28151-016-0	08	1	0806-		●
260	GASKET; OIL PUMP	1-34142-031-0	01	1	1201-	●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28151-040-0	09	1	1201-1211	●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	8-98230-249-0	09	1	1212-	●
264	BOLT; OIL PUMP (A) M10X70 FLANGE	0-28151-070-0	01	1	1201-	●
329	PUMP ASM; OIL	1-34150-112-0	01	1	1201-	●
332	FILTER; OIL	1-34159-050-1	01	1	1201-	●
410	UNION; OIL PIPE R1/4 & M16 ELBOW	1-09660-800-1	02	1	1201-	●
496	GASKET; OIL FILTER ID=24.2	1-09630-090-0	01	1	1201-	●

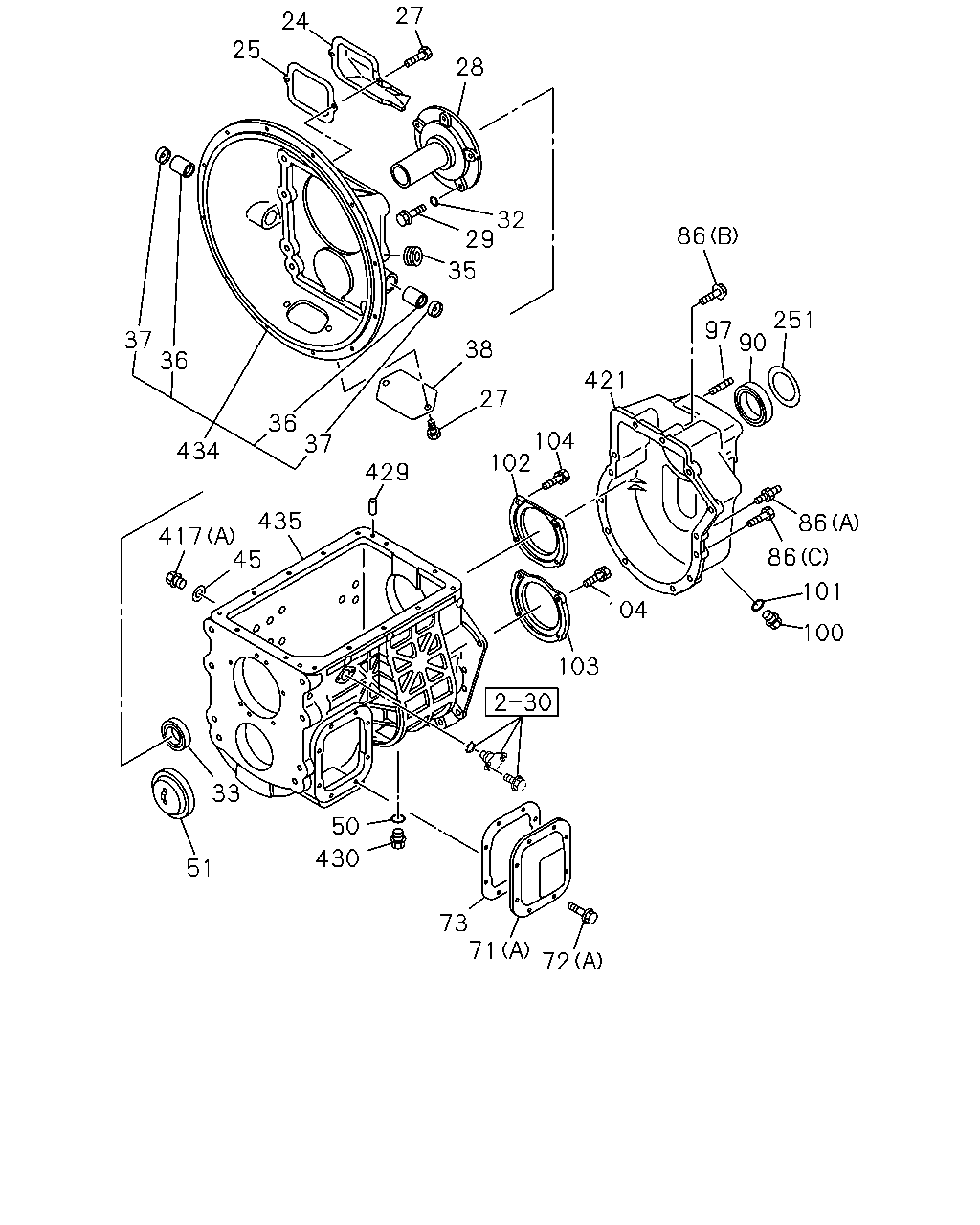

27 24 25 28 32 29 86 35 251 97 90 37 36 38 421 27 36 37 104 102 434 429 435 86 417 45 86 101 104 100 103 33 50 430 51 73 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0806-1112		●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1201-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0806-1112		●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	1201-1406	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	04	1	1201-	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	04	1	0806-		●
28	COVER; FRT,TRANS CASE	1-33121-159-2	01	1	1201-	●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	0806-		●
29	BOLT; FRT COVER M10X40 FLANGE	0-28161-040-0	06	1	1201-1211	●
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1212-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	05	1	0806-		●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	0806-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0806-1112		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	1201-	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0806-1112		●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	1201-	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0806-1112		●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1201-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0806-1112		●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1201-	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0806-1112		●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	1201-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-1112		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1201-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-1112		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1201-	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	0806-		●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	1201-	●
71	COVER; SIDE,TRANS CASE (D)	1-33141-058-0	01	1	1201-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	1-33141-044-1	01	1	1201-	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-030-1	01	1	0806-		●
72	BOLT; SIDE COVER (E) M10X30 FLANGE	0-28151-030-0	04	1	1201-	●
72	BOLT; SIDE COVER (C) M12X40 FLANGE THA	0-28151-240-0	07	1	1201-	●
72	BOLT; SIDE COVER (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1201-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M12X30 FLANGE	0-28751-230-0	08	1	1201-	●
72	BOLT; SIDE COVER (A) M10X16 FLANGE THA	0-28151-016-0	08	1	0806-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33142-041-0	01	1	1201-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-043-0	01	1	0806-		●
86	BOLT; RR COVER (D) M12X40 FLANGE THA	0-28151-240-0	14	1	1201-	●
86	BOLT; RR COVER (E) M10X16,M12X40 L=67.7	1-09029-082-0	02	1	1201-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0806-		●
86	BOLT; RR COVER (B) M12X65 FLANGE	1-09044-113-0	02	1	0806-		●
86	BOLT; RR COVER (A) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	0806-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	1201-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	0806-		●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0806-1112		●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	1201-	●	●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	0806-		●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-		●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-020-1	01	1	0806-		●
103	RETAINER; BRG	1-33151-059-0	01	1	1201-	●
103	RETAINER; BRG	9-33151-014-0	01	1	0806-		●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	1201-	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	0806-		●
251	RETAINER; OIL,PARKING BRK	1-33139-116-0	01	1	0806-1204		●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	1201-	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0806-1112		●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1201-	●	●
421	COVER; RR,TRANS	8-98191-936-1	01	1	1201-1502	●
421	COVER; RR,TRANS	8-98304-558-0	01	1	1503-	●
421	COVER; RR,TRANS	1-33131-191-2	01	1	0806-1002		●
421	COVER; RR,TRANS	1-33131-192-2	01	1	1003-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	06	1	1201-	●
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	0806-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0806-1112		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	1201-	●	●
434	HOUSING; CLU	1-31110-218-1	01	1	0806-		●
435	CASE; TRANS	8-98132-970-0	01	1	1201-	●
435	CASE; TRANS	1-33111-330-0	01	1	0806-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

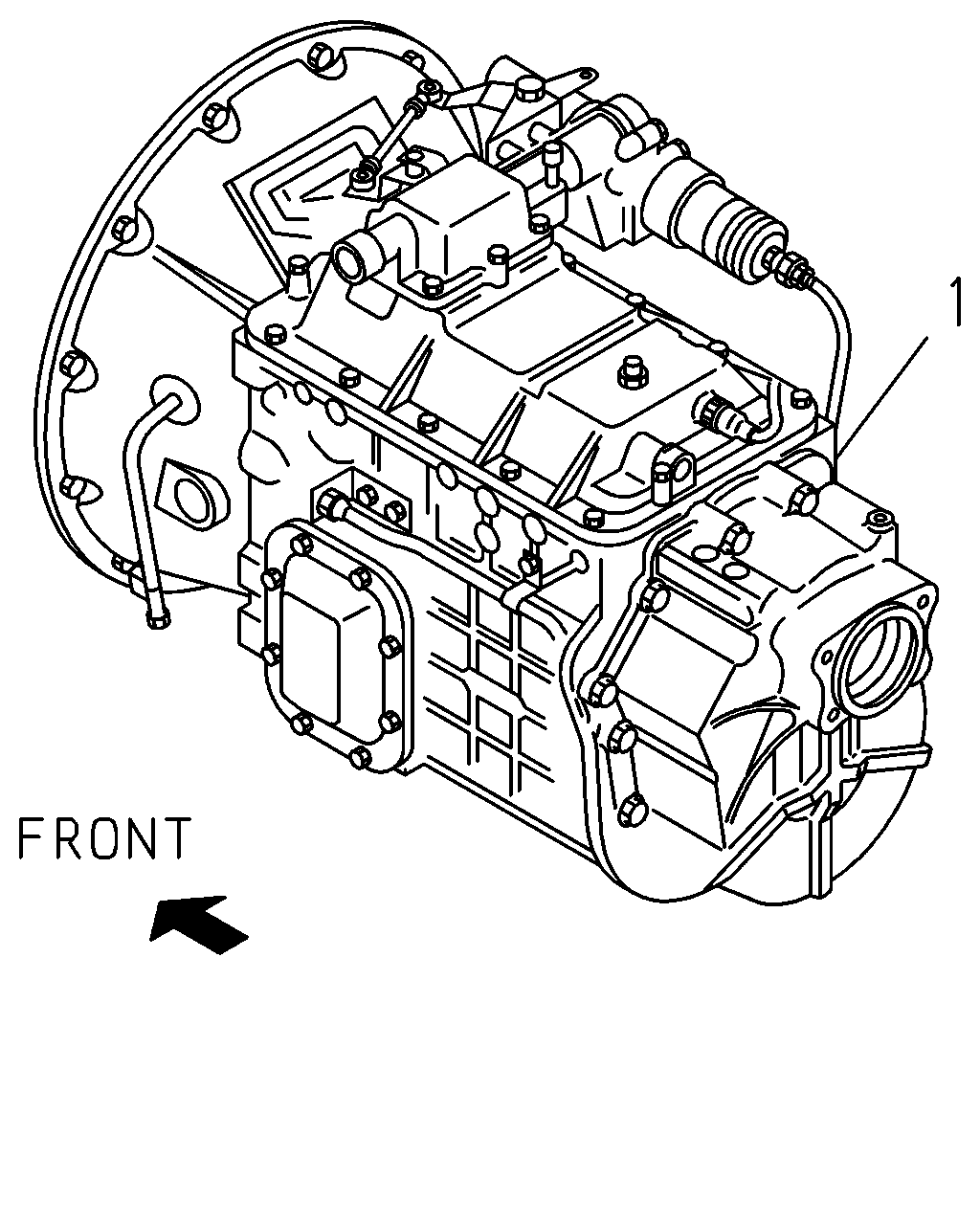

1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33044-472-0	01	1	1201-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33044-472-0	01	1	1201-	●
1	TRANSMISSION ASM; MANUAL	1-33044-147-0	01	1	0806-		●

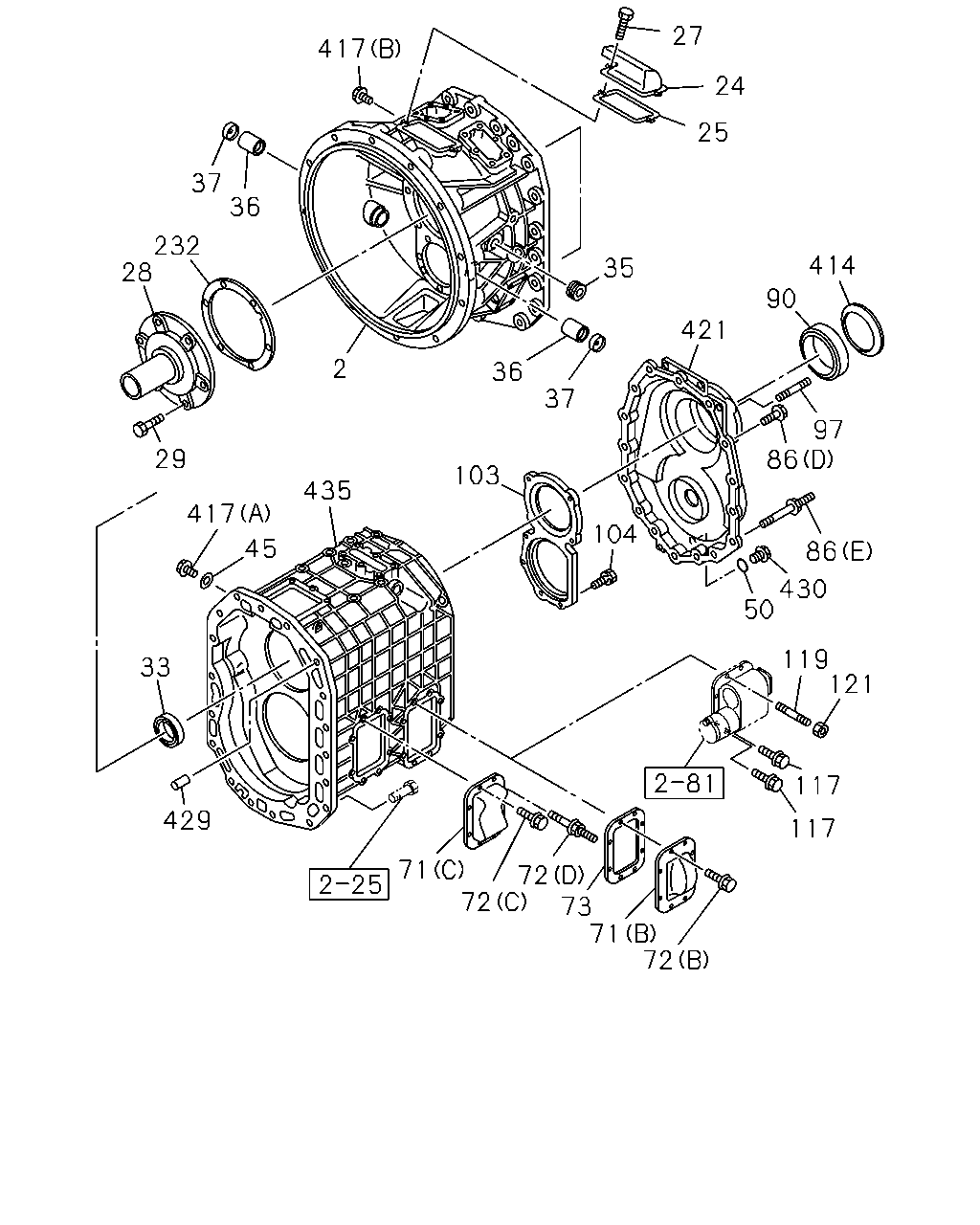

27 417 24 25 37 36 232 28 414 35 90 421 2 36 37 97 86 29 103 435 417 104 45 86 430 50 119 121 33 117 429 117 71 72 72 73 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU	8-98077-167-1	01	1	1201-	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0806-1112		●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1201-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0806-1112		●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	1201-1406	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	04	1	1201-	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	04	1	0806-		●
28	COVER; FRT,TRANS CASE	1-33121-159-2	01	1	1201-	●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	0806-		●
29	BOLT; FRT COVER M10X40 FLANGE	0-28161-040-0	06	1	1201-1211	●
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1212-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	05	1	0806-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0806-1112		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	1201-	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0806-1112		●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	1201-	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0806-1112		●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1201-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0806-1112		●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1201-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-1112		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1201-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-1112		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1201-	●	●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	1201-	●
71	COVER; SIDE,TRANS CASE (D)	1-33141-058-0	01	1	1201-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	1-33141-044-1	01	1	1201-	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-030-1	01	1	0806-		●
72	BOLT; SIDE COVER (E) M10X30 FLANGE	0-28151-030-0	04	1	1201-	●
72	BOLT; SIDE COVER (C) M12X40 FLANGE THA	0-28151-240-0	07	1	1201-	●
72	BOLT; SIDE COVER (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1201-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M12X30 FLANGE	0-28751-230-0	08	1	1201-	●
72	BOLT; SIDE COVER (A) M10X16 FLANGE THA	0-28151-016-0	08	1	0806-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33142-041-0	01	1	1201-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-043-0	01	1	0806-		●
86	BOLT; RR COVER (D) M12X40 FLANGE THA	0-28151-240-0	14	1	1201-	●
86	BOLT; RR COVER (E) M10X16,M12X40 L=67.7	1-09029-082-0	02	1	1201-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0806-		●
86	BOLT; RR COVER (B) M12X65 FLANGE	1-09044-113-0	02	1	0806-		●
86	BOLT; RR COVER (A) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	0806-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	1201-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	0806-		●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0806-1112		●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	1201-	●	●
103	RETAINER; BRG	1-33151-059-0	01	1	1201-	●
103	RETAINER; BRG	9-33151-014-0	01	1	0806-		●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	1201-	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	0806-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M12X35 FLANGE	0-28151-235-0	02	1	1201-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M12X130 FLANGE	0-28166-213-0	02	1	1201-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M12X25 L=43	0-44011-225-0	04	1	1201-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M12 FLANGE THA	0-91180-212-0	04	1	1201-	●
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	1201-	●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	1201-1211	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	1201-	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0806-1112		●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1201-	●	●
421	COVER; RR,TRANS	8-98191-936-1	01	1	1201-1502	●
421	COVER; RR,TRANS	8-98304-558-0	01	1	1503-	●
421	COVER; RR,TRANS	1-33131-191-2	01	1	0806-1002		●
421	COVER; RR,TRANS	1-33131-192-2	01	1	1003-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	06	1	1201-	●
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	0806-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0806-1112		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	1201-	●	●
435	CASE; TRANS	8-98132-970-0	01	1	1201-	●
435	CASE; TRANS	1-33111-330-0	01	1	0806-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

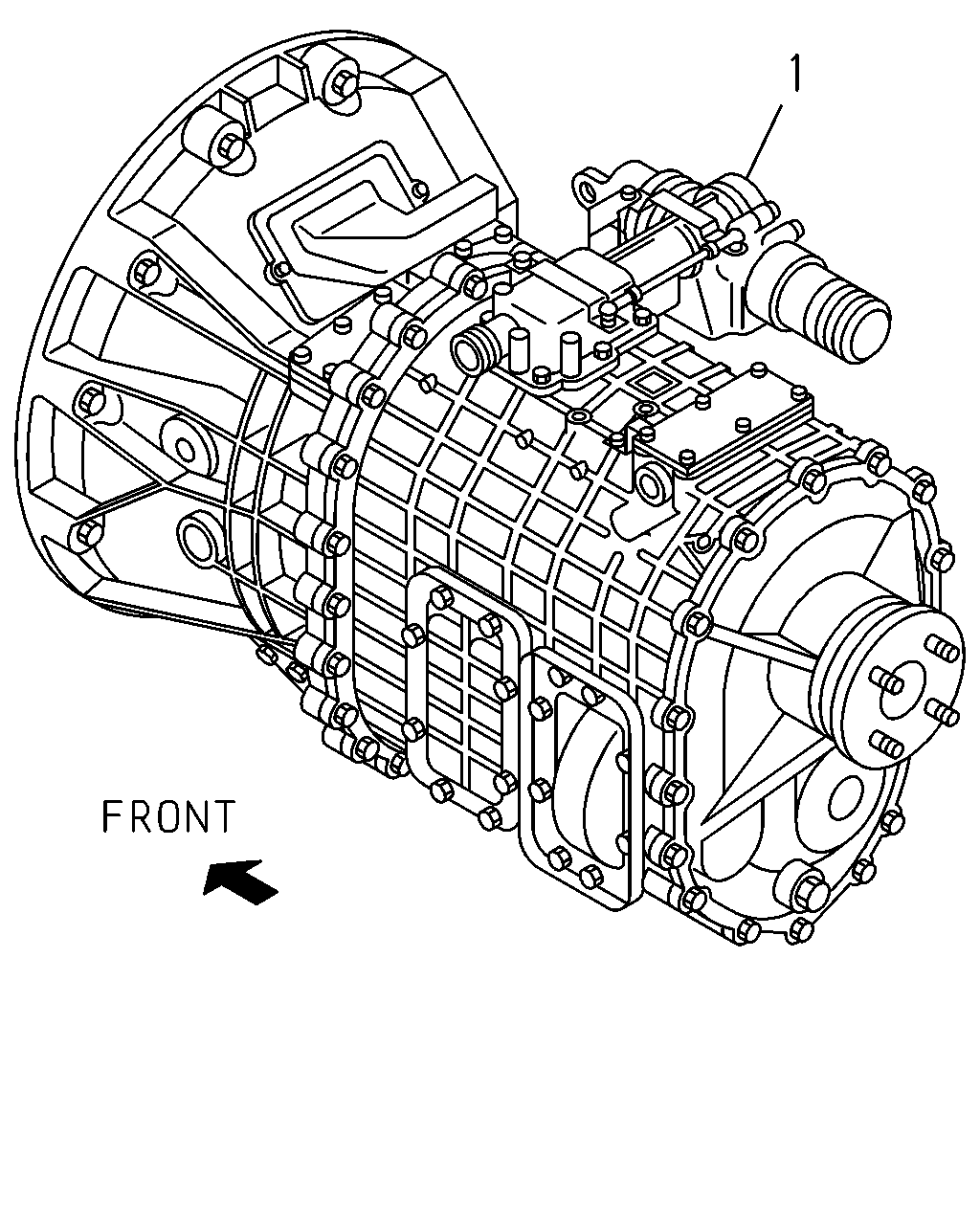

1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33044-472-0	01	1	1201-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33044-472-0	01	1	1201-	●
1	TRANSMISSION ASM; MANUAL	1-33044-147-0	01	1	0806-		●
