2-07A — CLUTCH BOOSTER; MINIPACK (#68283) — 104 parça

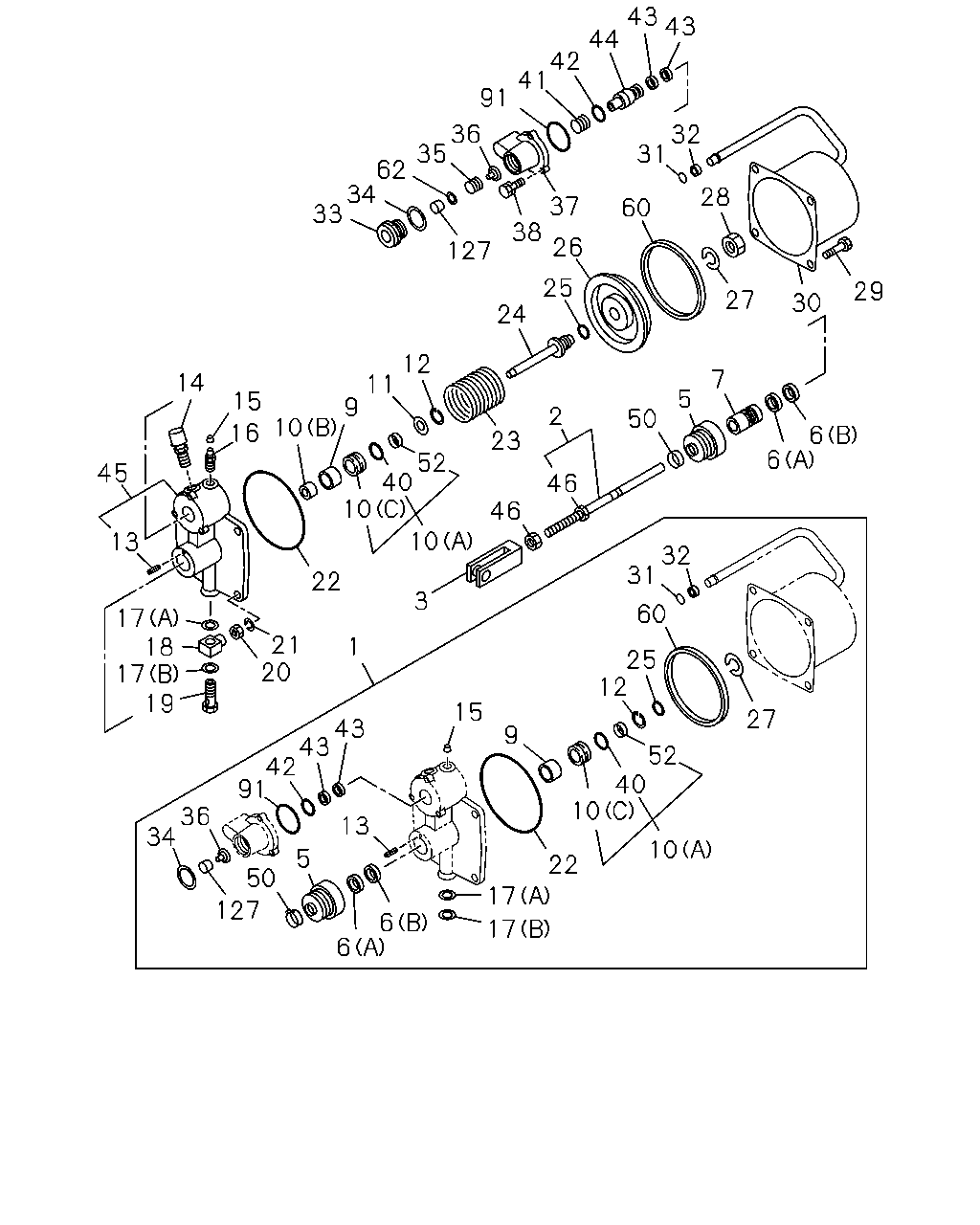

çizim 194030
43 43 44 42 41 91 36 35 62 34 33 32 31 28 37 38 60 26 127 25 29 27 30 24 12 7 14 11 5 15 9 10 2 50 16 6 23 6 52 40 10 45 46 46 10 13 32 31 22 3 60 17 18 17 19 21 20 1 25 12 15 27 43 43 42 91 9 52 40 10 36 34 13 10 5 22 50 17 127 6 17 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-627-0 01 1 1201- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-613-0 01 1 0806- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-240-0 01 1 0806-1112 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-240-0 01 1 1201- ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0806-1112 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1201- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0806-1112 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1201- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-498-0 01 1 0806-1112 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-498-0 01 1 1201- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-499-0 01 1 0806-1112 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-499-0 01 1 1201- ● ●
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 0806-1112 ●
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 1201- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 0806-1112 ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 1201- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(C) 		1-31829-106-0 01 1 0806-1101 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-107-0 01 1 0806-1112 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-107-0 01 1 1201- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-108-0 01 1 0806-1112 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-108-0 01 1 1201- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0806-1112 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1201- ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0806-1112 ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 1201- ● ●
13 PIN; SPR 1-31829-109-0 01 1 0806-1112 ●
13 PIN; SPR 1-31829-109-0 01 1 1201- ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0806-1112 ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1201- ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0806-1112 ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1201- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0806-1112 ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1201- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0806-1112 ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1201- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0806-1112 ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1201- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0806-1112 ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1201- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0806-1112 ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1201- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0806-1112 ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1201- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 THA 		9-09150-510-0 04 1 0806-1112 ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 THA 		9-09150-510-0 04 1 1201- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0806-1112 ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 1201- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 0806-1112 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 1201- ● ●
24 ROD; PUSH,CLU BOOSTER 1-31824-154-0 01 1 0806-1112 ●
24 ROD; PUSH,CLU BOOSTER 1-31824-154-0 01 1 1201- ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0806-1112 ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 1201- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 0806-1112 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 1201- ● ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 0806-1112 ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 1201- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0806-1112 ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 1201- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0806-1112 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1201- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 0806-1112 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 1201- ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0806-1112 ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1201- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0806-1112 ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1201- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 1201- ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0806- ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0806-1112 ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1201- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0806-1112 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1201- ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0806-1112 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1201- ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0806-1112 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1201- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0806-1112 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1201- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0806-1112 ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1201- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 0806-1112 ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 1201- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 0806-1112 ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1201- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0806-1112 ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1201- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-088-0 01 1 0806-1101 ●
45 PLATE; END,CLU BOOSTER 1-31829-614-0 01 1 0806-1112 ●
45 PLATE; END,CLU BOOSTER 1-31829-614-0 01 1 1201- ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0806-1112 ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1201- ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0806-1112 ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1201- ● ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 9-83315-118-0 01 1 0806-1112 ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 9-83315-118-0 01 1 1201- ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 0806-1112 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 1201- ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0806-1112 ●
62 RETAINER; POPPET 1-31829-489-0 01 1 1201- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0806-1112 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1201- ● ●
127 FILTER; POPPET 1-31829-488-0 01 1 1201- ●
127 FILTER; POPPET 1-31829-495-0 01 1 0806- ●
