Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#68282) — 530 parça

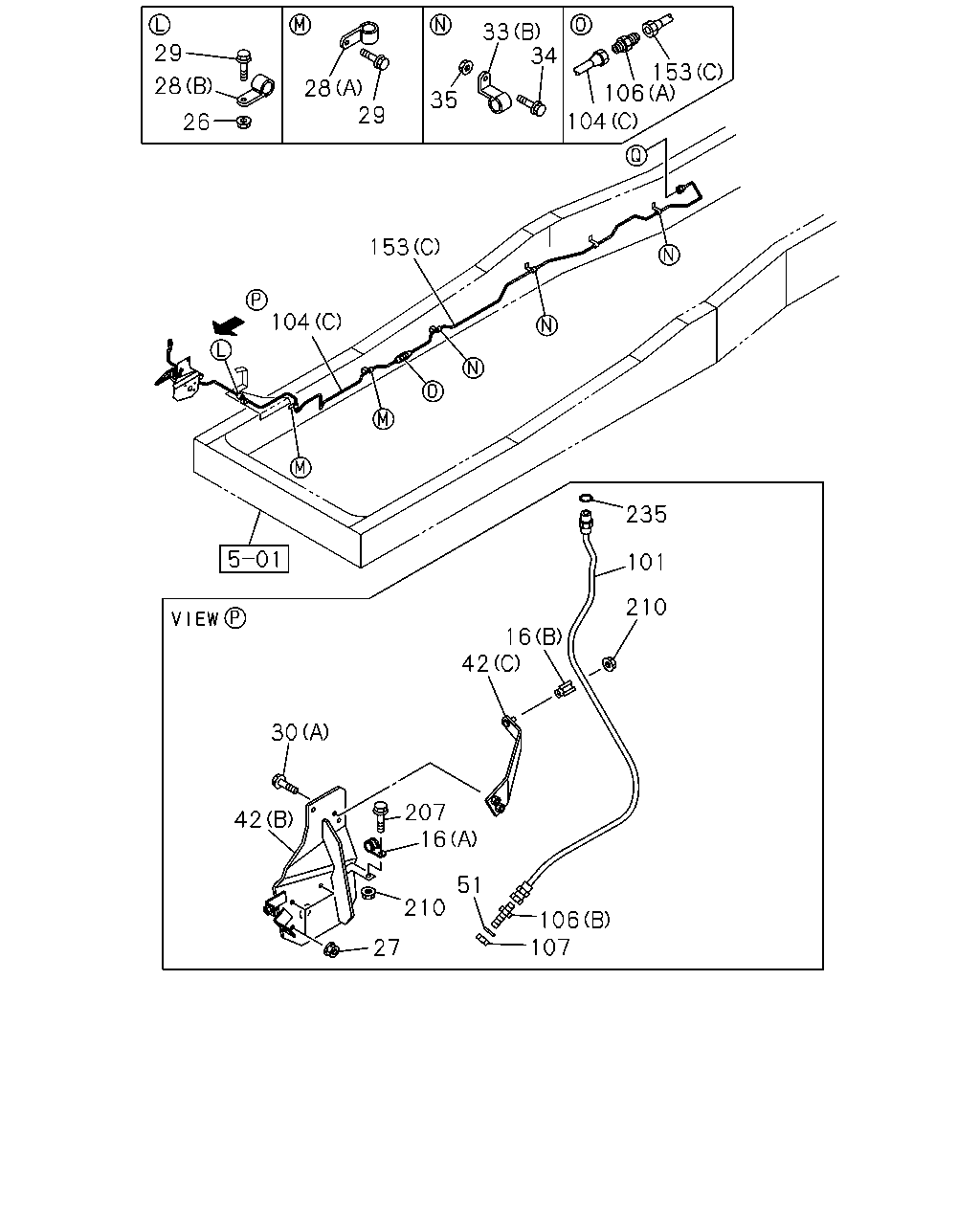

235 101 210 16 42 30 207 42 16 210 106 51 107 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE (B) ID=16 L=28	1-09700-872-0	01	1	0806-1201	●	●
16	CLIP; FLEX HOSE (B) ID=16 L=28	1-09700-872-0	03	1	1202-	●	●
16	CLIP; FLEX HOSE (A) ID=18 L=28 H=30	1-09701-110-0	01	1	0806-1201	●	●
27	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	02	1	0806-0806	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	02	1	0806-0806		●
27	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	0806-	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	01	1	0806-		●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	03	1	0806-	●	●
30	BOLT; BRKT MJT7U M/T<Y4X> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1201-	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	0806-	●
30	BOLT; BRKT (C) M8X35 FLANGE THA	0-28650-835-0	01	1	0806-		●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (B) M10X25 FLANGE THA	0-28651-025-0	02	1	0806-	●
30	BOLT; BRKT (B) M10X25 FLANGE THA	0-28651-025-0	02	1	0806-		●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0806-	●	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E)	1-47479-812-0	01	1	1201-	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D)	1-47477-546-1	01	1	0806-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A)	1-47476-912-1	01	1	0806-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-912-1	01	1	0806-		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	0806-1402	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98091-280-1	01	1	0806-1201	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1202-	●	●
51	WASHER; LK MAL6R M/T<Y2J> ID=20.2	0-91510-620-0	01	1	0806-	●
51	WASHER; LK ID=14.2	0-91510-514-0	01	1	0806-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE	8-98103-346-1	01	1	0806-1201	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE	8-98180-779-0	01	1	1202-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-0806	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T<Y5K> (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-	●	●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	0806-	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	0806-	●	●
207	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	0806-1112	●	●
207	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1201-	●	●
207	BOLT; CLIP MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1201-	●
210	NUT; CLIP MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1201-	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1202-	●	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	02	1	0806-1109	●	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1110-	●	●
235	GASKET; FLEX HOSE ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	0806-	●	●

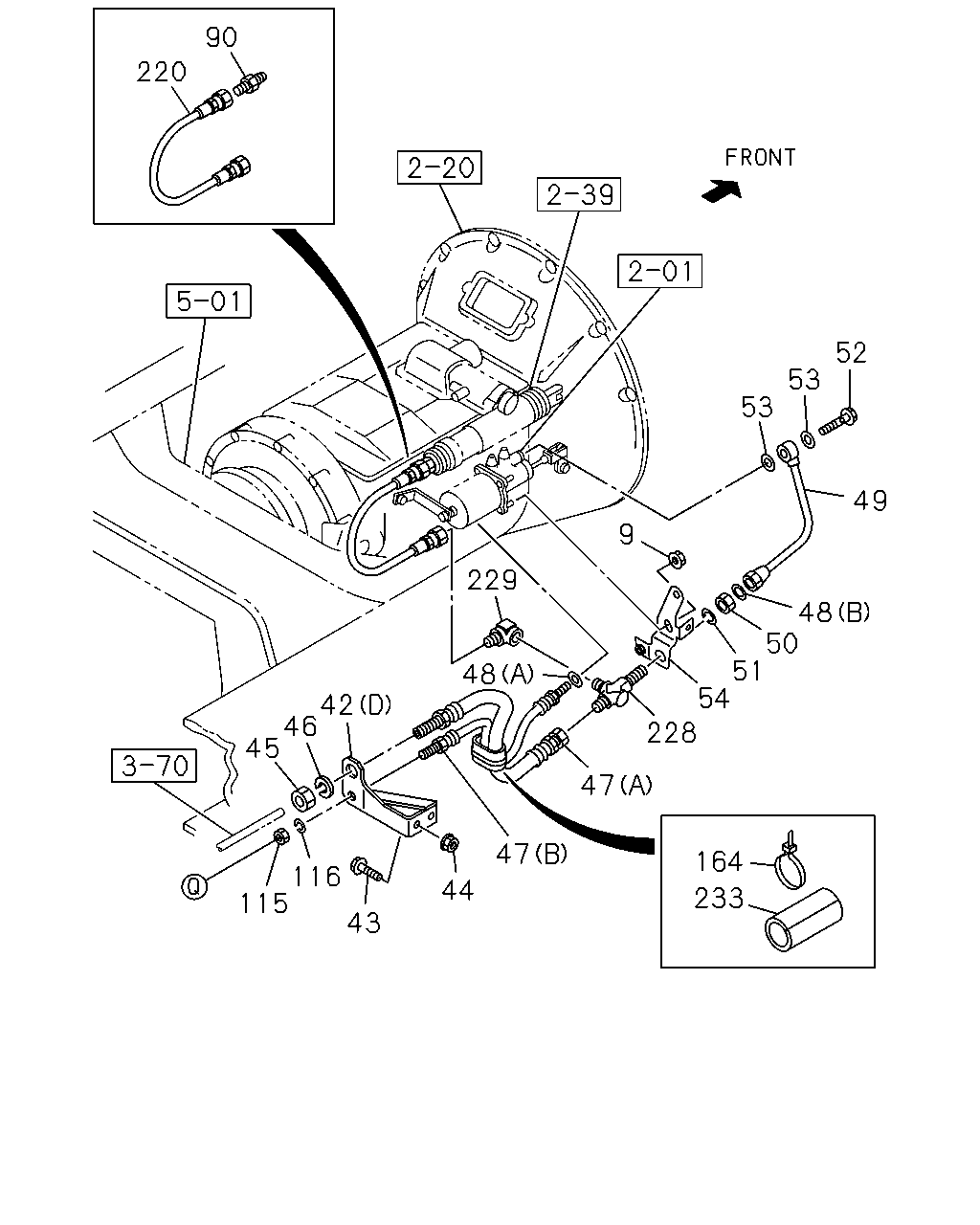

90 220 52 53 53 49 9 229 48 50 51 54 228 48 42 46 45 47 47 164 116 115 44 233 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	NUT; BRKT,FLEX HOSE MAL6R M/T<Y2J> M10 FLANGE THA	0-91180-210-0	02	1	0806-1112	●
9	NUT; BRKT,FLEX HOSE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M10 FLANGE THA	0-91180-210-0	02	1	1201-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E)	1-47479-812-0	01	1	1201-	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D)	1-47477-546-1	01	1	0806-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A)	1-47476-912-1	01	1	0806-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-912-1	01	1	0806-		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	0806-1402	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98091-280-1	01	1	0806-1201	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1202-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MAL6R M/T<Y2J> M8X30 FLANGE THA	0-28650-830-0	02	1	0806-1112	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	02	1	1201-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T<Y5K> M8X35 FLANGE THA	0-28650-835-0	02	1	0806-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE THA	0-28650-835-0	02	1	0806-		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE THA	0-91180-108-0	02	1	0806-	●	●
45	NUT; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> M20	0-91111-520-0	01	1	0806-	●
45	NUT; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> M12	9-09840-280-0	01	1	0806-1112	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0806-1112		●
45	NUT; FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> M12	9-09840-280-0	01	1	1201-	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1201-		●
46	WASHER; LK,FLEX HOSE,CLU CONT MAL6R M/T<Y2J> ID=20.2	0-91510-520-0	01	1	0806-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> ID=12.2	0-91510-512-0	01	1	0806-1112	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0806-1112		●
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> ID=12.2	0-91510-512-0	01	1	1201-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	1201-		●
47	HOSE; FLEX,CLU CONT MJT7U M/T<Y4X> (C) L=650	1-09364-694-0	01	1	1201-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (A) L=480	0-07806-480-1	01	1	0806-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (B) L=470	1-09364-692-0	01	1	0806-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (A) L=350	1-09363-624-0	01	1	0806-	●
47	HOSE; FLEX,CLU CONT (A) L=350	1-09363-624-0	01	1	0806-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (B) L=370	8-98072-331-0	01	1	0806-	●
47	HOSE; FLEX,CLU CONT (B) L=370	8-98072-331-0	01	1	0806-		●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (A) ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	0806-1112	●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (A) ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1201-	●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (B) ID=11 OD=18	9-09572-510-0	01	1	0806-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MAL6R M/T<Y2J> L=245	1-49117-733-0	01	1	0806-	●
50	NUT; UNION MAL6R M/T<Y2J> M20	0-91111-520-0	01	1	0806-	●
51	WASHER; LK MAL6R M/T<Y2J> ID=20.2	0-91510-620-0	01	1	0806-	●
51	WASHER; LK ID=14.2	0-91510-514-0	01	1	0806-	●	●
52	BOLT; EYE,AIR PIPE MAL6R M/T<Y2J> M14X27 FLANGE THA	1-09675-086-0	01	1	0806-	●
53	GASKET; JOINT BOLT MAL6R M/T<Y2J> ID=14.2 OD=19.2	1-09630-085-0	02	1	0806-1312	●
53	GASKET; JOINT BOLT MAL6R M/T<Y2J> ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
54	BRACKET; AIR,FLEX HOSE MAL6R M/T<Y2J>	1-47477-284-1	01	1	0806-	●
90	NIPPLE; OIL PIPE MAL6R M/T<Y2J> M12 & PT1/4 STRAIGHT THA	1-09650-074-1	01	1	0806-	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0806-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0806-	●	●
164	CLIP; BAND,FLEX HOSE L=350	1-09707-183-0	01	1	0806-1101	●	●
164	CLIP; BAND,FLEX HOSE MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> L=350	1-09707-183-0	01	1	1102-	●
164	CLIP; BAND,FLEX HOSE ZF9S1310 M/T<Y5K> L=350	1-09707-183-0	01	1	1102-		●
220	HOSE; FLEX,POWER ASSIST MJT7U M/T<Y4X> L=320	1-09363-656-0	01	1	1201-	●
220	HOSE; FLEX,POWER ASSIST MAL6R M/T<Y2J> L=480 THA	1-09363-659-0	01	1	0806-	●
228	UNION; 3 WAY MAL6R M/T<Y2J>	1-09656-640-0	01	1	0806-	●
229	CONNECTOR; ELOBOW MAL6R M/T<Y2J> M12 & PT1/4 ELBOW THA	1-09650-430-0	01	1	0806-	●
233	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	0806-1101	●	●
233	BAND; FLEX HOSE MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> L=175	1-09707-178-0	01	1	1102-	●
233	BAND; FLEX HOSE ZF9S1310 M/T<Y5K> L=175	1-09707-178-0	01	1	1102-		●

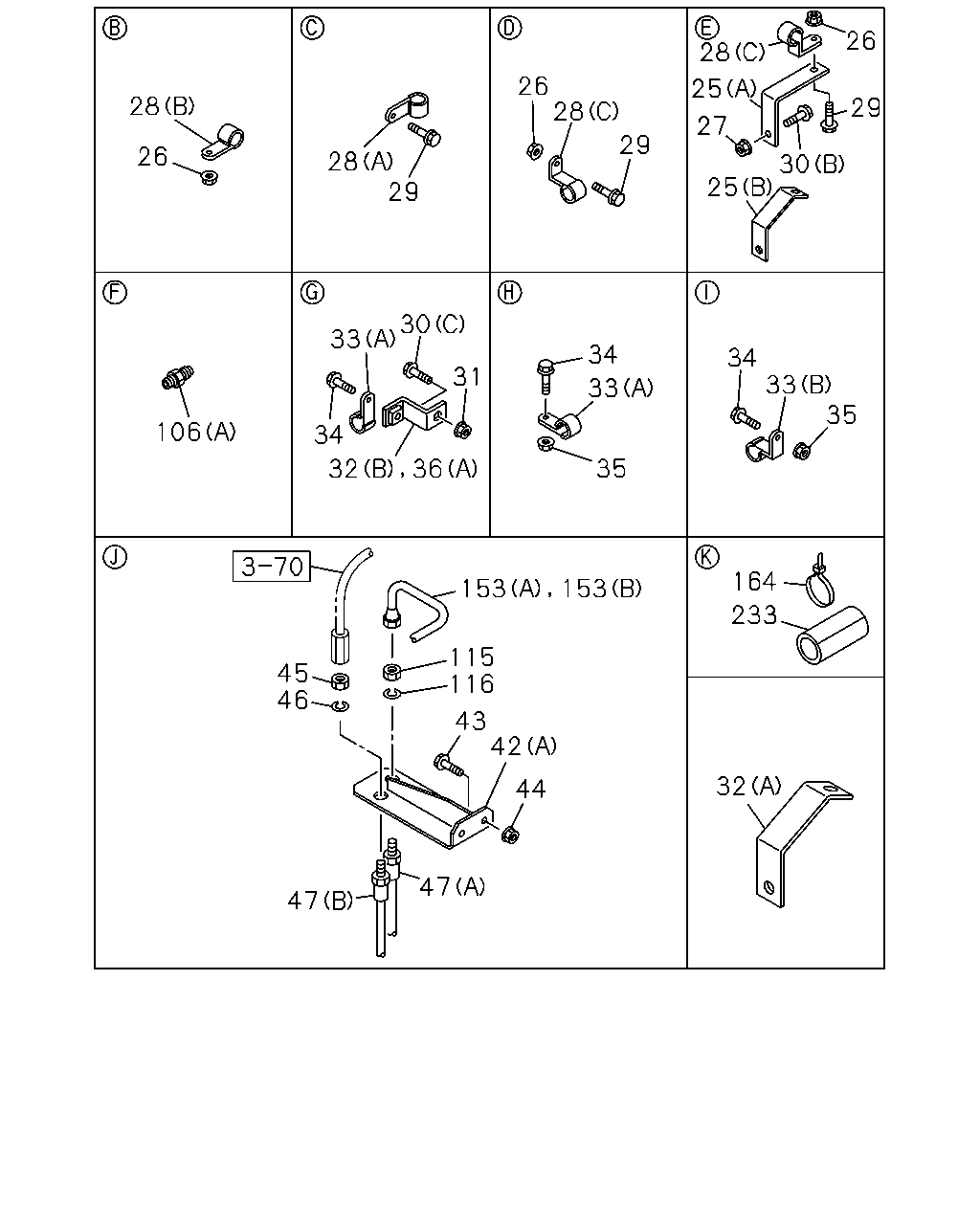

153 104 47 235 101 29 28 210 16 42 26 30 207 42 16 28 29 210 106 51 107 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE (B) ID=16 L=28	1-09700-872-0	01	1	0806-1201	●	●
16	CLIP; FLEX HOSE (B) ID=16 L=28	1-09700-872-0	03	1	1202-	●	●
16	CLIP; FLEX HOSE (A) ID=18 L=28 H=30	1-09701-110-0	01	1	0806-1201	●	●
26	NUT; CLIP,OIL PIPE MAL6R M/T<Y2J> M8 FLANGE THA	0-91180-108-0	01	1	0806-1112	●
26	NUT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1201-	●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	04	1	0806-0806	●
26	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	04	1	0806-0806		●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	03	1	0806-	●
26	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	03	1	0806-		●
27	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	02	1	0806-0806	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	02	1	0806-0806		●
27	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	0806-	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	01	1	0806-		●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	03	1	0806-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J> (A) ID=9 L=20	0-95234-835-0	01	1	0806-1112	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (A) ID=9 L=20	0-95234-835-0	01	1	1201-	●
28	CLIP; OIL PIPE (B) ID=9 L=40	0-95234-875-0	01	1	0806-1112	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J> (B) ID=9 L=40	0-95234-875-0	01	1	0806-1112	●
28	CLIP; OIL PIPE (B) ID=9 L=40	0-95234-875-0	01	1	1201-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=9 L=40	0-95234-875-0	01	1	1201-	●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20	0-95234-835-0	02	1	0806-	●
28	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	02	1	0806-		●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (C) ID=8 H=20 L=20	1-09700-604-0	03	1	0806-0806	●
28	CLIP; OIL PIPE (C) ID=8 H=20 L=20	1-09700-604-0	03	1	0806-0806		●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (C) ID=8 H=20 L=20	1-09700-604-0	01	1	0806-	●
28	CLIP; OIL PIPE (C) ID=8 H=20 L=20	1-09700-604-0	01	1	0806-		●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J> M8X20 FLANGE THA	0-28650-820-0	01	1	0806-1112	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1201-	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J> M8X25 FLANGE THA	0-28650-825-0	01	1	0806-1112	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X25 FLANGE THA	0-28650-825-0	01	1	1201-	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	04	1	0806-0806	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE THA	0-28650-825-0	04	1	0806-0806		●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	02	1	0806-	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE THA	0-28650-825-0	02	1	0806-		●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	01	1	0806-	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE THA	0-28650-830-0	01	1	0806-		●
30	BOLT; BRKT MJT7U M/T<Y4X> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1201-	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	0806-	●
30	BOLT; BRKT (C) M8X35 FLANGE THA	0-28650-835-0	01	1	0806-		●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (B) M10X25 FLANGE THA	0-28651-025-0	02	1	0806-	●
30	BOLT; BRKT (B) M10X25 FLANGE THA	0-28651-025-0	02	1	0806-		●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0806-	●	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E)	1-47479-812-0	01	1	1201-	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D)	1-47477-546-1	01	1	0806-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A)	1-47476-912-1	01	1	0806-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-912-1	01	1	0806-		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	0806-1402	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98091-280-1	01	1	0806-1201	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1202-	●	●
47	HOSE; FLEX,CLU CONT MJT7U M/T<Y4X> (C) L=650	1-09364-694-0	01	1	1201-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (A) L=480	0-07806-480-1	01	1	0806-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (B) L=470	1-09364-692-0	01	1	0806-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (A) L=350	1-09363-624-0	01	1	0806-	●
47	HOSE; FLEX,CLU CONT (A) L=350	1-09363-624-0	01	1	0806-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (B) L=370	8-98072-331-0	01	1	0806-	●
47	HOSE; FLEX,CLU CONT (B) L=370	8-98072-331-0	01	1	0806-		●
51	WASHER; LK MAL6R M/T<Y2J> ID=20.2	0-91510-620-0	01	1	0806-	●
51	WASHER; LK ID=14.2	0-91510-514-0	01	1	0806-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE	8-98103-346-1	01	1	0806-1201	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE	8-98180-779-0	01	1	1202-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MJT7U M/T<Y4X> (D) L=1196 THA	8-98211-460-0	01	1	1201-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MAL6R M/T<Y2J> (C) L=1215 SERVICED BY L=1250 THA	1-47428-764-0	01	1	0806-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T<Y5K> (A) L=2570 SERVICED BY L=2700	1-47428-772-0	01	1	0806-0806	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (A) L=2570 SERVICED BY L=2700	1-47428-772-0	01	1	0806-0806		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T<Y5K> (B) L=1747 SERVICED BY L=1800 THA	1-47428-768-0	01	1	0806-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (B) L=1747 SERVICED BY L=1800 THA	1-47428-768-0	01	1	0806-		●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-0806	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T<Y5K> (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-	●	●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	0806-	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	0806-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T<Y4X> (D) L=1758 SERVICED BY L=1800 THA	1-47428-768-0	01	1	1201-	●
153	PIPE ASM; CLU,UNION TO FLEX MAL6R M/T<Y2J> (C) L=1613 SERVICED BY L=1700 THA	1-47428-767-0	01	1	1102-	●
153	PIPE ASM; CLU,UNION TO FLEX MAL6R M/T<Y2J> (C) L=1574 SERVICED BY L=1700 THA	1-47428-767-0	01	1	0806-1101	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T<Y5K> (A) L=2038 SERVICED BY L=2150	1-47428-770-0	01	1	0806-0806	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=2038 SERVICED BY L=2150	1-47428-770-0	01	1	0806-0806		●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T<Y5K> (B) L=1155 SERVICED BY L=1250 THA	1-47428-764-0	01	1	0806-	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1155 SERVICED BY L=1250 THA	1-47428-764-0	01	1	0806-		●
207	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	0806-1112	●	●
207	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1201-	●	●
207	BOLT; CLIP MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1201-	●
210	NUT; CLIP MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1201-	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1202-	●	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	02	1	0806-1109	●	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1110-	●	●
235	GASKET; FLEX HOSE ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	0806-	●	●

43 117 44 4 42 36 46 45 37 116 115 207 206 34 106 36 33 30 35 31 210 9 173 173 48 220

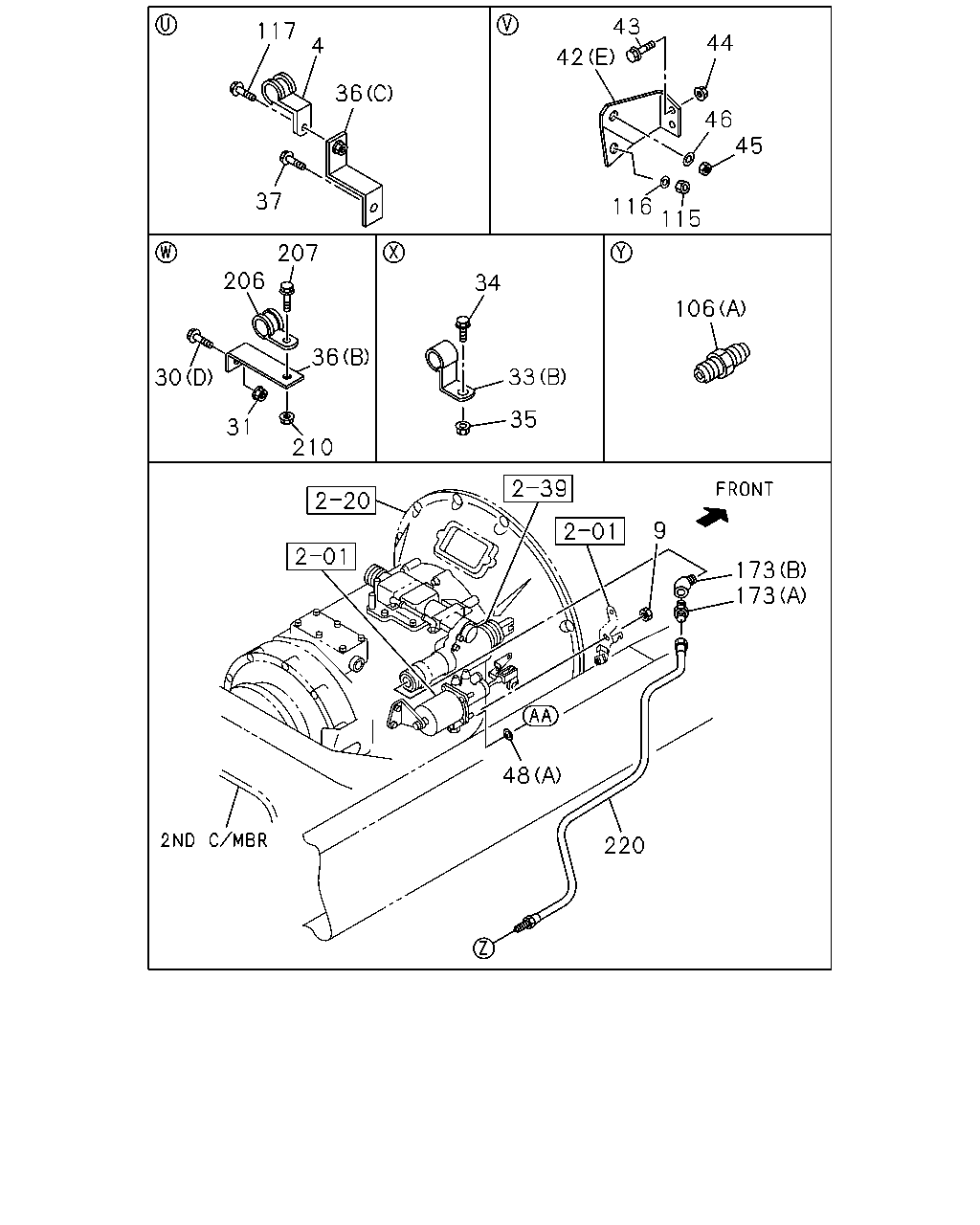

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> ID=16 H=25 L=25	1-09701-162-0	01	1	1201-	●
9	NUT; BRKT,FLEX HOSE MAL6R M/T<Y2J> M10 FLANGE THA	0-91180-210-0	02	1	0806-1112	●
9	NUT; BRKT,FLEX HOSE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M10 FLANGE THA	0-91180-210-0	02	1	1201-	●
30	BOLT; BRKT MJT7U M/T<Y4X> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1201-	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	0806-	●
30	BOLT; BRKT (C) M8X35 FLANGE THA	0-28650-835-0	01	1	0806-		●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (B) M10X25 FLANGE THA	0-28651-025-0	02	1	0806-	●
30	BOLT; BRKT (B) M10X25 FLANGE THA	0-28651-025-0	02	1	0806-		●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0806-	●	●
31	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	0806-	●
31	NUT; BRKT M10 FLANGE THA	0-91180-210-0	01	1	0806-		●
31	NUT; BRKT ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	01	1	0806-1112	●
31	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	0806-1112		●
31	NUT; BRKT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	01	1	1201-	●
31	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1201-		●
33	CLIP; OIL PIPE MAL6R M/T<Y2J> (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0806-1112	●
33	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1201-	●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20	0-95234-835-0	02	1	0806-0806	●
33	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	02	1	0806-0806		●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20	0-95234-835-0	04	1	0806-	●
33	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	04	1	0806-		●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (B) ID=8 H=20 L=20	1-09700-604-0	02	1	0806-	●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	02	1	0806-		●
34	BOLT; PIPE CLIP MAL6R M/T<Y2J> M8X30 FLANGE THA	0-28650-830-0	03	1	0806-1112	●
34	BOLT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	03	1	1201-	●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	02	1	0806-0806	●
34	BOLT; PIPE CLIP M8X25 FLANGE THA	0-28650-825-0	02	1	0806-0806		●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	04	1	0806-	●
34	BOLT; PIPE CLIP M8X25 FLANGE THA	0-28650-825-0	04	1	0806-		●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	02	1	0806-	●
34	BOLT; PIPE CLIP M8X30 FLANGE THA	0-28650-830-0	02	1	0806-		●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	04	1	0806-1101	●
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	04	1	0806-1101		●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1102-	●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1102-	●
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	02	1	1102-		●
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	02	1	1102-		●
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	03	1	0806-0806	●	●
35	NUT; PIPE CLIP MAL6R M/T<Y2J> M8 FLANGE THA	0-91180-108-0	03	1	0806-1112	●
35	NUT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	03	1	1201-	●
36	BRACKET; CLIP MJT7U M/T<Y4X> (C)	1-47475-689-0	01	1	1201-	●
36	BRACKET; CLIP MJT7U M/T<Y4X> (B) L=95	1-82699-085-0	01	1	1201-	●
36	BRACKET; CLIP ZF9S1310 M/T<Y5K> (A)	1-47479-482-0	01	1	0806-0806	●
36	BRACKET; CLIP (A)	1-47479-482-0	01	1	0806-0806		●
37	BOLT; CLIP BRKT MJT7U M/T<Y4X> M10X16 FLANGE THA	0-28151-016-0	01	1	1201-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E)	1-47479-812-0	01	1	1201-	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D)	1-47477-546-1	01	1	0806-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A)	1-47476-912-1	01	1	0806-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-912-1	01	1	0806-		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	0806-1402	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98091-280-1	01	1	0806-1201	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1202-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MAL6R M/T<Y2J> M8X30 FLANGE THA	0-28650-830-0	02	1	0806-1112	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	02	1	1201-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T<Y5K> M8X35 FLANGE THA	0-28650-835-0	02	1	0806-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE THA	0-28650-835-0	02	1	0806-		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE THA	0-91180-108-0	02	1	0806-	●	●
45	NUT; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> M20	0-91111-520-0	01	1	0806-	●
45	NUT; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> M12	9-09840-280-0	01	1	0806-1112	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0806-1112		●
45	NUT; FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> M12	9-09840-280-0	01	1	1201-	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1201-		●
46	WASHER; LK,FLEX HOSE,CLU CONT MAL6R M/T<Y2J> ID=20.2	0-91510-520-0	01	1	0806-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> ID=12.2	0-91510-512-0	01	1	0806-1112	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0806-1112		●
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> ID=12.2	0-91510-512-0	01	1	1201-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	1201-		●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (A) ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	0806-1112	●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (A) ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1201-	●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (B) ID=11 OD=18	9-09572-510-0	01	1	0806-	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-0806	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T<Y5K> (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-	●	●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	0806-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0806-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0806-	●	●
117	BOLT; CLIP,FLEX HOSE MJT7U M/T<Y4X> M8X16 FLANGE THA	0-28050-816-0	01	1	1201-	●
173	CONNECTOR MJT7U M/T<Y4X> (A) M12 & PT1/4 STRAIGHT THA	1-09650-074-1	01	1	1201-	●
173	CONNECTOR MJT7U M/T<Y4X> (B) R1/4 & RC1/4	1-09664-211-0	01	1	1201-	●
206	CLIP; TUBE MJT7U M/T<Y4X> ID=16 L=28	1-09700-872-0	01	1	1201-	●
207	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	0806-1112	●	●
207	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1201-	●	●
207	BOLT; CLIP MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1201-	●
210	NUT; CLIP MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1201-	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1202-	●	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	02	1	0806-1109	●	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1110-	●	●
220	HOSE; FLEX,POWER ASSIST MJT7U M/T<Y4X> L=320	1-09363-656-0	01	1	1201-	●
220	HOSE; FLEX,POWER ASSIST MAL6R M/T<Y2J> L=480 THA	1-09363-659-0	01	1	0806-	●

33 34 29 153 106 104 28 28 29 35 26 153 104 235 101 210 16 42 30 207 16 42 51 210 106 107 27

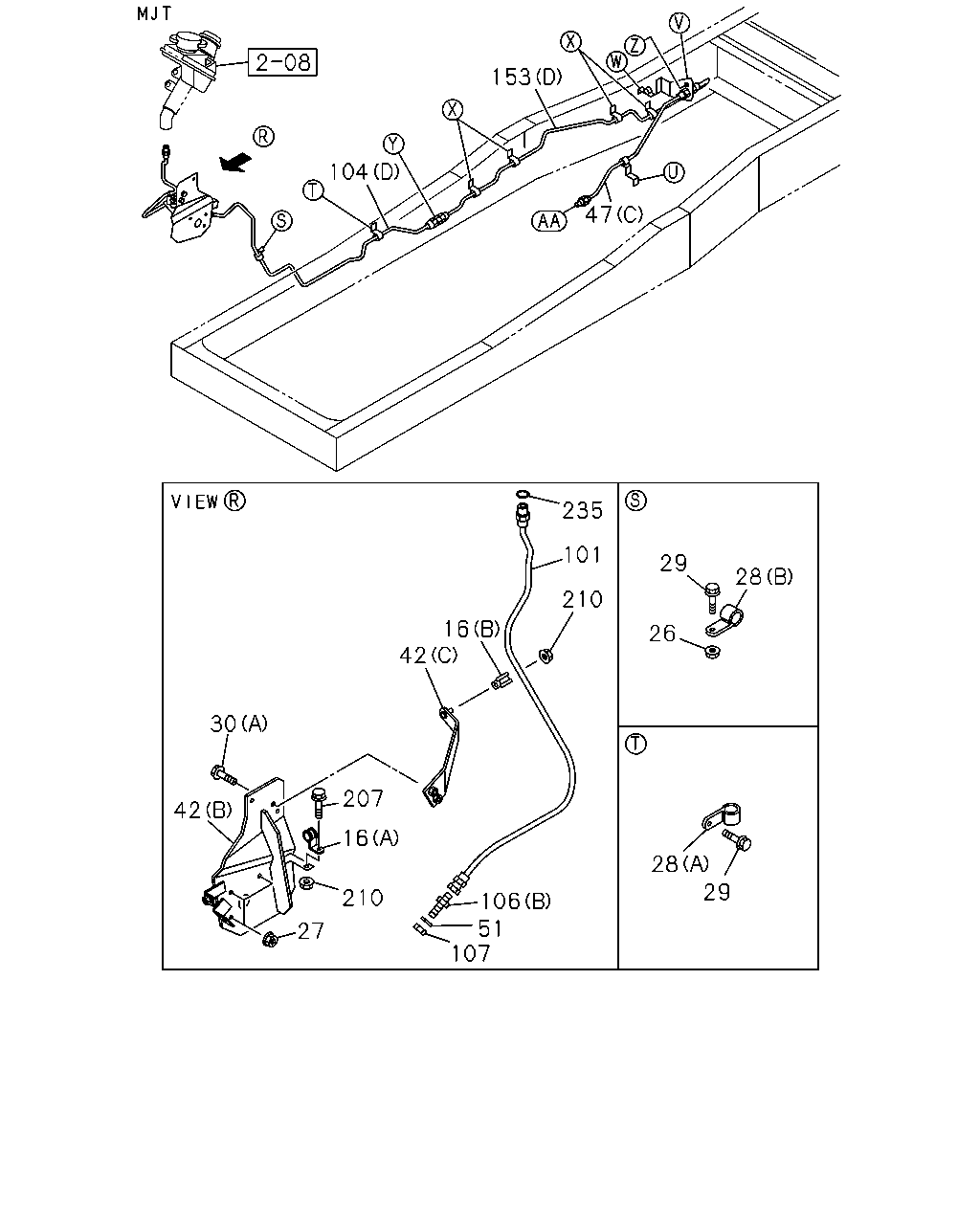

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE (B) ID=16 L=28	1-09700-872-0	01	1	0806-1201	●	●
16	CLIP; FLEX HOSE (B) ID=16 L=28	1-09700-872-0	03	1	1202-	●	●
16	CLIP; FLEX HOSE (A) ID=18 L=28 H=30	1-09701-110-0	01	1	0806-1201	●	●
26	NUT; CLIP,OIL PIPE MAL6R M/T<Y2J> M8 FLANGE THA	0-91180-108-0	01	1	0806-1112	●
26	NUT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1201-	●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	04	1	0806-0806	●
26	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	04	1	0806-0806		●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	03	1	0806-	●
26	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	03	1	0806-		●
27	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	02	1	0806-0806	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	02	1	0806-0806		●
27	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	0806-	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	01	1	0806-		●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	03	1	0806-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J> (A) ID=9 L=20	0-95234-835-0	01	1	0806-1112	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (A) ID=9 L=20	0-95234-835-0	01	1	1201-	●
28	CLIP; OIL PIPE (B) ID=9 L=40	0-95234-875-0	01	1	0806-1112	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J> (B) ID=9 L=40	0-95234-875-0	01	1	0806-1112	●
28	CLIP; OIL PIPE (B) ID=9 L=40	0-95234-875-0	01	1	1201-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=9 L=40	0-95234-875-0	01	1	1201-	●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20	0-95234-835-0	02	1	0806-	●
28	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	02	1	0806-		●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (C) ID=8 H=20 L=20	1-09700-604-0	03	1	0806-0806	●
28	CLIP; OIL PIPE (C) ID=8 H=20 L=20	1-09700-604-0	03	1	0806-0806		●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (C) ID=8 H=20 L=20	1-09700-604-0	01	1	0806-	●
28	CLIP; OIL PIPE (C) ID=8 H=20 L=20	1-09700-604-0	01	1	0806-		●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J> M8X20 FLANGE THA	0-28650-820-0	01	1	0806-1112	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1201-	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J> M8X25 FLANGE THA	0-28650-825-0	01	1	0806-1112	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X25 FLANGE THA	0-28650-825-0	01	1	1201-	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	04	1	0806-0806	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE THA	0-28650-825-0	04	1	0806-0806		●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	02	1	0806-	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE THA	0-28650-825-0	02	1	0806-		●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	01	1	0806-	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE THA	0-28650-830-0	01	1	0806-		●
30	BOLT; BRKT MJT7U M/T<Y4X> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1201-	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	0806-	●
30	BOLT; BRKT (C) M8X35 FLANGE THA	0-28650-835-0	01	1	0806-		●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (B) M10X25 FLANGE THA	0-28651-025-0	02	1	0806-	●
30	BOLT; BRKT (B) M10X25 FLANGE THA	0-28651-025-0	02	1	0806-		●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0806-	●	●
33	CLIP; OIL PIPE MAL6R M/T<Y2J> (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0806-1112	●
33	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1201-	●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20	0-95234-835-0	02	1	0806-0806	●
33	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	02	1	0806-0806		●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20	0-95234-835-0	04	1	0806-	●
33	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	04	1	0806-		●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (B) ID=8 H=20 L=20	1-09700-604-0	02	1	0806-	●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	02	1	0806-		●
34	BOLT; PIPE CLIP MAL6R M/T<Y2J> M8X30 FLANGE THA	0-28650-830-0	03	1	0806-1112	●
34	BOLT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	03	1	1201-	●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	02	1	0806-0806	●
34	BOLT; PIPE CLIP M8X25 FLANGE THA	0-28650-825-0	02	1	0806-0806		●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	04	1	0806-	●
34	BOLT; PIPE CLIP M8X25 FLANGE THA	0-28650-825-0	04	1	0806-		●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	02	1	0806-	●
34	BOLT; PIPE CLIP M8X30 FLANGE THA	0-28650-830-0	02	1	0806-		●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	04	1	0806-1101	●
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	04	1	0806-1101		●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1102-	●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1102-	●
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	02	1	1102-		●
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	02	1	1102-		●
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	03	1	0806-0806	●	●
35	NUT; PIPE CLIP MAL6R M/T<Y2J> M8 FLANGE THA	0-91180-108-0	03	1	0806-1112	●
35	NUT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	03	1	1201-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E)	1-47479-812-0	01	1	1201-	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D)	1-47477-546-1	01	1	0806-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A)	1-47476-912-1	01	1	0806-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-912-1	01	1	0806-		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	0806-1402	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98091-280-1	01	1	0806-1201	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1202-	●	●
51	WASHER; LK MAL6R M/T<Y2J> ID=20.2	0-91510-620-0	01	1	0806-	●
51	WASHER; LK ID=14.2	0-91510-514-0	01	1	0806-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE	8-98103-346-1	01	1	0806-1201	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE	8-98180-779-0	01	1	1202-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MJT7U M/T<Y4X> (D) L=1196 THA	8-98211-460-0	01	1	1201-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MAL6R M/T<Y2J> (C) L=1215 SERVICED BY L=1250 THA	1-47428-764-0	01	1	0806-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T<Y5K> (A) L=2570 SERVICED BY L=2700	1-47428-772-0	01	1	0806-0806	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (A) L=2570 SERVICED BY L=2700	1-47428-772-0	01	1	0806-0806		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T<Y5K> (B) L=1747 SERVICED BY L=1800 THA	1-47428-768-0	01	1	0806-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (B) L=1747 SERVICED BY L=1800 THA	1-47428-768-0	01	1	0806-		●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-0806	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T<Y5K> (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-	●	●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	0806-	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	0806-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T<Y4X> (D) L=1758 SERVICED BY L=1800 THA	1-47428-768-0	01	1	1201-	●
153	PIPE ASM; CLU,UNION TO FLEX MAL6R M/T<Y2J> (C) L=1613 SERVICED BY L=1700 THA	1-47428-767-0	01	1	1102-	●
153	PIPE ASM; CLU,UNION TO FLEX MAL6R M/T<Y2J> (C) L=1574 SERVICED BY L=1700 THA	1-47428-767-0	01	1	0806-1101	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T<Y5K> (A) L=2038 SERVICED BY L=2150	1-47428-770-0	01	1	0806-0806	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=2038 SERVICED BY L=2150	1-47428-770-0	01	1	0806-0806		●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T<Y5K> (B) L=1155 SERVICED BY L=1250 THA	1-47428-764-0	01	1	0806-	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1155 SERVICED BY L=1250 THA	1-47428-764-0	01	1	0806-		●
207	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	0806-1112	●	●
207	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1201-	●	●
207	BOLT; CLIP MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1201-	●
210	NUT; CLIP MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1201-	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1202-	●	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	02	1	0806-1109	●	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1110-	●	●
235	GASKET; FLEX HOSE ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	0806-	●	●

28 26 26 28 25 28 29 27 29 26 28 29 30 25 30 33 34 34 33 35 31 33 106 34 35 164 153 153 233 115 116 45 46 43 42 32 44 47 47 32 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE ZF9S1310 M/T<Y5K> (A)	8-97621-141-0	02	1	0806-0806	●
25	BRACKET; OIL PIPE (A)	8-97621-141-0	02	1	0806-0806		●
25	BRACKET; OIL PIPE ZF9S1310 M/T<Y5K> (B)	8-98123-059-0	01	1	0806-	●
25	BRACKET; OIL PIPE (B)	8-98123-059-0	01	1	0806-		●
26	NUT; CLIP,OIL PIPE MAL6R M/T<Y2J> M8 FLANGE THA	0-91180-108-0	01	1	0806-1112	●
26	NUT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1201-	●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	04	1	0806-0806	●
26	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	04	1	0806-0806		●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	03	1	0806-	●
26	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	03	1	0806-		●
27	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	02	1	0806-0806	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	02	1	0806-0806		●
27	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	0806-	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	01	1	0806-		●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	03	1	0806-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J> (A) ID=9 L=20	0-95234-835-0	01	1	0806-1112	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (A) ID=9 L=20	0-95234-835-0	01	1	1201-	●
28	CLIP; OIL PIPE (B) ID=9 L=40	0-95234-875-0	01	1	0806-1112	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J> (B) ID=9 L=40	0-95234-875-0	01	1	0806-1112	●
28	CLIP; OIL PIPE (B) ID=9 L=40	0-95234-875-0	01	1	1201-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=9 L=40	0-95234-875-0	01	1	1201-	●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20	0-95234-835-0	02	1	0806-	●
28	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	02	1	0806-		●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (C) ID=8 H=20 L=20	1-09700-604-0	03	1	0806-0806	●
28	CLIP; OIL PIPE (C) ID=8 H=20 L=20	1-09700-604-0	03	1	0806-0806		●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (C) ID=8 H=20 L=20	1-09700-604-0	01	1	0806-	●
28	CLIP; OIL PIPE (C) ID=8 H=20 L=20	1-09700-604-0	01	1	0806-		●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J> M8X20 FLANGE THA	0-28650-820-0	01	1	0806-1112	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1201-	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J> M8X25 FLANGE THA	0-28650-825-0	01	1	0806-1112	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X25 FLANGE THA	0-28650-825-0	01	1	1201-	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	04	1	0806-0806	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE THA	0-28650-825-0	04	1	0806-0806		●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	02	1	0806-	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE THA	0-28650-825-0	02	1	0806-		●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	01	1	0806-	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE THA	0-28650-830-0	01	1	0806-		●
30	BOLT; BRKT MJT7U M/T<Y4X> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1201-	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	0806-	●
30	BOLT; BRKT (C) M8X35 FLANGE THA	0-28650-835-0	01	1	0806-		●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (B) M10X25 FLANGE THA	0-28651-025-0	02	1	0806-	●
30	BOLT; BRKT (B) M10X25 FLANGE THA	0-28651-025-0	02	1	0806-		●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0806-	●	●
31	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	0806-	●
31	NUT; BRKT M10 FLANGE THA	0-91180-210-0	01	1	0806-		●
31	NUT; BRKT ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	01	1	0806-1112	●
31	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	0806-1112		●
31	NUT; BRKT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	01	1	1201-	●
31	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1201-		●
32	BRACKET; CLIP OIL PIPE ZF9S1310 M/T<Y5K> (B)	1-47479-482-0	01	1	0806-	●
32	BRACKET; CLIP OIL PIPE (B)	1-47479-482-0	01	1	0806-		●
32	BRACKET; CLIP OIL PIPE ZF9S1310 M/T<Y5K> (A)	8-98123-059-0	01	1	0806-	●
32	BRACKET; CLIP OIL PIPE (A)	8-98123-059-0	01	1	0806-		●
33	CLIP; OIL PIPE MAL6R M/T<Y2J> (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0806-1112	●
33	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1201-	●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20	0-95234-835-0	02	1	0806-0806	●
33	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	02	1	0806-0806		●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20	0-95234-835-0	04	1	0806-	●
33	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	04	1	0806-		●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (B) ID=8 H=20 L=20	1-09700-604-0	02	1	0806-	●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	02	1	0806-		●
34	BOLT; PIPE CLIP MAL6R M/T<Y2J> M8X30 FLANGE THA	0-28650-830-0	03	1	0806-1112	●
34	BOLT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	03	1	1201-	●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	02	1	0806-0806	●
34	BOLT; PIPE CLIP M8X25 FLANGE THA	0-28650-825-0	02	1	0806-0806		●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	04	1	0806-	●
34	BOLT; PIPE CLIP M8X25 FLANGE THA	0-28650-825-0	04	1	0806-		●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	02	1	0806-	●
34	BOLT; PIPE CLIP M8X30 FLANGE THA	0-28650-830-0	02	1	0806-		●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	04	1	0806-1101	●
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	04	1	0806-1101		●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1102-	●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1102-	●
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	02	1	1102-		●
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	02	1	1102-		●
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	03	1	0806-0806	●	●
35	NUT; PIPE CLIP MAL6R M/T<Y2J> M8 FLANGE THA	0-91180-108-0	03	1	0806-1112	●
35	NUT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	03	1	1201-	●
36	BRACKET; CLIP MJT7U M/T<Y4X> (C)	1-47475-689-0	01	1	1201-	●
36	BRACKET; CLIP MJT7U M/T<Y4X> (B) L=95	1-82699-085-0	01	1	1201-	●
36	BRACKET; CLIP ZF9S1310 M/T<Y5K> (A)	1-47479-482-0	01	1	0806-0806	●
36	BRACKET; CLIP (A)	1-47479-482-0	01	1	0806-0806		●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E)	1-47479-812-0	01	1	1201-	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D)	1-47477-546-1	01	1	0806-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A)	1-47476-912-1	01	1	0806-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-912-1	01	1	0806-		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	0806-1402	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98091-280-1	01	1	0806-1201	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1202-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MAL6R M/T<Y2J> M8X30 FLANGE THA	0-28650-830-0	02	1	0806-1112	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	02	1	1201-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T<Y5K> M8X35 FLANGE THA	0-28650-835-0	02	1	0806-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE THA	0-28650-835-0	02	1	0806-		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE THA	0-91180-108-0	02	1	0806-	●	●
45	NUT; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> M20	0-91111-520-0	01	1	0806-	●
45	NUT; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> M12	9-09840-280-0	01	1	0806-1112	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0806-1112		●
45	NUT; FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> M12	9-09840-280-0	01	1	1201-	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1201-		●
46	WASHER; LK,FLEX HOSE,CLU CONT MAL6R M/T<Y2J> ID=20.2	0-91510-520-0	01	1	0806-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> ID=12.2	0-91510-512-0	01	1	0806-1112	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0806-1112		●
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> ID=12.2	0-91510-512-0	01	1	1201-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	1201-		●
47	HOSE; FLEX,CLU CONT MJT7U M/T<Y4X> (C) L=650	1-09364-694-0	01	1	1201-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (A) L=480	0-07806-480-1	01	1	0806-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (B) L=470	1-09364-692-0	01	1	0806-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (A) L=350	1-09363-624-0	01	1	0806-	●
47	HOSE; FLEX,CLU CONT (A) L=350	1-09363-624-0	01	1	0806-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (B) L=370	8-98072-331-0	01	1	0806-	●
47	HOSE; FLEX,CLU CONT (B) L=370	8-98072-331-0	01	1	0806-		●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-0806	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T<Y5K> (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-	●	●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	0806-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0806-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0806-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T<Y4X> (D) L=1758 SERVICED BY L=1800 THA	1-47428-768-0	01	1	1201-	●
153	PIPE ASM; CLU,UNION TO FLEX MAL6R M/T<Y2J> (C) L=1613 SERVICED BY L=1700 THA	1-47428-767-0	01	1	1102-	●
153	PIPE ASM; CLU,UNION TO FLEX MAL6R M/T<Y2J> (C) L=1574 SERVICED BY L=1700 THA	1-47428-767-0	01	1	0806-1101	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T<Y5K> (A) L=2038 SERVICED BY L=2150	1-47428-770-0	01	1	0806-0806	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=2038 SERVICED BY L=2150	1-47428-770-0	01	1	0806-0806		●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T<Y5K> (B) L=1155 SERVICED BY L=1250 THA	1-47428-764-0	01	1	0806-	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1155 SERVICED BY L=1250 THA	1-47428-764-0	01	1	0806-		●
164	CLIP; BAND,FLEX HOSE L=350	1-09707-183-0	01	1	0806-1101	●	●
164	CLIP; BAND,FLEX HOSE MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> L=350	1-09707-183-0	01	1	1102-	●
164	CLIP; BAND,FLEX HOSE ZF9S1310 M/T<Y5K> L=350	1-09707-183-0	01	1	1102-		●
233	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	0806-1101	●	●
233	BAND; FLEX HOSE MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> L=175	1-09707-178-0	01	1	1102-	●
233	BAND; FLEX HOSE ZF9S1310 M/T<Y5K> L=175	1-09707-178-0	01	1	1102-		●

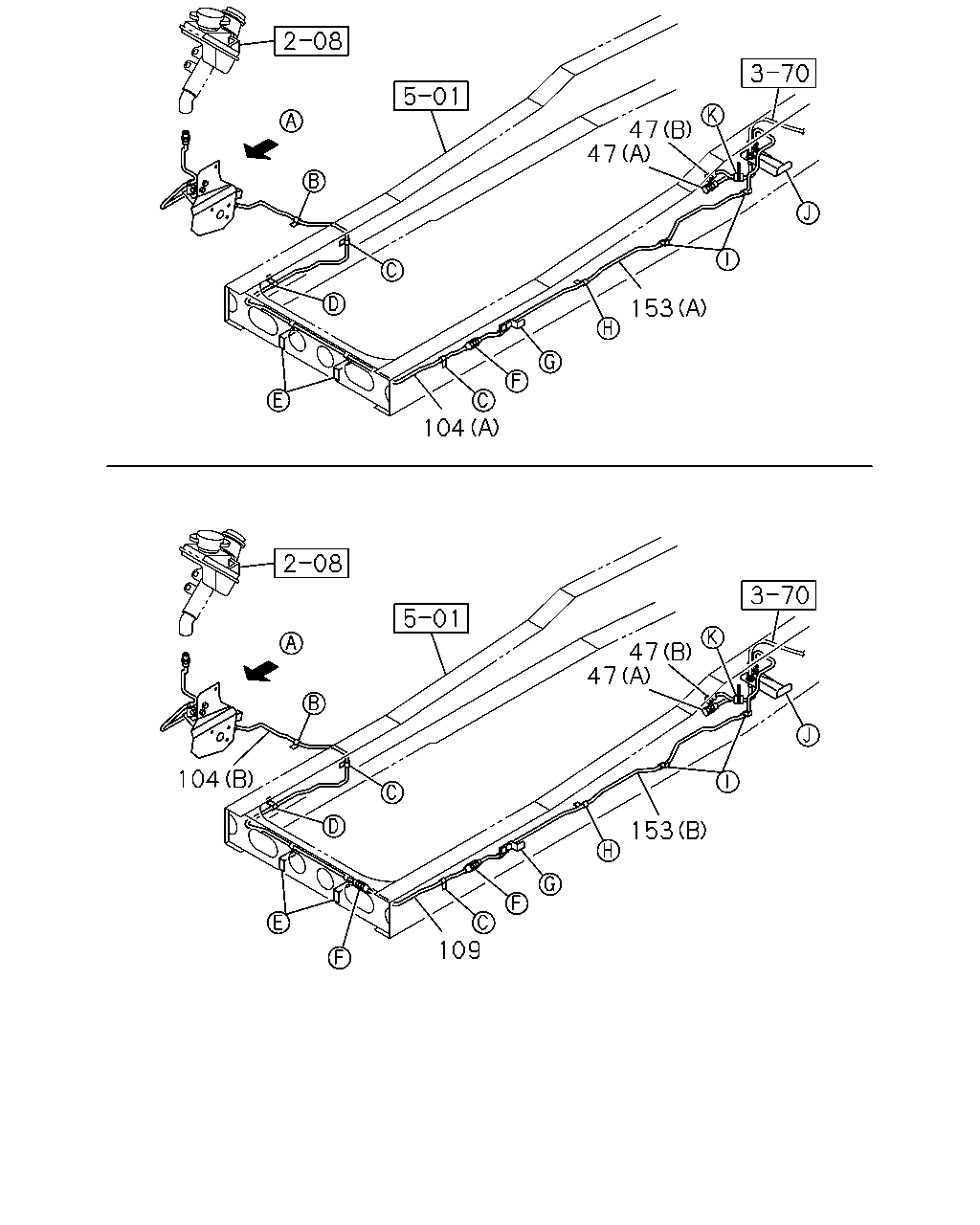

47 47 153 104 47 47 104 153 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT MJT7U M/T<Y4X> (C) L=650	1-09364-694-0	01	1	1201-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (A) L=480	0-07806-480-1	01	1	0806-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (B) L=470	1-09364-692-0	01	1	0806-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (A) L=350	1-09363-624-0	01	1	0806-	●
47	HOSE; FLEX,CLU CONT (A) L=350	1-09363-624-0	01	1	0806-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (B) L=370	8-98072-331-0	01	1	0806-	●
47	HOSE; FLEX,CLU CONT (B) L=370	8-98072-331-0	01	1	0806-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MJT7U M/T<Y4X> (D) L=1196 THA	8-98211-460-0	01	1	1201-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MAL6R M/T<Y2J> (C) L=1215 SERVICED BY L=1250 THA	1-47428-764-0	01	1	0806-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T<Y5K> (A) L=2570 SERVICED BY L=2700	1-47428-772-0	01	1	0806-0806	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (A) L=2570 SERVICED BY L=2700	1-47428-772-0	01	1	0806-0806		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T<Y5K> (B) L=1747 SERVICED BY L=1800 THA	1-47428-768-0	01	1	0806-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (B) L=1747 SERVICED BY L=1800 THA	1-47428-768-0	01	1	0806-		●
109	PIPE; AIR,UNION TO UNION ZF9S1310 M/T<Y5K> L=1680 SERVICED BY L=1700 THA	1-47428-767-0	01	1	0806-	●
109	PIPE; AIR,UNION TO UNION L=1680 SERVICED BY L=1700 THA	1-47428-767-0	01	1	0806-		●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T<Y4X> (D) L=1758 SERVICED BY L=1800 THA	1-47428-768-0	01	1	1201-	●
153	PIPE ASM; CLU,UNION TO FLEX MAL6R M/T<Y2J> (C) L=1613 SERVICED BY L=1700 THA	1-47428-767-0	01	1	1102-	●
153	PIPE ASM; CLU,UNION TO FLEX MAL6R M/T<Y2J> (C) L=1574 SERVICED BY L=1700 THA	1-47428-767-0	01	1	0806-1101	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T<Y5K> (A) L=2038 SERVICED BY L=2150	1-47428-770-0	01	1	0806-0806	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=2038 SERVICED BY L=2150	1-47428-770-0	01	1	0806-0806		●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T<Y5K> (B) L=1155 SERVICED BY L=1250 THA	1-47428-764-0	01	1	0806-	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1155 SERVICED BY L=1250 THA	1-47428-764-0	01	1	0806-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
