2-06 — CLUTCH SLAVE CYLINDER (#6828) — 10 parça

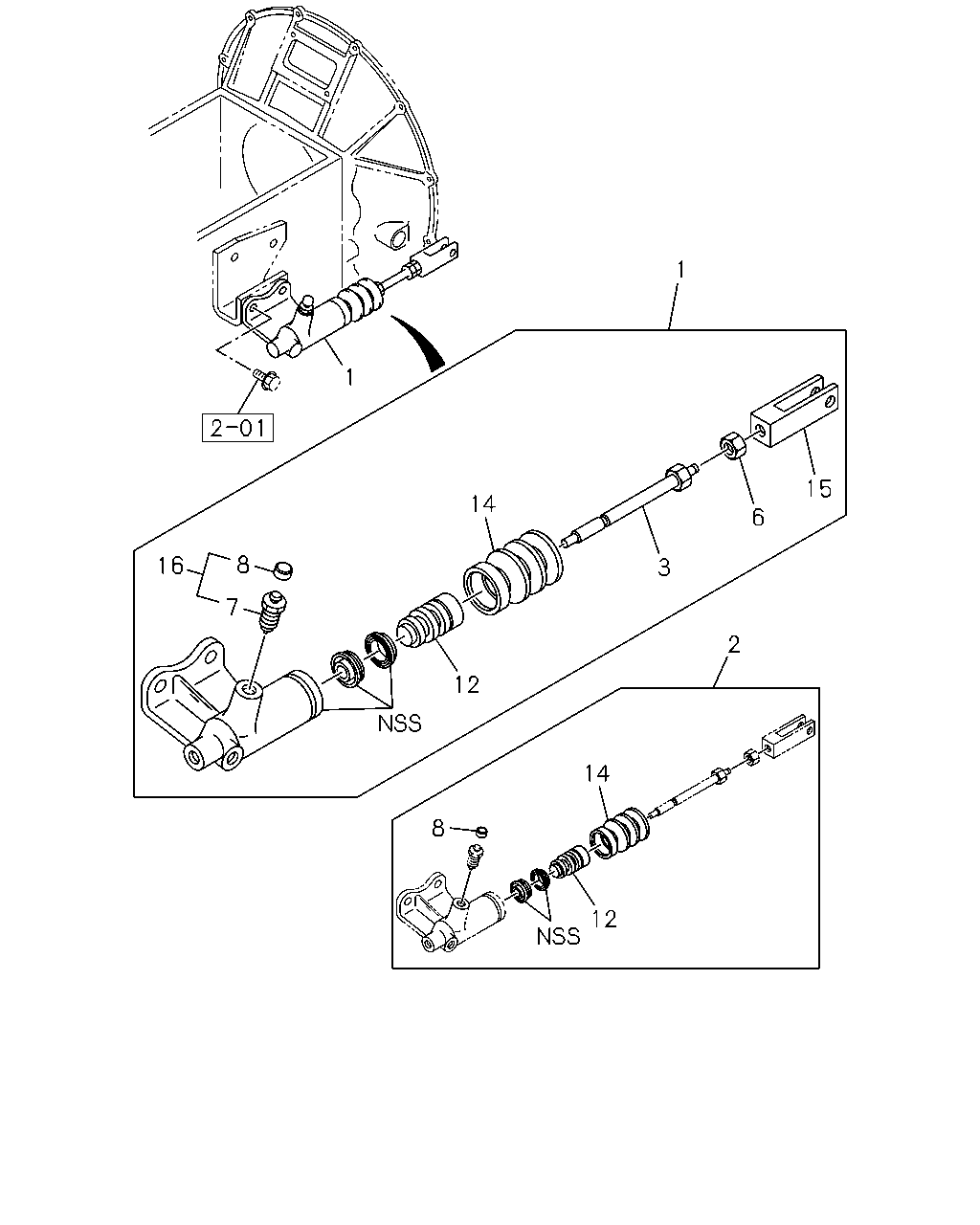

çizim 26013
1 1 15 14 6 8 16 3 7 2 12 14 8 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CYLINDER; SLAVE,CLU
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47570-050-2 01 1 9806-9911 ● ● ● ●
2 REPAIR KIT; CLU SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-87830-533-0 01 1 9806-9911 ● ● ● ●
3 ROD; PUSH,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47573-005-0 01 1 9806-9911 ● ● ● ●
6 NUT; LK,ROD END
EXC. CLU SYSTEM MINIPACK(B1Z) M10 		9-09111-410-0 01 1 9806-9911 ● ● ● ●
7 SCREW; BLEEDER,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47615-019-0 01 1 9806-9911 ● ● ● ●
8 CAP; BLEEDER,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) OD=9.5 		9-47619-005-0 01 1 9806-9911 ● ● ● ●
12 PISTON; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47572-006-0 01 1 9806-9911 ● ● ● ●
14 BOOT; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47579-048-0 01 1 9806-9911 ● ● ● ●
15 JOINT; JAW,SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-47579-014-1 01 1 9806-9911 ● ● ● ●
16 VALVE; SLAVE CYL
EXC. CLU SYSTEM MINIPACK(B1Z) 		9-48410-037-0 01 1 9806-9911 ● ● ● ●
