Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#68276) — 221 parça

11 415 97 22 128 105 128 26 1 221 12 34 17 36 475 476 476 16 20 475 475 36

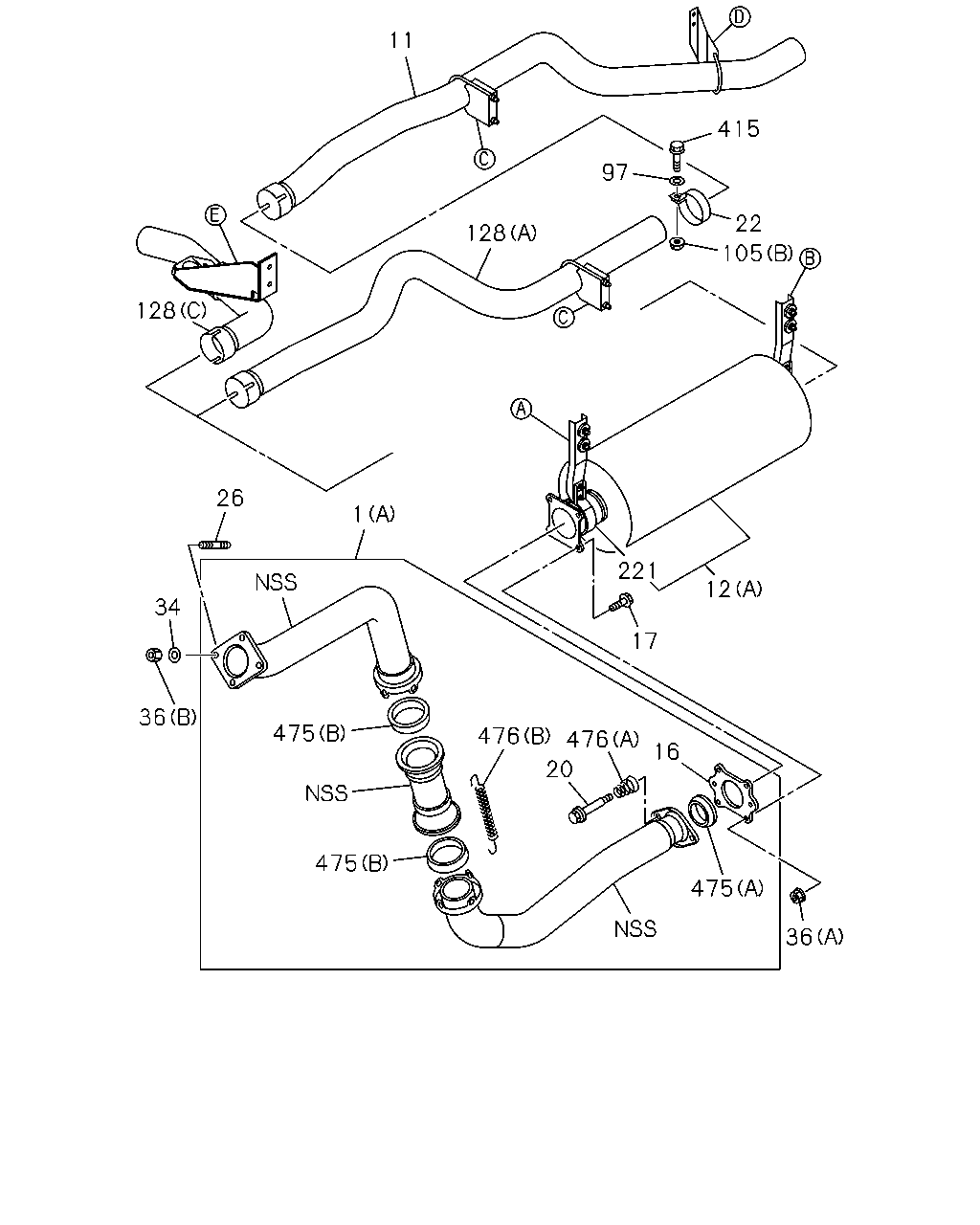

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH WHEEL BASE 5300MM<53W> (A) THA	8-98127-231-0	01	1	0809-1112	●
1	PIPE; EXH WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) THA	8-98127-231-0	01	1	1201-	●
1	PIPE; EXH (A) THA	8-98055-105-0	01	1	0806-0808	●
1	PIPE; EXH WHEEL BASE 4700MM<47W> (A) THA	8-98055-105-0	01	1	0809-	●
1	PIPE; EXH (B) THA	8-98110-270-1	01	1	0806-		●
11	PIPE; EXH,RR WHEEL BASE 4700MM<47W> THA	8-97621-205-0	01	1	0806-	●
11	PIPE; EXH,RR WHEEL BASE 5300MM<53W> THA	8-97621-147-0	01	1	0806-	●
12	SILENCER ASM; EXH (A)	8-98059-422-0	01	1	0806-1103	●
12	SILENCER ASM; EXH (A)	8-97639-658-0	01	1	1104-	●
12	SILENCER ASM; EXH (B)	1-22140-925-2	01	1	0806-0806		●
12	SILENCER ASM; EXH (B)	8-98114-696-1	01	1	0807-1101		●
12	SILENCER ASM; EXH (B)	8-97637-937-0	01	1	1102-		●
16	FLANGE; EXH PIPE THA	1-22115-217-0	01	1	0806-	●	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	0806-	●
20	BOLT; FLANGE,EXH PIPE M10X51.4 THA	8-94436-943-0	02	1	0806-	●
20	BOLT; FLANGE,EXH PIPE M10X51.4 THA	1-09009-167-0	02	1	0806-		●
22	CLAMP; EXH PIPE THA	1-22133-222-0	01	1	0806-1112	●
22	CLAMP; EXH PIPE WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> THA	1-22133-222-0	01	1	1201-	●
22	CLAMP; EXH PIPE THA	1-22133-266-1	01	1	0806-		●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	0806-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	0806-	●	●
36	NUT; EXH PIPE (A) M12 THA	0-91110-512-0	04	1	0806-	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	0806-	●	●
97	WASHER; PL,CLAMP ID=10.5 OD=26	9-09160-710-0	01	1	0806-1101	●
97	WASHER; PL,CLAMP ID=10.5	0-91610-710-0	01	1	1102-1112	●
97	WASHER; PL,CLAMP WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> ID=10.5	0-91610-710-0	01	1	1201-	●
105	NUT; CLAMP (A) M8 FLANGE THA	0-91180-108-0	04	1	0902-	●
105	NUT; CLAMP (A) M8 THA	0-91110-508-0	04	1	0806-0903	●
105	NUT; CLAMP (B) M10 FLANGE THA	0-91180-210-0	01	1	0806-1112	●
105	NUT; CLAMP WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (B) M10 FLANGE THA	0-91180-210-0	01	1	1201-	●
105	NUT; CLAMP (B) M10 FLANGE THA	0-91180-210-0	06	1	0806-		●
128	PIPE; EXH,RR WHEEL BASE 5200MM<52W> (C) THA	8-97640-906-0	01	1	1201-	●
128	PIPE; EXH,RR (B) THA	8-97925-603-0	01	1	1102-		●
128	PIPE; EXH,RR (B) THA	8-98117-654-0	01	1	0806-1101		●
128	PIPE; EXH,RR (B) THA	8-97637-939-0	01	1	1201-		●
128	PIPE; EXH,RR WHEEL BASE 4700MM<47W> (A) THA	8-97621-204-0	01	1	0806-	●
128	PIPE; EXH,RR WHEEL BASE 5300MM<53W> (A) THA	8-97624-204-0	01	1	0806-0808	●
128	PIPE; EXH,RR WHEEL BASE 5300MM<53W> (A) THA	8-98127-233-0	01	1	0809-	●
221	CLAMP; EXH SILENCER D=101.4 THA	1-22133-170-1	01	1	1104-	●
415	BOLT; CLAMP M10X35 FLANGE THA	0-28651-035-0	01	1	0806-1112	●
415	BOLT; CLAMP WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> M10X35 FLANGE THA	0-28651-035-0	01	1	1201-	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=112 THA	1-22119-294-0	01	1	0806-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122	1-22119-297-0	02	1	0806-	●	●
476	SPRING; VIBNON,EXH PIPE (A) THA	1-09583-298-0	04	1	0806-	●	●
476	SPRING; VIBNON,EXH PIPE (B) THA	8-94141-851-0	02	1	0806-	●	●

151 128 147 94 159 396 22 12 422 42 147 193 421 354 368 41 354 151 16 475 476 476 20 475 1 475 26 34 151 36

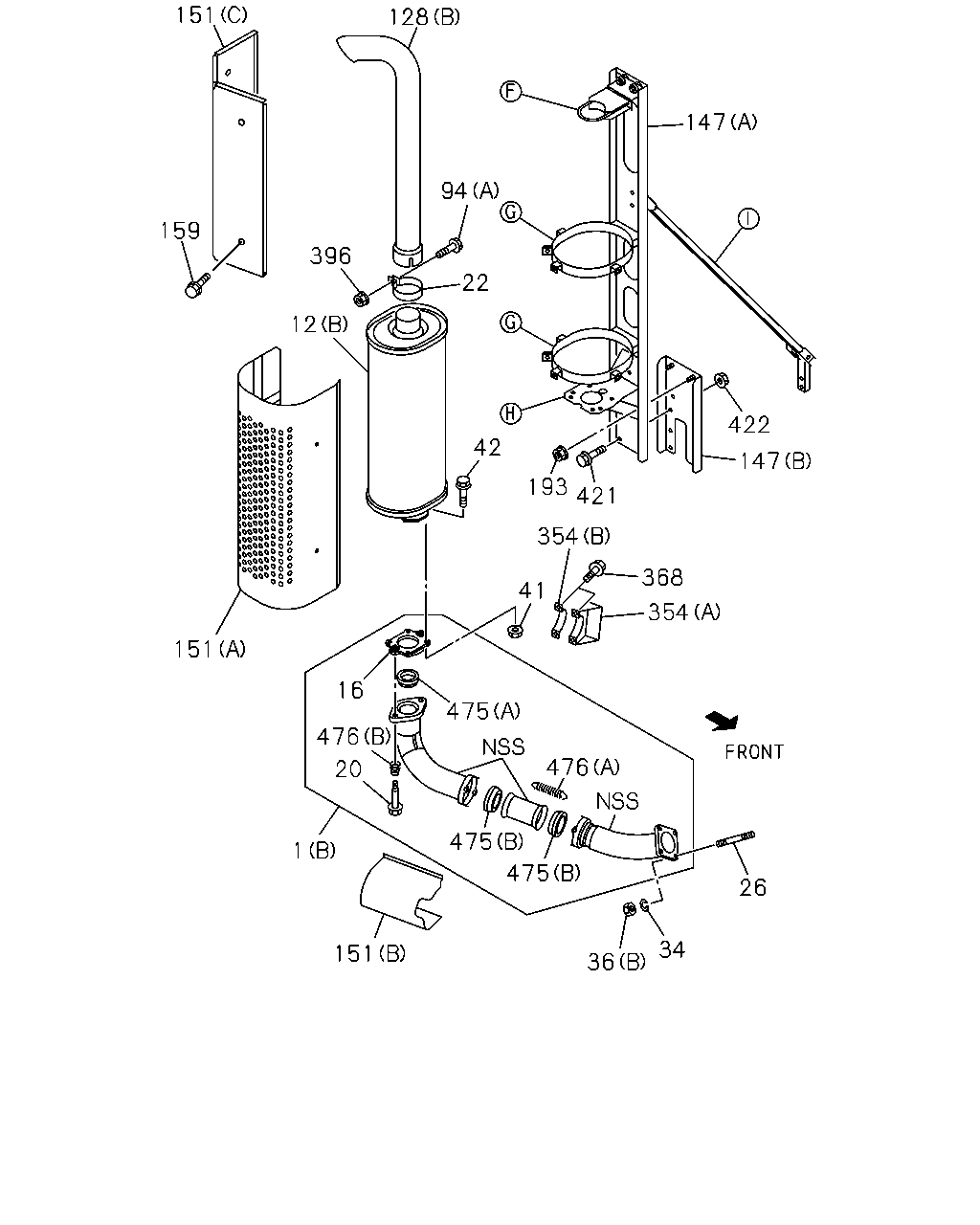

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH WHEEL BASE 5300MM<53W> (A) THA	8-98127-231-0	01	1	0809-1112	●
1	PIPE; EXH WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) THA	8-98127-231-0	01	1	1201-	●
1	PIPE; EXH (A) THA	8-98055-105-0	01	1	0806-0808	●
1	PIPE; EXH WHEEL BASE 4700MM<47W> (A) THA	8-98055-105-0	01	1	0809-	●
1	PIPE; EXH (B) THA	8-98110-270-1	01	1	0806-		●
12	SILENCER ASM; EXH (A)	8-98059-422-0	01	1	0806-1103	●
12	SILENCER ASM; EXH (A)	8-97639-658-0	01	1	1104-	●
12	SILENCER ASM; EXH (B)	1-22140-925-2	01	1	0806-0806		●
12	SILENCER ASM; EXH (B)	8-98114-696-1	01	1	0807-1101		●
12	SILENCER ASM; EXH (B)	8-97637-937-0	01	1	1102-		●
16	FLANGE; EXH PIPE THA	1-22115-217-0	01	1	0806-	●	●
20	BOLT; FLANGE,EXH PIPE M10X51.4 THA	8-94436-943-0	02	1	0806-	●
20	BOLT; FLANGE,EXH PIPE M10X51.4 THA	1-09009-167-0	02	1	0806-		●
22	CLAMP; EXH PIPE THA	1-22133-222-0	01	1	0806-1112	●
22	CLAMP; EXH PIPE WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> THA	1-22133-222-0	01	1	1201-	●
22	CLAMP; EXH PIPE THA	1-22133-266-1	01	1	0806-		●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	0806-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	0806-	●	●
36	NUT; EXH PIPE (A) M12 THA	0-91110-512-0	04	1	0806-	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	0806-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12 THA	0-91110-512-0	04	1	0806-		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X35 FLANGE	1-09000-653-0	03	1	0806-0806		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X35 FLANGE	1-09000-653-0	02	1	0807-		●
94	BOLT; CLAMP WHEEL BASE 5200MM<52W> (C) M8X35 FLANGE THA	0-28650-835-0	02	1	1201-	●
94	BOLT; CLAMP (B) M8X35 FLANGE THA	0-28050-835-0	04	1	0806-	●
94	BOLT; CLAMP (A) M10X40 FLANGE THA	0-28651-040-0	03	1	0806-		●
128	PIPE; EXH,RR WHEEL BASE 5200MM<52W> (C) THA	8-97640-906-0	01	1	1201-	●
128	PIPE; EXH,RR (B) THA	8-97925-603-0	01	1	1102-		●
128	PIPE; EXH,RR (B) THA	8-98117-654-0	01	1	0806-1101		●
128	PIPE; EXH,RR (B) THA	8-97637-939-0	01	1	1201-		●
128	PIPE; EXH,RR WHEEL BASE 4700MM<47W> (A) THA	8-97621-204-0	01	1	0806-	●
128	PIPE; EXH,RR WHEEL BASE 5300MM<53W> (A) THA	8-97624-204-0	01	1	0806-0808	●
128	PIPE; EXH,RR WHEEL BASE 5300MM<53W> (A) THA	8-98127-233-0	01	1	0809-	●
147	BRACKET; VERTICAL PIPE (B) THA	8-97924-654-0	01	1	0806-		●
147	BRACKET; VERTICAL PIPE (A) THA	8-97924-664-0	01	1	0806-		●
151	PROTECTOR; HEAT,EXH PIPE (C) THA	8-97638-770-1	01	1	1102-		●
151	PROTECTOR; HEAT,EXH PIPE (A)	1-22159-334-0	01	1	0806-1101		●
151	PROTECTOR; HEAT,EXH PIPE (B) THA	8-97924-634-0	01	1	0806-0806		●
151	PROTECTOR; HEAT,EXH PIPE (B) THA	8-98111-047-0	01	1	0806-1211		●
159	BOLT; HEAT PROTECTOR M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	0806-1409		●
159	BOLT; HEAT PROTECTOR M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	1410-		●
193	NUT; BRKT,VERTICAL PIPE M12 FLANGE THA	0-91180-212-0	02	1	1102-		●
354	CLAMP; HEAT PROTECTOR (B) THA	8-98111-205-0	01	1	0806-1301		●
354	CLAMP; HEAT PROTECTOR (A) THA	8-97924-672-0	01	1	0806-1211		●
368	BOLT; CLAMP M8X30 FLANGE THA	0-28650-830-0	04	1	0806-1211		●
396	NUT; CLAMP M10 FLANGE THA	0-91180-210-0	01	1	0806-		●
421	BOLT; PIPE BRKT M10X60 FLANGE THA	0-28051-060-0	04	1	0806-		●
422	NUT; PIPE M10 FLANGE THA	0-91180-210-0	04	1	0806-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=112 THA	1-22119-294-0	01	1	0806-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122	1-22119-297-0	02	1	0806-	●	●
476	SPRING; VIBNON,EXH PIPE (A) THA	1-09583-298-0	04	1	0806-	●	●
476	SPRING; VIBNON,EXH PIPE (B) THA	8-94141-851-0	02	1	0806-	●	●

70 116 24 70 116 81 81 24 105 94 89 94 105 64 360 70 68 75 94 56 62 75 68 44 81 52 66 70 222 125 8 81 108 64 75 72 59 75 75 72 75 59

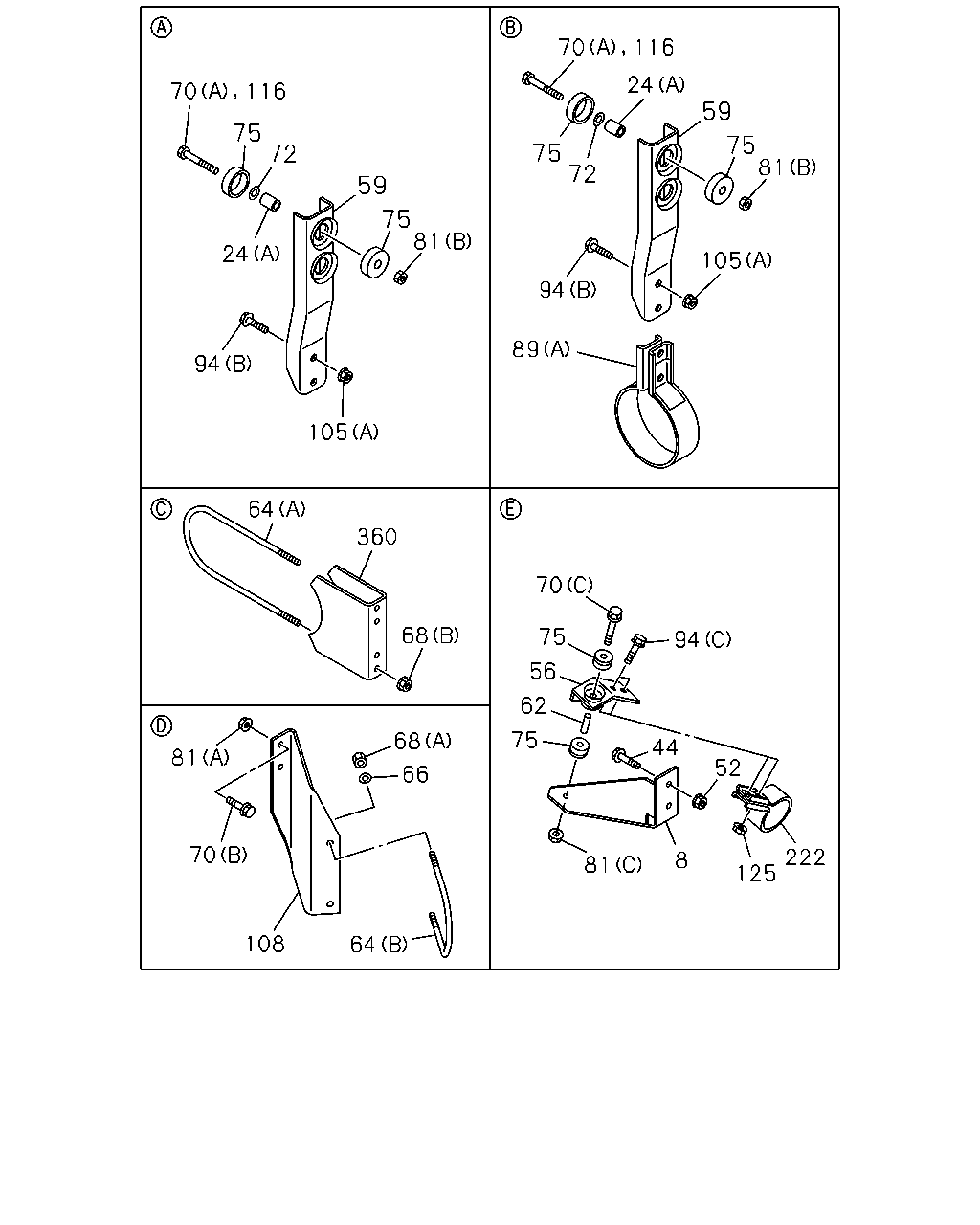

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BRACKET; EXH PIPE WHEEL BASE 5200MM<52W> THA	8-97640-908-0	01	1	1201-	●
24	COLLAR; DIST,CLAMP (A) L=22 THA	9-22159-024-0	04	1	0806-0909	●
24	COLLAR; DIST,CLAMP (A) L=22 THA	9-22159-024-0	04	1	0910-	●	●
24	COLLAR; DIST,CLAMP (B) L=22	1-22159-392-0	04	1	0806-0909		●
44	BOLT; BRKT WHEEL BASE 5200MM<52W> M10X35 FLANGE THA	0-28051-035-0	02	1	1201-	●
52	NUT; BRKT M10 FLANGE THA	0-91180-210-0	02	1	0806-1112		●
52	NUT; BRKT WHEEL BASE 5200MM<52W> M10 FLANGE THA	0-91180-210-0	02	1	1201-	●
52	NUT; BRKT M10 FLANGE THA	0-91180-210-0	02	1	1201-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5200MM<52W> THA	8-97640-909-0	01	1	1201-	●
59	BRACKET; EXH SILENCER,FRT WHEEL BASE 5300MM<53W>	8-98127-232-0	02	1	0809-1112	●
59	BRACKET; EXH SILENCER,FRT WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W>	8-98127-232-0	02	1	1201-	●
59	BRACKET; EXH SILENCER,FRT	8-98055-106-0	02	1	0806-0808	●
59	BRACKET; EXH SILENCER,FRT WHEEL BASE 4700MM<47W>	8-98055-106-0	02	1	0809-	●
62	TUBE; DIST,BRKT WHEEL BASE 5200MM<52W> L=22 THA	9-22159-024-0	01	1	1201-	●
64	U-BOLT; EXH PIPE,RR (C) THA	1-22113-063-1	01	1	0806-1003		●
64	U-BOLT; EXH PIPE,RR (C)	8-98164-642-0	01	1	1004-		●
64	U-BOLT; EXH PIPE,RR (A) THA	1-22113-071-0	02	1	0806-1012	●
64	U-BOLT; EXH PIPE,RR (A) THA	8-97917-677-0	02	1	1101-1112	●
64	U-BOLT; EXH PIPE,RR WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) THA	8-97917-677-0	02	1	1201-1304	●
64	U-BOLT; EXH PIPE,RR WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) THA	8-97926-651-0	02	1	1305-	●
64	U-BOLT; EXH PIPE,RR (B) THA	1-22113-079-0	01	1	1101-1112	●
64	U-BOLT; EXH PIPE,RR WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (B) THA	1-22113-079-0	01	1	1201-	●
66	WASHER; LK,U BOLT ID=8.2 THA	0-91510-508-0	02	1	0806-1112	●
66	WASHER; LK,U BOLT WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> ID=8.2 THA	0-91510-508-0	02	1	1201-	●
68	NUT; U BOLT (C) M8	0-91111-508-0	02	1	0806-		●
68	NUT; U BOLT (A) M8 THA	0-91110-508-0	02	1	0806-1112	●
68	NUT; U BOLT WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) M8 THA	0-91110-508-0	02	1	1201-	●
68	NUT; U BOLT (B) M8 FLANGE THA	0-91180-108-0	04	1	0806-1112	●
68	NUT; U BOLT WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (B) M8 FLANGE THA	0-91180-108-0	04	1	1201-	●
70	BOLT; BRKT WHEEL BASE 5200MM<52W> (C) M10X50 FLANGE THA	0-28051-050-0	01	1	1201-	●
70	BOLT; BRKT WHEEL BASE 5300MM<53W> (A) M10X50	0-10856-050-0	01	1	0809-1112	●
70	BOLT; BRKT WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) M10X50	0-10856-050-0	01	1	1201-	●
70	BOLT; BRKT WHEEL BASE 5300MM<53W> (A) M10X60	0-10856-060-0	01	1	0809-1112	●
70	BOLT; BRKT WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) M10X60	0-10856-060-0	01	1	1201-	●
70	BOLT; BRKT (A) M10X60	0-10856-060-0	02	1	0806-0808	●
70	BOLT; BRKT WHEEL BASE 4700MM<47W> (A) M10X60	0-10856-060-0	02	1	0809-	●
70	BOLT; BRKT (B) M8X35 FLANGE THA	0-28650-835-0	02	1	0806-1112	●
70	BOLT; BRKT WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (B) M8X35 FLANGE THA	0-28650-835-0	02	1	1201-	●
72	WASHER; LK,BRKT ID=10.2	0-91510-810-0	04	1	0806-	●
75	RUBBER; SUPPORT,BRKT WHEEL BASE 5200MM<52W> OD=40 THA	1-22159-094-0	02	1	1201-	●
75	RUBBER; SUPPORT,BRKT OD=40 THA	1-22159-094-0	08	1	0806-	●
81	NUT; BRKT WHEEL BASE 5200MM<52W> (C) M10 FLANGE THA	0-91180-210-0	01	1	1201-	●
81	NUT; BRKT (B) M10 THA	0-91110-510-0	04	1	0806-	●
81	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	02	1	0806-1112	●
81	NUT; BRKT WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) M8 FLANGE THA	0-91180-108-0	02	1	1201-	●
89	CLAMP; EXH SILENCER,RR (B) THA	8-97638-771-0	02	1	1102-		●
89	CLAMP; EXH SILENCER,RR (A)	1-22133-276-0	01	1	0806-	●
89	CLAMP; EXH SILENCER,RR (B)	1-22133-270-0	02	1	0806-1003		●
89	CLAMP; EXH SILENCER,RR (B)	8-98164-646-0	02	1	1004-1101		●
94	BOLT; CLAMP WHEEL BASE 5200MM<52W> (C) M8X35 FLANGE THA	0-28650-835-0	02	1	1201-	●
94	BOLT; CLAMP (B) M8X35 FLANGE THA	0-28050-835-0	04	1	0806-	●
94	BOLT; CLAMP (A) M10X40 FLANGE THA	0-28651-040-0	03	1	0806-		●
105	NUT; CLAMP (A) M8 FLANGE THA	0-91180-108-0	04	1	0902-	●
105	NUT; CLAMP (A) M8 THA	0-91110-508-0	04	1	0806-0903	●
105	NUT; CLAMP (B) M10 FLANGE THA	0-91180-210-0	01	1	0806-1112	●
105	NUT; CLAMP WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (B) M10 FLANGE THA	0-91180-210-0	01	1	1201-	●
105	NUT; CLAMP (B) M10 FLANGE THA	0-91180-210-0	06	1	0806-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR THA	1-22131-789-0	01	1	0806-1112	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> THA	1-22131-789-0	01	1	1201-	●
116	BOLT; BRKT WHEEL BASE 5300MM<53W> M10X50	0-10856-050-0	02	1	0809-1112	●
116	BOLT; BRKT WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> M10X50	0-10856-050-0	02	1	1201-	●
116	BOLT; BRKT M10X60	0-10856-060-0	02	1	0806-0808	●
116	BOLT; BRKT WHEEL BASE 4700MM<47W> M10X60	0-10856-060-0	02	1	0809-	●
125	NUT; CLAMP WHEEL BASE 5200MM<52W> M8 FLANGE THA	0-91180-108-0	02	1	1201-	●
222	CLAMP; EXH PIPE WHEEL BASE 5200MM<52W> ID=97 THA	1-22133-191-0	01	1	1201-	●
360	PIECE; DIST,EXH PIPE THA	1-22113-094-0	02	1	0806-1112	●
360	PIECE; DIST,EXH PIPE WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> THA	1-22113-094-0	02	1	1201-	●

105 446 77 52 77 94 429 89 434 448 427 427 68 4 58 159 396 159 64 201 433 105 24 201 24 394 438 439 438 45 436 197 436 201 201 394 420 433 434 435

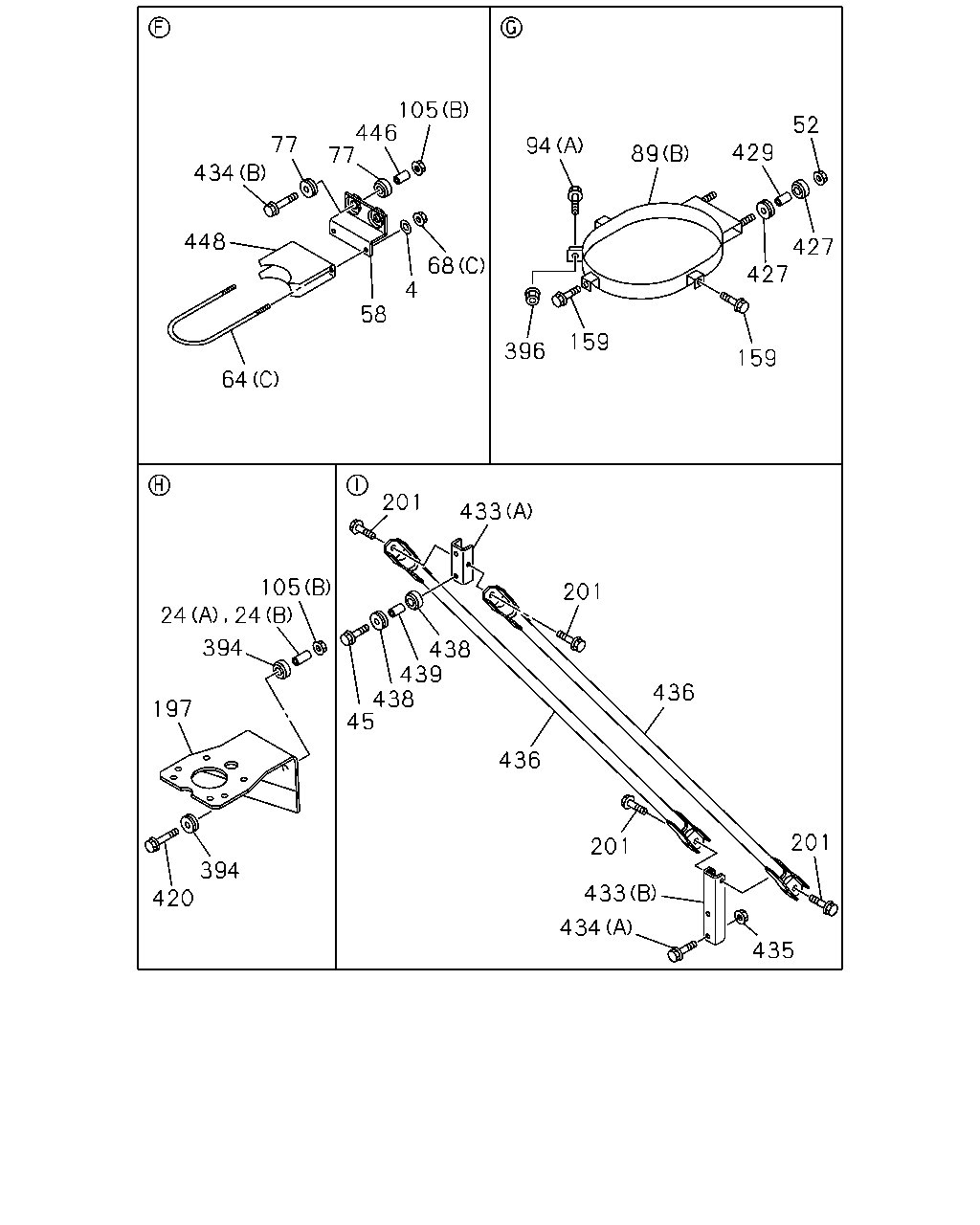

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	WASHER; PL,U BOLT ID=8.4 OD=22	0-91610-708-0	02	1	0806-		●
24	COLLAR; DIST,CLAMP (A) L=22 THA	9-22159-024-0	04	1	0806-0909	●
24	COLLAR; DIST,CLAMP (A) L=22 THA	9-22159-024-0	04	1	0910-	●	●
24	COLLAR; DIST,CLAMP (B) L=22	1-22159-392-0	04	1	0806-0909		●
45	BOLT; BRKT M10X50 FLANGE THA	0-28051-050-0	02	1	0806-		●
52	NUT; BRKT M10 FLANGE THA	0-91180-210-0	02	1	0806-1112		●
52	NUT; BRKT WHEEL BASE 5200MM<52W> M10 FLANGE THA	0-91180-210-0	02	1	1201-	●
52	NUT; BRKT M10 FLANGE THA	0-91180-210-0	02	1	1201-		●
58	BRACKET; EXH PIPE,RR THA	8-97924-613-0	01	1	0806-		●
64	U-BOLT; EXH PIPE,RR (C) THA	1-22113-063-1	01	1	0806-1003		●
64	U-BOLT; EXH PIPE,RR (C)	8-98164-642-0	01	1	1004-		●
64	U-BOLT; EXH PIPE,RR (A) THA	1-22113-071-0	02	1	0806-1012	●
64	U-BOLT; EXH PIPE,RR (A) THA	8-97917-677-0	02	1	1101-1112	●
64	U-BOLT; EXH PIPE,RR WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) THA	8-97917-677-0	02	1	1201-1304	●
64	U-BOLT; EXH PIPE,RR WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) THA	8-97926-651-0	02	1	1305-	●
64	U-BOLT; EXH PIPE,RR (B) THA	1-22113-079-0	01	1	1101-1112	●
64	U-BOLT; EXH PIPE,RR WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (B) THA	1-22113-079-0	01	1	1201-	●
68	NUT; U BOLT (C) M8	0-91111-508-0	02	1	0806-		●
68	NUT; U BOLT (A) M8 THA	0-91110-508-0	02	1	0806-1112	●
68	NUT; U BOLT WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) M8 THA	0-91110-508-0	02	1	1201-	●
68	NUT; U BOLT (B) M8 FLANGE THA	0-91180-108-0	04	1	0806-1112	●
68	NUT; U BOLT WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (B) M8 FLANGE THA	0-91180-108-0	04	1	1201-	●
77	RUBBER; CUSHION,BRKT OD=40 THA	1-22159-094-0	04	1	0806-		●
89	CLAMP; EXH SILENCER,RR (B) THA	8-97638-771-0	02	1	1102-		●
89	CLAMP; EXH SILENCER,RR (A)	1-22133-276-0	01	1	0806-	●
89	CLAMP; EXH SILENCER,RR (B)	1-22133-270-0	02	1	0806-1003		●
89	CLAMP; EXH SILENCER,RR (B)	8-98164-646-0	02	1	1004-1101		●
94	BOLT; CLAMP WHEEL BASE 5200MM<52W> (C) M8X35 FLANGE THA	0-28650-835-0	02	1	1201-	●
94	BOLT; CLAMP (B) M8X35 FLANGE THA	0-28050-835-0	04	1	0806-	●
94	BOLT; CLAMP (A) M10X40 FLANGE THA	0-28651-040-0	03	1	0806-		●
105	NUT; CLAMP (A) M8 FLANGE THA	0-91180-108-0	04	1	0902-	●
105	NUT; CLAMP (A) M8 THA	0-91110-508-0	04	1	0806-0903	●
105	NUT; CLAMP (B) M10 FLANGE THA	0-91180-210-0	01	1	0806-1112	●
105	NUT; CLAMP WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (B) M10 FLANGE THA	0-91180-210-0	01	1	1201-	●
105	NUT; CLAMP (B) M10 FLANGE THA	0-91180-210-0	06	1	0806-		●
159	BOLT; HEAT PROTECTOR M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	0806-1409		●
159	BOLT; HEAT PROTECTOR M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	1410-		●
197	BRACKET; EXH PIPE,VERTICAL THA	1-22151-768-1	01	1	0806-		●
201	BOLT; STAY M10X25 FLANGE THA	0-28051-025-0	04	1	0806-		●
394	RUBBER; SUPPORT,CLAMP OD=40 THA	1-22159-094-0	08	1	0806-		●
396	NUT; CLAMP M10 FLANGE THA	0-91180-210-0	01	1	0806-		●
420	BOLT; BRKT,VERTICAL PIPE M12X35 FLANGE	0-28061-235-0	10	1	0806-0806		●
420	BOLT; BRKT,VERTICAL PIPE M12X35 FLANGE	0-28061-235-0	08	1	0807-		●
427	SUPPORT; CLAMP OD=40 THA	1-22159-094-0	08	1	0806-		●
429	COLLAR; DIST,SUPPORT L=25 IMA	1-14234-083-0	04	1	0806-		●
433	BRACKET; STAY,EXH PIPE (A)	1-22119-252-1	01	1	0806-		●
433	BRACKET; STAY,EXH PIPE (B) THA	8-98107-191-0	01	1	0806-		●
434	BOLT; BRKT (A) M10X30 FLANGE THA	0-28051-030-0	02	1	0806-		●
434	BOLT; BRKT (B) M10X50 FLANGE THA	0-28051-050-0	02	1	0806-		●
435	NUT; BRKT M10 FLANGE THA	0-91180-210-0	02	1	0806-		●
436	STAY; SUPPORT,EXH	1-22131-798-2	02	1	0806-		●
438	RUBBER; SUPPORT,STAY OD=40 THA	1-22159-094-0	04	1	0806-		●
439	TUBE; DIST,SUPPORT RUBBER L=22	1-22159-392-0	02	1	0806-0909		●
439	TUBE; DIST,SUPPORT RUBBER L=22 THA	9-22159-024-0	02	1	0910-		●
446	PIECE; DIST,EXH PIPE,RR L=22	1-22159-392-0	02	1	0806-0909		●
446	PIECE; DIST,EXH PIPE,RR L=22 THA	9-22159-024-0	02	1	0910-		●
448	PIECE; DIST,U-BOLT THA	8-97917-674-1	01	1	0806-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
