1-41 — FUEL PIPING; CHASSIS (#68274) — 31 parça

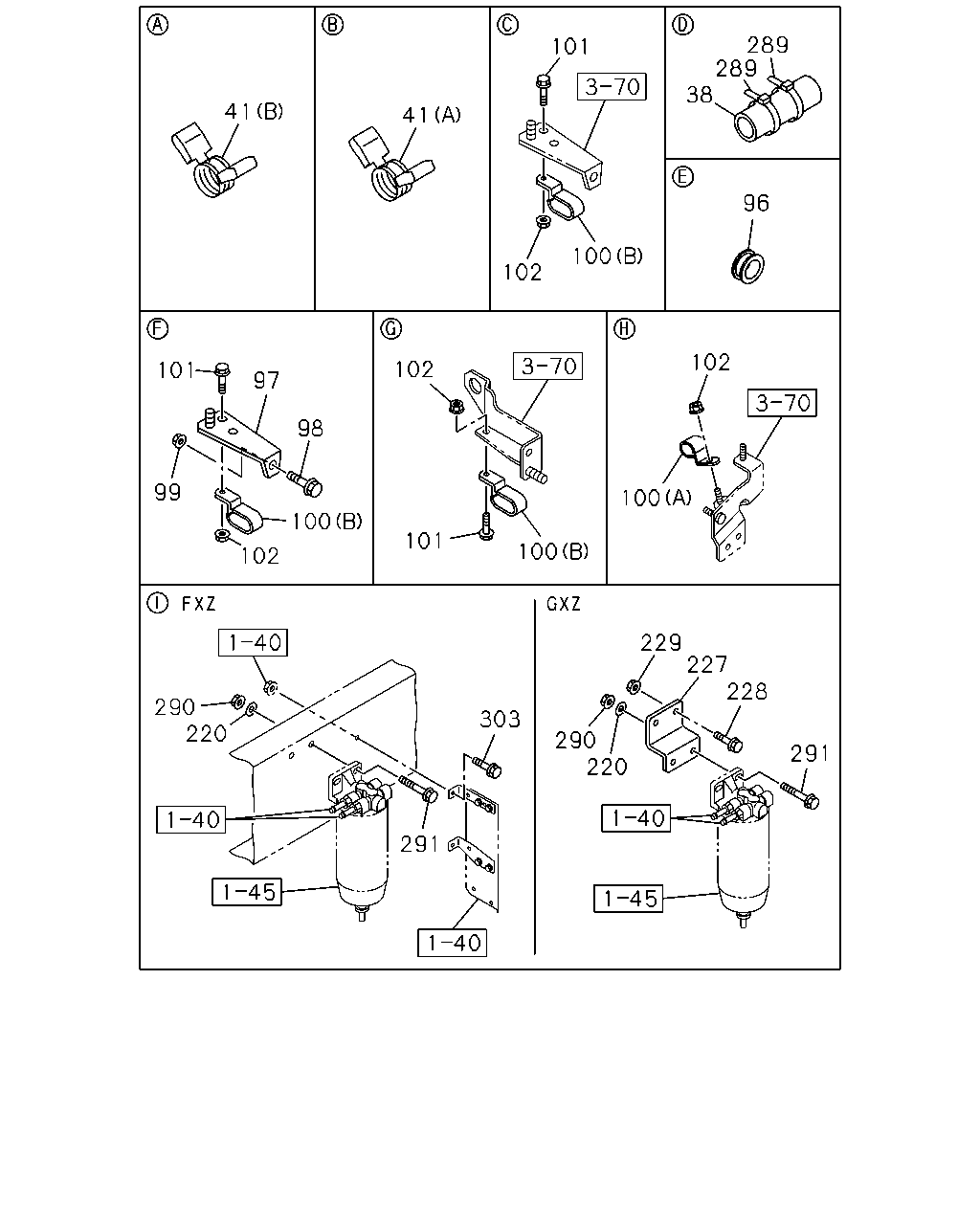

çizim 93389
289 289 38 101 41 41 96 100 102 102 102 101 97 98 99 100 100 101 100 102 229 227 228 290 220 303 290 220 291 291
BalonParca AdiParca NoAdetTipApplied Date A B
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0806- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 04 1 0806- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=19 		8-94238-569-0 02 1 0806- ● ●
96 GROMMET; PIPE,FUEL TANK
ID=32 OD=40 T=18 		1-09891-003-0 01 1 0806- ● ●
97 BRACKET; CLIP 8-97609-096-0 01 1 0806- ● ●
98 BOLT; BRKT,FUEL PIPE
M8X35 FLANGE THA 		0-28650-835-0 01 1 0806- ● ●
99 NUT; BRKT,CLIP,FUEL TANK
M8 FLANGE THA 		0-91180-108-0 01 1 0806- ● ●
100 CLIP; FUEL PIPE
(A) ID=19X32 H=17.5 L=22.5 		1-09701-315-0 01 1 0806- ● ●
100 CLIP; FUEL PIPE
(B) ID=19X32 H=17.5 L=50.5 		1-09701-320-0 04 1 0806- ● ●
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE THA 		0-28650-820-0 04 1 0806- ● ●
102 NUT; CLIP,FUEL PIPE
M8 FLANGE THA 		0-91180-108-0 05 1 0806- ● ●
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 02 1 0806- ● ●
227 BRACKET; FUEL SEDIMENTER
THA 		8-97924-658-1 01 1 0806- ●
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE THA 		0-28651-035-0 02 1 0806- ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE THA 		0-91180-210-0 02 1 0806- ●
289 CLIP; BAND,HOSE
L=250 THA 		5-09707-030-1 03 1 0806- ● ●
290 NUT; FILTER TO BRKT
WHEEL BASE 4700MM<47W> M10 FLANGE THA 		0-91180-210-0 02 1 0806-1112 ●
290 NUT; FILTER TO BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 0806-1112 ●
290 NUT; FILTER TO BRKT
WHEEL BASE 4700MM<47W>,WHEEL BASE 5200MM<52W> M10 FLANGE THA 		0-91180-210-0 02 1 1201- ●
290 NUT; FILTER TO BRKT
WHEEL BASE 4700MM<47W> M10 FLANGE THA 		0-91180-210-0 02 1 1201- ●
291 BOLT; FILER TO BRKT
M10X60 FLANGE THA 		0-28051-060-0 02 1 0806- ● ●
303 BOLT; BRKT
WHEEL BASE 4700MM<47W> M8X30 FLANGE THA 		0-28650-830-0 02 1 0806- ●

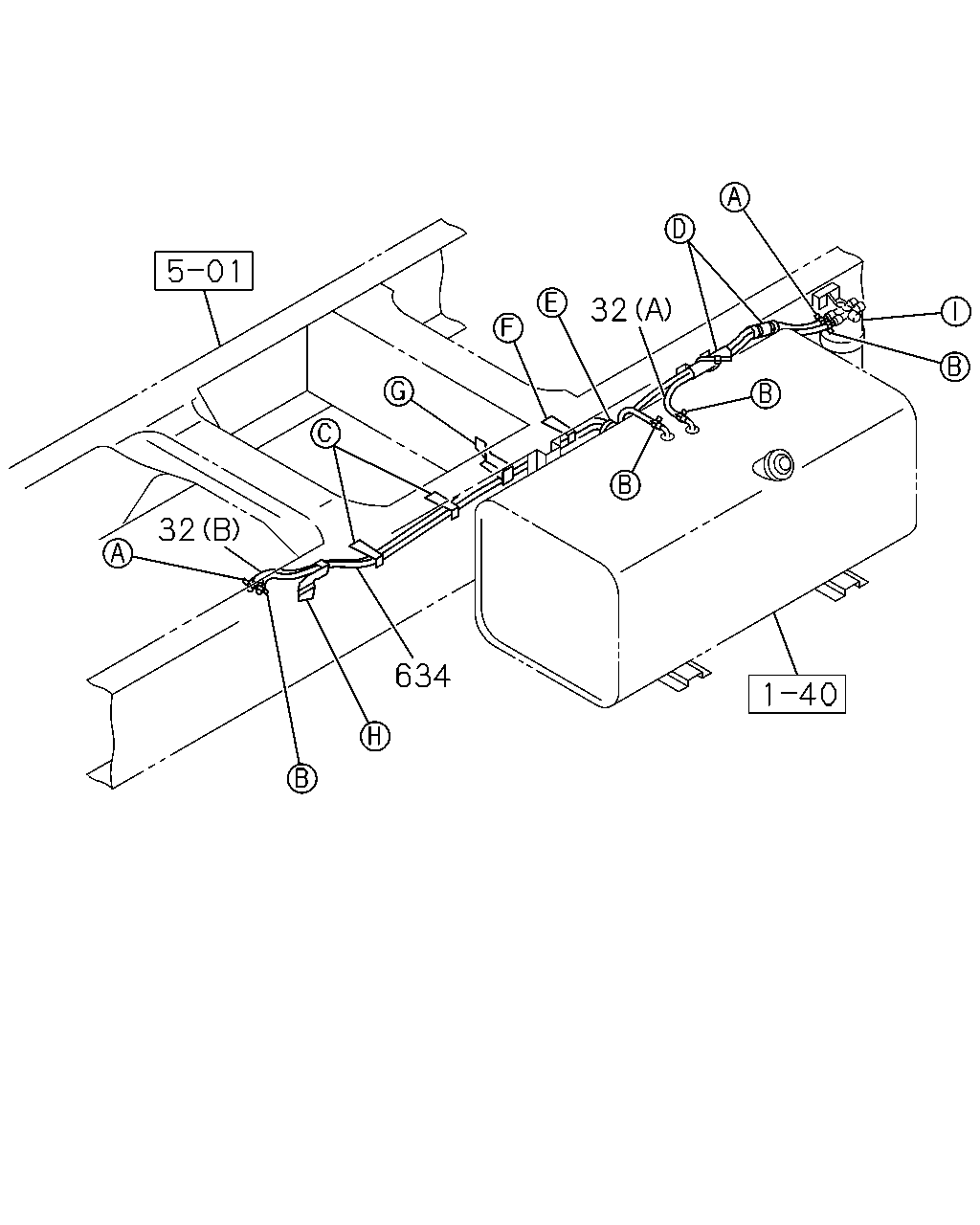

çizim 194019
32 32 634
BalonParca AdiParca NoAdetTipApplied Date A B
32 PIPE; DELIVERY,FUEL TANK
(A) L=850 SERVICED BY L=3000 THA 		0-01260-300-0 01 1 0809- ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=2300 SERVICED BY L=3000 		0-01262-300-0 01 1 0809- ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=900 SERVICED BY L=3000 THA 		0-01260-300-0 01 1 0806-0808 ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=900 SERVICED BY L=3000 THA 		0-01260-300-0 01 1 0809- ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=2400 SERVICED BY L=3000 		0-01262-300-0 01 1 0806-0808 ● ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=2400 SERVICED BY L=3000 		0-01262-300-0 01 1 0809- ●
634 HOSE; RUBBER RETURN
FUEL TANK 2X180L<EDL> L=1750 THA 		8-97924-508-0 01 1 0806-1101 ●
634 HOSE; RUBBER RETURN
FUEL TANK 370L<8MH> L=1750 THA 		8-97924-508-0 01 1 1102- ●
634 HOSE; RUBBER RETURN
L=1700 THA 		8-97924-507-0 01 1 0806- ●
