1-40 — FUEL TANK (#68273) — 94 parça

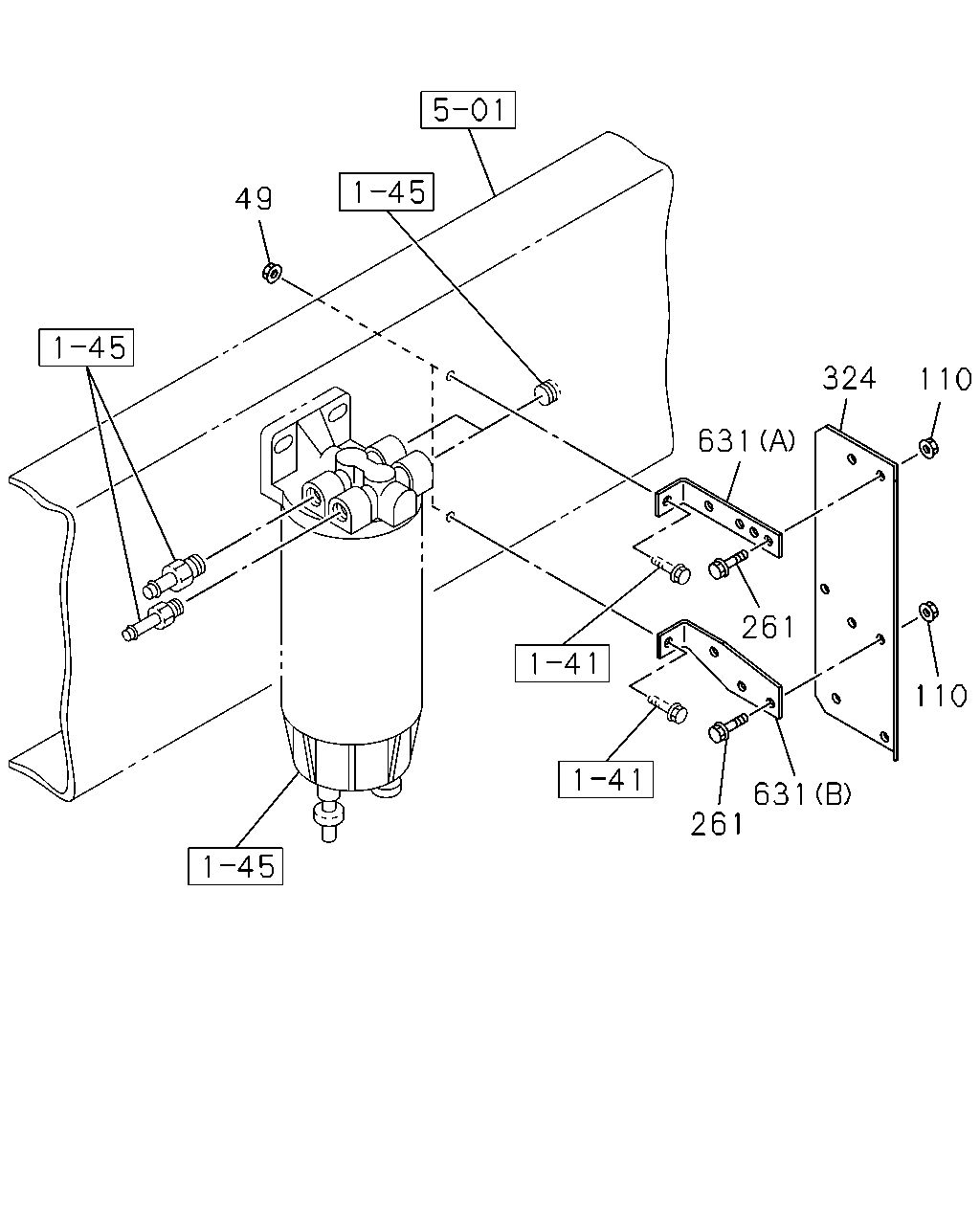

49 110 324 631 261 110 631 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	NUT; BRKT FUEL TANK 2X180L<EDL> M12 THA	0-91110-512-0	12	1	0806-1101	●
49	NUT; BRKT WHEEL BASE 4700MM<47W> FUEL TANK 200L FRAME SIDE<N20> M12 THA	0-91110-512-0	12	1	0806-1101	●
49	NUT; BRKT M12 THA	0-91110-512-0	12	1	0806-1101		●
49	NUT; BRKT WHEEL BASE 4700MM<47W> FUEL TANK 200L FRAME SIDE<N20> M12 THA	0-91110-512-0	12	1	1102-	●
49	NUT; BRKT FUEL TANK 370L<8MH> M12 THA	0-91110-512-0	12	1	1102-	●
49	NUT; BRKT M12 THA	0-91110-512-0	12	1	1102-		●
49	NUT; BRKT WHEEL BASE 4700MM<47W> M8 FLANGE THA	0-91180-108-0	02	1	0806-	●
110	NUT; PROTECTOR WHEEL BASE 4700MM<47W> M8 FLANGE THA	0-91180-108-0	04	1	0806-	●
261	BOLT; PROTECTOR WHEEL BASE 4700MM<47W> M8X20 FLANGE THA	0-28650-820-0	04	1	0806-	●
324	PROTECTOR; FUEL SEDIMENTER WHEEL BASE 4700MM<47W>	1-47471-216-0	01	1	0806-0810	●
324	PROTECTOR; FUEL SEDIMENTER	1-47471-216-0	01	1	0806-0810		●
324	PROTECTOR; FUEL SEDIMENTER WHEEL BASE 4700MM<47W>	1-47471-216-0	01	1	0811-	●
631	BRACKET; PROTECTOR WHEEL BASE 4700MM<47W> (A)	1-82698-358-0	01	1	0806-0810	●
631	BRACKET; PROTECTOR (A)	1-82698-358-0	01	1	0806-0810		●
631	BRACKET; PROTECTOR WHEEL BASE 4700MM<47W> (A)	1-82698-358-0	01	1	0811-	●
631	BRACKET; PROTECTOR WHEEL BASE 4700MM<47W> (B)	1-82698-625-0	01	1	0806-0810	●
631	BRACKET; PROTECTOR (B)	1-82698-625-0	01	1	0806-0810		●
631	BRACKET; PROTECTOR WHEEL BASE 4700MM<47W> (B)	1-82698-625-0	01	1	0811-	●

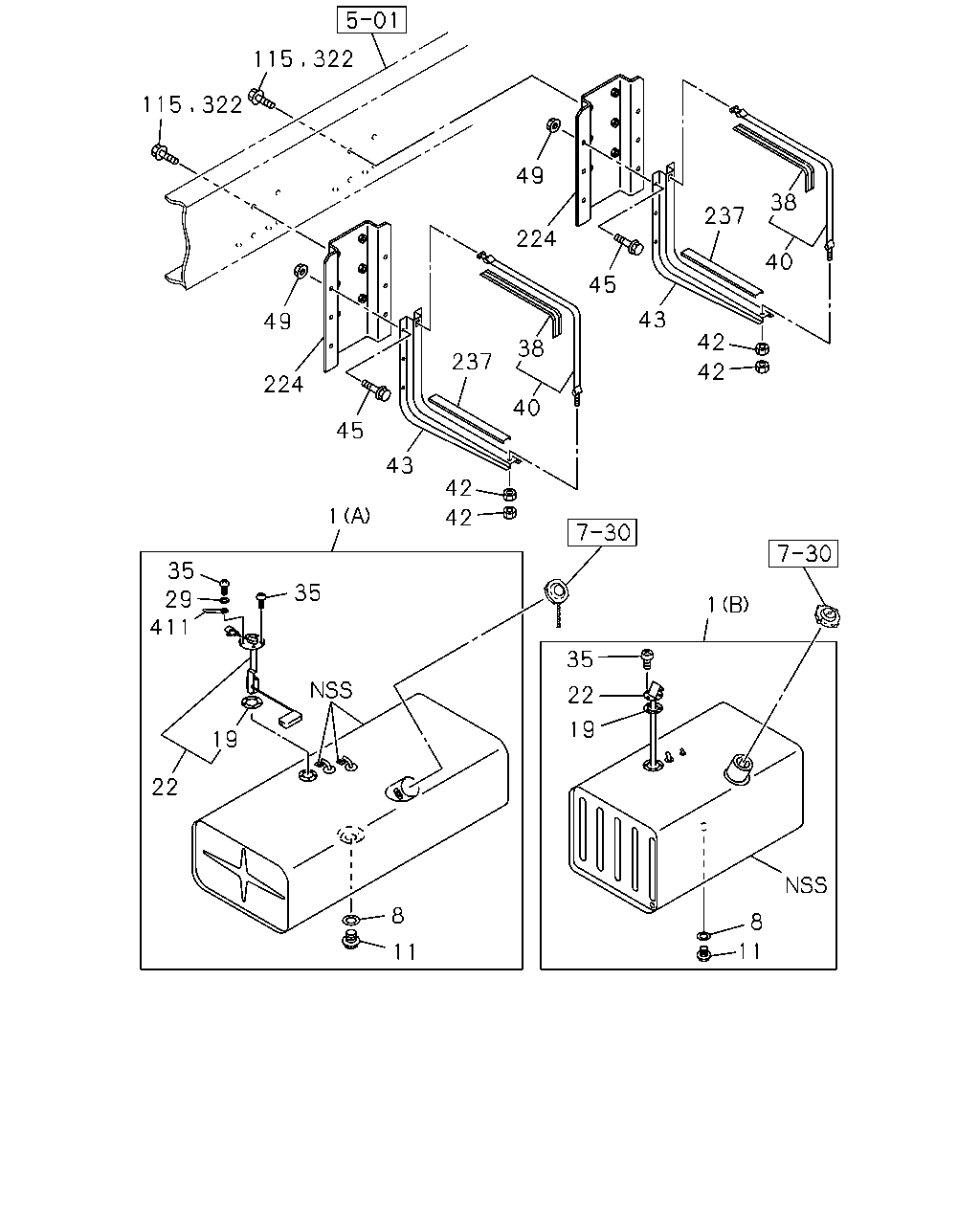

49 38 237 224 40 45 43 49 42 38 237 42 224 40 45 43 42 1 42 35 35 29 1 411 35 22 19 19 22 8 8 11 11 115 322 115 322

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 2X180L<EDL> (B) 1275X603X503 370L THA	8-97924-533-1	01	1	0806-1101	●
1	TANK; FUEL (B) 1275X603X503 370L THA	8-97924-533-1	01	1	0806-1101		●
1	TANK; FUEL FUEL TANK 370L<8MH> (B) 1275X603X503 370L THA	8-97924-533-1	01	1	1102-1212	●
1	TANK; FUEL (B) 1275X603X503 370L THA	8-97924-533-1	01	1	1102-1212		●
1	TANK; FUEL FUEL TANK 370L<8MH> (B) 1275X603X503 370L THA	8-98240-497-0	01	1	1301-	●
1	TANK; FUEL (B) 1275X603X503 370L THA	8-98240-497-0	01	1	1301-		●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 1100X632X322 200L THA	8-97924-531-1	01	1	0806-	●
8	GASKET; DRAIN PLUG,FUEL TANK THA	8-97913-627-0	01	1	0806-1212	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> THA	8-97913-627-0	01	1	1301-1302	●
8	GASKET; DRAIN PLUG,FUEL TANK THA	8-97913-627-0	01	1	1303-	●	●
11	PLUG; DRAIN,FUEL TANK THA	8-97913-628-0	01	1	0806-1212	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> THA	8-97913-628-0	01	1	1301-1302	●
11	PLUG; DRAIN,FUEL TANK THA	8-97913-628-0	01	1	1303-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 370L<8MH> ID=45 OD=67 THA	1-83149-003-0	01	1	1301-	●
19	GASKET; FUEL TANK UNIT ID=45 OD=67 THA	1-83149-003-0	01	1	1301-		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42 THA	9-83135-011-0	01	1	0806-1209	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71 THA	5-83148-001-0	01	1	1210-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 2X180L<EDL> ID=45 OD=67 THA	1-83149-003-0	01	1	0806-1101	●
19	GASKET; FUEL TANK UNIT ID=45 OD=67 THA	1-83149-003-0	01	1	0806-1101		●
19	GASKET; FUEL TANK UNIT FUEL TANK 370L<8MH> ID=45 OD=67 THA	1-83149-003-0	01	1	1102-1212	●
19	GASKET; FUEL TANK UNIT ID=45 OD=67 THA	1-83149-003-0	01	1	1102-1212		●
22	UNIT; FUEL TANK FUEL TANK 370L<8MH> THA	8-98232-363-0	01	1	1301-	●
22	UNIT; FUEL TANK THA	8-98232-363-0	01	1	1301-		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-084-1	01	1	1210-	●
22	UNIT; FUEL TANK FUEL TANK 2X180L<EDL>	1-83141-111-0	01	1	0806-1101	●
22	UNIT; FUEL TANK	1-83141-111-0	01	1	0806-1101		●
22	UNIT; FUEL TANK FUEL TANK 370L<8MH>	1-83141-111-0	01	1	1102-1212	●
22	UNIT; FUEL TANK	1-83141-111-0	01	1	1102-1212		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-084-1	01	1	0806-1101	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	0-91610-505-0	01	1	0806-	●
35	SCREW; FUEL TANK UNIT FUEL TANK 370L<8MH> IMA	1-22419-012-0	05	1	1301-	●
35	SCREW; FUEL TANK UNIT IMA	1-22419-012-0	05	1	1301-		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X12 W/LK WASHER THA	0-36220-512-0	05	1	1210-1210	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10 W/LK WASHER	0-36220-510-0	05	1	1211-	●
35	SCREW; FUEL TANK UNIT FUEL TANK 2X180L<EDL> IMA	1-22419-012-0	05	1	0806-1101	●
35	SCREW; FUEL TANK UNIT IMA	1-22419-012-0	05	1	0806-1101		●
35	SCREW; FUEL TANK UNIT FUEL TANK 370L<8MH> IMA	1-22419-012-0	05	1	1102-1212	●
35	SCREW; FUEL TANK UNIT IMA	1-22419-012-0	05	1	1102-1212		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X12 W/LK WASHER THA	0-36220-512-0	05	1	0806-1101	●
38	INSULATION; SUPPORT BELT FUEL TANK 370L<8MH> THA	8-97922-175-0	04	1	1102-	●
38	INSULATION; SUPPORT BELT THA	8-97922-175-0	04	1	1102-		●
38	INSULATION; SUPPORT BELT FUEL TANK 2X180L<EDL> THA	8-97922-175-0	02	1	0806-1101	●
38	INSULATION; SUPPORT BELT THA	8-97922-175-0	02	1	0806-1101		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> THA	8-97922-749-0	02	1	0806-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 2X180L<EDL> THA	8-97922-751-0	02	1	0806-1101	●
40	BELT; SUPPORT,FUEL TANK THA	8-97922-751-0	02	1	0806-1101		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 370L<8MH> THA	8-97922-751-0	02	1	1102-	●
40	BELT; SUPPORT,FUEL TANK THA	8-97922-751-0	02	1	1102-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> THA	8-97922-752-0	02	1	0806-	●
42	NUT; SUPPORT BELT M10 THA	0-91110-510-0	04	1	0806-	●	●
43	BRACKET; FUEL TANK FUEL TANK 2X180L<EDL> THA	8-97921-801-1	02	1	0806-1101	●
43	BRACKET; FUEL TANK THA	8-97921-801-1	02	1	0806-1101		●
43	BRACKET; FUEL TANK FUEL TANK 370L<8MH> THA	8-97921-801-1	02	1	1102-	●
43	BRACKET; FUEL TANK THA	8-97921-801-1	02	1	1102-		●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> THA	8-97910-388-2	02	1	0806-	●
45	BOLT; BRKT,FUEL TANK WHEEL BASE 4700MM<47W> FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE THA	0-28051-240-0	12	1	1102-	●
45	BOLT; BRKT,FUEL TANK WHEEL BASE 4700MM<47W> FUEL TANK 200L FRAME SIDE<N20> M12X45 FLANGE THA	0-28051-245-0	12	1	0806-1101	●
49	NUT; BRKT FUEL TANK 2X180L<EDL> M12 THA	0-91110-512-0	12	1	0806-1101	●
49	NUT; BRKT WHEEL BASE 4700MM<47W> FUEL TANK 200L FRAME SIDE<N20> M12 THA	0-91110-512-0	12	1	0806-1101	●
49	NUT; BRKT M12 THA	0-91110-512-0	12	1	0806-1101		●
49	NUT; BRKT WHEEL BASE 4700MM<47W> FUEL TANK 200L FRAME SIDE<N20> M12 THA	0-91110-512-0	12	1	1102-	●
49	NUT; BRKT FUEL TANK 370L<8MH> M12 THA	0-91110-512-0	12	1	1102-	●
49	NUT; BRKT M12 THA	0-91110-512-0	12	1	1102-		●
49	NUT; BRKT WHEEL BASE 4700MM<47W> M8 FLANGE THA	0-91180-108-0	02	1	0806-	●
115	BOLT; BRKT WHEEL BASE 4700MM<47W> FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE THA	0-28051-240-0	12	1	1102-	●
115	BOLT; BRKT WHEEL BASE 4700MM<47W> FUEL TANK 200L FRAME SIDE<N20> M12X45 FLANGE THA	0-28051-245-0	12	1	0806-1101	●
224	BRACKET; FUEL TANK BRKT TO FRAME WHEEL BASE 4700MM<47W> FUEL TANK 200L FRAME SIDE<N20> THA	8-97910-886-0	02	1	1102-	●
224	BRACKET; FUEL TANK BRKT TO FRAME WHEEL BASE 4700MM<47W> FUEL TANK 200L FRAME SIDE<N20> THA	1-53461-444-0	02	1	0806-1101	●
237	GASKET; BRKT TO FUEL TANK L=580 THA	8-97916-877-0	02	1	0806-	●	●
322	BOLT; BRKT FIX FUEL TANK 370L<8MH> M12X45 FLANGE THA	0-28051-245-0	12	1	1108-	●
322	BOLT; BRKT FIX M12X45 FLANGE THA	0-28051-245-0	12	1	1108-		●
322	BOLT; BRKT FIX FUEL TANK 2X180L<EDL> M12X45 FLANGE THA	0-28051-245-0	12	1	0806-1101	●
322	BOLT; BRKT FIX M12X45 FLANGE THA	0-28051-245-0	12	1	0806-1101		●
322	BOLT; BRKT FIX FUEL TANK 370L<8MH> M12X45 FLANGE THA	0-28051-245-0	12	1	1102-1112	●
322	BOLT; BRKT FIX M12X45 FLANGE THA	0-28051-245-0	12	1	1102-1112		●
411	CLIP; FUEL TANK UNIT HARNESS FUEL TANK 200L FRAME SIDE<N20> L=50 THA	1-09700-416-0	01	1	0806-	●
