Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#6827) — 174 parça

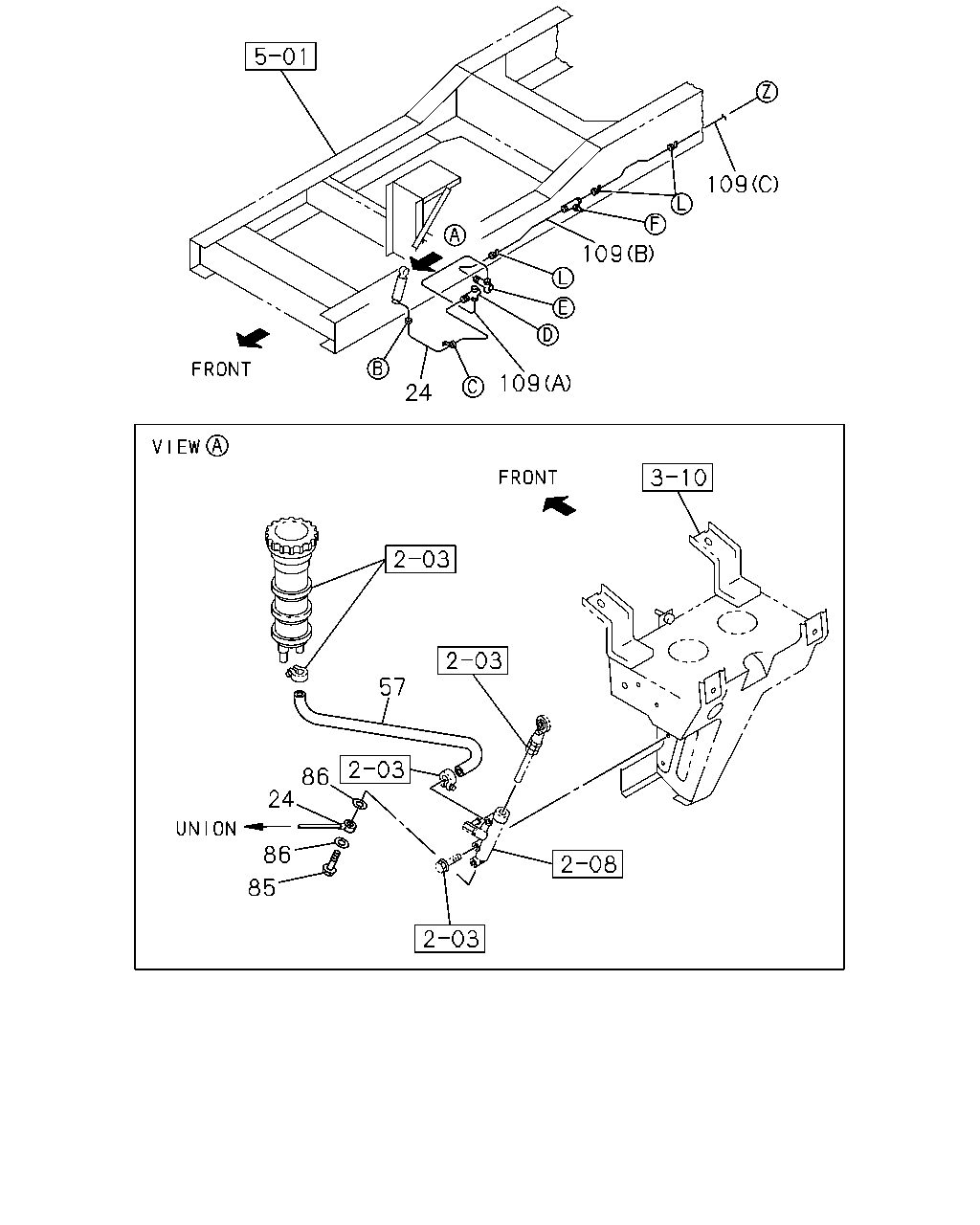

109 109 109 24 86 24 86 85 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
24	PIPE ASM; CLU,M/CYL TO UNION	1-47426-872-0	01	1	9806-9911	●	●	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION	8-97530-072-0	01	1	9912-	●
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	9806-9911	●	●	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	9912-	●
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE BOLT	9-09906-325-1	01	1	9806-9911	●	●	●	●	●
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE BOLT	9-09906-325-1	01	1	9912-	●
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	9806-9911	●	●	●	●	●
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	9912-	●
109	PIPE; AIR,UNION TO UNION CTR SPLIT FRAME<TLW> (C) L=2212 SERVICED BY L=2400	1-47426-395-0	01	1	9806-9911			●	●	●
109	PIPE; AIR,UNION TO UNION WB 5700MM(57W) (C) L=2138	8-97530-076-0	01	1	9912-0306	●
109	PIPE; AIR,UNION TO UNION WB 5700MM(57W) (C) L=2050 SERVICED BY L=2150	1-47426-394-0	01	1	0307-0308	●
109	PIPE; AIR,UNION TO UNION WB 5700MM(57W) (C) L=2053 SERVICED BY L=2150	1-47426-394-0	01	1	0309-	●
109	PIPE; AIR,UNION TO UNION (A) L=653 SERVICED BY L=660	1-47426-381-0	01	1	9806-9911	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION WB 5000MM(50W) (C) L=1429	8-97530-075-0	01	1	9912-0306	●
109	PIPE; AIR,UNION TO UNION WB 5000MM(50W) (C) L=1348	8-97531-296-0	01	1	0307-	●
109	PIPE; AIR,UNION TO UNION (B) L=795	1-47429-112-0	01	1	9806-9911	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION WB 5000MM(50W) (C) L=1423 SERVICED BY L=1550	1-47426-390-0	01	1	9806-9911	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION (A) L=653	8-97530-073-0	01	1	9912-	●
109	PIPE; AIR,UNION TO UNION WB 5700MM(57W) EXC. CTR SPLIT FRAME<TLW> (C) L=2132 SERVICED BY L=2150	1-47426-394-0	01	1	9806-9911	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION (B) L=795	8-97530-074-0	01	1	9912-0306	●
109	PIPE; AIR,UNION TO UNION (B) L=864	8-97531-295-0	01	1	0307-	●

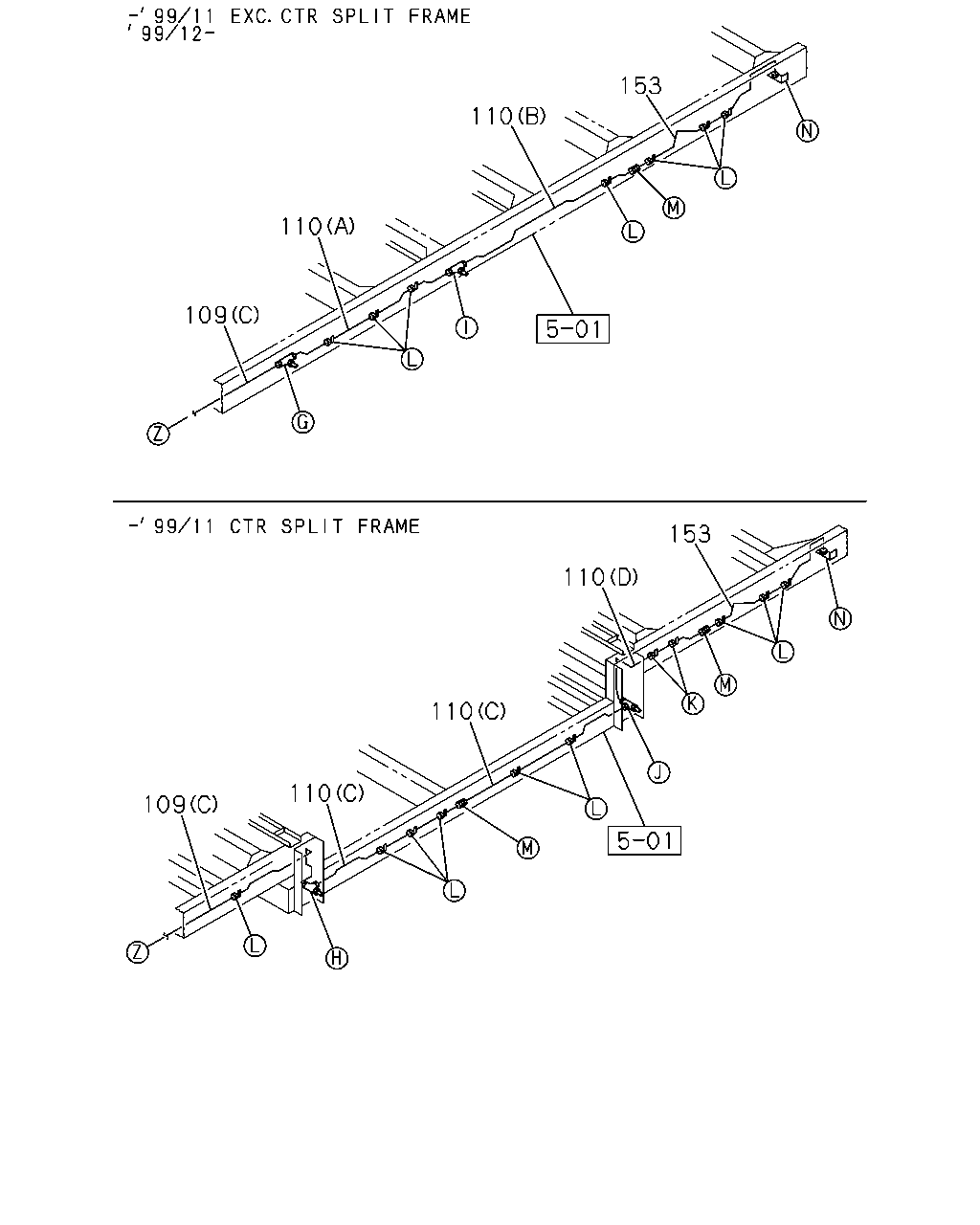

153 110 110 109 153 110 110 110 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
109	PIPE; AIR,UNION TO UNION CTR SPLIT FRAME<TLW> (C) L=2212 SERVICED BY L=2400	1-47426-395-0	01	1	9806-9911			●	●	●
109	PIPE; AIR,UNION TO UNION WB 5700MM(57W) (C) L=2138	8-97530-076-0	01	1	9912-0306	●
109	PIPE; AIR,UNION TO UNION WB 5700MM(57W) (C) L=2050 SERVICED BY L=2150	1-47426-394-0	01	1	0307-0308	●
109	PIPE; AIR,UNION TO UNION WB 5700MM(57W) (C) L=2053 SERVICED BY L=2150	1-47426-394-0	01	1	0309-	●
109	PIPE; AIR,UNION TO UNION (A) L=653 SERVICED BY L=660	1-47426-381-0	01	1	9806-9911	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION WB 5000MM(50W) (C) L=1429	8-97530-075-0	01	1	9912-0306	●
109	PIPE; AIR,UNION TO UNION WB 5000MM(50W) (C) L=1348	8-97531-296-0	01	1	0307-	●
109	PIPE; AIR,UNION TO UNION (B) L=795	1-47429-112-0	01	1	9806-9911	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION WB 5000MM(50W) (C) L=1423 SERVICED BY L=1550	1-47426-390-0	01	1	9806-9911	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION (A) L=653	8-97530-073-0	01	1	9912-	●
109	PIPE; AIR,UNION TO UNION WB 5700MM(57W) EXC. CTR SPLIT FRAME<TLW> (C) L=2132 SERVICED BY L=2150	1-47426-394-0	01	1	9806-9911	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION (B) L=795	8-97530-074-0	01	1	9912-0306	●
109	PIPE; AIR,UNION TO UNION (B) L=864	8-97531-295-0	01	1	0307-	●
110	PIPE; OIL,UNION TO UNION CTR SPLIT FRAME<TLW> (D) L=1230 SERVICED BY L=1250	1-47426-388-0	01	1	9806-9911			●	●	●
110	PIPE; OIL,UNION TO UNION (A) L=1934	8-97530-077-0	01	1	9912-	●
110	PIPE; OIL,UNION TO UNION CTR SPLIT FRAME<TLW> (C) L=1625 SERVICED BY L=1700	1-47426-391-0	02	1	9806-9911			●	●	●
110	PIPE; OIL,UNION TO UNION (B) L=1546	8-97530-078-0	01	1	9912-0104	●
110	PIPE; OIL,UNION TO UNION (B) L=1546	8-97531-277-0	01	1	0105-	●
110	PIPE; OIL,UNION TO UNION EXC. CTR SPLIT FRAME<TLW> (B) L=1546 SERVICED BY L=1700	1-47426-391-0	01	1	9806-9911	●	●	●	●	●
110	PIPE; OIL,UNION TO UNION EXC. CTR SPLIT FRAME<TLW> (A) L=1934 SERVICED BY L=2150	1-47426-394-0	01	1	9806-9911	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=1787 SERVICED BY L=1800	1-47426-392-0	01	1	9806-9911			●	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=1731 SERVICED BY L=1800	1-47426-392-0	01	1	9806-9911	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=1731	8-97530-827-0	01	1	9912-0012	●
153	PIPE ASM; CLU,UNION TO FLEX L=1731	8-97531-274-0	01	1	0101-0401	●
153	PIPE ASM; CLU,UNION TO FLEX L=1740	8-97531-301-0	01	1	0402-	●

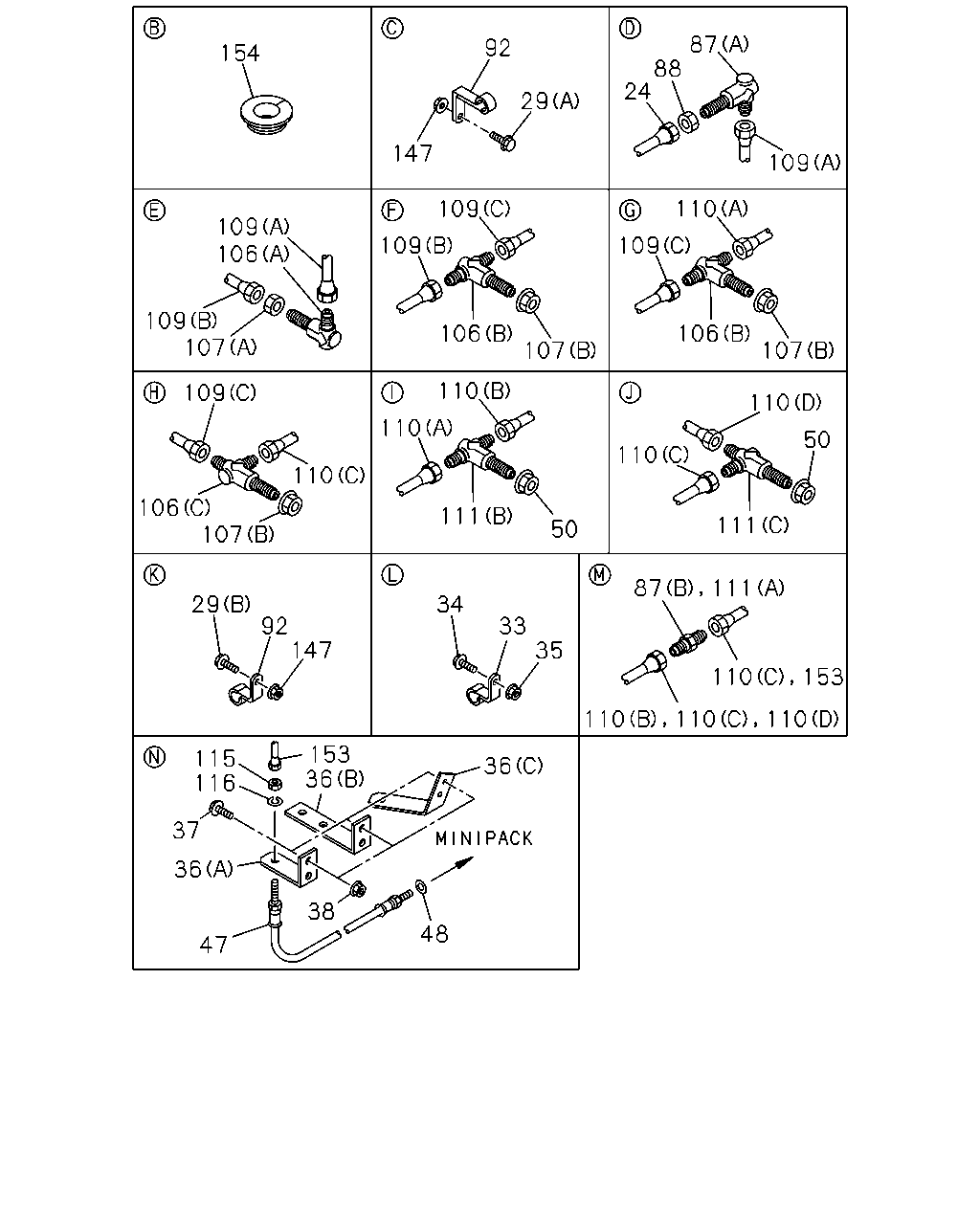

87 88 24 92 154 29 147 109 109 110 109 106 109 109 109 107 106 106 107 107 110 109 110 110 50 110 110 106 107 111 111 50 87 111 29 34 92 147 33 35 110 153 110 110 110 153 36 115 116 36 37 36 38 48 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
24	PIPE ASM; CLU,M/CYL TO UNION	1-47426-872-0	01	1	9806-9911	●	●	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION	8-97530-072-0	01	1	9912-	●
29	BOLT; CLIP,OIL PIPE CTR SPLIT FRAME<TLW> (B) M8X30 FLANGE	0-28680-830-0	02	1	9806-9911			●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	01	1	9806-9911	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	01	1	9912-0512	●
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
33	CLIP; OIL PIPE CTR SPLIT FRAME<TLW> ID=8 H=20 L=20	1-09700-604-0	07	1	9806-9911			●	●	●
33	CLIP; OIL PIPE WB 5700MM(57W) ID=8 H=20 L=20	1-09700-604-0	05	1	9912-	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9806-9911	●	●	●	●	●
33	CLIP; OIL PIPE WB 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=8 H=20 L=20	1-09700-604-0	03	1	9806-9911	●	●	●	●	●
33	CLIP; OIL PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=8 H=20 L=20	1-09700-604-0	03	1	9806-9911	●	●	●	●	●
33	CLIP; OIL PIPE WB 5000MM(50W) ID=8 H=20 L=20	1-09700-604-0	03	1	9912-	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	9806-9911	●	●	●	●	●
33	CLIP; OIL PIPE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=8 H=20 L=20	1-09700-604-0	05	1	9806-9911	●	●	●	●	●
33	CLIP; OIL PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CTR SPLIT FRAME<TLW> ID=8 H=20 L=20	1-09700-604-0	05	1	9806-9911	●	●	●	●	●
33	CLIP; OIL PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) WB 5700MM(57W) EXC. CTR SPLIT FRAME<TLW> ID=8 H=20 L=20	1-09700-604-0	05	1	9806-9911	●	●	●	●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	12	1	9912-	●
34	BOLT; PIPE CLIP CTR SPLIT FRAME<TLW> M8X30 FLANGE	0-28680-830-0	07	1	9806-9911			●	●	●
34	BOLT; PIPE CLIP WB 5700MM(57W) M8X30 FLANGE	0-28680-830-0	05	1	9912-0512	●
34	BOLT; PIPE CLIP WB 5700MM(57W) M8X30 FLANGE	0-28650-830-0	05	1	0601-	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	9806-9911	●	●	●	●	●
34	BOLT; PIPE CLIP WB 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X30 FLANGE	0-28680-830-0	03	1	9806-9911	●	●	●	●	●
34	BOLT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X30 FLANGE	0-28680-830-0	03	1	9806-9911	●	●	●	●	●
34	BOLT; PIPE CLIP WB 5000MM(50W) M8X30 FLANGE	0-28680-830-0	03	1	9912-0512	●
34	BOLT; PIPE CLIP WB 5000MM(50W) M8X30 FLANGE	0-28650-830-0	03	1	0601-	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9806-9911	●	●	●	●	●
34	BOLT; PIPE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X30 FLANGE	0-28680-830-0	05	1	9806-9911	●	●	●	●	●
34	BOLT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CTR SPLIT FRAME<TLW> M8X30 FLANGE	0-28680-830-0	05	1	9806-9911	●	●	●	●	●
34	BOLT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) WB 5700MM(57W) EXC. CTR SPLIT FRAME<TLW> M8X30 FLANGE	0-28680-830-0	05	1	9806-9911	●	●	●	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	12	1	9912-0512	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	12	1	0601-	●
35	NUT; PIPE CLIP CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	07	1	9806-9911			●	●	●
35	NUT; PIPE CLIP WB 5700MM(57W) M8 FLANGE	0-91150-108-0	05	1	9912-0602	●
35	NUT; PIPE CLIP WB 5700MM(57W) M8 FLANGE	0-91180-108-0	05	1	0603-	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9806-9911	●	●	●	●	●
35	NUT; PIPE CLIP WB 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91150-108-0	03	1	9806-9911	●	●	●	●	●
35	NUT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91150-108-0	03	1	9806-9911	●	●	●	●	●
35	NUT; PIPE CLIP WB 5000MM(50W) M8 FLANGE	0-91150-108-0	03	1	9912-0602	●
35	NUT; PIPE CLIP WB 5000MM(50W) M8 FLANGE	0-91180-108-0	03	1	0603-	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9806-9911	●	●	●	●	●
35	NUT; PIPE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE	0-91150-108-0	05	1	9806-9911	●	●	●	●	●
35	NUT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	05	1	9806-9911	●	●	●	●	●
35	NUT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) WB 5700MM(57W) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	05	1	9806-9911	●	●	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	12	1	9912-0602	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	12	1	0603-	●
36	BRACKET; CLIP (B)	1-47475-570-0	01	1	9806-9911			●	●	●
36	BRACKET; CLIP (A)	1-47477-865-0	01	1	9806-9911	●	●
36	BRACKET; CLIP (C)	8-97531-006-0	01	1	9912-	●
37	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	02	1	9806-9911	●	●	●	●	●
37	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	02	1	9912-0512	●
37	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	9806-9911	●	●	●	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	9912-0602	●
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●
47	HOSE; FLEX,CLU CONT L=500	1-09364-329-0	01	1	9806-9911			●	●	●
47	HOSE; FLEX,CLU CONT L=475	1-09364-985-0	01	1	9806-9911	●	●
47	HOSE; FLEX,CLU CONT L=475	1-09364-985-0	01	1	9912-	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9806-9911	●	●	●	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9912-	●
50	NUT; UNION M12 FLANGE	0-91150-212-0	01	1	9806-9911	●	●	●	●	●
50	NUT; UNION M12 FLANGE	0-91150-212-0	01	1	9912-0602	●
50	NUT; UNION M12 FLANGE	0-91180-212-0	01	1	0603-	●
87	UNION; OIL PIPE CTR SPLIT FRAME<TLW> (B) M14 STRAIGHT	9-09223-008-1	01	1	9806-9911			●	●	●
87	UNION; OIL PIPE (A) M14	9-09225-108-1	01	1	9806-9911	●	●	●	●	●
87	UNION; OIL PIPE (A) M14	9-09225-108-1	01	1	9912-0607	●
87	UNION; OIL PIPE (A) M14	0-92125-108-0	01	1	0608-	●
88	NUT; PIPE UNION M14	9-99111-414-0	01	1	9806-9911	●	●	●	●	●
88	NUT; PIPE UNION M14	9-99111-414-0	01	1	9912-0512	●
88	NUT; PIPE UNION M14	0-91111-514-0	01	1	0601-	●
92	CLIP; OIL PIPE CTR SPLIT FRAME<TLW> ID=8 H=20 L=20	1-09700-604-0	02	1	9806-9911			●	●	●
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	9912-	●
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	9806-9911	●	●	●	●	●
106	UNION; OIL PIPE CTR SPLIT FRAME<TLW> (C) M14 2WAY	1-09654-034-2	01	1	9806-9911			●	●	●
106	UNION; OIL PIPE (B) M14 2WAY	1-09654-176-2	02	1	9912-	●
106	UNION; OIL PIPE (B) M14 2WAY	1-09654-176-2	01	1	9806-9911	●	●	●	●	●
106	UNION; OIL PIPE EXC. CTR SPLIT FRAME<TLW> (B) M14 2WAY	1-09654-176-2	01	1	9806-9911	●	●	●	●	●
106	UNION; OIL PIPE (A) M14	9-09225-108-1	01	1	9806-9911	●	●	●	●	●
106	UNION; OIL PIPE (A) M14	9-09225-108-1	01	1	9912-0607	●
106	UNION; OIL PIPE (A) M14	0-92125-108-0	01	1	0608-	●
107	NUT; UNION,OIL PIPE (B) M12 FLANGE	0-91150-212-0	02	1	9806-9911	●	●	●	●	●
107	NUT; UNION,OIL PIPE (B) M12 FLANGE	0-91150-212-0	02	1	9912-0602	●
107	NUT; UNION,OIL PIPE (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●
107	NUT; UNION,OIL PIPE (A) M14	9-99111-414-0	01	1	9806-9911	●	●	●	●	●
107	NUT; UNION,OIL PIPE (A) M14	9-99111-414-0	01	1	9912-0512	●
107	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	0601-	●
109	PIPE; AIR,UNION TO UNION CTR SPLIT FRAME<TLW> (C) L=2212 SERVICED BY L=2400	1-47426-395-0	01	1	9806-9911			●	●	●
109	PIPE; AIR,UNION TO UNION WB 5700MM(57W) (C) L=2138	8-97530-076-0	01	1	9912-0306	●
109	PIPE; AIR,UNION TO UNION WB 5700MM(57W) (C) L=2050 SERVICED BY L=2150	1-47426-394-0	01	1	0307-0308	●
109	PIPE; AIR,UNION TO UNION WB 5700MM(57W) (C) L=2053 SERVICED BY L=2150	1-47426-394-0	01	1	0309-	●
109	PIPE; AIR,UNION TO UNION (A) L=653 SERVICED BY L=660	1-47426-381-0	01	1	9806-9911	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION WB 5000MM(50W) (C) L=1429	8-97530-075-0	01	1	9912-0306	●
109	PIPE; AIR,UNION TO UNION WB 5000MM(50W) (C) L=1348	8-97531-296-0	01	1	0307-	●
109	PIPE; AIR,UNION TO UNION (B) L=795	1-47429-112-0	01	1	9806-9911	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION WB 5000MM(50W) (C) L=1423 SERVICED BY L=1550	1-47426-390-0	01	1	9806-9911	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION (A) L=653	8-97530-073-0	01	1	9912-	●
109	PIPE; AIR,UNION TO UNION WB 5700MM(57W) EXC. CTR SPLIT FRAME<TLW> (C) L=2132 SERVICED BY L=2150	1-47426-394-0	01	1	9806-9911	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION (B) L=795	8-97530-074-0	01	1	9912-0306	●
109	PIPE; AIR,UNION TO UNION (B) L=864	8-97531-295-0	01	1	0307-	●
110	PIPE; OIL,UNION TO UNION CTR SPLIT FRAME<TLW> (D) L=1230 SERVICED BY L=1250	1-47426-388-0	01	1	9806-9911			●	●	●
110	PIPE; OIL,UNION TO UNION (A) L=1934	8-97530-077-0	01	1	9912-	●
110	PIPE; OIL,UNION TO UNION CTR SPLIT FRAME<TLW> (C) L=1625 SERVICED BY L=1700	1-47426-391-0	02	1	9806-9911			●	●	●
110	PIPE; OIL,UNION TO UNION (B) L=1546	8-97530-078-0	01	1	9912-0104	●
110	PIPE; OIL,UNION TO UNION (B) L=1546	8-97531-277-0	01	1	0105-	●
110	PIPE; OIL,UNION TO UNION EXC. CTR SPLIT FRAME<TLW> (B) L=1546 SERVICED BY L=1700	1-47426-391-0	01	1	9806-9911	●	●	●	●	●
110	PIPE; OIL,UNION TO UNION EXC. CTR SPLIT FRAME<TLW> (A) L=1934 SERVICED BY L=2150	1-47426-394-0	01	1	9806-9911	●	●	●	●	●
111	UNION; OIL PIPE CTR SPLIT FRAME<TLW> (C) M14 2WAY	1-09654-034-2	01	1	9806-9911			●	●	●
111	UNION; OIL PIPE (B) M14 2WAY	1-09654-176-2	01	1	9912-	●
111	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9806-9911	●	●	●	●	●
111	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9912-0607	●
111	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-	●
111	UNION; OIL PIPE EXC. CTR SPLIT FRAME<TLW> (B) M14 2WAY	1-09654-176-2	01	1	9806-9911	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9806-9911	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9912-0512	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9806-9911	●	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9912-0603	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●
147	NUT; CLIP FIX CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	02	1	9806-9911			●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	9912-0602	●
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	9806-9911	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=1787 SERVICED BY L=1800	1-47426-392-0	01	1	9806-9911			●	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=1731 SERVICED BY L=1800	1-47426-392-0	01	1	9806-9911	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=1731	8-97530-827-0	01	1	9912-0012	●
153	PIPE ASM; CLU,UNION TO FLEX L=1731	8-97531-274-0	01	1	0101-0401	●
153	PIPE ASM; CLU,UNION TO FLEX L=1740	8-97531-301-0	01	1	0402-	●
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	9806-9911	●	●	●	●	●
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	9912-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
