0-90 — POWER TAKE OFF; FLYWHEEL (#68266) — 47 parça

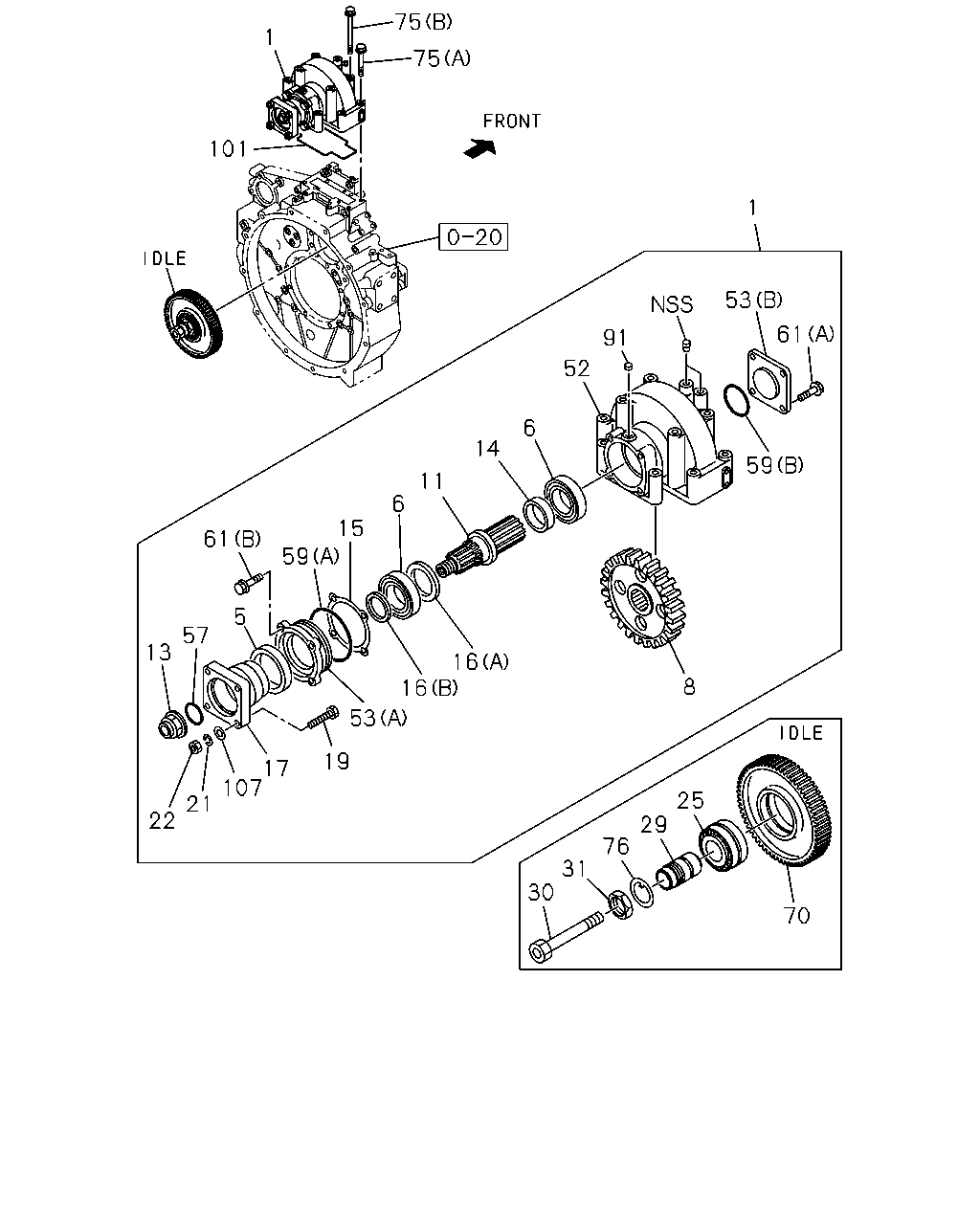

çizim 194013
70 25 29 76 31 30 8 59 61 1 53 91 52 6 14 11 6 15 59 61 5 57 13 21 22 17 107 19 16 16 53 101 1 75 75
BalonParca AdiParca NoAdetTipApplied Date
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO<SV1> 		8-98123-891-0 01 1 0806-0807
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO<SV1> 		8-98035-593-0 01 1 0808-
5 SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO<SV1> 		8-97388-533-0 01 1 0808-
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO<SV1> JTEKT 		8-94248-088-2 02 1 0808-1204
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO<SV1> JTEKT 		8-98171-254-0 02 1 1205-
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO<SV1> NSK 		9-00093-149-0 02 1 0808-
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO<SV1> BEST VALUE PARTS 		1-87610-134-0 02 1 1205-
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO<SV1> Z=61 		8-97603-907-0 01 1 0808-
11 SHAFT; PTO,FLYWHEEL
ENGINE REAR PTO<SV1> 		8-97603-908-0 01 1 0808-
13 NUT; SHAFT,FLYWHEEL PTO
ENGINE REAR PTO<SV1> 		8-98013-471-0 01 1 0808-1204
13 NUT; SHAFT,FLYWHEEL PTO
ENGINE REAR PTO<SV1> M27 H=25 		8-97360-410-0 01 1 1205-
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=19.20 		9-38226-050-0 01 1 0808-
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=0.39 		8-97382-615-0 01 1 0808-
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=0.44 		8-97382-616-0 01 1 0808-
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=0.49 		8-97382-617-0 01 1 0808-
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=0.54 		8-97382-618-0 01 1 0808-
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=0.59 		8-97382-619-0 01 1 0808-
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=0.64 		8-97382-620-0 01 1 0808-
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=0.69 		8-97382-621-0 01 1 0808-
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=0.74 		8-97382-622-0 01 1 0808-
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=0.79 		8-97382-623-0 01 1 0808-
16 THROWER; OIL,FLYWHEEL PTO
ENGINE REAR PTO<SV1> (A) 		8-97605-070-1 01 1 0808-
16 THROWER; OIL,FLYWHEEL PTO
ENGINE REAR PTO<SV1> (B) 		8-97605-071-0 01 1 0808-
17 FLANGE; PTO,FLYWHEEL
ENGINE REAR PTO<SV1> 		1-38189-010-2 01 1 0808-
19 BOLT; FLANGE
ENGINE REAR PTO<SV1> M12X40 		0-20951-240-0 04 1 0808-
21 WASHER; LK,FLANGE
ENGINE REAR PTO<SV1> ID=12.2 		0-91510-812-0 04 1 0808-
22 NUT; FLANGE
ENGINE REAR PTO<SV1> M12 THA 		0-91110-512-0 04 1 0808-
25 BEARING; IDLE DRIVEN GEAR,FLYWHEEL PTO
ENGINE REAR PTO<SV1> 		1-09820-105-0 01 1 0806-
29 SPINDLE; IDLE GEAR,PTO
ENGINE REAR PTO<SV1> 		1-12531-108-0 01 1 0806-
30 BOLT; SPINDLE
ENGINE REAR PTO<SV1> 		9-09805-081-1 01 1 0806-
31 NUT; IDLE GEAR
ENGINE REAR PTO<SV1> 		9-09843-063-0 01 1 0806-
52 CASE; BRG,PTO
ENGINE REAR PTO<SV1> 		8-97603-906-1 01 1 0806-
53 COVER; PTO
ENGINE REAR PTO<SV1> (A) 		8-98123-892-0 01 1 0806-0807
53 COVER; PTO
ENGINE REAR PTO<SV1> (A) 		8-97603-909-1 01 1 0808-
53 COVER; PTO
ENGINE REAR PTO<SV1> (B) 		8-98002-481-1 01 1 0806-
57 GASKET; FLANGE,PTO,FLYWHEEL
ENGINE REAR PTO<SV1> 		9-09920-533-0 01 1 0808-
59 GASKET; COVER
ENGINE REAR PTO<SV1> (A) 		1-09623-422-0 01 1 0806-
59 GASKET; COVER
ENGINE REAR PTO<SV1> (B) ID=62.6 		1-09623-505-0 01 1 0806-
61 BOLT; COVER
ENGINE REAR PTO<SV1> (A) M8X20 FLANGE THA 		0-28650-820-0 04 1 0806-
61 BOLT; COVER
ENGINE REAR PTO<SV1> (B) M8X25 FLANGE THA 		0-28650-825-0 04 1 0806-
70 GEAR; IDLE DRIVEN,PTO
ENGINE REAR PTO<SV1> Z=54 		8-97603-911-0 01 1 0806-
75 BOLT; COVER
ENGINE REAR PTO<SV1> (A) M10X90 FLANGE 		0-28151-090-0 06 1 0806-
75 BOLT; COVER
ENGINE REAR PTO<SV1> (B) M10X150 FLANGE 		0-28156-015-0 04 1 0806-
76 WASHER; LK,IDLE GEAR
ENGINE REAR PTO<SV1> 		9-09854-034-0 01 1 0806-
91 CUP; SEALING
ENGINE REAR PTO<SV1> 		8-97374-579-0 02 1 1102-
101 GASKET; PTO
ENGINE REAR PTO<SV1> 		8-97603-914-0 01 1 0806-
107 WASHER; PL,FLANGE
ENGINE REAR PTO<SV1> ID=12.5 OD=22 		0-91610-512-0 04 1 0808-
