0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#68262) — 50 parça

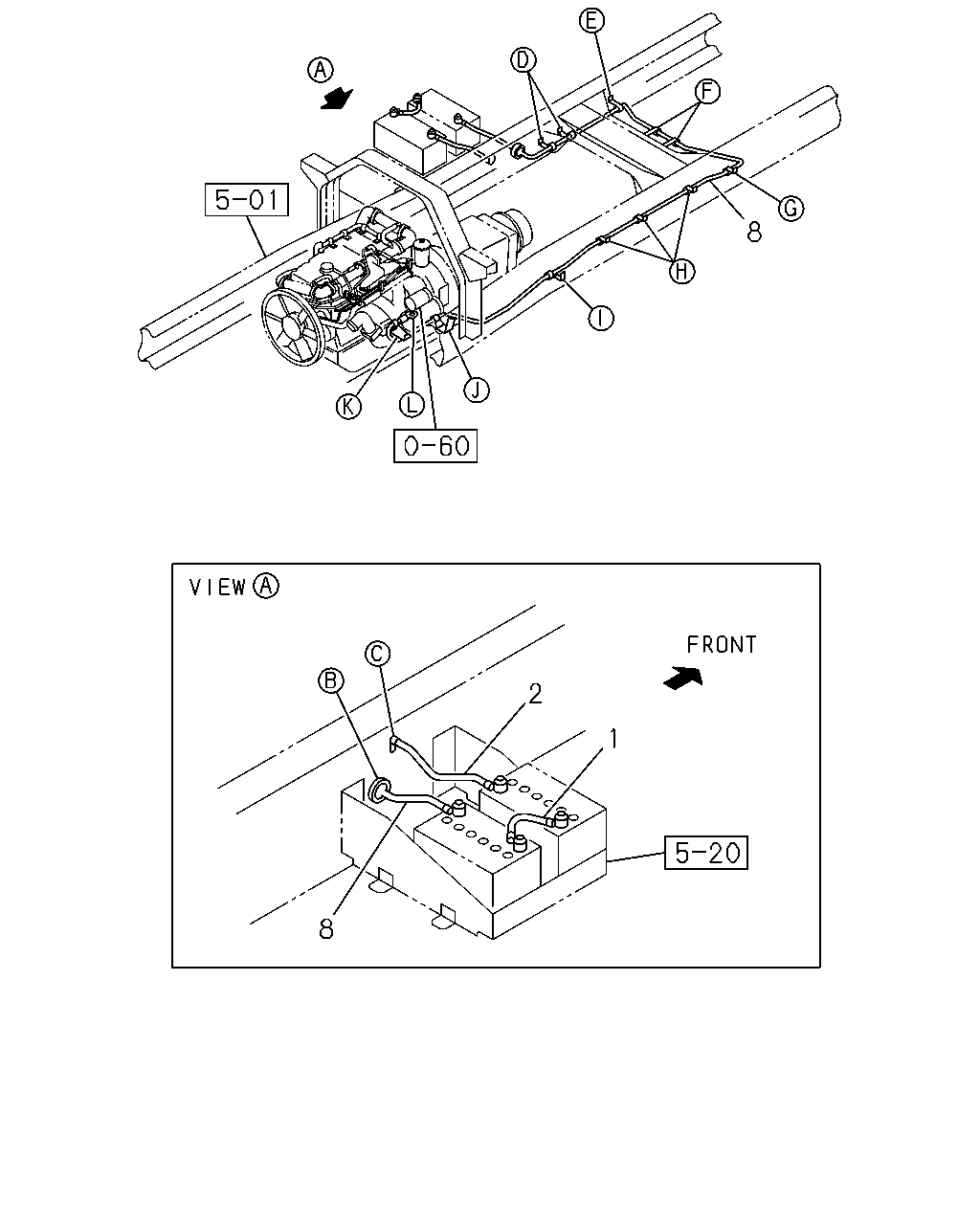

çizim 73510
8 2 1 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=265 THA 		8-97924-683-0 01 1 0806-1101 ● ●
1 CABLE; BATTERY
L=265 THA 		8-98168-288-0 01 1 1102- ● ●
2 CABLE; BATTERY
L=350 THA 		8-97924-677-0 01 1 0806-1101 ● ●
2 CABLE; BATTERY
L=250 THA 		8-98105-795-0 01 1 1102- ● ●
8 CABLE; BATTERY,STARTER
ENGINE REAR PTO<SV1> L=4760 THA 		8-97924-676-1 01 1 0806-1101 ●
8 CABLE; BATTERY,STARTER
ENGINE REAR PTO<SV1> L=4720 THA 		8-98112-963-1 01 1 1102- ●
8 CABLE; BATTERY,STARTER
EXC. ENGINE REAR PTO<SV1> L=4650 THA 		8-97924-675-1 01 1 0806-1101 ●
8 CABLE; BATTERY,STARTER
L=4650 THA 		8-97924-675-1 01 1 0806-1101 ●
8 CABLE; BATTERY,STARTER
EXC. ENGINE REAR PTO<SV1> L=4610 THA 		8-98112-961-1 01 1 1102- ●
8 CABLE; BATTERY,STARTER
L=4610 THA 		8-98112-961-1 01 1 1102- ●

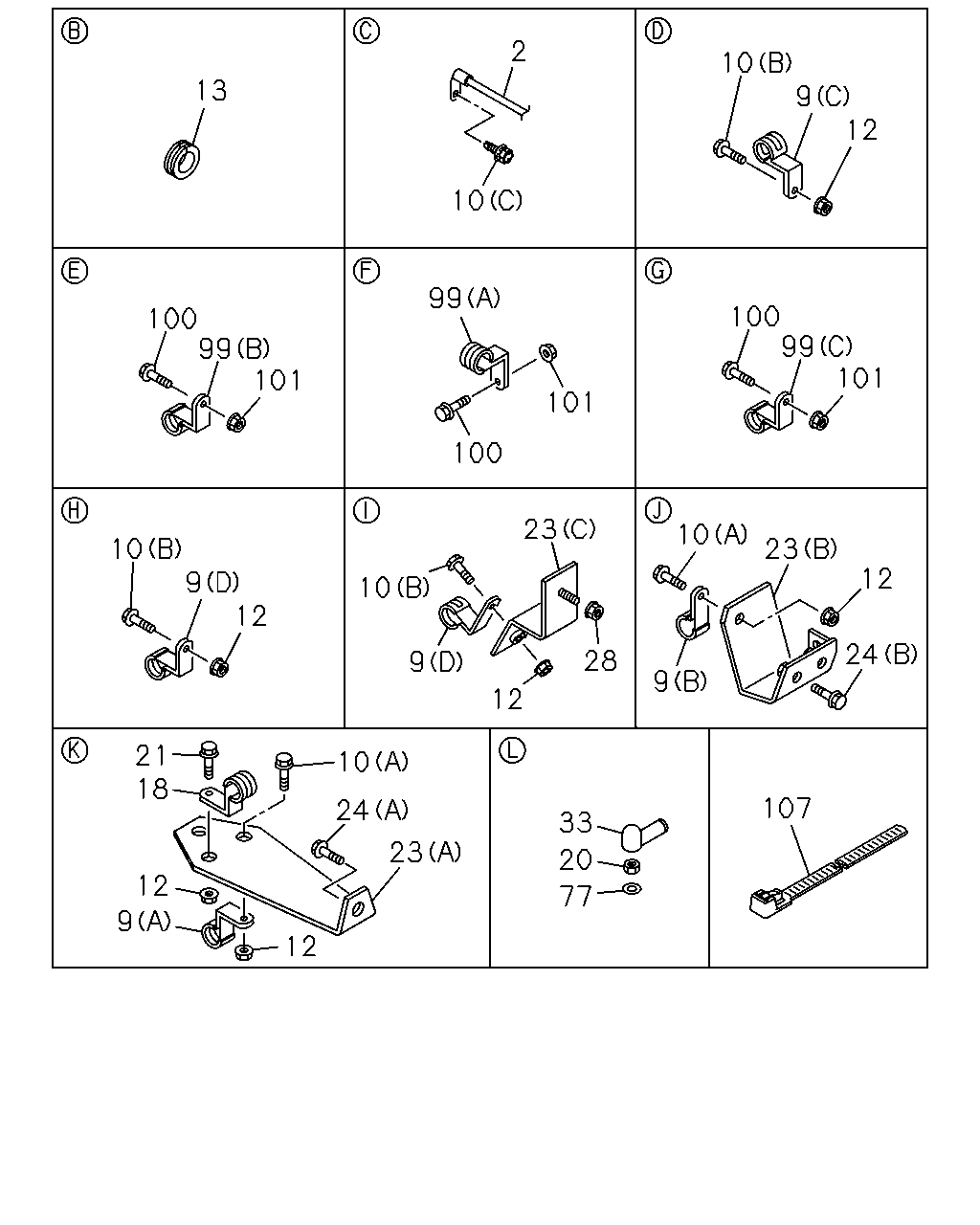

çizim 194012
2 10 9 12 13 10 99 100 99 101 100 99 101 101 100 23 10 10 9 12 23 12 10 24 28 9 9 12 21 18 10 107 24 33 23 20 12 77 9 12
BalonParca AdiParca NoAdetTipApplied Date A B
2 CABLE; BATTERY
L=350 THA 		8-97924-677-0 01 1 0806-1101 ● ●
2 CABLE; BATTERY
L=250 THA 		8-98105-795-0 01 1 1102- ● ●
9 CLIP; BATTERY CABLE
MJT7U M/T<Y4X> (C) ID=18 L=25 H=50 		1-09701-096-0 01 1 1201- ●
9 CLIP; BATTERY CABLE
MJT7U M/T<Y4X> (D) ID=18 L=28 H=30 		1-09701-110-0 03 1 1201- ●
9 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 0806- ● ●
9 CLIP; BATTERY CABLE
(B) ID=18 L=28 		1-09701-067-0 01 1 0806- ● ●
9 CLIP; BATTERY CABLE
(C) ID=18 H=23 L=28 		1-09701-070-0 01 1 0806- ● ●
9 CLIP; BATTERY CABLE
(C) ID=18 L=25 H=50 		1-09701-096-0 02 1 0806- ● ●
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 H=30 		1-09701-110-0 01 1 0806- ● ●
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 H=30 		1-09701-110-0 04 1 0806-1101 ● ●
9 CLIP; BATTERY CABLE
MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> (D) ID=18 L=28 H=30 		1-09701-110-0 04 1 1102- ●
9 CLIP; BATTERY CABLE
ZF9S1310 M/T<Y5K> (D) ID=18 L=28 H=30 		1-09701-110-0 04 1 1102- ●
10 BOLT; BATTERY CABLE CLIP
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0806-1201 ● ●
10 BOLT; BATTERY CABLE CLIP
(C) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ● ●
10 BOLT; BATTERY CABLE CLIP
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 0806- ● ●
10 BOLT; BATTERY CABLE CLIP
(A) M8X20 FLANGE THA 		0-28650-820-0 04 1 0806- ● ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X35 FLANGE THA 		0-28650-835-0 02 1 0806- ● ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X35 FLANGE THA 		0-28650-835-0 03 1 0806- ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 1207- ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 0806- ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 0806- ● ●
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=23 		1-09332-112-0 01 1 0806- ● ●
18 CLIP; BATTERY CABLE
ID=20 H=23 L=27 		1-09700-861-0 01 1 0806- ● ●
20 NUT; STARTER CABLE
M10 		8-98011-328-0 01 1 0806- ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE THA 		0-28650-820-0 01 1 0806- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) THA 		1-47471-215-1 01 1 0806- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) THA 		1-47479-779-0 01 1 0806- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) THA 		1-82698-614-0 01 1 0806- ● ●
24 BOLT; BRKT TO FRAME
(B) M8X20 FLANGE THA 		0-28650-820-0 02 1 0806- ● ●
24 BOLT; BRKT TO FRAME
(A) M8X35 FLANGE THA 		0-28650-835-0 02 1 0806- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 01 1 0806- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 02 1 0806- ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 0806- ● ●
77 WASHER; LK,STARTER CABLE
ID=10.2 		0-91510-810-0 01 1 0806- ● ●
99 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 02 1 0806- ● ●
99 CLIP; BATTERY CABLE
(B) ID=18 L=25 H=50 		1-09701-096-0 01 1 0806- ● ●
99 CLIP; BATTERY CABLE
(C) ID=18 L=28 H=30 		1-09701-110-0 01 1 0806- ● ●
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE THA 		0-28650-825-0 04 1 0806- ● ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 0806- ● ●
107 CLIP; BAND
L=350 		1-09707-183-0 01 1 0806- ● ●
