2-03 — CLUTCH PEDAL AND CONTROL (#6826) — 103 parça

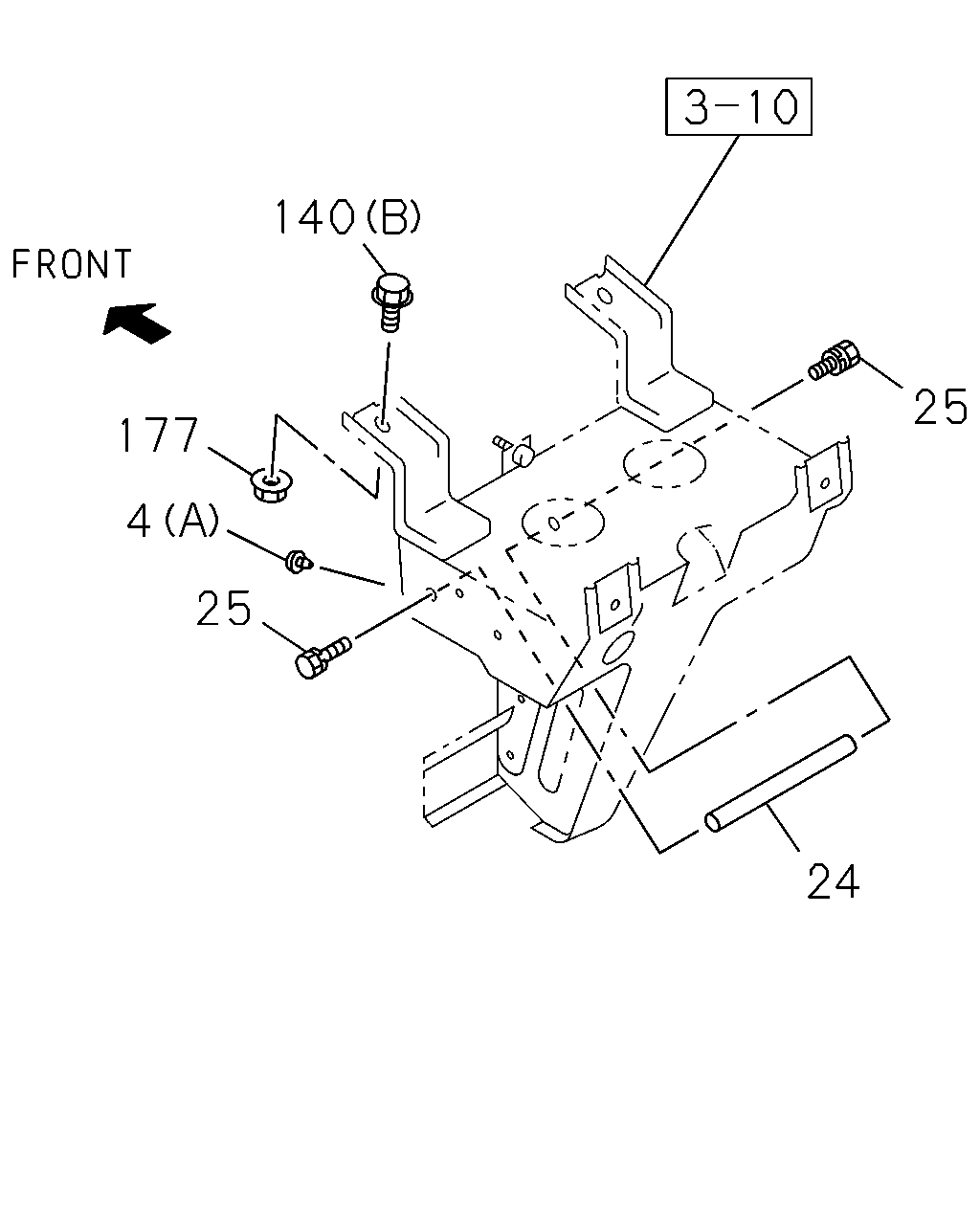

140 25 177 4 25 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	STOPPER; CLU PEDAL (A)	1-47319-014-1	04	1	9806-9911
4	STOPPER; CLU PEDAL ISUZU M/T<X9A> (A)	1-47319-014-1	04	1	9912-
4	STOPPER; CLU PEDAL (B)	5-31419-003-0	01	1	9806-9911
4	STOPPER; CLU PEDAL ISUZU M/T<X9A> (B)	5-31419-003-0	01	1	9912-0106
4	STOPPER; CLU PEDAL A/T<X9D> (A)	1-47319-014-1	01	1	9912-
24	SHAFT; CLU PEDAL	1-73998-936-1	01	1	9806-
25	BOLT; PEDAL M10X25 W/LK WASHER	0-50051-025-0	02	1	9806-
140	BOLT; BRKT (A) M5X16	0-20800-516-0	02	1	9806-9911
140	BOLT; BRKT ISUZU M/T<X9A> (A) M5X16	0-20800-516-0	02	1	9912-
140	BOLT; BRKT (B) M8X20 FLANGE	0-28680-820-0	02	1	9806-0512
140	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-
140	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	9806-0512
140	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
140	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	02	1	9806-0512
140	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-
177	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9806-0602
177	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-

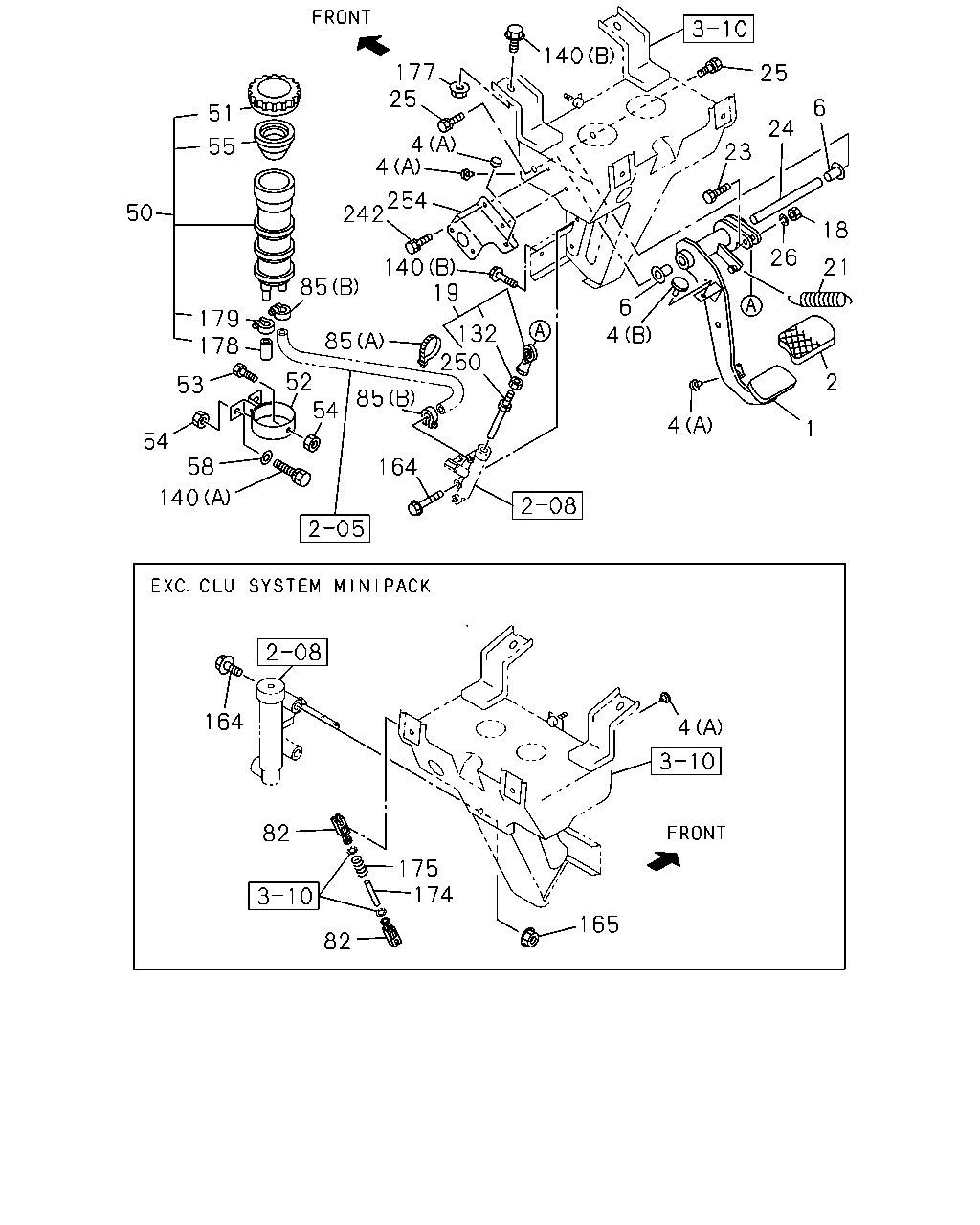

140 177 25 25 6 51 24 4 55 23 4 254 242 140 19 50 18 26 21 85 6 4 179 178 132 85 250 52 54 2 53 85 4 1 54 58 164 140 164 4 82 175 174 165 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PEDAL; CLU CLU SYSTEM MINIPACK(B1Z)	1-73908-171-3	01	1	9806-9911
1	PEDAL; CLU ISUZU M/T<X9A>	1-73908-171-3	01	1	9912-
1	PEDAL; CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-73908-051-3	01	1	9806-9809
1	PEDAL; CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-73908-331-2	01	1	9810-9911
2	COVER; CLU PEDAL	8-94204-810-0	01	1	9806-9911
2	COVER; CLU PEDAL ISUZU M/T<X9A>	8-94204-810-0	01	1	9912-0106
2	COVER; CLU PEDAL ISUZU M/T<X9A>	8-97893-618-1	01	1	0107-
4	STOPPER; CLU PEDAL (A)	1-47319-014-1	04	1	9806-9911
4	STOPPER; CLU PEDAL ISUZU M/T<X9A> (A)	1-47319-014-1	04	1	9912-
4	STOPPER; CLU PEDAL (B)	5-31419-003-0	01	1	9806-9911
4	STOPPER; CLU PEDAL ISUZU M/T<X9A> (B)	5-31419-003-0	01	1	9912-0106
4	STOPPER; CLU PEDAL A/T<X9D> (A)	1-47319-014-1	01	1	9912-
6	BUSHING; CLU PEDAL	1-09330-045-0	02	1	9806-9911
6	BUSHING; CLU PEDAL ISUZU M/T<X9A>	1-09330-045-0	02	1	9912-
18	NUT; PUSH ROD M8	9-09110-508-0	01	1	9806-9911
18	NUT; PUSH ROD ISUZU M/T<X9A> M8	9-09110-508-0	01	1	9912-0106
18	NUT; PUSH ROD ISUZU M/T<X9A> M8	0-91110-508-0	01	1	0107-
19	ROD ASM; PUSH,CLU	1-73996-144-0	01	1	9806-9809
19	ROD ASM; PUSH,CLU	1-73908-332-0	01	1	9810-9911
19	ROD ASM; PUSH,CLU ISUZU M/T<X9A>	1-73908-332-0	01	1	9912-0106
19	ROD ASM; PUSH,CLU ISUZU M/T<X9A>	1-73996-144-1	01	1	0107-
21	SPRING; RETURN,CLU PEDAL CLU SYSTEM MINIPACK(B1Z)	1-73908-265-0	01	1	9806-9911
21	SPRING; RETURN,CLU PEDAL ISUZU M/T<X9A>	1-73908-265-0	01	1	9912-
23	BOLT; PUSH ROD M8X35	9-01060-835-0	01	1	9806-9809
23	BOLT; PUSH ROD M8X43.7	1-73908-333-0	01	1	9810-9911
23	BOLT; PUSH ROD ISUZU M/T<X9A> M8X43.7	1-73908-333-0	01	1	9912-0106
23	BOLT; PUSH ROD ISUZU M/T<X9A> M8X35	0-10960-835-0	01	1	0107-
24	SHAFT; CLU PEDAL	1-73998-936-1	01	1	9806-
25	BOLT; PEDAL M10X25 W/LK WASHER	0-50051-025-0	02	1	9806-
26	WASHER; LK,PUSH ROD ID=8.2	9-09150-608-0	01	1	9806-9911
26	WASHER; LK,PUSH ROD ISUZU M/T<X9A> ID=8.2	9-09150-608-0	01	1	9912-0106
26	WASHER; LK,PUSH ROD ISUZU M/T<X9A> ID=8.2	0-91510-608-0	01	1	0107-
50	TANK; OIL,CLU	1-47530-149-1	01	1	9806-9911
50	TANK; OIL,CLU ISUZU M/T<X9A>	1-47530-149-1	01	1	9912-0009
50	TANK; OIL,CLU ISUZU M/T<X9A>	1-47530-183-1	01	1	0010-
51	CAP; OIL TANK,CLU	9-47525-032-1	01	1	9806-9911
51	CAP; OIL TANK,CLU ISUZU M/T<X9A>	9-47525-032-1	01	1	9912-
52	BRACKET; OIL TANK,CLU M/CYL	9-47537-023-0	01	1	9806-9911
52	BRACKET; OIL TANK,CLU M/CYL ISUZU M/T<X9A>	9-47537-023-1	01	1	9912-
53	BOLT; BRKT,OIL TANK,CLU M/CYL M5X16	0-20800-516-0	01	1	9806-9911
53	BOLT; BRKT,OIL TANK,CLU M/CYL ISUZU M/T<X9A> M5X16	0-20800-516-0	01	1	9912-
54	NUT; BRKT,OIL TANK,CLU M/CYL M5	9-99110-405-0	03	1	9806-9911
54	NUT; BRKT,OIL TANK,CLU M/CYL ISUZU M/T<X9A> M5	9-99110-405-0	03	1	9912-0512
54	NUT; BRKT,OIL TANK,CLU M/CYL ISUZU M/T<X9A> M5	0-91110-505-0	03	1	0601-
55	BAFFLE; RUBBER,CLU M/CYL	9-47529-031-0	01	1	9806-9911
55	BAFFLE; RUBBER,CLU M/CYL ISUZU M/T<X9A>	9-47529-031-0	01	1	9912-
58	WASHER; PL,BRKT,OIL TANK,CLU M/CYL ID=5.3	9-09160-505-0	02	1	9806-9911
58	WASHER; PL,BRKT,OIL TANK,CLU M/CYL ISUZU M/T<X9A> ID=5.3	9-09160-505-0	02	1	9912-0605
58	WASHER; PL,BRKT,OIL TANK,CLU M/CYL ISUZU M/T<X9A> ID=5.3	0-91610-505-0	02	1	0606-
82	CLEVIS; HELPER,CLU PEDAL EXC. CLU SYSTEM MINIPACK(B1Z)	1-73998-472-1	02	1	9806-9911
85	CLIP; HOSE TO M/CYL (A) ID=15 L=65	1-09700-466-0	02	1	9806-9911
85	CLIP; HOSE TO M/CYL ISUZU M/T<X9A> (A) ID=15 L=65	1-09700-466-0	02	1	9912-0607
85	CLIP; HOSE TO M/CYL ISUZU M/T<X9A> (A) ID=14 L=44	9-09917-427-0	02	1	0608-
85	CLIP; HOSE TO M/CYL (B) ID=15	9-09715-098-0	02	1	9806-9911
85	CLIP; HOSE TO M/CYL ISUZU M/T<X9A> (B) ID=15	9-09715-098-0	02	1	9912-
132	NUT; LK,PUSH ROD M8	9-09110-408-0	01	1	9806-9911
132	NUT; LK,PUSH ROD ISUZU M/T<X9A> M8	9-09110-408-0	01	1	9912-0106
132	NUT; LK,PUSH ROD ISUZU M/T<X9A> M8	0-91110-508-0	01	1	0107-
140	BOLT; BRKT (A) M5X16	0-20800-516-0	02	1	9806-9911
140	BOLT; BRKT ISUZU M/T<X9A> (A) M5X16	0-20800-516-0	02	1	9912-
140	BOLT; BRKT (B) M8X20 FLANGE	0-28680-820-0	02	1	9806-0512
140	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-
140	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	9806-0512
140	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
140	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	02	1	9806-0512
140	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-
164	BOLT; CLU M/CYL M10X70 FLANGE	0-28081-070-0	02	1	9806-9911
164	BOLT; CLU M/CYL ISUZU M/T<X9A> M10X70 FLANGE	0-28081-070-0	02	1	9912-0512
164	BOLT; CLU M/CYL ISUZU M/T<X9A> M10X70 FLANGE	0-28051-070-0	02	1	0601-
165	NUT; CLU M/CYL EXC. CLU SYSTEM MINIPACK(B1Z) M10 FLANGE	0-91150-210-0	02	1	9806-9911
174	PIN; STRAIGHT,CLU PEDAL EXC. CLU SYSTEM MINIPACK(B1Z)	1-73998-474-0	01	1	9806-9911
175	SPRING; HELPER EXC. CLU SYSTEM MINIPACK(B1Z)	1-73908-052-0	01	1	9806-9911
177	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9806-0602
177	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
178	CAP; OIL TANK HOSE	1-47539-005-0	01	1	9806-9911
178	CAP; OIL TANK HOSE ISUZU M/T<X9A>	1-47539-005-0	01	1	9912-
179	CLIP; CAP TO OIL TANK ID=15	9-09715-098-0	01	1	9806-9911
179	CLIP; CAP TO OIL TANK ISUZU M/T<X9A> ID=15	9-09715-098-0	01	1	9912-
242	BOLT; BRKT,CLUTCH CLU SYSTEM MINIPACK(B1Z) M6X16 W/LK WASHER	0-50040-616-0	02	1	9806-9911
242	BOLT; BRKT,CLUTCH ISUZU M/T<X9A> M6X16 W/LK WASHER	0-50040-616-0	02	1	9912-0106
242	BOLT; BRKT,CLUTCH ISUZU M/T<X9A> M6X16 W/LK WASHER	0-50540-616-0	02	1	0107-
242	BOLT; BRKT,CLUTCH EXC. CLU SYSTEM MINIPACK(B1Z) M6X16 W/LK WASHER	0-50040-616-0	04	1	9806-9911
250	ROD; PUSH,CLU	1-73996-219-0	01	1	9806-9911
250	ROD; PUSH,CLU ISUZU M/T<X9A>	1-73996-219-0	01	1	9912-
254	BRACKET; CLU SENSOR	1-73998-979-4	01	1	9806-9911
254	BRACKET; CLU SENSOR ISUZU M/T<X9A>	1-73998-979-5	01	1	9912-
