0-40 — FUEL INJECTION SYSTEM (#68254) — 181 parça

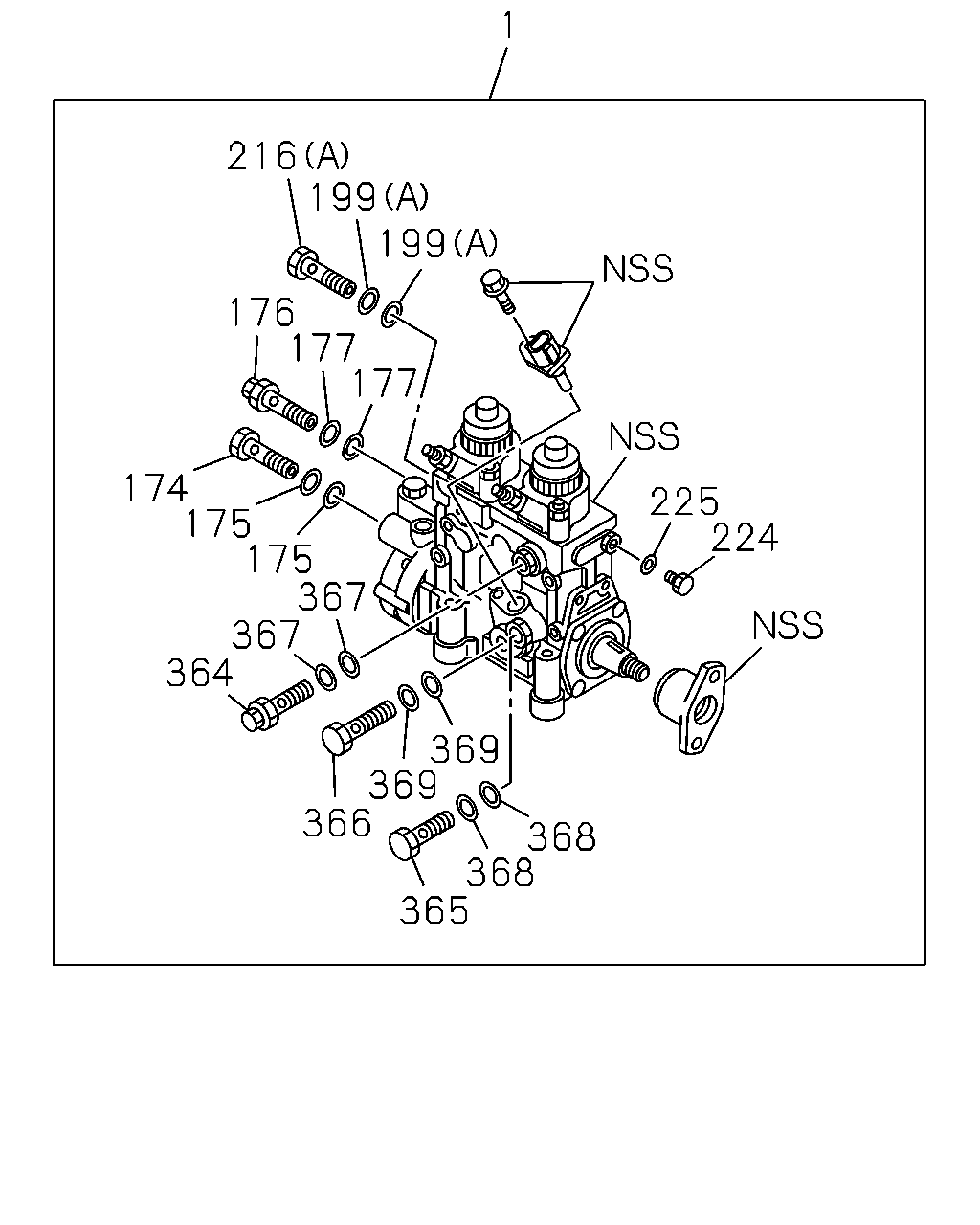

çizim 62937
1 216 199 199 176 177 177 174 175 175 367 367 364 225 224 369 369 366 368 368 365
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-98013-910-4 01 1 0806-1312
1 PUMP ASM; INJ 8-98176-117-2 01 1 1401-
174 BOLT; EYE,FUEL OUTLET,FEED PUMP 5-15759-003-0 01 1 0806-
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP 1-15619-507-0 02 1 0806-
176 BOLT; EYE,FEED PUMP 1-15619-509-0 01 1 0806-1405
176 BOLT; EYE,FEED PUMP 5-15759-002-0 01 1 1406-
177 GASKET; EYE BOLT,INL,FUEL FEED PUMP 1-15619-507-0 02 1 0806-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0806-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0806-
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0806-1101
216 BOLT; EYE
(B) 		8-98043-033-0 01 1 1102-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0806-
224 PLUG; INJ PUMP 1-15619-500-0 01 1 0806-
225 GASKET; PLUG 1-15619-502-0 01 1 0806-
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 0806-
365 BOLT; EYE,OIL INLET
THA 		9-88130-088-0 01 1 0806-
366 BOLT; EYE,OIL OUTLET 1-15619-513-0 01 1 0806-1312
366 BOLT; EYE,OIL OUTLET 5-15759-003-0 01 1 1401-1405
366 BOLT; EYE,OIL OUTLET 1-15619-513-0 01 1 1406-
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 0806-
368 GASKET; EYE BOLT,OIL INLET
THA 		1-15619-508-0 02 1 0806-
369 GASKET; EYE BOLT,OIL OUTLET 1-15619-507-0 02 1 0806-
çizim 63117
171 172 173 180 181 179 182 179 178
BalonParca AdiParca NoAdetTipApplied Date
171 PUMP ASM; FUEL FEED 1-15761-012-0 01 1 0806-1403
171 PUMP ASM; FUEL FEED 8-98257-686-0 01 1 1404-
172 PUMP; PRIMING,FUEL FEED PUMP 1-15761-013-0 01 1 0806-1403
173 GASKET; PRIMING PUMP,FUEL FEED PUMP 1-15769-030-0 01 1 0806-1403
178 CYLINDER; FUEL FEED PUMP 1-15769-024-0 01 1 0806-1403
179 VALVE; CHECK,FEED PUMP 1-15769-027-0 02 1 0806-1403
180 ADAPTER; EYE BOLT,FUEL FEED PUMP 1-15769-031-0 01 1 0806-1403
181 GASKET; ADAPTER 1-15769-029-0 01 1 0806-1403
182 BUSHING; VLV 1-15769-028-0 01 1 0806-1403

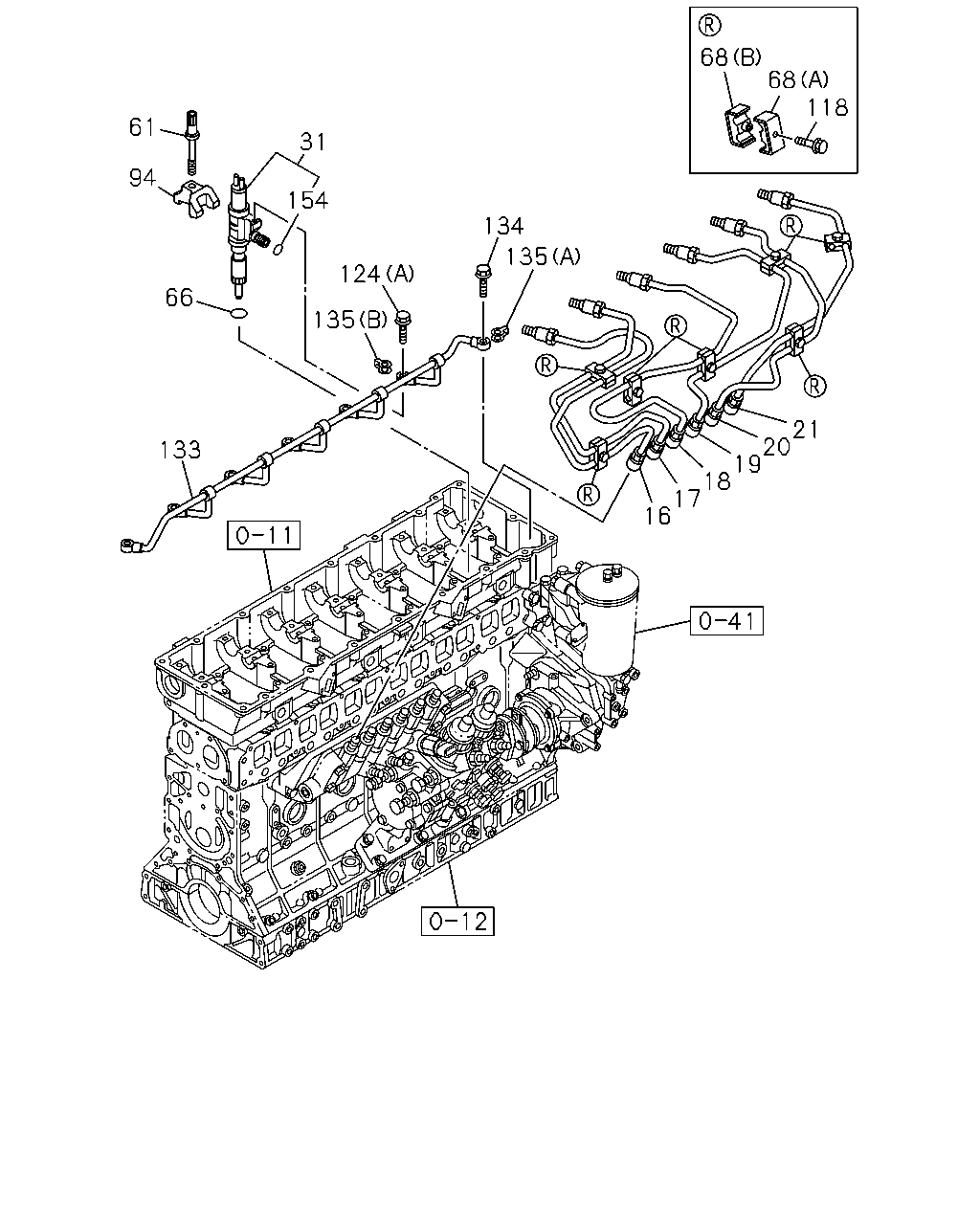

çizim 63347
68 68 118 135 134 133 66 135 124 154 31 61 94 16 17 18 19 20 21
BalonParca AdiParca NoAdetTipApplied Date
16 PIPE; INJ NO.1 8-97605-246-1 01 1 0806-1101
16 PIPE; INJ NO.1 8-98170-931-0 01 1 1102-
17 PIPE; INJ NO.2 8-97605-247-1 01 1 0806-1101
17 PIPE; INJ NO.2 8-98170-932-0 01 1 1102-
18 PIPE; INJ NO.3 8-97605-248-1 01 1 0806-1101
18 PIPE; INJ NO.3 8-98170-933-0 01 1 1102-
19 PIPE; INJ NO.4 8-97603-742-1 01 1 0806-1101
19 PIPE; INJ NO.4 8-98170-934-0 01 1 1102-
20 PIPE; INJ NO.5 8-97605-945-1 01 1 0806-1101
20 PIPE; INJ NO.5 8-98170-935-0 01 1 1102-
21 PIPE; INJ NO.6 8-97603-744-1 01 1 0806-1101
21 PIPE; INJ NO.6 8-98170-936-0 01 1 1102-
31 NOZZLE ASM; INJ 8-97603-099-5 06 1 0806-
61 BOLT; CLAMP NOZZLE HOLDER
M8X60 		8-97603-301-0 06 1 0806-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97608-858-0 06 1 0806-
68 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 10 1 1102-
68 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 10 1 1102-
68 CLIP; INJ PIPE
(C) 		1-09701-269-0 02 1 0806-1101
68 CLIP; INJ PIPE
(D) 		8-94396-371-0 02 1 0806-1101
68 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-1 08 1 0806-1005
68 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-1 08 1 0806-1005
94 BRACKET; INJ NOZZLE 1-15337-028-0 06 1 0806-
118 BOLT; CLIP,INJ PIPE
M6X35 FLANGE THA 		0-28650-635-0 03 1 1102-
118 BOLT; CLIP,INJ PIPE
M6X30 FLANGE THA 		0-28650-630-0 10 1 0806-1101
118 BOLT; CLIP,INJ PIPE
M6X30 FLANGE THA 		0-28650-630-0 07 1 1102-
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0806-
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE THA 		1-09675-086-0 02 1 0806-1405
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE THA 		1-09675-086-0 01 1 1406-
124 BOLT; EYE LEAK OFF PIPE
(C) M14X43 EYE-BOLT 		8-98037-829-0 01 1 0806-
133 PIPE; INJ NOZZLE LEAK OFF 8-97603-112-0 01 1 0806-
134 BOLT; JOINT,LEAK OFF PIPE
M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806-
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0806-
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=12.6 		8-98065-993-0 01 1 0806-
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 0806-1106
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1107-

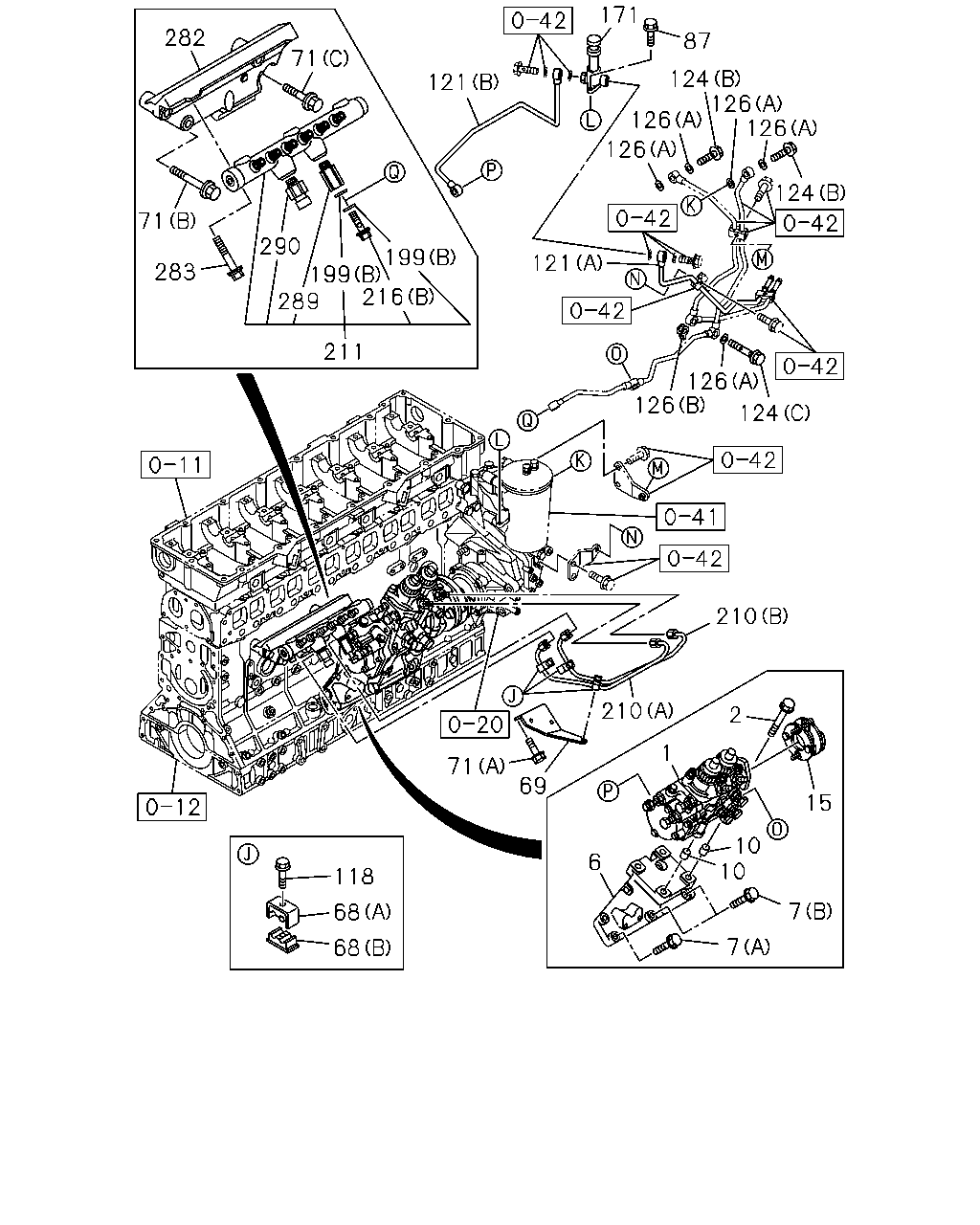

çizim 194002
7 7 10 10 15 2 1 6 68 68 118 71 69 210 210 124 126 126 121 124 126 126 124 87 171 126 126 121 71 282 71 283 289 290 211 216 199 199
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-98013-910-4 01 1 0806-1312
1 PUMP ASM; INJ 8-98176-117-2 01 1 1401-
2 BOLT; INJ PUMP
M8X90 FLANGE 		0-28060-890-0 04 1 0806-
6 BRACKET; INJ PUMP TO C/BL 8-97603-738-1 01 1 0806-
7 BOLT; INJ PUMP BRKT
(A) M12X40 FLANGE THA 		0-28151-240-0 04 1 0806-
7 BOLT; INJ PUMP BRKT
(B) M12X70 FLANGE 		0-28151-270-0 02 1 0806-
10 DOWEL; INJ PUMP 1-11229-012-1 02 1 0806-
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-202-1 01 1 0806-1312
15 COUPLING ASM; INJ PUMP 8-97610-800-0 01 1 1401-
68 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 10 1 1102-
68 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 10 1 1102-
68 CLIP; INJ PIPE
(C) 		1-09701-269-0 02 1 0806-1101
68 CLIP; INJ PIPE
(D) 		8-94396-371-0 02 1 0806-1101
68 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-1 08 1 0806-1005
68 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-1 08 1 0806-1005
69 BRACKET; INJ PIPE CLIP 8-97603-113-0 01 1 0806-1101
69 BRACKET; INJ PIPE CLIP 8-98175-342-0 01 1 1102-
71 BOLT; BRKT
(C) M10X40 FLANGE 		0-28151-040-0 01 1 1102-
71 BOLT; BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 02 1 0806-1101
71 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28050-820-0 02 1 1102-
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28151-060-0 04 1 0806-1101
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28151-060-0 03 1 1102-
87 BOLT; PUMP
M8X25 FLANGE THA 		0-28650-825-0 02 1 0806-
118 BOLT; CLIP,INJ PIPE
M6X35 FLANGE THA 		0-28650-635-0 03 1 1102-
118 BOLT; CLIP,INJ PIPE
M6X30 FLANGE THA 		0-28650-630-0 10 1 0806-1101
118 BOLT; CLIP,INJ PIPE
M6X30 FLANGE THA 		0-28650-630-0 07 1 1102-
121 PIPE; FUEL,FEED PUMP,SUCTION
(A) 		8-97606-231-0 01 1 0806-1403
121 PIPE; FUEL,FEED PUMP,SUCTION
(A) 		8-98257-406-0 01 1 1404-
121 PIPE; FUEL,FEED PUMP,SUCTION
(B) 		8-97606-232-0 01 1 0806-
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0806-
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE THA 		1-09675-086-0 02 1 0806-1405
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE THA 		1-09675-086-0 01 1 1406-
124 BOLT; EYE LEAK OFF PIPE
(C) M14X43 EYE-BOLT 		8-98037-829-0 01 1 0806-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=25 		1-09630-141-0 05 1 0806-1405
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=25 		1-09630-141-0 03 1 1406-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=21 		8-97251-047-0 01 1 0806-
171 PUMP ASM; FUEL FEED 1-15761-012-0 01 1 0806-1403
171 PUMP ASM; FUEL FEED 8-98257-686-0 01 1 1404-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0806-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0806-
210 PIPE; INJ,C/R
(A) 		8-97603-101-0 01 1 0806-1101
210 PIPE; INJ,C/R
(A) 		8-98170-937-1 01 1 1102-
210 PIPE; INJ,C/R
(B) 		8-97603-102-0 01 1 0806-1101
210 PIPE; INJ,C/R
(B) 		8-98170-938-1 01 1 1102-
211 RAIL ASM; COMMON 8-97603-121-1 01 1 0806-1101
211 RAIL ASM; COMMON 8-97622-718-1 01 1 1102-1501
211 RAIL ASM; COMMON 8-98299-773-0 01 1 1502-
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0806-1101
216 BOLT; EYE
(B) 		8-98043-033-0 01 1 1102-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0806-
282 BRACKET; COMMON RAIL 8-97603-838-0 01 1 0806-1101
282 BRACKET; COMMON RAIL 8-98098-851-1 01 1 1102-
283 BOLT; COMMON RAIL
M10X40 FLANGE 		0-28151-040-0 04 1 0806-1101
283 BOLT; COMMON RAIL
M10X50 FLANGE THA 		0-28151-050-0 02 1 1102-
289 LIMITER; FUEL PRESS 8-98032-283-0 01 1 0806-1101
289 LIMITER; FUEL PRESS 8-98097-606-0 01 1 1102-
290 SENSOR; PRESS 8-97318-684-0 01 1 0806-

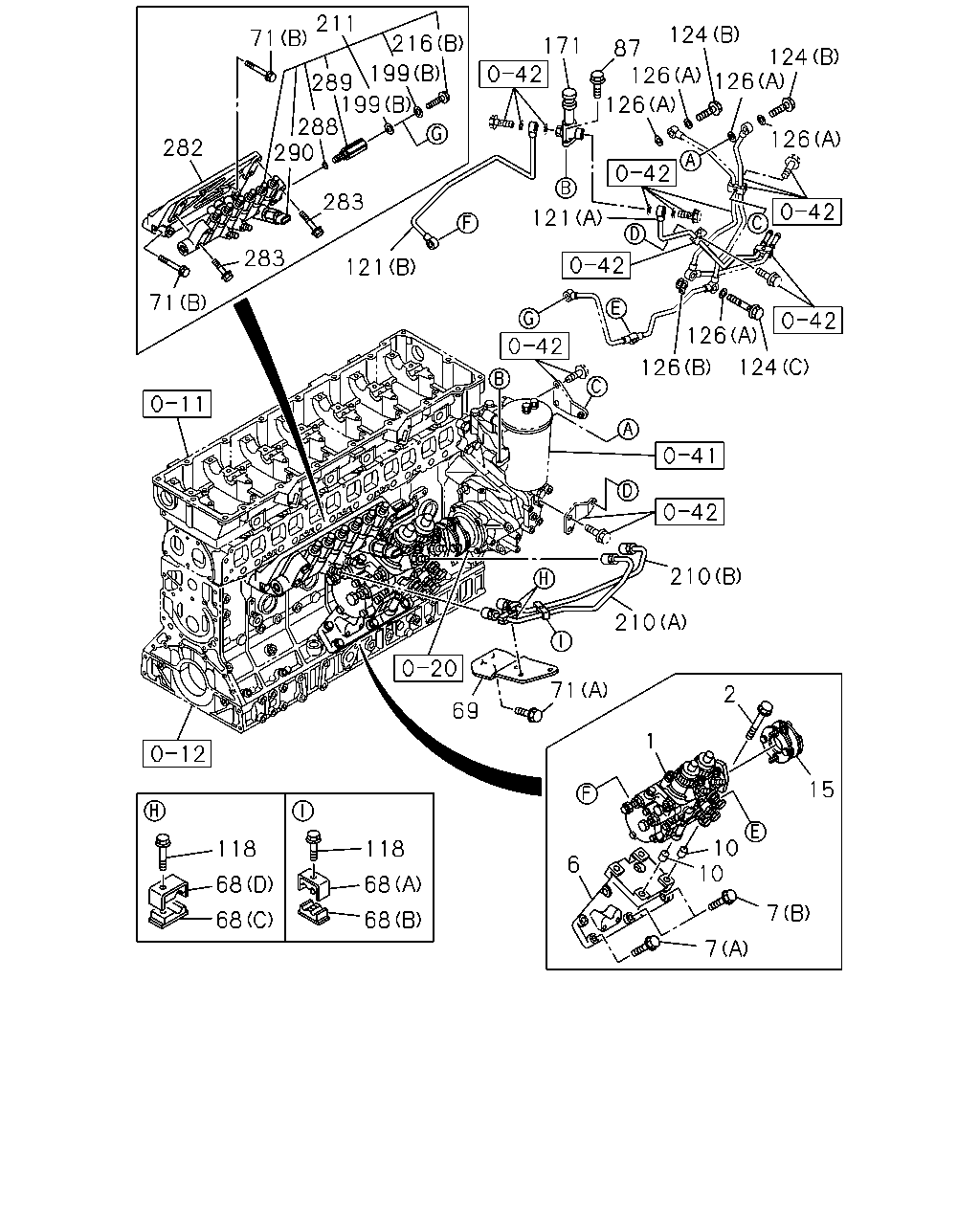

çizim 194003
71 283 121 283 290 282 288 199 289 71 211 199 216 171 87 124 124 126 126 126 126 121 126 126 124 210 210 71 69 2 1 15 10 10 7 7 6 68 68 118 118 68 68
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-98013-910-4 01 1 0806-1312
1 PUMP ASM; INJ 8-98176-117-2 01 1 1401-
2 BOLT; INJ PUMP
M8X90 FLANGE 		0-28060-890-0 04 1 0806-
6 BRACKET; INJ PUMP TO C/BL 8-97603-738-1 01 1 0806-
7 BOLT; INJ PUMP BRKT
(A) M12X40 FLANGE THA 		0-28151-240-0 04 1 0806-
7 BOLT; INJ PUMP BRKT
(B) M12X70 FLANGE 		0-28151-270-0 02 1 0806-
10 DOWEL; INJ PUMP 1-11229-012-1 02 1 0806-
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-202-1 01 1 0806-1312
15 COUPLING ASM; INJ PUMP 8-97610-800-0 01 1 1401-
68 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 10 1 1102-
68 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 10 1 1102-
68 CLIP; INJ PIPE
(C) 		1-09701-269-0 02 1 0806-1101
68 CLIP; INJ PIPE
(D) 		8-94396-371-0 02 1 0806-1101
68 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-1 08 1 0806-1005
68 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-1 08 1 0806-1005
69 BRACKET; INJ PIPE CLIP 8-97603-113-0 01 1 0806-1101
69 BRACKET; INJ PIPE CLIP 8-98175-342-0 01 1 1102-
71 BOLT; BRKT
(C) M10X40 FLANGE 		0-28151-040-0 01 1 1102-
71 BOLT; BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 02 1 0806-1101
71 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28050-820-0 02 1 1102-
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28151-060-0 04 1 0806-1101
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28151-060-0 03 1 1102-
87 BOLT; PUMP
M8X25 FLANGE THA 		0-28650-825-0 02 1 0806-
118 BOLT; CLIP,INJ PIPE
M6X35 FLANGE THA 		0-28650-635-0 03 1 1102-
118 BOLT; CLIP,INJ PIPE
M6X30 FLANGE THA 		0-28650-630-0 10 1 0806-1101
118 BOLT; CLIP,INJ PIPE
M6X30 FLANGE THA 		0-28650-630-0 07 1 1102-
121 PIPE; FUEL,FEED PUMP,SUCTION
(A) 		8-97606-231-0 01 1 0806-1403
121 PIPE; FUEL,FEED PUMP,SUCTION
(A) 		8-98257-406-0 01 1 1404-
121 PIPE; FUEL,FEED PUMP,SUCTION
(B) 		8-97606-232-0 01 1 0806-
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0806-
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE THA 		1-09675-086-0 02 1 0806-1405
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE THA 		1-09675-086-0 01 1 1406-
124 BOLT; EYE LEAK OFF PIPE
(C) M14X43 EYE-BOLT 		8-98037-829-0 01 1 0806-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=25 		1-09630-141-0 05 1 0806-1405
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=25 		1-09630-141-0 03 1 1406-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=21 		8-97251-047-0 01 1 0806-
171 PUMP ASM; FUEL FEED 1-15761-012-0 01 1 0806-1403
171 PUMP ASM; FUEL FEED 8-98257-686-0 01 1 1404-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0806-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0806-
210 PIPE; INJ,C/R
(A) 		8-97603-101-0 01 1 0806-1101
210 PIPE; INJ,C/R
(A) 		8-98170-937-1 01 1 1102-
210 PIPE; INJ,C/R
(B) 		8-97603-102-0 01 1 0806-1101
210 PIPE; INJ,C/R
(B) 		8-98170-938-1 01 1 1102-
211 RAIL ASM; COMMON 8-97603-121-1 01 1 0806-1101
211 RAIL ASM; COMMON 8-97622-718-1 01 1 1102-1501
211 RAIL ASM; COMMON 8-98299-773-0 01 1 1502-
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0806-1101
216 BOLT; EYE
(B) 		8-98043-033-0 01 1 1102-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0806-
282 BRACKET; COMMON RAIL 8-97603-838-0 01 1 0806-1101
282 BRACKET; COMMON RAIL 8-98098-851-1 01 1 1102-
283 BOLT; COMMON RAIL
M10X40 FLANGE 		0-28151-040-0 04 1 0806-1101
283 BOLT; COMMON RAIL
M10X50 FLANGE THA 		0-28151-050-0 02 1 1102-
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0806-1101
289 LIMITER; FUEL PRESS 8-98032-283-0 01 1 0806-1101
289 LIMITER; FUEL PRESS 8-98097-606-0 01 1 1102-
290 SENSOR; PRESS 8-97318-684-0 01 1 0806-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
