Sayfa 2-01 - Isuzu EPC

2-01 — CLUTCH (#6825) — 238 parça

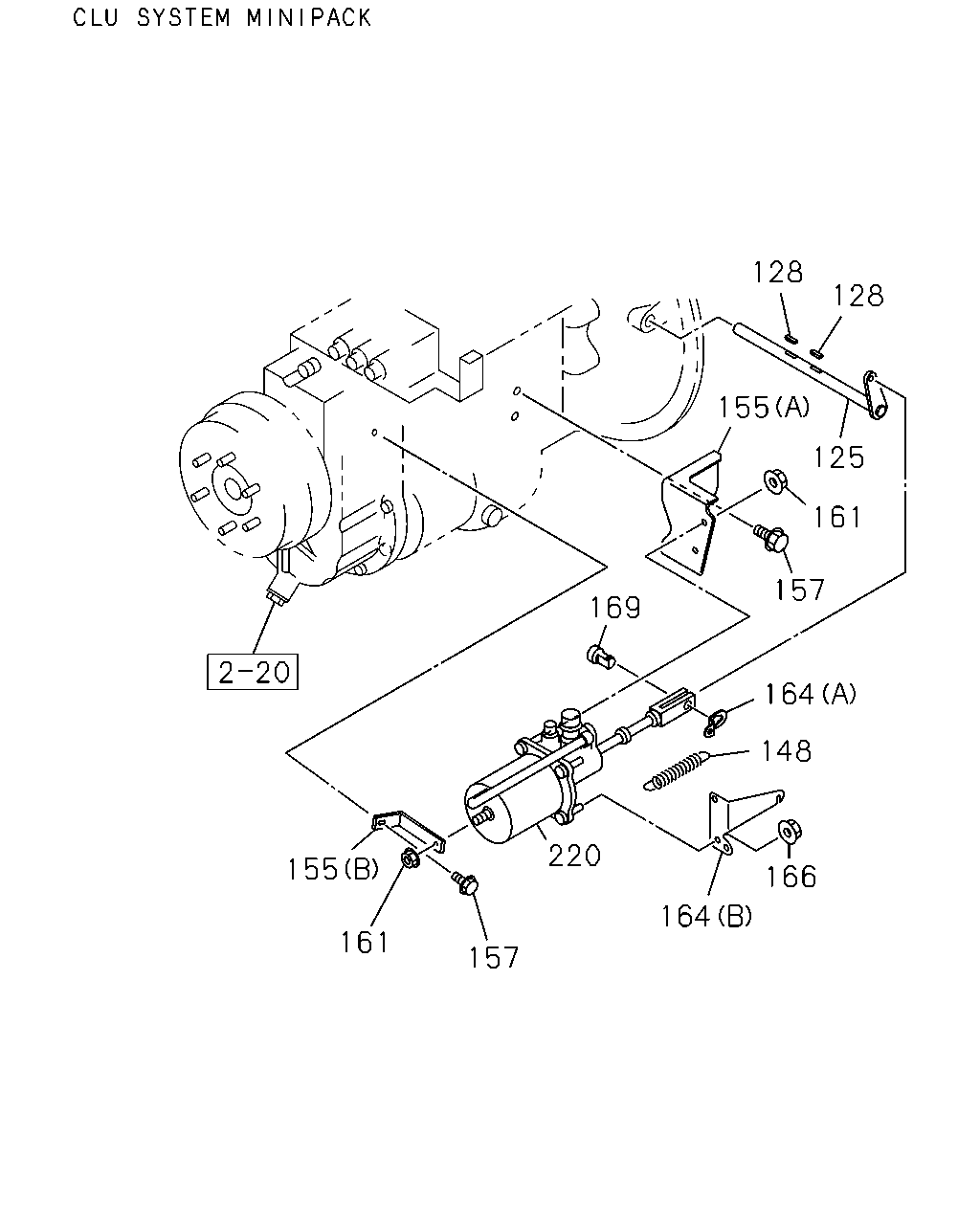

128 128 155 125 161 157 169 164 148 220 155 166 164 161 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
125	SHAFT; CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-31342-298-1	01	1	9806-9911	●	●	●	●
125	SHAFT; CLU CLU SYSTEM MINIPACK(B1Z)	1-31342-169-1	01	1	9806-9911	●	●	●	●	●
125	SHAFT; CLU	1-31342-169-1	01	1	9912-					●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9806-9809	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9810-9911	●	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9912-					●
148	SPRING; CLU RETURN CLU SYSTEM MINIPACK(B1Z)	9-09942-530-1	01	1	9806-9809	●	●	●	●
148	SPRING; CLU RETURN CLU SYSTEM MINIPACK(B1Z)	9-09942-530-1	01	1	9810-9911	●	●	●	●	●
148	SPRING; CLU RETURN	9-09942-530-1	01	1	9912-					●
148	SPRING; CLU RETURN EXC. CLU SYSTEM MINIPACK(B1Z)	1-09583-249-0	01	1	9806-9911	●	●	●	●
155	BRACKET; MINIPACK CLU SYSTEM MINIPACK(B1Z) (A)	1-31429-175-2	01	1	9806-9809		●	●	●
155	BRACKET; MINIPACK CLU SYSTEM MINIPACK(B1Z) (A)	1-31429-175-2	01	1	9810-9911		●	●	●	●
155	BRACKET; MINIPACK (A)	1-31429-175-2	01	1	9912-					●
155	BRACKET; MINIPACK CLU SYSTEM MINIPACK(B1Z) (B)	1-31429-176-0	01	1	9806-9809		●	●	●
155	BRACKET; MINIPACK CLU SYSTEM MINIPACK(B1Z) (B)	1-31429-176-0	01	1	9810-9911		●	●	●	●
155	BRACKET; MINIPACK (B)	1-31429-176-0	01	1	9912-					●
155	BRACKET; MINIPACK CLU SYSTEM MINIPACK(B1Z) (B)	1-31429-174-0	01	1	9806-9911	●
155	BRACKET; MINIPACK CLU SYSTEM MINIPACK(B1Z) (A)	1-31429-217-0	01	1	9806-9911	●
157	BOLT; BRKT CLU SYSTEM MINIPACK(B1Z) M10X18 FLANGE	0-28181-018-0	03	1	9806-9809	●	●	●	●
157	BOLT; BRKT CLU SYSTEM MINIPACK(B1Z) M10X18 FLANGE	0-28181-018-0	03	1	9810-9911	●	●	●	●	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9912-					●
161	NUT; BRKT CLU SYSTEM MINIPACK(B1Z) M8 FLANGE	0-91150-208-0	03	1	9806-9809	●	●	●	●
161	NUT; BRKT CLU SYSTEM MINIPACK(B1Z) M8 FLANGE	0-91150-208-0	03	1	9810-9911	●	●	●	●	●
161	NUT; BRKT M8 FLANGE	0-91150-208-0	03	1	9912-0602					●
161	NUT; BRKT M8 FLANGE	0-91180-208-0	03	1	0603-					●
164	EYE; SPRING CLU SYSTEM MINIPACK(B1Z) (A)	1-31426-019-1	01	1	9806-9809	●	●	●	●
164	EYE; SPRING CLU SYSTEM MINIPACK(B1Z) (A)	1-31426-019-1	01	1	9810-9911	●	●	●	●	●
164	EYE; SPRING (A)	1-31426-019-1	01	1	9912-					●
164	EYE; SPRING CLU SYSTEM MINIPACK(B1Z) (B) L=85	1-47477-788-0	01	1	9806-9809	●	●	●	●
164	EYE; SPRING CLU SYSTEM MINIPACK(B1Z) (B) L=85	1-47477-788-0	01	1	9810-9911	●	●	●	●	●
164	EYE; SPRING (B) L=85	1-47477-788-0	01	1	9912-					●
166	NUT; SPRING EYE CLU SYSTEM MINIPACK(B1Z) M8 FLANGE	0-91150-208-0	02	1	9806-9809	●	●	●	●
166	NUT; SPRING EYE CLU SYSTEM MINIPACK(B1Z) M8 FLANGE	0-91150-208-0	02	1	9810-9911	●	●	●	●	●
166	NUT; SPRING EYE M8 FLANGE	0-91150-208-0	02	1	9912-0602					●
166	NUT; SPRING EYE M8 FLANGE	0-91180-208-0	02	1	0603-					●
169	PIN; JOINT,MINIPACK CLU SYSTEM MINIPACK(B1Z)	1-31424-009-0	01	1	9806-9809	●	●	●	●
169	PIN; JOINT,MINIPACK CLU SYSTEM MINIPACK(B1Z)	1-31424-009-0	01	1	9810-9911	●	●	●	●	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	9912-					●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. CLU SYSTEM MINIPACK(B1Z)	1-31800-406-0	01	1	9806-9809	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. CLU SYSTEM MINIPACK(B1Z)	1-31800-406-0	01	1	9810-9911	●	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-406-3	01	1	9912-					●

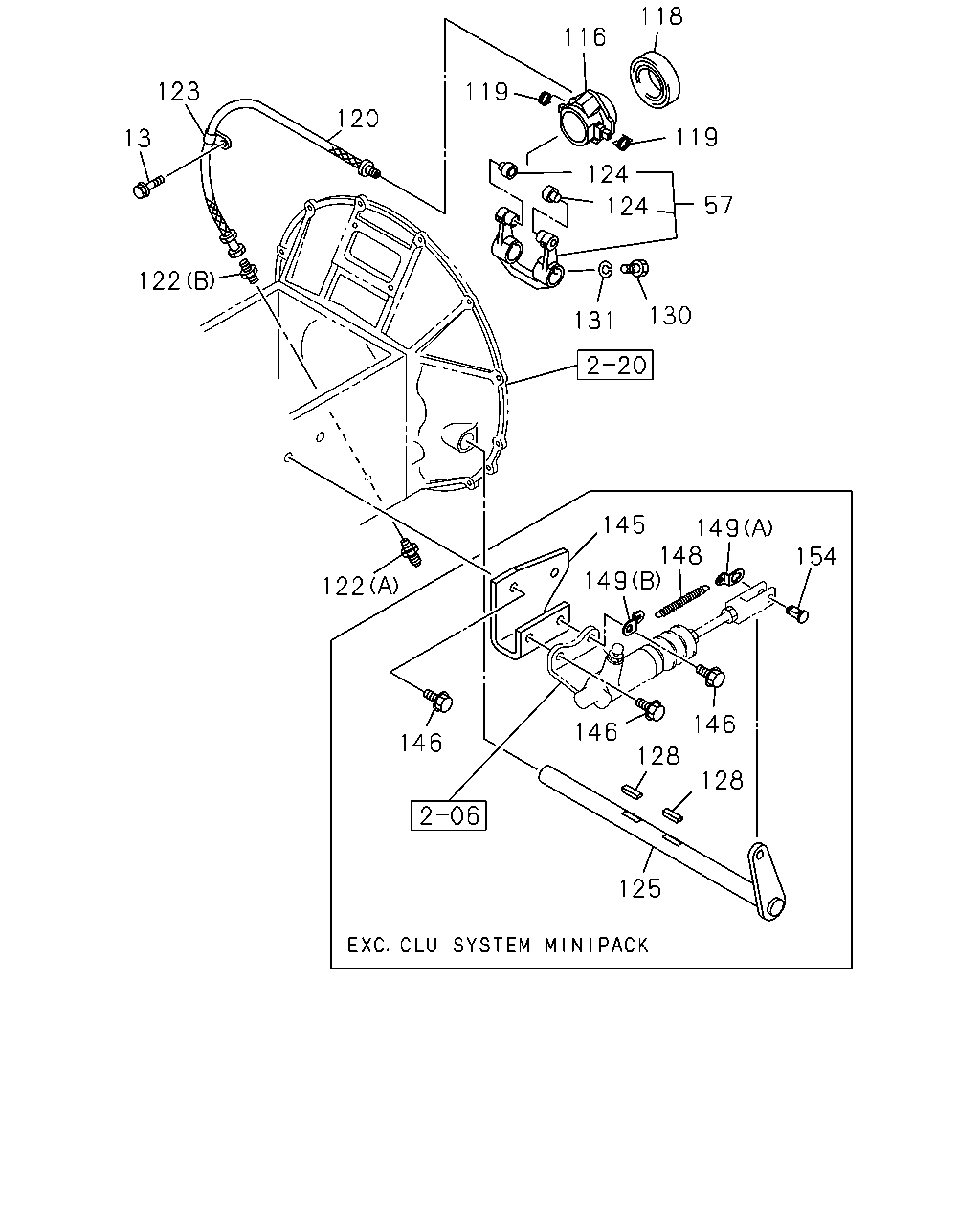

118 116 123 119 120 119 13 124 57 124 122 130 131 145 149 148 149 154 122 146 146 146 128 128 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9806-9809	●	●	●	●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9810-9911	●	●	●	●	●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9912-0512					●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-					●
57	FORK; SHIFT,CLU	1-31340-056-0	01	1	9806-9809	●	●	●	●
57	FORK; SHIFT,CLU	1-31340-056-0	01	1	9810-9911	●	●	●	●	●
57	FORK; SHIFT,CLU	1-31340-056-1	01	1	9912-					●
116	BLOCK; SHIFT,CLU	1-31321-052-2	01	1	9806-9809	●	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-052-2	01	1	9810-9911	●	●	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-052-3	01	1	9912-					●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9806-9809	●	●	●	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9810-9911	●	●	●	●	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9912-0111					●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-					●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9806-9809	●	●	●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9810-9911	●	●	●	●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9912-					●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9806-9809	●	●	●	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9810-9911	●	●	●	●	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9912-					●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9806-9809	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9810-9911	●	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9912-0003					●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-					●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 L=23	1-09660-710-0	01	1	9806-9809	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 L=23	1-09660-710-0	01	1	9810-9911	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 L=23	1-09660-710-0	01	1	9912-					●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9806-9809	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9810-9911	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9912-0512					●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-					●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9806-9809	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9810-9911	●	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9912-0606					●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0607-					●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9806-9809	●	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9810-9911	●	●	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9912-					●
125	SHAFT; CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-31342-298-1	01	1	9806-9911	●	●	●	●
125	SHAFT; CLU CLU SYSTEM MINIPACK(B1Z)	1-31342-169-1	01	1	9806-9911	●	●	●	●	●
125	SHAFT; CLU	1-31342-169-1	01	1	9912-					●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9806-9809	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9810-9911	●	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9912-					●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9806-9809	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9810-9911	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9912-0512					●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-					●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9806-9809	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9810-9911	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9912-0603					●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-					●
145	BRACKET; SLAVE CYL,OIL CLU EXC. CLU SYSTEM MINIPACK(B1Z)	1-47579-058-0	01	1	9806-9911	●	●	●	●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. CLU SYSTEM MINIPACK(B1Z) M10X25 FLANGE	0-28181-025-0	04	1	9806-9911	●	●	●	●
148	SPRING; CLU RETURN CLU SYSTEM MINIPACK(B1Z)	9-09942-530-1	01	1	9806-9809	●	●	●	●
148	SPRING; CLU RETURN CLU SYSTEM MINIPACK(B1Z)	9-09942-530-1	01	1	9810-9911	●	●	●	●	●
148	SPRING; CLU RETURN	9-09942-530-1	01	1	9912-					●
148	SPRING; CLU RETURN EXC. CLU SYSTEM MINIPACK(B1Z)	1-09583-249-0	01	1	9806-9911	●	●	●	●
149	EYE; SPRING,RETURN SPRING EXC. CLU SYSTEM MINIPACK(B1Z) (A)	1-31426-019-1	01	1	9806-9911	●	●	●	●
149	EYE; SPRING,RETURN SPRING EXC. CLU SYSTEM MINIPACK(B1Z) (B) T=2.3	1-47324-005-1	01	1	9806-9911	●	●	●	●
154	PIN; JAW JOINT EXC. CLU SYSTEM MINIPACK(B1Z)	1-31424-009-0	01	1	9806-9911	●	●	●	●

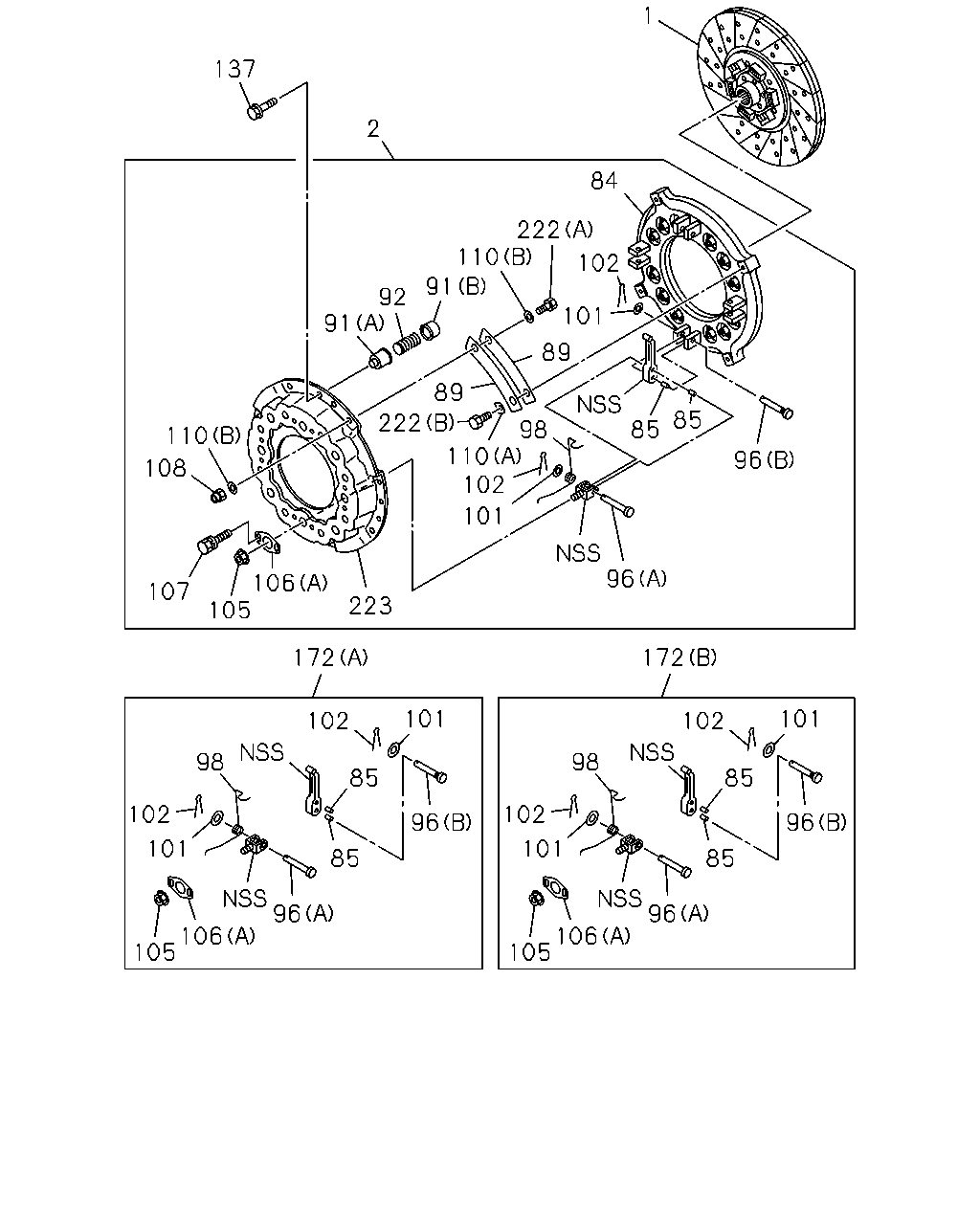

1 137 2 84 222 110 91 102 92 101 91 89 89 85 85 222 98 110 110 102 96 108 101 96 106 105 107 223 172 172 101 101 102 102 98 98 85 85 102 102 96 96 101 101 85 85 96 96 106 105 106 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	9806-9911		●	●	●
1	DISC; CLUTCH 15"	1-31240-676-0	01	1	9806-9911	●				●
1	DISC; CLUTCH 15"	1-31240-676-0	01	1	9912-0009					●
1	DISC; CLUTCH 15"	1-31240-875-1	01	1	0010-					●
2	PLATE ASM; PRESSURE,CLU	1-31220-291-0	01	1	9806-9911		●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-305-1	01	1	9806-9911	●				●
2	PLATE ASM; PRESSURE,CLU	1-31220-173-2	01	1	9912-0109					●
2	PLATE ASM; PRESSURE,CLU	1-31220-371-2	01	1	0110-					●
84	PLATE; PRESSURE 14"	1-31221-082-0	01	1	9806-9911		●	●	●
84	PLATE; PRESSURE 15"	1-31221-051-0	01	1	9806-9810	●				●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	9811-9911	●				●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	9912-					●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9806-9911	●	●	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9912-					●
89	PLATE; STRAP	1-31229-001-0	08	1	9806-9911		●	●	●
89	PLATE; STRAP	1-31229-001-0	12	1	9806-9810	●				●
89	PLATE; STRAP	1-31229-050-0	16	1	9811-9911	●				●
89	PLATE; STRAP	1-31229-050-0	16	1	9912-					●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9806-9911	●	●	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9912-					●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9806-9911	●	●	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9912-					●
92	SPRING; CLU	1-09580-234-0	12	1	9806-9911		●	●	●
92	SPRING; CLU	1-31214-039-0	12	1	9806-9911	●				●
92	SPRING; CLU	1-31214-019-0	12	1	9912-0308					●
92	SPRING; CLU	1-31214-086-0	12	1	0309-					●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	9806-9911	●	●	●	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	9912-					●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	9806-9810		●	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	9811-9911	●	●	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	9912-					●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-008-0	04	1	9806-9810	●
98	SPRING; RETURN	1-31233-003-0	04	1	9806-9911	●	●	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9912-					●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9806-9911	●	●	●	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9912-0109					●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0110-					●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9806-9911		●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9806-9911	●				●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9912-					●
105	NUT; SUPPORT	9-31235-061-0	04	1	9806-9911	●	●	●	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9912-0109					●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0308					●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-					●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	08	1	9806-9911		●	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9912-					●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9806-9911	●	●	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9806-9911	●	●	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9912-0308					●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-					●
108	NUT; STRAP	1-09449-036-0	04	1	9806-9911	●				●
108	NUT; STRAP	1-09449-036-0	04	1	9912-					●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	9806-9911	●				●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	9912-0403					●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0404-					●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	9806-9911	●				●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	9912-					●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9806-9911	●	●	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9912-0512					●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-					●
172	LEVER KIT; RELEASE,CLU (A)	1-87830-620-0	01	1	9806-9911		●	●	●
172	LEVER KIT; RELEASE,CLU (A)	1-87830-808-1	01	1	9806-9911	●				●
172	LEVER KIT; RELEASE,CLU (A)	1-87410-042-0	01	1	9912-0109					●
172	LEVER KIT; RELEASE,CLU (B)	1-87830-902-1	01	1	0110-0307					●
172	LEVER KIT; RELEASE,CLU (B)	1-87831-173-1	01	1	0308-					●
222	BOLT; STRAP (C) M10X26 HEX SOKET	1-09040-101-0	04	1	9806-9911		●	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9806-9911	●				●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9912-					●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9806-9911	●				●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9912-					●
223	COVER; CLU	1-31211-019-1	01	1	9912-					●

2 1 88 89 89 106 109 222 101 102 91 92 91 101 85 96 102 84 85 96 137 98 172 106 105 107 102 101 96 85 101 102 85 98 105 106 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	9806-9911		●	●	●
1	DISC; CLUTCH 15"	1-31240-676-0	01	1	9806-9911	●				●
1	DISC; CLUTCH 15"	1-31240-676-0	01	1	9912-0009					●
1	DISC; CLUTCH 15"	1-31240-875-1	01	1	0010-					●
2	PLATE ASM; PRESSURE,CLU	1-31220-291-0	01	1	9806-9911		●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-305-1	01	1	9806-9911	●				●
2	PLATE ASM; PRESSURE,CLU	1-31220-173-2	01	1	9912-0109					●
2	PLATE ASM; PRESSURE,CLU	1-31220-371-2	01	1	0110-					●
84	PLATE; PRESSURE 14"	1-31221-082-0	01	1	9806-9911		●	●	●
84	PLATE; PRESSURE 15"	1-31221-051-0	01	1	9806-9810	●				●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	9811-9911	●				●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	9912-					●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9806-9911	●	●	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9912-					●
88	COVER SUB ASM; CLU	1-31211-036-0	01	1	9806-9911		●	●	●
89	PLATE; STRAP	1-31229-001-0	08	1	9806-9911		●	●	●
89	PLATE; STRAP	1-31229-001-0	12	1	9806-9810	●				●
89	PLATE; STRAP	1-31229-050-0	16	1	9811-9911	●				●
89	PLATE; STRAP	1-31229-050-0	16	1	9912-					●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9806-9911	●	●	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9912-					●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9806-9911	●	●	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9912-					●
92	SPRING; CLU	1-09580-234-0	12	1	9806-9911		●	●	●
92	SPRING; CLU	1-31214-039-0	12	1	9806-9911	●				●
92	SPRING; CLU	1-31214-019-0	12	1	9912-0308					●
92	SPRING; CLU	1-31214-086-0	12	1	0309-					●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	9806-9911	●	●	●	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	9912-					●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	9806-9810		●	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	9811-9911	●	●	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	9912-					●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-008-0	04	1	9806-9810	●
98	SPRING; RETURN	1-31233-003-0	04	1	9806-9911	●	●	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9912-					●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9806-9911	●	●	●	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9912-0109					●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0110-					●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9806-9911		●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9806-9911	●				●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9912-					●
105	NUT; SUPPORT	9-31235-061-0	04	1	9806-9911	●	●	●	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9912-0109					●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0308					●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-					●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	08	1	9806-9911		●	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9912-					●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9806-9911	●	●	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9806-9911	●	●	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9912-0308					●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-					●
109	WASHER; LK,STRAP ID=10.2	9-09150-510-0	04	1	9806-9911		●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9806-9911	●	●	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9912-0512					●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-					●
172	LEVER KIT; RELEASE,CLU (A)	1-87830-620-0	01	1	9806-9911		●	●	●
172	LEVER KIT; RELEASE,CLU (A)	1-87830-808-1	01	1	9806-9911	●				●
172	LEVER KIT; RELEASE,CLU (A)	1-87410-042-0	01	1	9912-0109					●
172	LEVER KIT; RELEASE,CLU (B)	1-87830-902-1	01	1	0110-0307					●
172	LEVER KIT; RELEASE,CLU (B)	1-87831-173-1	01	1	0308-					●
222	BOLT; STRAP (C) M10X26 HEX SOKET	1-09040-101-0	04	1	9806-9911		●	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9806-9911	●				●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9912-					●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9806-9911	●				●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9912-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
